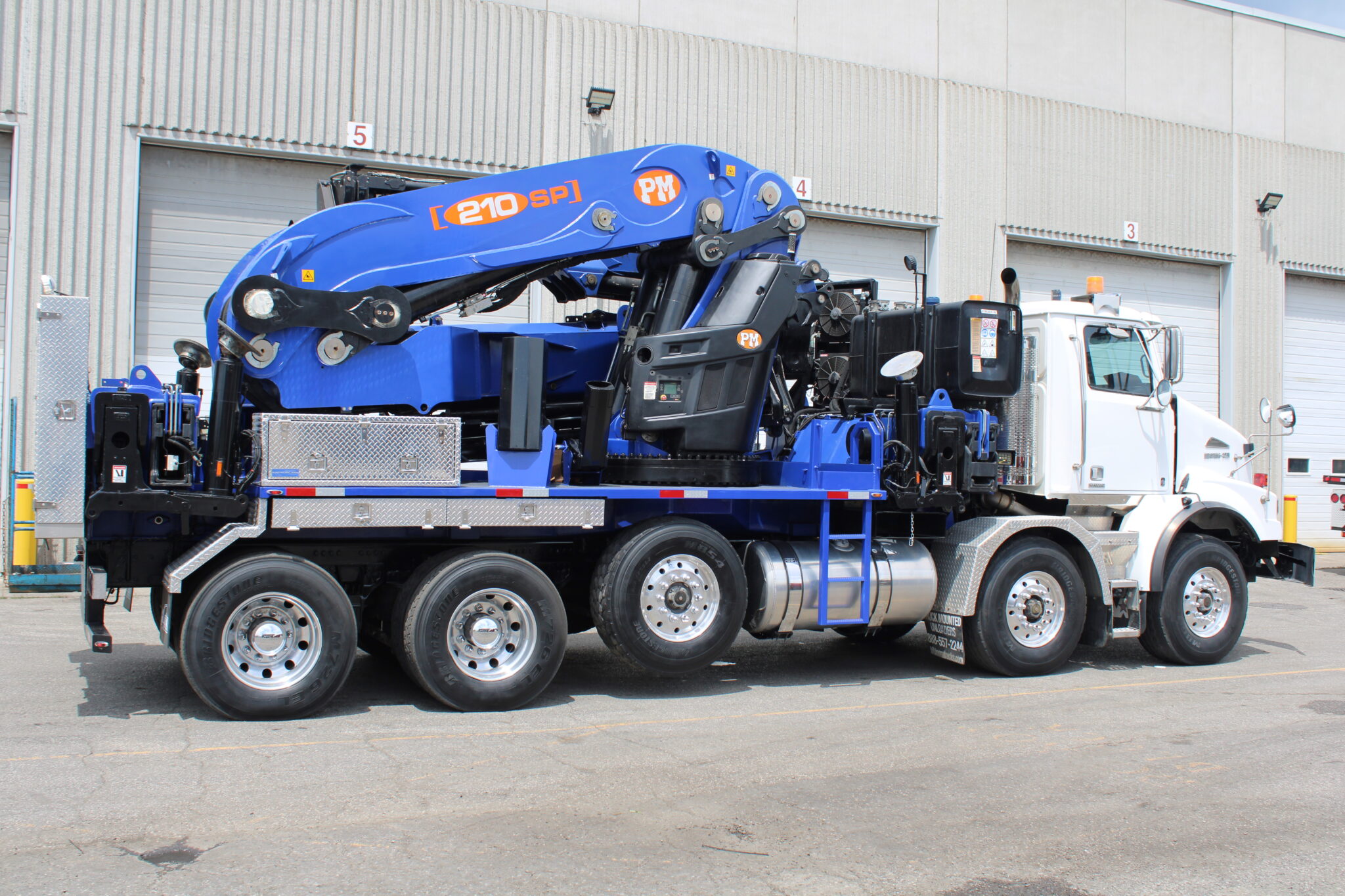

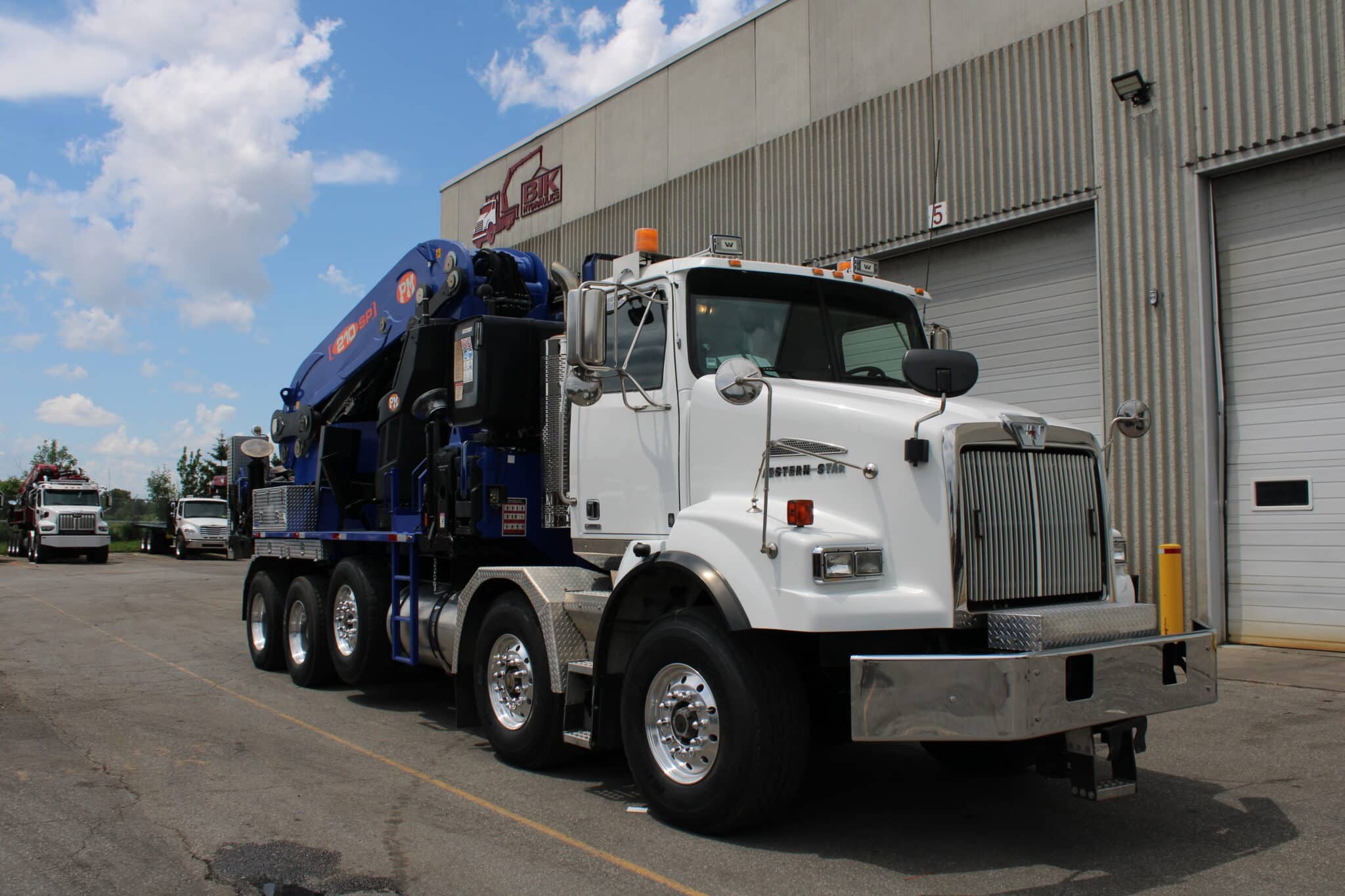

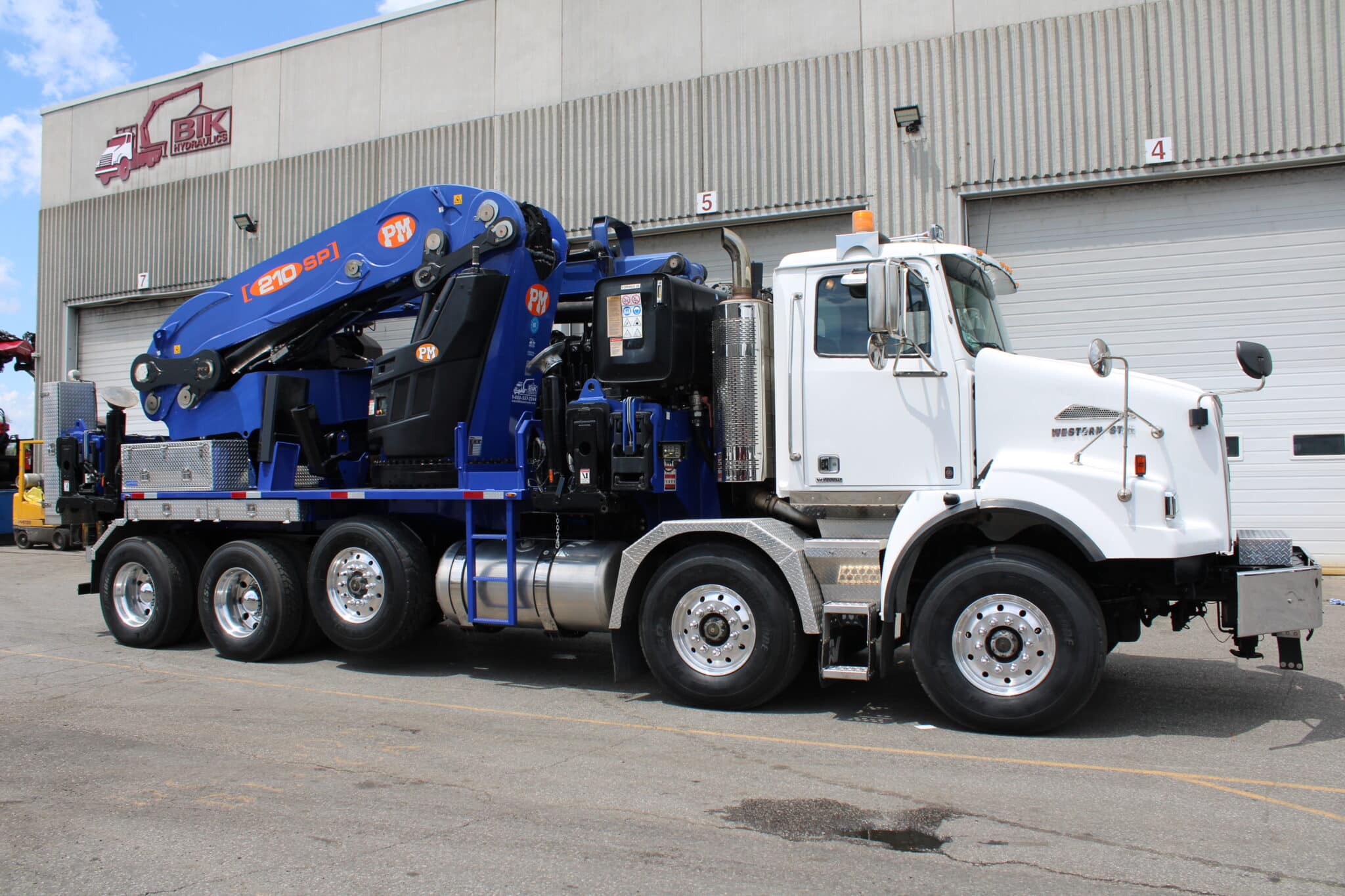

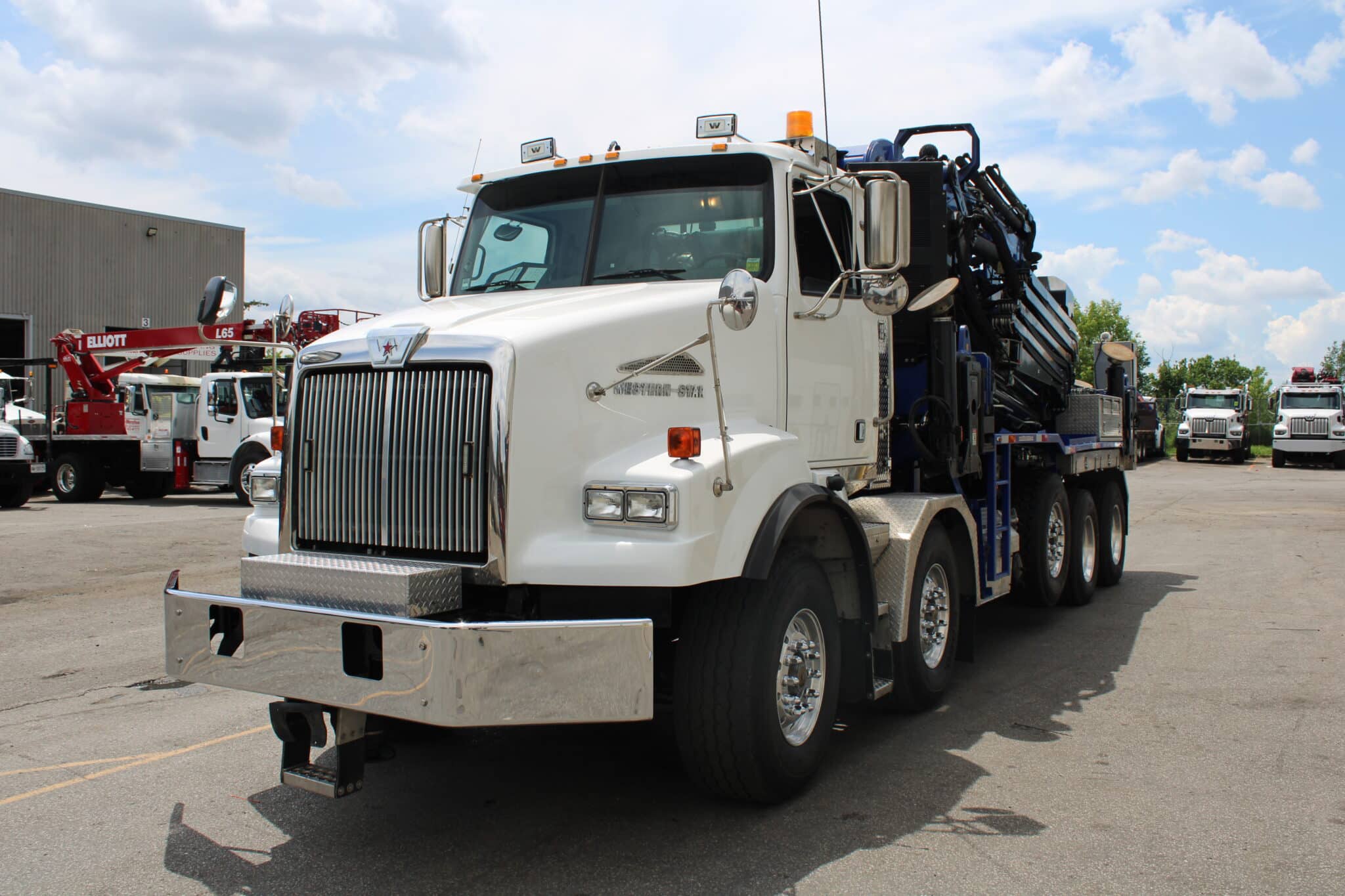

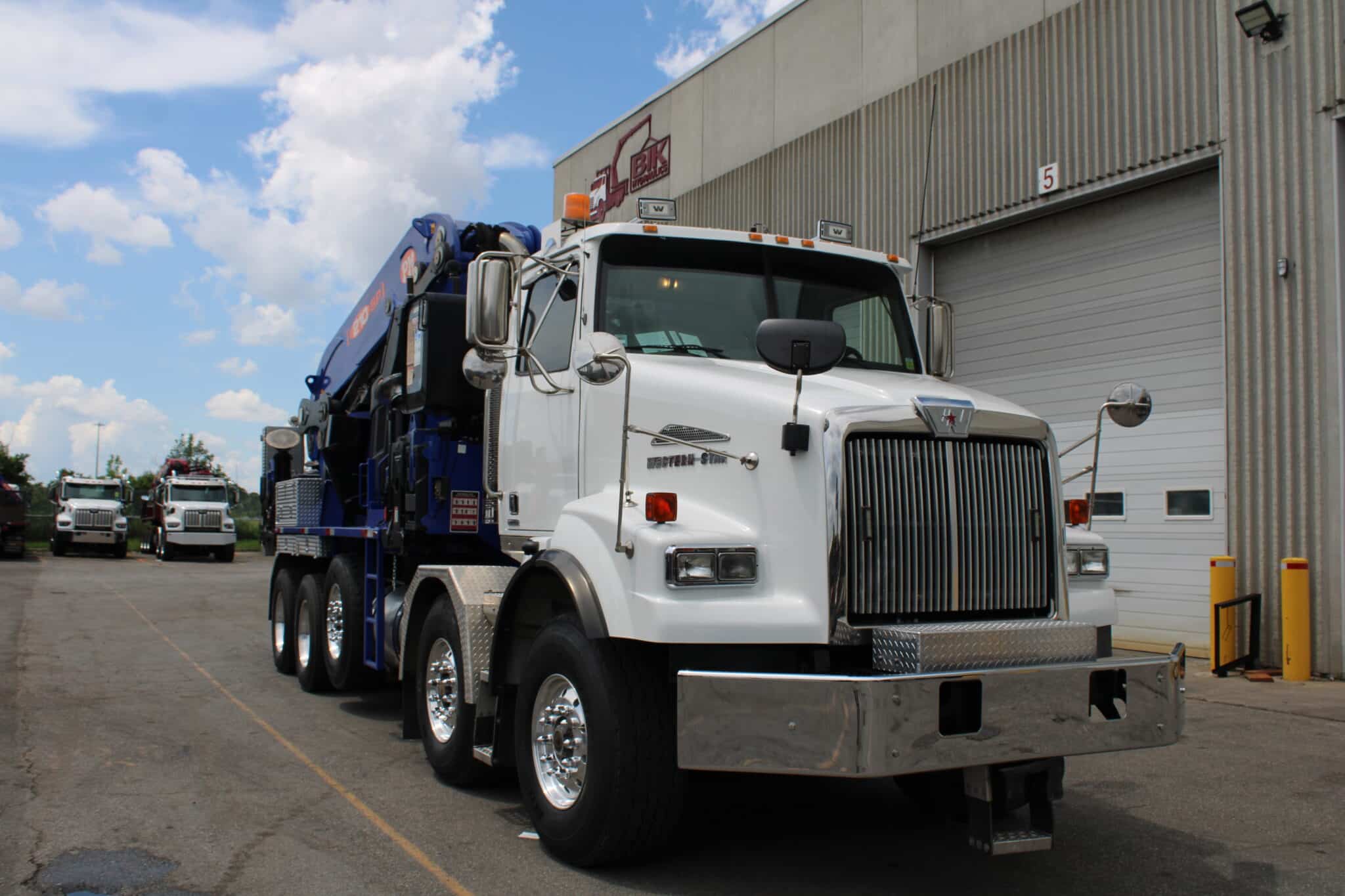

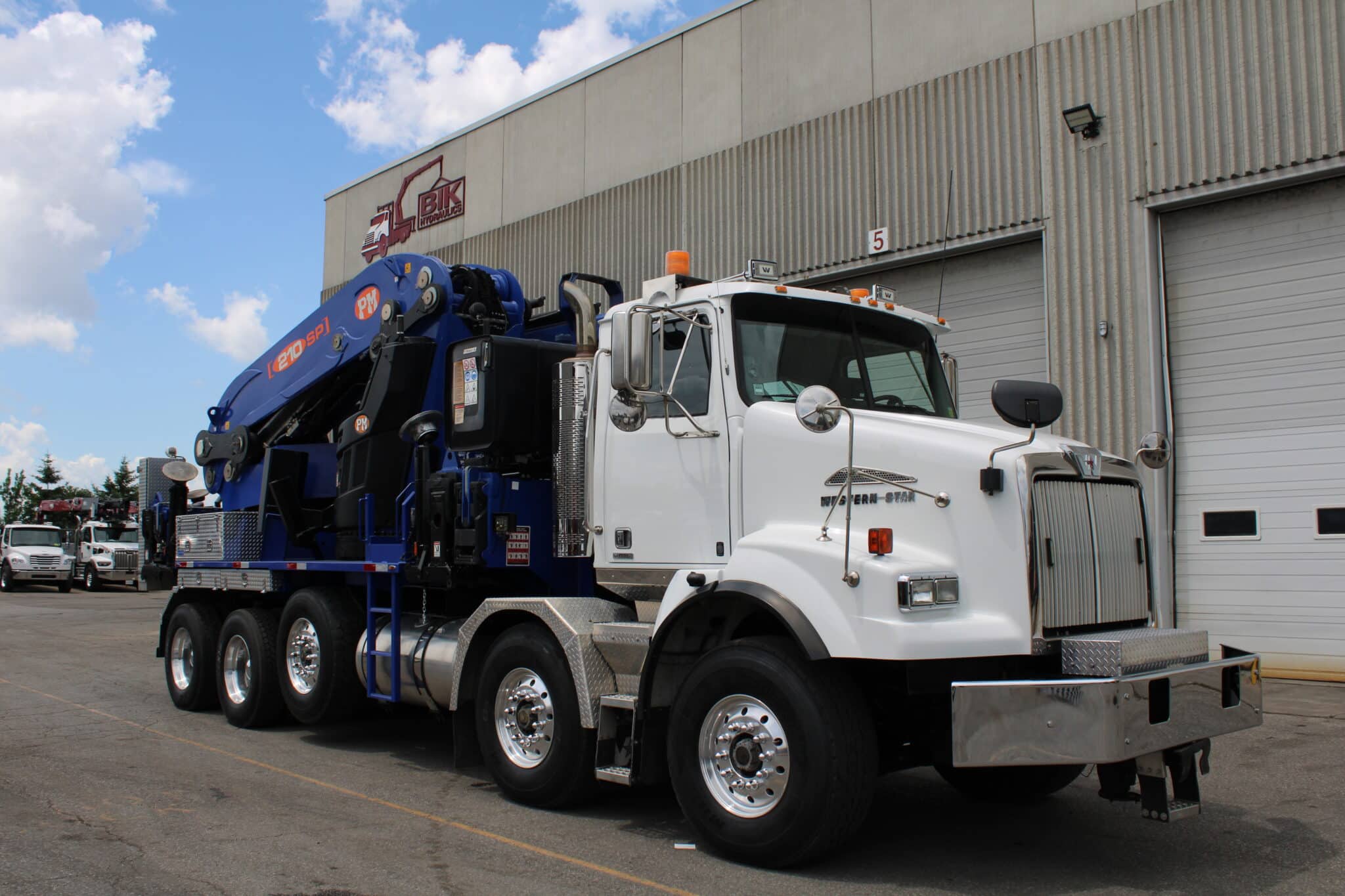

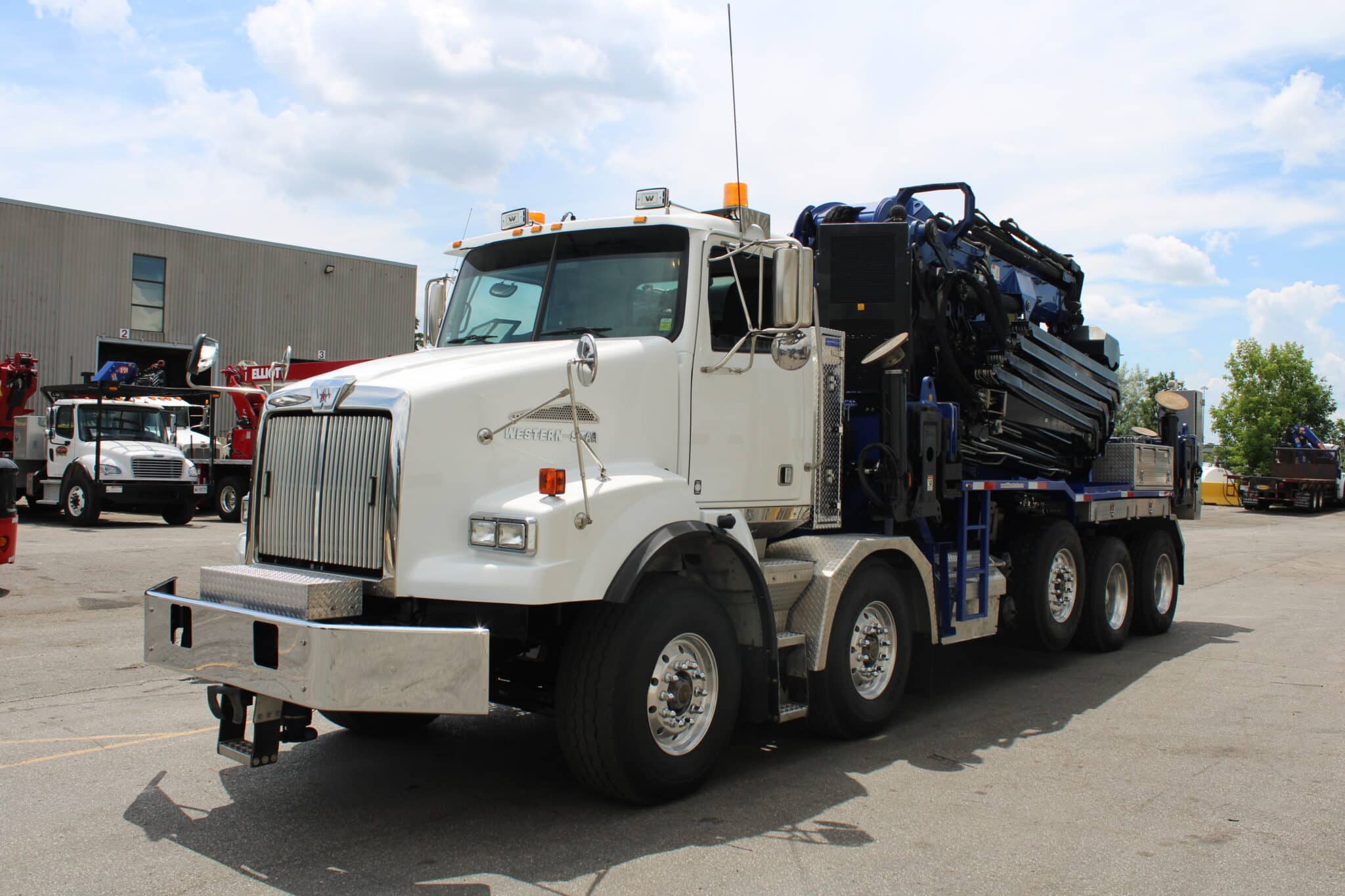

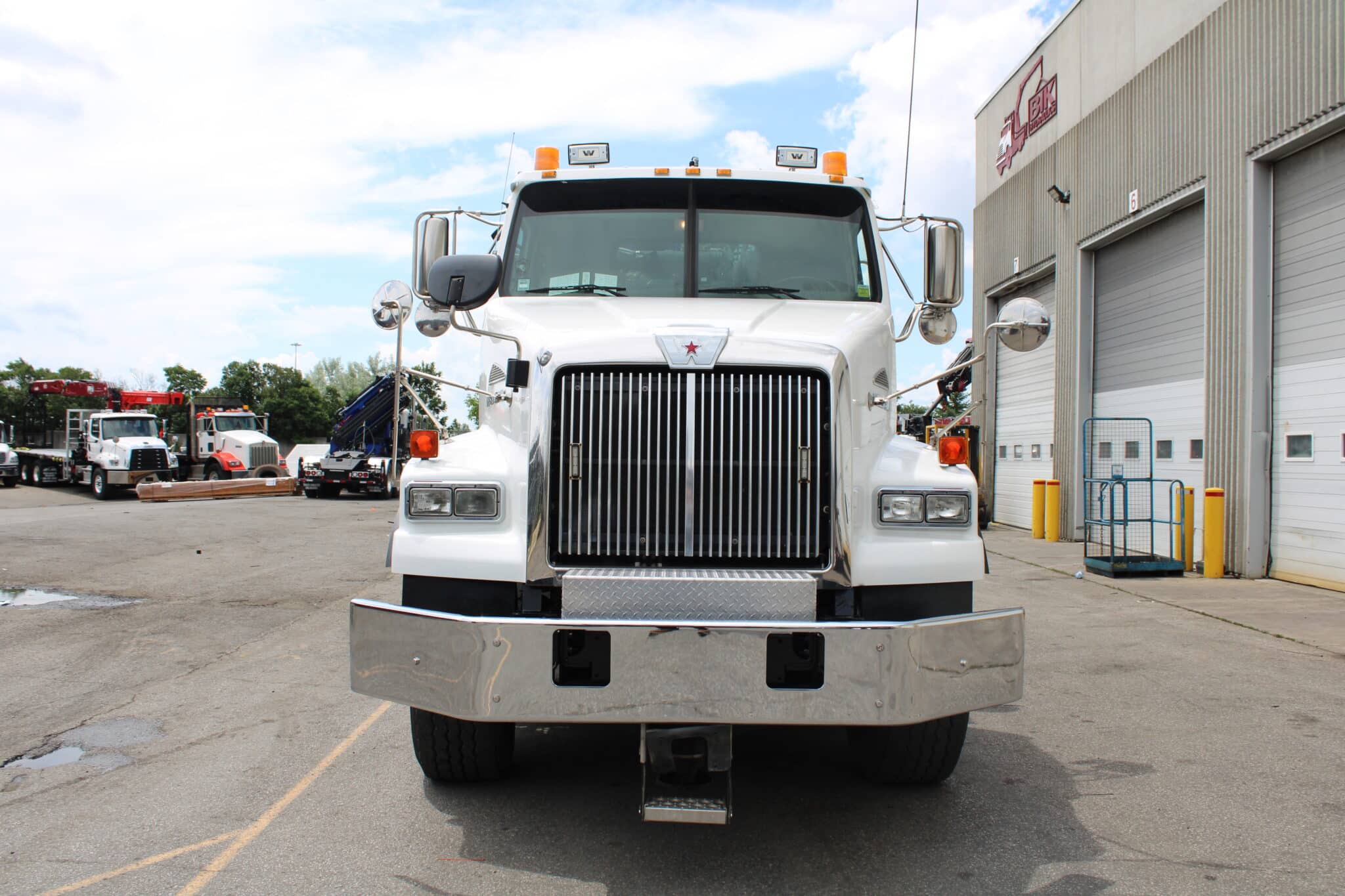

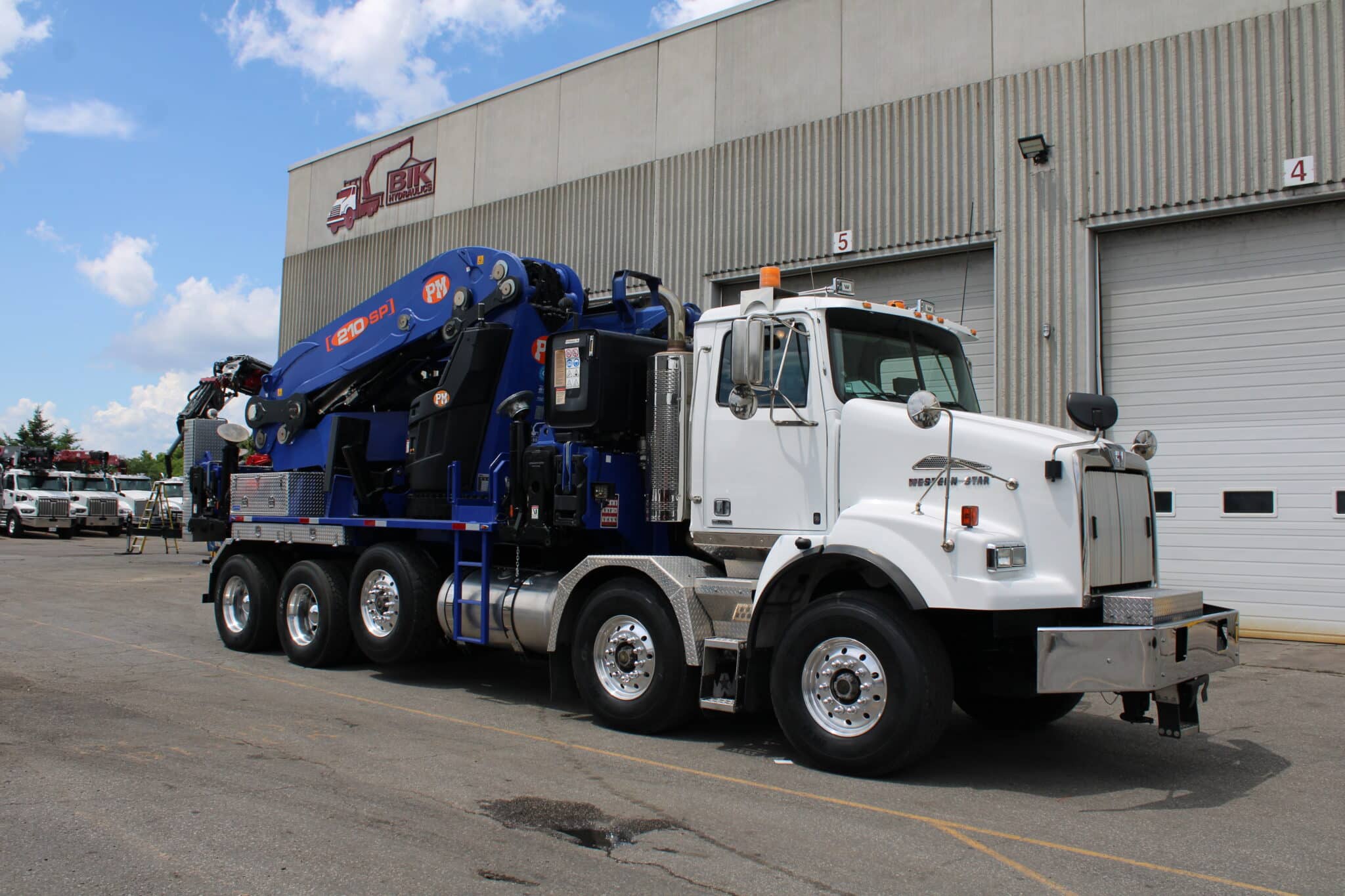

USED 2018 Western Star 4800 with PM 210 Knuckle Boom

Boom Details

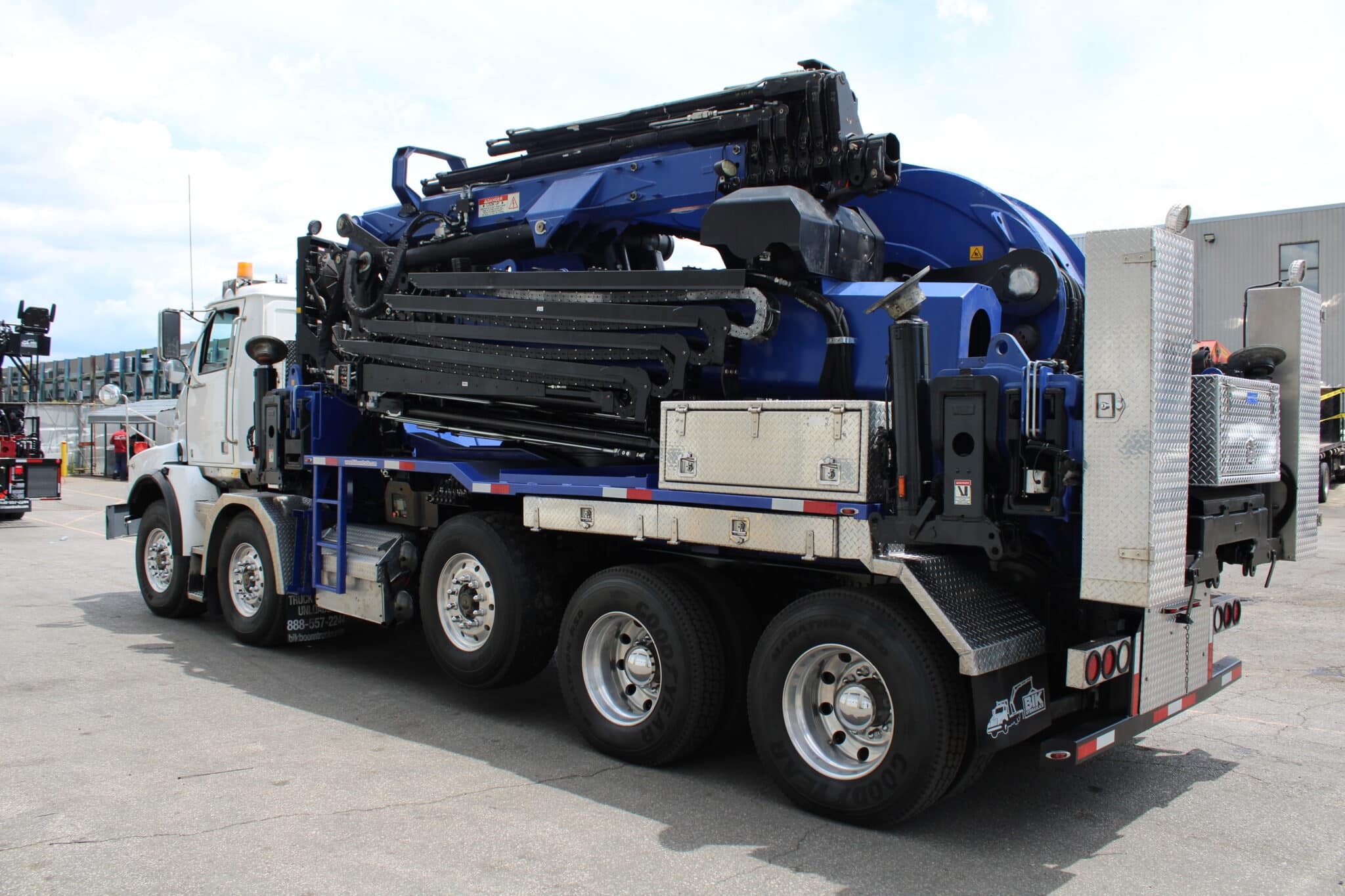

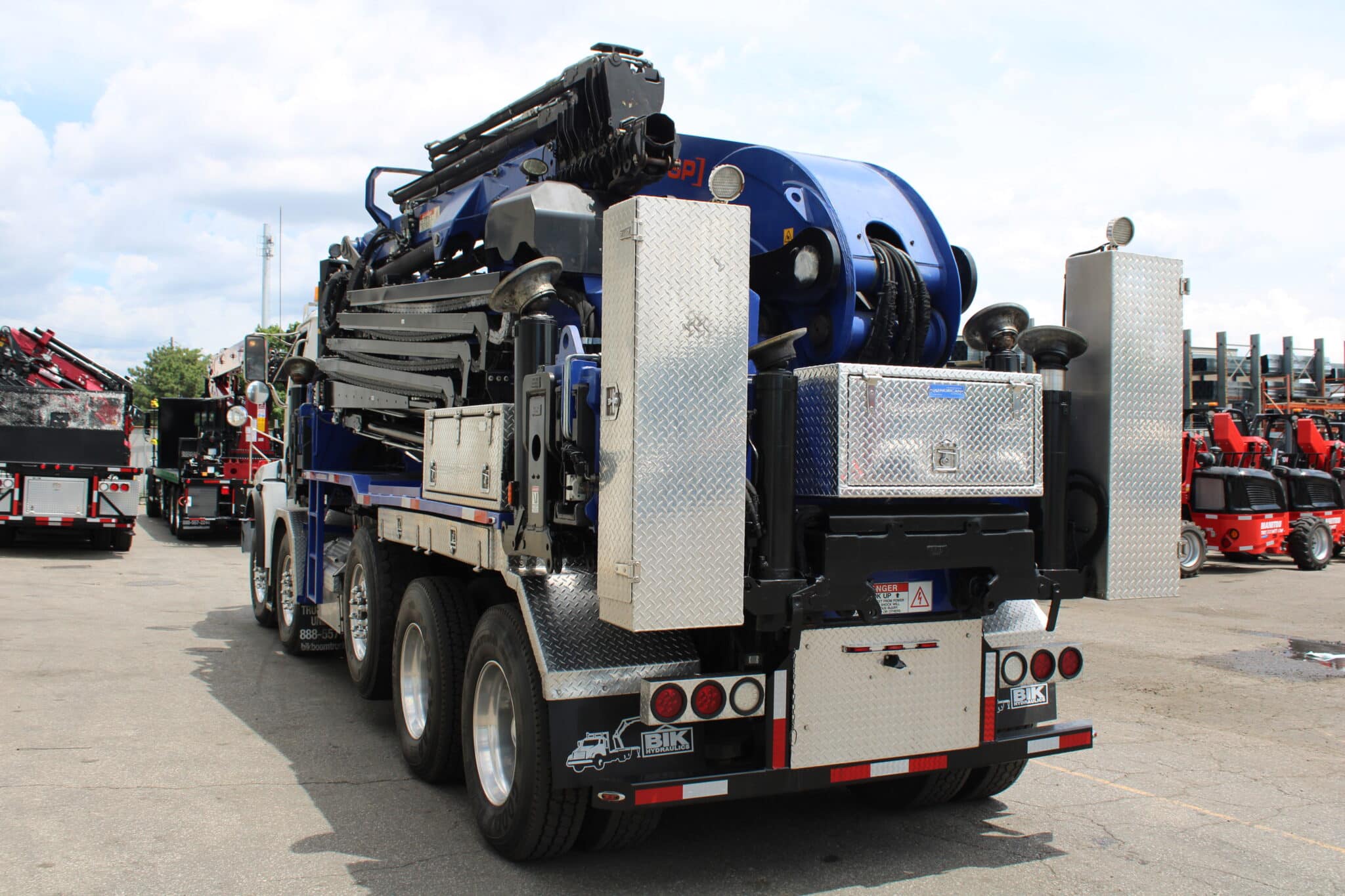

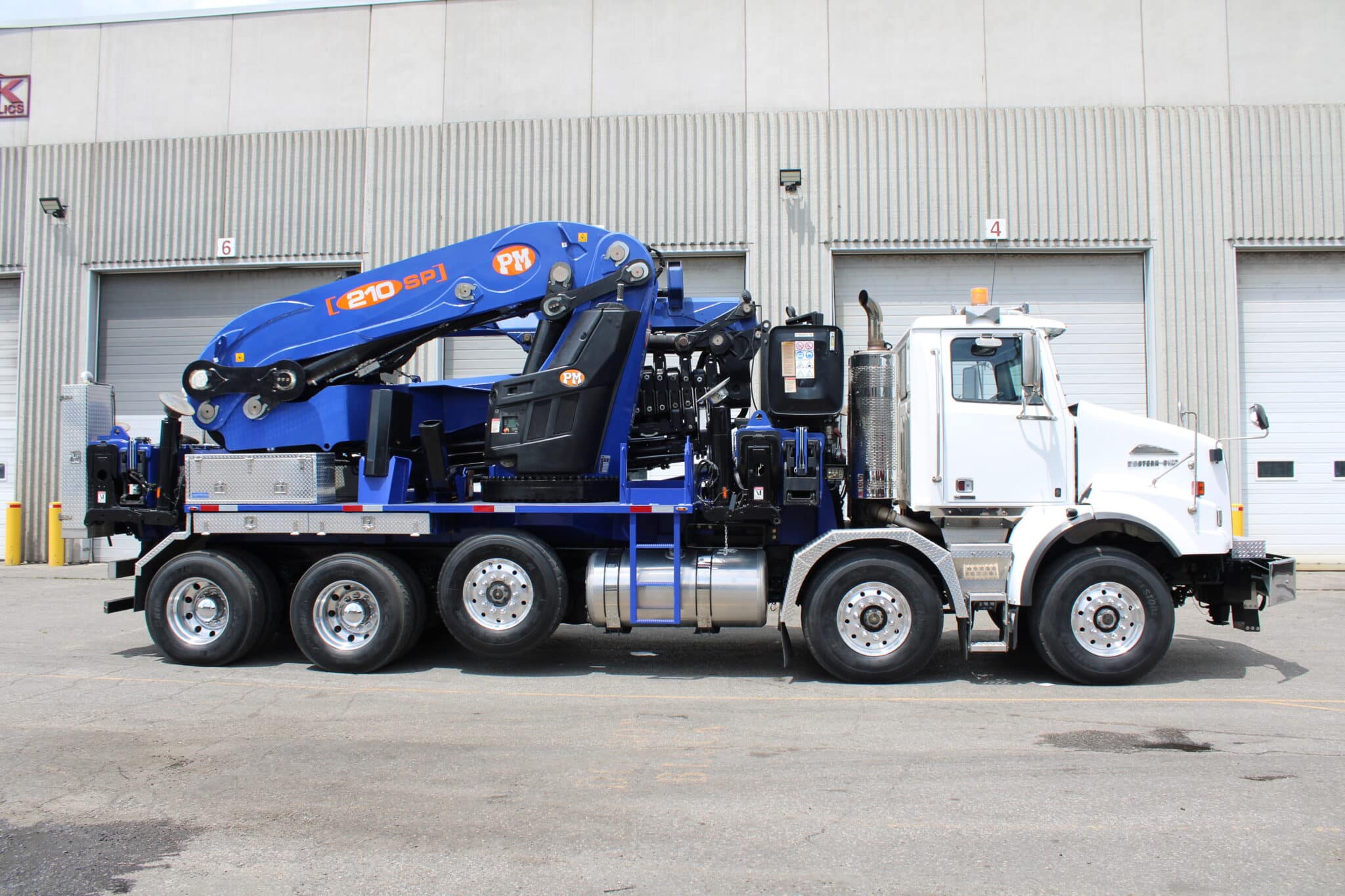

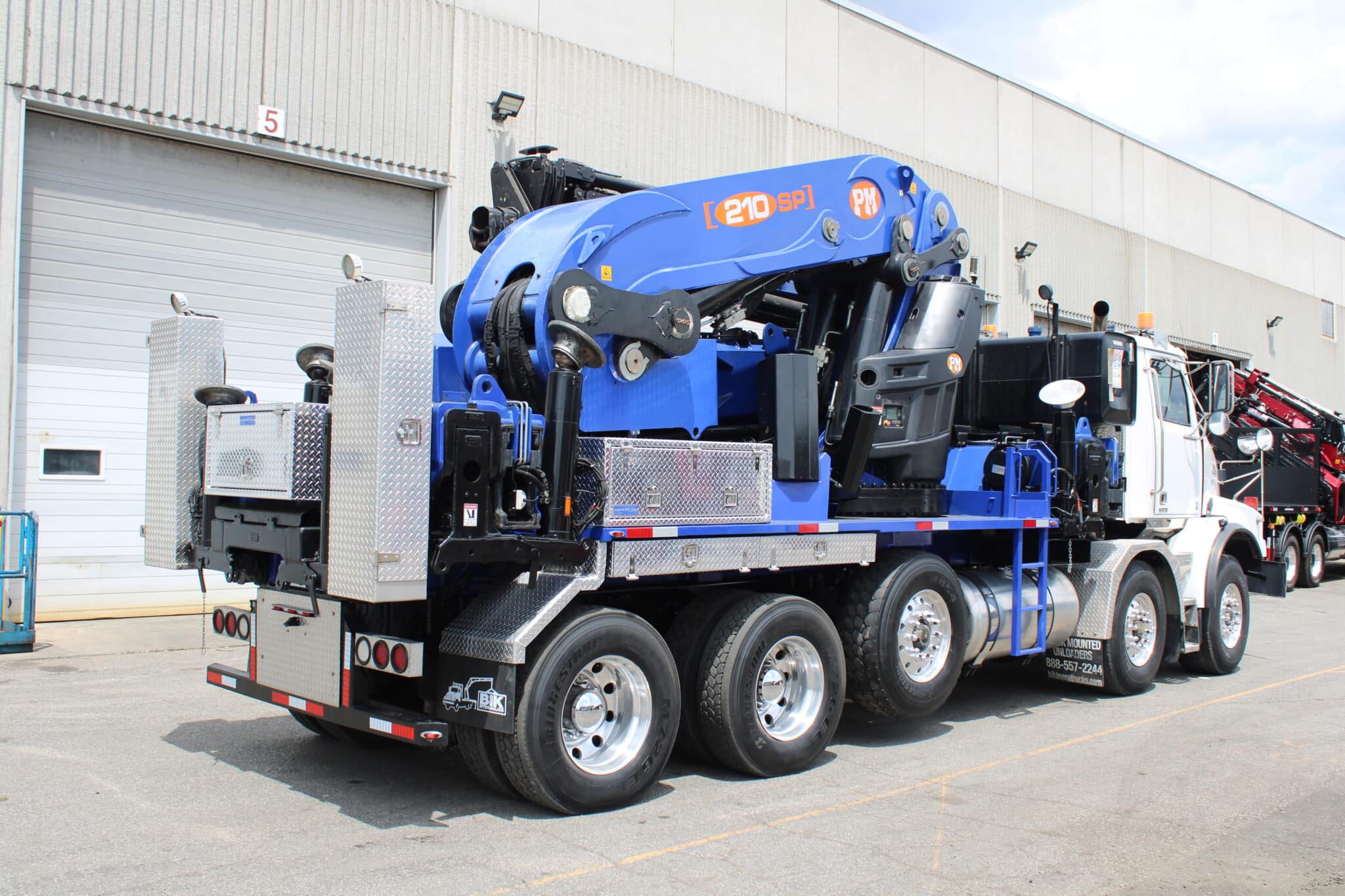

PM 210028SP+J3106SP  Knuckle Boom   Hydraulic Knuckle Boom with Jib fold on top of deck, 8 hyd extensions in main to 103’ vertical with boom angle at 85 degrees – best in its class,

• hyd extentions in jib booms to  162’ total vertical reach – with two optional  manual pull out extentions  up to 178’ vertical reach
• Continuous Rotation and Dual Planetary Gear Rotation, Double pilot operated on slewing & pilot operated check valves on all cylinders
• Special Extra High Tensile Steel Structure, Lowest weight to ton/m size in its class
• Dual Main lift and dual knuckle lift cylinders – greater power and easy access , Boom / bed wings painted your colour Red
• Hydraulic Extra Wide Main outriggers at pedestal – 40’ – hydraulic tilting when retracted

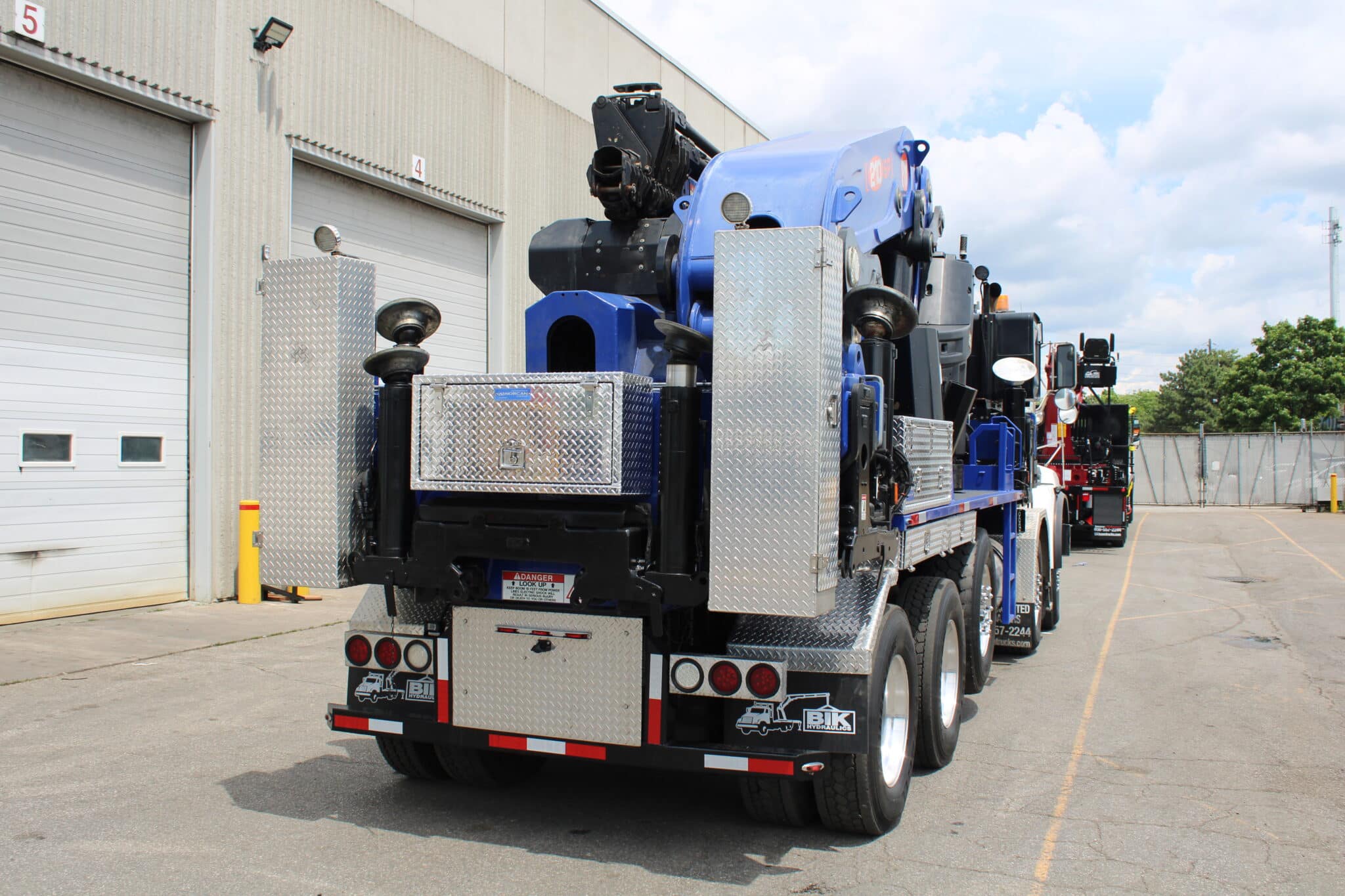

• Auxilary 34’ spread stabilizers installed at rear behind drives, 2-hyd out & down rearward & 1-at front bumoer
• Dual PTO’s and Hydraulic Pumps inst on Aux Trans for consistent operation speed & power when activating multifunction movement –
• Dual Hydraulic Oil Coolers, dual high pressure & return filters and min. 125-gallon oil tank for boom
• 7 ton single part line lifting winch plumbed to the end of jib with custom jib stowe brackets on top of bed wings
• DANFOSS Split Valve – 2 pressure line system Proportional Control Valve & SCANRECO Proportional Radio Remote Control
• PM Power Tronic Electronic System allowing constant crane monitoring & visual display
• Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart  in FT. & LBS.

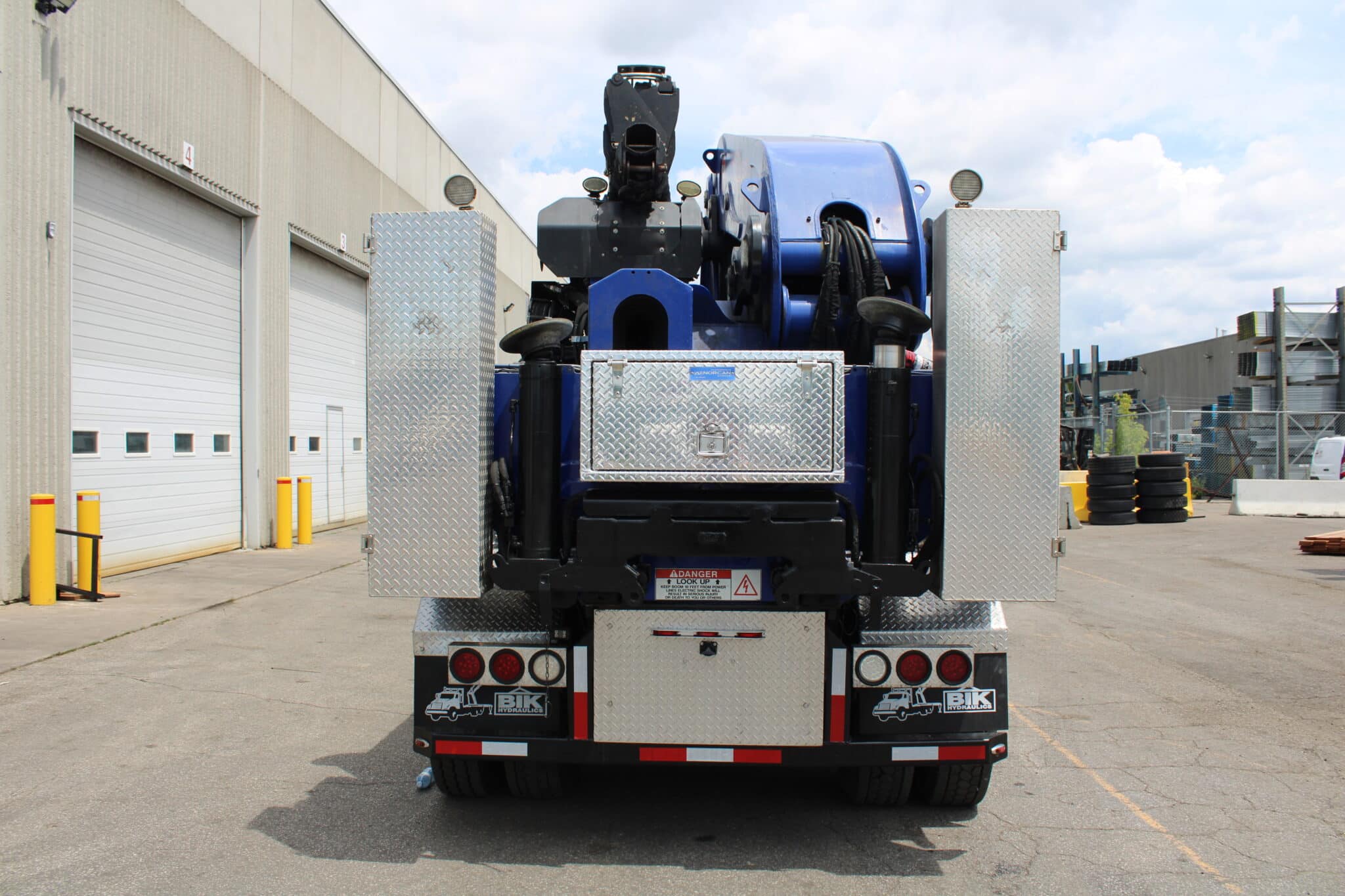

• Bed Wings on both sides of unit with access ladders and winch accessory storage areas including two 36” storage boxes
