*SOLD* USED 2018 PM 48.5 TON-M ON FREIGHTLINER 108SD WITH SG-220 SAW
USED PM 48.5 TON-M ON FREIGHTLINER 108SD WITH SG-220 SAW
The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

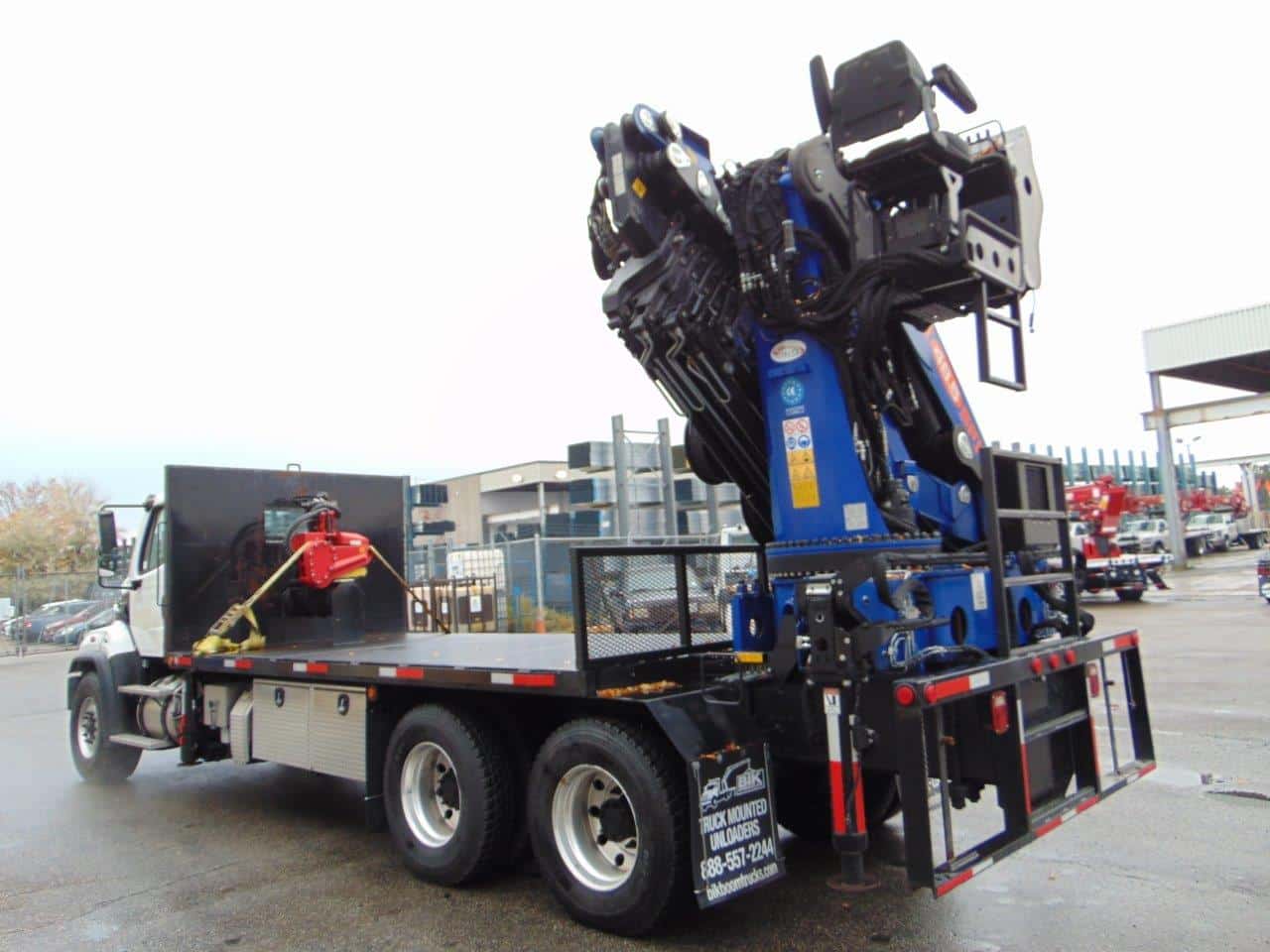

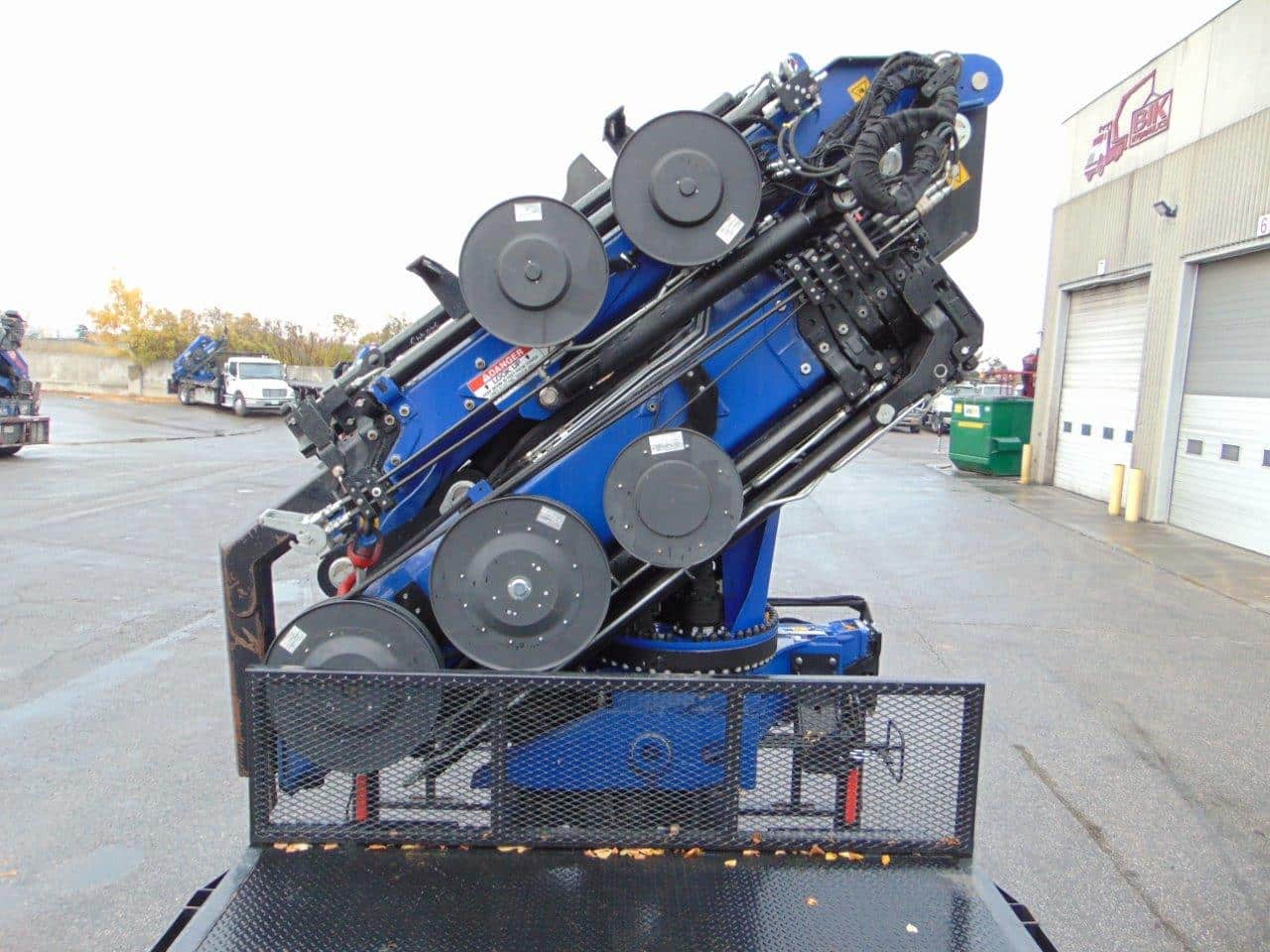

PM 48526 S + J1213 Knuckle Boom (was New in 2018)
- w/ 98’ Vertical Reach with Grapple Extension (86’ horizontal)
- Jib Capacities (Horizontal-Prelim):
- 2,100 lbs @ 63’
- 1,850 lbs @ 75’ 4”
- ,700 lbs @ 82’
- Grapple man extn to 86’
- Main Boom Cap (Horizontal):
- 21,000 lbs @ 14’
- 10,900 lbs @ 25’ 8”
- 6,800 lbs @ 38’ 8”
- 4,830 lbs @ 53’ 6”
- PM “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders
- Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability
- 15 Degree negative angle on main knuckle, 20 degree negative angle on jib
- Hyd Extra Wide Main outriggers at base – 25’ 7” total span
- Auxiliary Stabilizers – Extra wide type – 21’ span, hyd out & down type, installed at front under truck frame
- Two Hydraulic Oil Coolers, high pressure return filter and hydraulic oil tank on boom
- Tandem pump / split valve pressure system for optimum speed for simultaneous multi function use

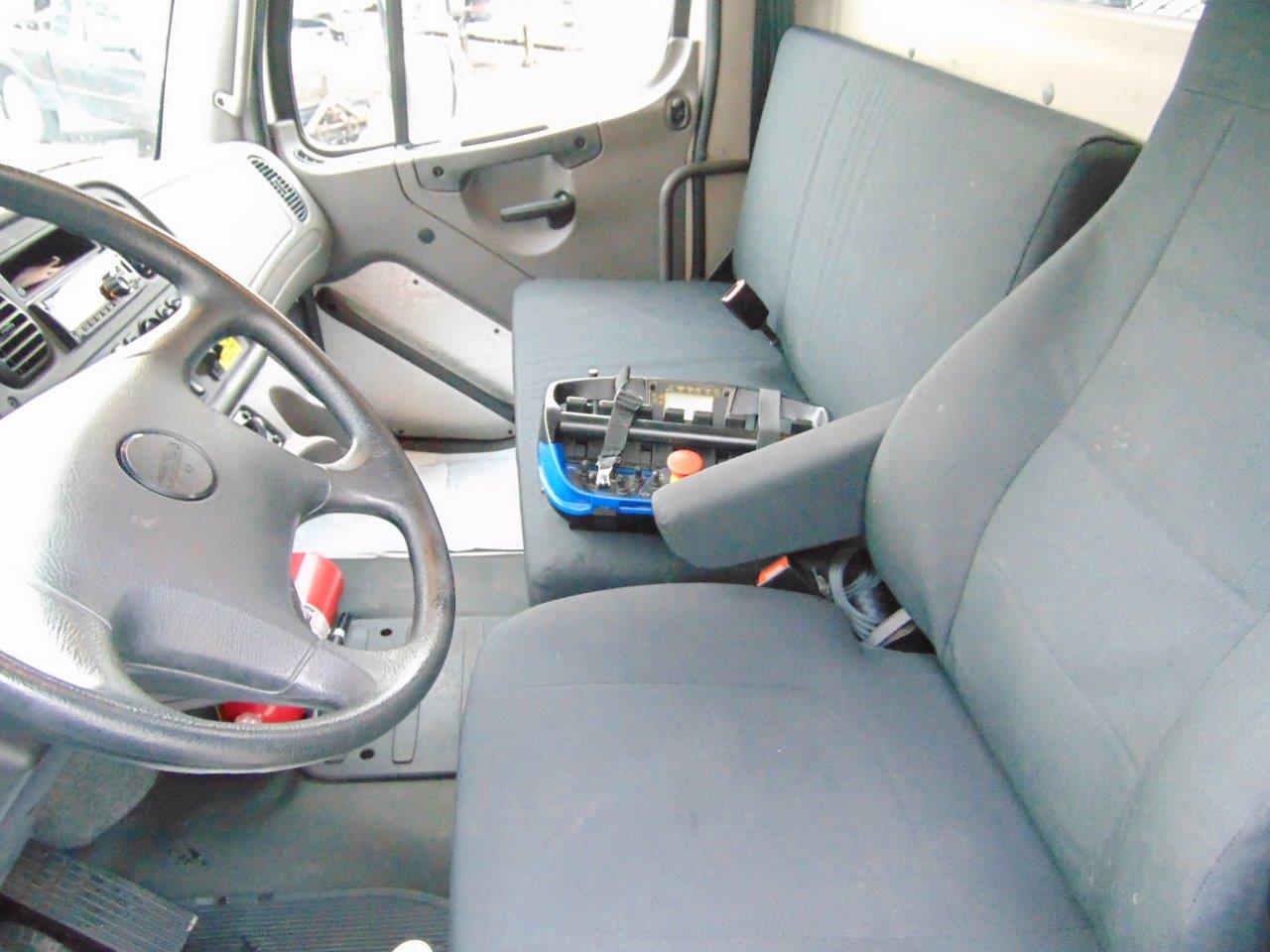

- DANFOSS Proportional Control Valve at Top Seat & SCANRECO Proportional Radio Remote Control w/2 batteries, charger & back up cord
- Two Extra Hyd Functions pkumbed to end of jib for possible hyd grapple or saw attachment
- Crane Painted PM blue at factory – Certified Painting Quality System – load chart on boom in FT. & LBS.
Deck Details

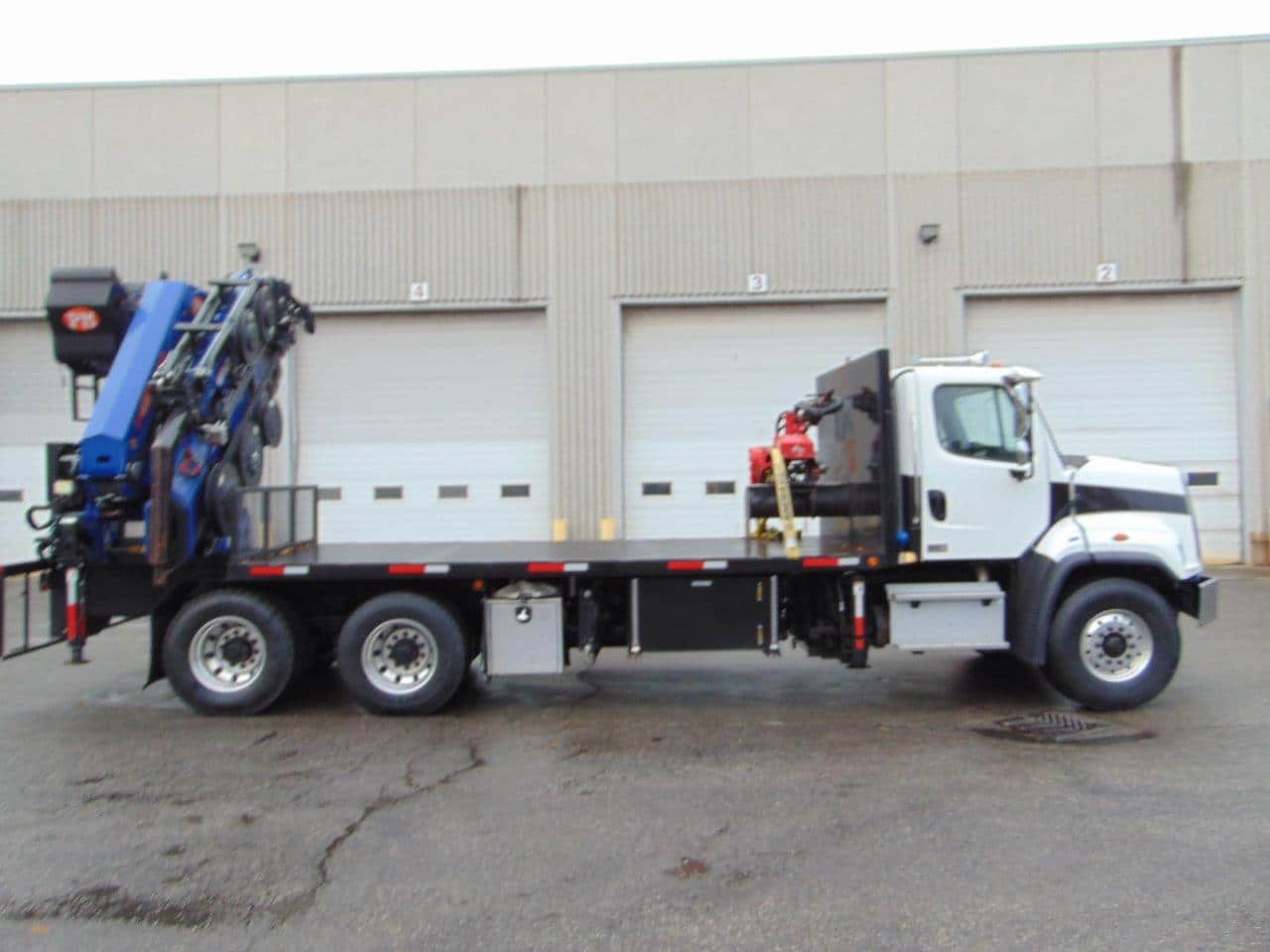

17’ x 102” Steel Flat Deck:
- steel headboard w/ Side Wrap Winches
- Steel Checker plate Floor
- Winch bar and holder, Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
- X-braces & support
- Deck painted Black
- 2-Deck access Ladders at Headboard
- 2-Ladders at rear
- Reflectors and Mud-flaps
- 6 – Sliding Winches and track under deck
Truck Details

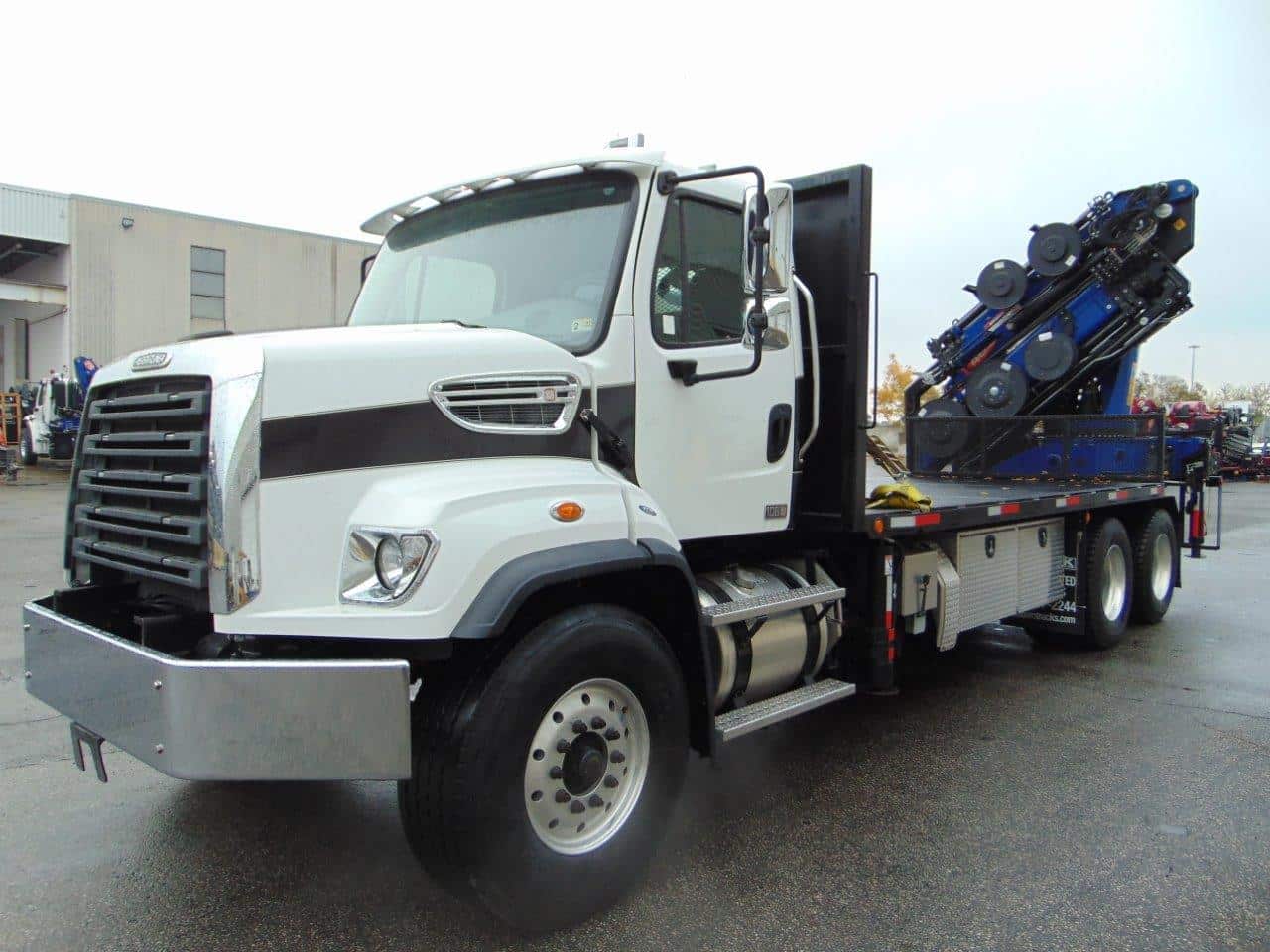

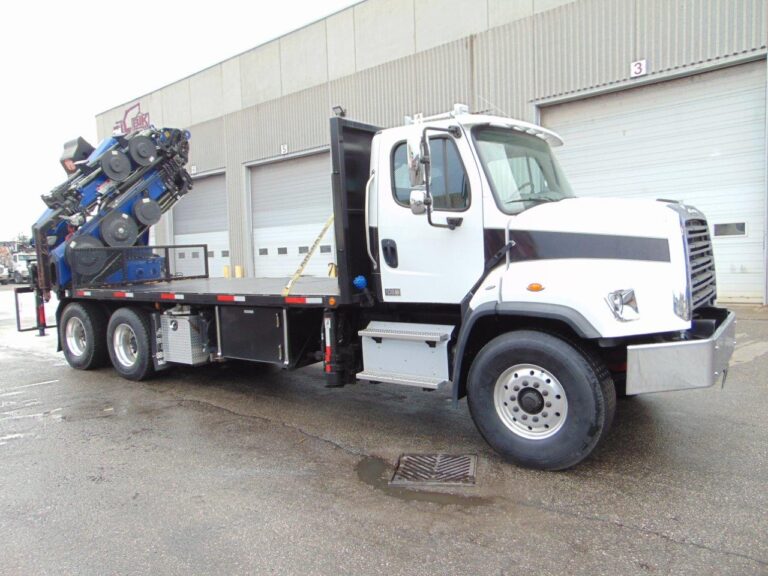

Used – 2018 Freightliner 108SD 3-axle Diesel Truck: 60,000 lb GVWR
- Cummins Diesel – 380 hp , 1,250 ft/lb torque
- Allison Automatic Trans.
- Only 7,200 original miles
- 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on alum outer rims
- Double frame chassis
- 54” spread at tandems

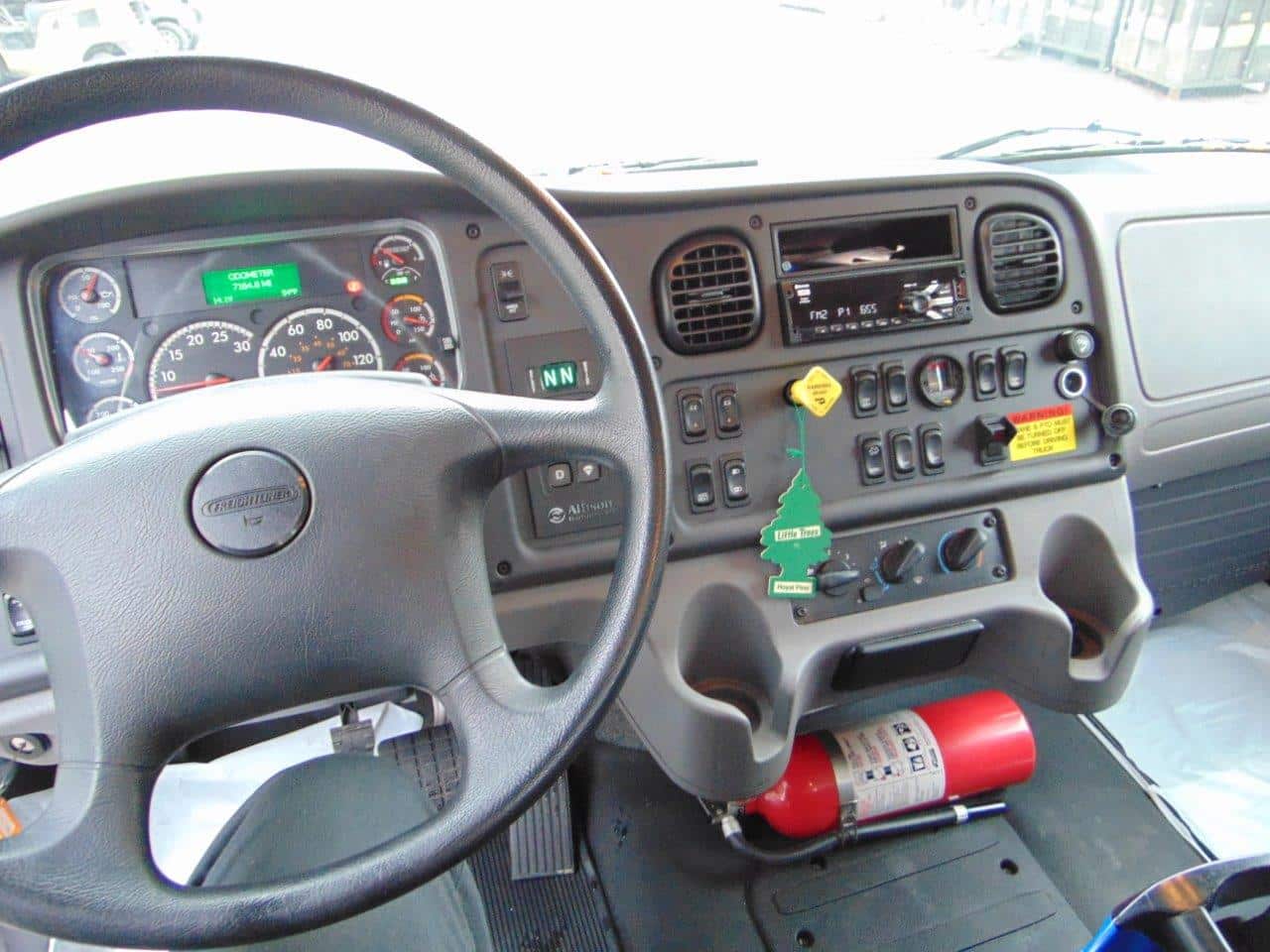

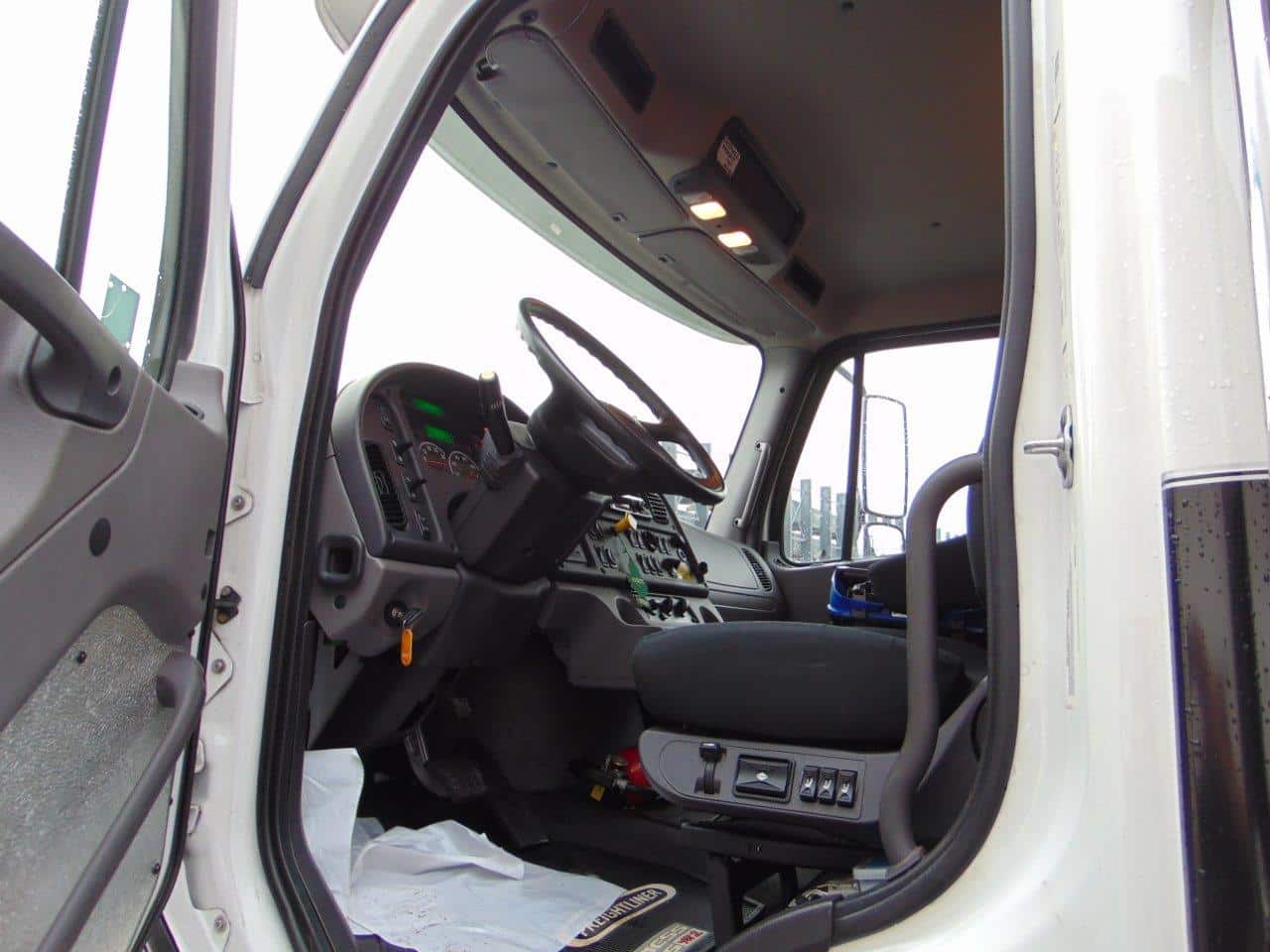

- Truck Features Include: Exhaust Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows, power & heated mirrors, chrome bumper and grill, heated mirrors, eng block heater, painted ext visor, rear wheel lock ups, 80 gal alum fuel tank, etc…
Also Included:
- (4) pcs – 2” PVC stabilizer pads w/holders
- (13) pcs Aluminum under deck storage boxes

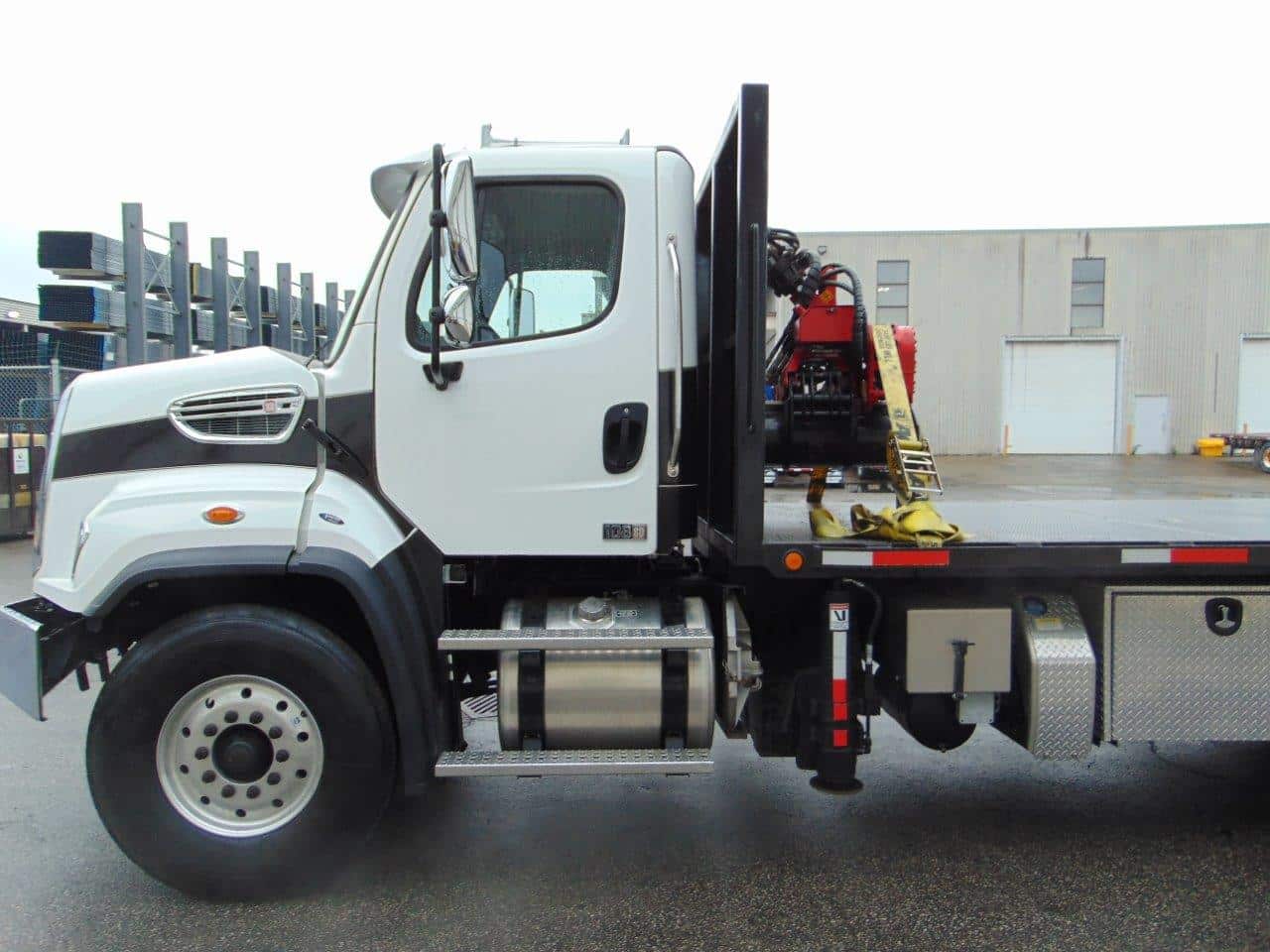

- (1) Custom re-enforced manual extn prepped with Mecanil SG-220 Grapple Saw
