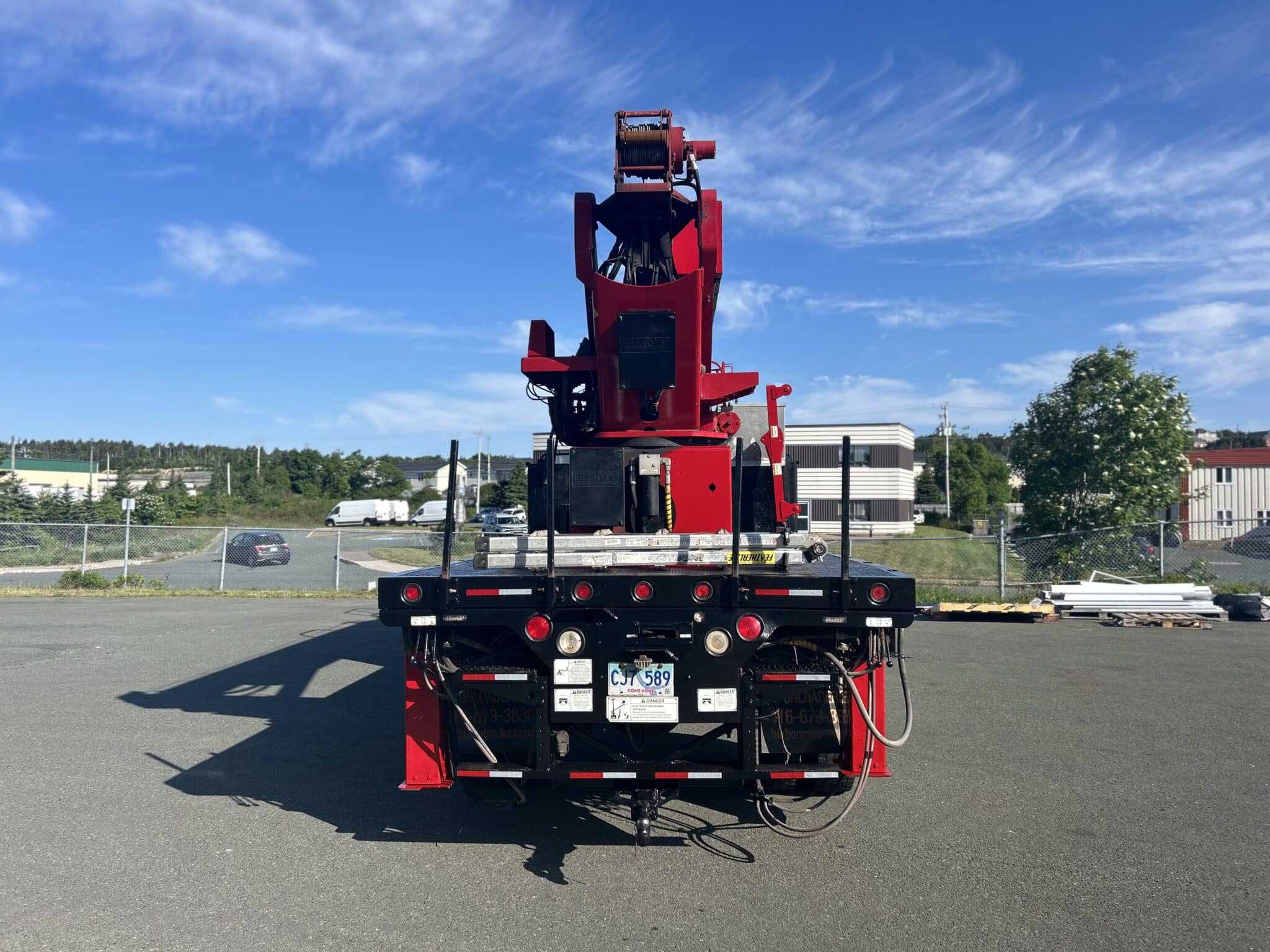

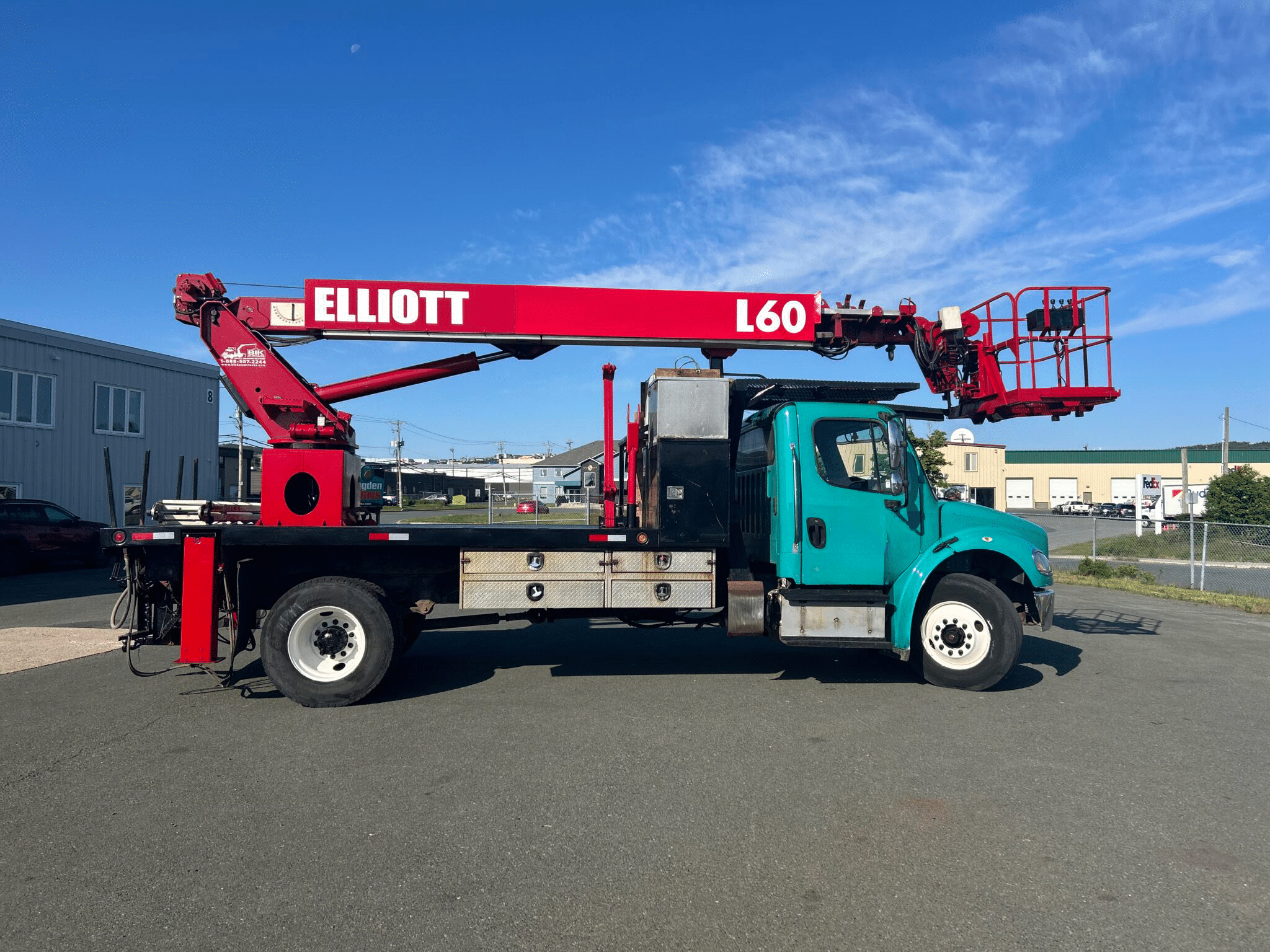

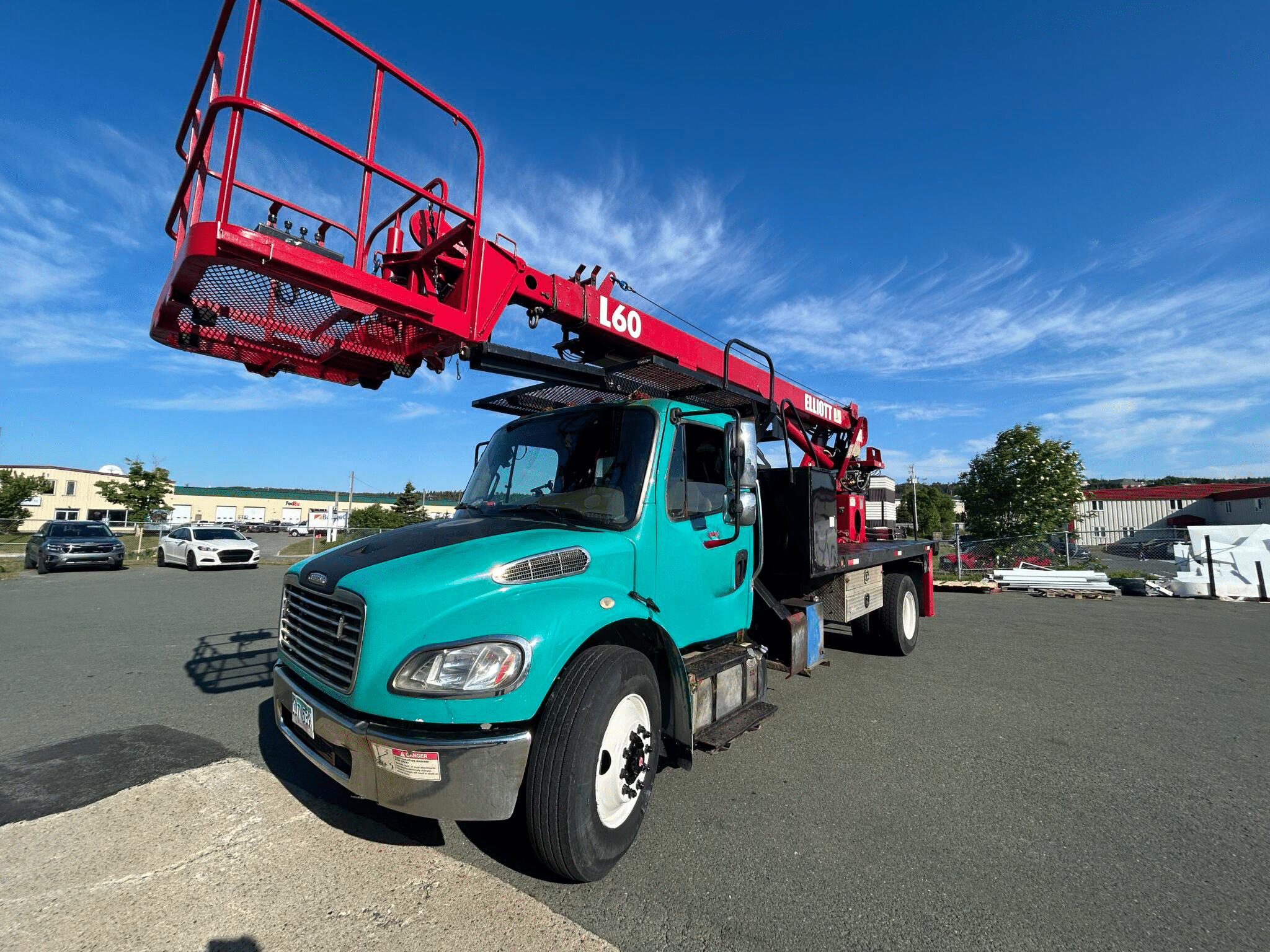

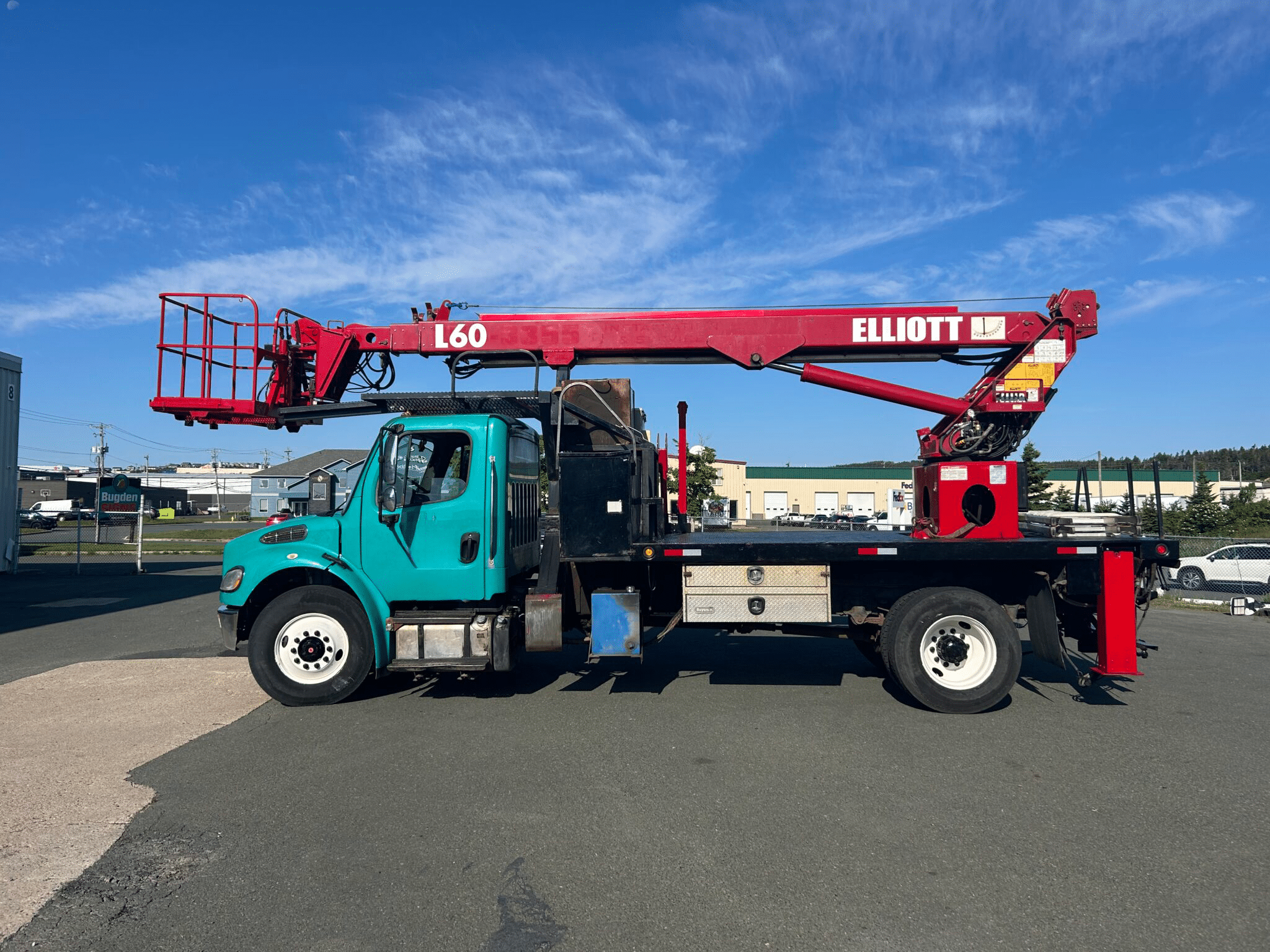

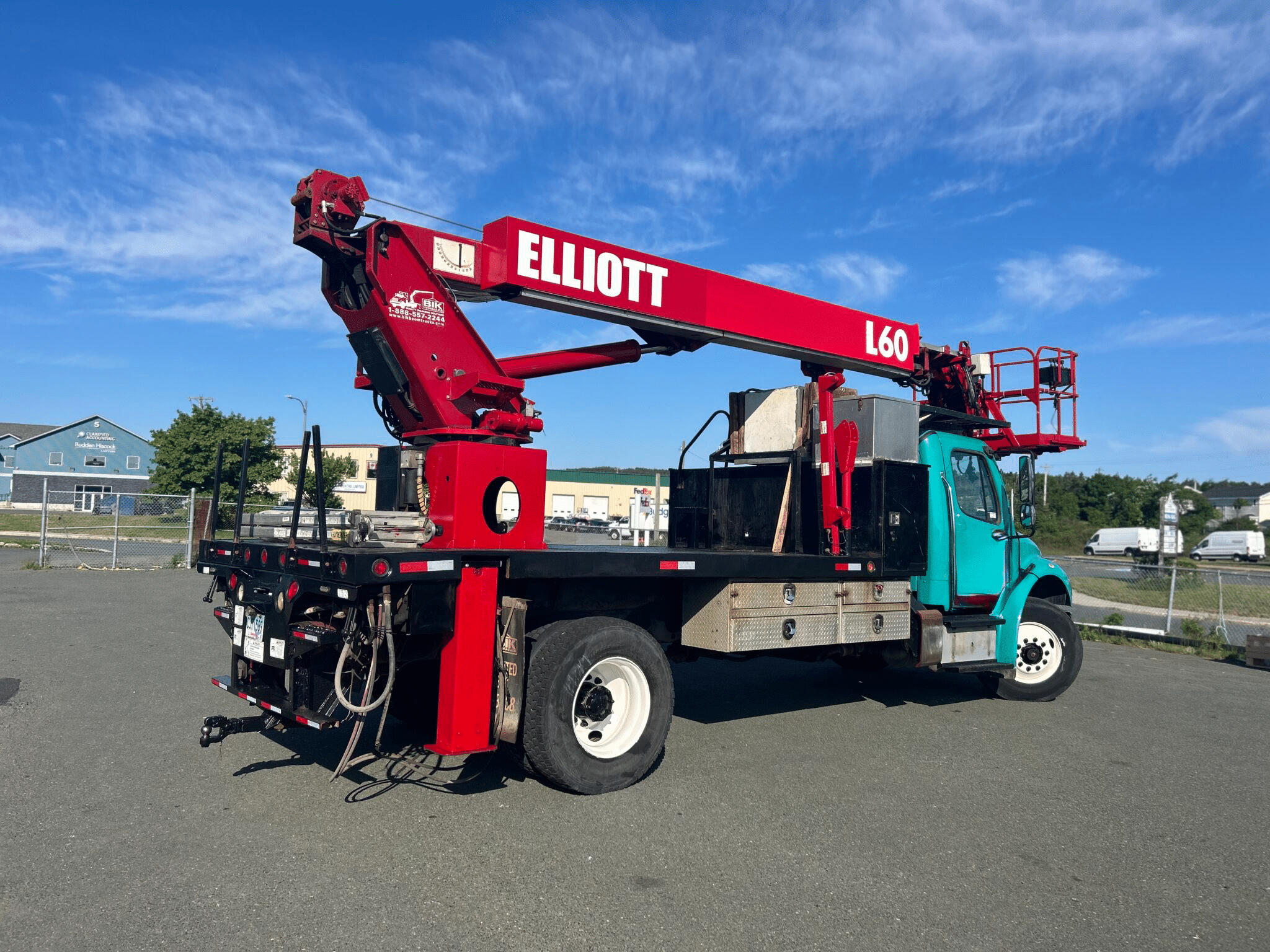

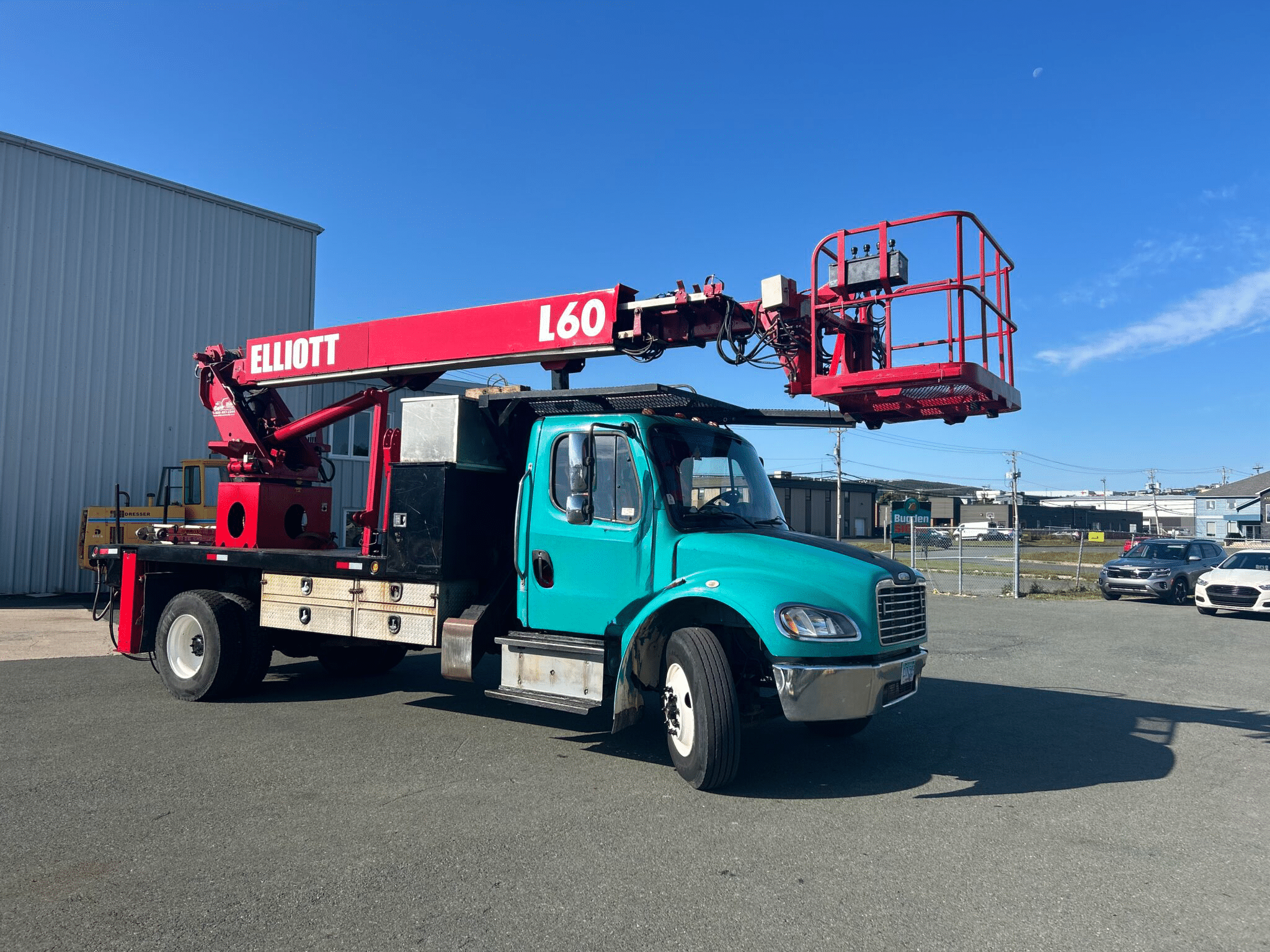

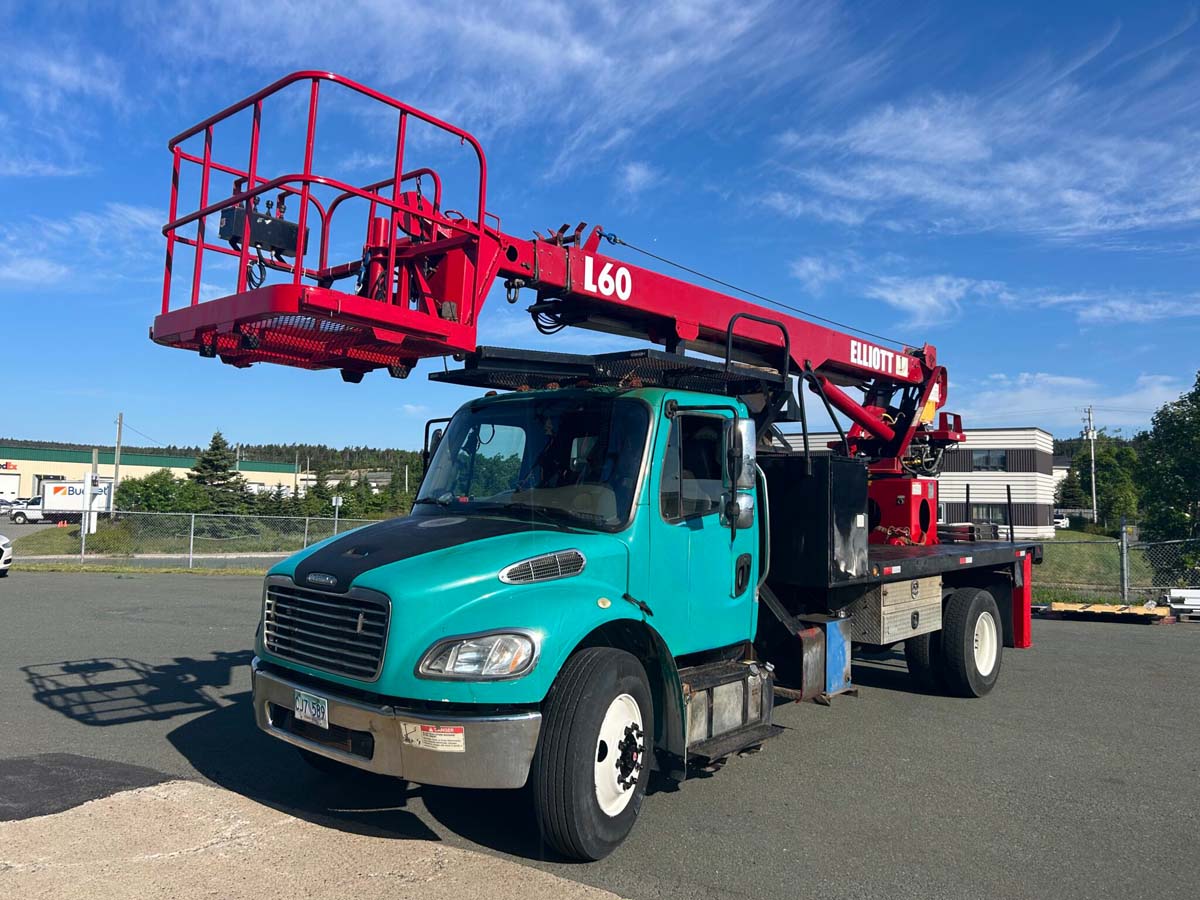

Used Elliott L60 On Used 2013 Freightliner M2-106

BOOM DETAILS

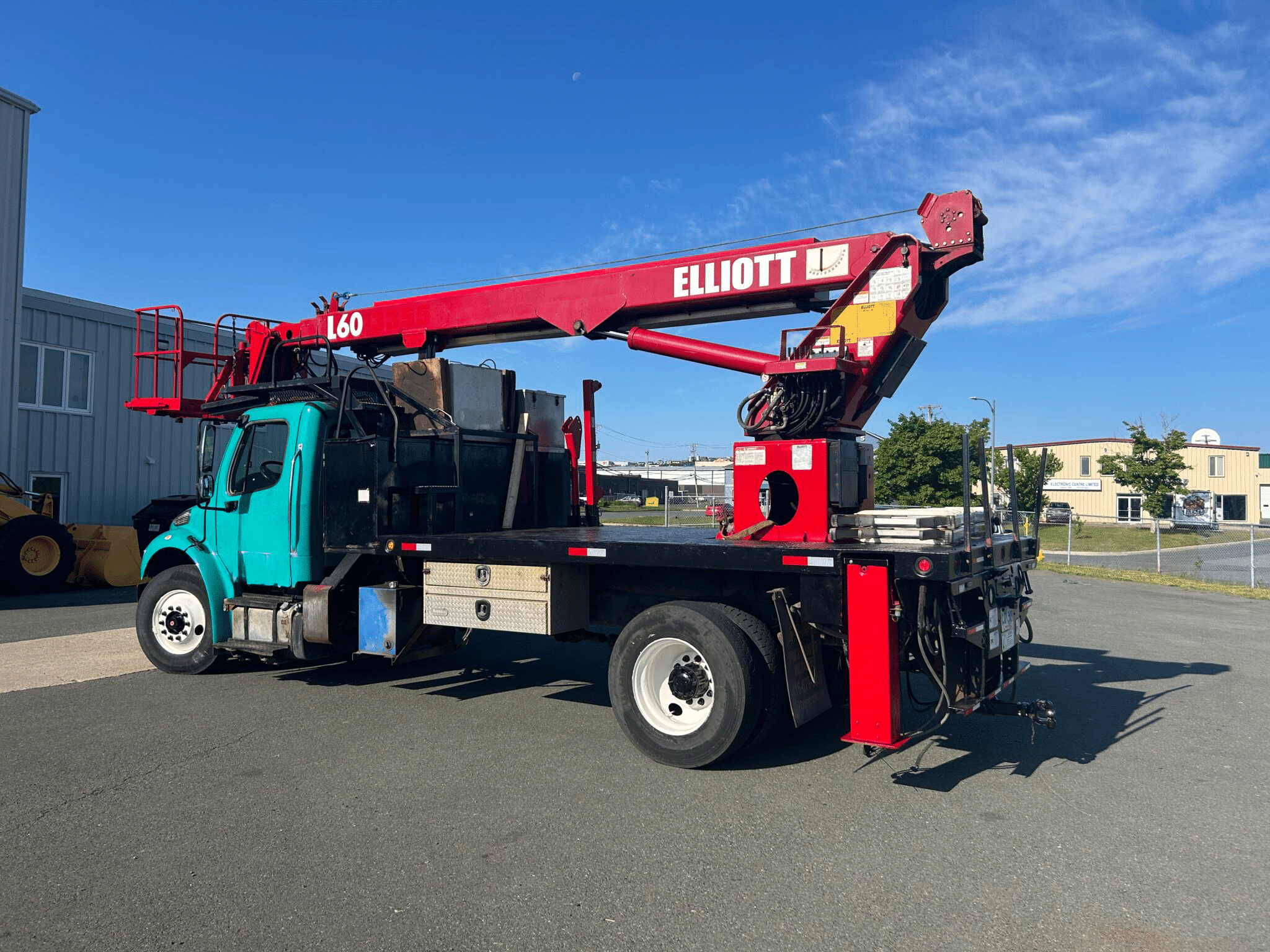

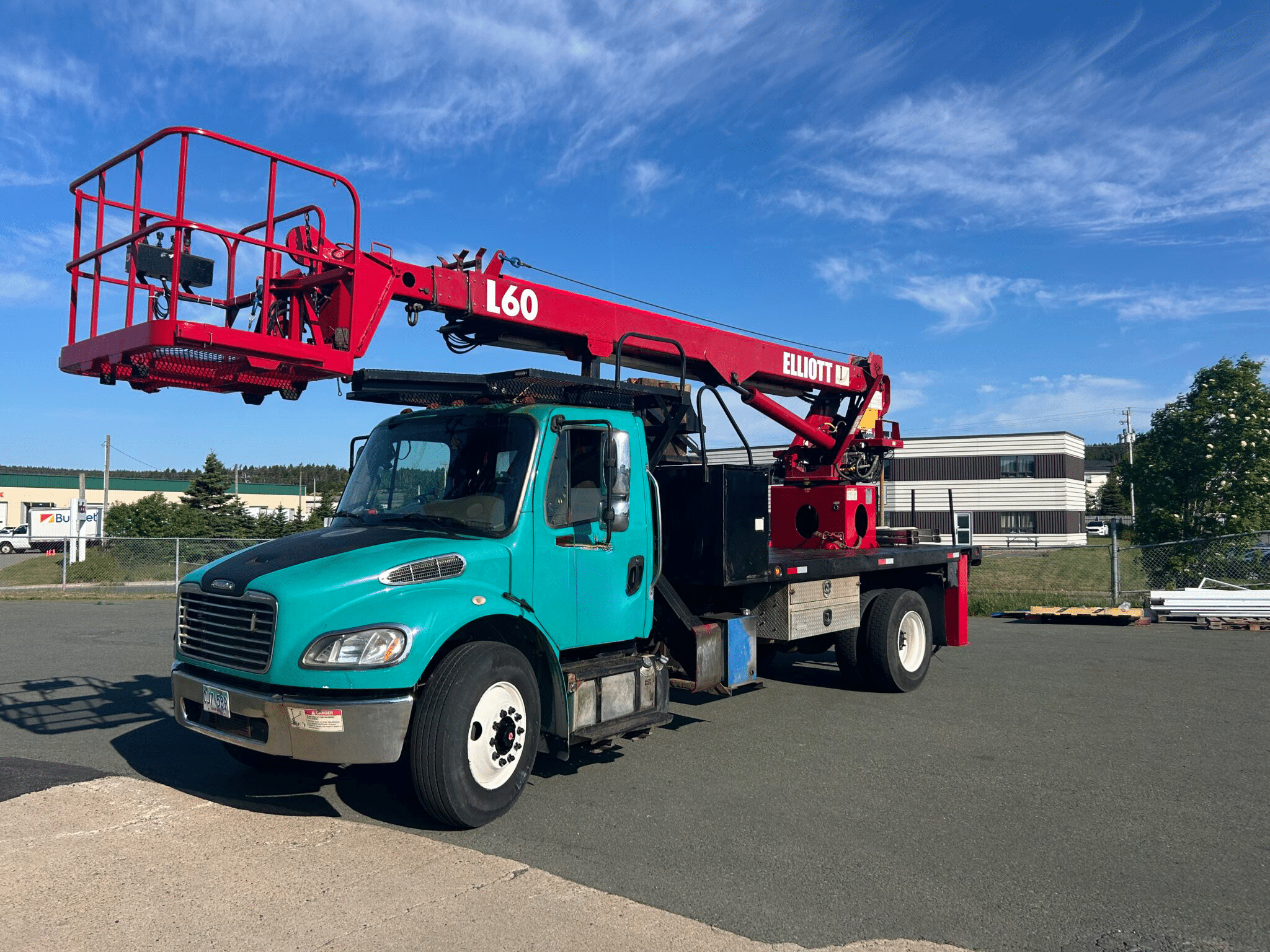

Used Elliott L60 R HiReach

• Hydraulic reach to 62′ vertical working height and 56′ horizontal

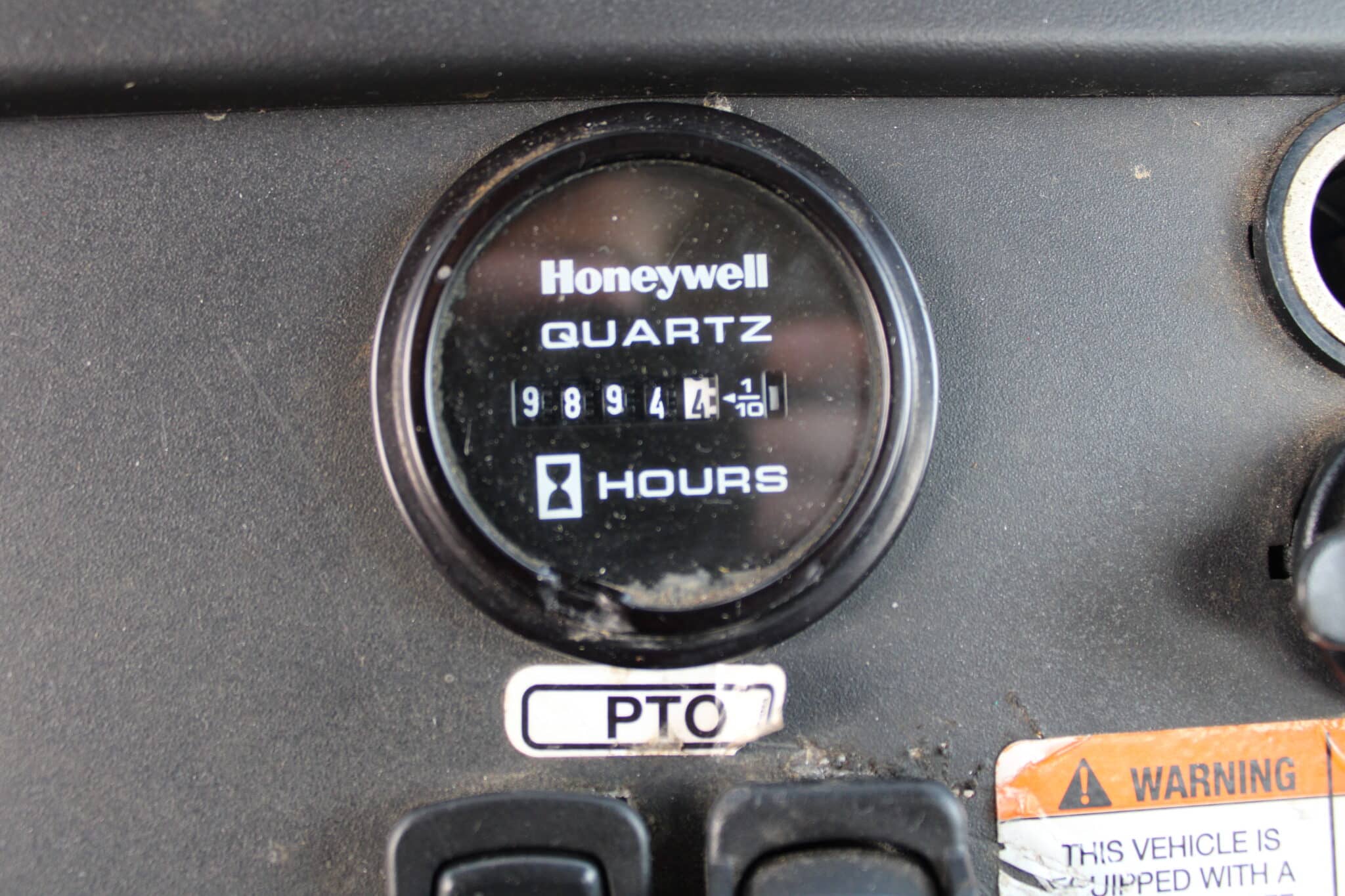

• Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted. Air Operated PTO (Chelsea), Hydraulic Pump, Supply and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested. Painted White at Factory.
• Standard Features include:
  • Three individual proportional electronic controllers. Boom ground controls located on roadside of turret, remote controls for boom operations from platform operate from a removable control box (HI, Low and start stop toggles are also located in the platform).

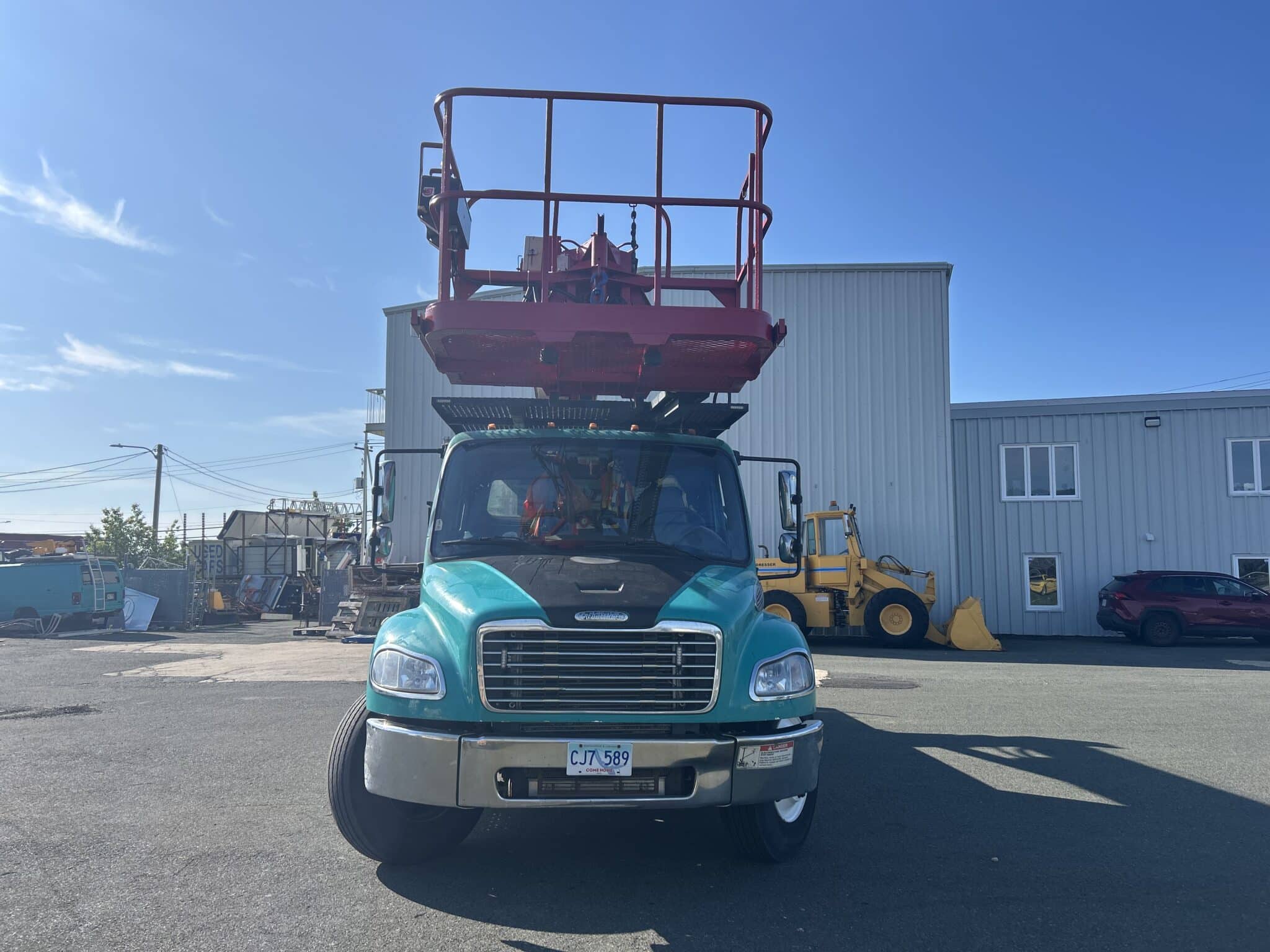

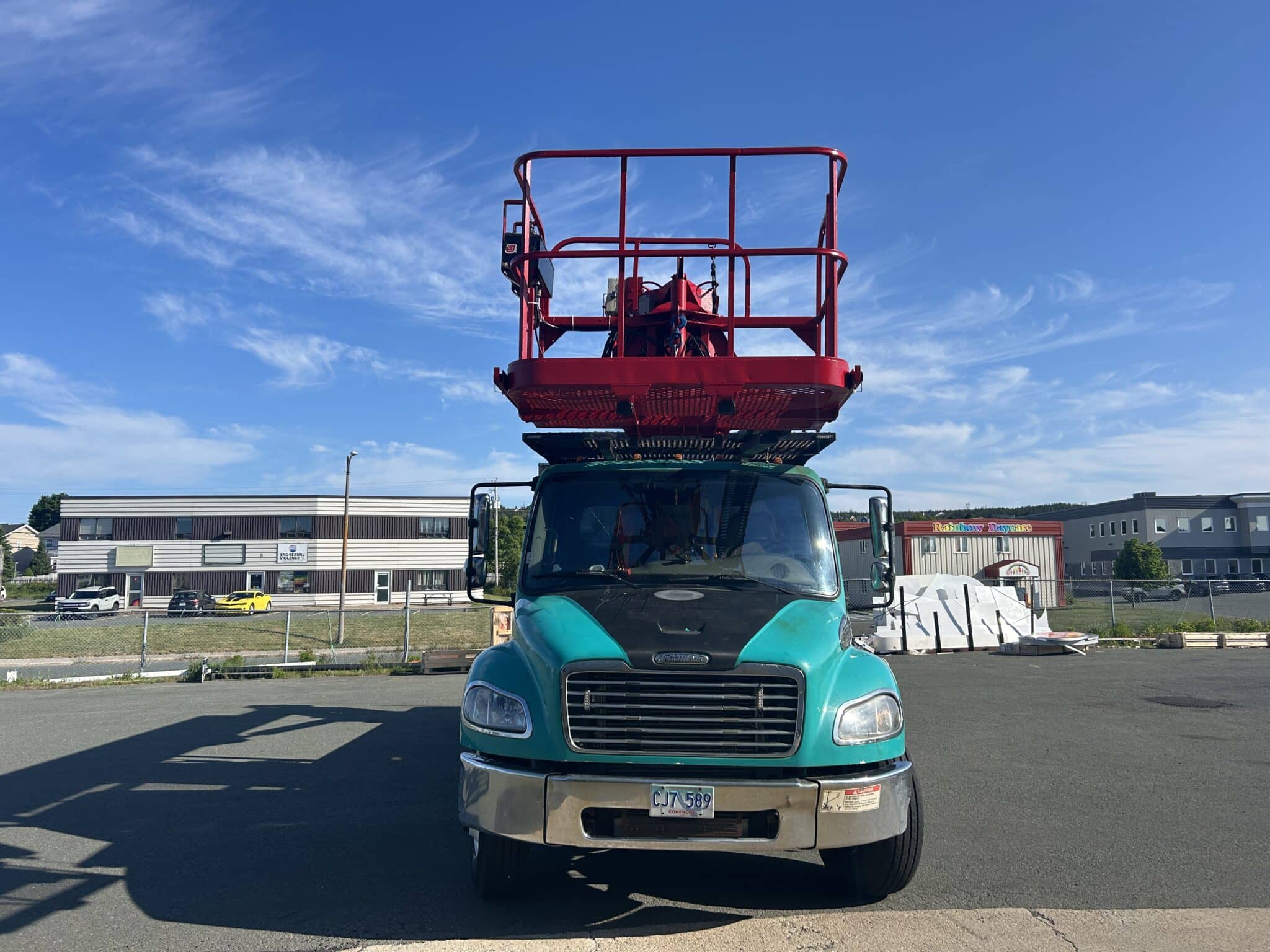

  • Work platform is 30″x 54″ with 40′ high rails, with safety attachment loops.

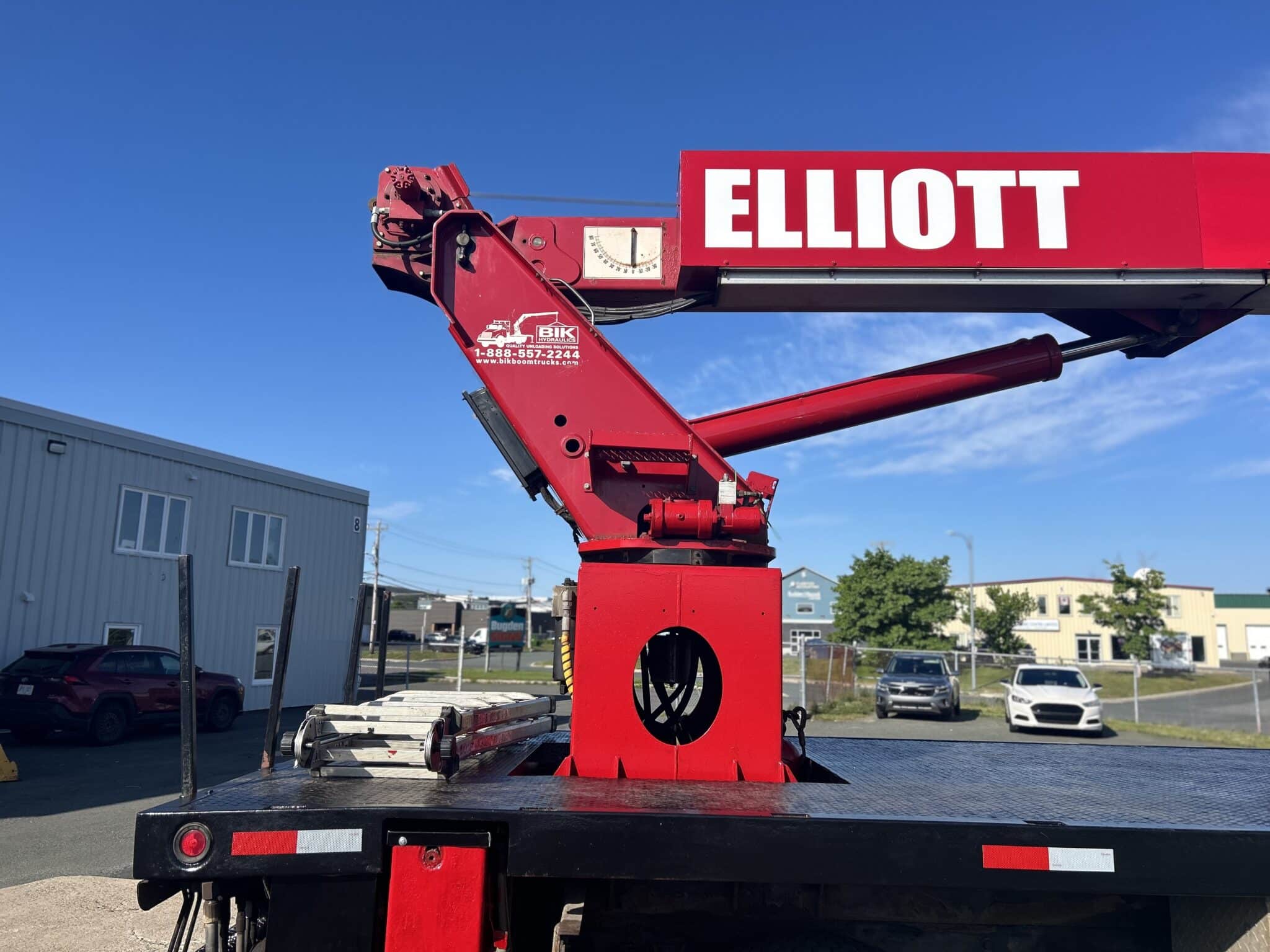

  • One double-acting 6″ full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
  • Continuous off set turret rotation with no stops with ball bearing slewing bearing and self-locking gear box.
  • Hydraulic OUT and DOWN driver side controls with a 18′ spread.
  • Load Holding Valves on each cylinder for Safety and Security of Operator and Load.

Options Included:

• 5;900 lb planetary winch w/anti-two block switch, horn, two part hook and 130′ of 3/8″ cable
• Platform-mounted jib with hydraulic winch drum mounted on horizontal arm
• 110 V power supply to work platform, Sign forks on platform (2 pcs)

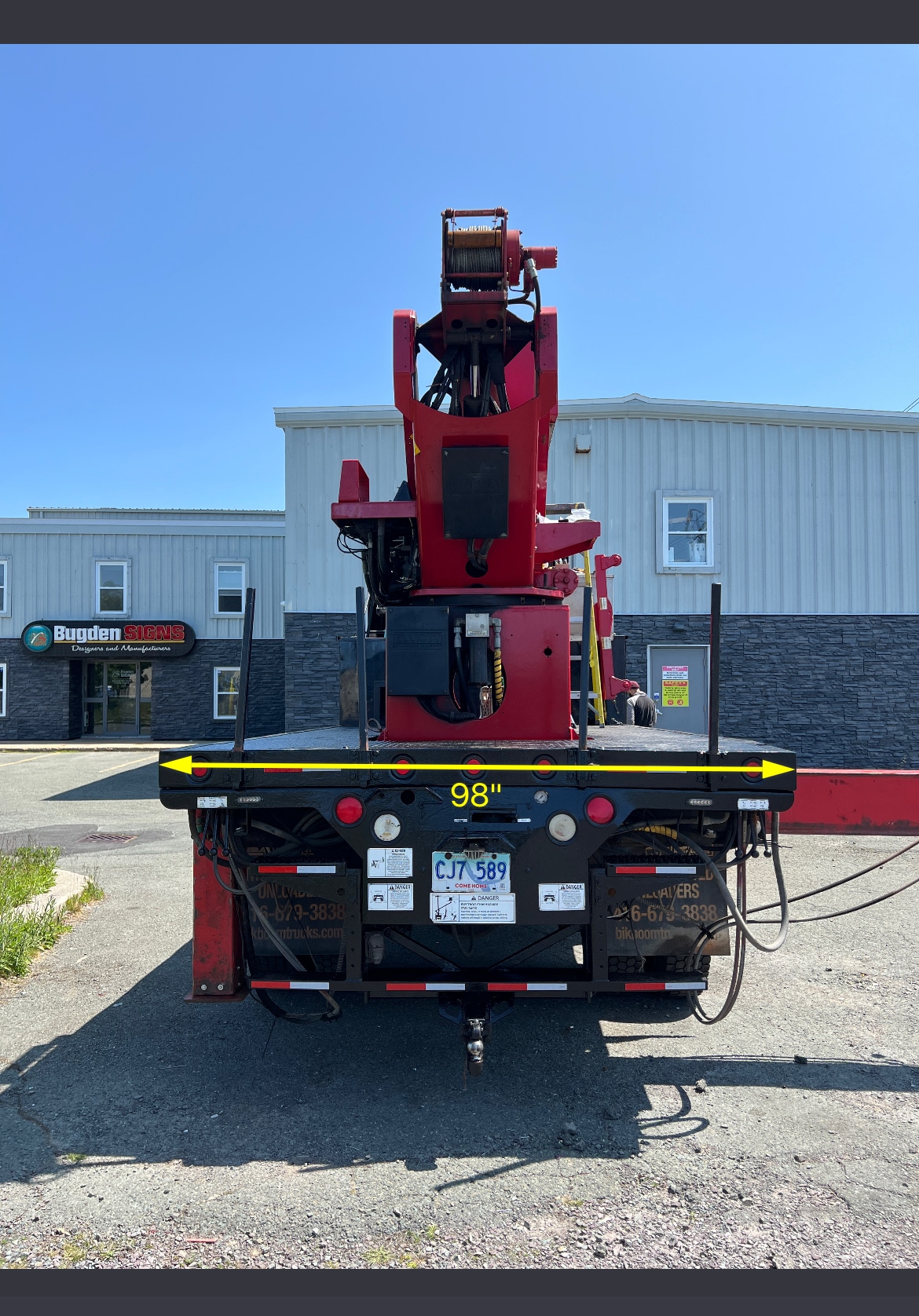

• 14′ x 96″ steel bed, Truck cab windshield guard, steel carrier cover
• 8′ cross box, 24” x 36″ tall with doors on each
