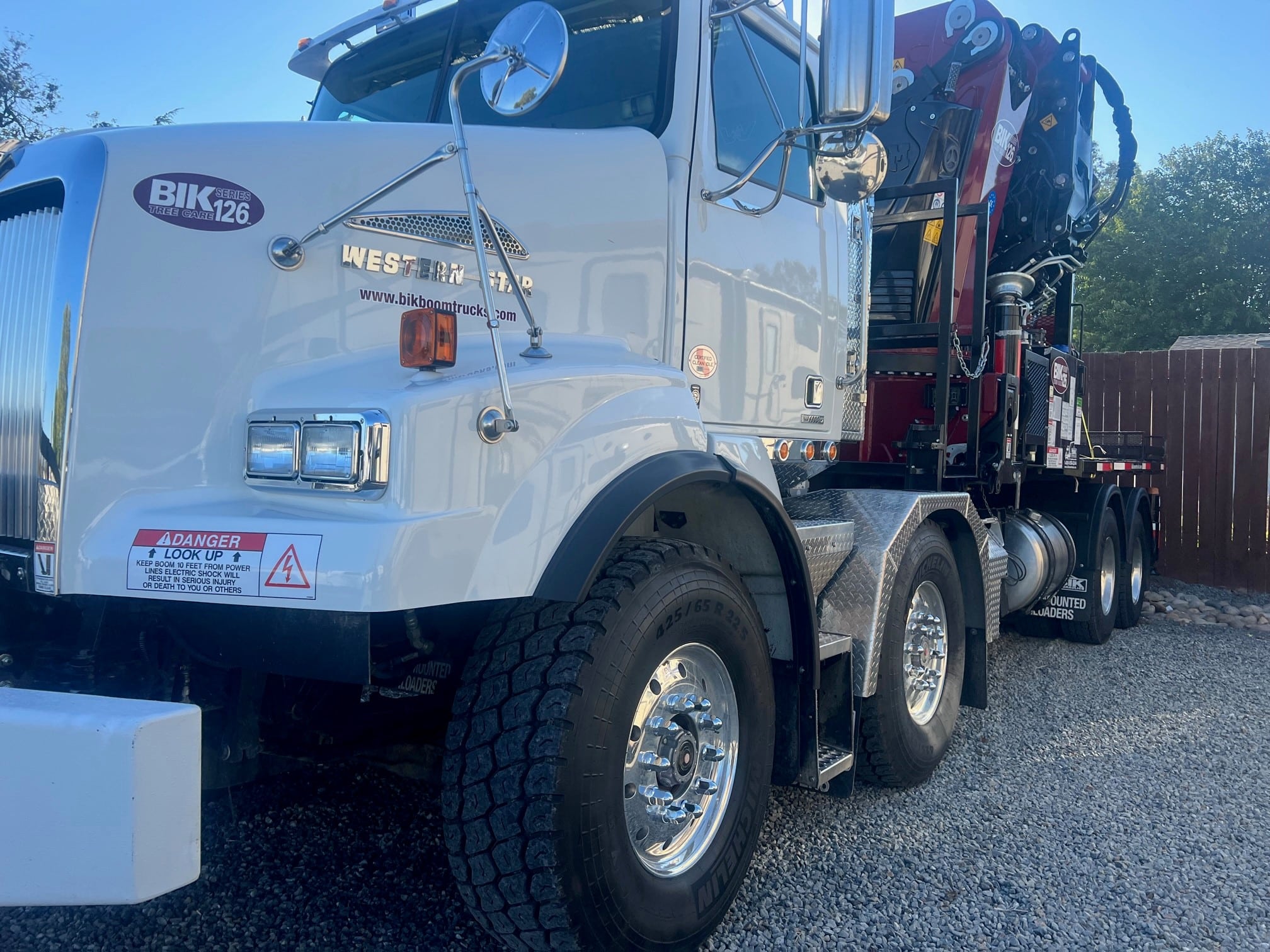

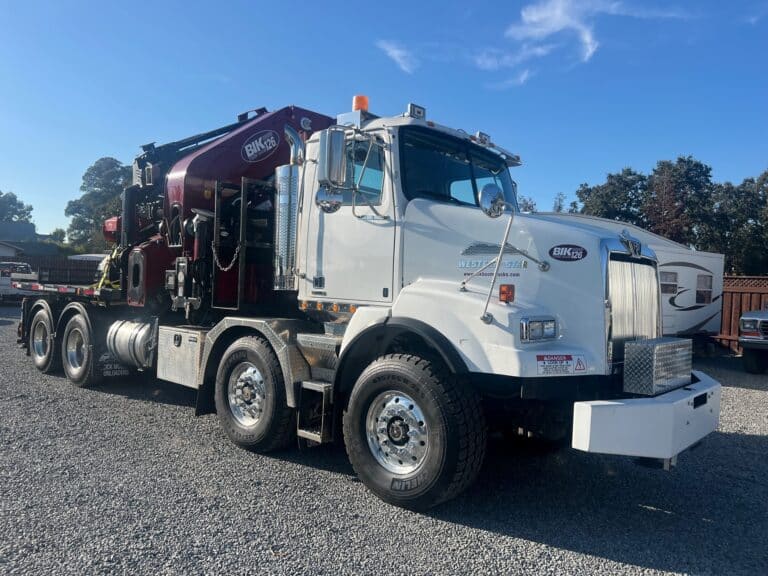

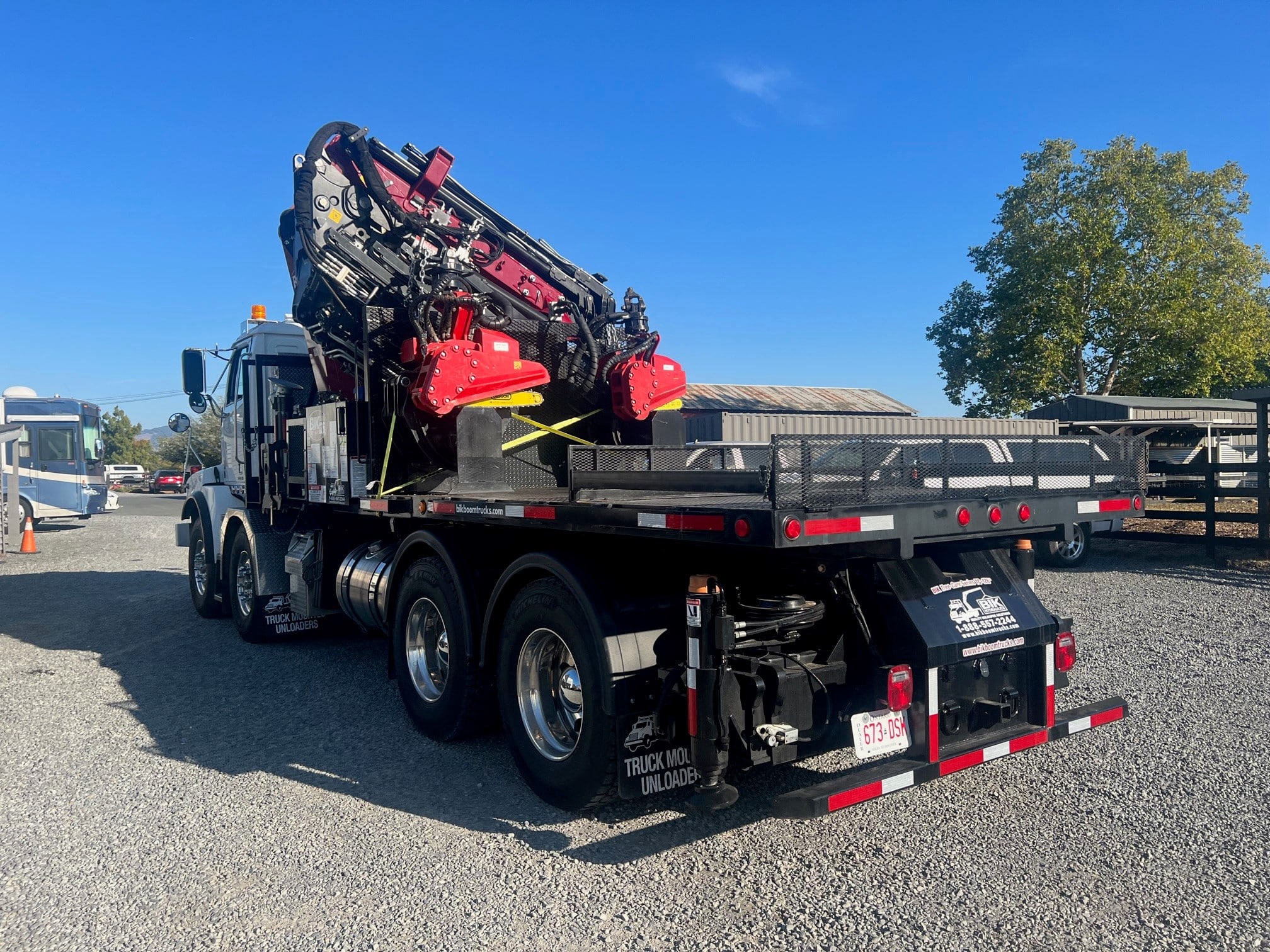

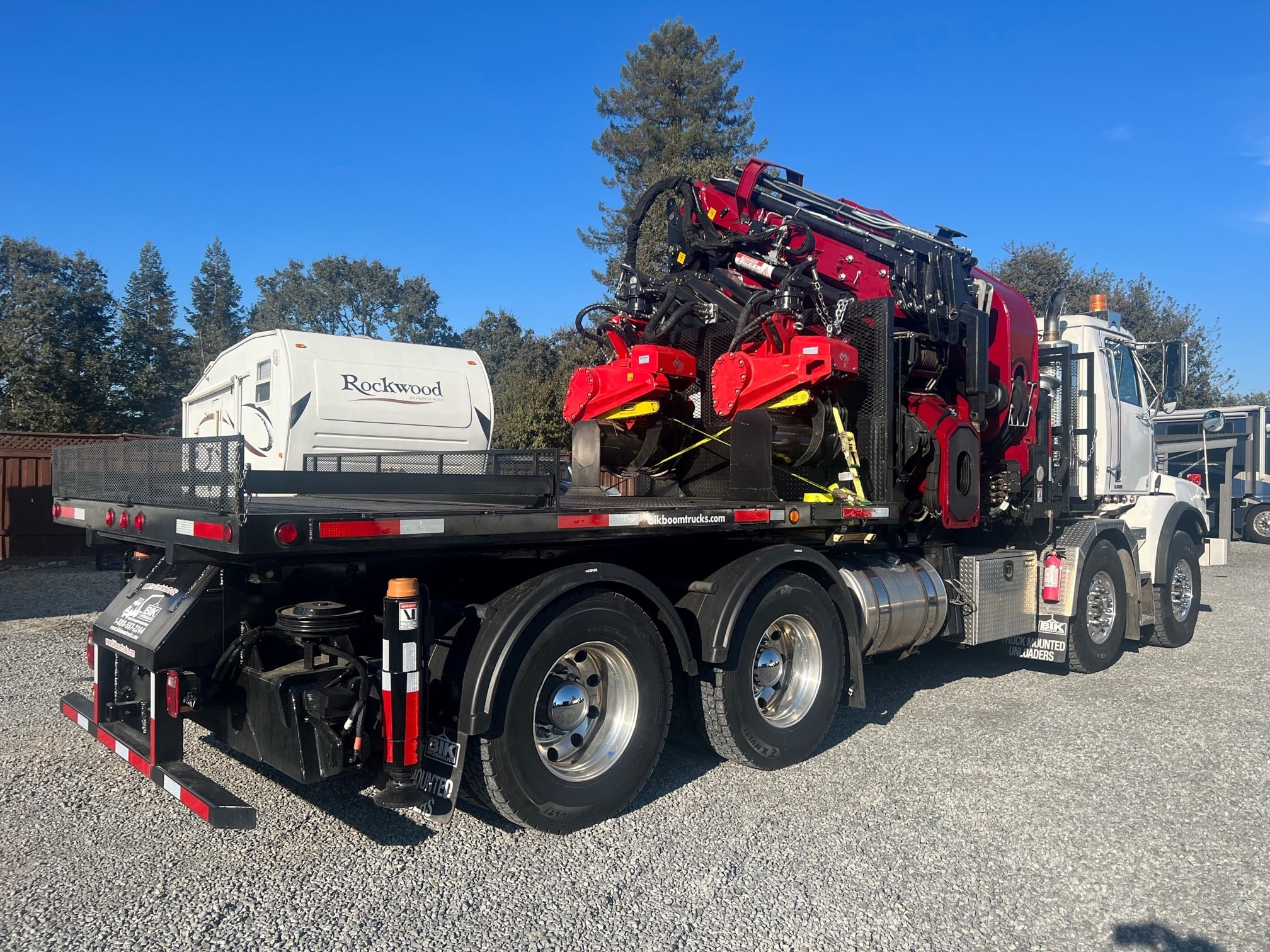

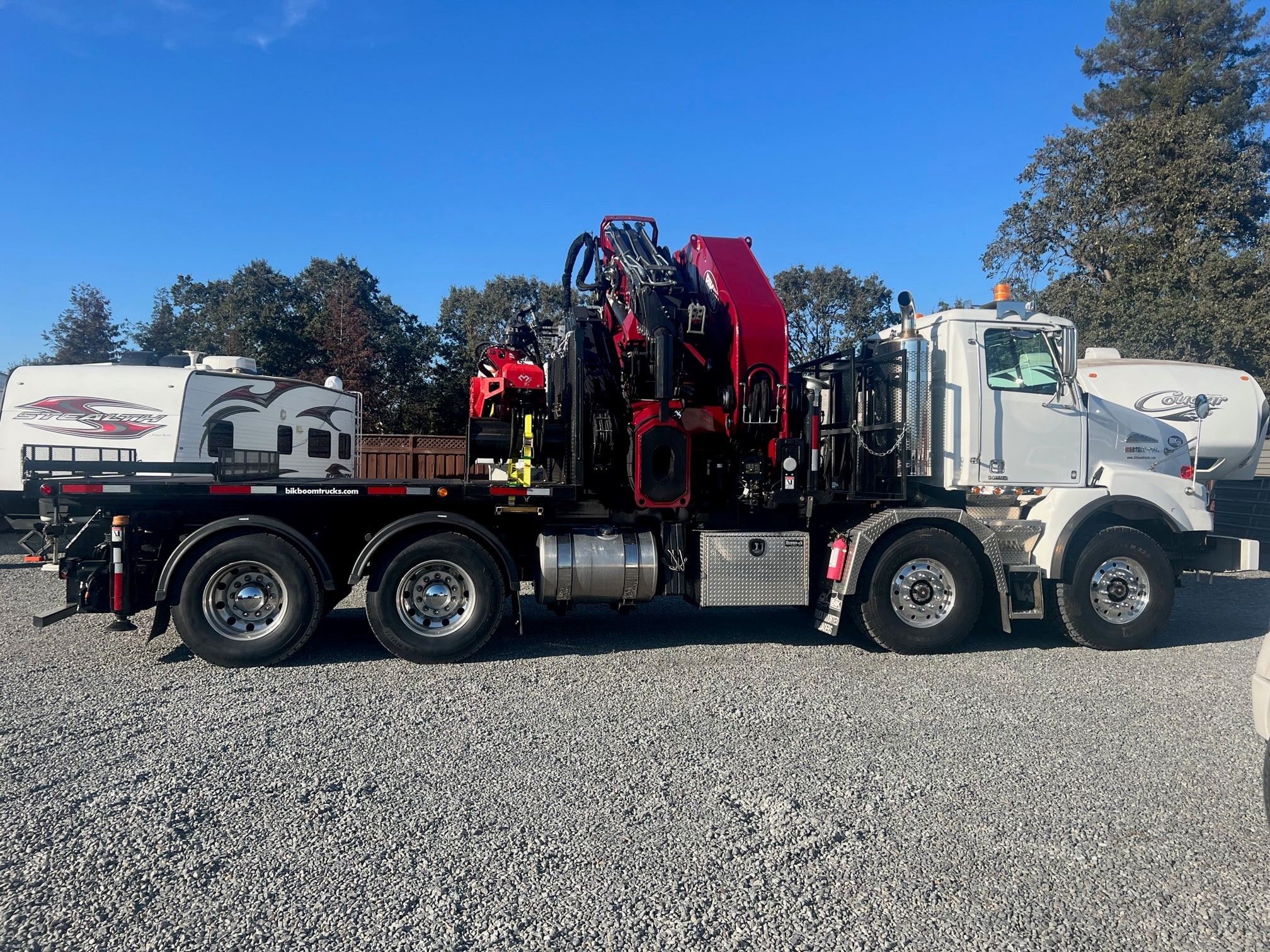

USED BIK TREE-CARE SERIES TC-126 ON WESTERN STAR 4800 TA

USED BIK TREE-CARE SERIES TC-126 ON WESTERN STAR 4800 TA

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

BIK Tree-Care Series TC-126 –  100 ton/m  Knuckle Boom

  • 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
  • Including (1) Grapple extention in jib
  • Boom Capacity of  2,050 lbs @ 126’ Vertical Reach
  • Main Boom Horizontal Capacity:
    • 36,800 lb @  16’
    • 20,000 lb @  23’
    • 16,000 lb @  33’
    • 11,000 lb @  47’
    • 7,200 lb @ 67’
  • Jib Horizontal Capacity:
    • 3,200 lb @  76’
    • 2,200 lb @ 100’
    • 2,000 lb @ 104’
    • 1,630 lb @  110’
    • w/Grapple extn to  114’
  • PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st knuckle
  • 25 degree negative angle at jib Continuous Rotation and Dual Planetary Gear Rotation
  • Special Extra High Tensile Steel Structure
  • Hydraulic Extra Wide Main outriggers at pedestal – 29’ – 6” span – hydraulic tilting when retracted. Radio controlled
  • Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom,   – Lifting winch on boom plumbed to jib
  • DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
  • PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
  • Engineer Stability Certified to operate at 100% Full load chart in ALL area’s – 360 degree working area
  • Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, load chart  in FT. & LBS.

Truck Details

Used 2020 Western Star 4800 Sloped Short Nose  T/A Steer-T/A Rear Tractor – 4 Axle: (was new in April 2021

  • DDC-13 Diesel – 470 hp with Jake
  • Eaton Ultrashift
  • 18spd Automated Trans
  • Approx. 10,000 miles
  • (2) x 20,000 LB fronts with 425 / 65R22.5 tires
  • 46,000 LB Rears on  air ride Susp.
  • Double Frame
  • Polished ALCOA Aluminum Wheels front and outer rear
  • Chrome single polished Exhaust
  • Chrome Grille & Bumper
  • Dual 80 gallon aluminum fuel tank
  • Loaded with Options including:  A/C, Tilt/Telescopic steering, top level  Interior,  AM/FM/CD, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power  window both sides, power mirrors &  door locks, Air ride cab, trailer air tow package, truck cab white colour,  5th wheel on at tandems w/ramps, etc…

2’  x 102” Carry Deck

  • Mounted behind boom with 48” head board with built in airlines / electric for trailer supply
  • Checker plate steel surface, dual pull-oout type access ladders – one on each side
  • 7.5’ Removable Deck over 5th wheel  (behind 2’ carry deck)

Options Included:

  • (5) pcs – 2” PVC stab pads w/holders
  • Mat Rack mounted behind cab and at rear on top of deck
  • 36” Alum Storage Box
  • (2) pcs – Mecanil Grapple Saws – 1-SG-280 and 1-SG-160

Excellent Condition and Operating Order

Truck and Boom Fully Inspected and Certified

Ready for Immediate Delivery

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
