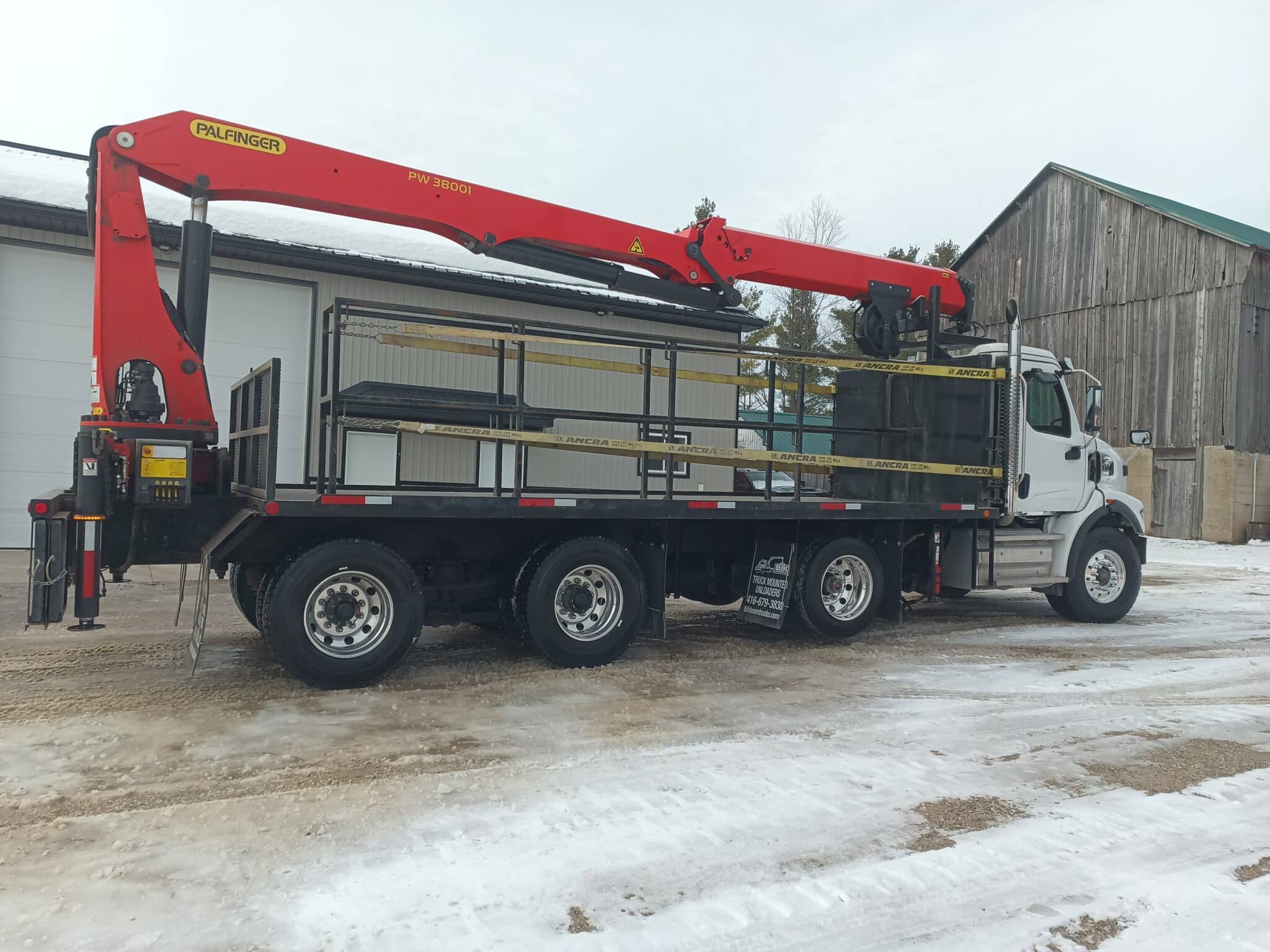

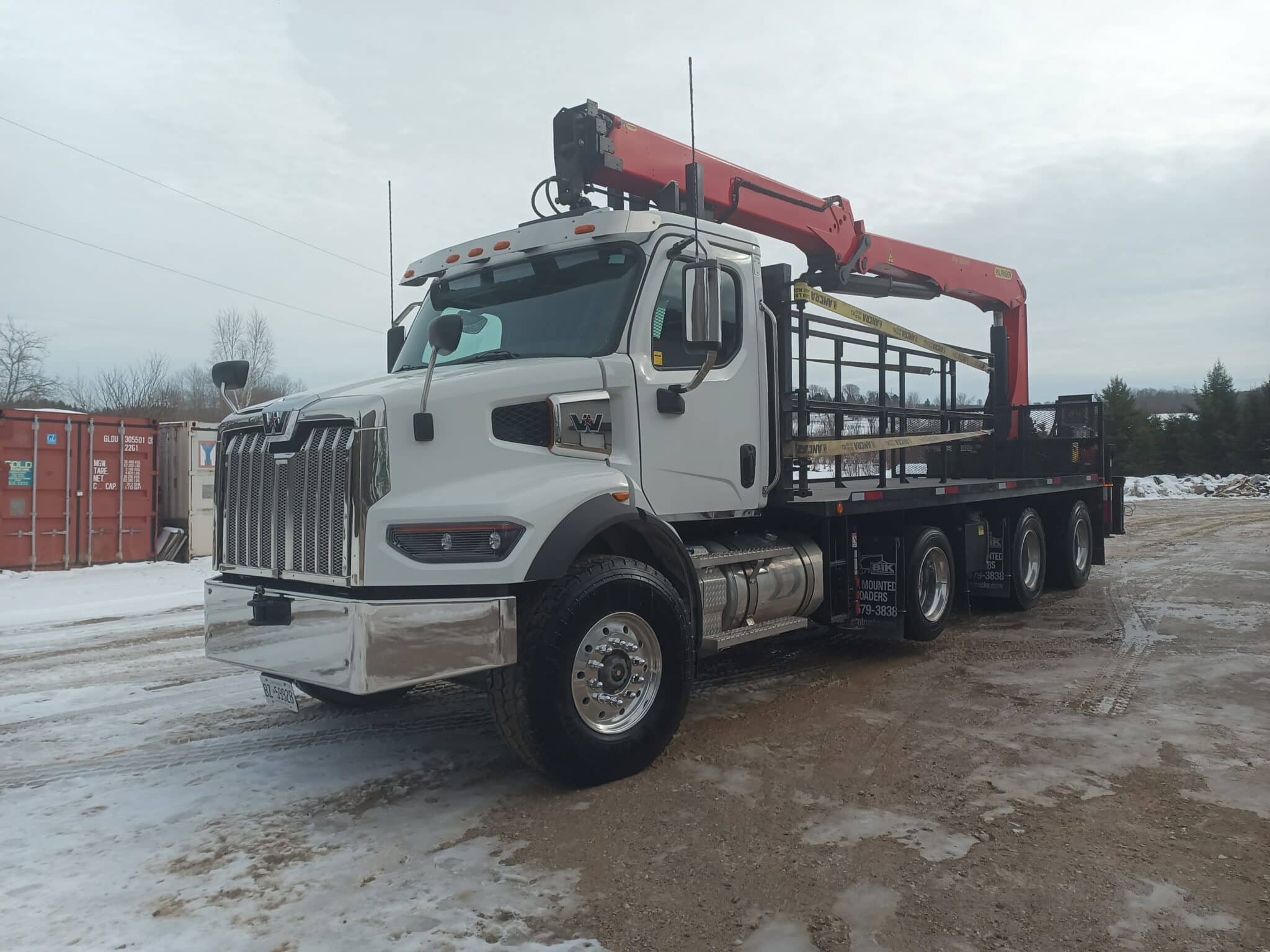

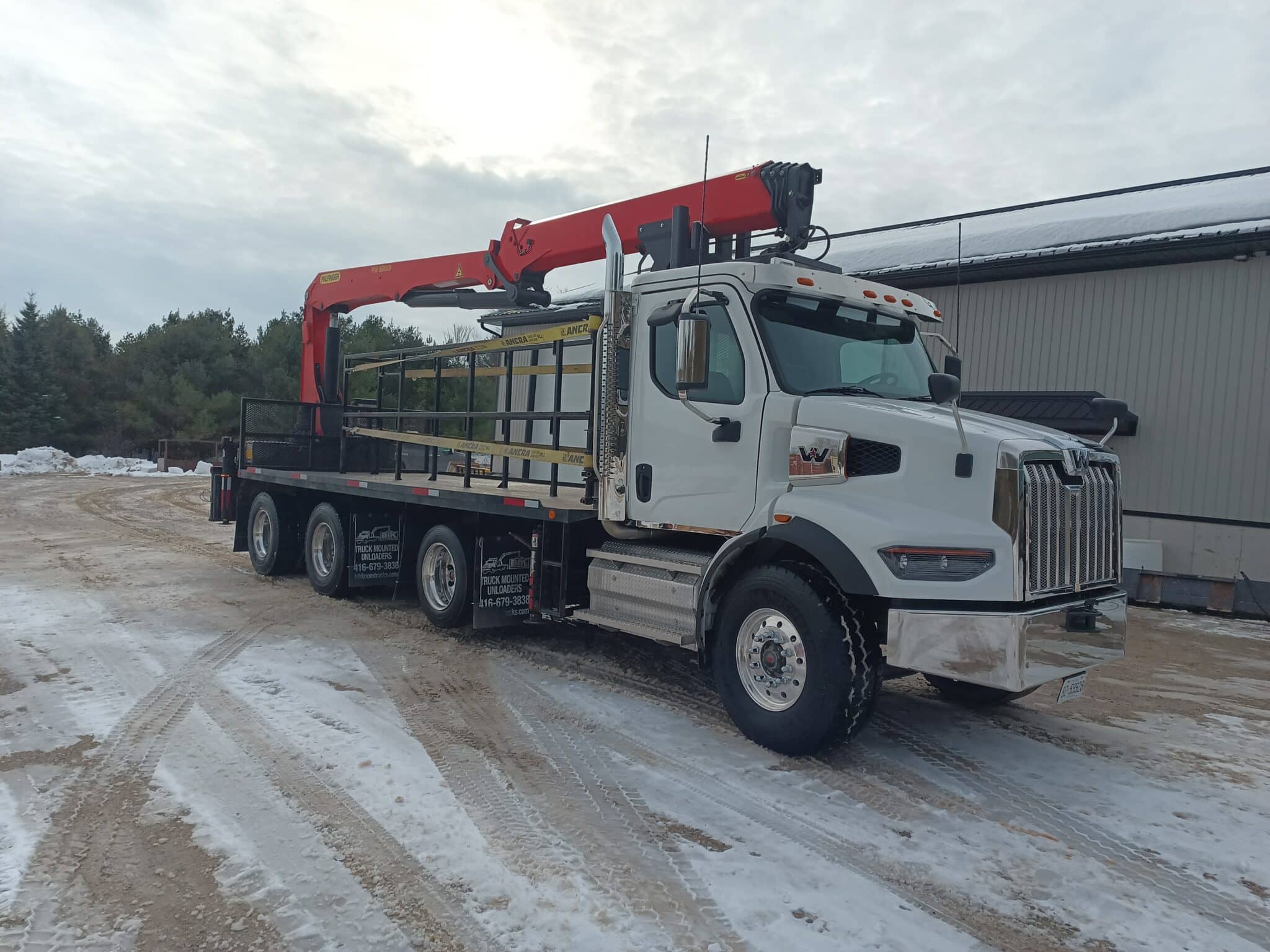

USED 2024 WESTERN STAR 47X
PALFINGER PW38001
Used 2024 Wester Star 47x
- EXPECTED FRONT AXLE(S) LOAD : 20000.0 lbs
EXPECTED REAR DRIVE AXLE(S) LOAD : 46000.0 lbs
EXPECTED PUSHER AXLE(S) LOAD : 20000.0 lbs
EXPECTED GROSS VEHICLE WEIGHT CAPACITY : 86000.0 lbs - DETROIT DD13 GEN 5 12.8L 505 HP @ 1625 RPM, 1900 GOV RPM, 1850 LB/FT @ 975 RPM
- Transmission: EATON FULLER RTLO-18918B TRANSMISSION -90 -60
- 287 inch wheelbase
- 100 gallon alluminum fuel tank

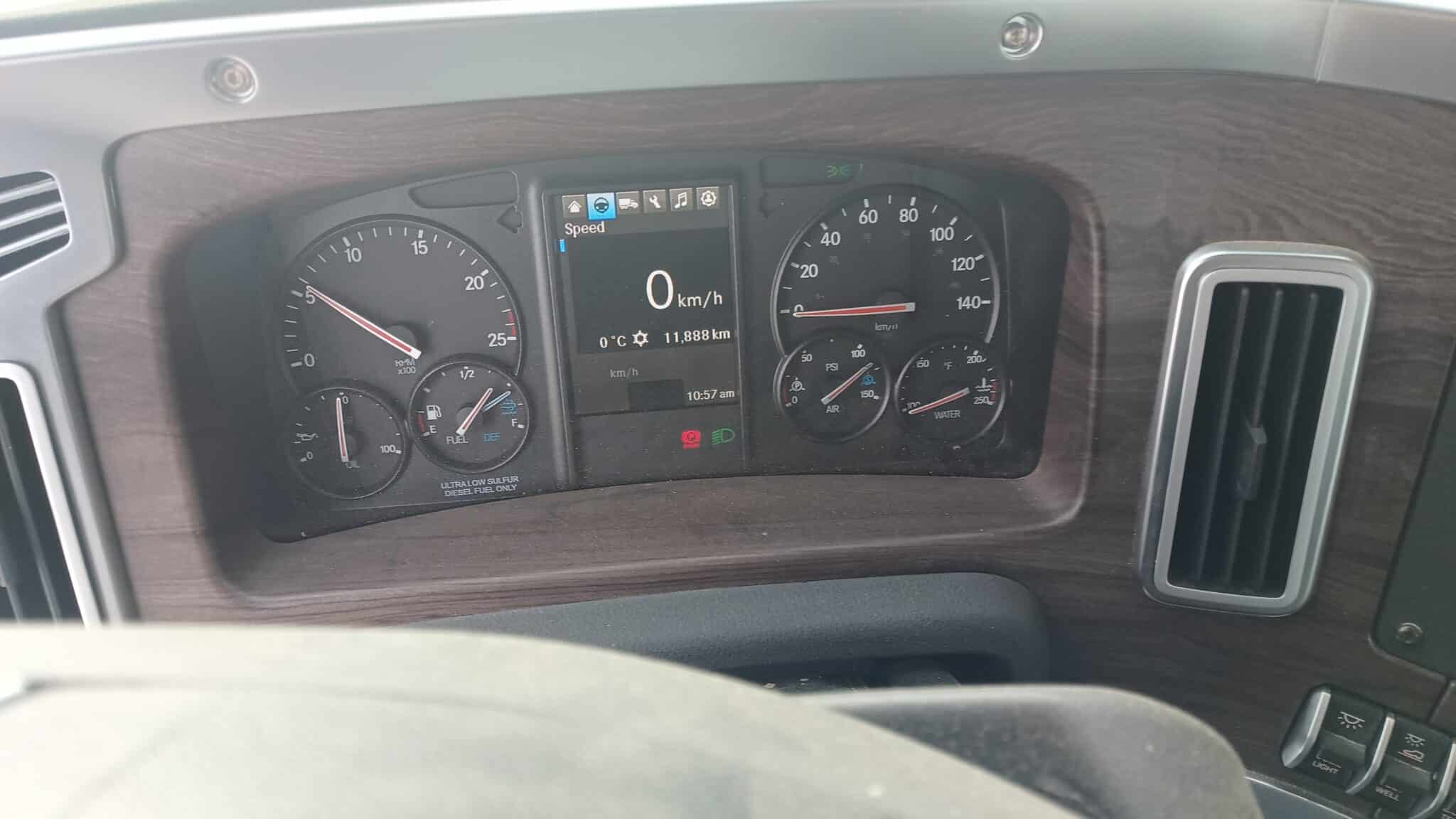

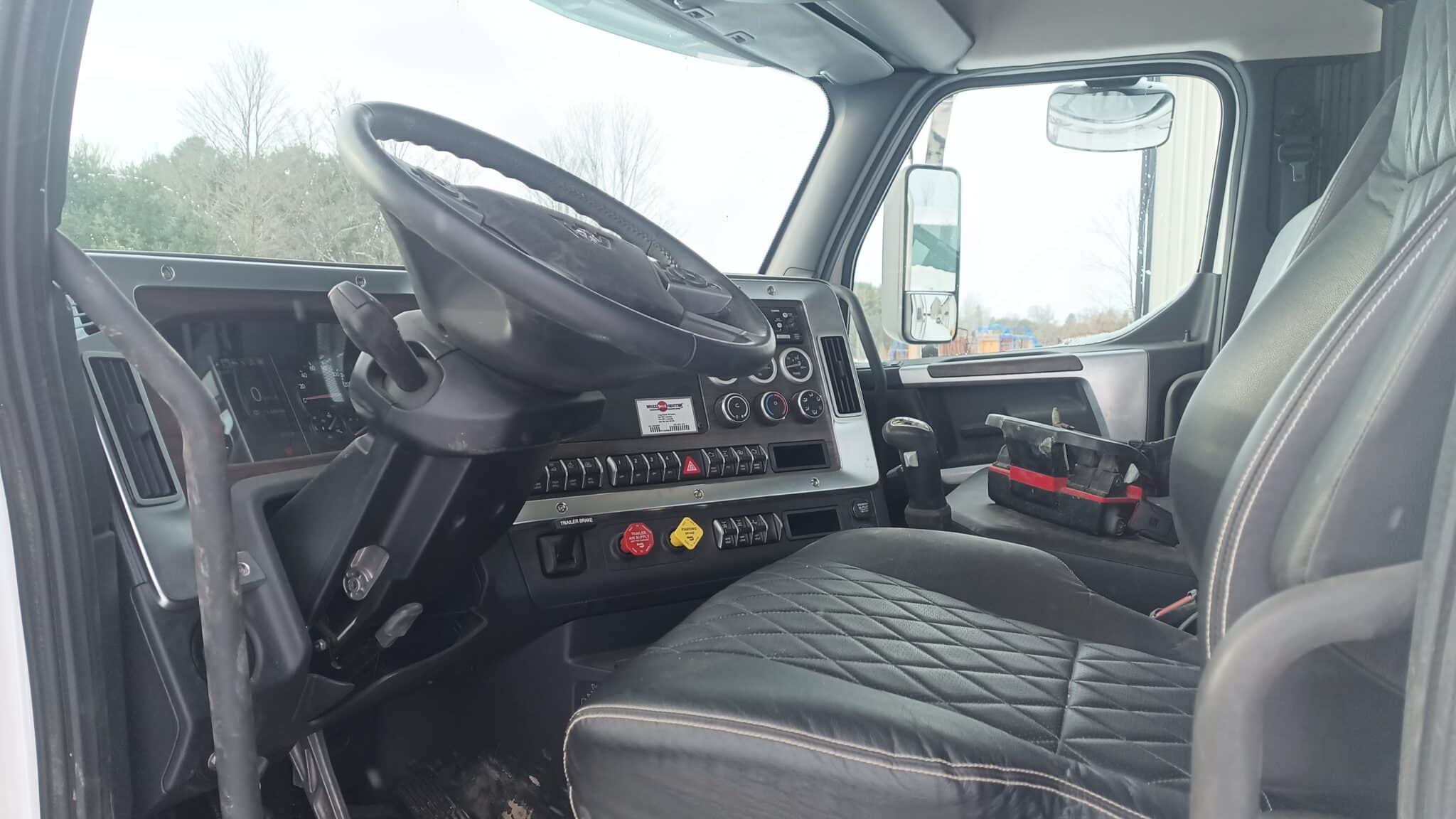

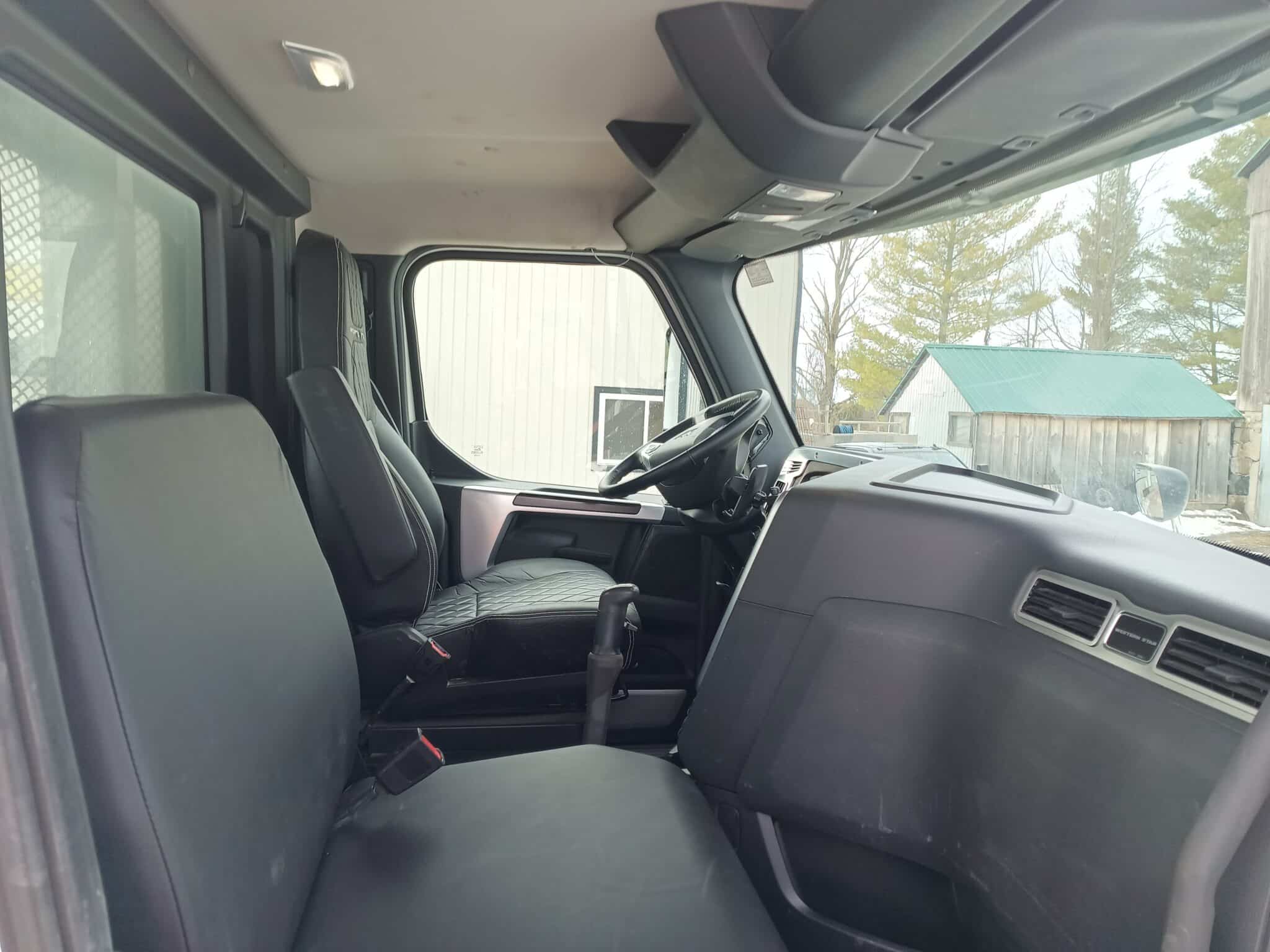

- Cab loaded with features
Palfinger PW38001
-
Boom length 61’ via 4-hydraulic extensions with Power-link Plus
-
Turntable rotation via two (2), slewing motor
-
470 degree crane rotation
-

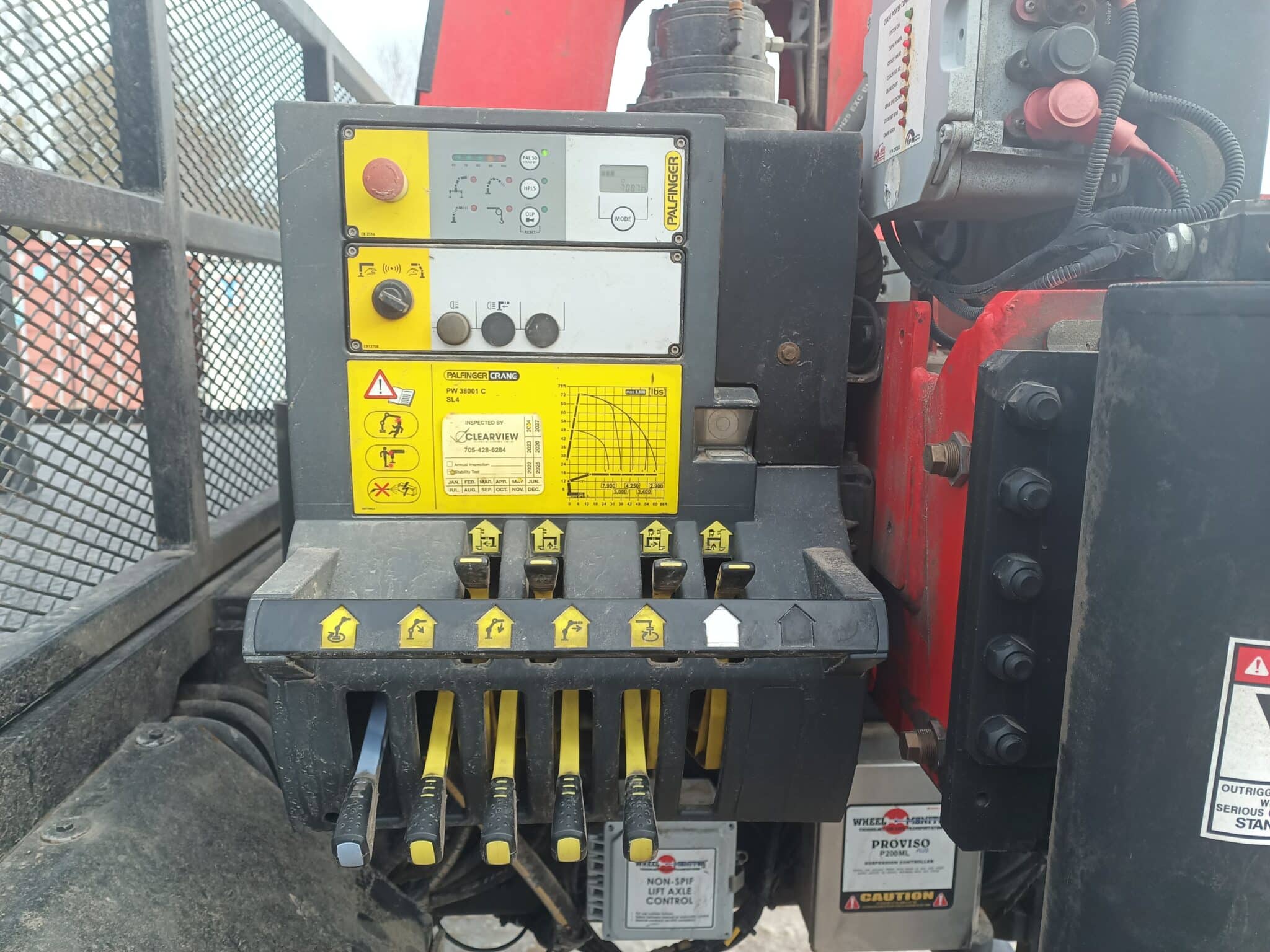

Scanreco P2 Radio Remote
-
Danfoss control valve
-
8.5 kW (11.4 HP) Hydraulic oil cooler at base of crane
-
10,000 lb capacity hydraulic rotator,
