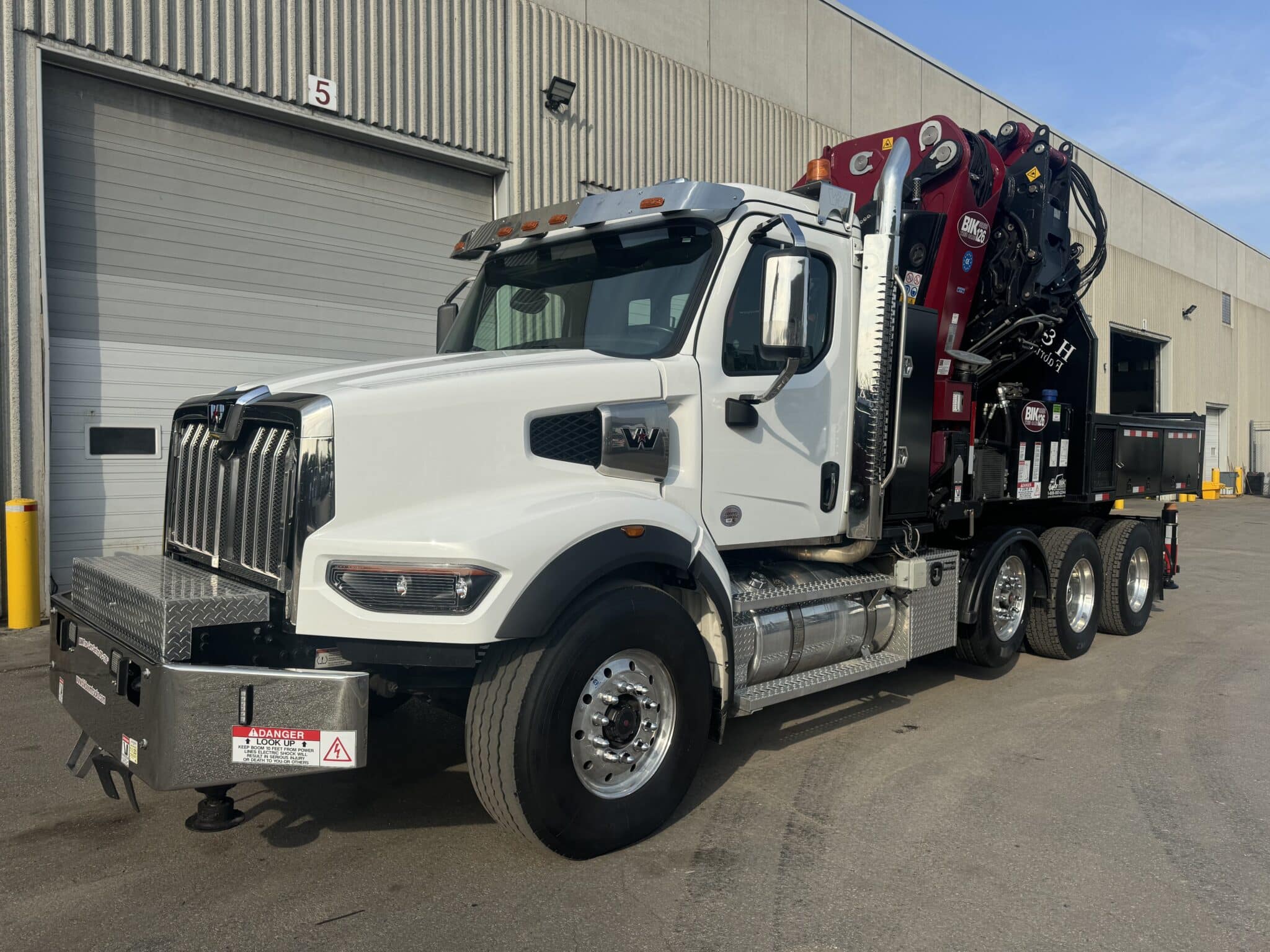

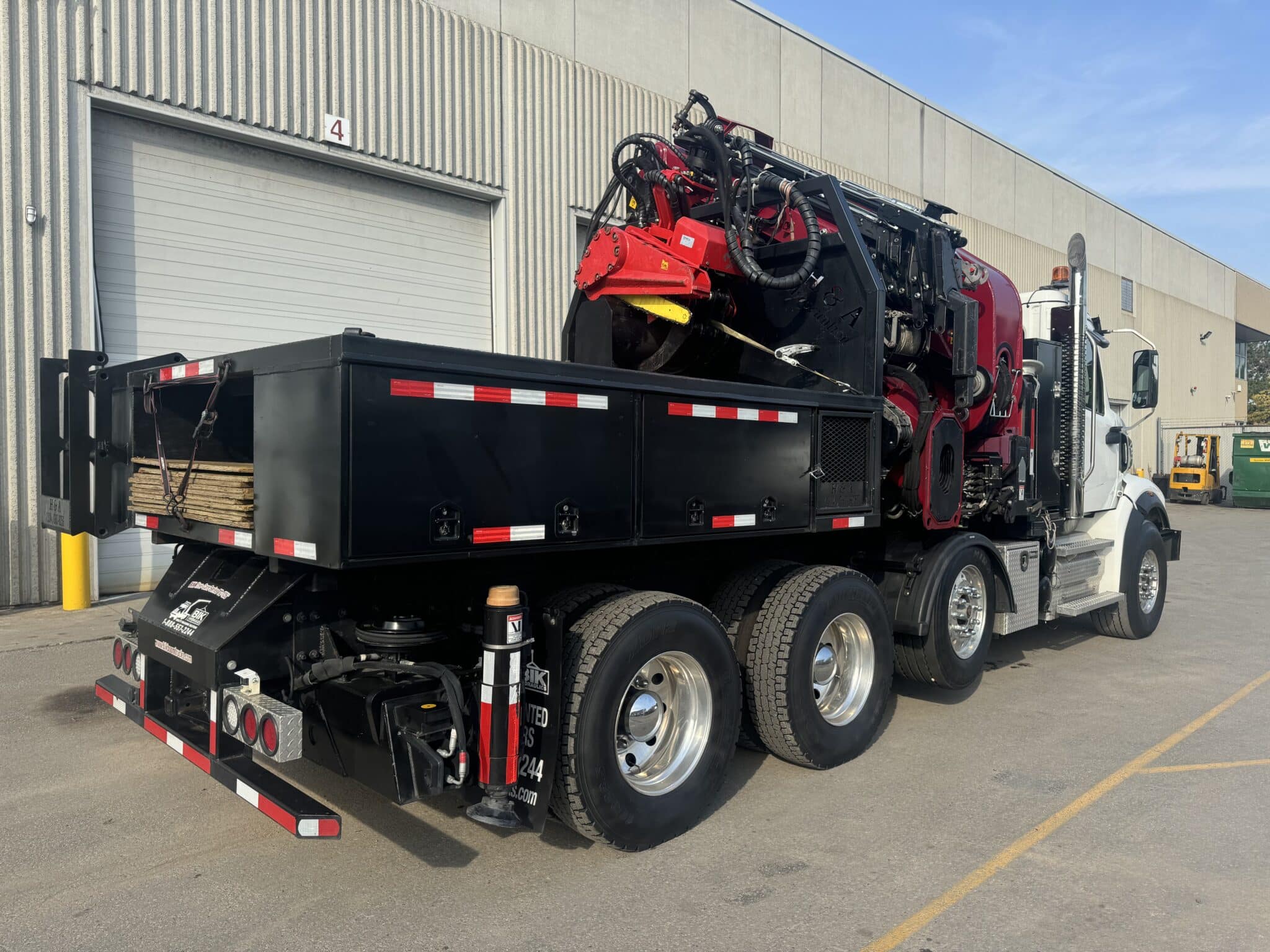

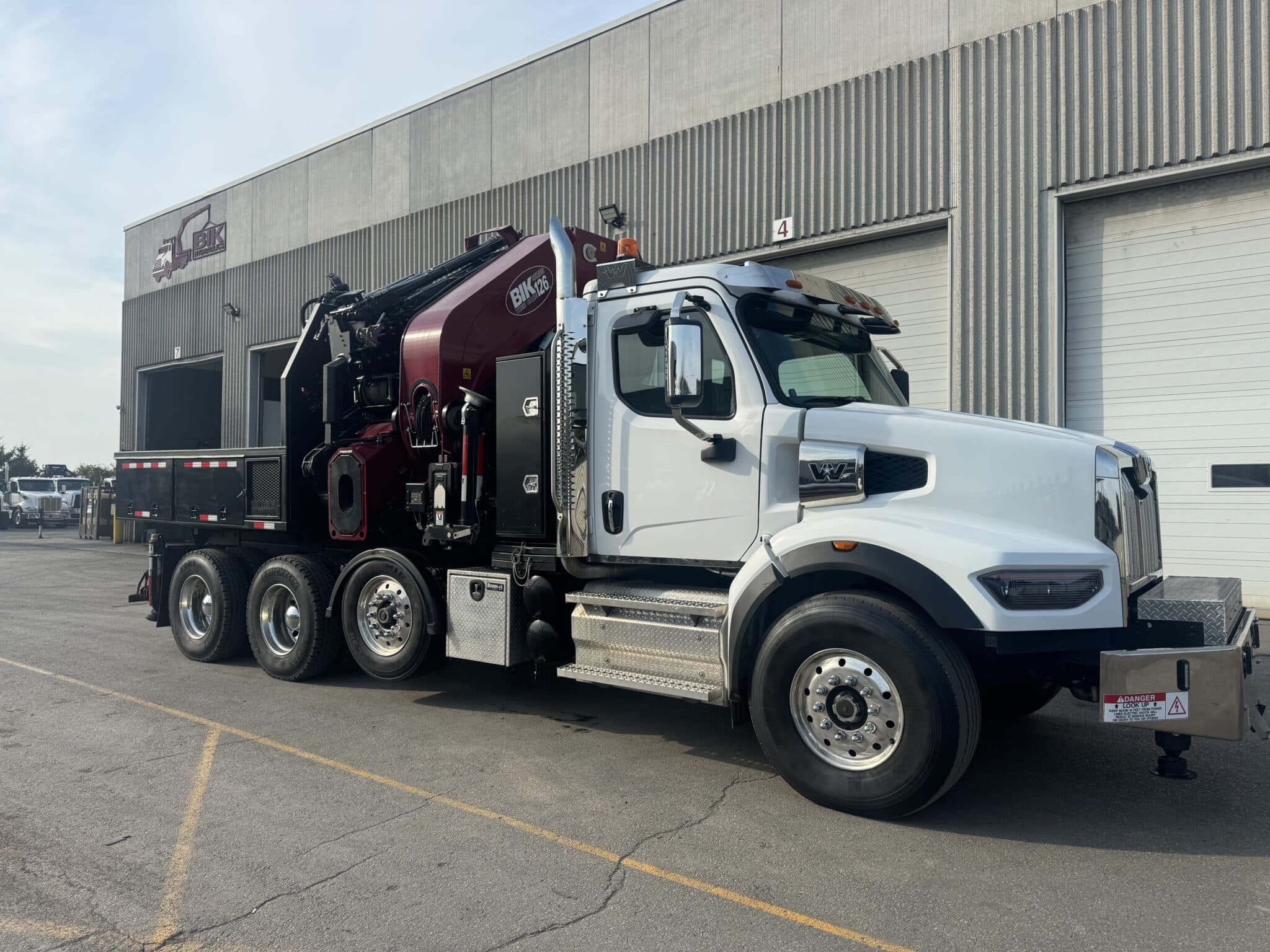

USED 2022 BIK TREE-CARE SERIES TC-126 ON WESTERN STAR 4800 TA
 |
USED BIK TREE-CARE SERIES TC-126 ON WESTERN STAR 4800 TA
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

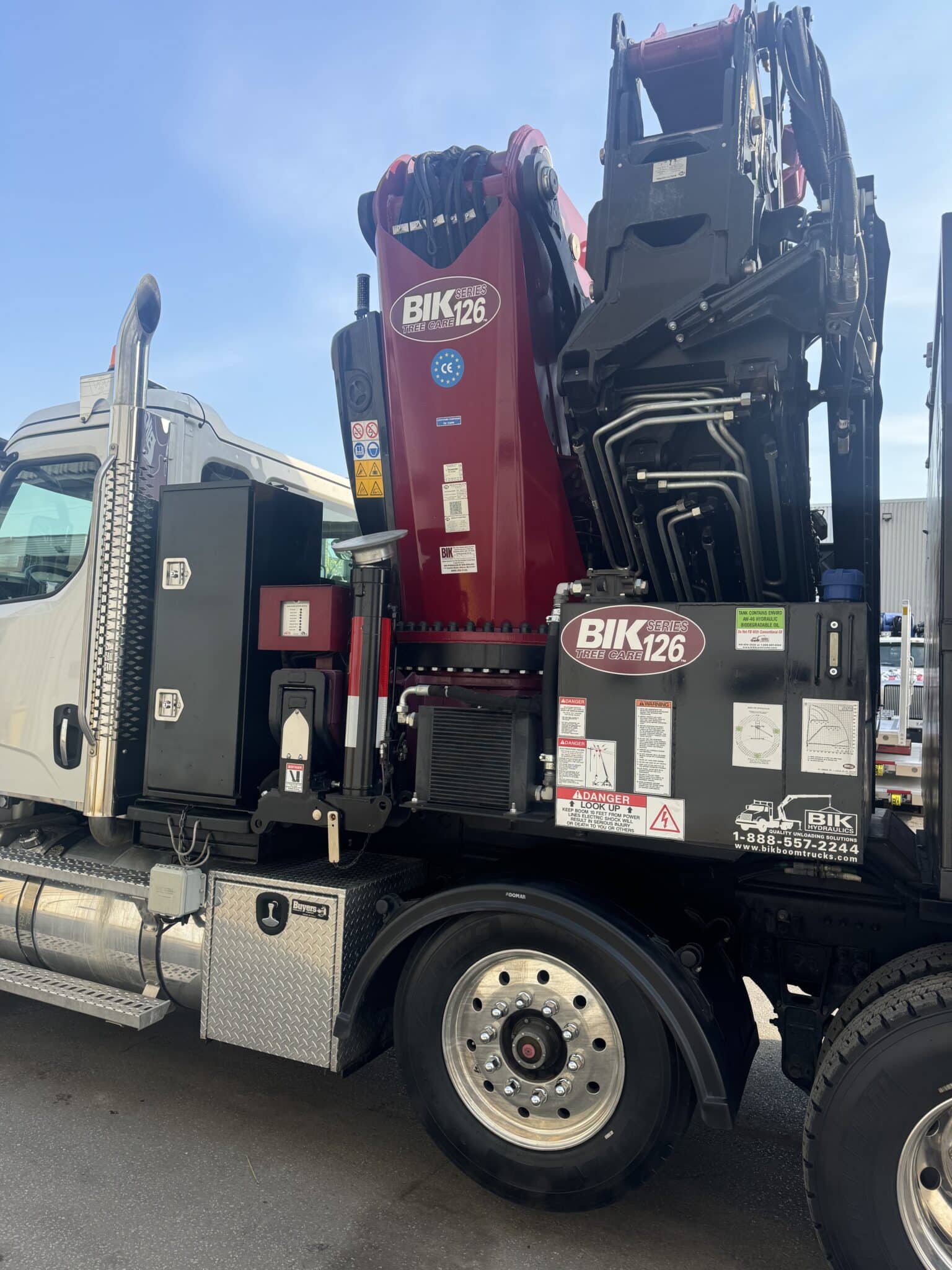

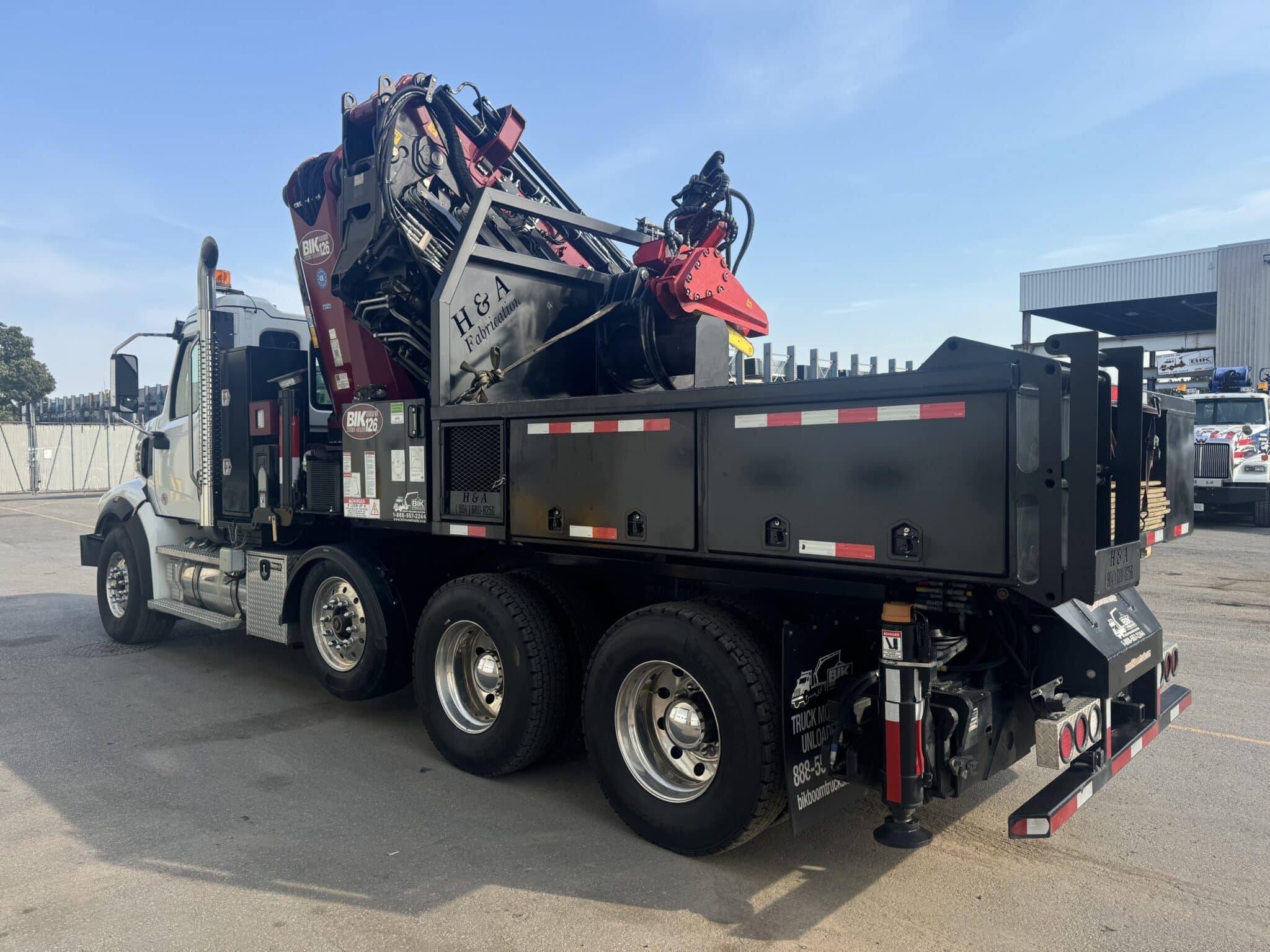

BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom
- 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
- Including (1) Grapple extention in jib
- Boom Capacity of 2,050 lbs @ 126’ Vertical Reach
- Main Boom Horizontal Capacity:
- 36,800 lb @ 16’
- 20,000 lb @ 23’
- 16,000 lb @ 33’
- 11,000 lb @ 47’
- 7,200 lb @ 67’
- Jib Horizontal Capacity:
- 3,200 lb @ 76’
- 2,200 lb @ 100’
- 2,000 lb @ 104’
- 1,630 lb @ 110’
- w/Grapple extn to 114’
- PM connecting rods at First Boom and Knuckle, 15degree negative angle at 1st knuckle
- 25 degree negative angle at jib Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure
- Hydraulic Extra Wide Main outriggers at pedestal – 29’ – 6” span – hydraulic tilting when retracted. Radio controlled
- Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom, – Lifting winch on boom plumbed to jib
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
- Engineer Stability Certified to operate at 100% Full load chart in ALL area’s – 360 degree working area

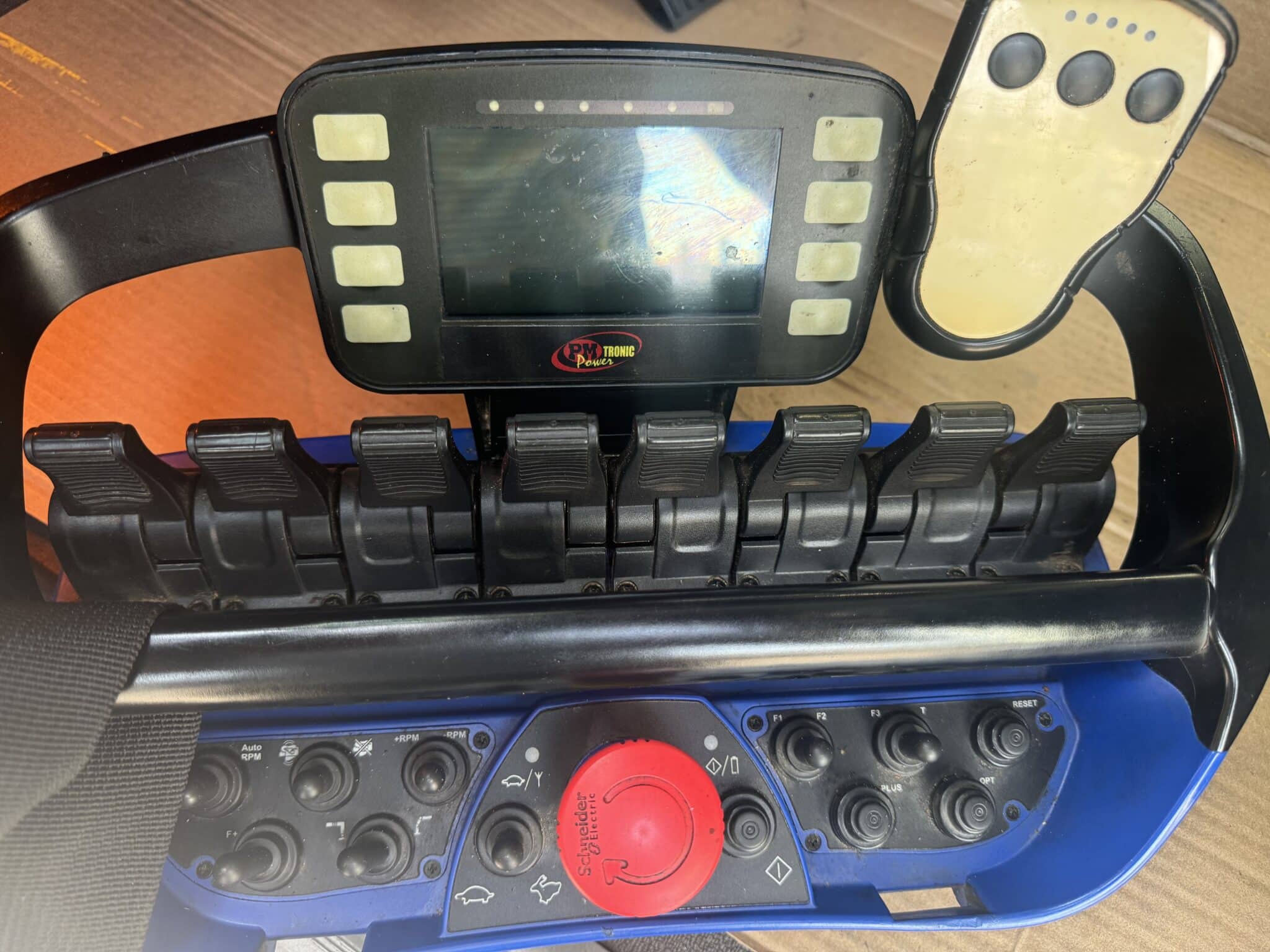

- Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, load chart in FT. & LBS.
