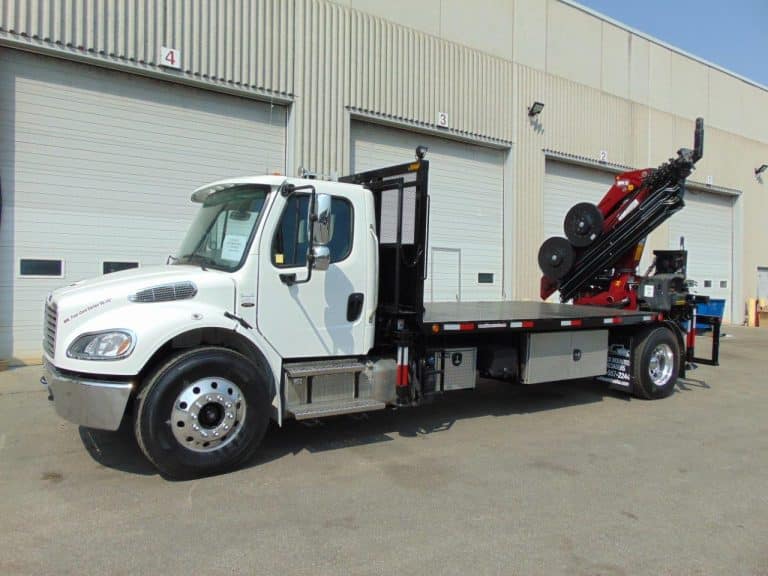

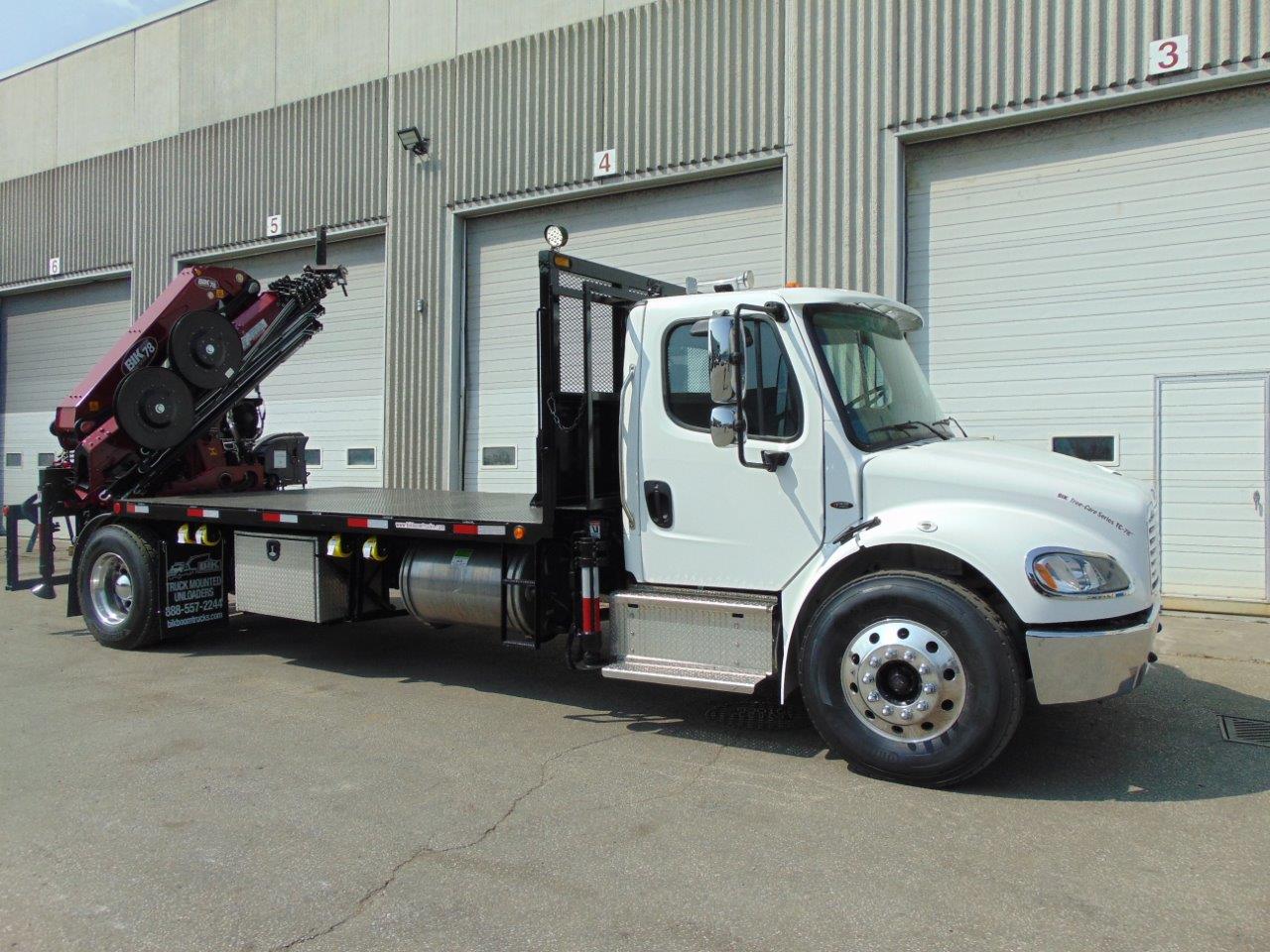

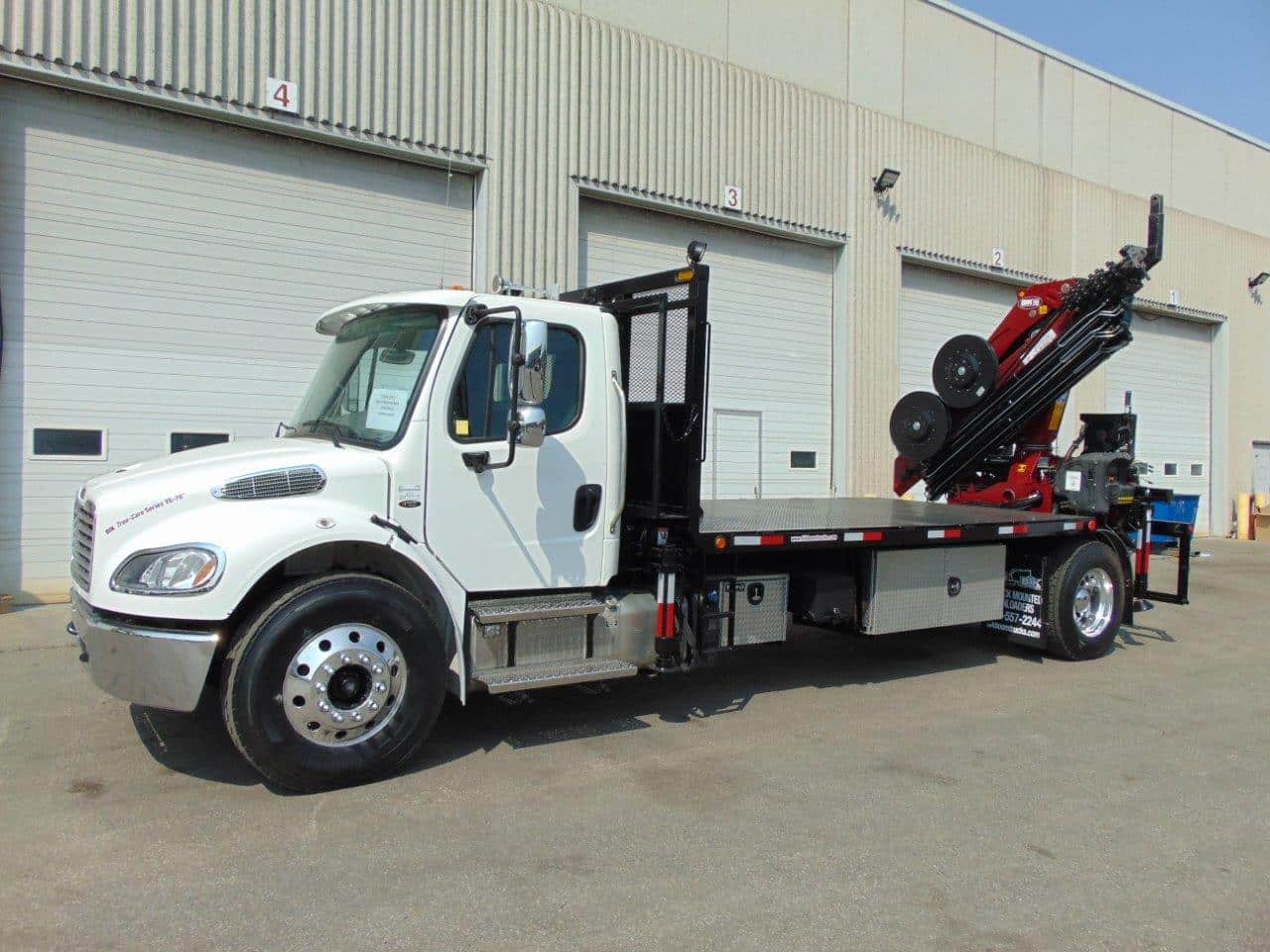

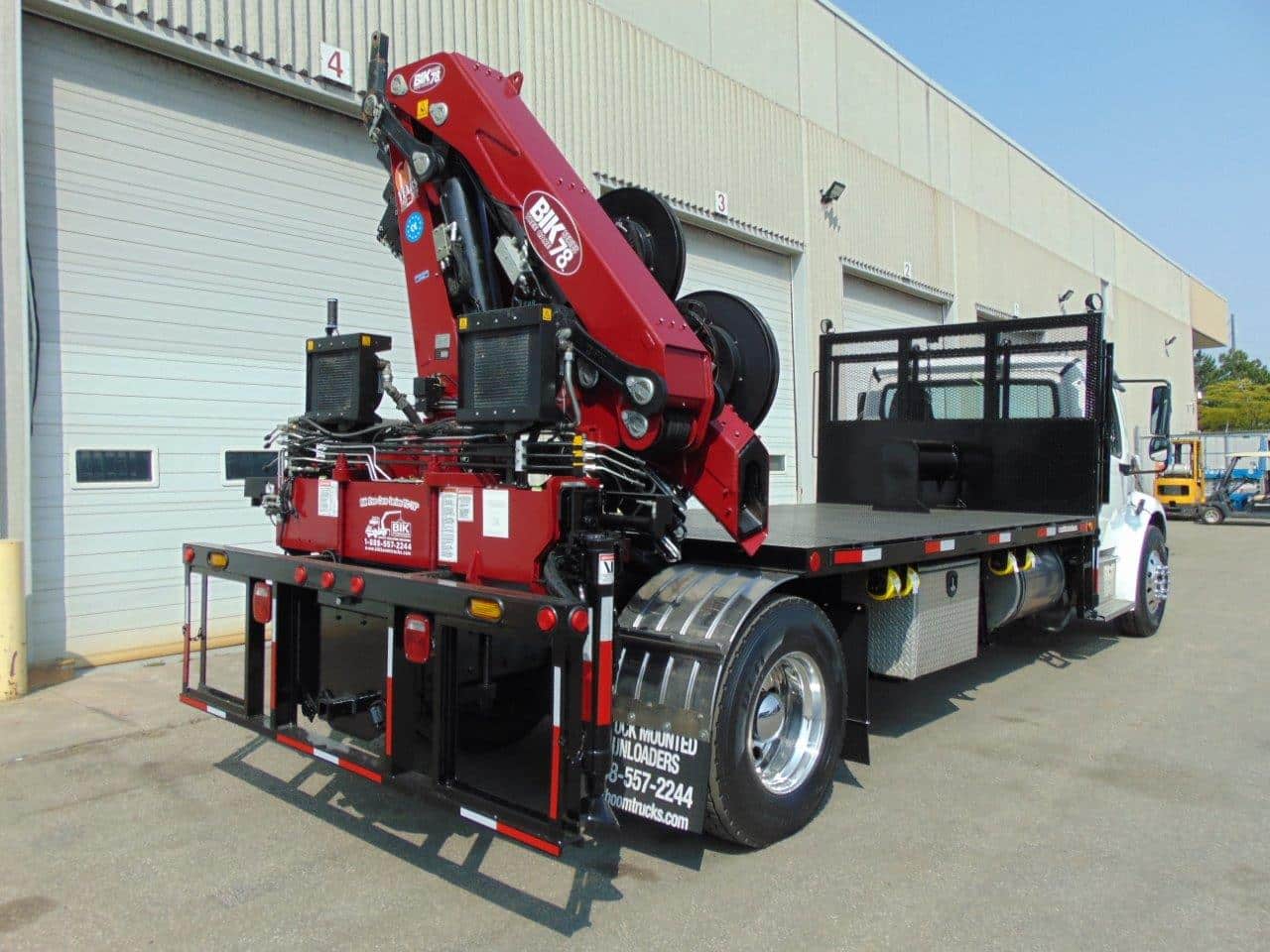

Used 2021 Freightliner 108SD with BIK Tree-Care Series TC-78

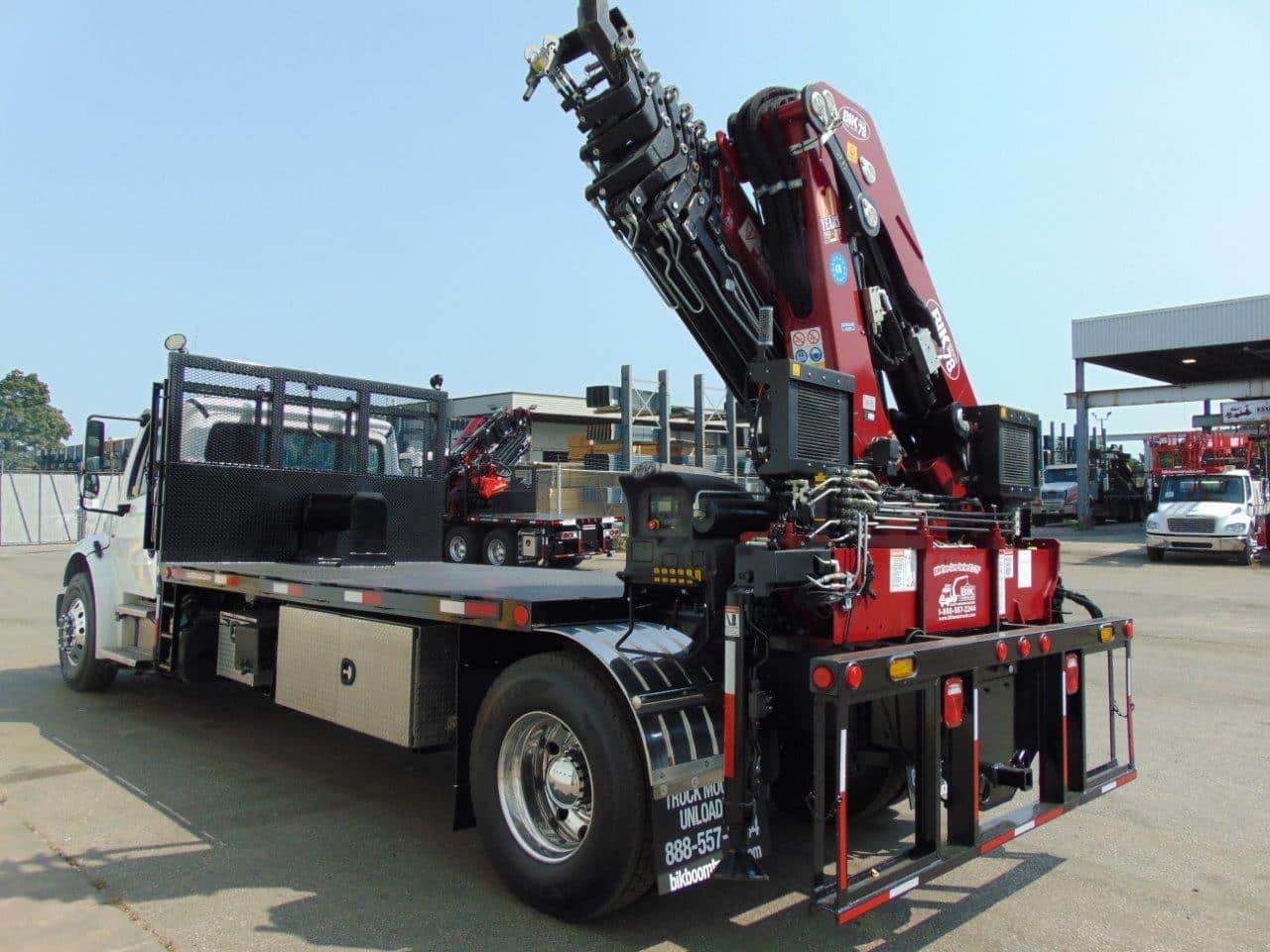

Boom Details

BIK Tree-Care Series TC-78  (PM 23.5 ton/m):

• 6-hydraulic extensions & one manual grapple extn
• Vertical Reach of 70’
• Handles 2,900 lbs @ 78’ Vertical

HORIZONTAL Capacities:

• 9,800 lb at 14’
• 5,900 lb at 20’
• 4,330 lb at 26’
• 2,560 lb at 40’
• 1,750 lb at 55’,

• 408 Degrees Rotation on Main Hydraulic Slewing , Double pilot operated on slewing and pilot operated check Valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom, Mounted behind cab of truck.
• DANFOSS Proportional Valve Controls – single sided operator control station, Load Holding Valves on all cylinders
• PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
• SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
• Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50’ back-up cord
• 4-stabilizers – Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span at boom and Front Auxilary Out/Down Stabilizers
• Full 360 degree stability – 100% of load chart
• 15 degree negative angle on folding arm   –  Hydraulic Overload Protection – simplified system that prevents boom from overload
• Two functions plumbed to end of 6^th extn,  – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear

Also Included:

• (4) pcs – 2” PVC stabilizer pads – with holders
• Aluminum storage boxes
• Mecanil SG-220 Grapple saw

Deck Details

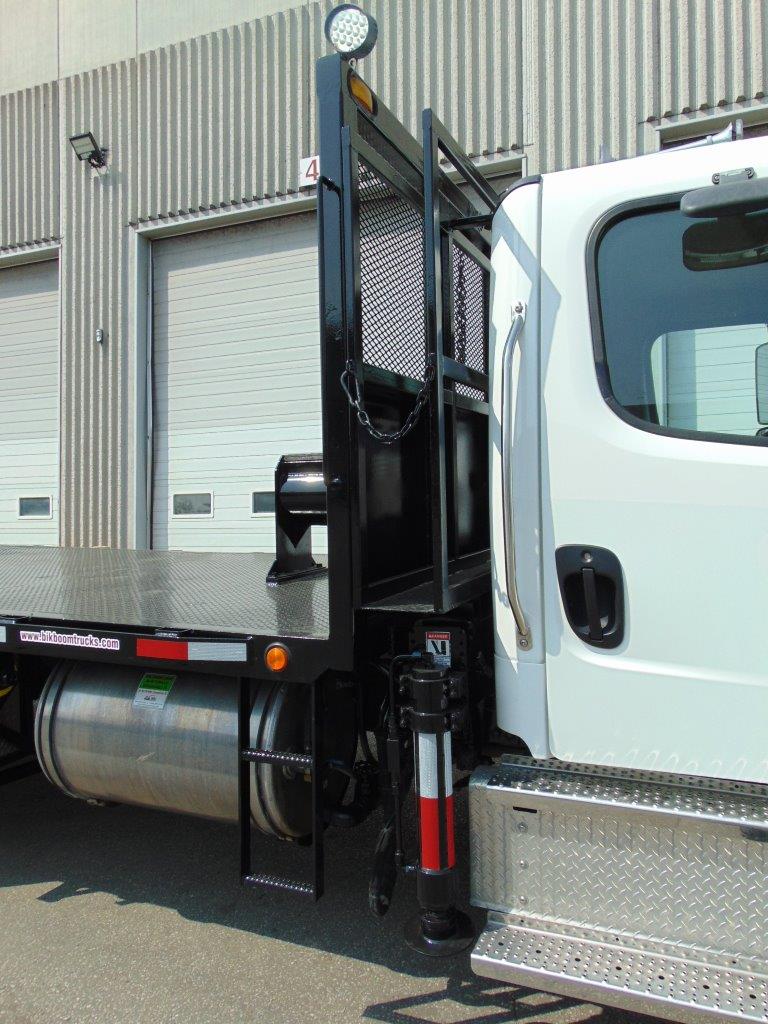

14’ x 102” Steel Deck  Body:

• 60” steel head board
• steel checker plate deck surface
• main sil X-braces & support
• 2-Deck access Ladders at Headboard, 2-Ladders at rear
• Reflectors and Mud-flaps
• 6 – Sliding Winches and track under deck
• Painted black.
