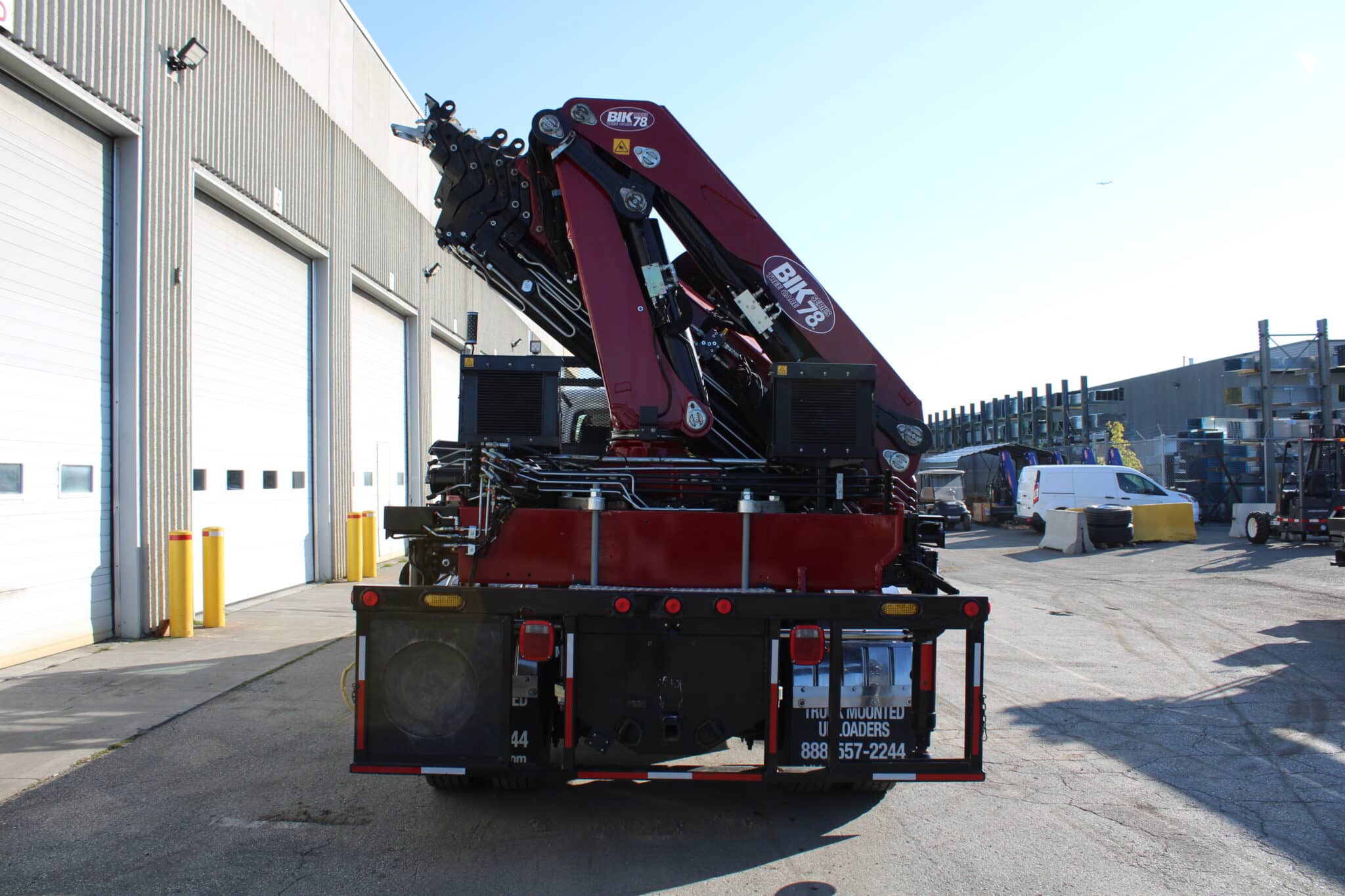

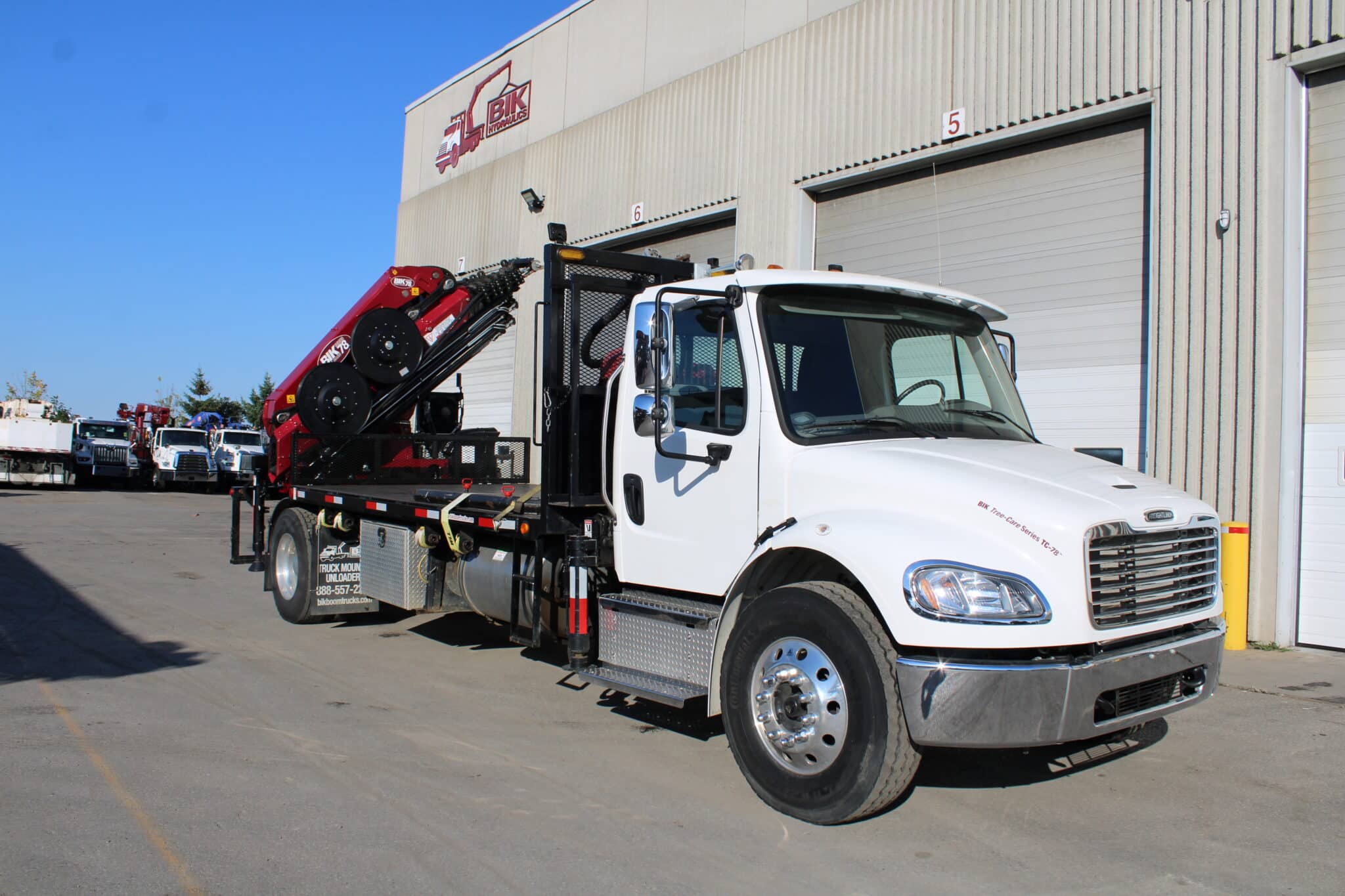

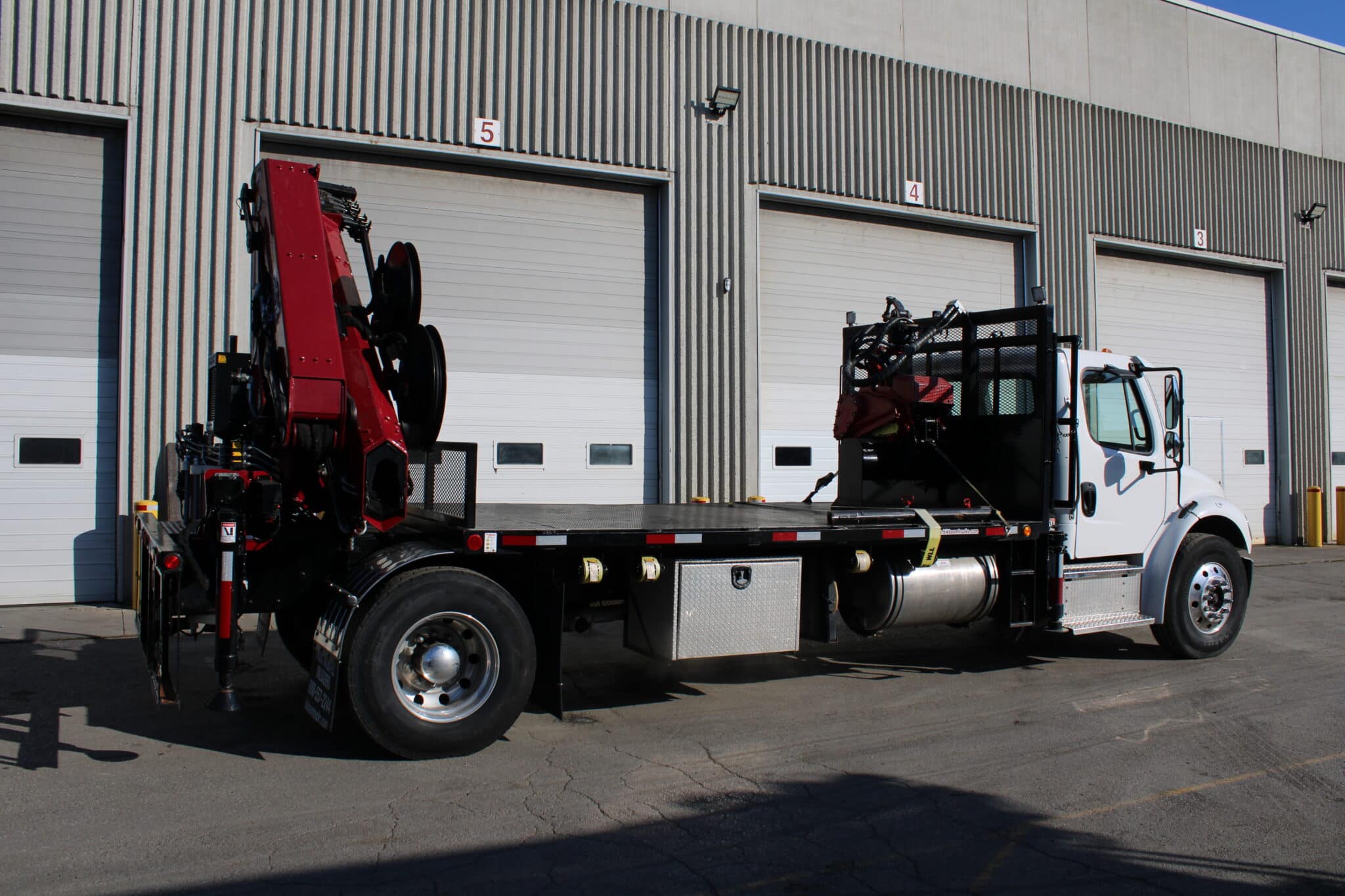

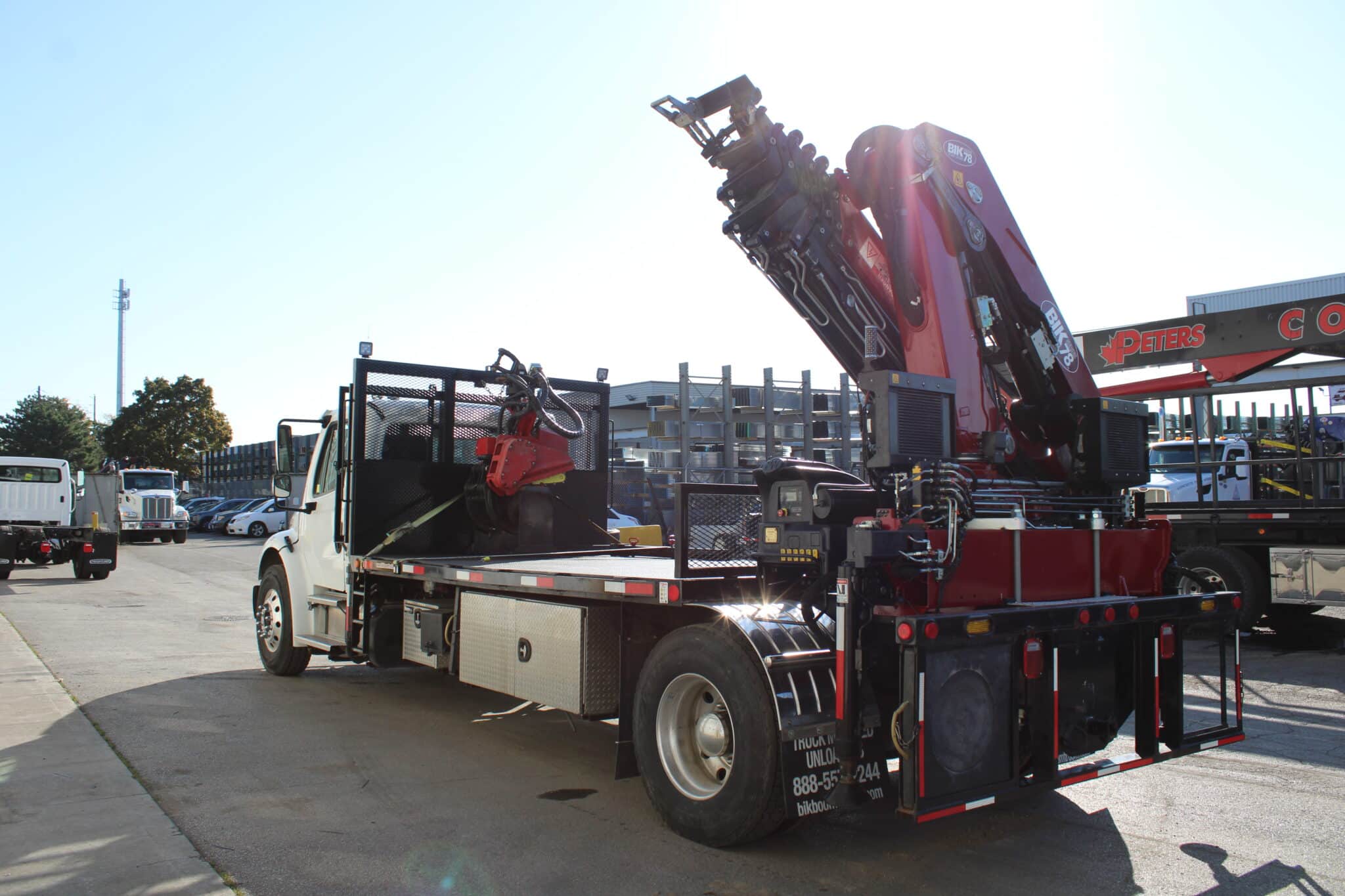

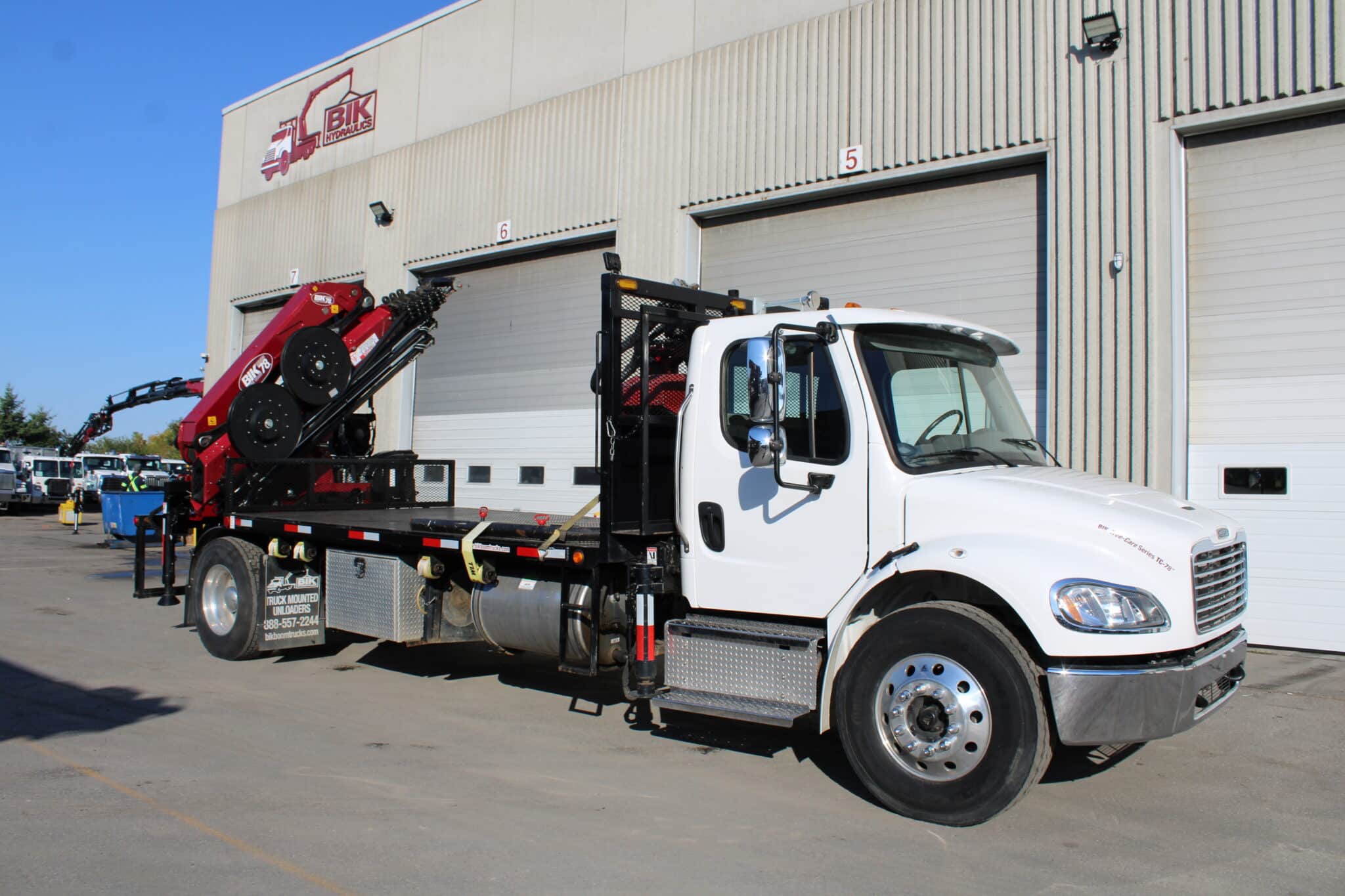

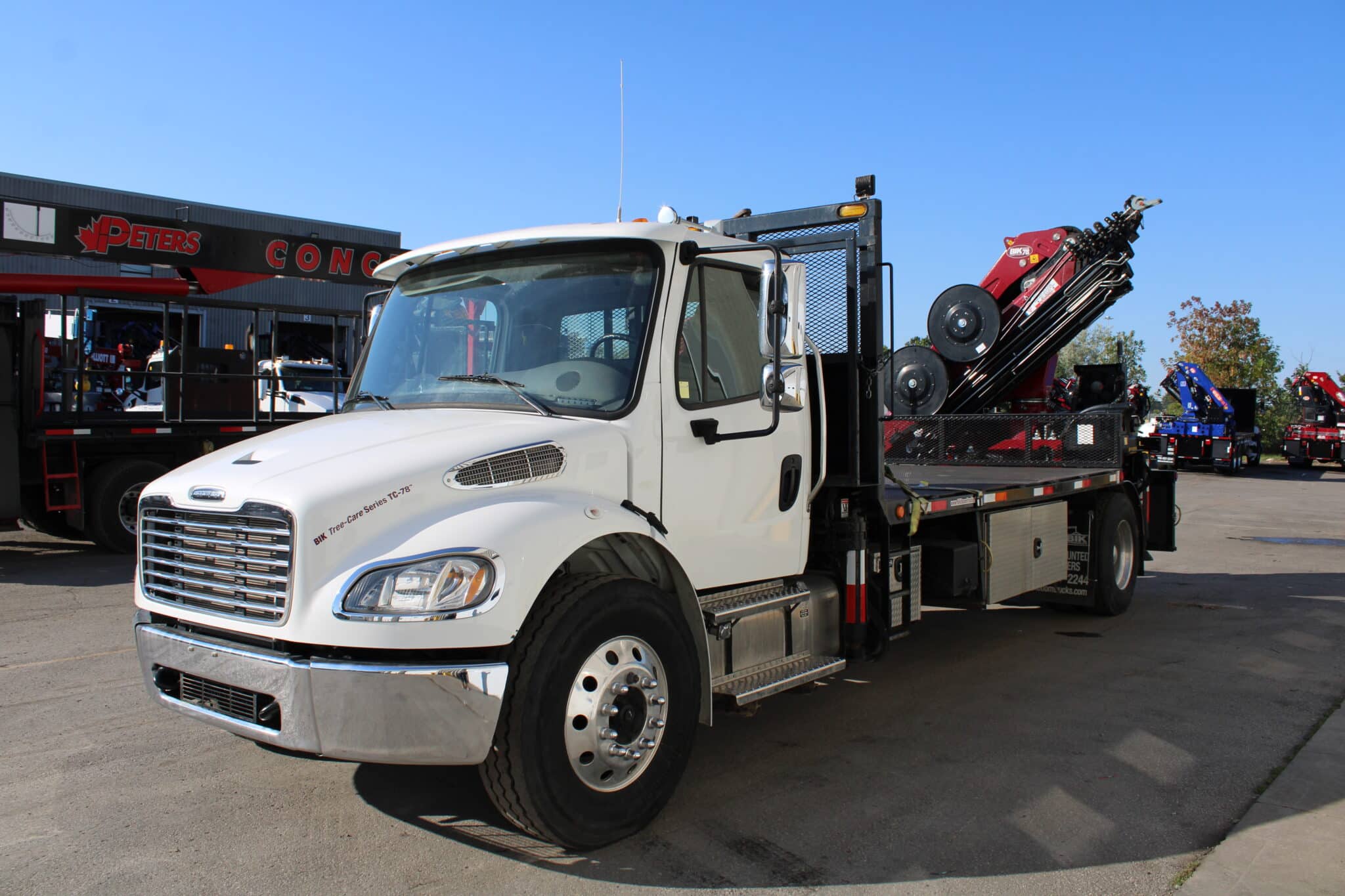

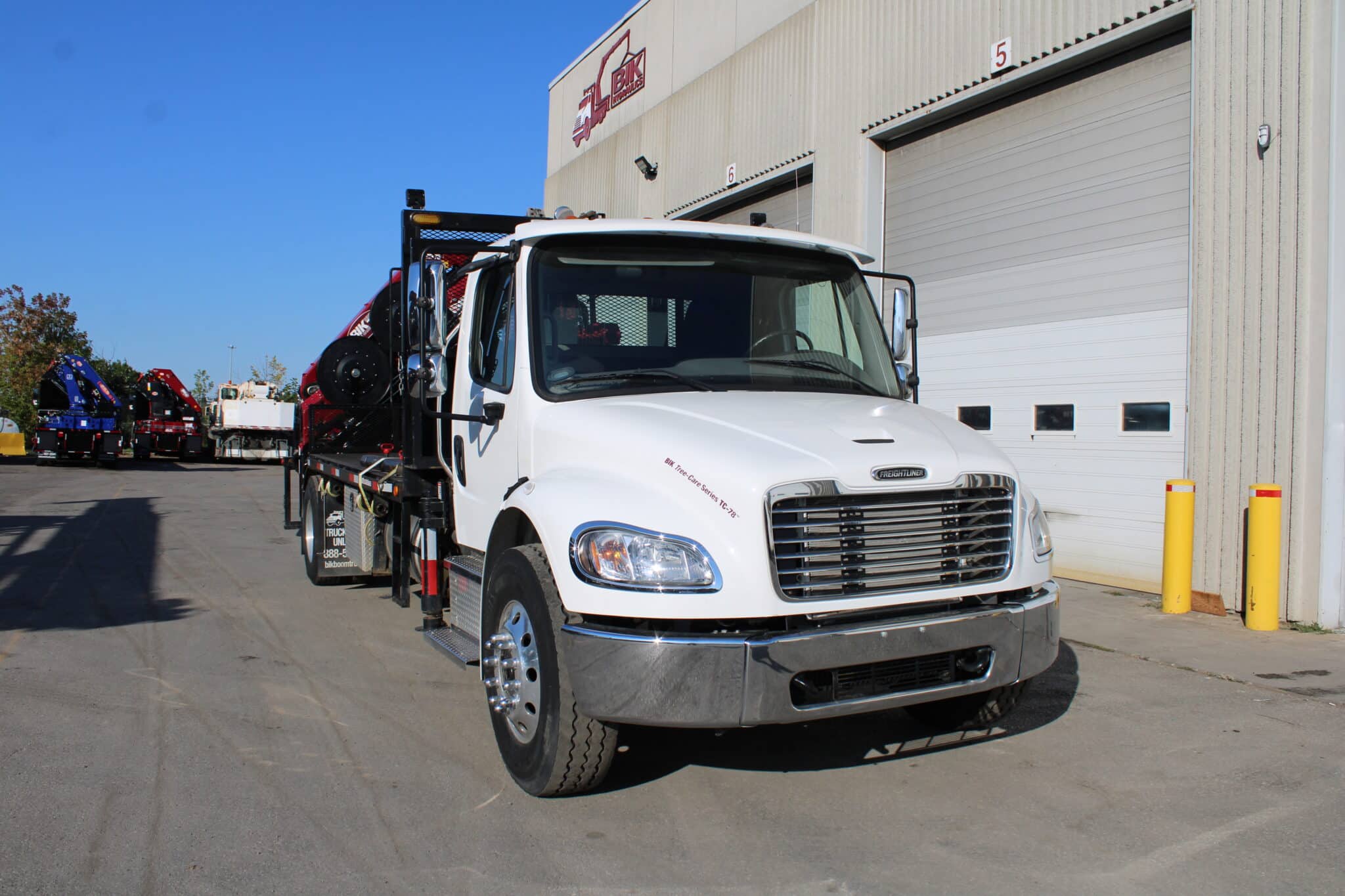

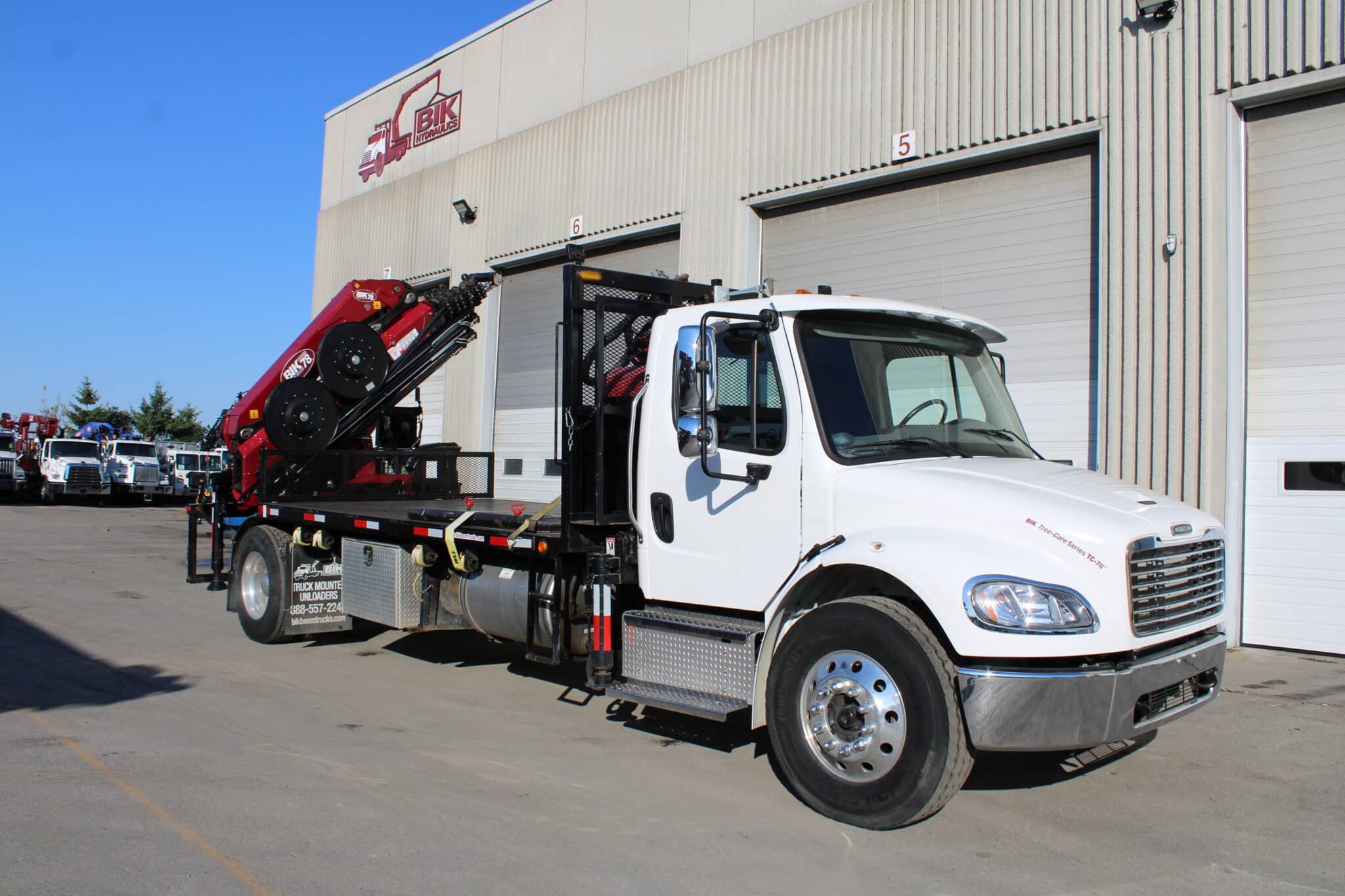

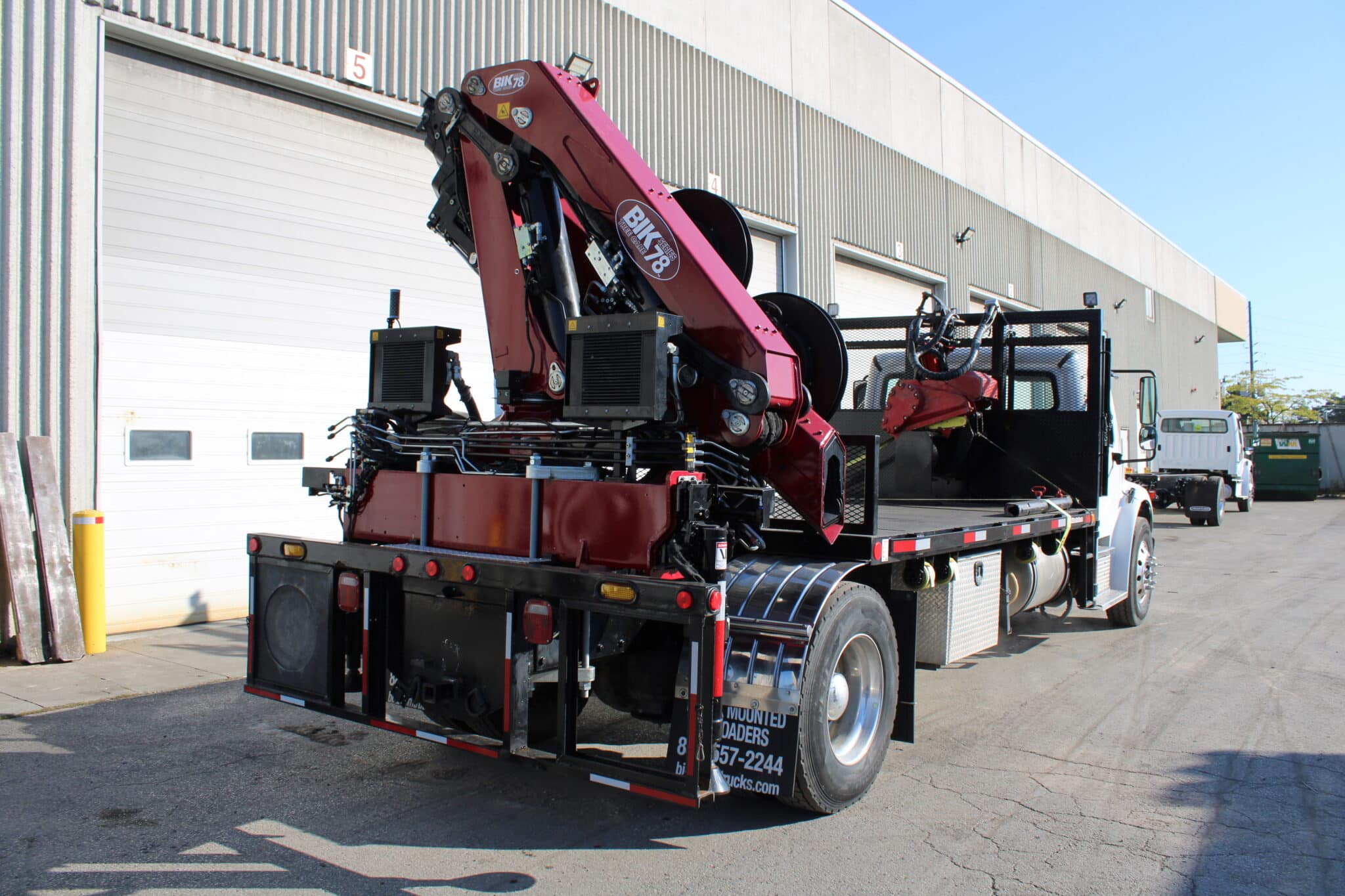

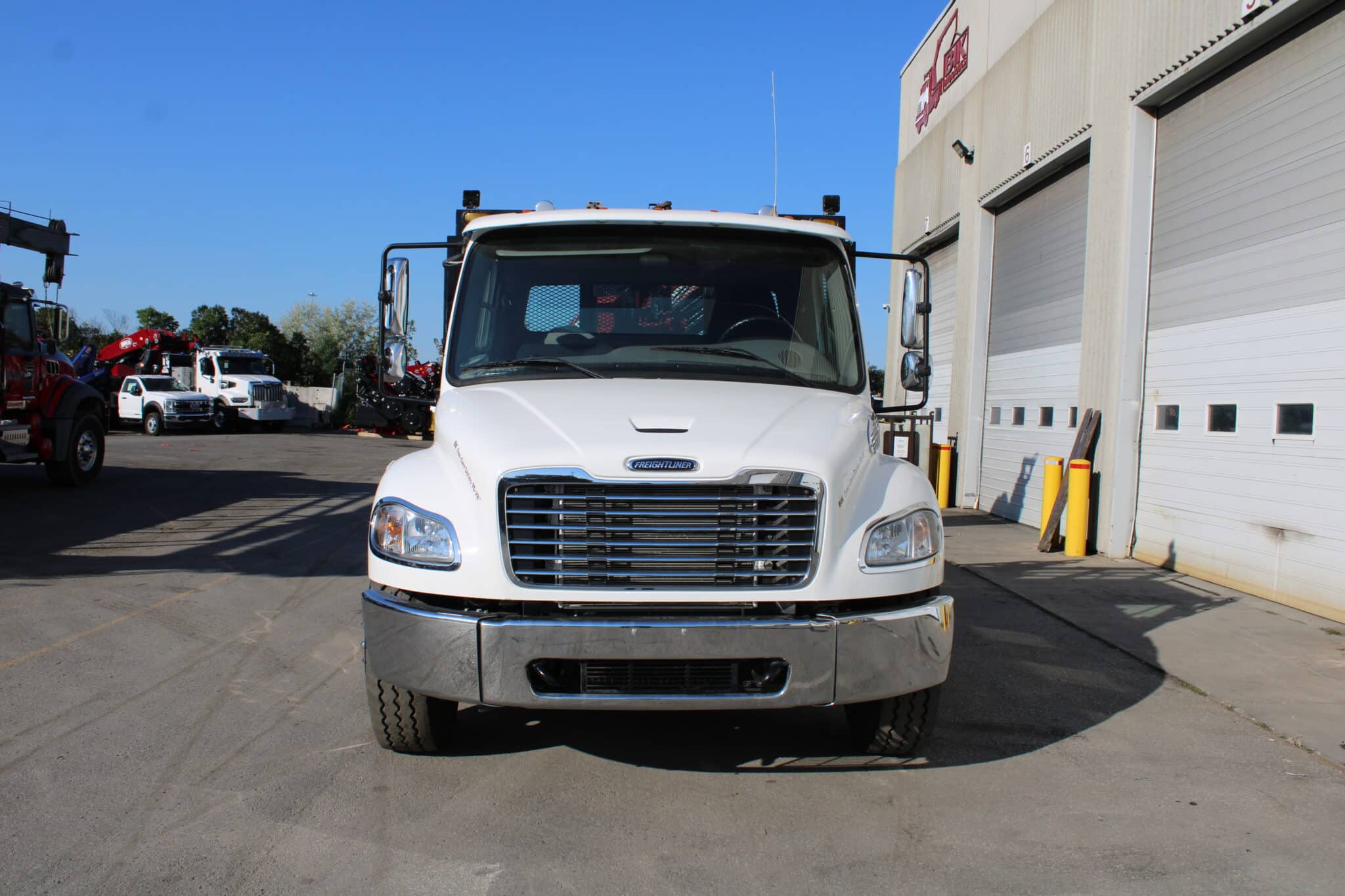

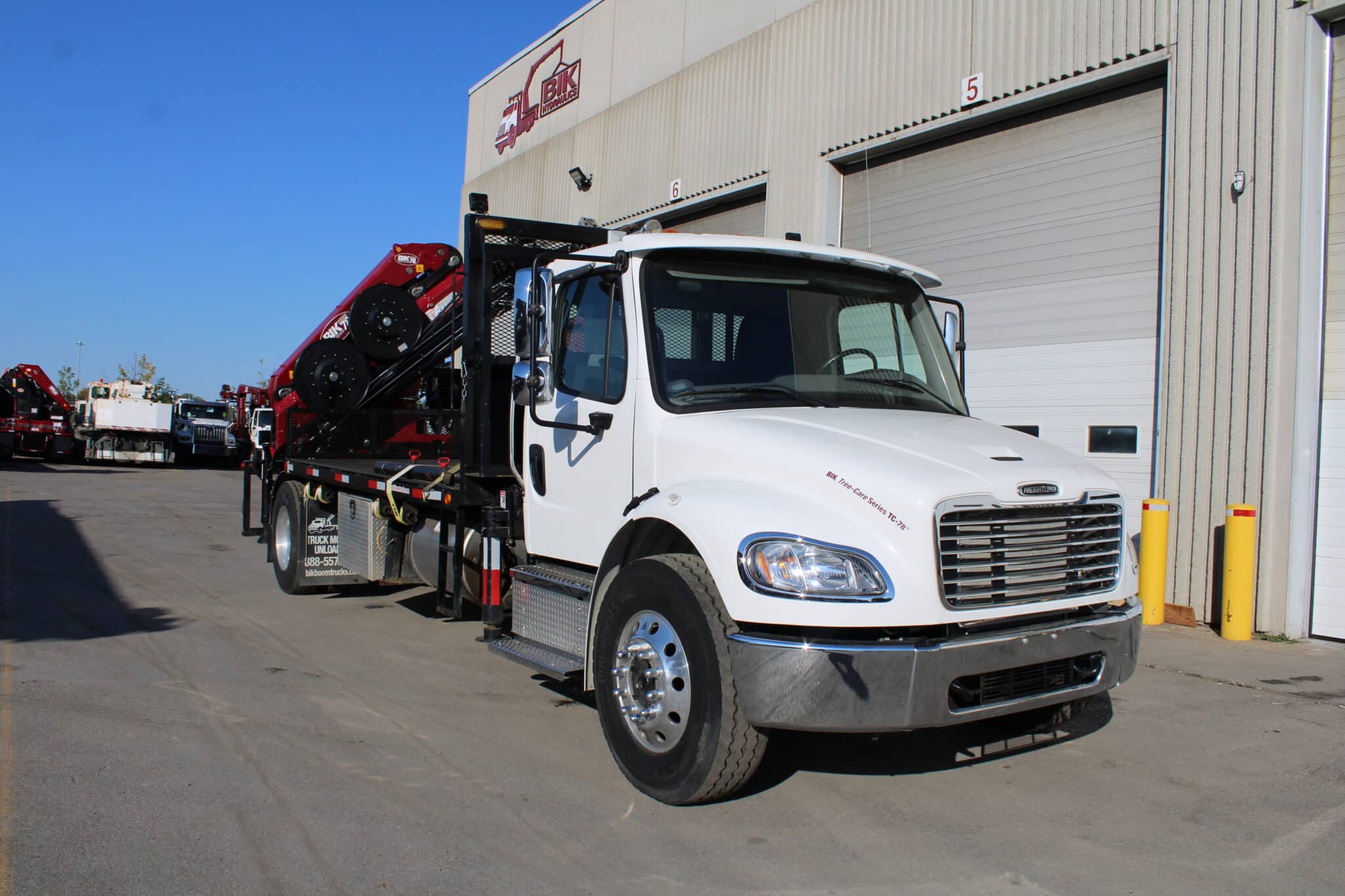

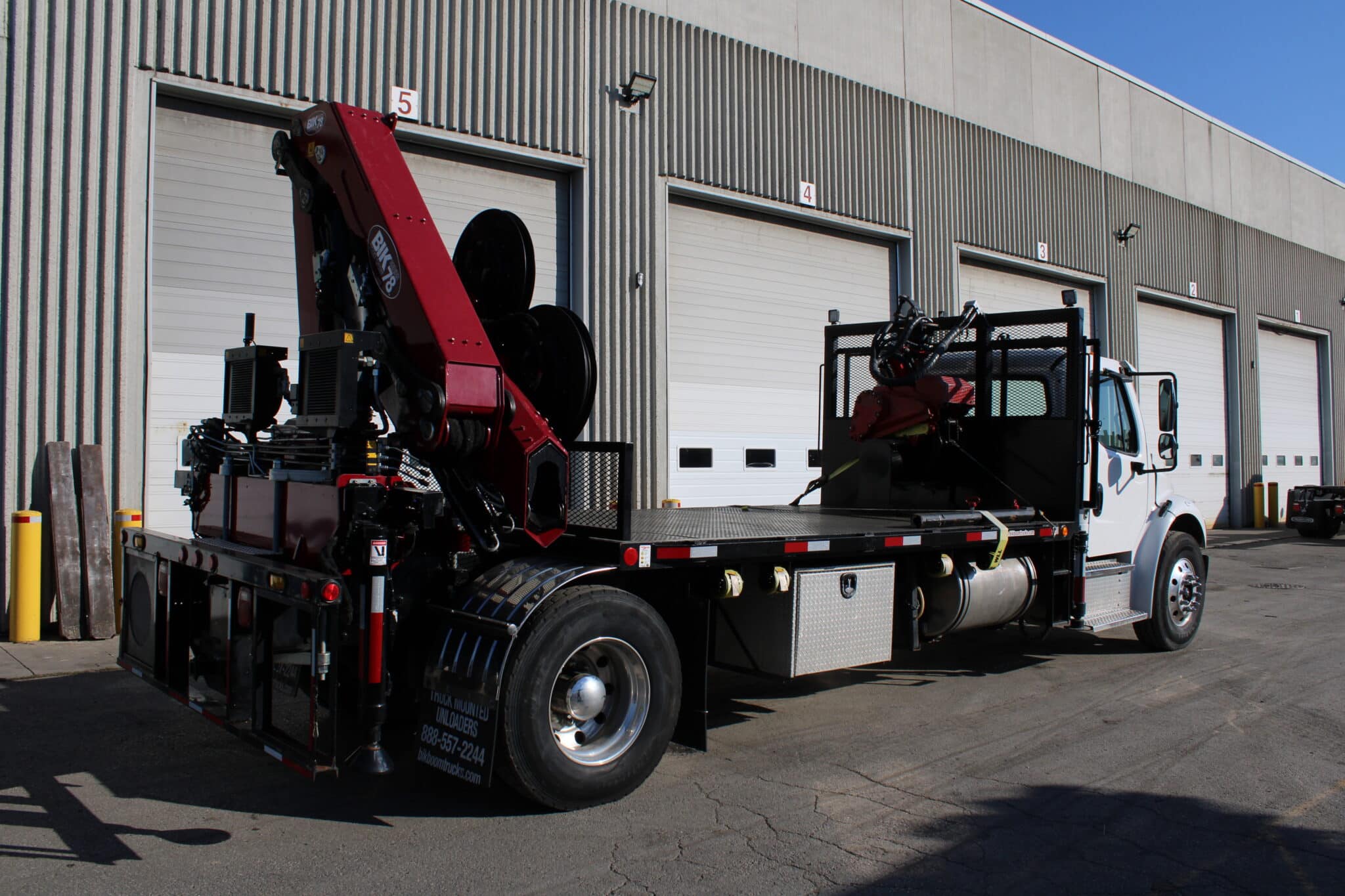

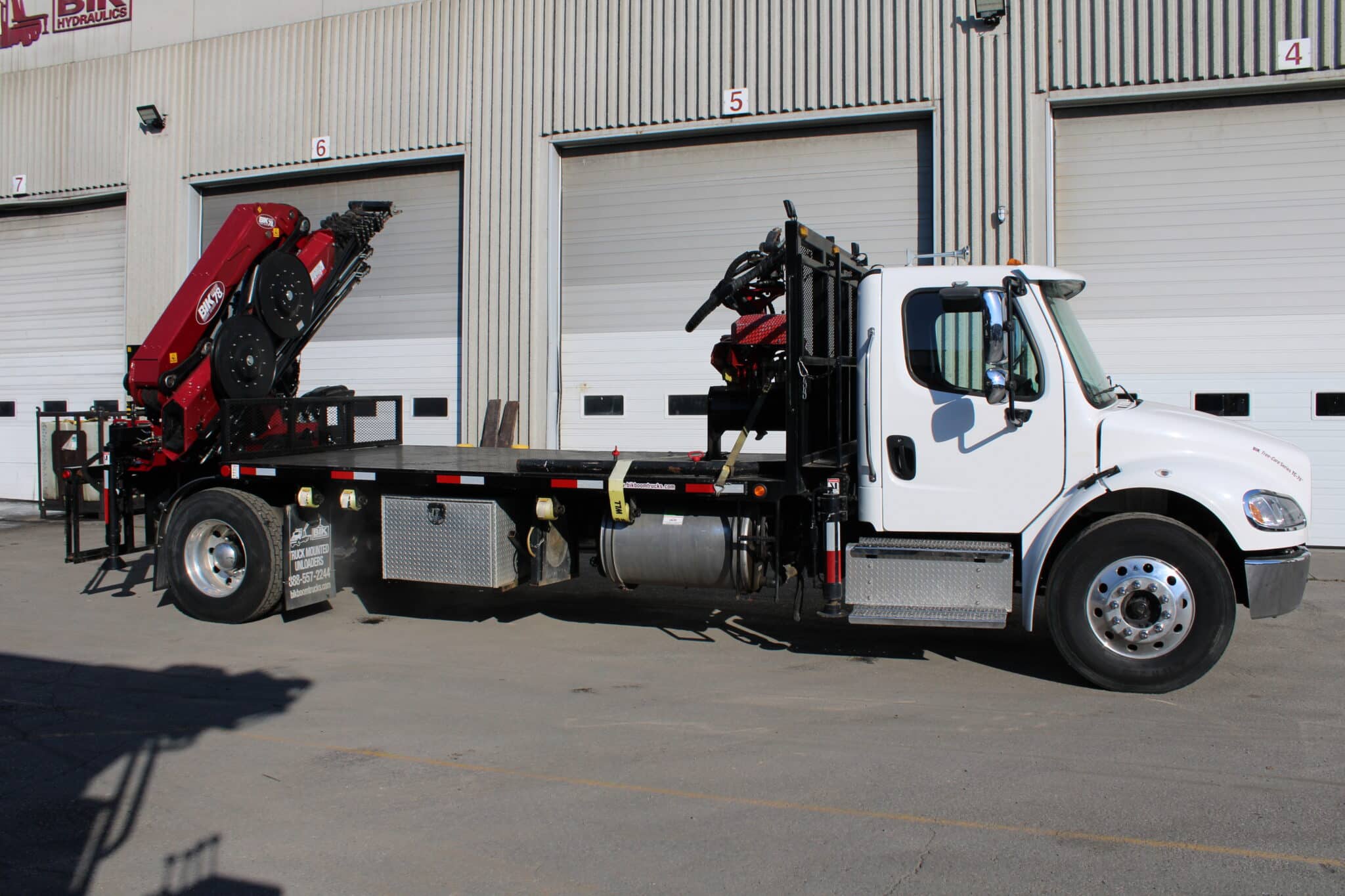

USED 2020 FREIGHTLINER M2-106 WITH BIK TC-78 GRAPPLESAW

Boom:

Pre-owned – BIK Tree-Care Series TC-78 (23.5 ton/ml Knuckle Boom by PM: 7-hydraulic extensions to  78’ vertical) w/extra grapple extn

• Vertical Capacity: 2,900 lb at 78’ vertical reach

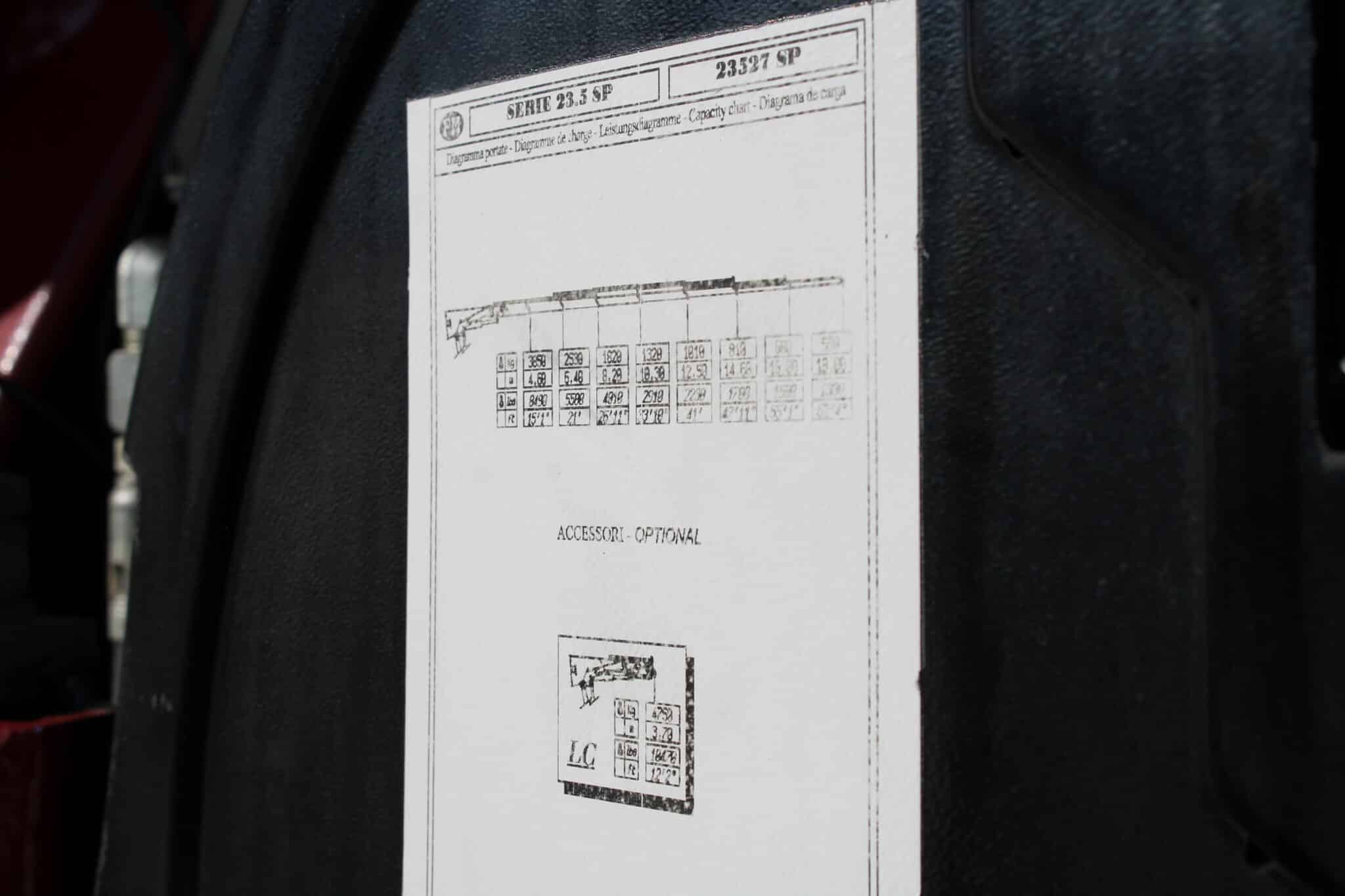

• HORIZONTAL Capacities:
  • 8,500 lb @ 14’
  • 5,600 lb @ 20’
  • 4,020 lb @ 26’
  • 2,230 lb @ 40’
  • 1,500 lb @ 55’
  • 1,250 lb @ 66’

• 408 Degrees Rotation on Main Hydraulic Slewing
• Double pilot operated on slewing and pilot operated check valves on all cylinders
• Hydraulic Oil Cooler
• High pressure return filter and min. 40-gallon oil tank for boom
• DANFOSS Proportional Valve Controls
• Single sided operator control station
• Load Holding Valves on all cylinders

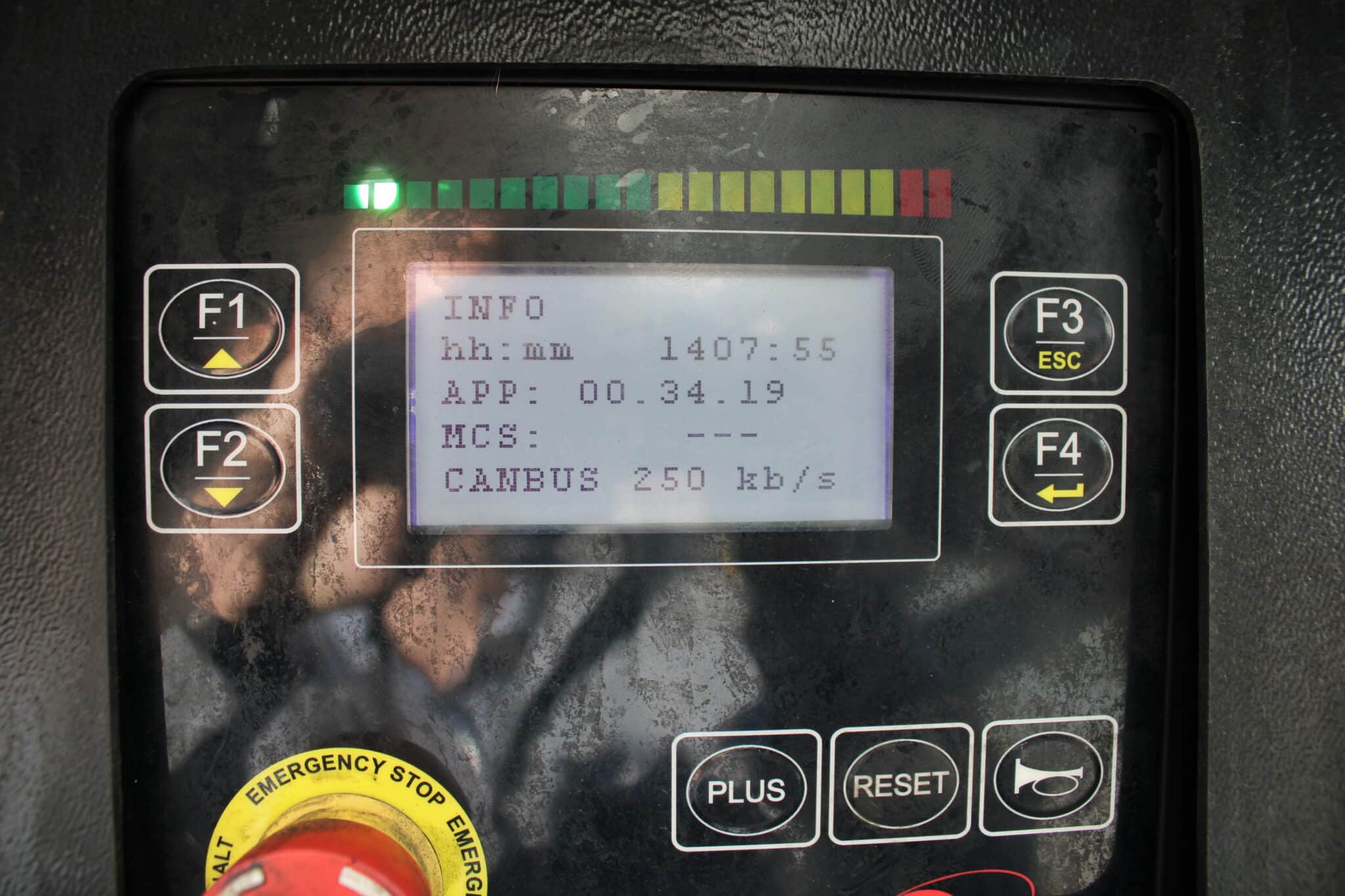

• PM Power-Tronics electronic monitoring & load control with Stabilizer deployments sensors & digital read-out on the remote
• SCANRECO Radio Remote Control
• electronically actuated controller, proportional precision and ultimate operator feel and control Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50′ back-up cord
• Hydraulic OUT and Hydraulic DOWN Extra Wide – 21′ 6″ span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
• Front Auxilary Stabilizers – hyd out and down type – 16′ spread – mounted on top of truck frame back of cab
• 15 degree negative angle on folding arm
• Hydraulic Overload Protection – simplified system that prevents boom from overload Two functions plumbed to end of 6th extn
• Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear Load Tested & Installed behind cab
• with integral sub-frame to meet or exceed all CMVSS Standards Installed at rear sub base
• Engineer certified stability inspection & certificate
