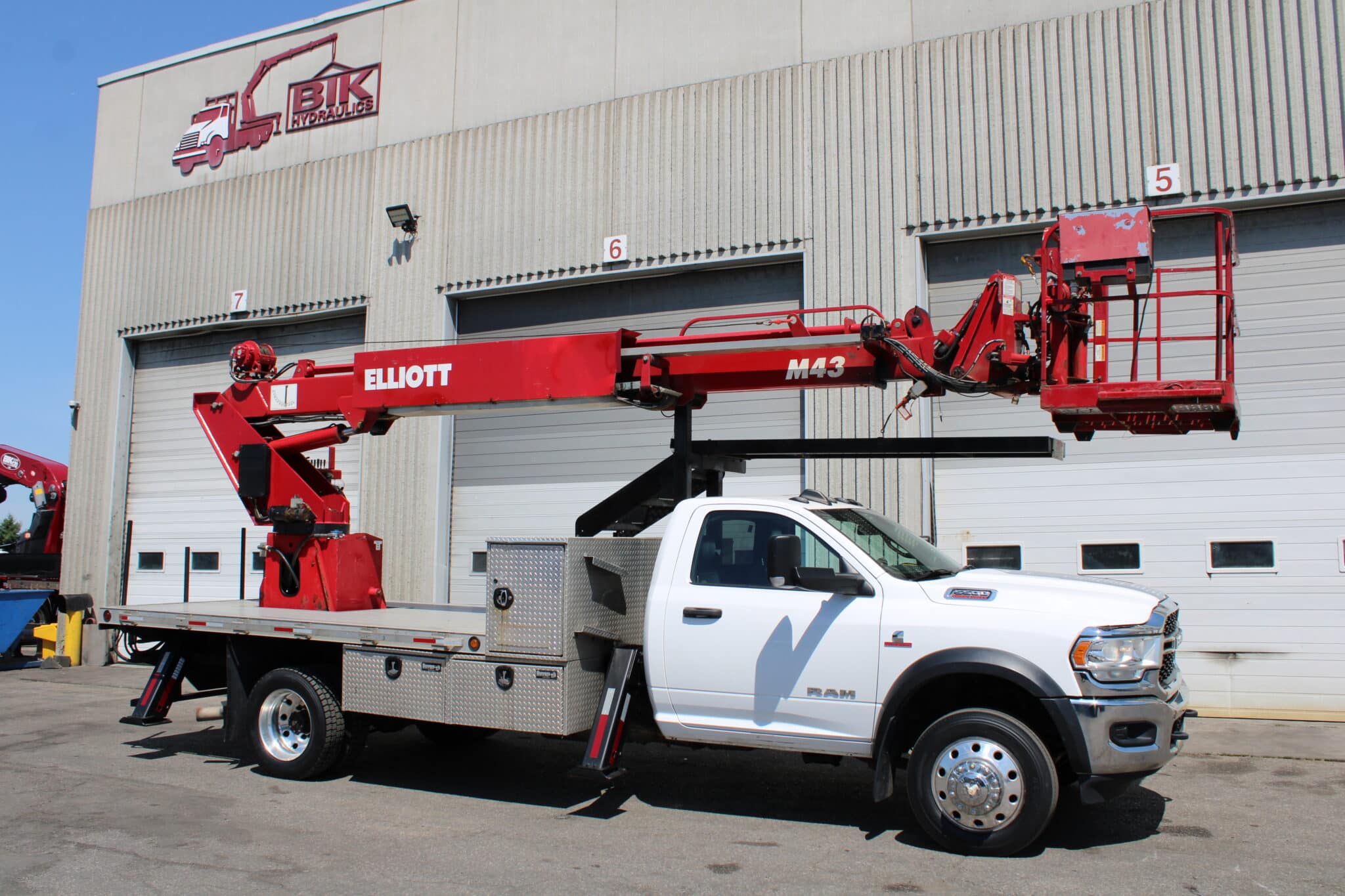

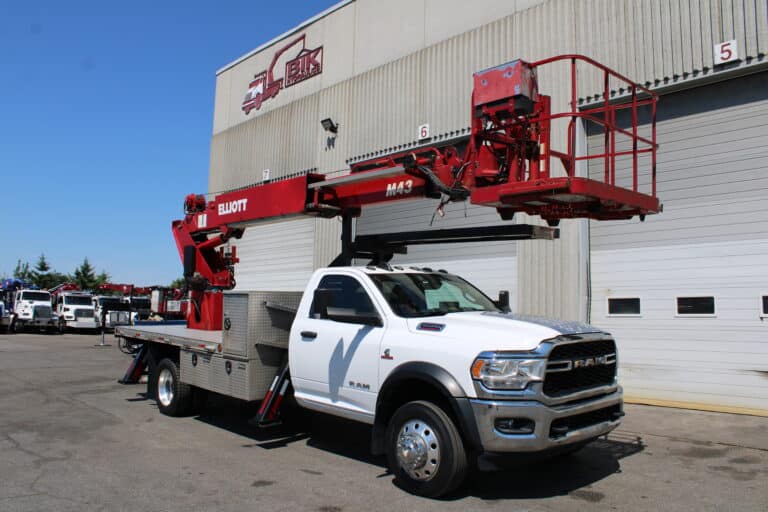

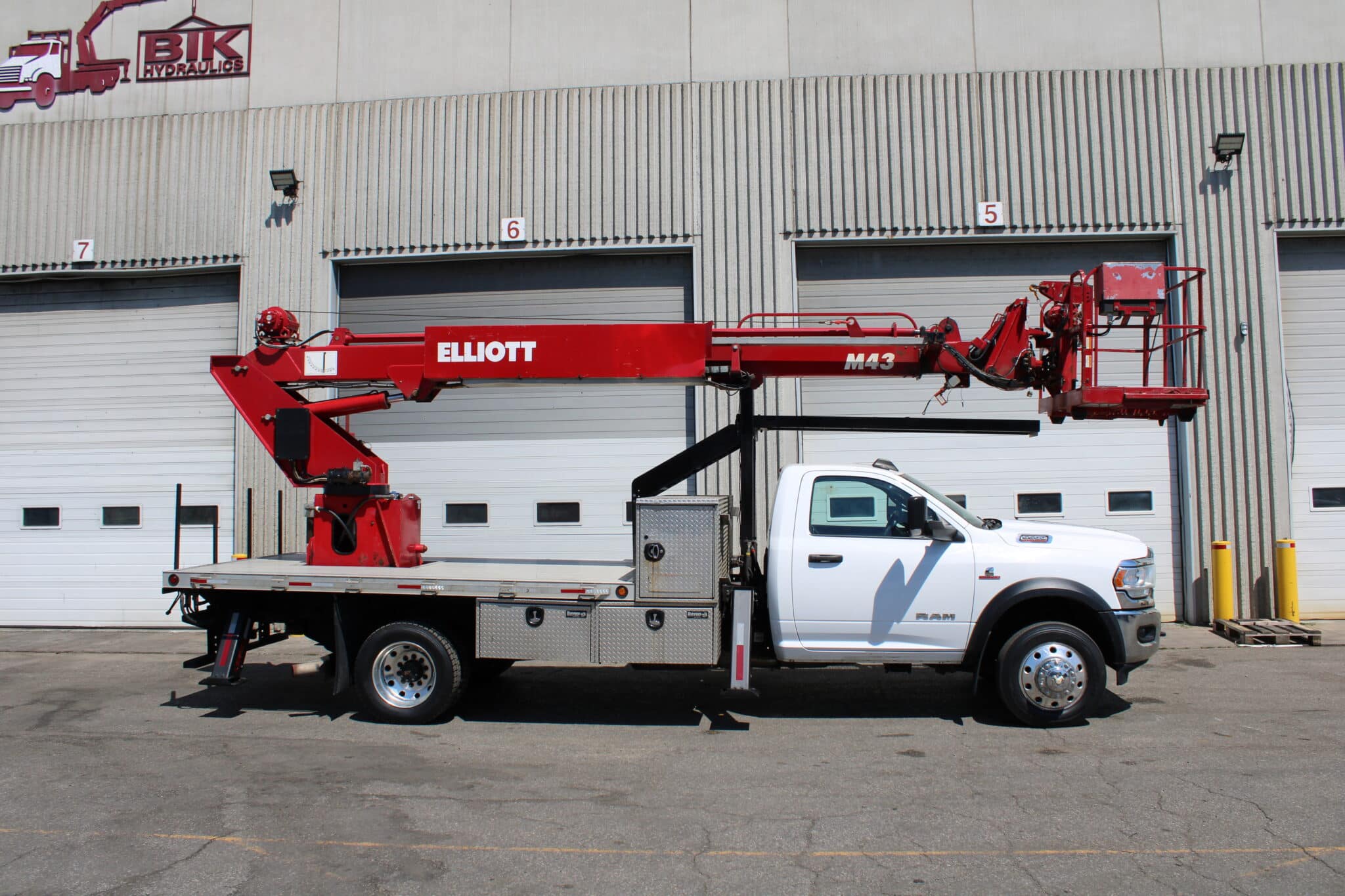

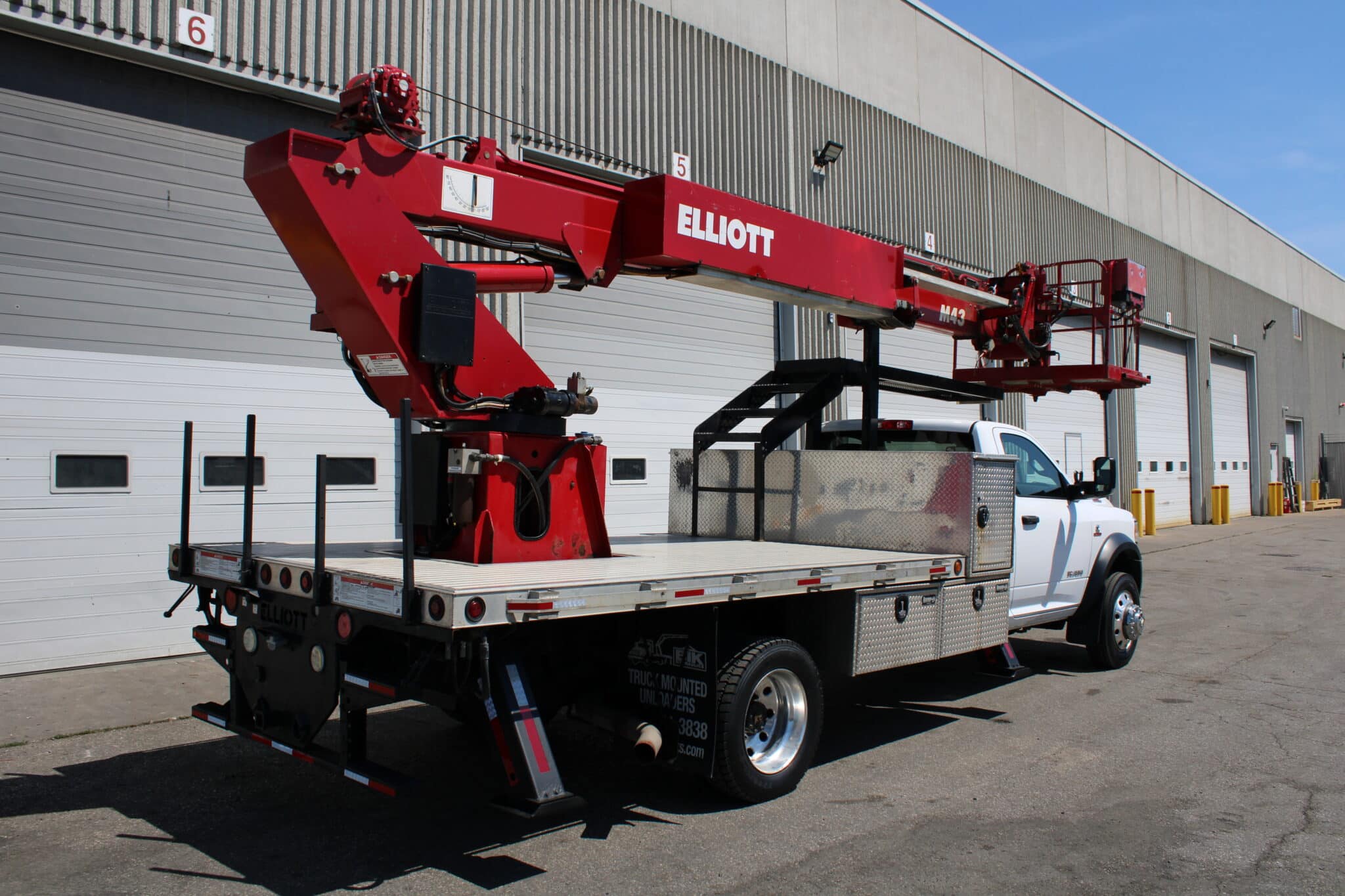

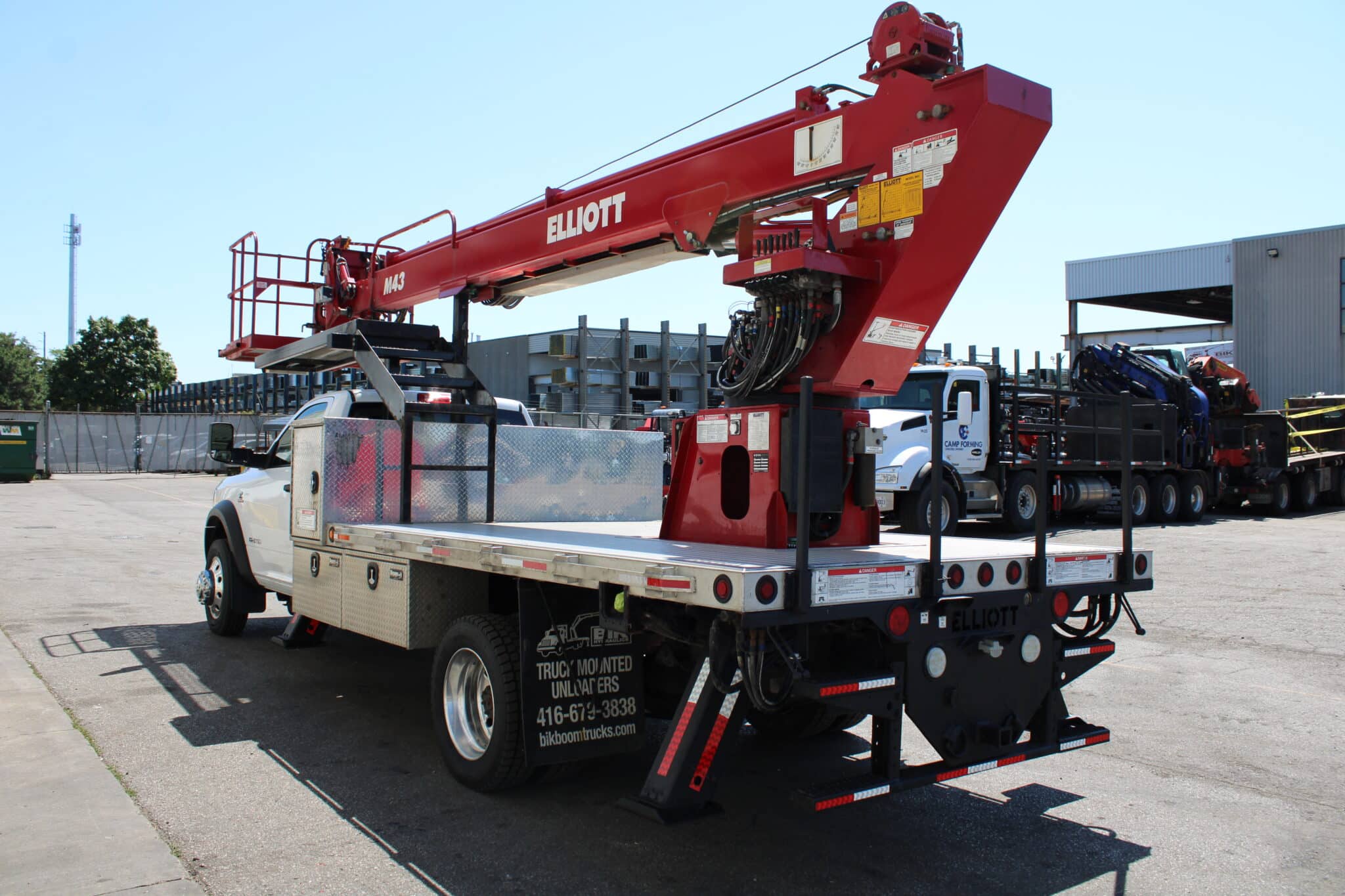

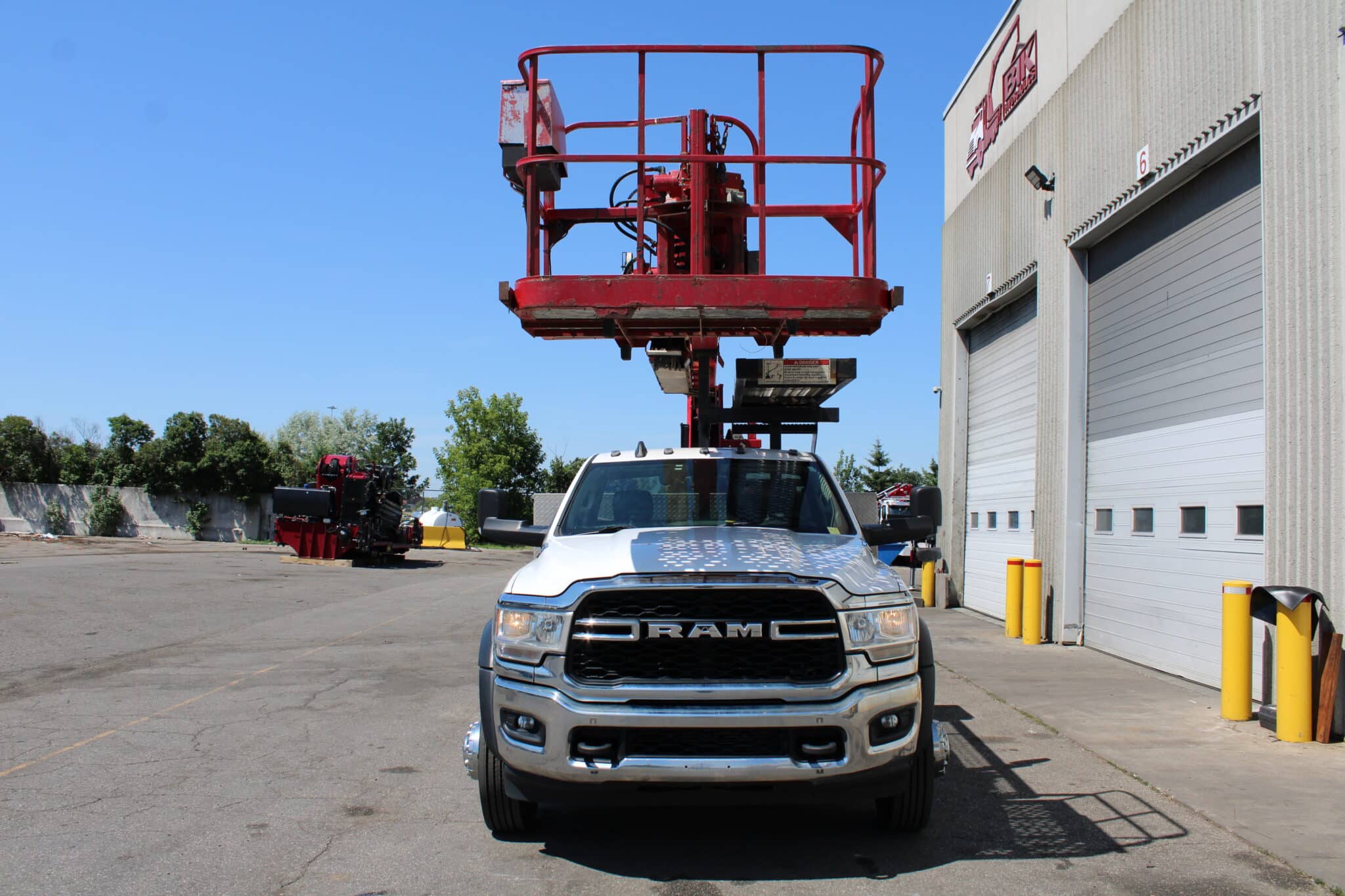

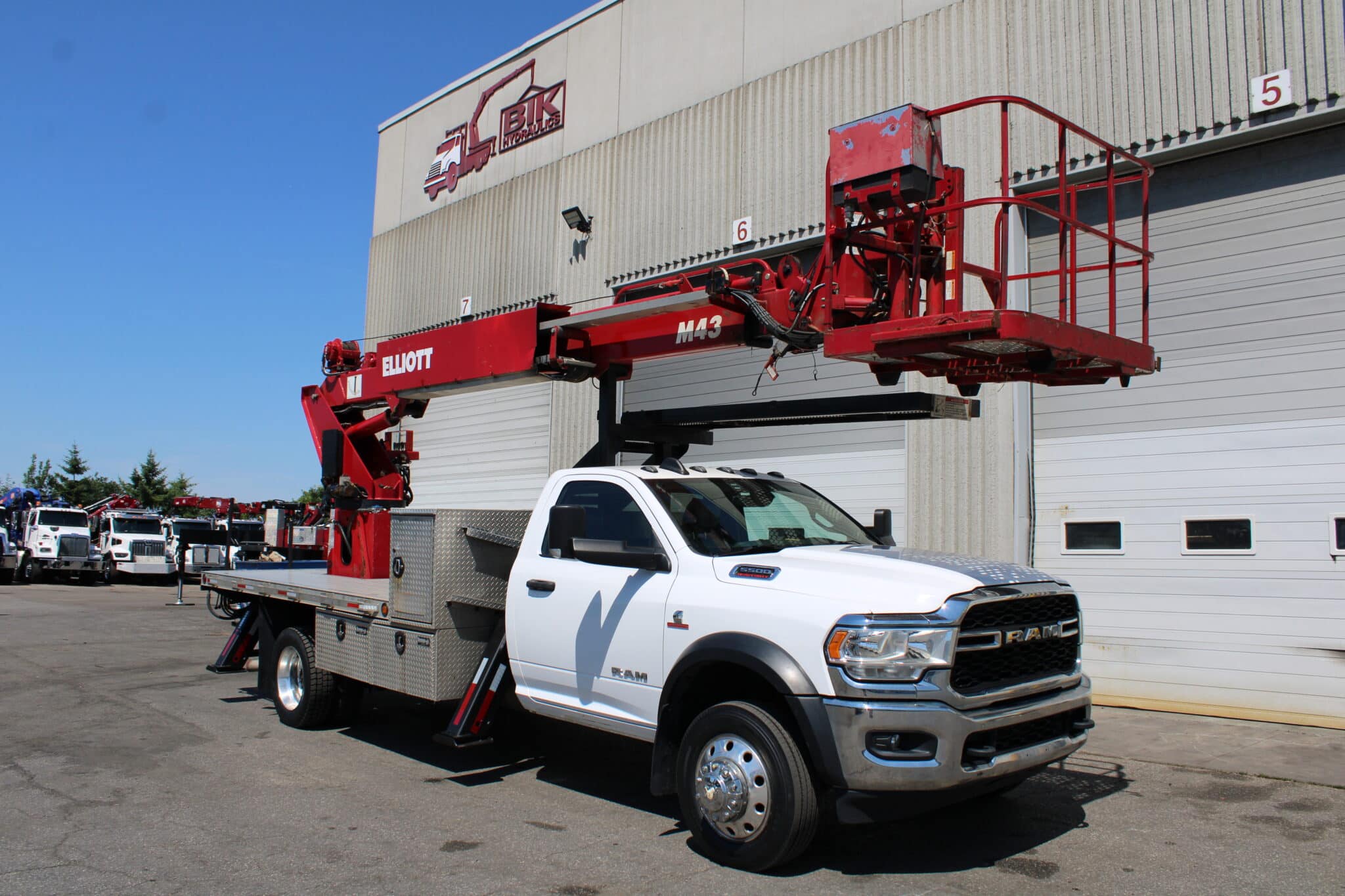

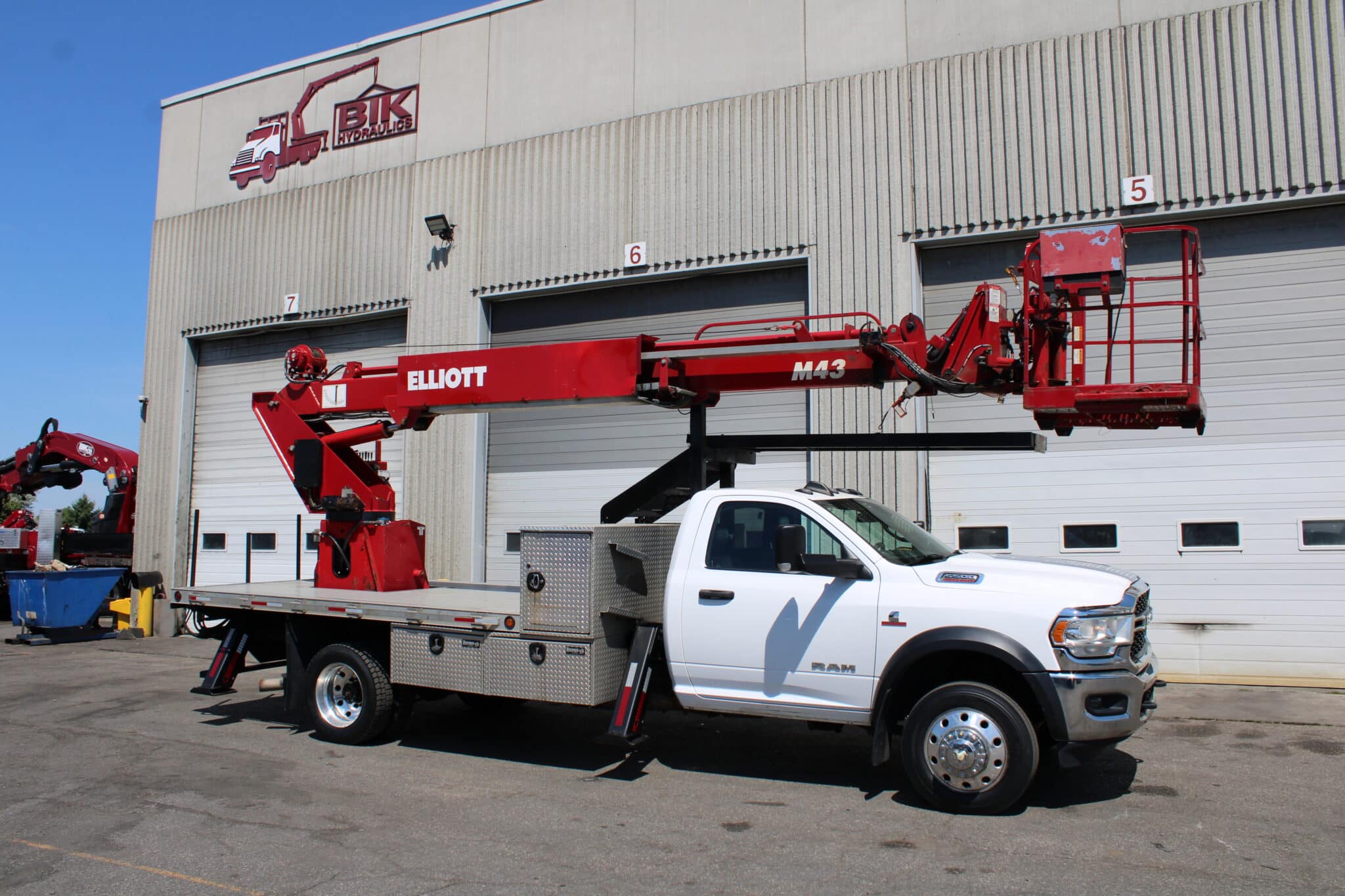

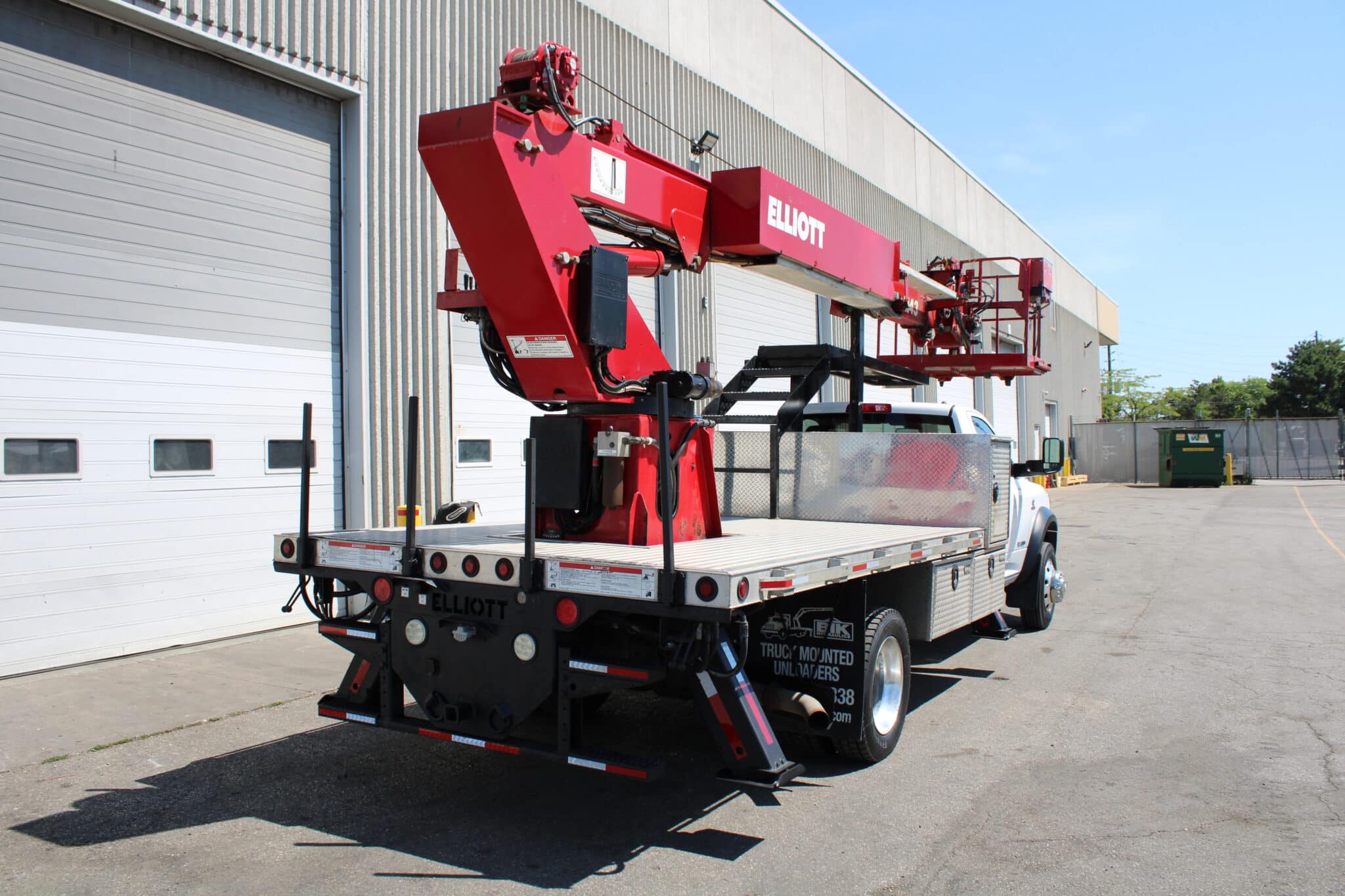

USED 2020 Dodge Ram 5500 with Elliott M43

BOOM DETAILS

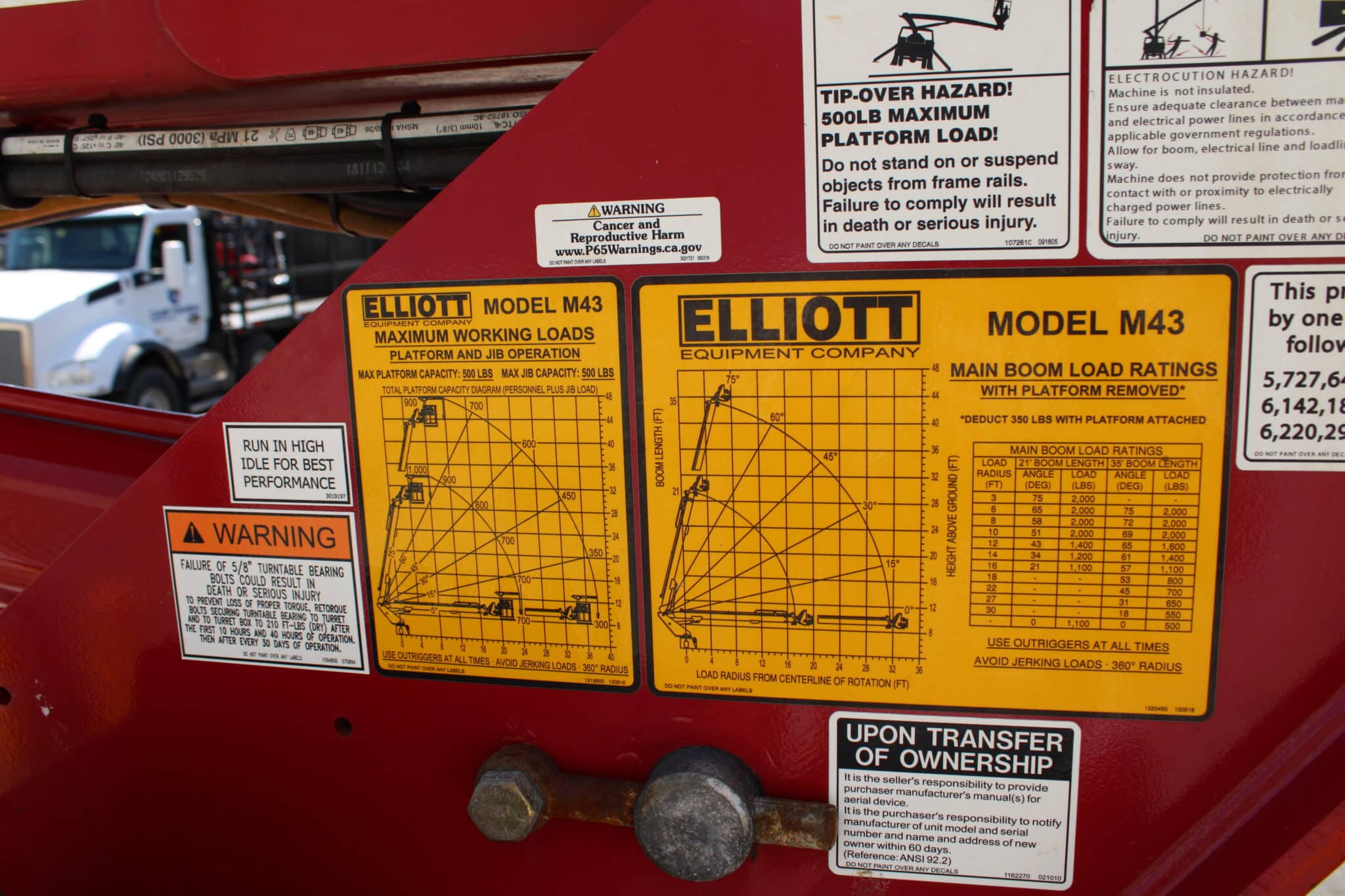

New – Elliott M43 HiReach:  Hydraulic reach to 48’ working height and 36’ working side reach– Platform Capacity 500 lbs

• Installed  by Elliott factory technicians, prepped, primed and painted. New Air Operated PTO (Chelsea), Hydraulic Pump, Supply   and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested.

Standard Features include:

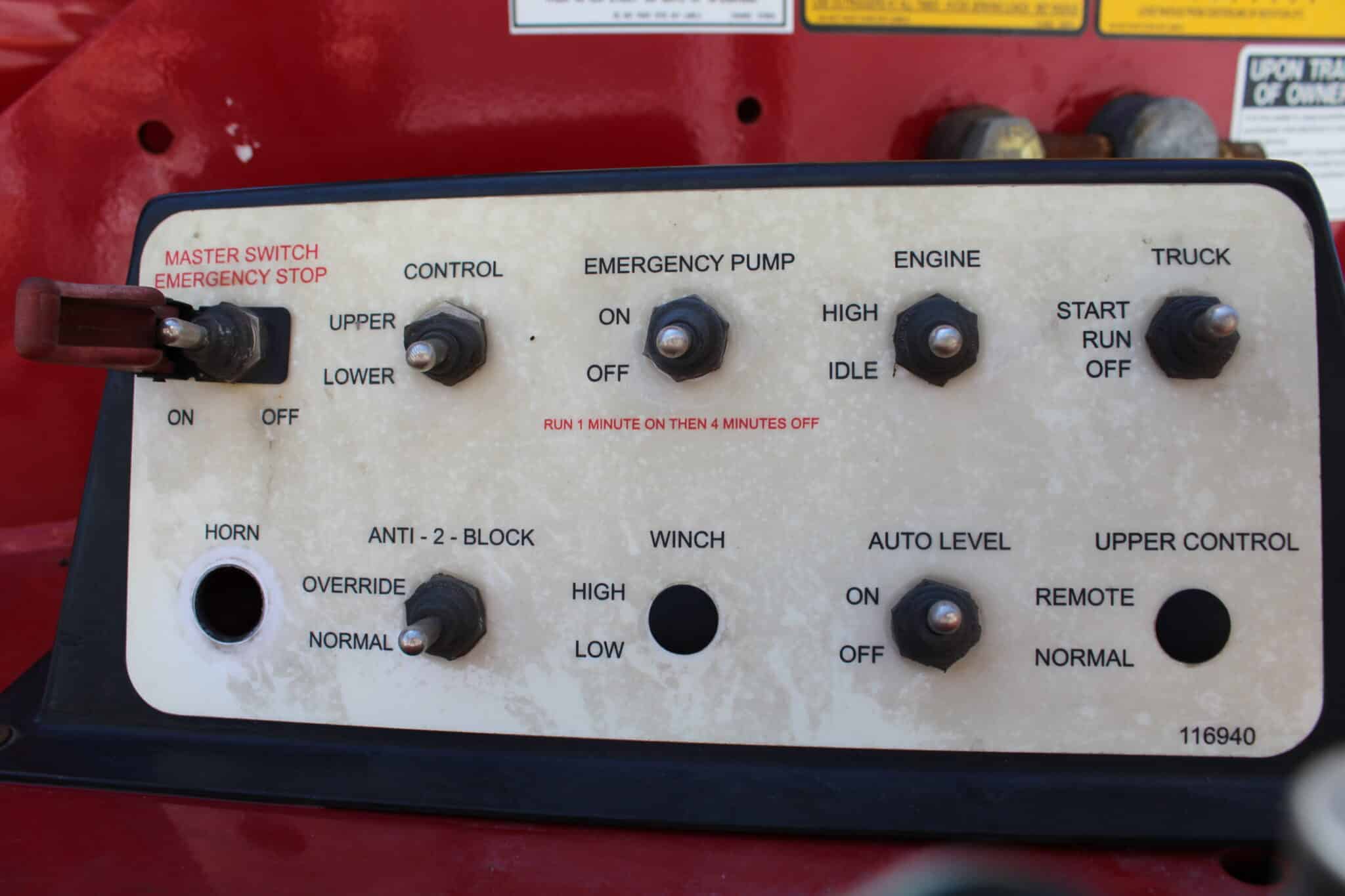

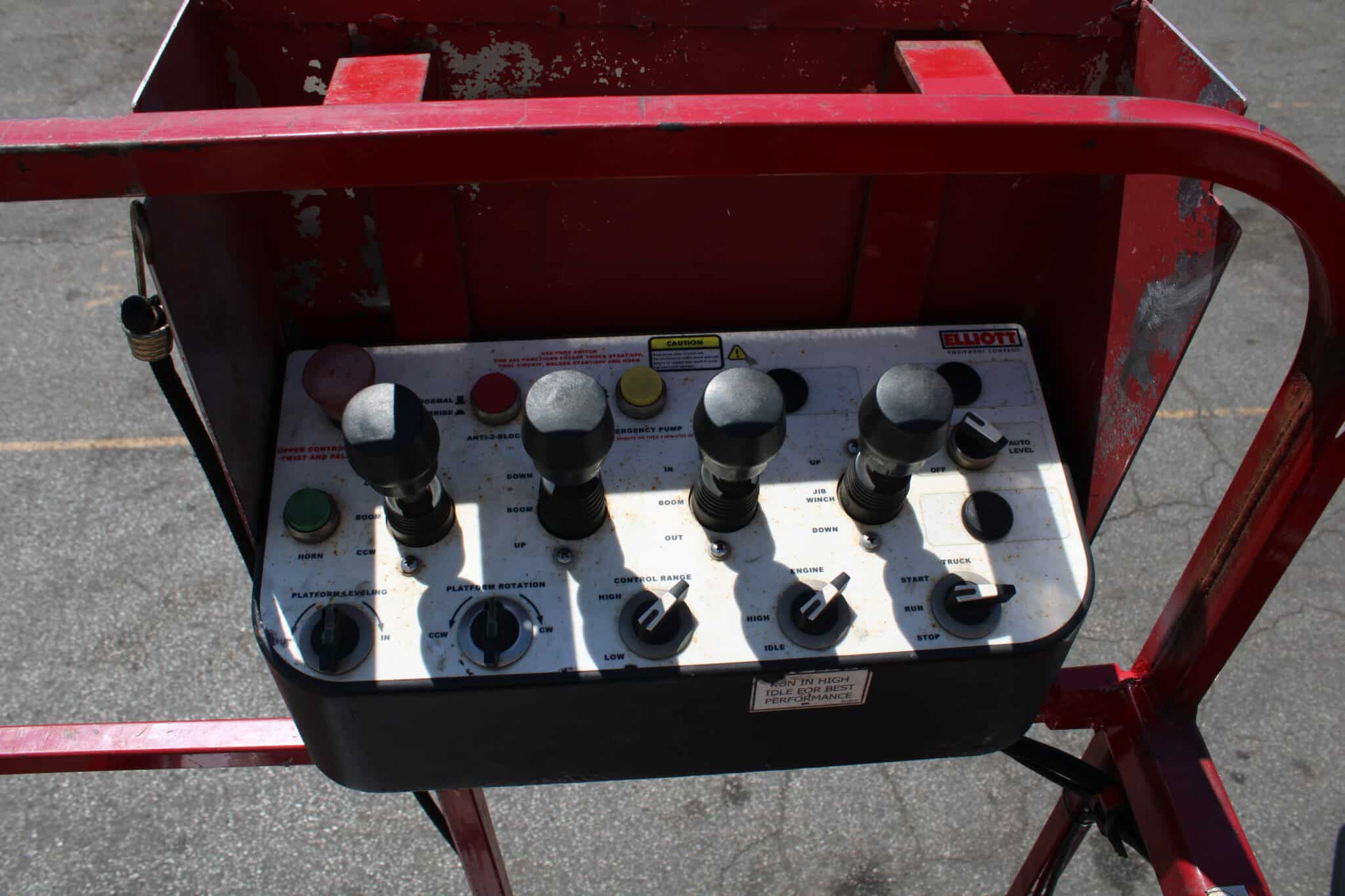

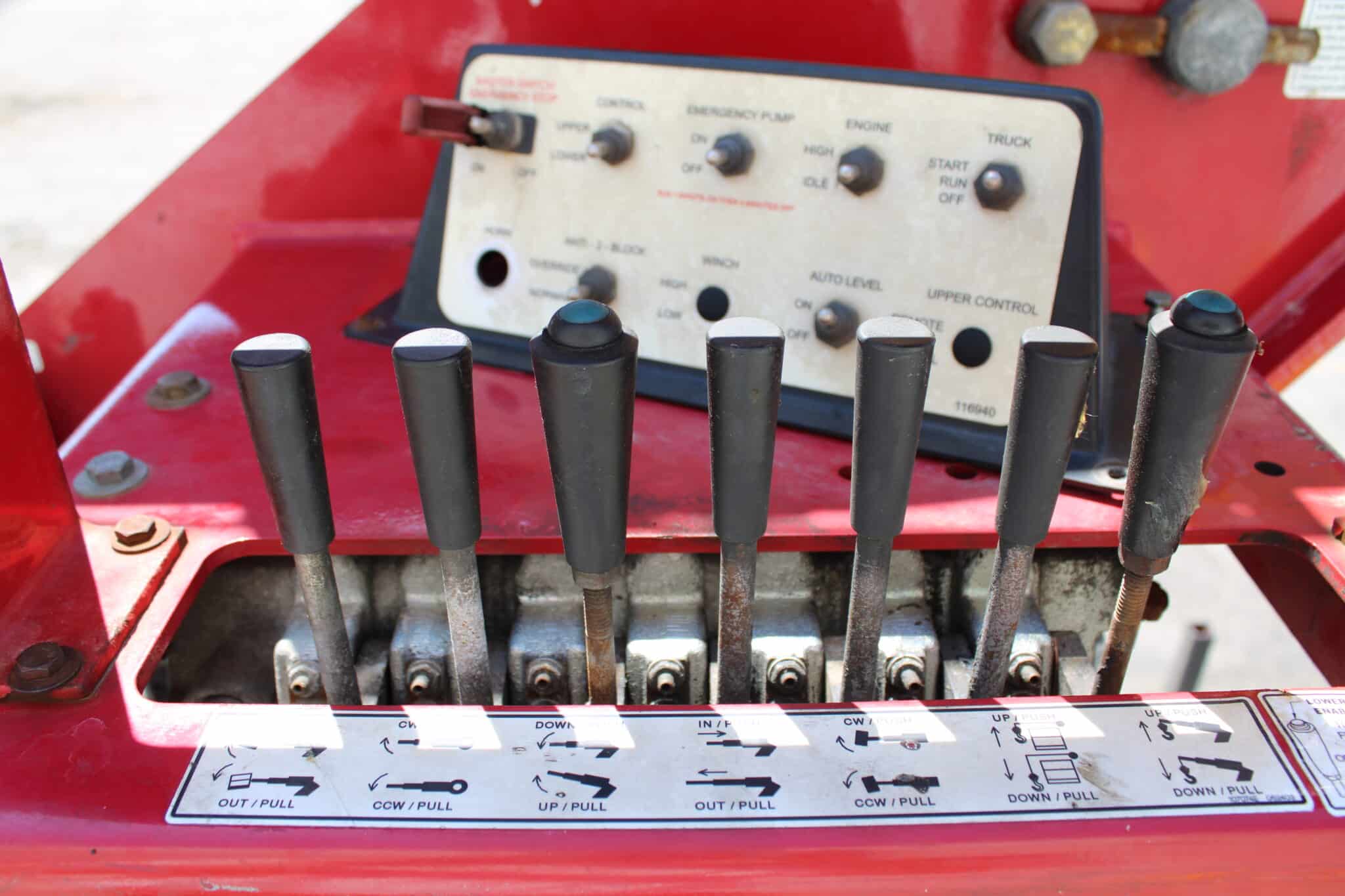

• Three individual proportional electronic controllers. Boom ground controls located on roadside of turret, remote controls for boom operations from platform operate from a removable control box (HI, Low and start stop toggles are also located in the platform).

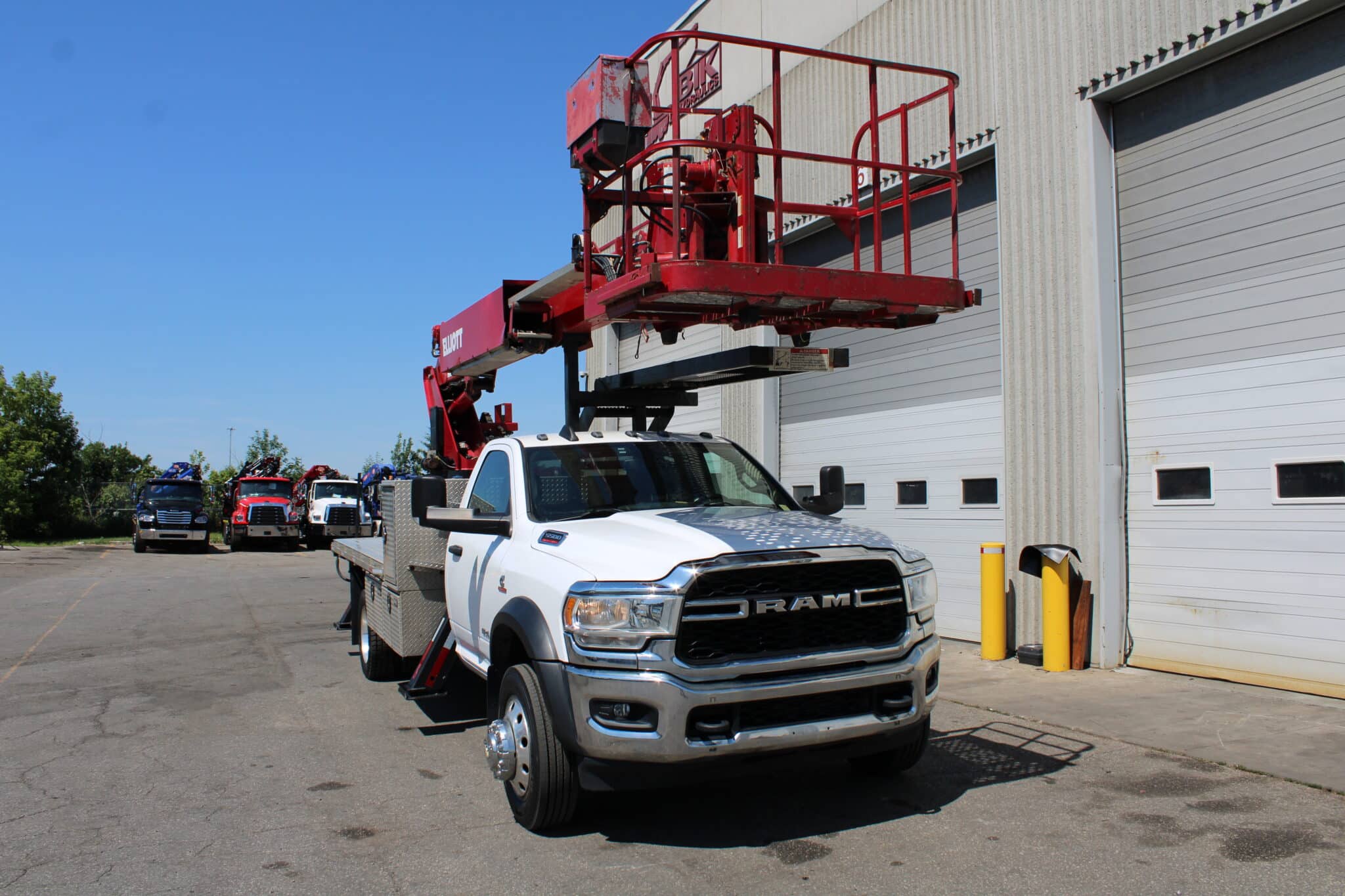

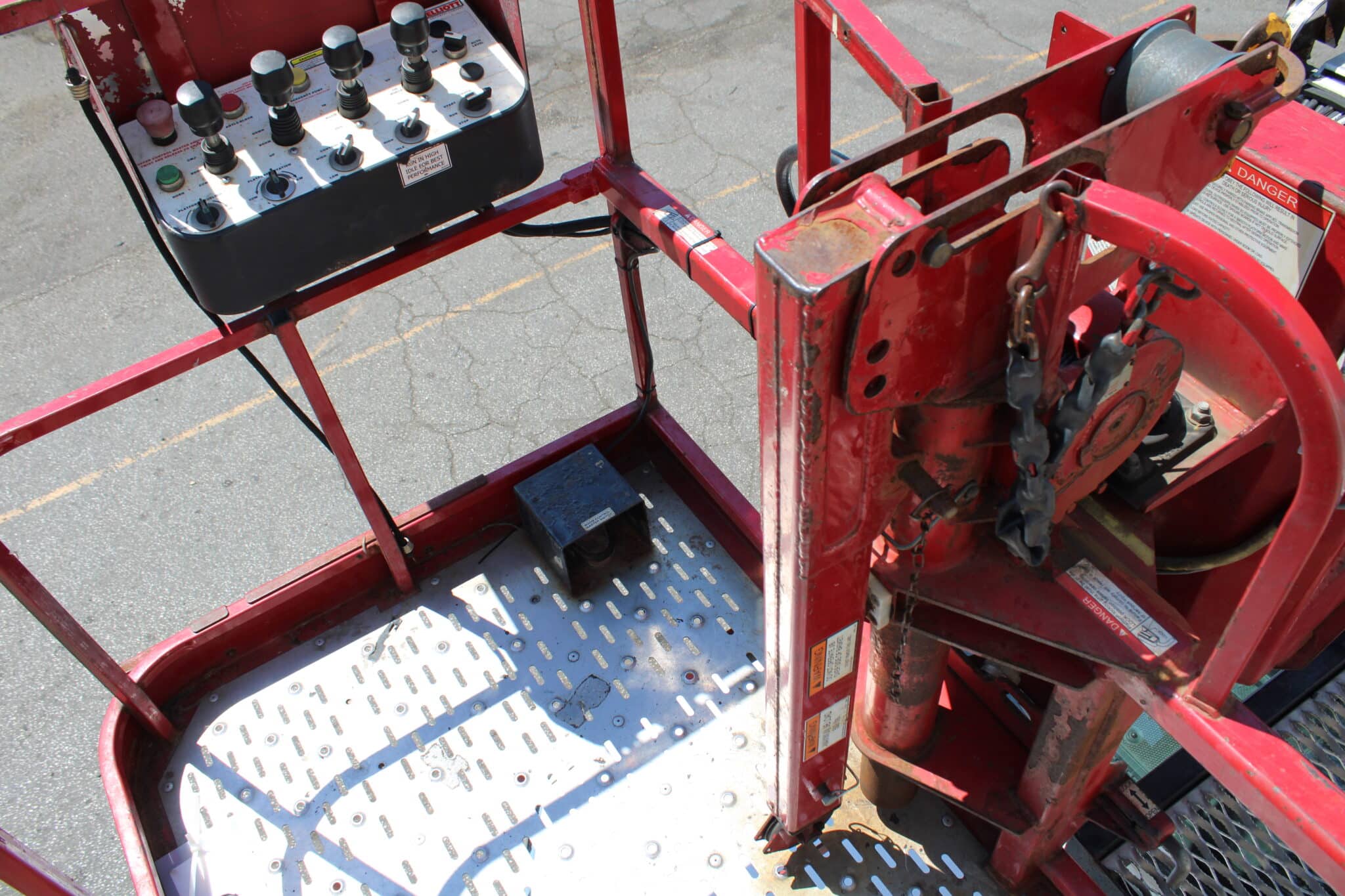

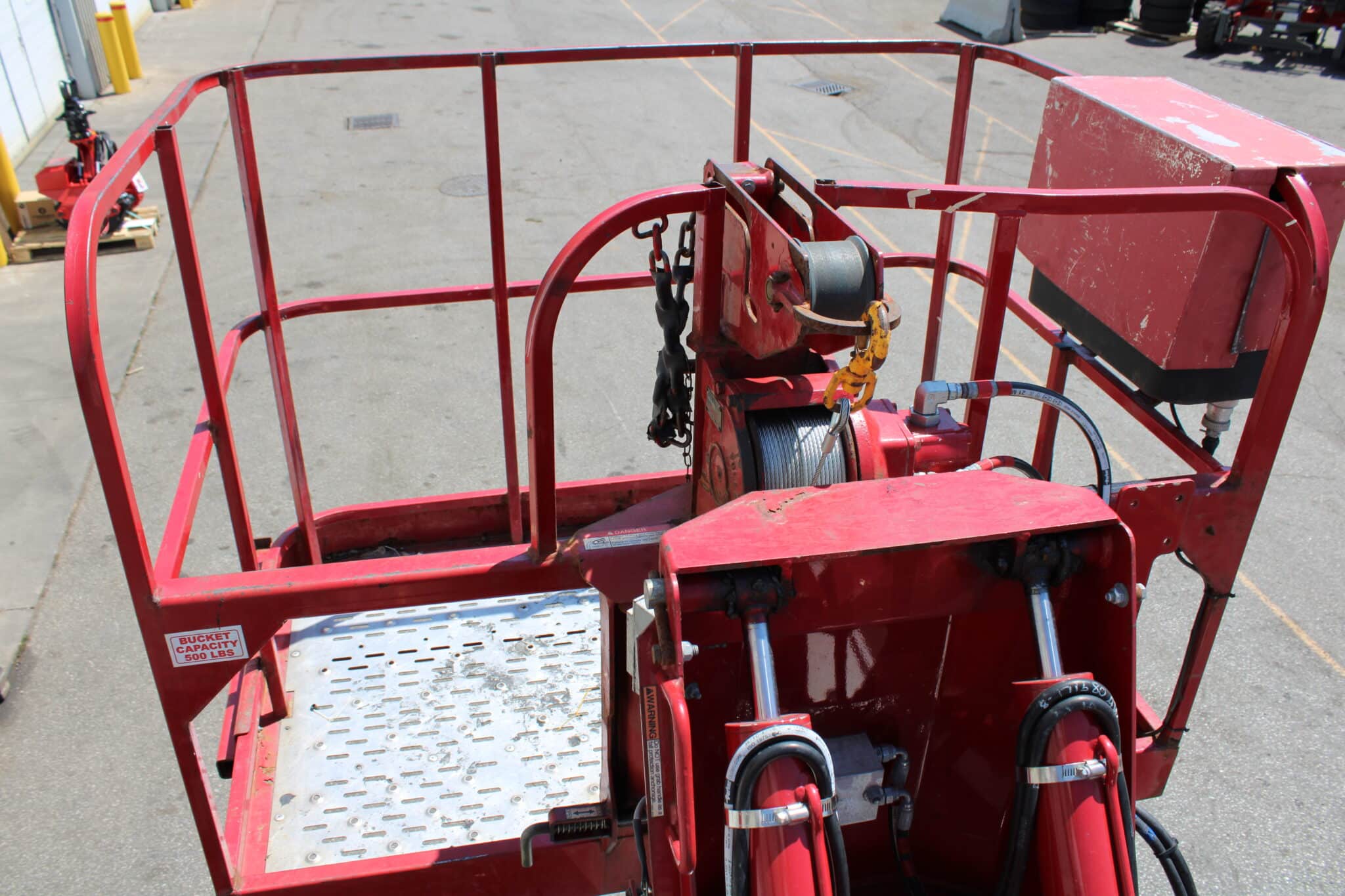

• Work platform is a EZR hydraulically self-levelling and rotating, 30” x 54” with 40” high rails work platform, with safety attachment loops.
• Remote start & stop at upper and lower controls

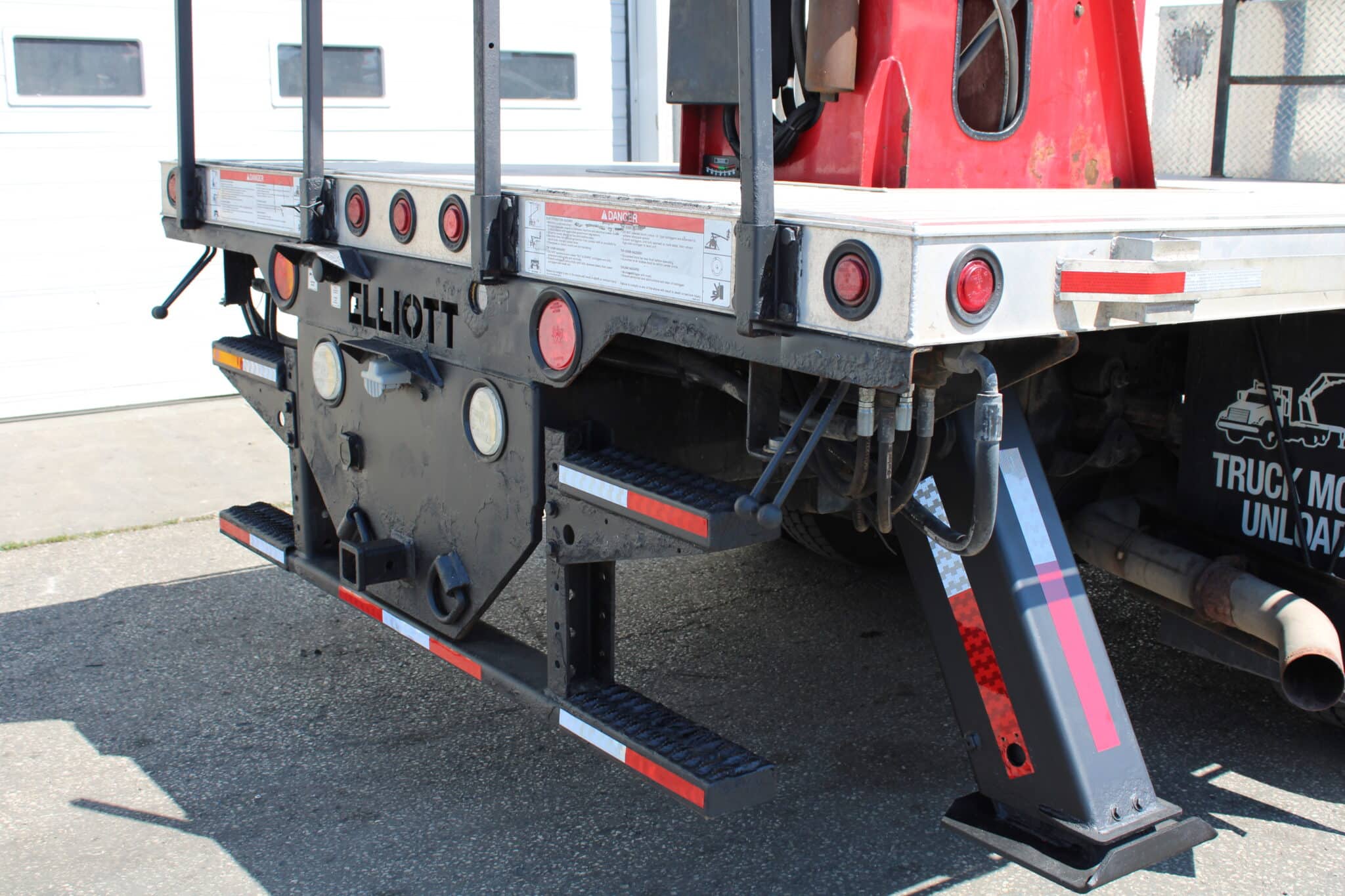

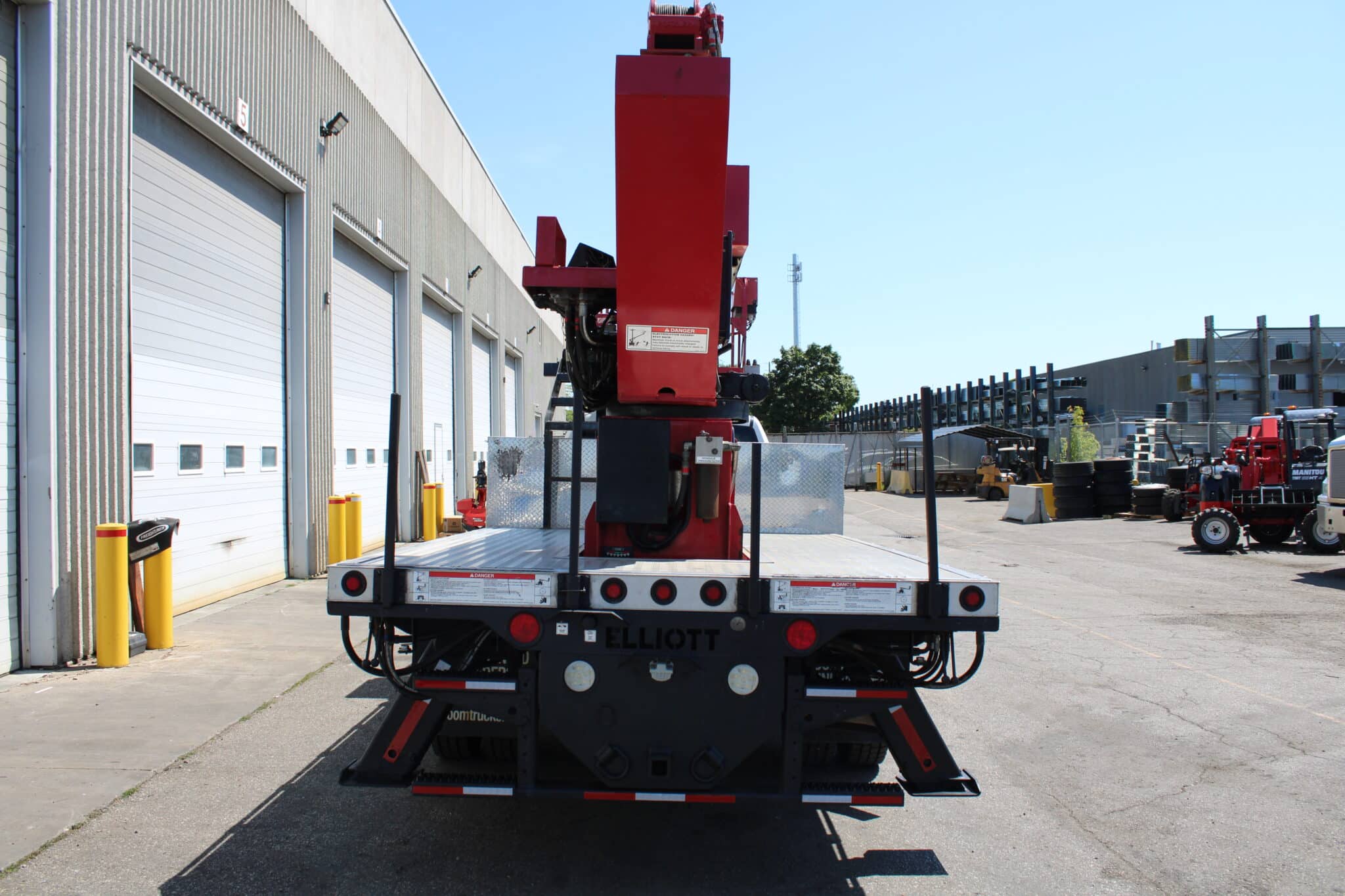

• Front outriggers straight down rear A-Frame type hydraulic stabilizers at rear
• Hydraulically powered continuous rotation with no stops with ball bearing slewing bearing and self locking gear box.
• Load Holding Valves on each cylinder for Safety and Security of Operator and Load.

Included Options Are:

• 500 lb cap jib winch in basket, 2000 lb main winch
• Deck mounted aluminium cross box 9’ wide at front

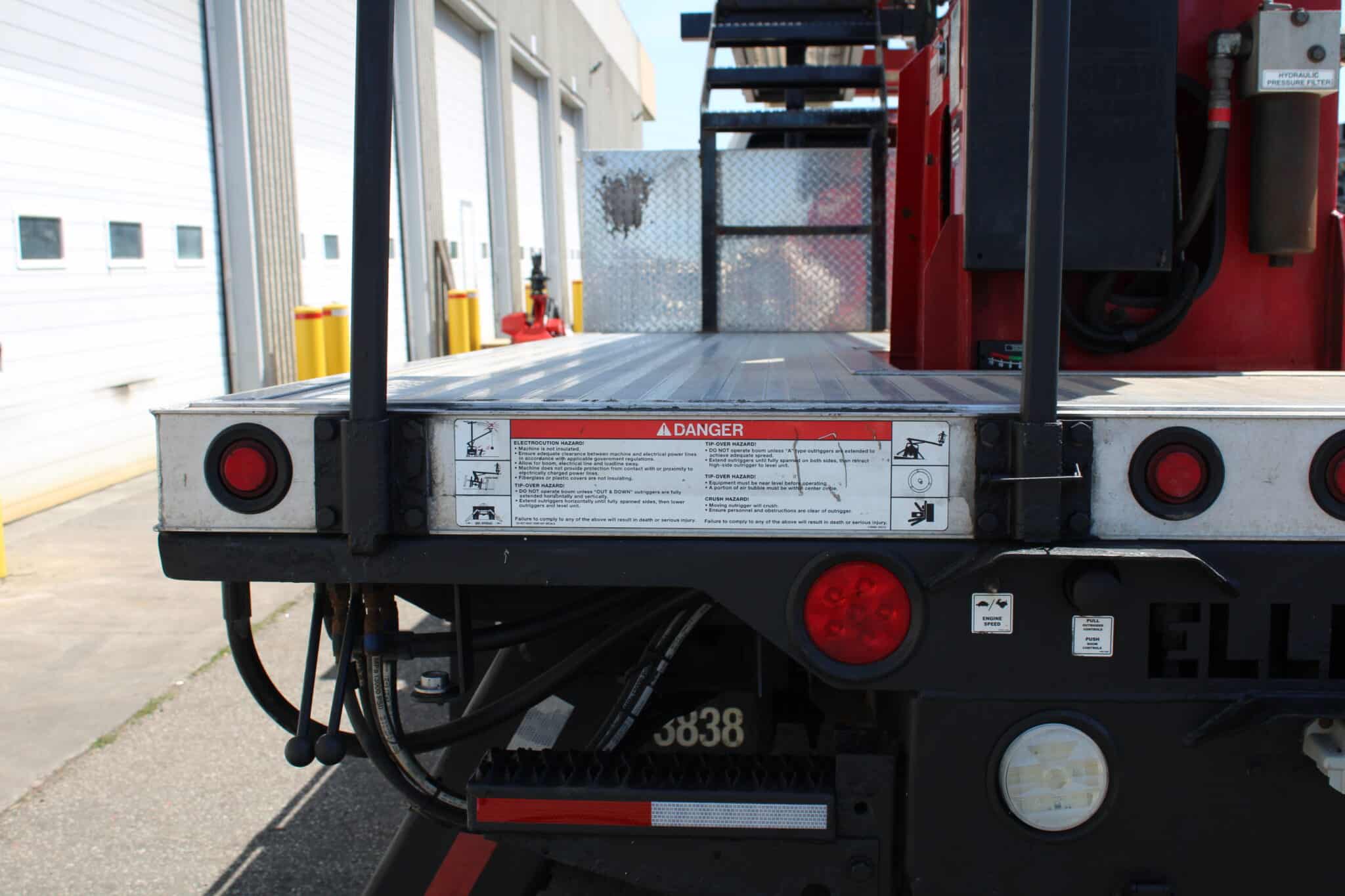

• 13’ low profile deck with aluminum deck surface

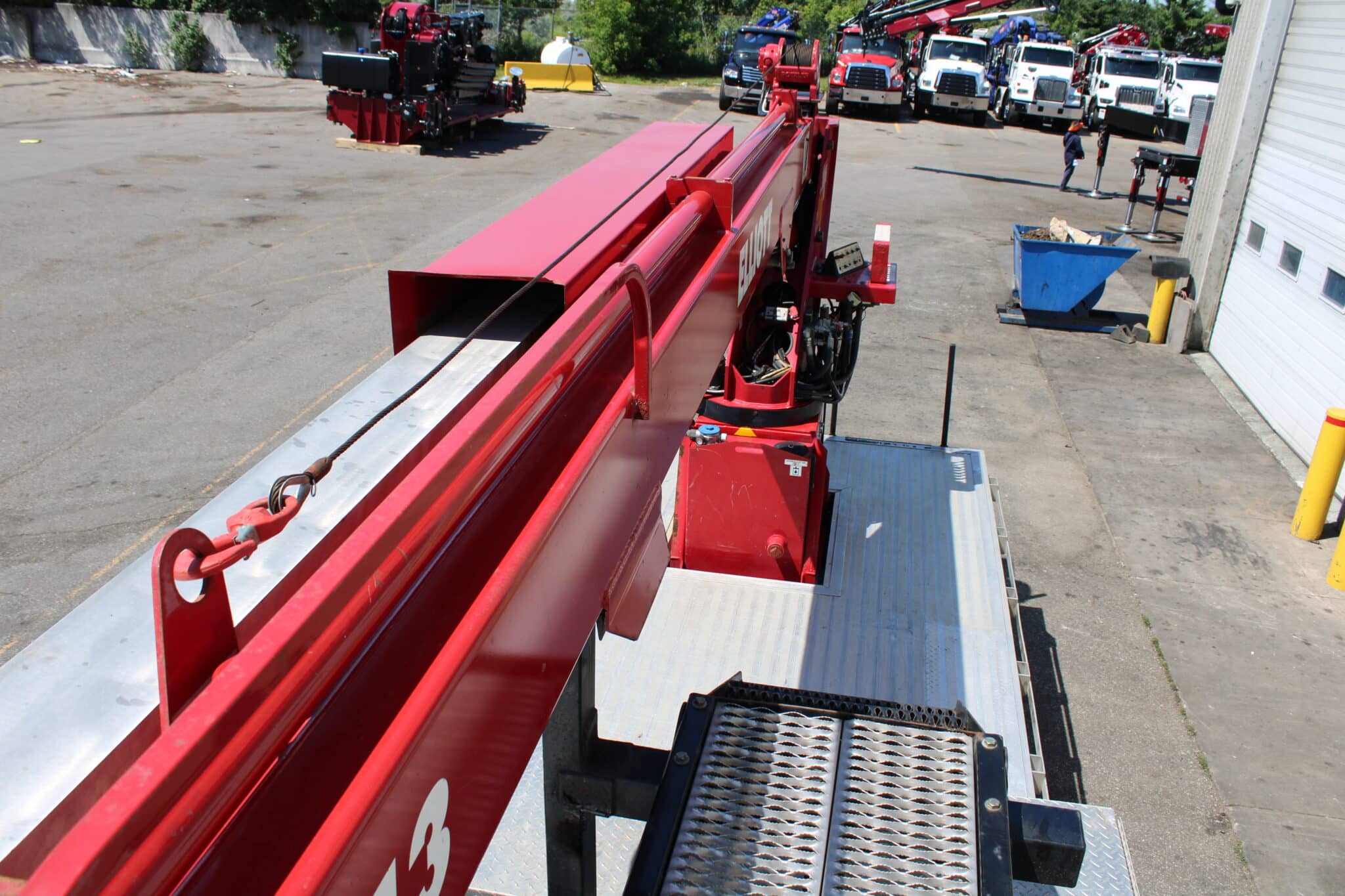

• Main Boom 2,000 lb lifing winch – (2) under body aluminium storage boxes installed
