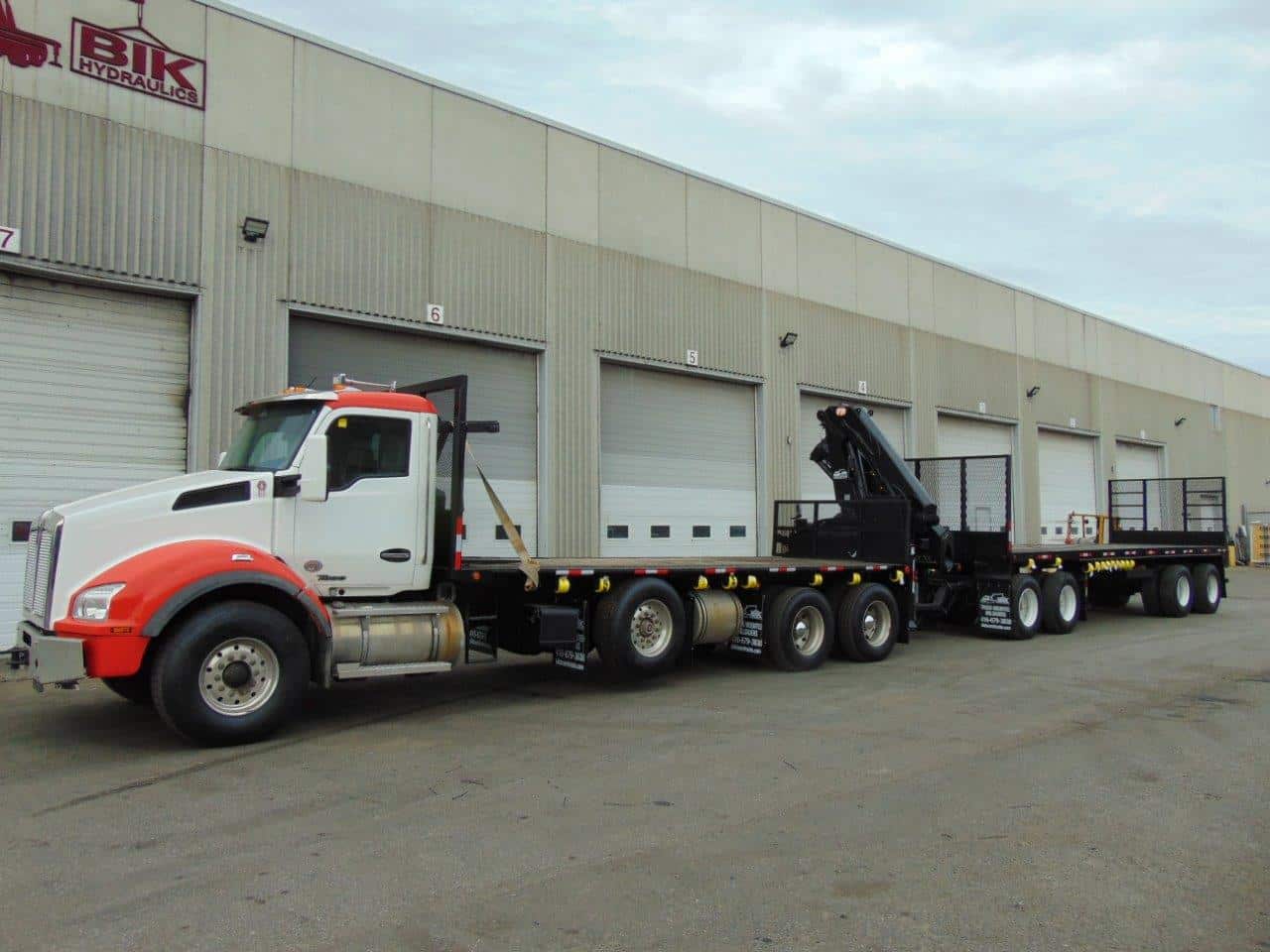

Used 2019 KW T880 4axle with PM 26.5 & Trailer
Used 2019 KW T880 4axle with PM 26.5 & Trailer
The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

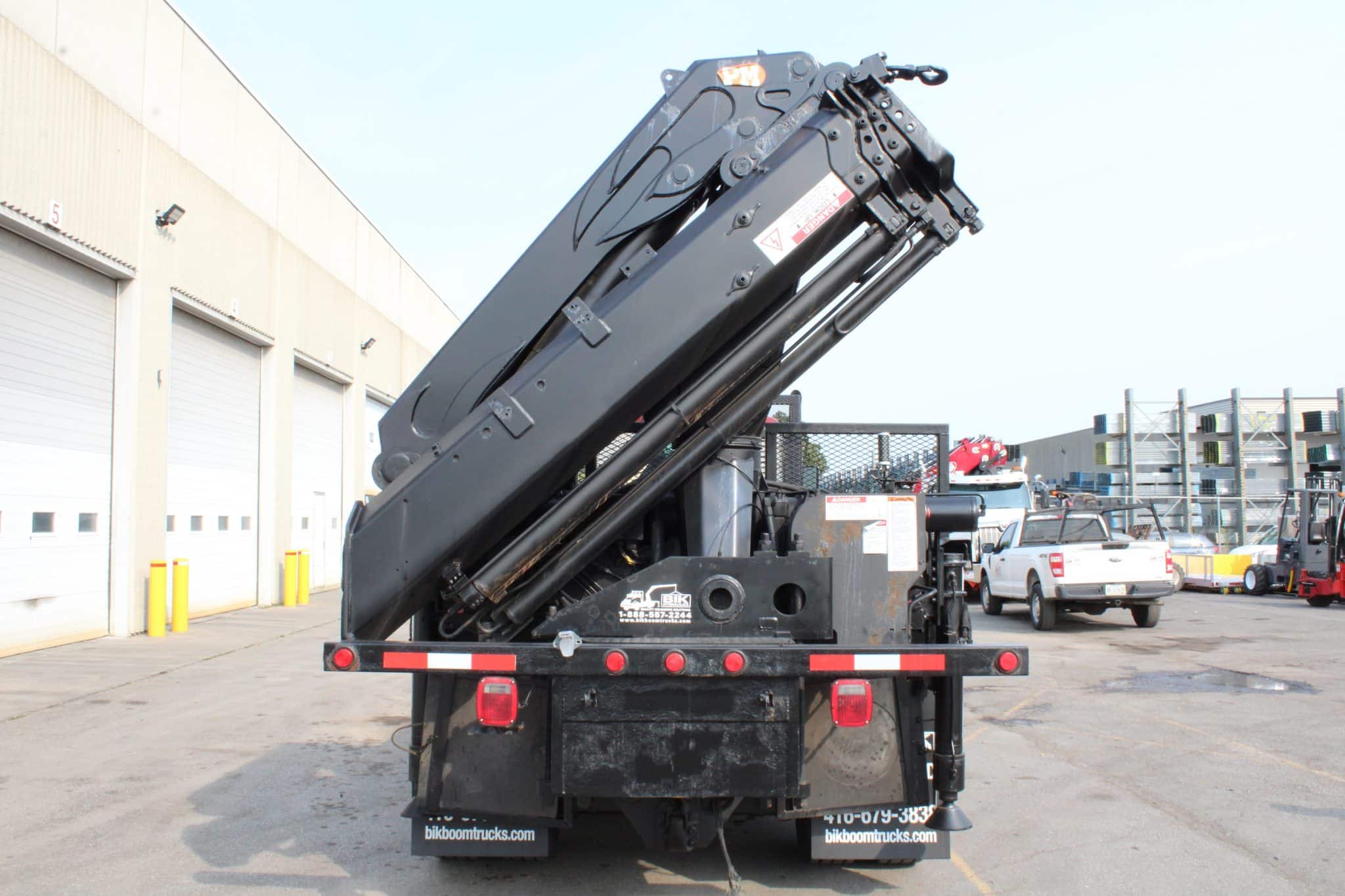

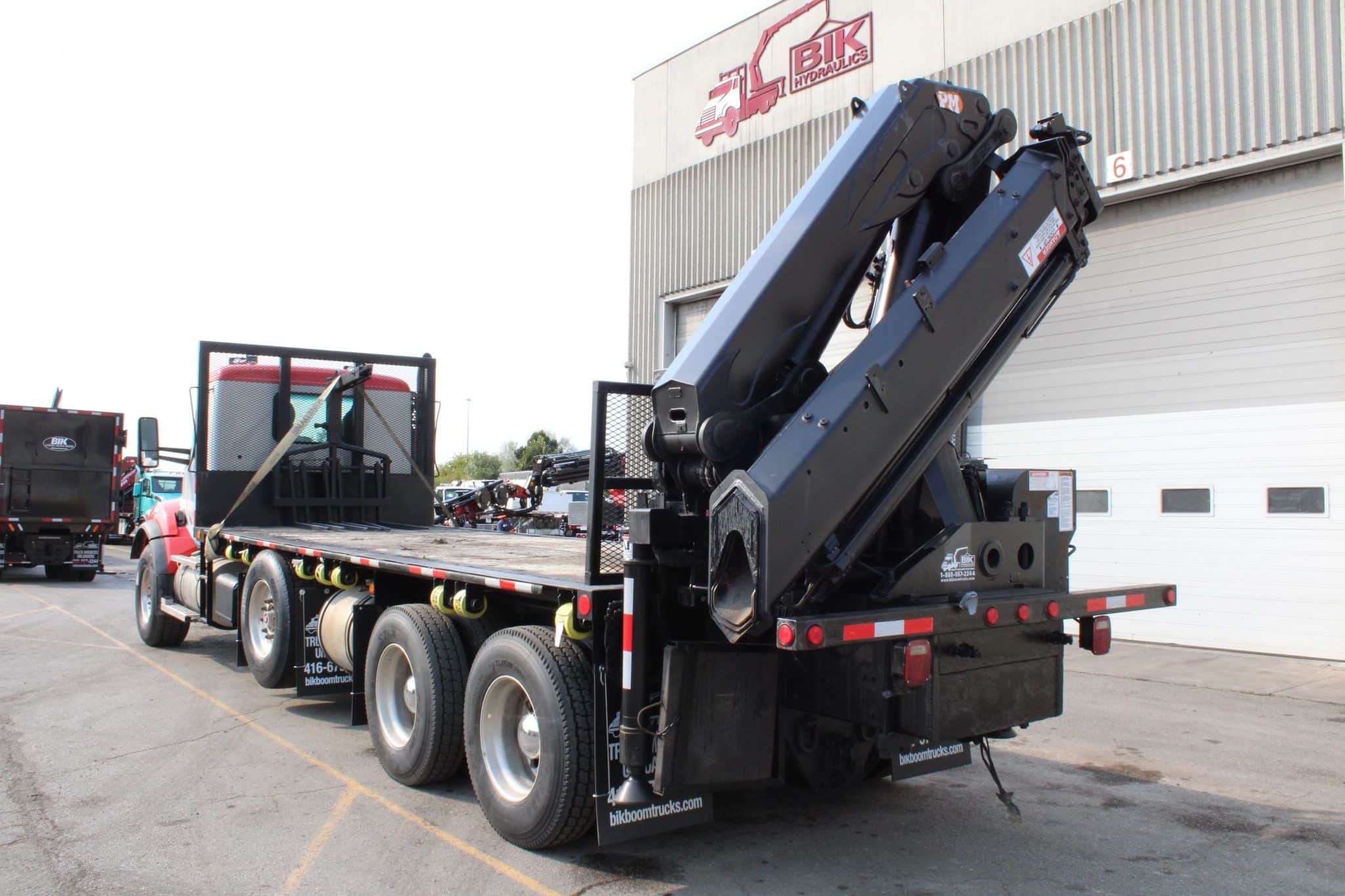

Used – PM 26523 Knuckle Boom (was New in 2019)
- 3-hyd extensions to 35’ horizontal reach (47’ vertical),
- Horizontal Capacity:
- 18,200 lb @ 10’
- 12,400 lb @ 15’
- 8,500 lb @ 20’
- 6,200 lb @ 28′
- 5,000 lb @ 35’
- 408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted PM Blue, Double pilot operated on slewing and pilot operated check valves on all cylinders
- Hydraulic Oil Cooler
- High-pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single-sided operator control station
- SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
- Radio Remote includes: 5-micro speed reducing settings at a handheld, emergency stop, 2 batteries with in-cab charger, 50’ back-up cord
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to the bottom of the cylinder.
- 15-degree negative angle on folding arm
- Hydraulic Overload Protection
- Simplified system that prevents the boom from overload
- Load Holding Valves on each cylinder for the Safety and Security of the Operator and Load
- Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision
Deck Details

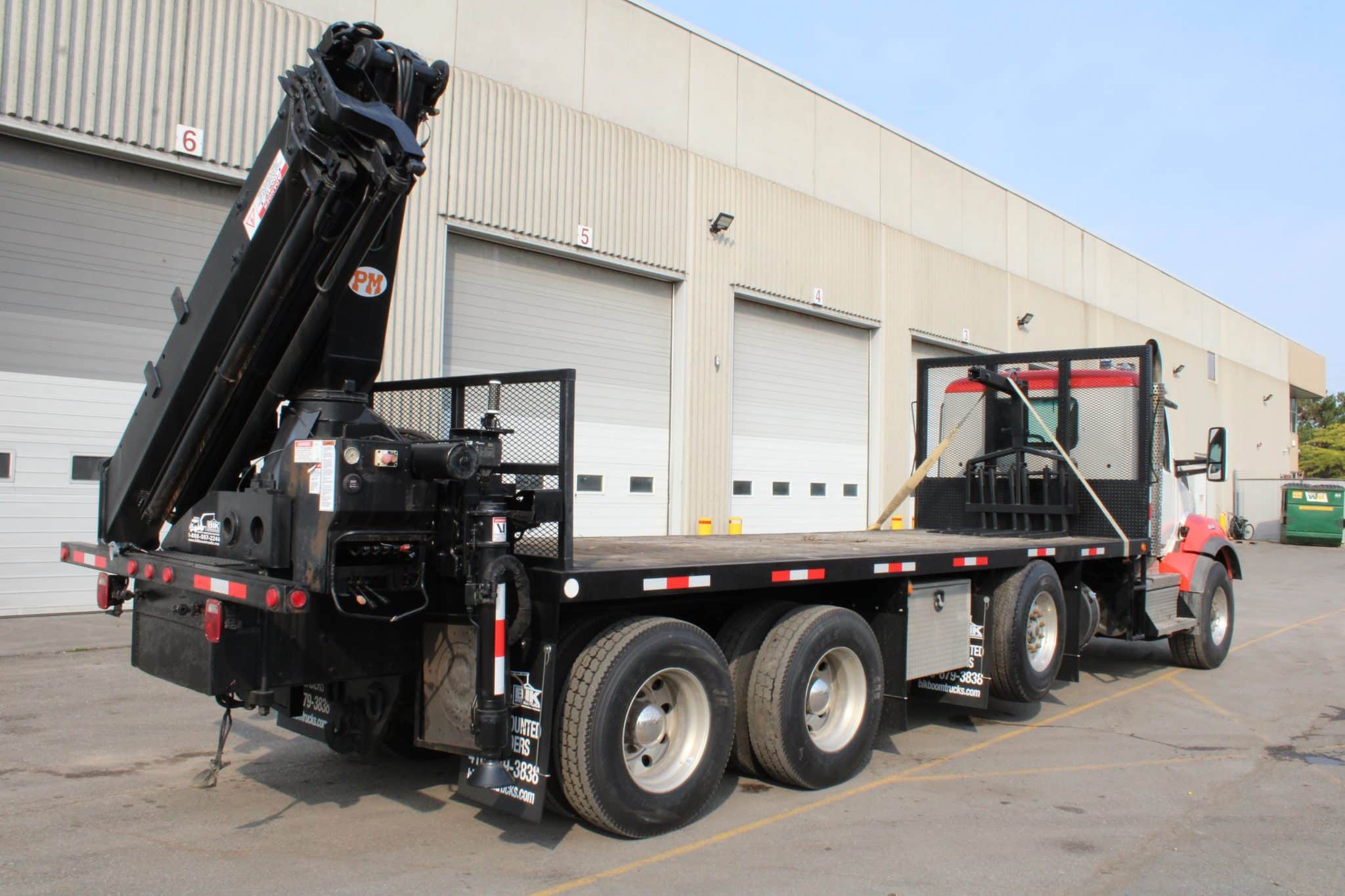

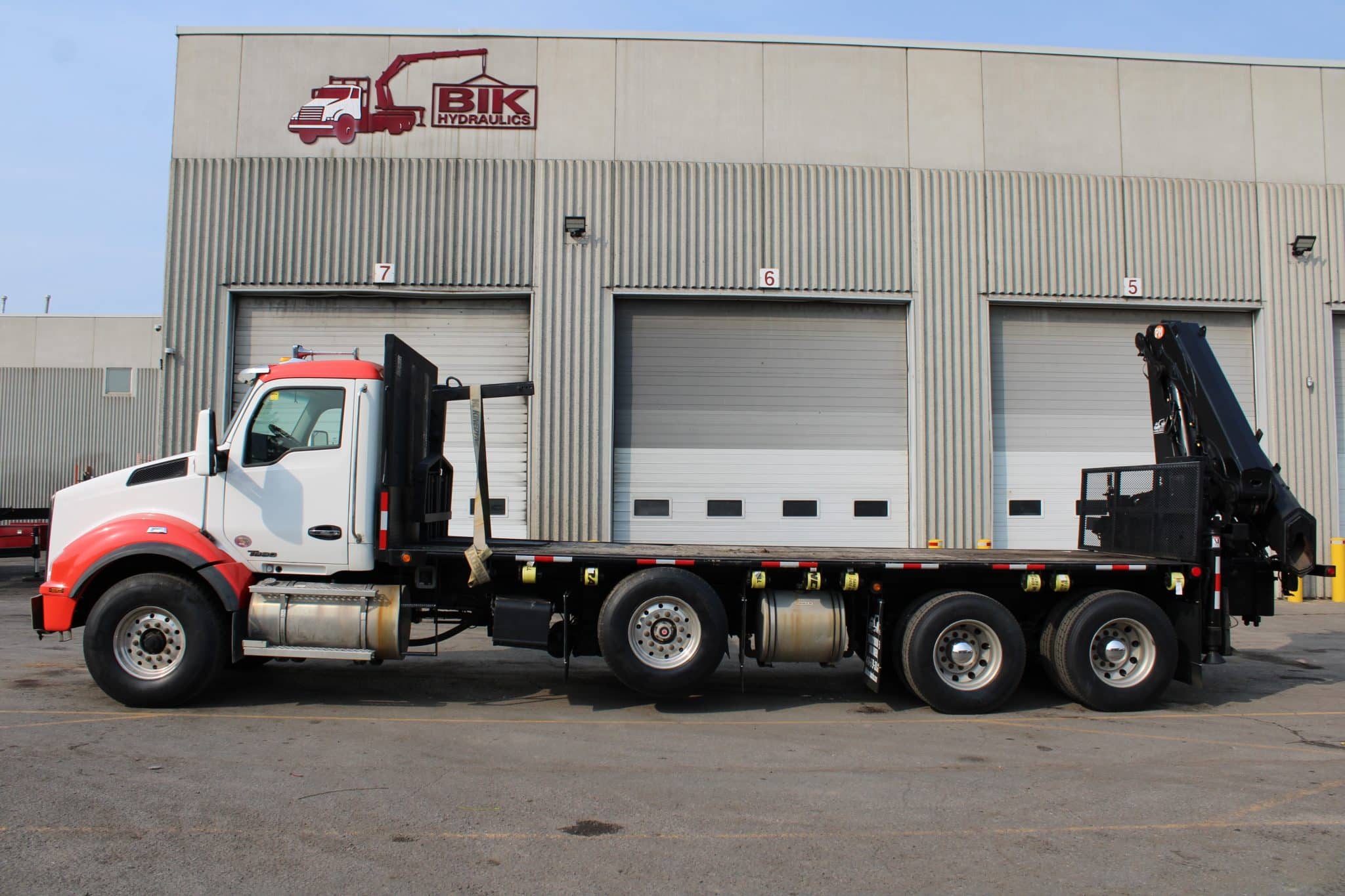

21’ x 102” Flat Deck
- Installed on Truck
- With 48” of main sill overhang for the Sub-Frame of Knuckle Boom
- Hardwood Deck surface
- 66” Headboard
- Sliding track on pass side w/ 6-winches and straps
- Dual side access ladders/grab handles
- Primed & painted Gloss Black.

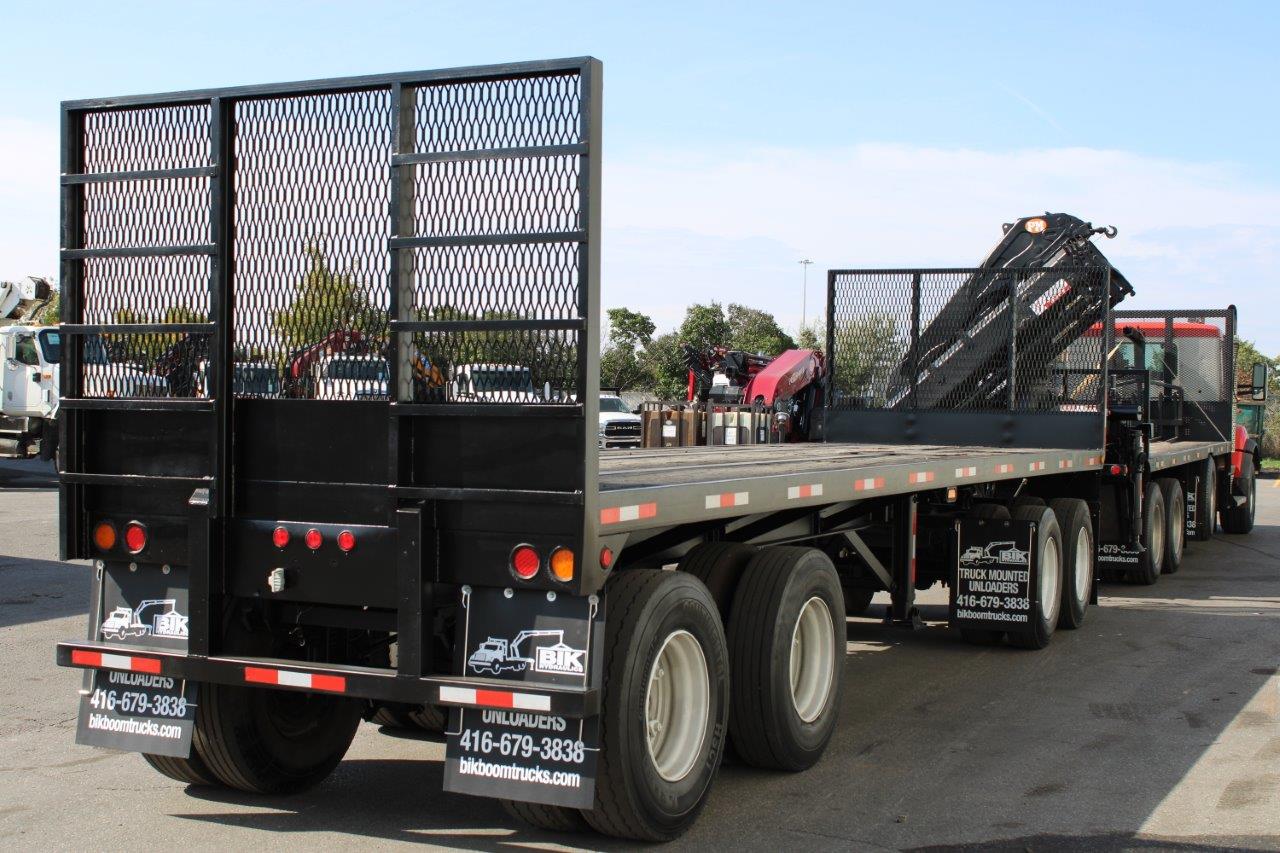

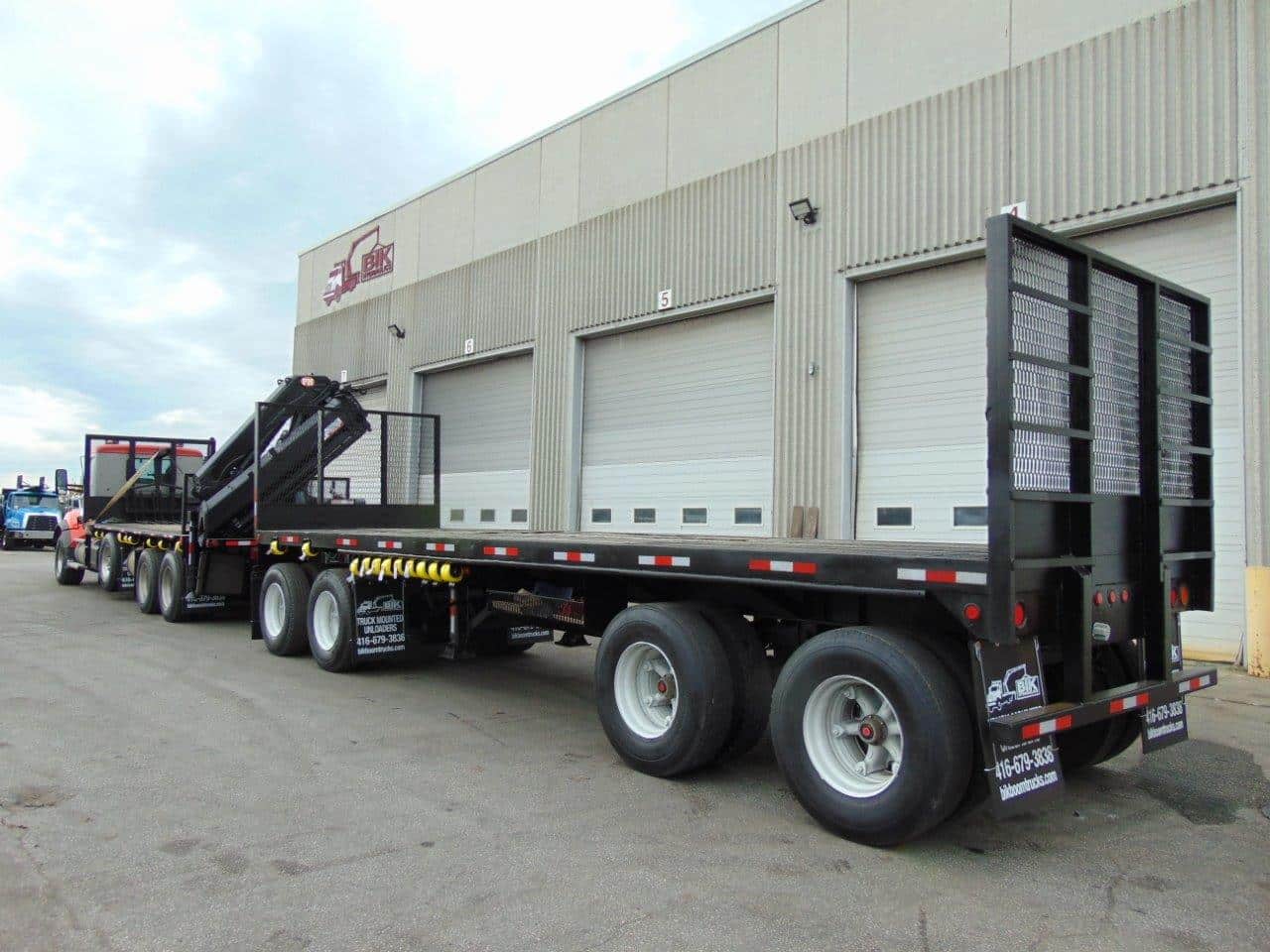

Used – 28’ long 4-axle Trailer

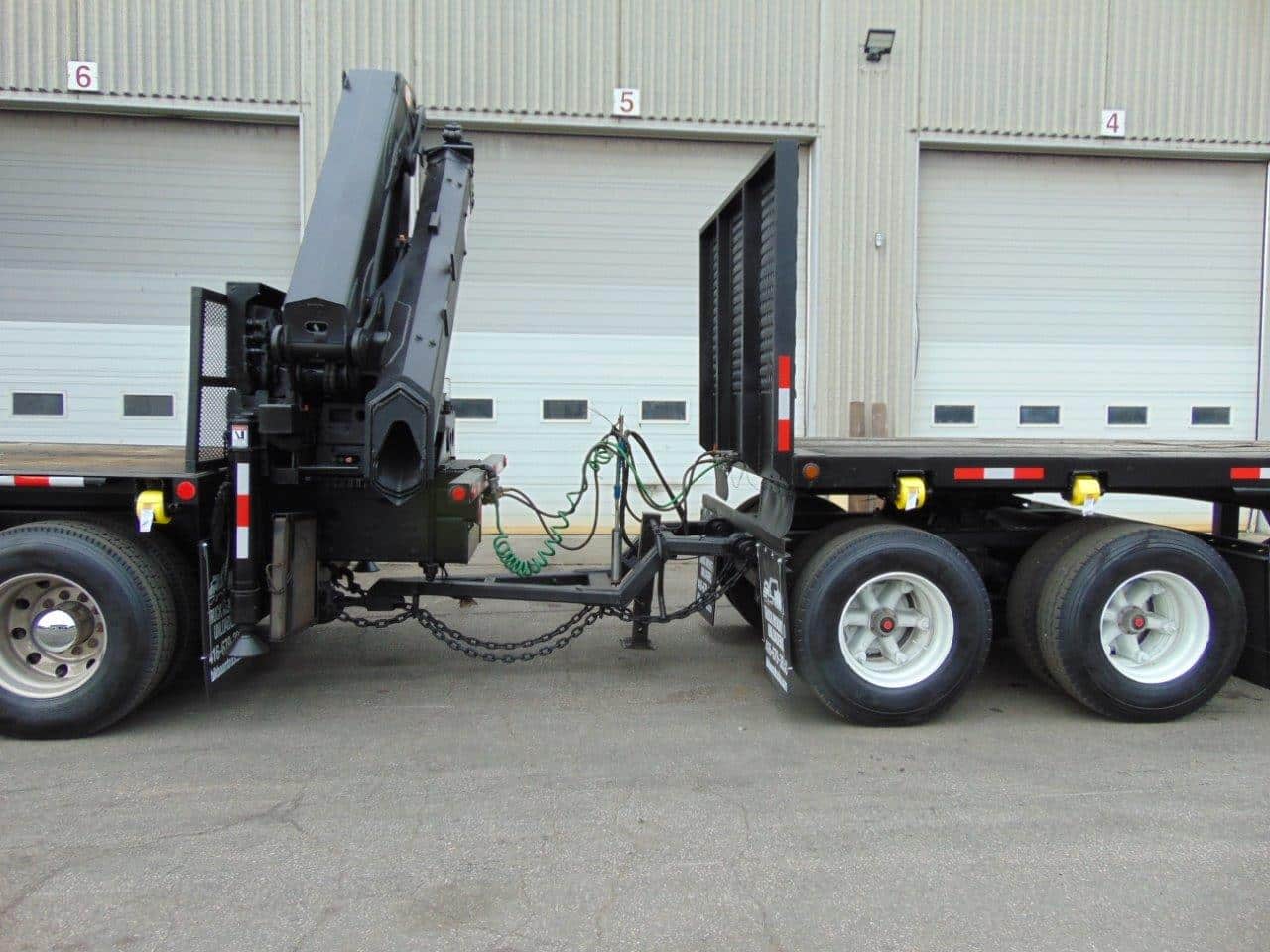

- T/a dolly converter with t/a trailer
- Wood deck surface
- Recent Sandblast & Fresh Paint
Truck Details

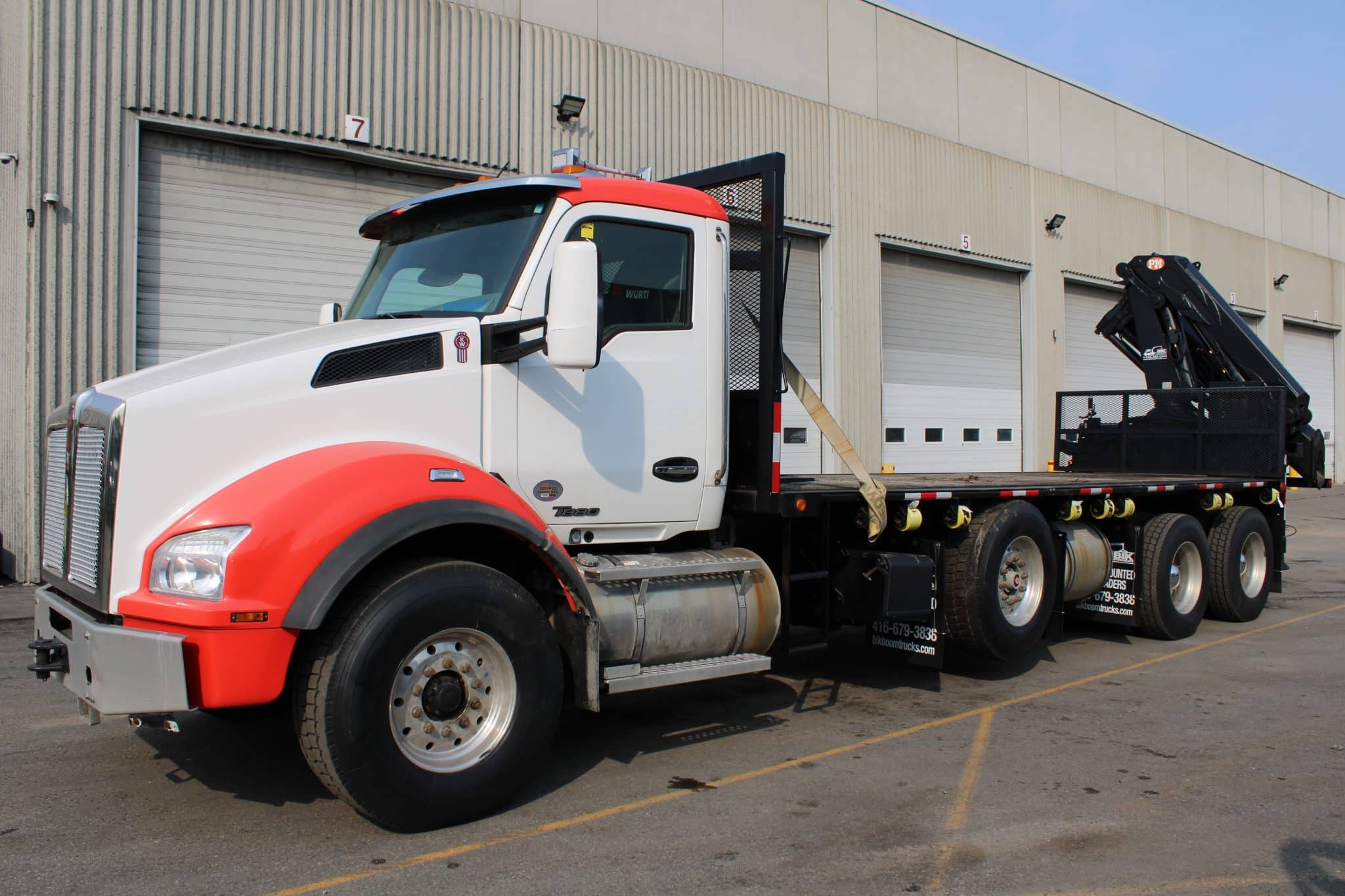

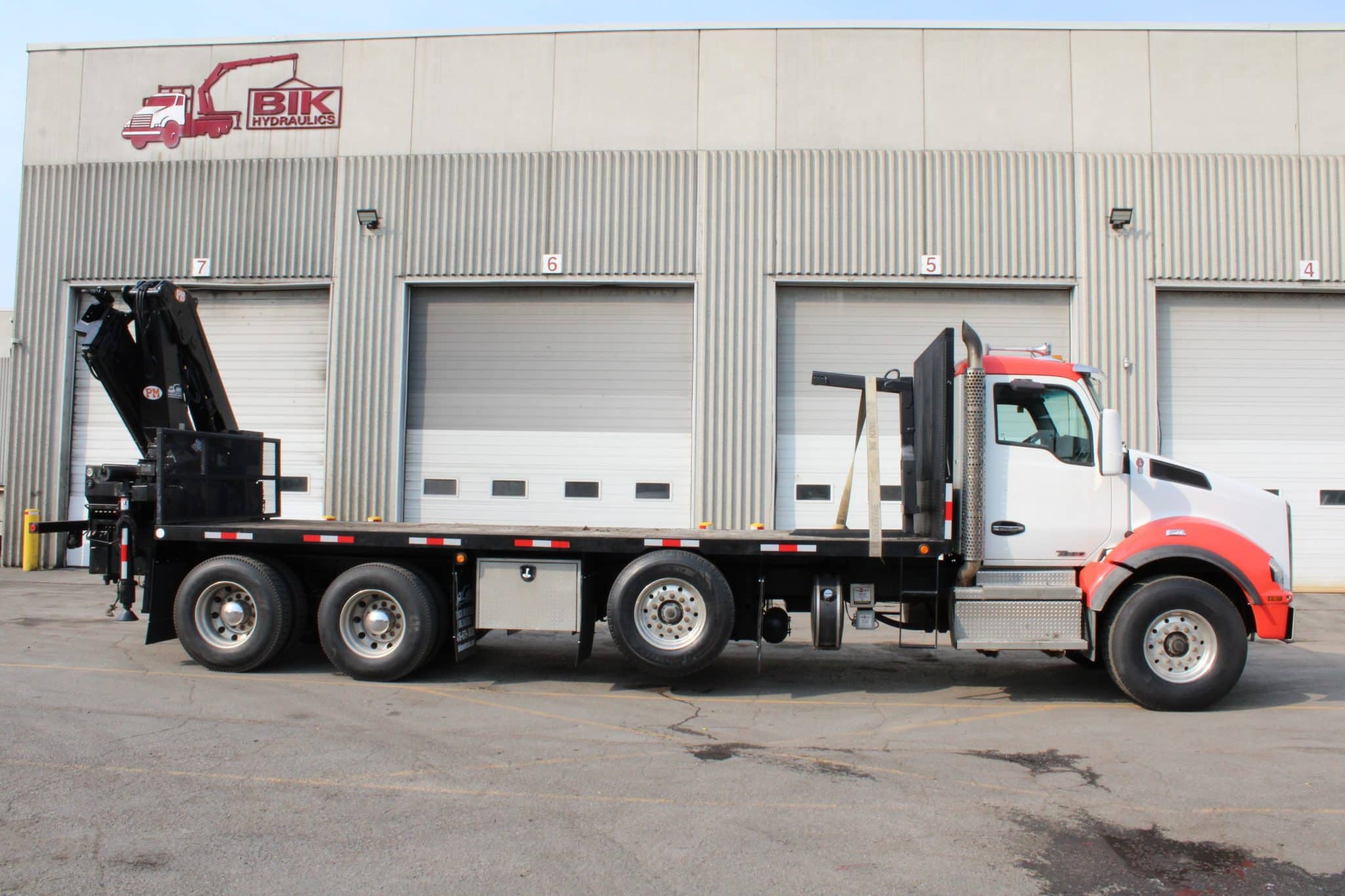

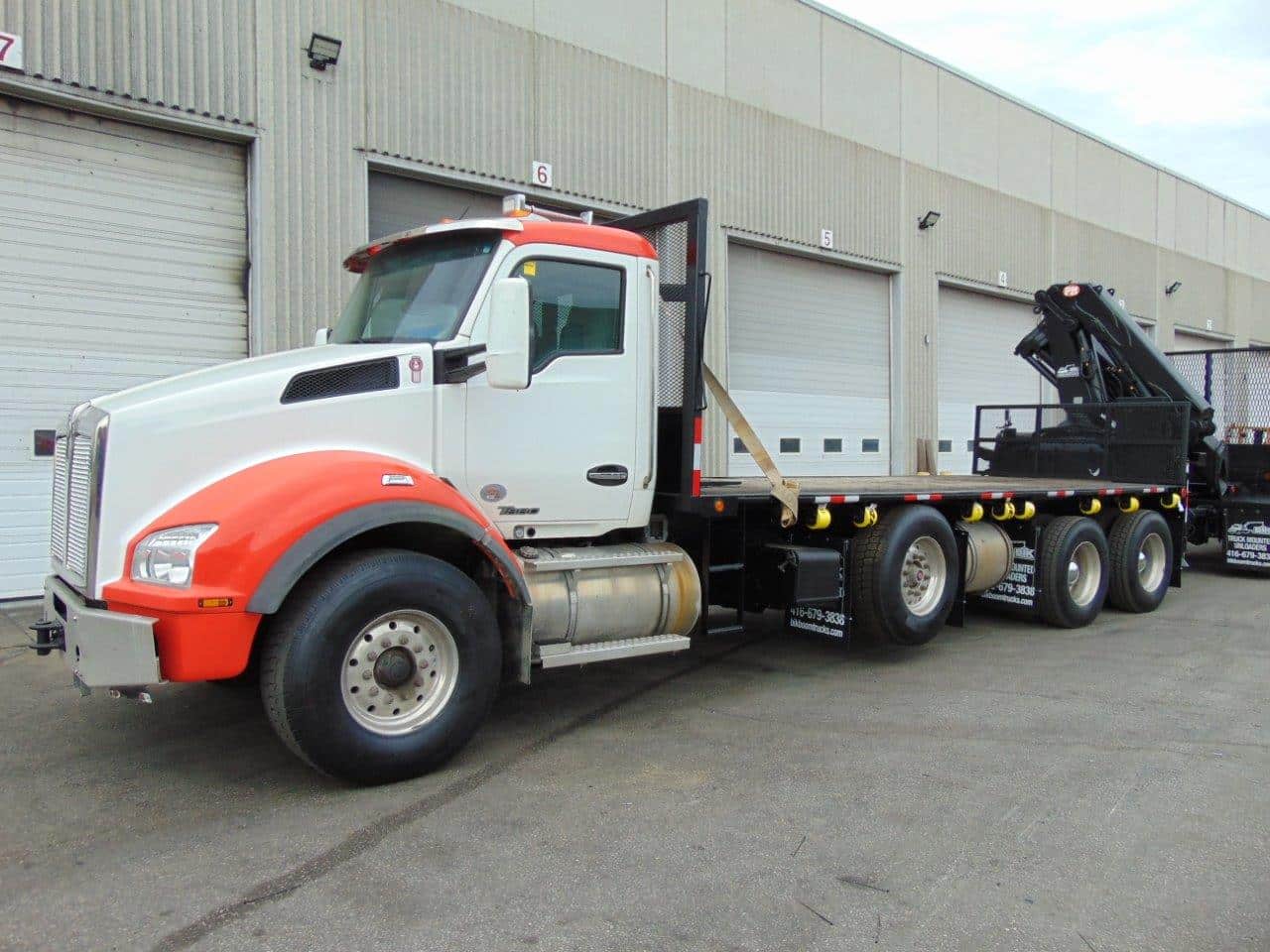

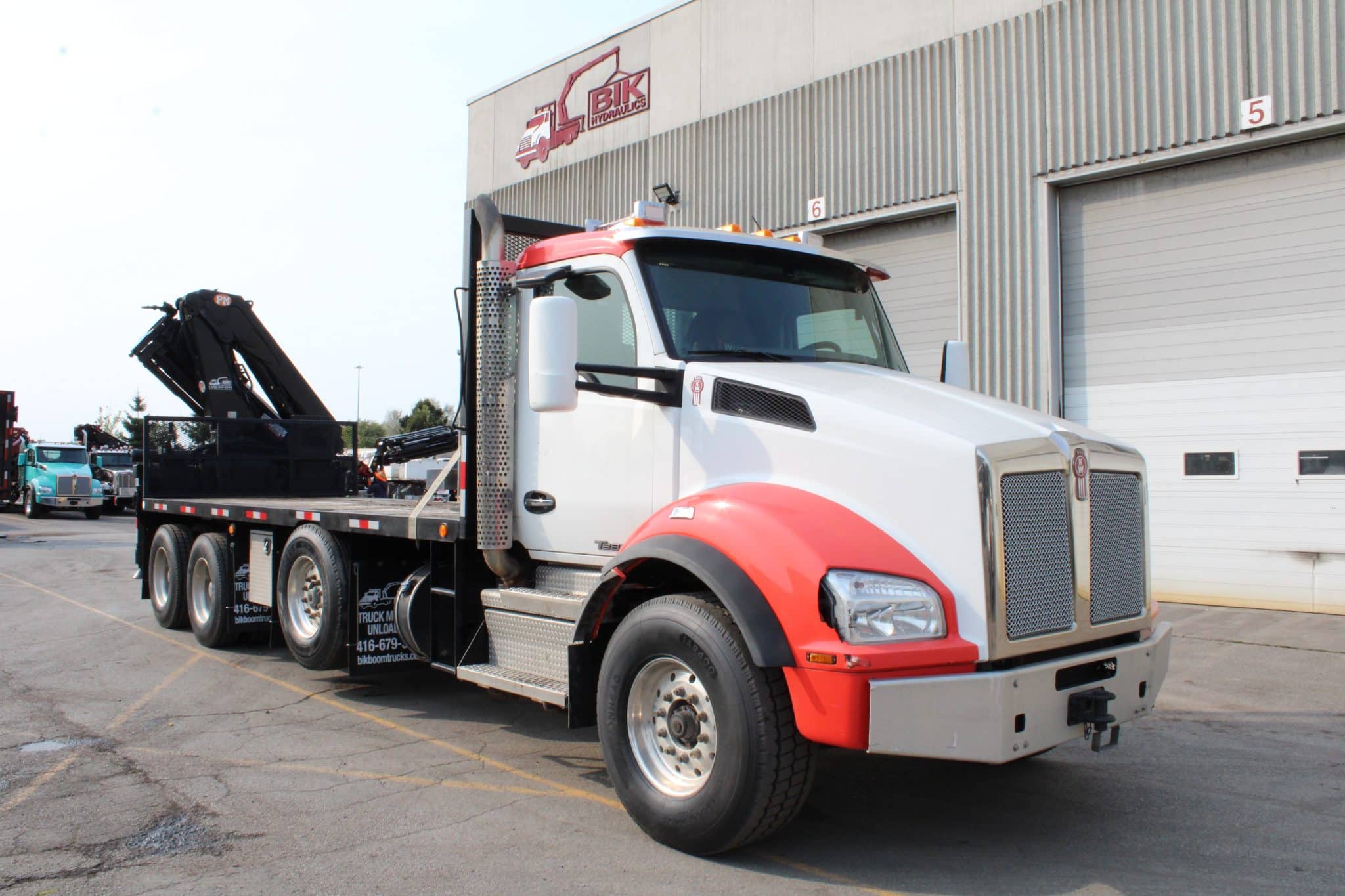

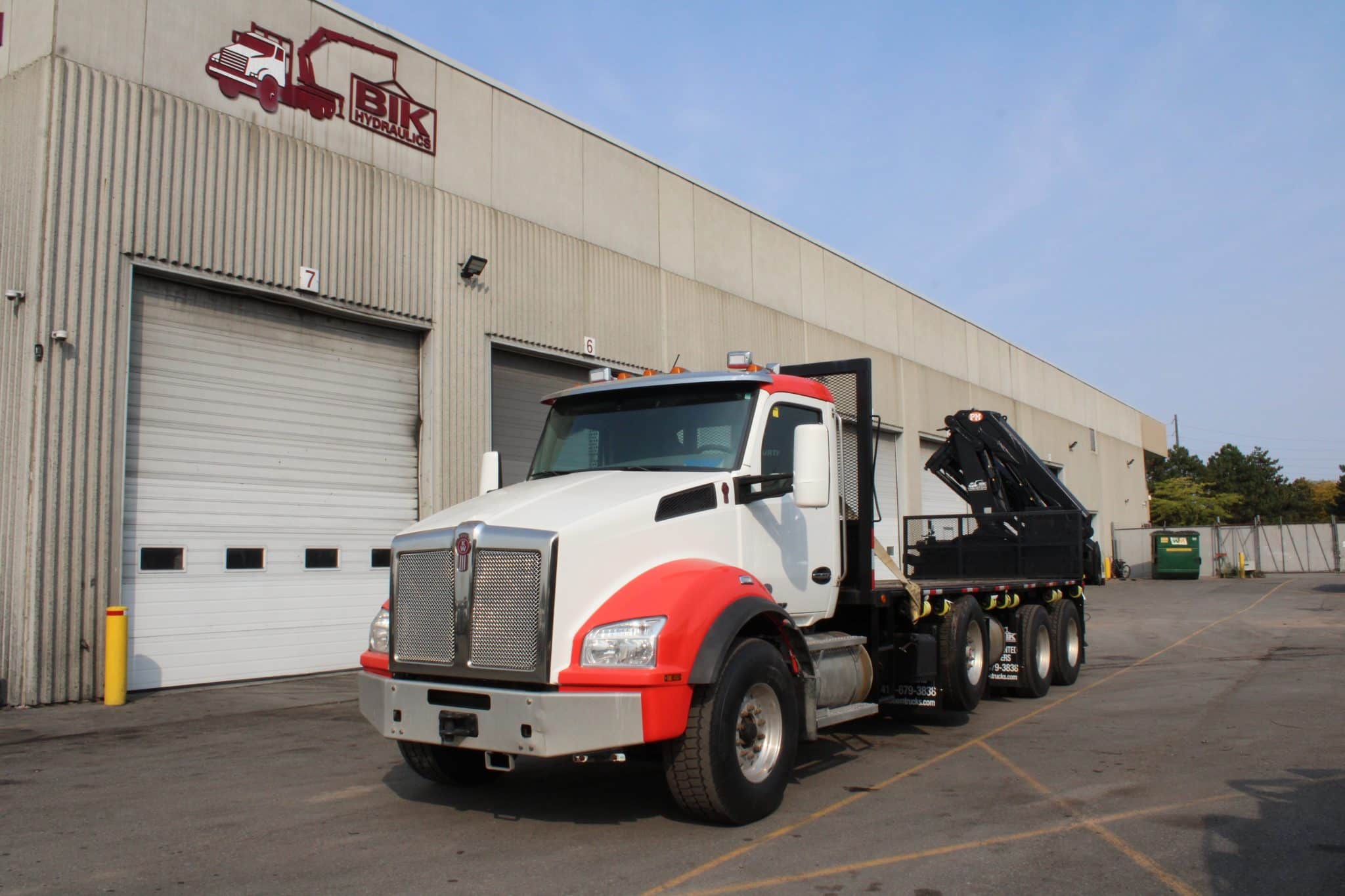

Used – 2019 Kenworth T880 4-Axle Diesel Truck: 86,000 lb GVWR

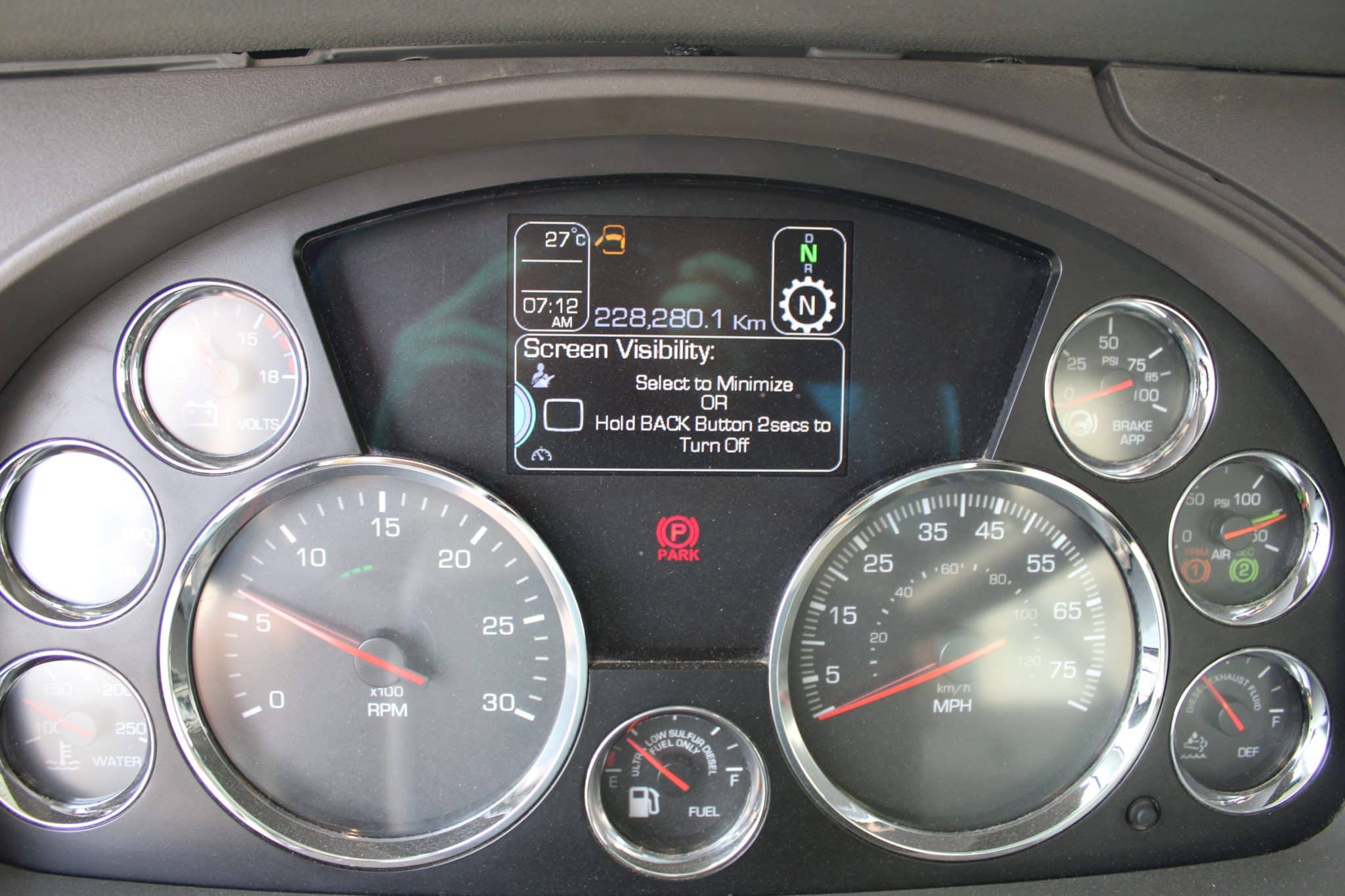

- Approx 141,000 miles, Paccar 13L 505 hp , 1,850 ft/lb torque
- Eaton Ultrashift Plus Automated 18 spd trans.
- 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 20,000 self steer lift axle 100” ahead of 1st drive wheel with floatation tires on alum rims
- SPIFF certified
- 46,000 LB Rears on Hendrickson Air Ride Suspension with 11R22.5 tires on Aluminum outer rims
- Double frame chassis
- 54” spread at tandems

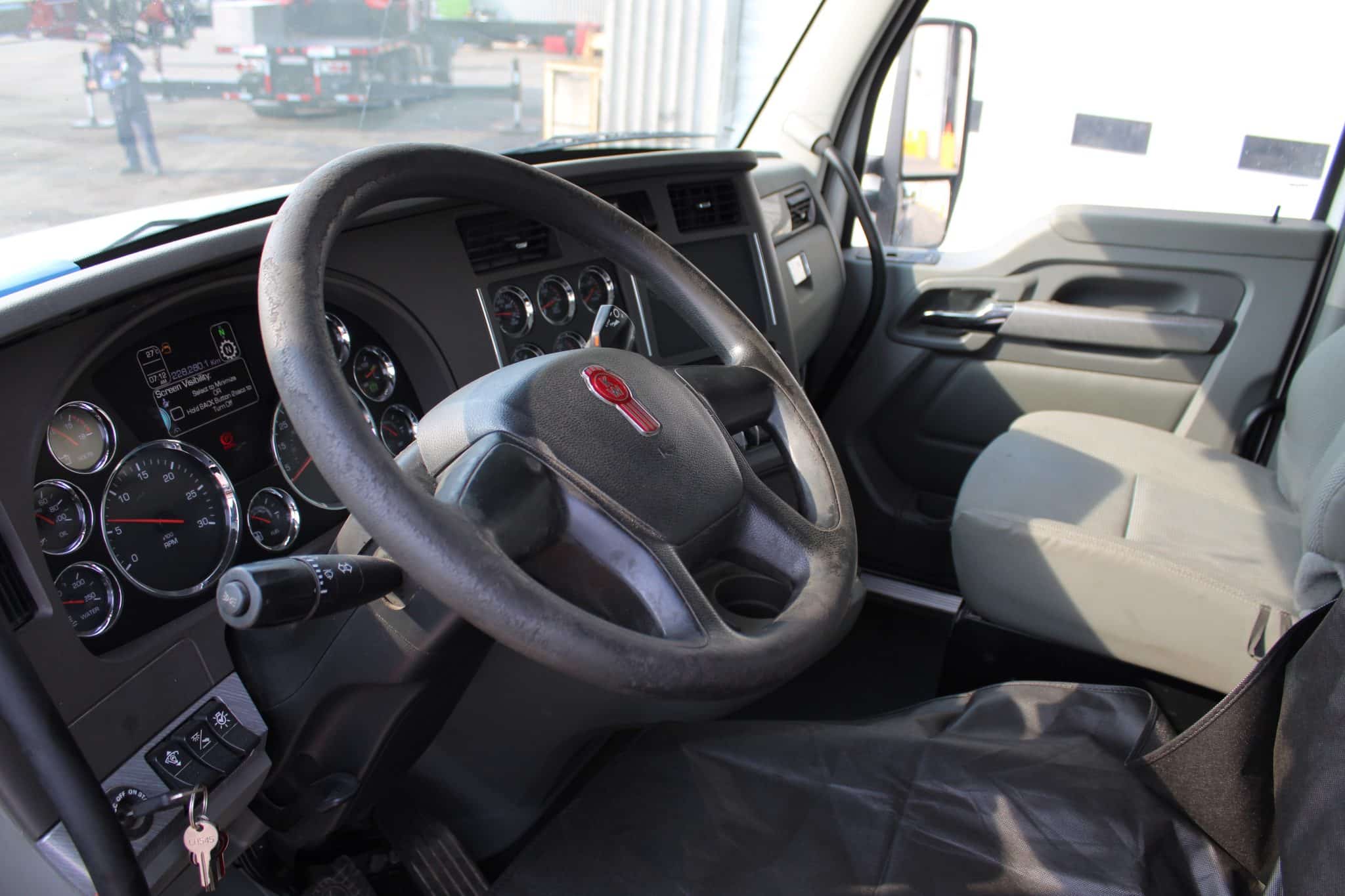

- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock-ups, 80 gal alum fuel tank, trailer air tow package, etc…
Also Included:
- (1) Alum Storage Box
- Draw plate with Pintle Hitch (under boom in truck frame)
- Pair of PVC stabilizer pads
- Deck, truck frame and boom to be sanded and repainted
- Truck & Boom to be serviced
- Truck sold with fresh DOT inspection

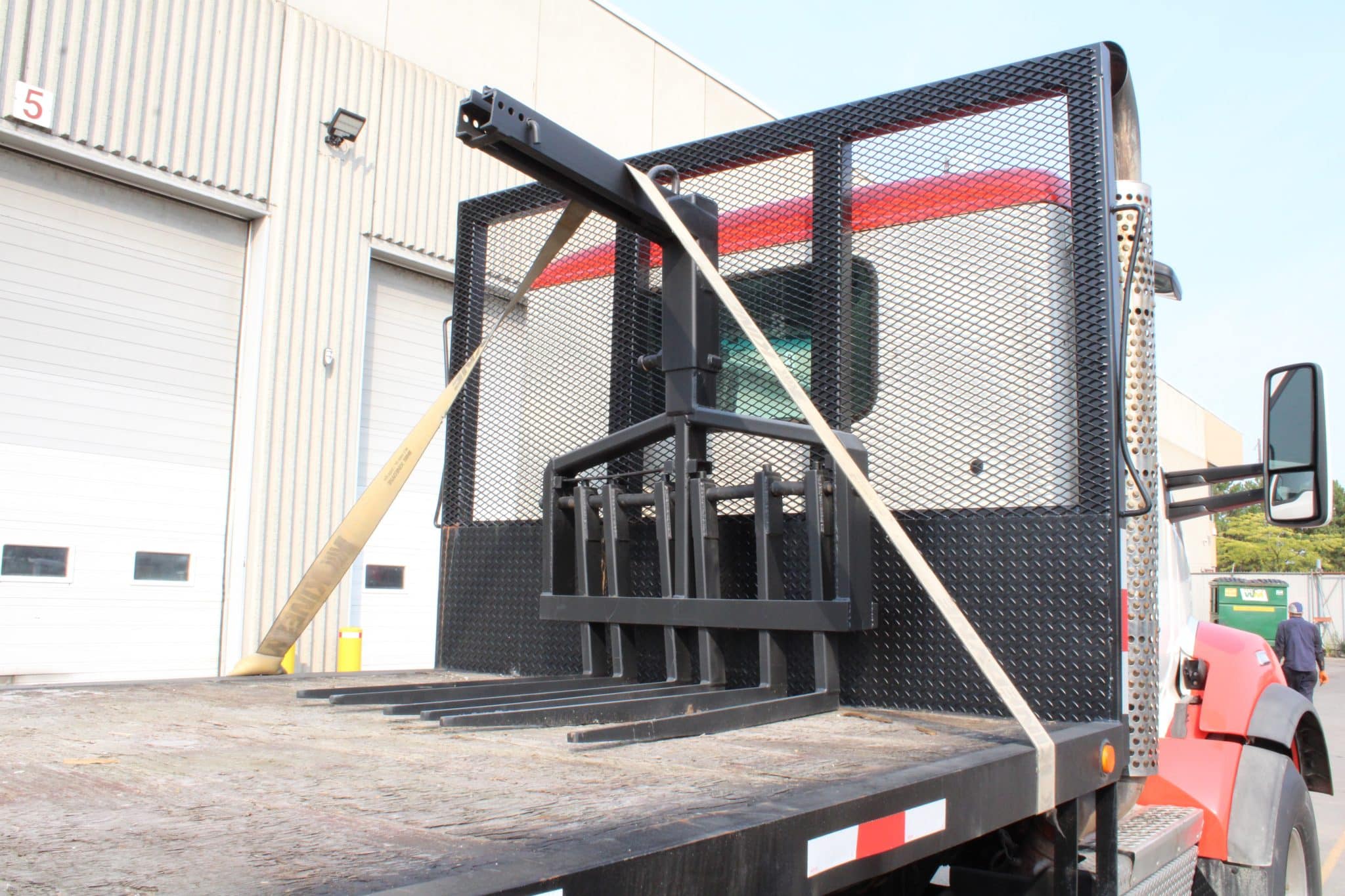

- Set of Self-Leveling Pallet/Block forks/tines
Clean Unit – Good Working Order
Comes With Fresh DOT Truck and Boom Inspections
Ready for Immediate Delivery
