USED 2018 WESTERN STAR 4800 4-AXLE TA-TA WITH BIK TC-124XL
 |
USED 2018 WESTERN STAR 4800 4-AXLE TA-TA WITH BIK TC-124XL
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

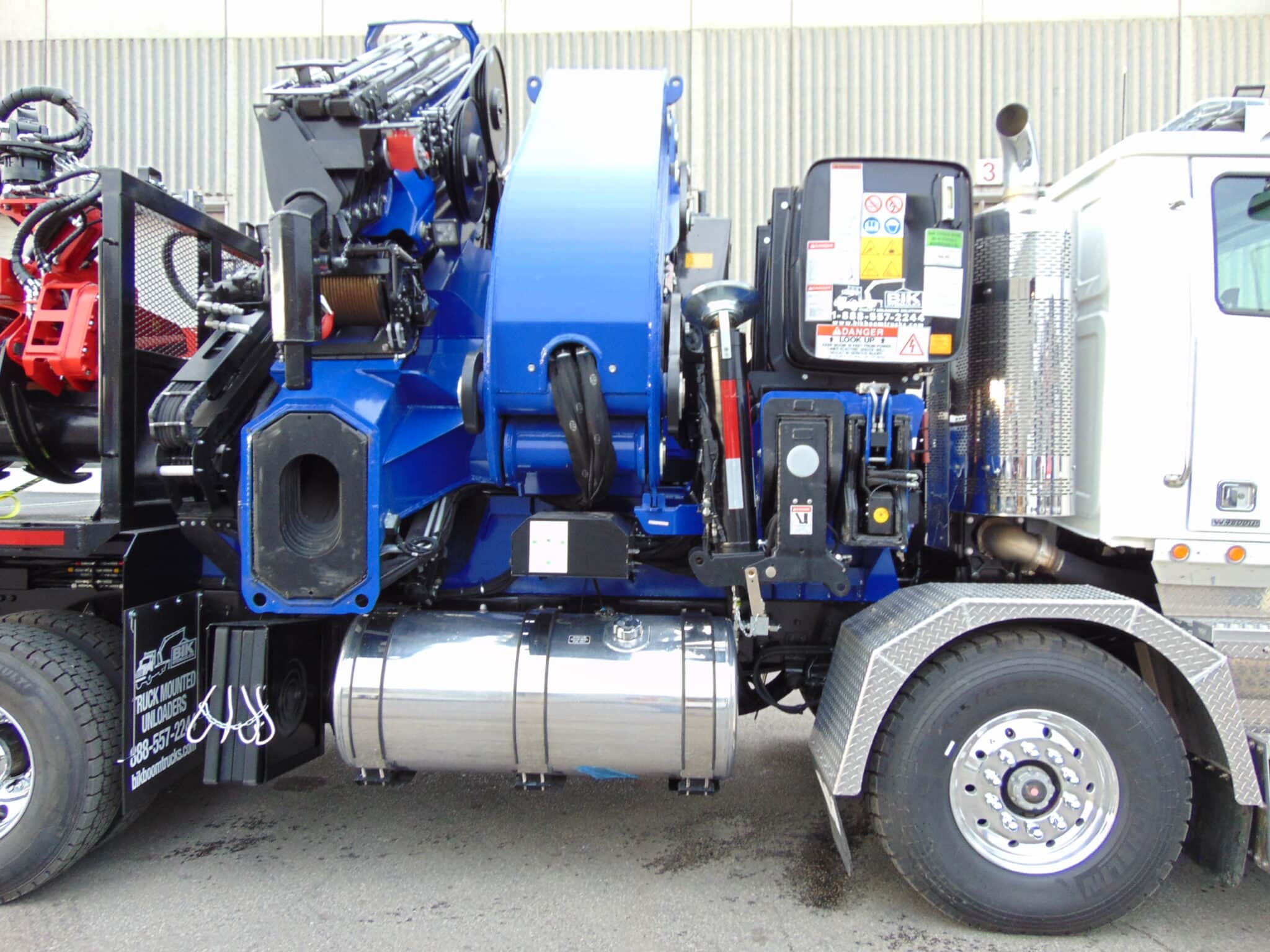

Used – BIK Tree-Care Series TC-124-XL – 150 ton/m Knuckle Boom (New in 2018).. 8 – main boom extn + 6 jib ext + 1-grapple extn
- Including (1) Grapple extention in jib, Boom Capacity of 3,800 lbs @ 124’ Vertical Reach
- Main Boom Horizontal Capacity:
- 46,000 lb @ 16’
- 27,000 lb @ 26’
- 18,200 lb @ 38’
- 12,700 lb @ 50’
- 9,800 lb @ 64’
- Jib Horizontal Capacity:
- 5,350 lb @ 73’
- 4,500 lb @ 85’
- 3,900 lb @ 96’
- 3,200 lb @ 108’
- w/Grapple extn to 112.’
- PM connecting rods at First Boom and Knuckle
- 15 degree negative angle at 1st knuckle
- 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure
- Hydraulic Extra Wide Main outriggers at pedestal – 33’ – 6” span – hydraulic tilting when retracted. Radio controlled
- Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
- Lifting winch on boom plumbed to jib
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
- Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
- Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
- Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards
Truck Details

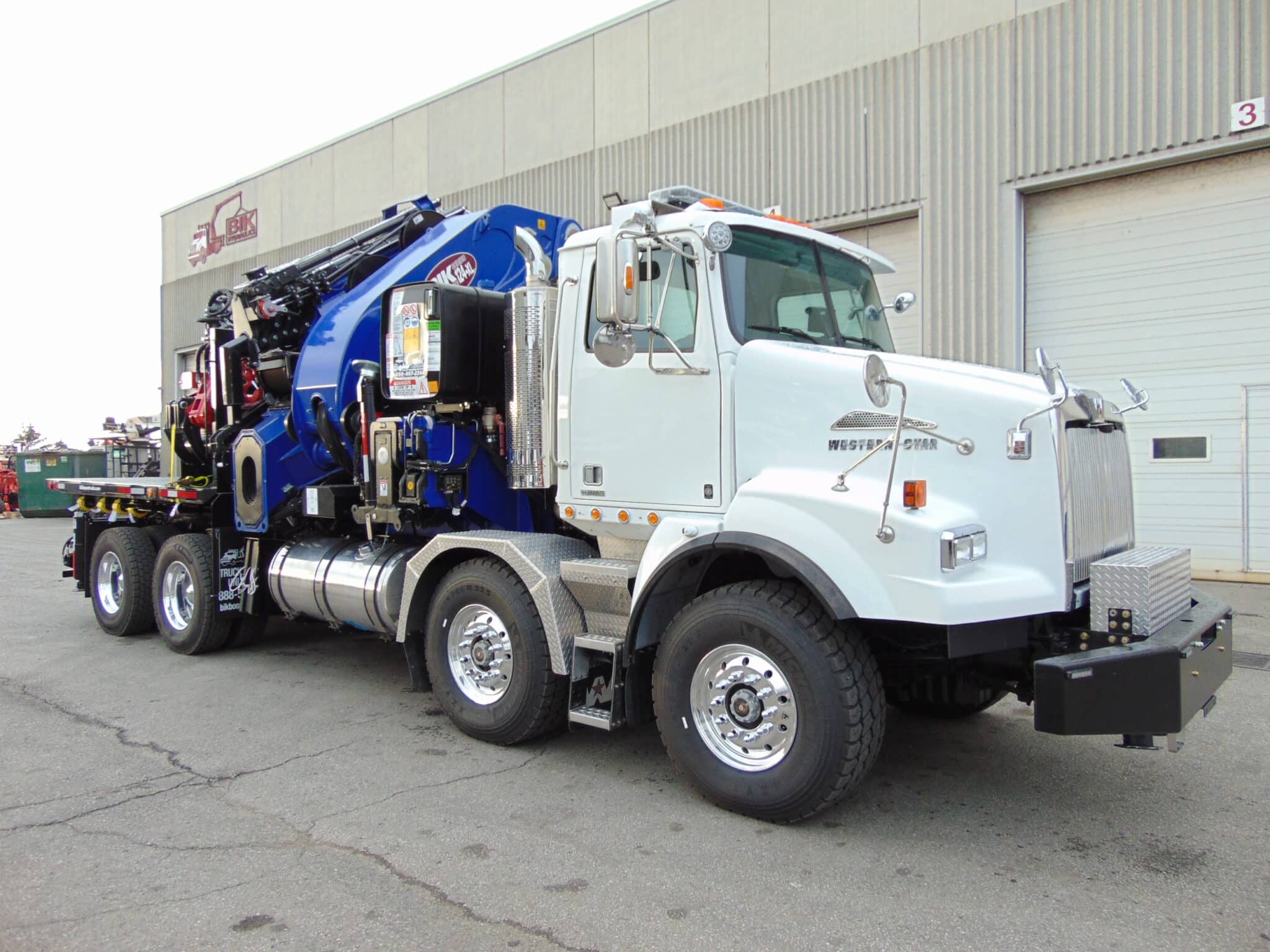

Used – 2018 Western Star 4800 T/A Steer-T/A Rear 4-Axle Tractor : 90,000 lb GVWR
- Detroit 15L 505 hp – 1,850 ft/lb torque with Jake Brake and Eaton Ultrashift Automated 18 spd stand trans.
- approx. 45,000 miles
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires
- 50,000 LB Rears on air ride Susp.
- 4.3m RBM Double Frame
- Polished ALCOA Aluminum Wheels front and outer rear
- Chrome polished Exhaust, Chrome Grille & Bumper
- 100-gallon alum fuel tank
- Loaded with Options including: Air Cond., Tilt/Telescopic steering, top level Interior, AM/FM/CD, air driver’s seat, fixed pass seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power windows/locks/mirrors, Air ride cab, full 4-wheel locks, trailer air tow package, truck cab white colour
- 5th wheel on at tandems w/ramps on low profile sub base
- 15’ Removable Flat Deck with Counter Weight, etc…
Options Included:
- PVC stab pads w/holders
- (2) pcs Alum storage boxes
- New Custom reinforced manual extension for grapple
- New Mecanil SG-280 Grapple Saw with spare parts kit
- 2 to 3 day Boom feature/operation familiarization at your location,
