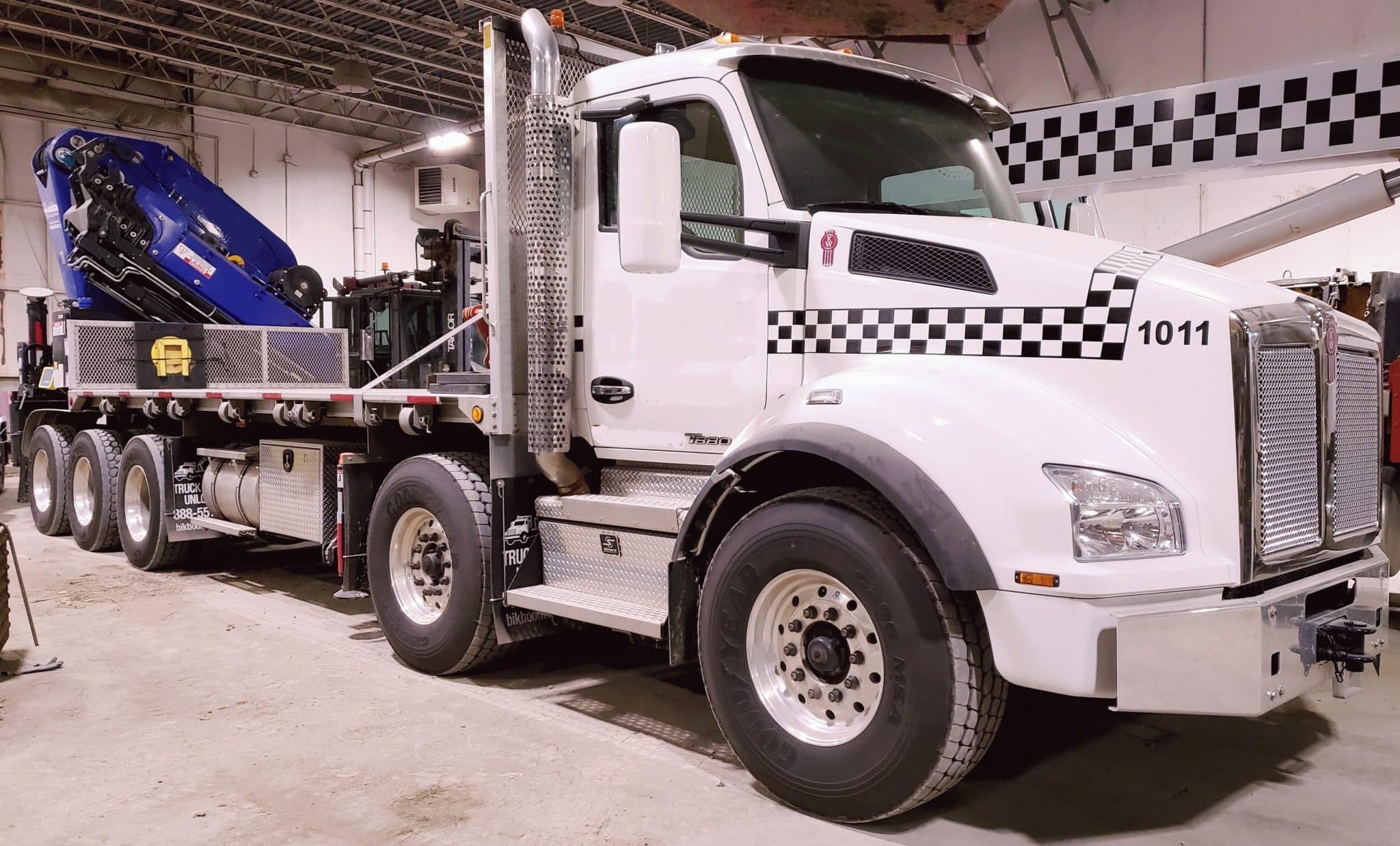

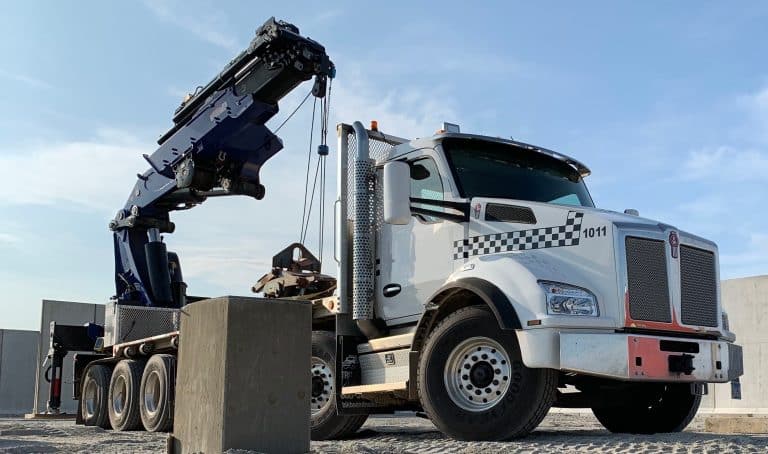

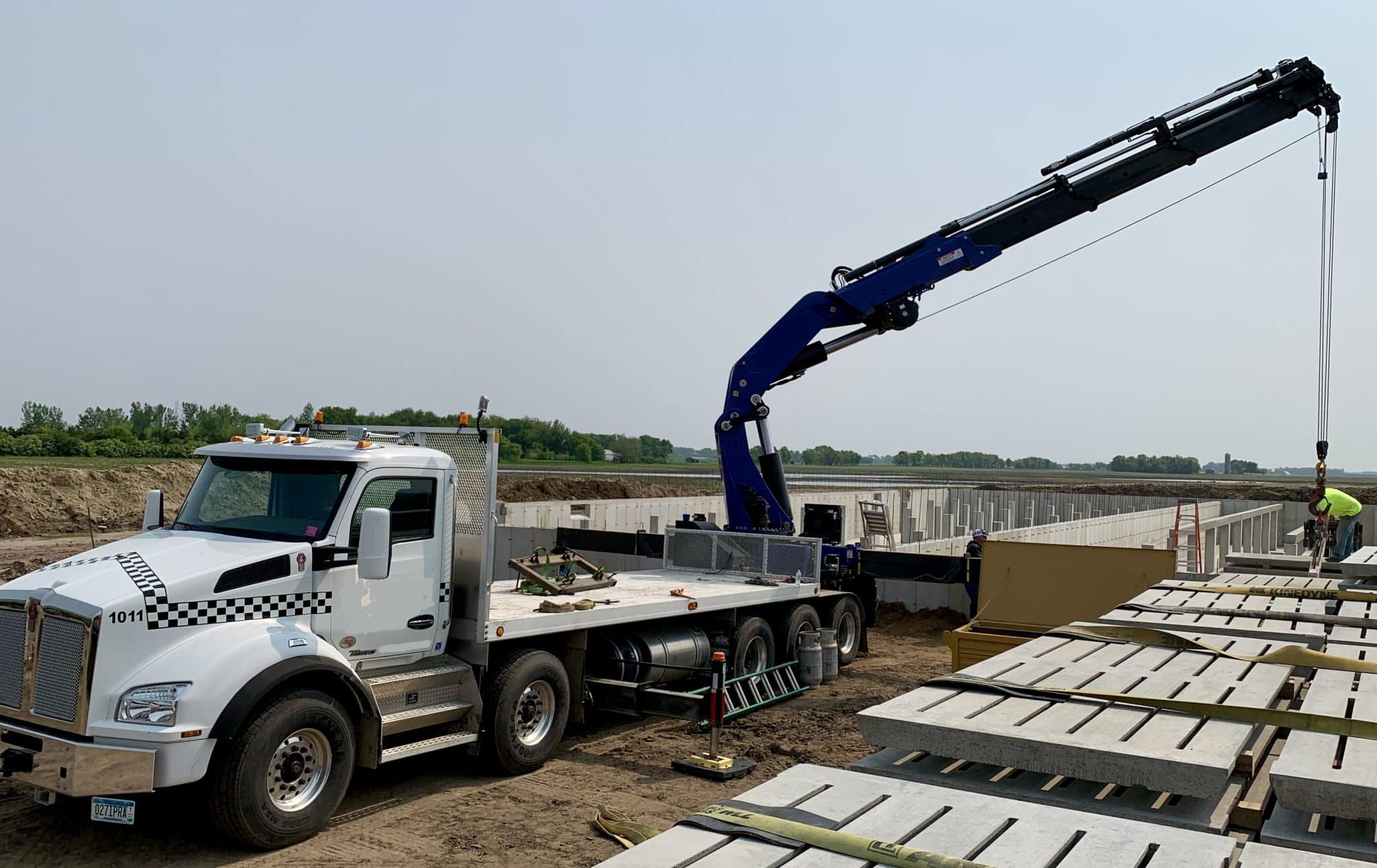

USED 2018 KENWORTH T880 WITH PM 100026-SP KNUCKLE BOOM

USED 2018 KENWORTH T880 WITH PM 100026-SP KNUCKLE BOOM

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

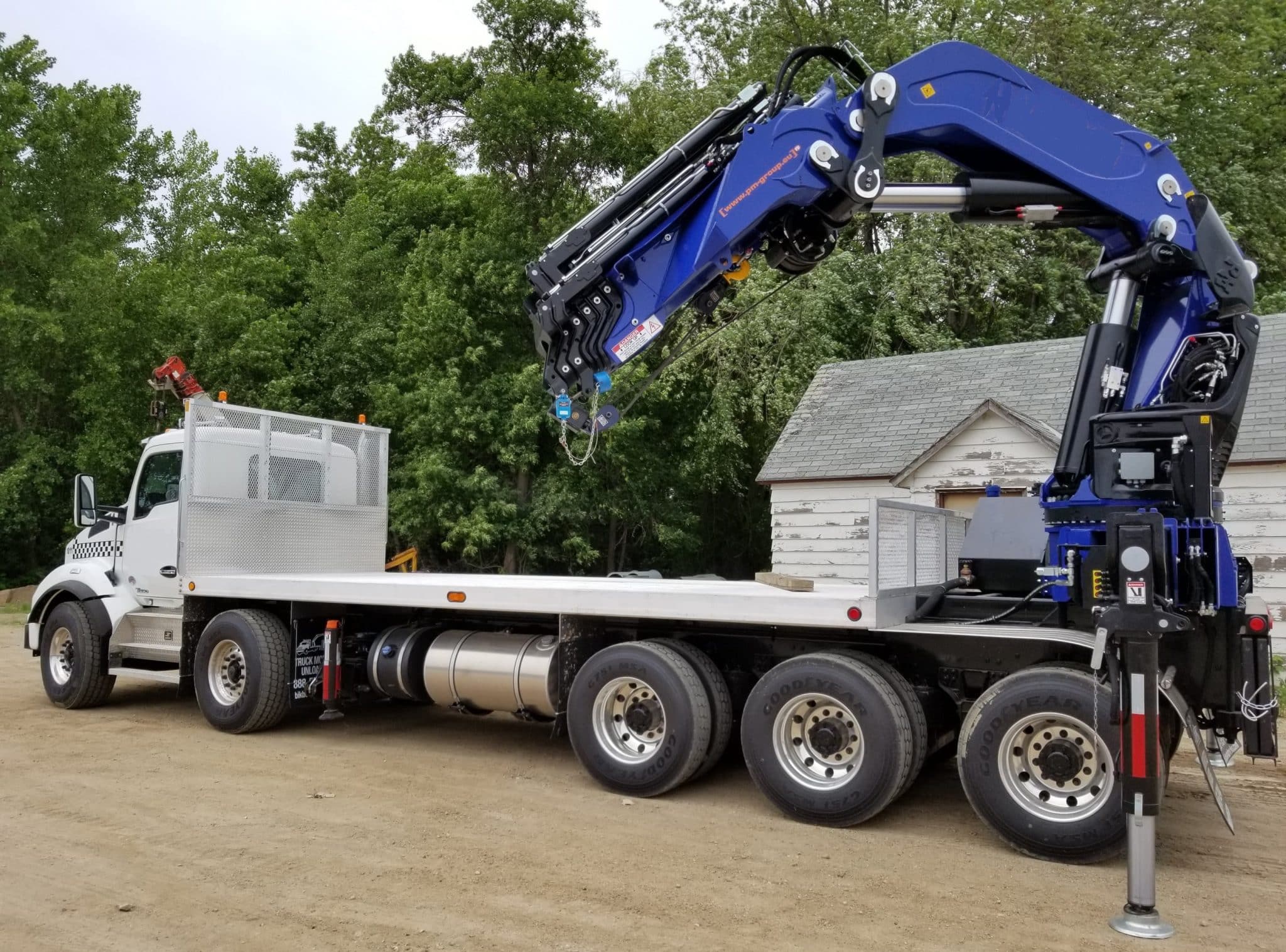

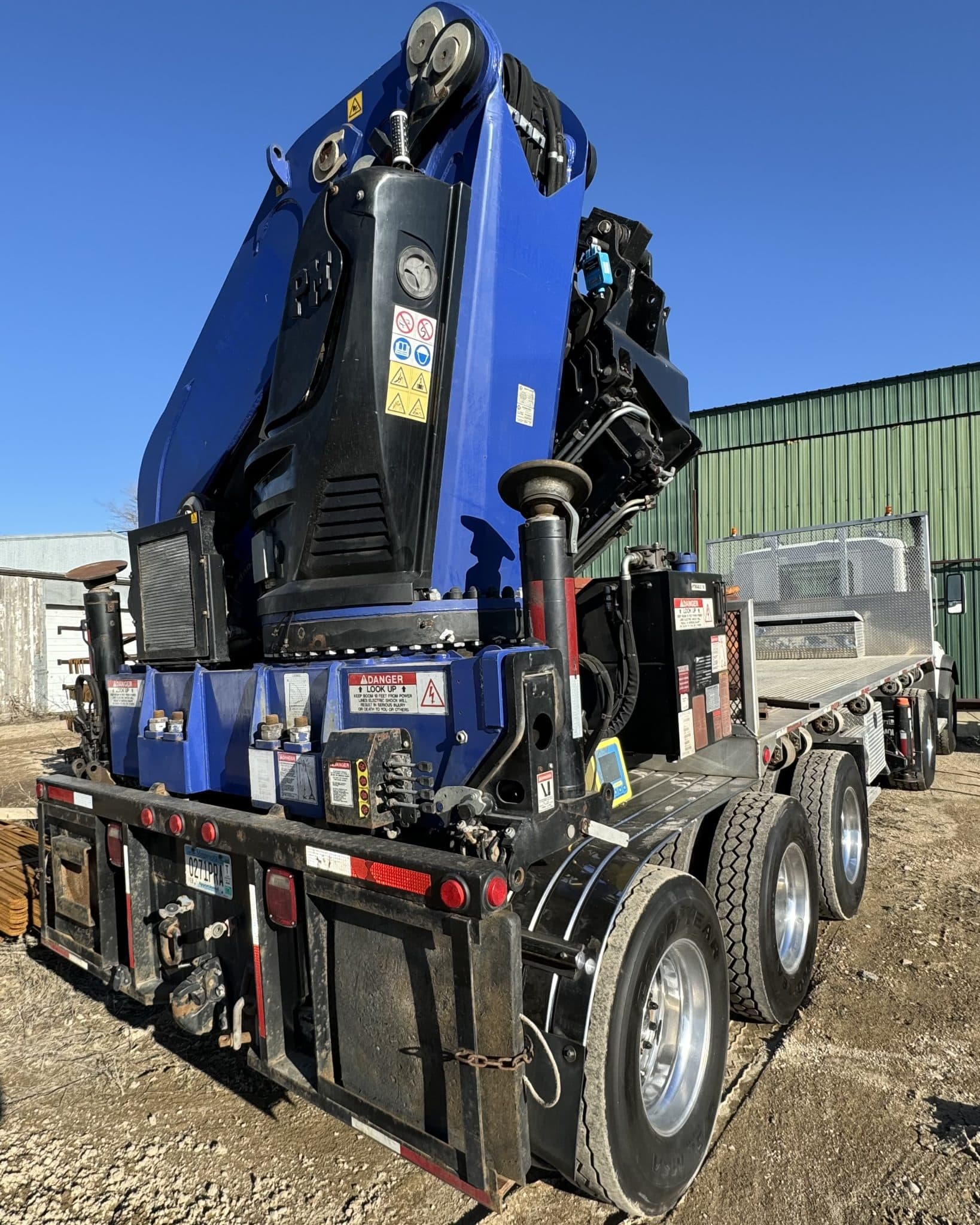

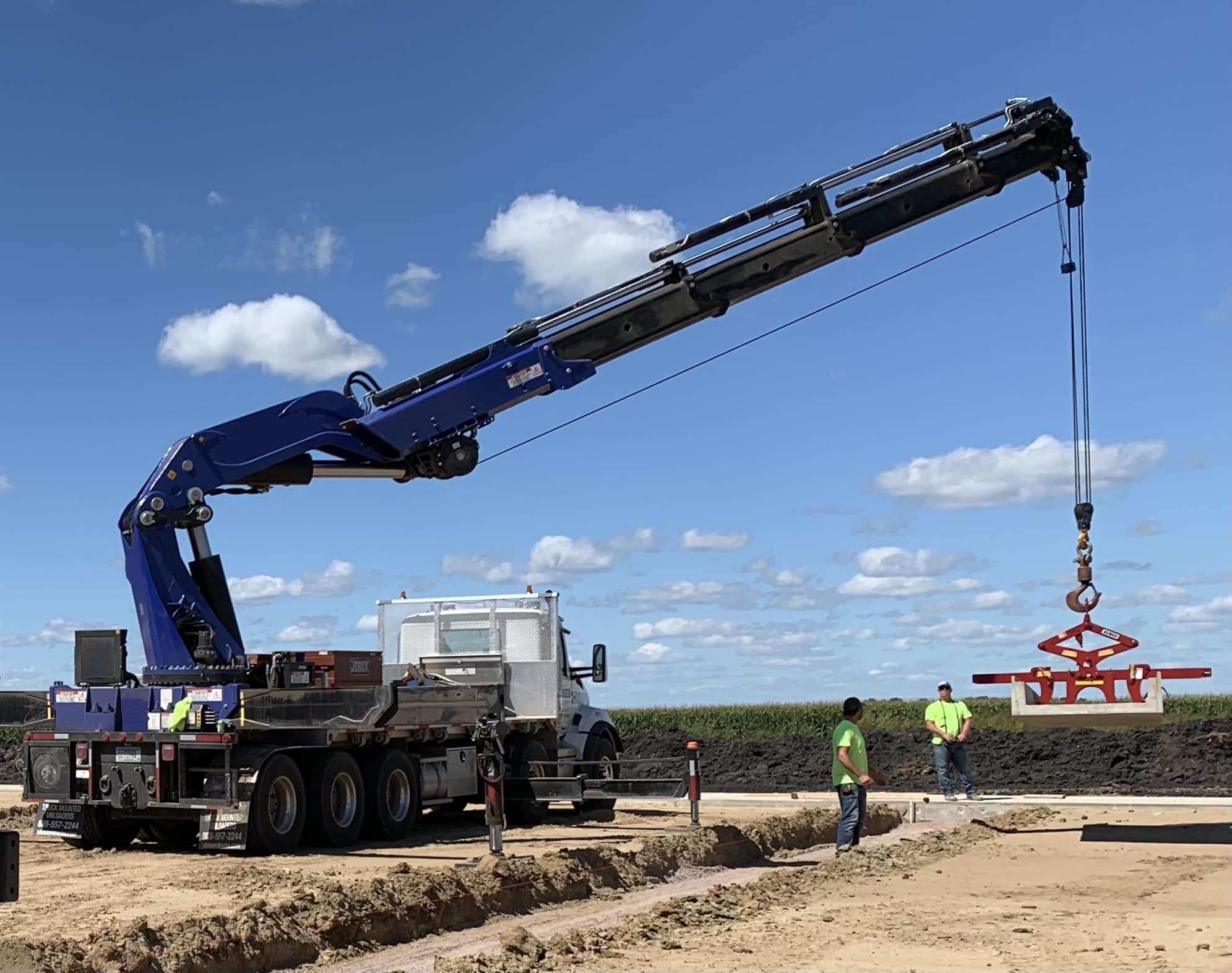

Boom Details

PM 1000026-SP KNUCKLE BOOM

Folding Hyd 6 ext Knuckle Boom – 52′ Horizontal Reach (64′ Vertical)

  • Horizontal Capacity:
    • 36,800 lbs – 16′
    • 20,100 lbs – 27′
    • 16,000 lbs – 33′
    • 13,000 lbs – 39′
    • 9,300 lbs – 52′, 1-added manual extn included
  • PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotations
  • 180 degree ffip-up Hydraulic Extra Wide Main outriggers at pedestal – 30′ – 7″ span – 360 degree full load chart stability
  • Hydraulic Oil Cooler, high pressure return filter and min. 80- gallon hyd oil tank with gate valves mounted at front under deck.
  • Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle {micro) slow down mode
  • Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance
  • Manual Controls – Danfoss valve located on boom column with plastic cover and mechanical hour meter
  • Lifting Winch – 4-ton single line pull plumbed to end of jib with 4 part line accessories for capacity lift up to 24,000 lbs
  • Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
  • Installed at rear, with integral sub-frame, 3/8″ front and centre-½” sheer plating at crane for maximized torsion strength

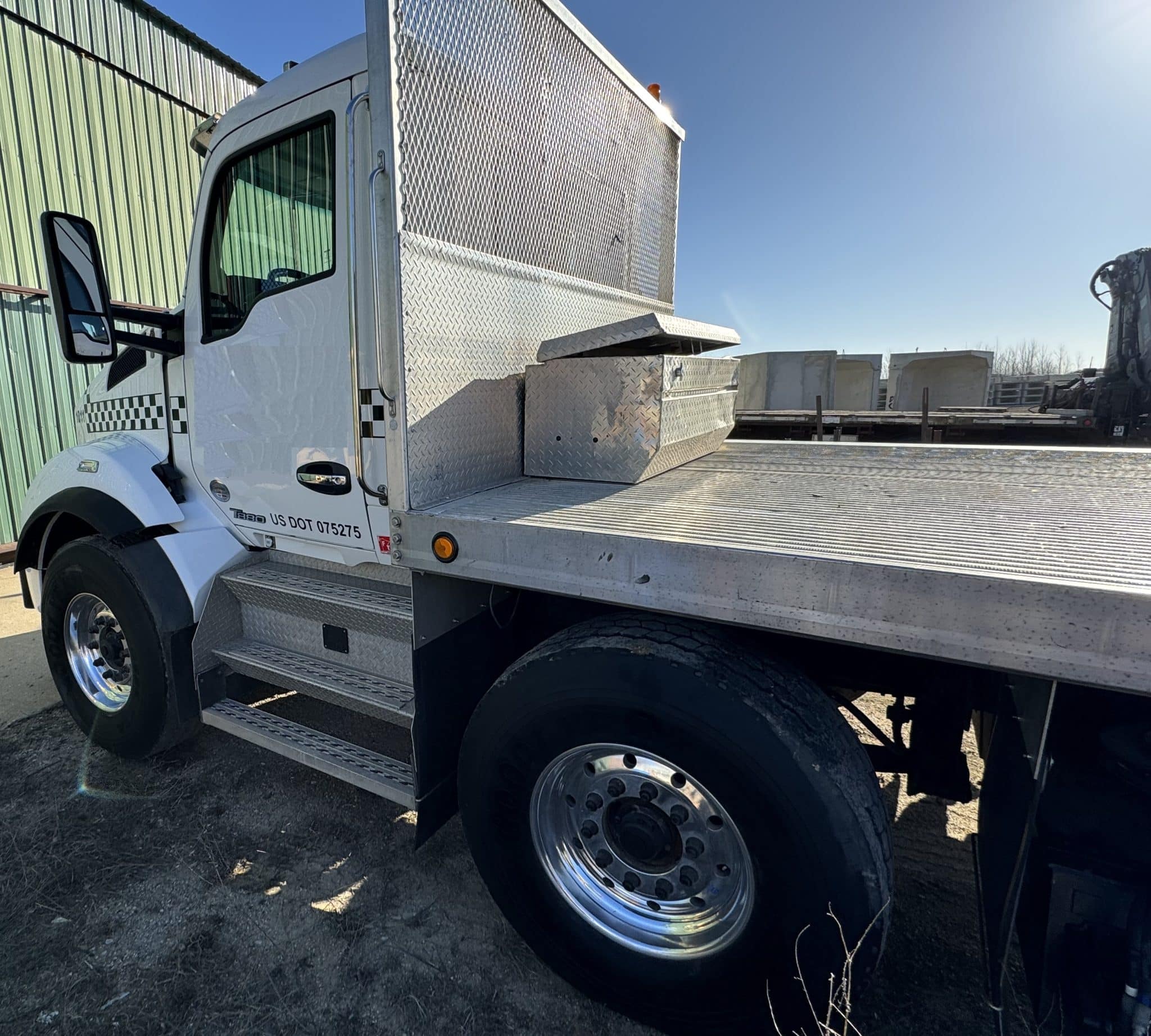

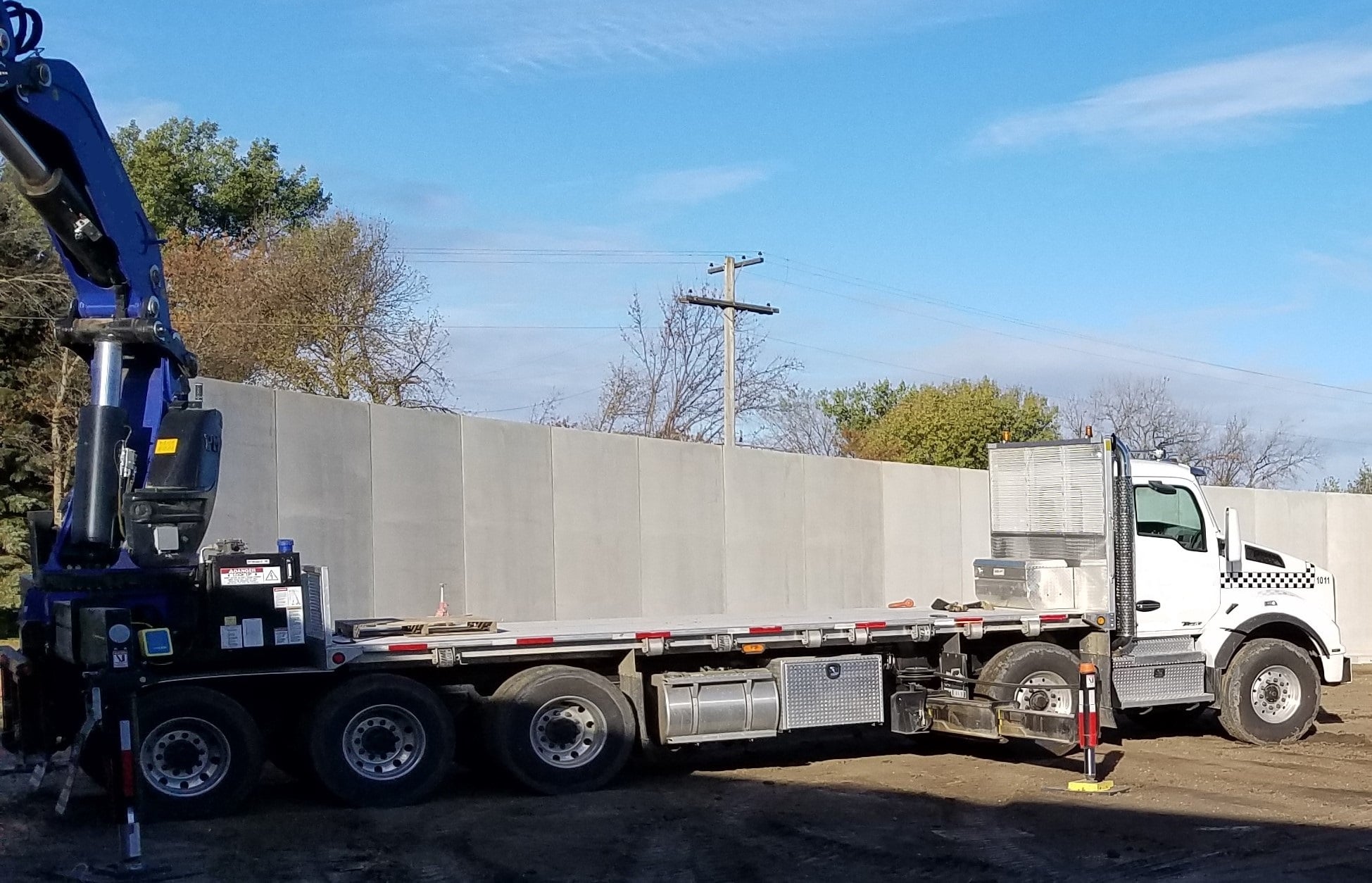

Deck Details

New  – 21’6″  x 102” Aluminum Deck:

  • 66″ aluminum head board with window cut out with mesh
  • Aluminum excruded Floor
  • Winch bar and holder
  • Integral 6″ steel sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
  • X-braces & support
  • 2 -Deck access Ladders
  • Reflectors
  • Conspicuity tape
  • Mud-flaps
  • 6 -Winches and tracks (sliding) under deck.

Truck Details

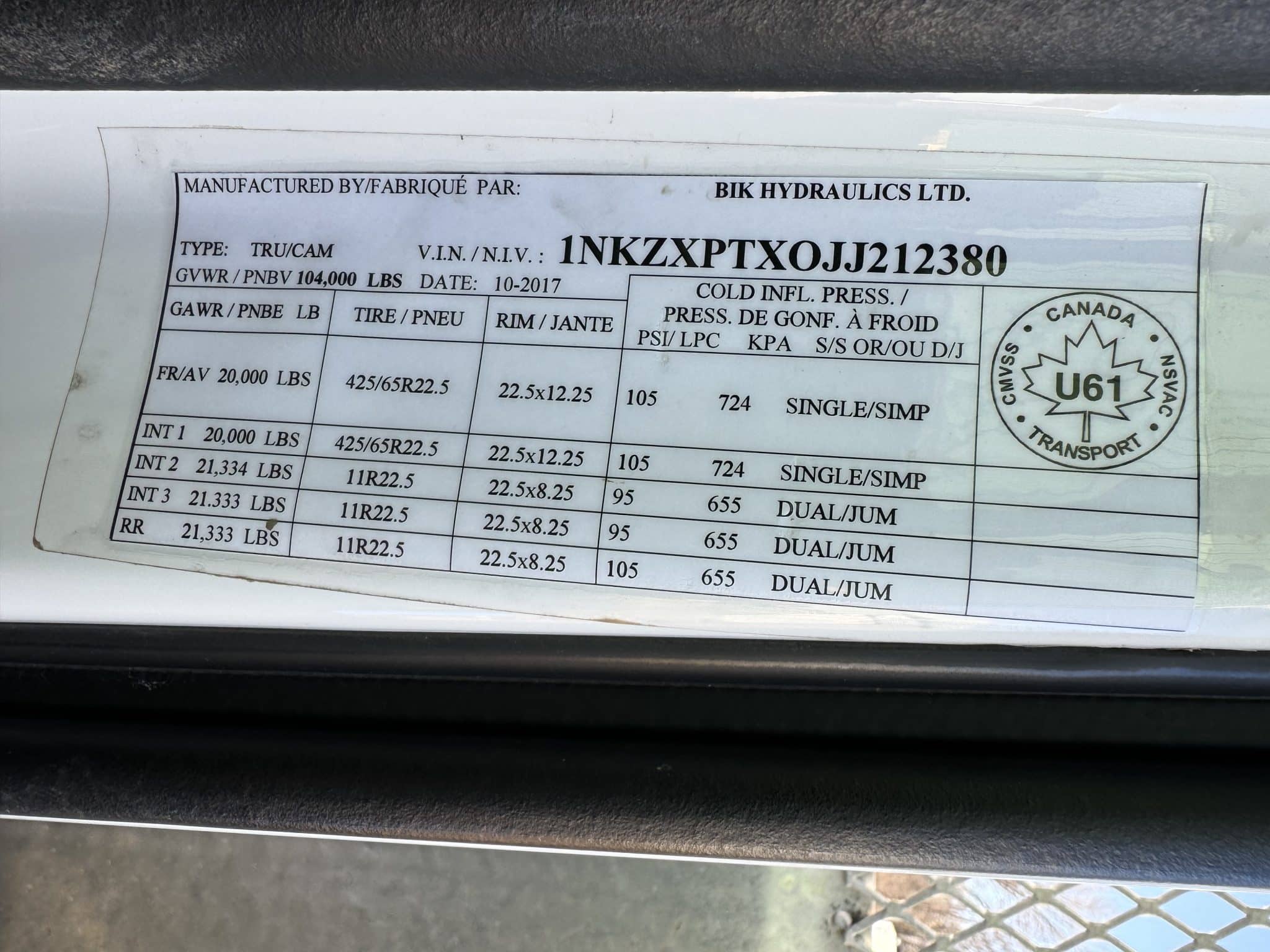

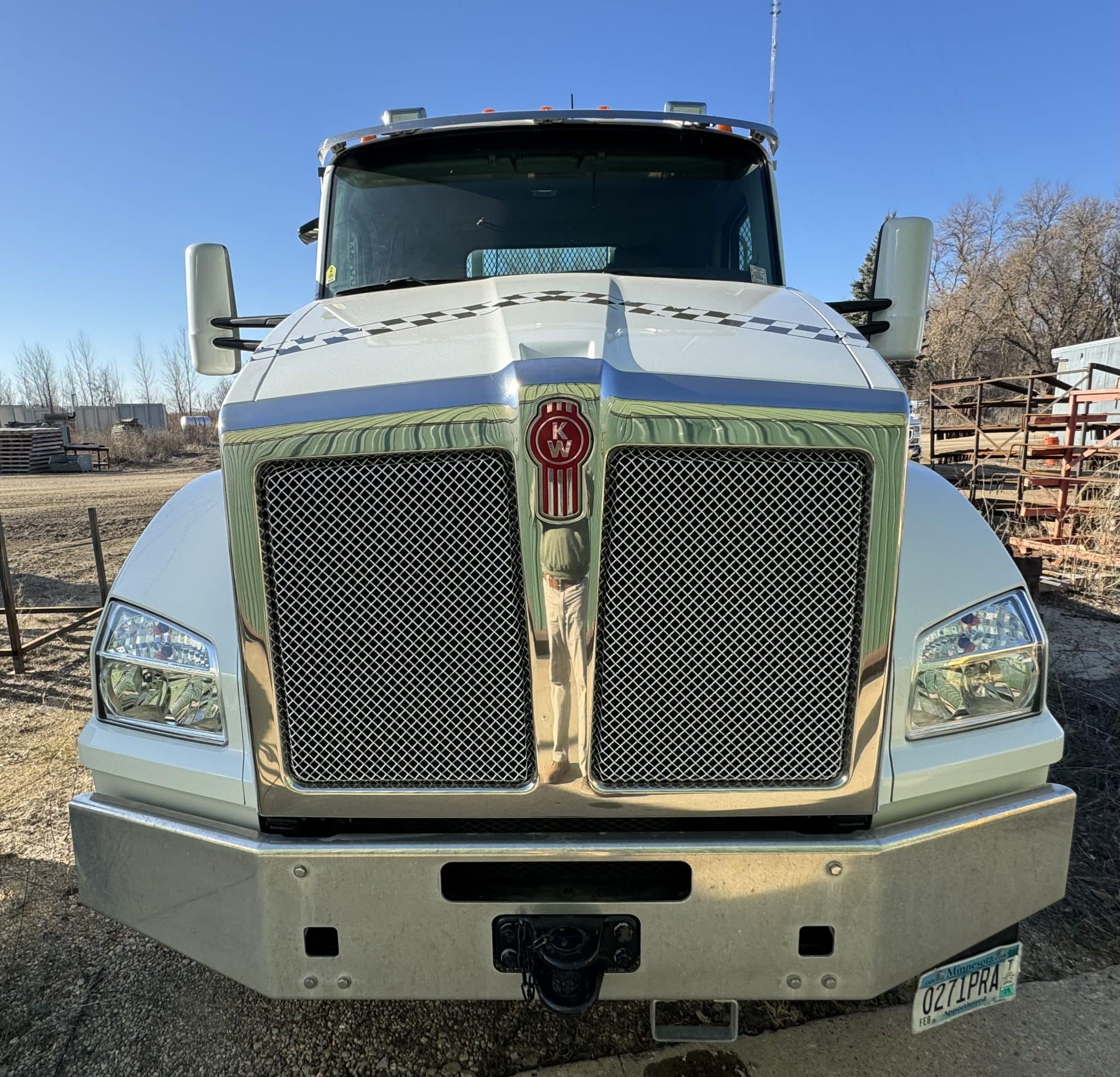

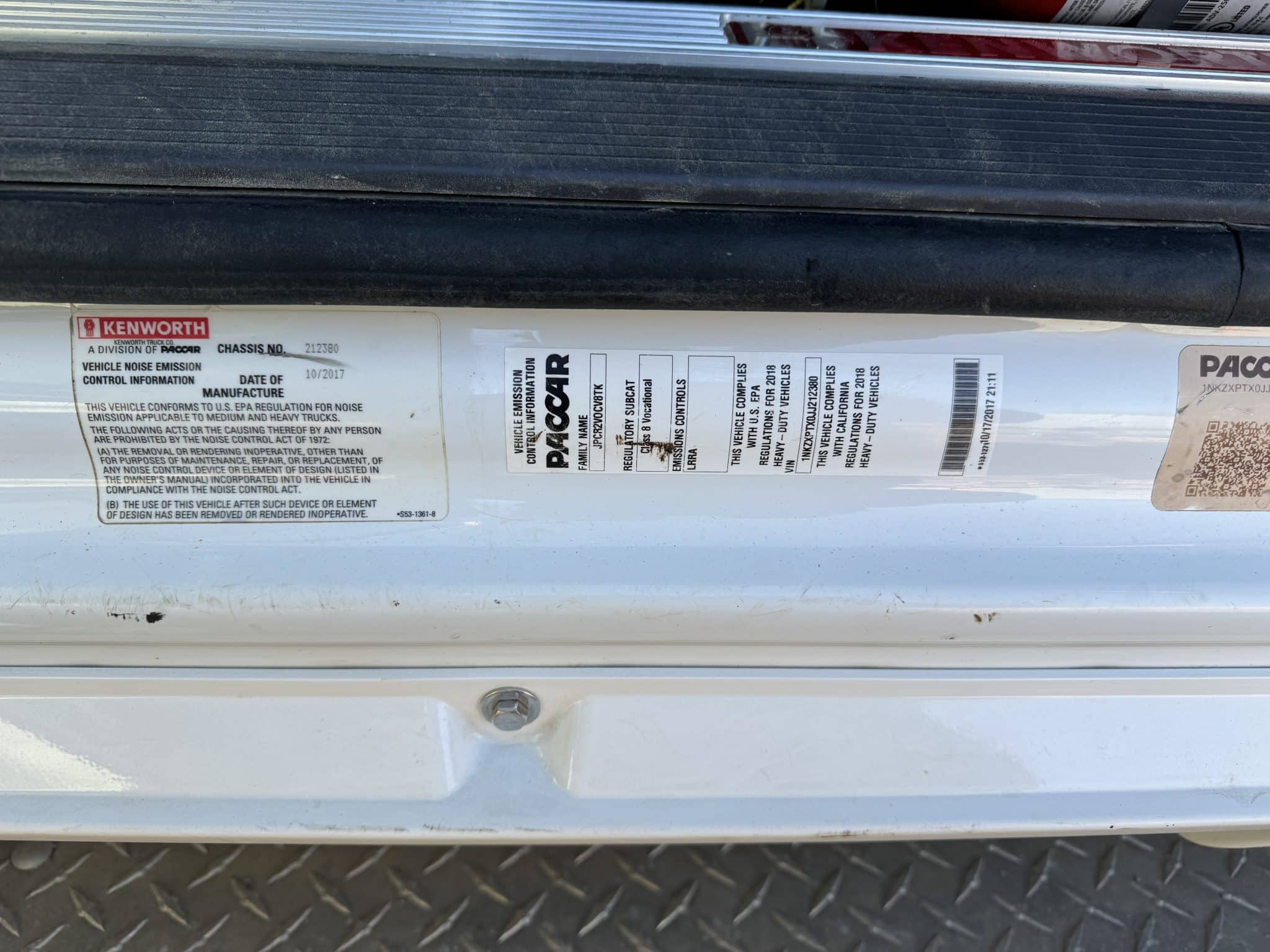

2018 Kenworth T880 T/A Steer- Tridrive (5 Axles total): (vin.#1NKZXPTXOJJ212380) 86,000 LB GVWR

  • Paccar 13L Diesel
  • 1495 Crane Hours
  • 64,910 Miles
  • 525 hp W/Jake – 1,850 ft/lb torque
  • Eaton Ultrashift Plus Automated 18 spd trans
  • Truck cab white, (2) x 20,000 LB fonts with 425/62R22 tires
  • 69,000 LB Tridrive Rears on Hendrickson Primax Air Ride Susp With 56″ spread at t/a
  • Double Frame
  • Polished ALCOA Aluminum Wheels front and outer rear
  • Chrome single polished Exhaust
  • Chrome Grille & Bumper
  • 150 gallon alum fuel tank

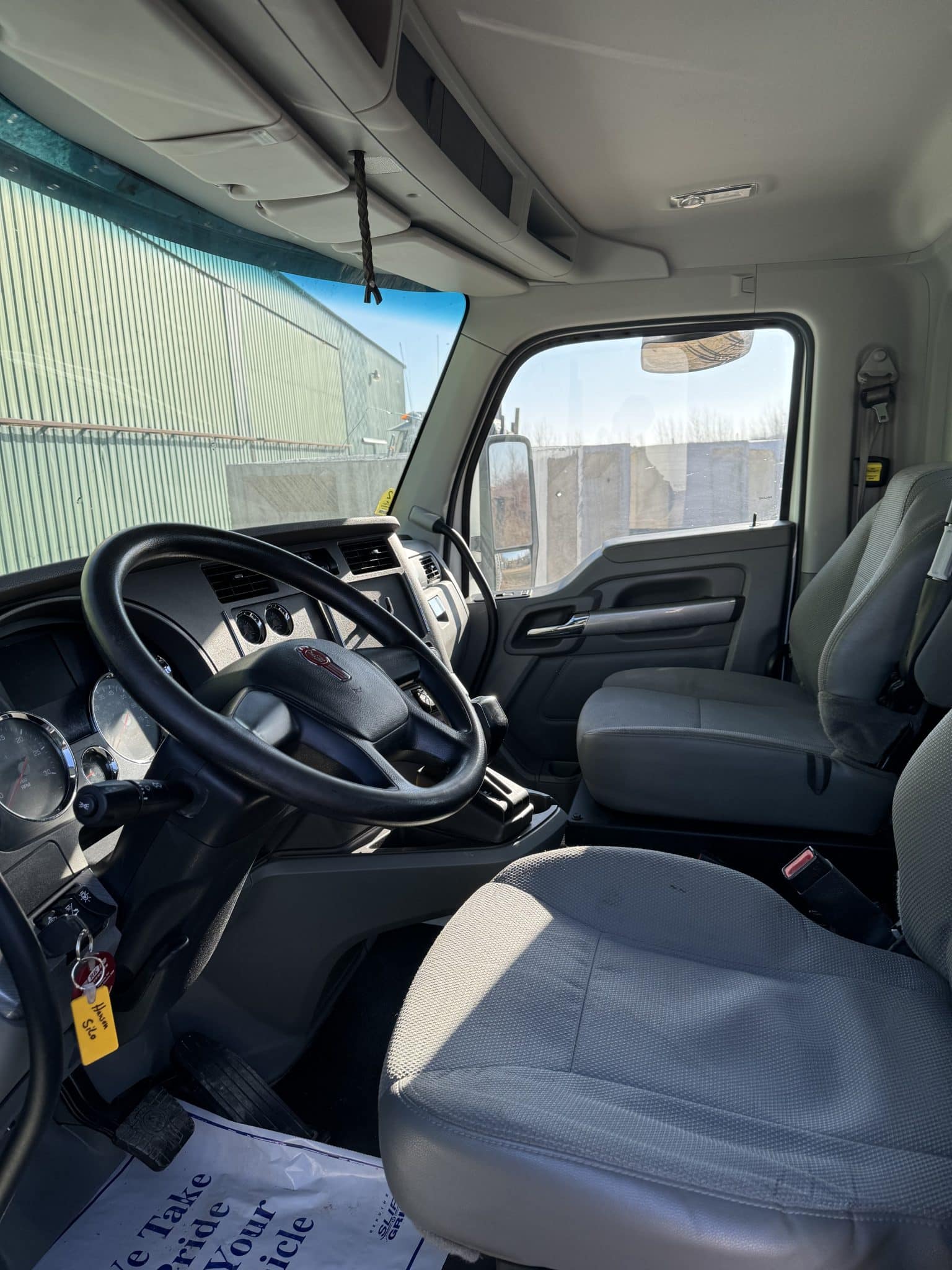

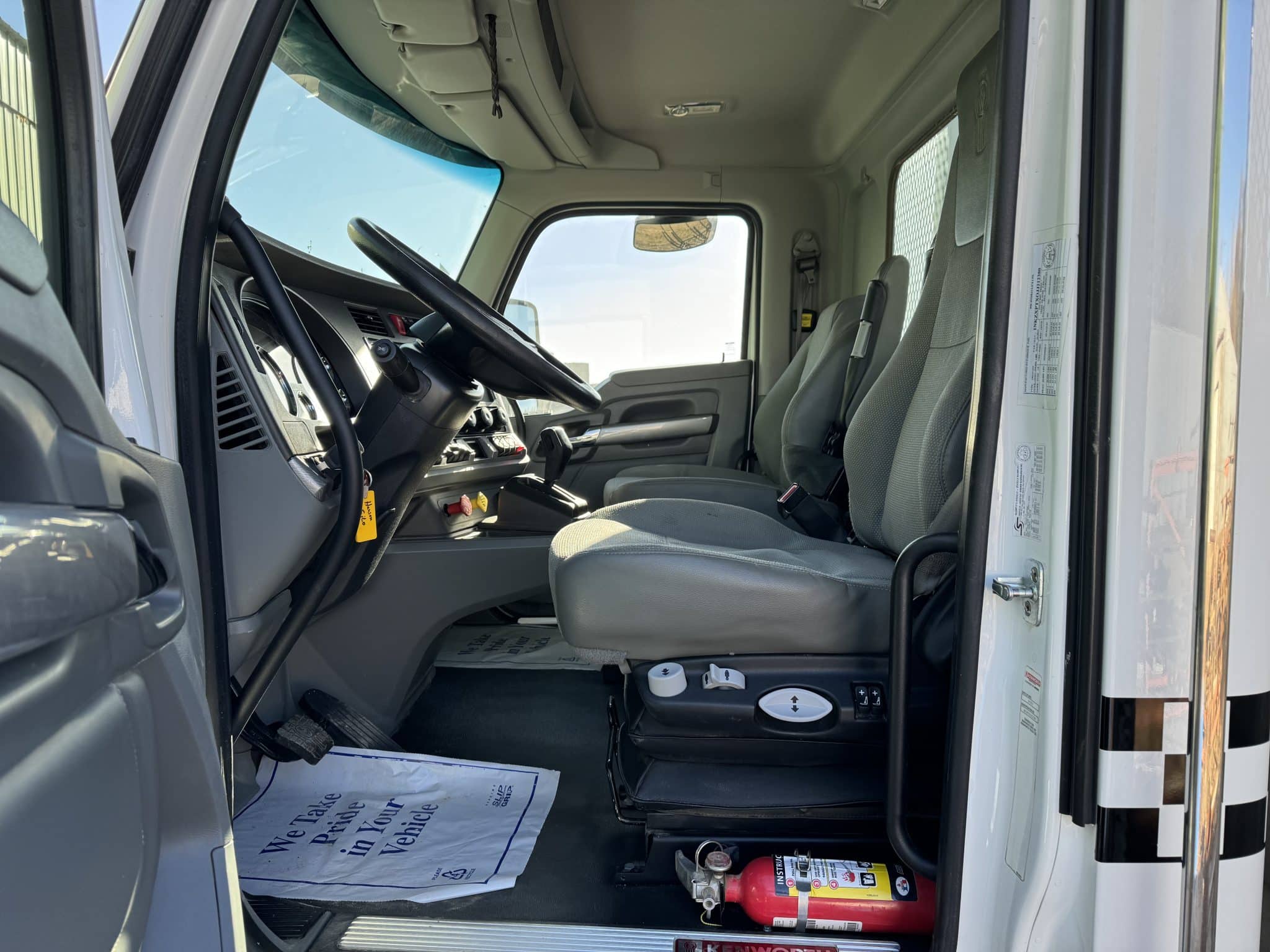

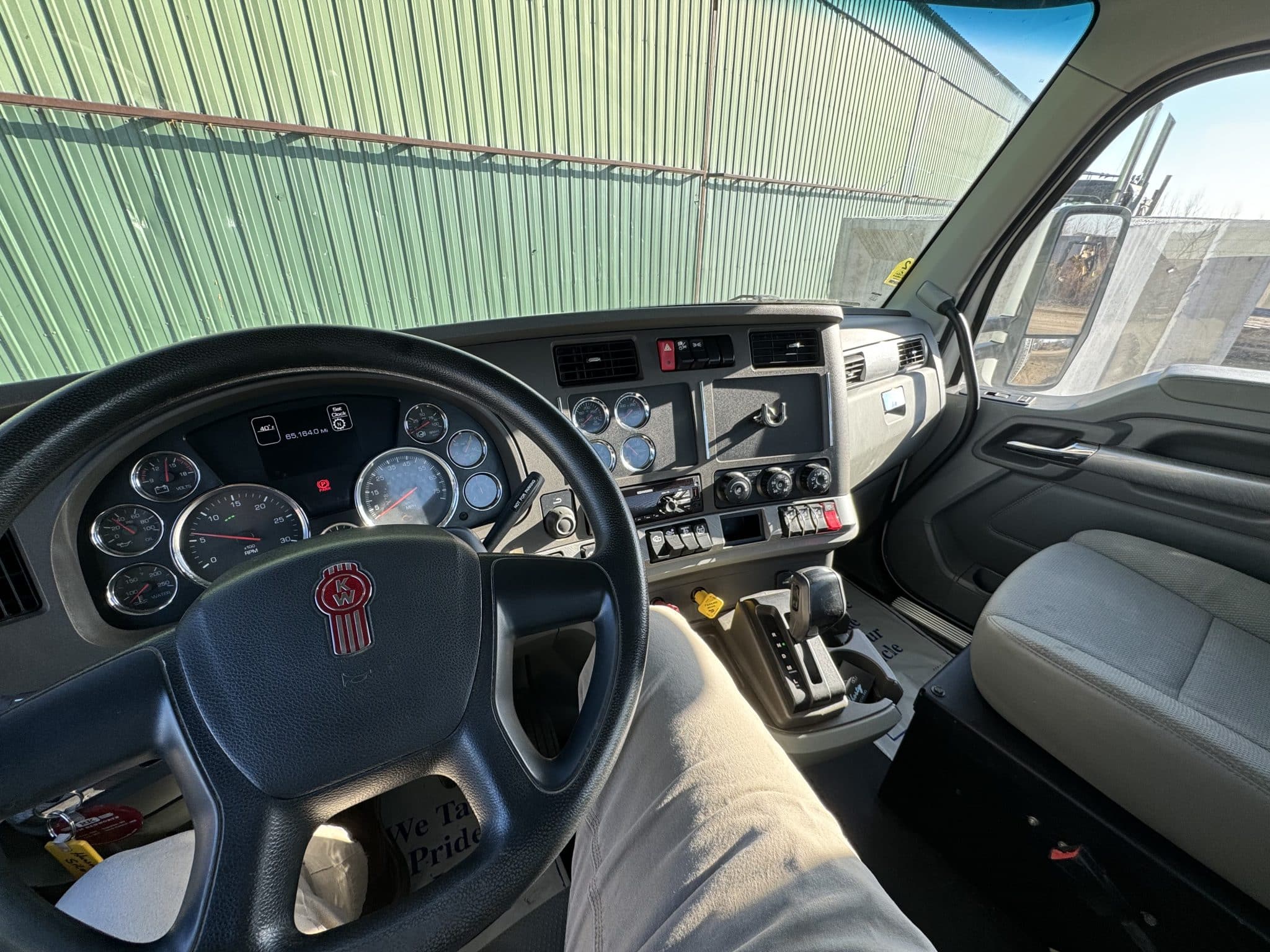

  • Loaded with Options Including: A/C, Tilt/Telescopic steering,
    AM/FM stereo with Bluetooth, high back air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 6 wheel lock-ups, power windows and locks, Air ride cab, full differential locks, trailer air tow package, etc..

Also Included:

  • Auxiliary Extra-Wide hydraulic outriggers 23′ spread front mounted for 360 degree stability
  • 1″ Drawplate Plate at rear w/pintle hook
  • 35″ Alum locking checker plate toolbox Installed
  • (8) PVC stabilizer pads-with holders (4 pcs)
  • Dual LED strobe lights installed on top of head board
  • Replace pass seat inside truck cab with air-ride type seat

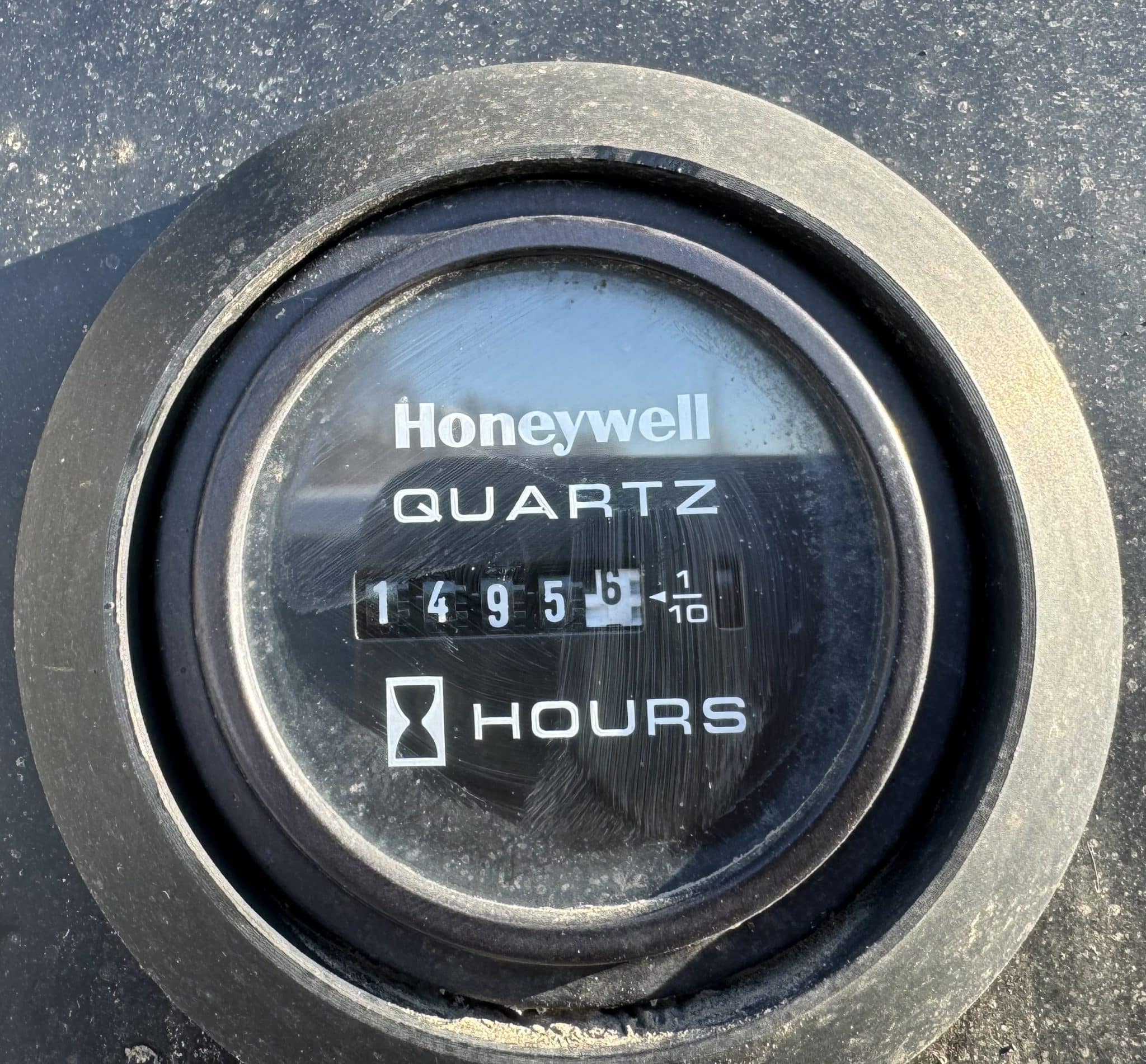

1,495 Crane Hours, 64,910 Miles

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
