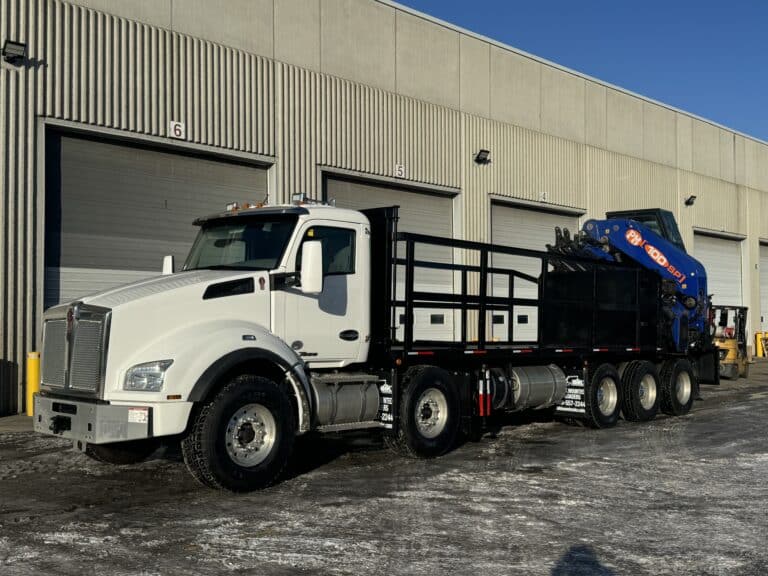

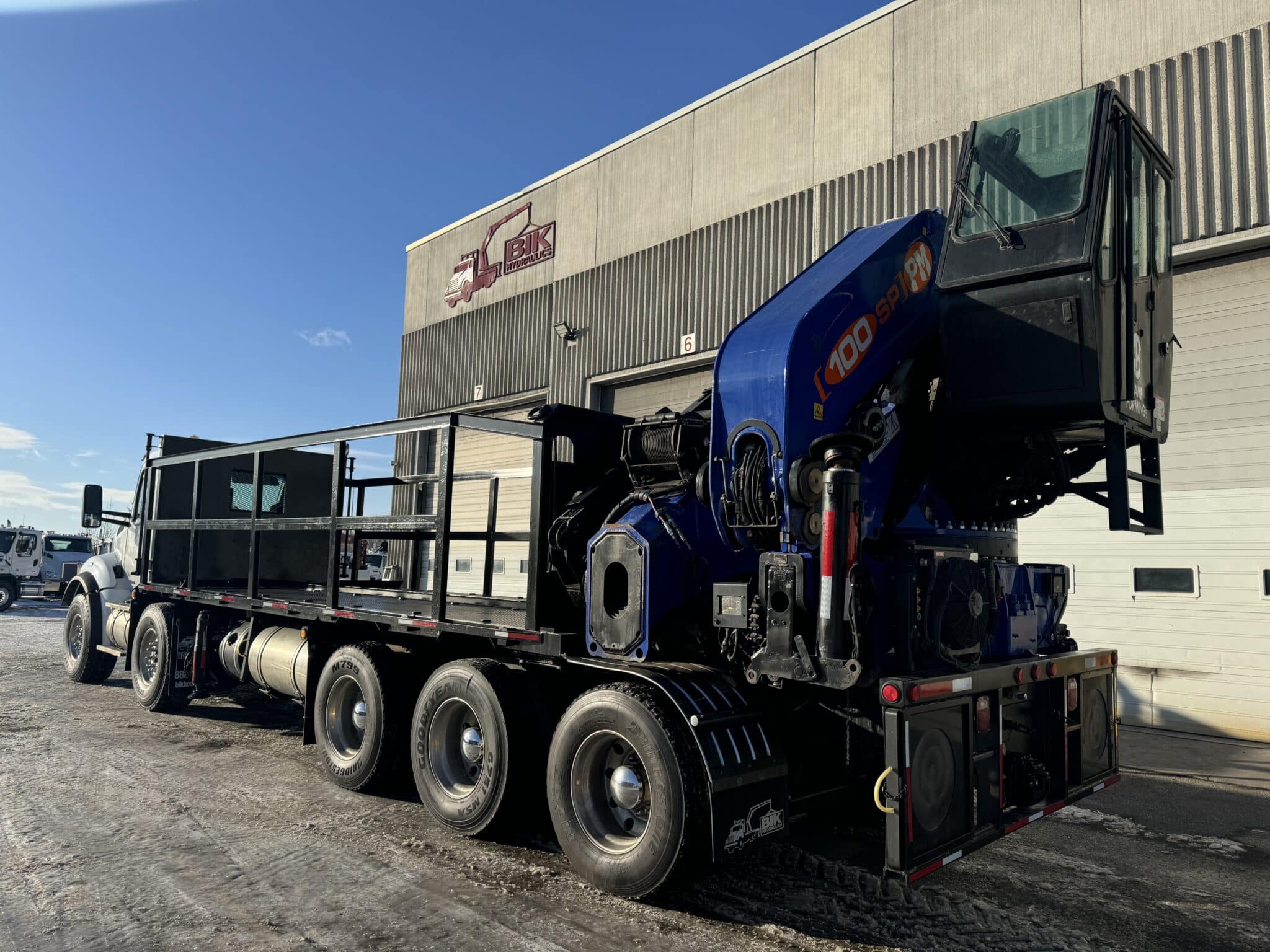

Used 2018 Kenworth T880 with PM 100

Boom Details

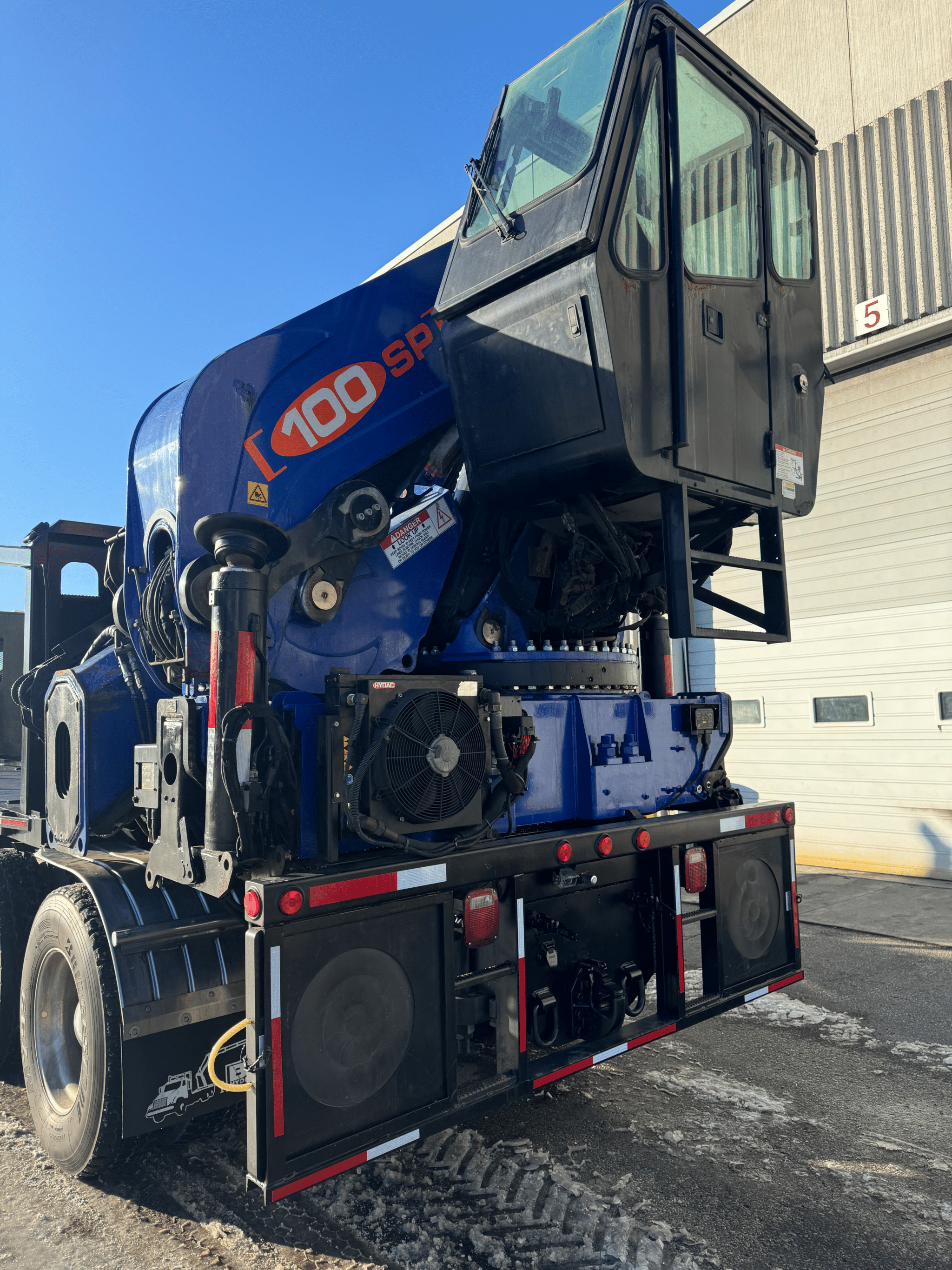

PM 100028-SP  Knuckle Boom  Folding Hyd 8 ext Knuckle Boom  – 65’ Horizontal Reach  (77’ vertical)

• Horizontal Capacity:
  • 36,800 lb @  16’
  • 20,100 lb @  27’
  • 16,000 lb @  33’
  • 13,000 lb @ 39’
  • 9,300 lb @  52’
  • 6,000 lb @ 65’
• PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
• 180-degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 7” span – 360-degree full load chart stability
• Hydraulic Oil Cooler, high-pressure return filter and min. 80–gallon hyd oil tank with gate valves mounted at the front under deck
• Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, and backup cord – 5 level turtle (micro) slow-down mode
• Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance
• Manual Controls – Danfoss valve located on boom column with plastic cover and mechanical hour meter
• Lifting Winch – 4-ton single-line pull winch that can be plumbed for up to 4 part line accessories
• Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
• Installed at rear, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength

Also Included:

• Auxiliary Extra-Wide hydraulic outriggers  23’ spread front mounted for 360 degree stability
• 1” Drawplate Plate at rear w/pintle hook
• 36” Alum locking checker plate toolbox installed
• (8) PVC stabilizer pads – with holders (4 pcs).,

Deck Details

22’  x 102”  Steel Deck:

• 66” head board with window cut out with mesh
• Steel checker plate Floor
• Winch bar and holder
• Integral steel sub-frame and extension at rear as torque box for boom with all proper engineered sheer planting
• X-braces & support
• 2-Deck access Ladders,  reflectors, conspicuity tape, Mud-flaps
• 6-Winches and tracks (sliding) under deck.
