*SOLD* – USED 2018 KENWORTH T800 with PM 100028+6extn Jib
 |
USED 2018 KENWORTH T800 with PM 100028+6extn Jib
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

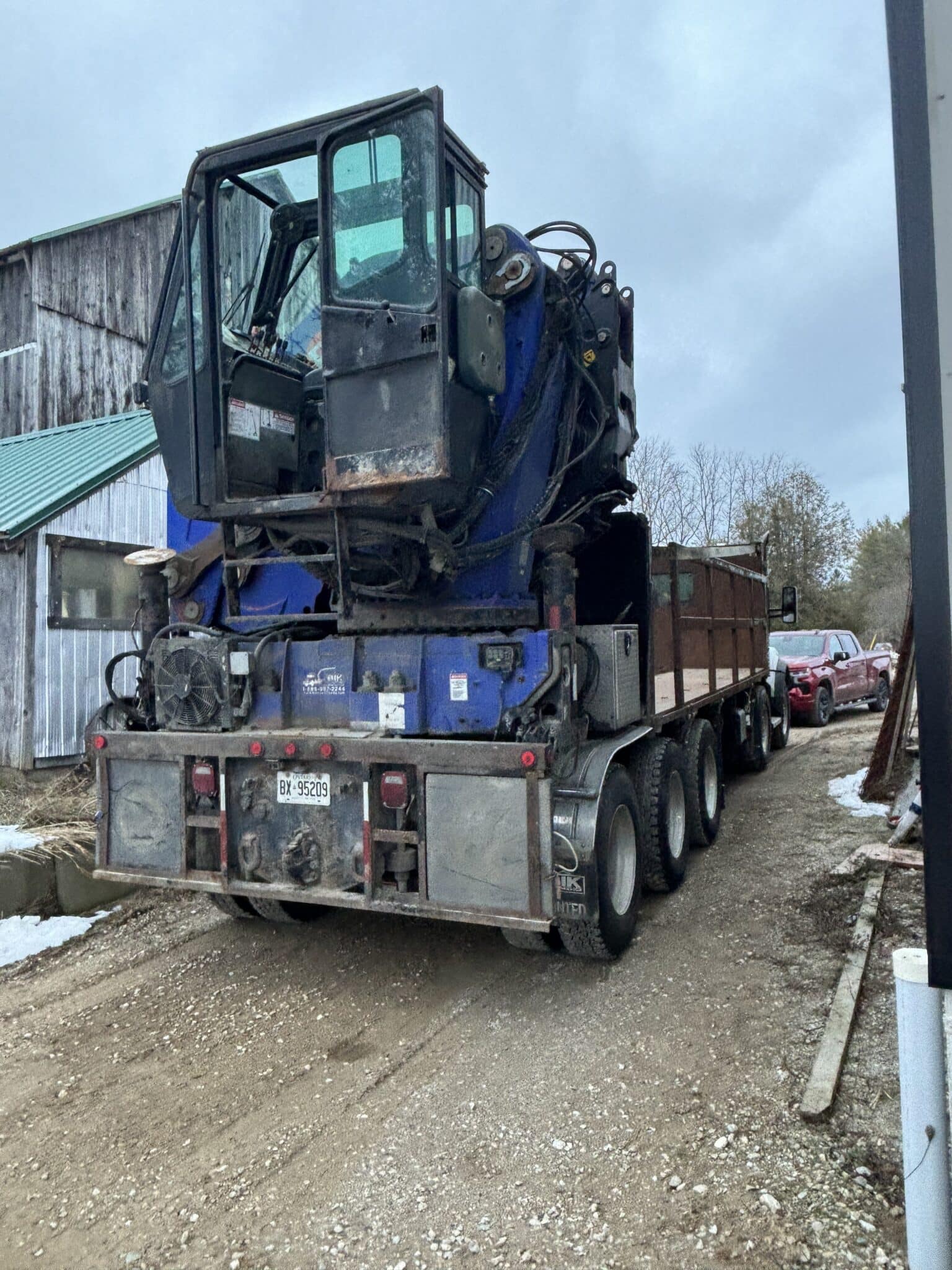

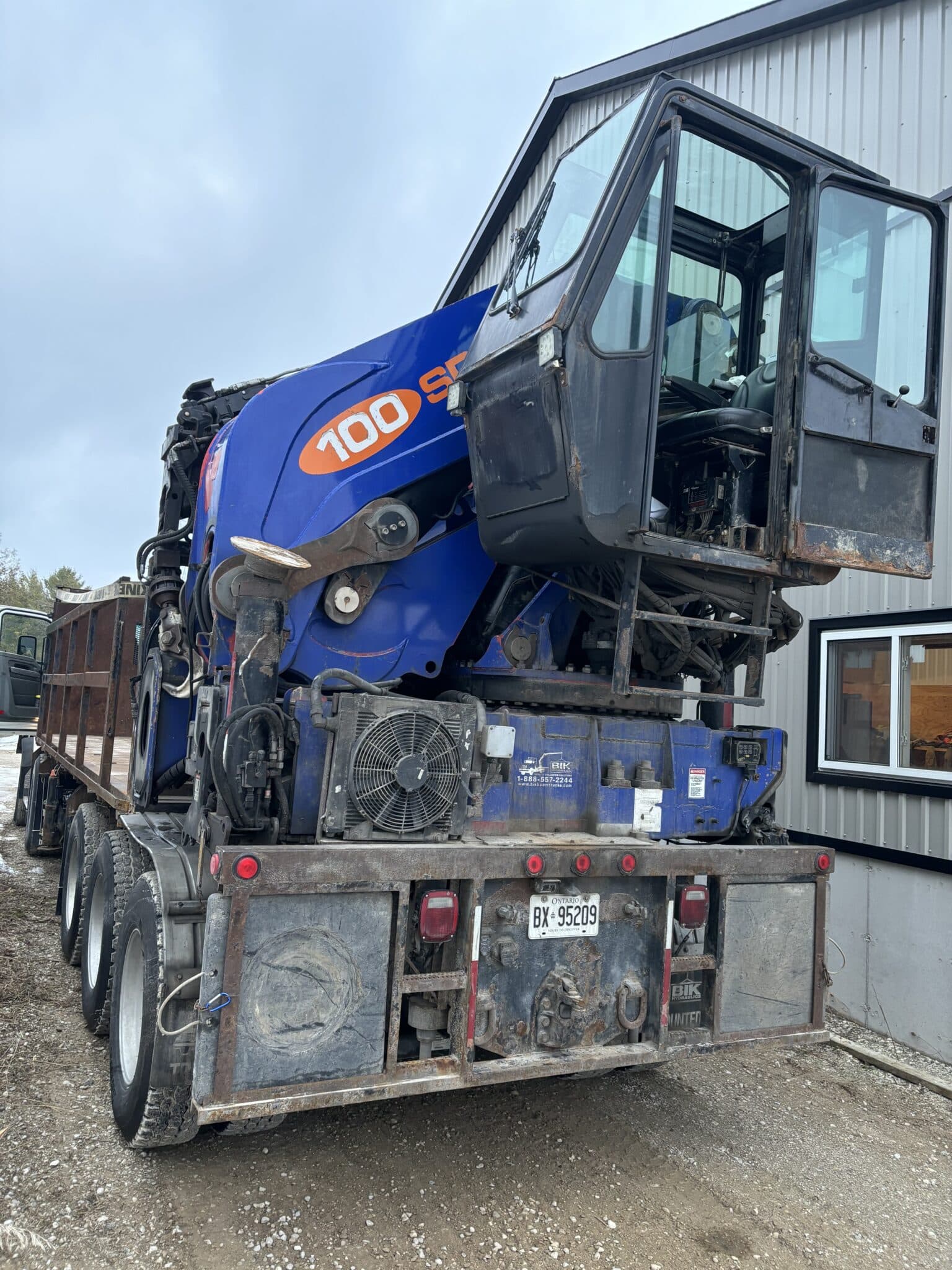

BOOM DETAILS:
PM 100028SP + 6-extn Jib Knuckle Boom Folding Hyd 8 ext Knuckle Boom with Detachable 6 ext jib -11 O’ Horizontal ReachV
- including (w) manual pull-out extention in jib to 122′ horizontal reach (134′ vertical)
Main Boom Horizontal Capacity:- 36,800 lb @ 16′
- 20,000 lb @ 23′
- 16,000 lb @ 33′
- 11,000 lb @ 47′
- 7,200 lb @ 67′
- Jib Horizontal Capacity:
- 3,200 lb @ 76′
- 2,600 lb @ 87′
- 2,200 lb @ 100′
- 2,000 lb @ 104′
- 1,600 lb @ 110′
- PM Power-Link connections al Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- Double pilot opera!ed on slewing and pilot operated check valves on all cylinders
- Extra function plumbed to boom tip w/Hyd rotator & T-hook 180 degree flip-up
- Hydraulic ExtraWide Main outriggers at pedestal – 28′ – 7″ span
- 360 degree full load chart stability
- Hydraulic Oil Cooler
- high pressure return filter and min. 100 -gallon hyd aluminum oil tank with gate valves mounted at front under deck
- 7 • Section DANFOSS Proportional Control Valve at Top-Seat with Ladder Access-& SCANRECO Proportional Radio Remote Control
- PM – Power Tronic onboard load & function monitoring system
- Digital Load Indicator at top seat & remote
- electrical overload protection Radio Remote Control Includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
- Crane-Tech Support by BIK Installed END OF FRAME, with integral sub-frame, 3/8″ front and centre-½” sheer plating at crane for maximized torsion strength
DECK DETAILS
22′ X 102″ FLAT DECK
- Steel headboard w/ 4 Side Wrap Winches
- Steel Checker plate Floor
- Winch bar and holder
- Integral 6″ sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
- X-braces & support
- Removable sides to hold in cages
- 2-Deck access Ladders
- Reflectors, conspicuity tape
- Mud-flaps
- 8-Winches and tracks (sliding) under deck

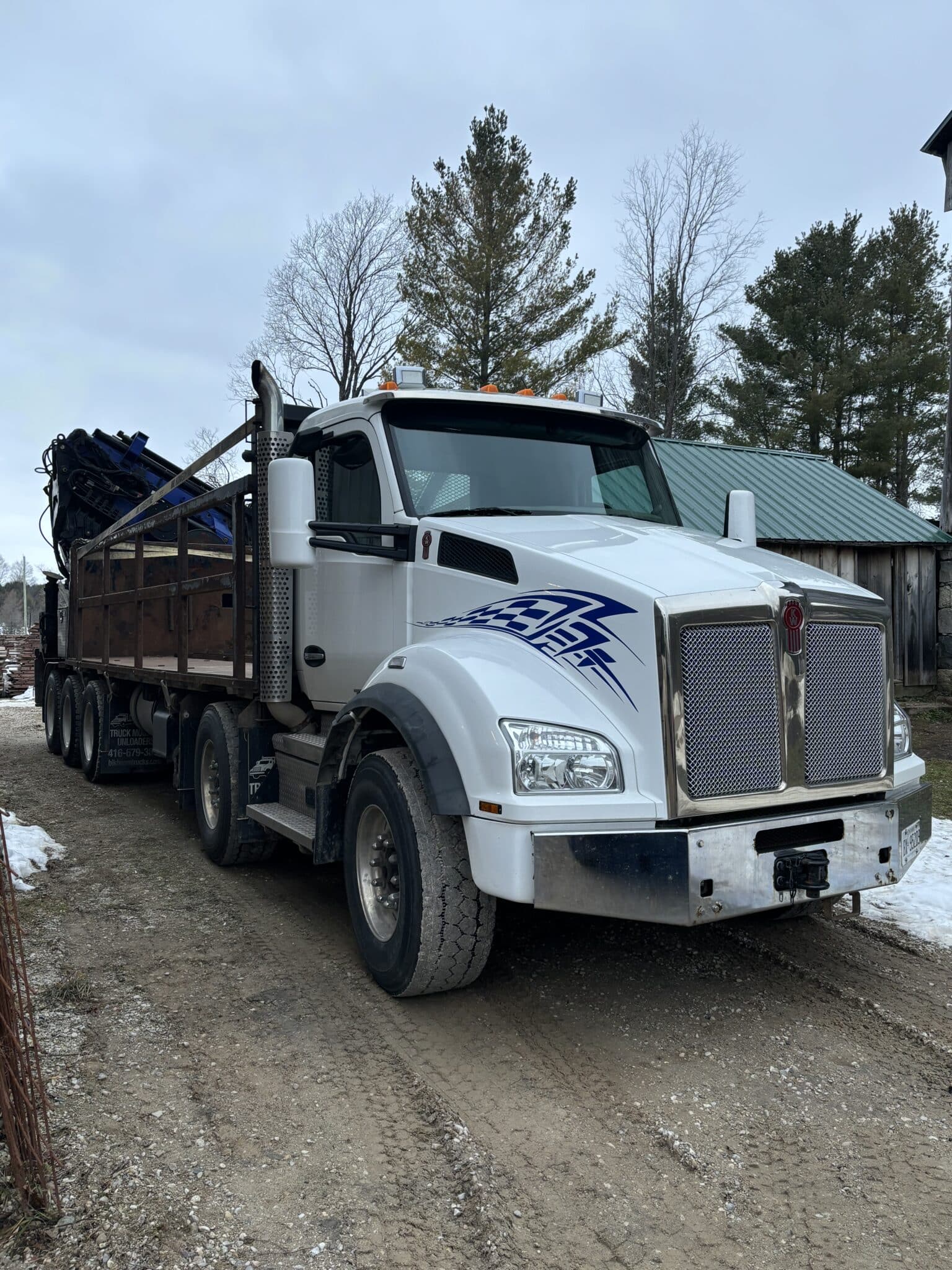

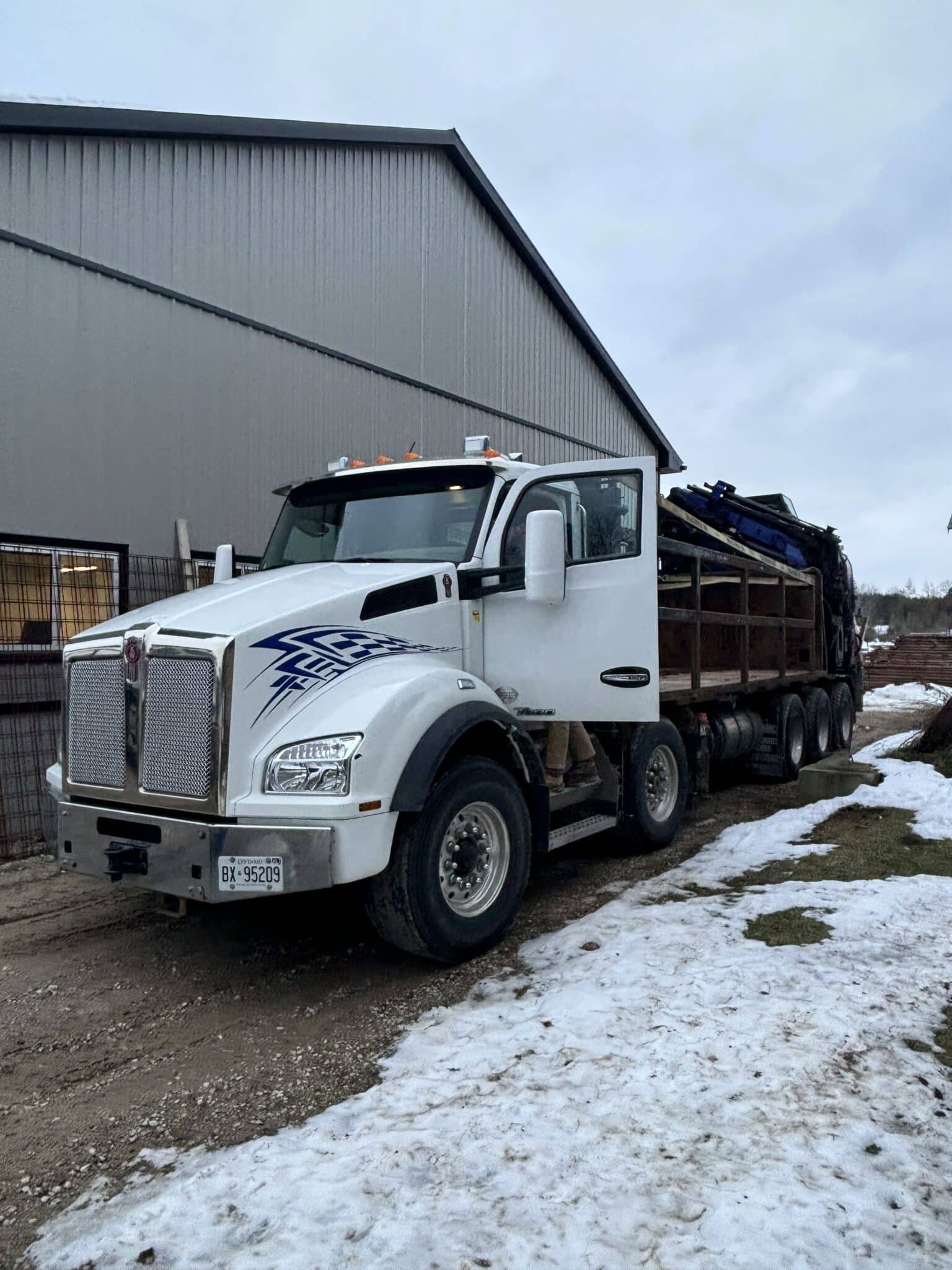

TRUCK DETAILS
2018 Kenworth T880 T/A Steer – Tridrive (5 Axle Total)
- 86,000 lb GVWR
- PACCAR -13 Diesel· 525 hp with Jake-1,850 ft/lb torque
- Eaton 18 spd standard trans
- Truck cab white
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires
- 69,000 LB Tridrive Rears on Hendrickson Primax AirRide susp.
- With 55″ spread at t/a
- Double Frame
- Polished ALCOA AluminumWheels front and outer rear
- Polished Exhaust
- Chrome Grille & Bumper
- 80 gallon alum fuel tank

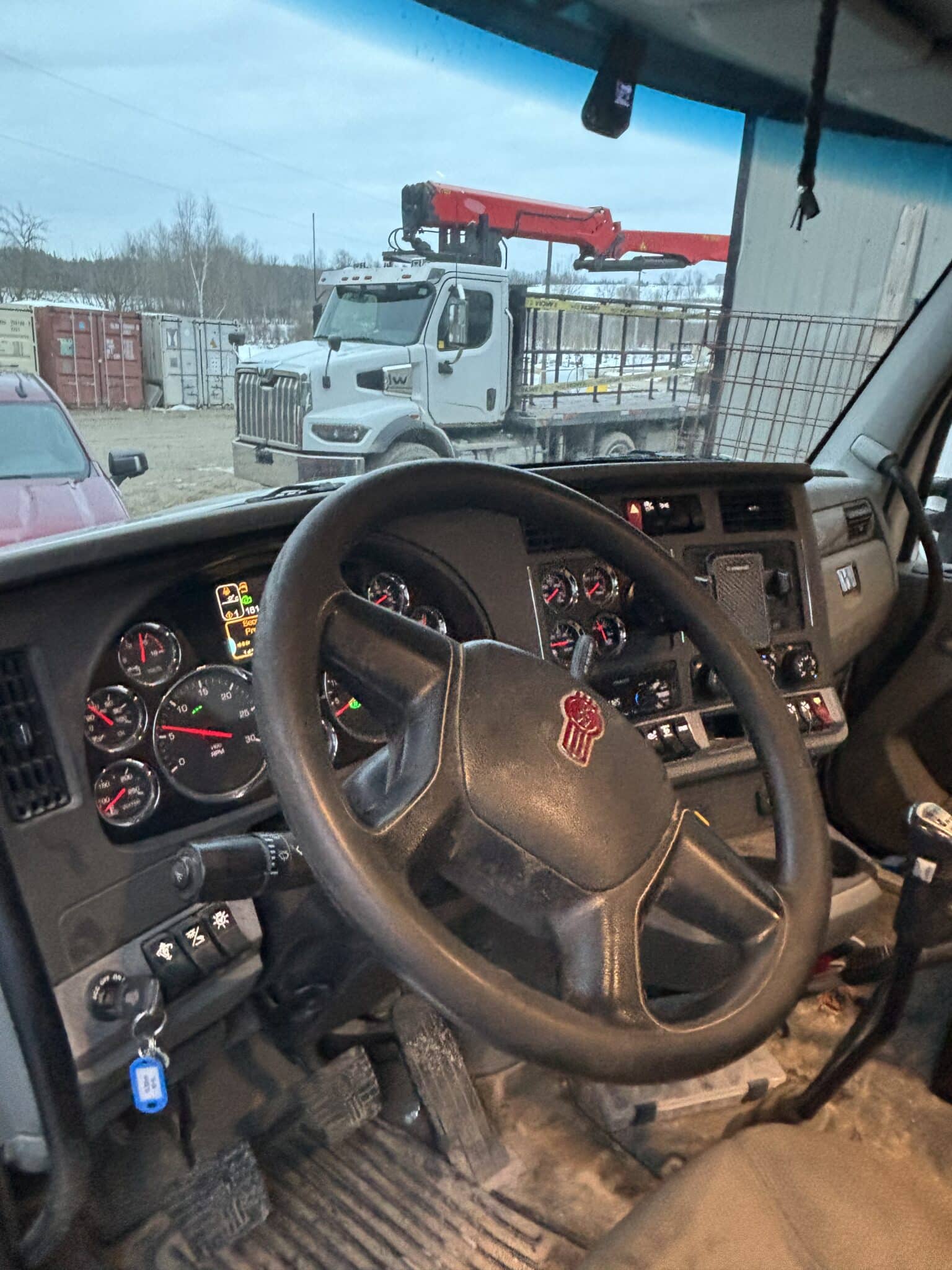

- Loaded with Options Including: A/C, Tilt/Telescopic steering, high level Interior, AM/FM stereo, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 6 wheel lock-ups, power windows/locks,Air ride cab, full differential locks, trailer air tow package, etc …
- Included Are:
- Auxiliary Extra-Wide hydraulic outriggers 23′ spread front mounted for 360 degree stability
- 1″ Drawplate Plate at rear of truck frame,
- 36″ Aluminum locking checker plate toolbox installed, (4) Aluminum stabilizer pads -with holders (4 pcs).,.
- Fully enclosed cab with heat on top seat by Cabines Nadeau with access steps from bumper
- Deck to have special stoppers and pockets as per Camp
- Lifting winch on Main Boom that will plumb to end of jib and end of main boom
