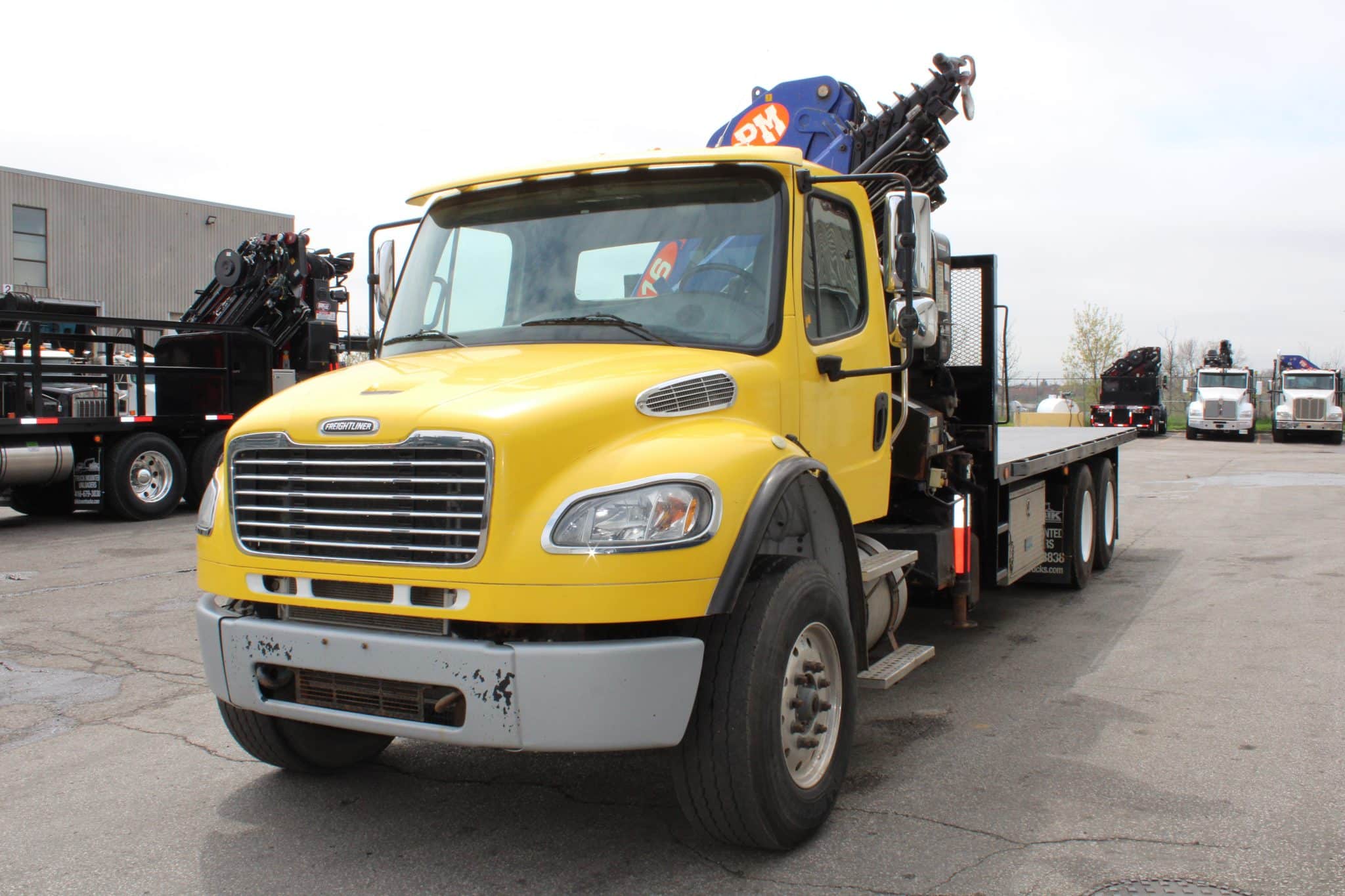

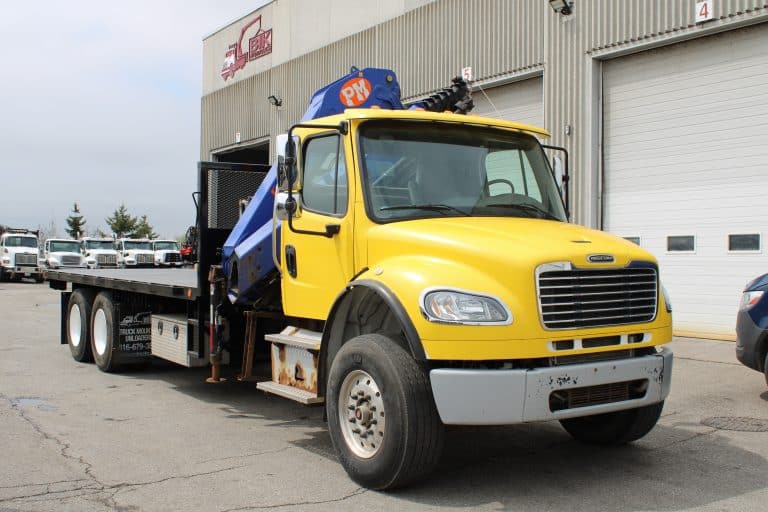

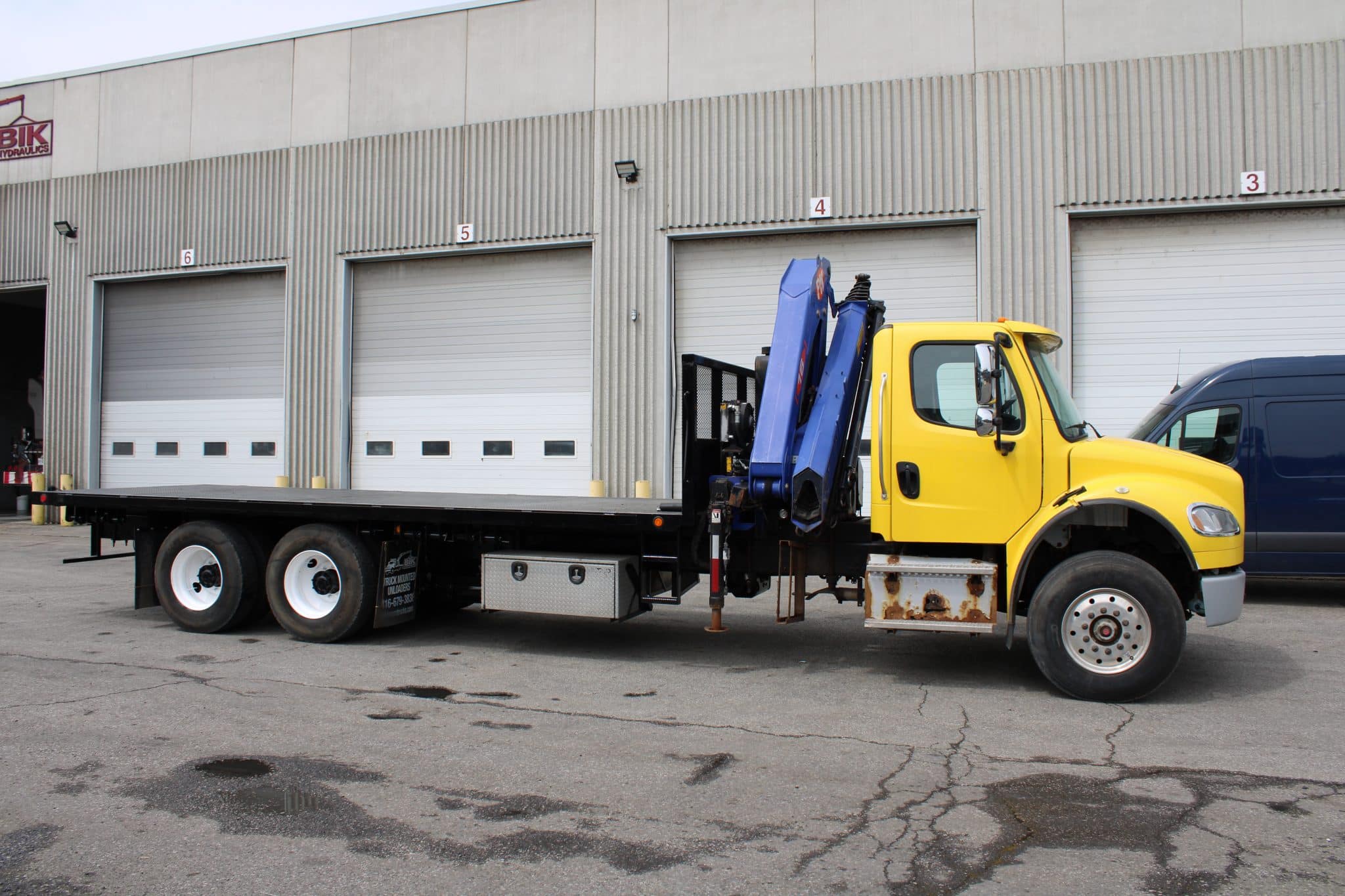

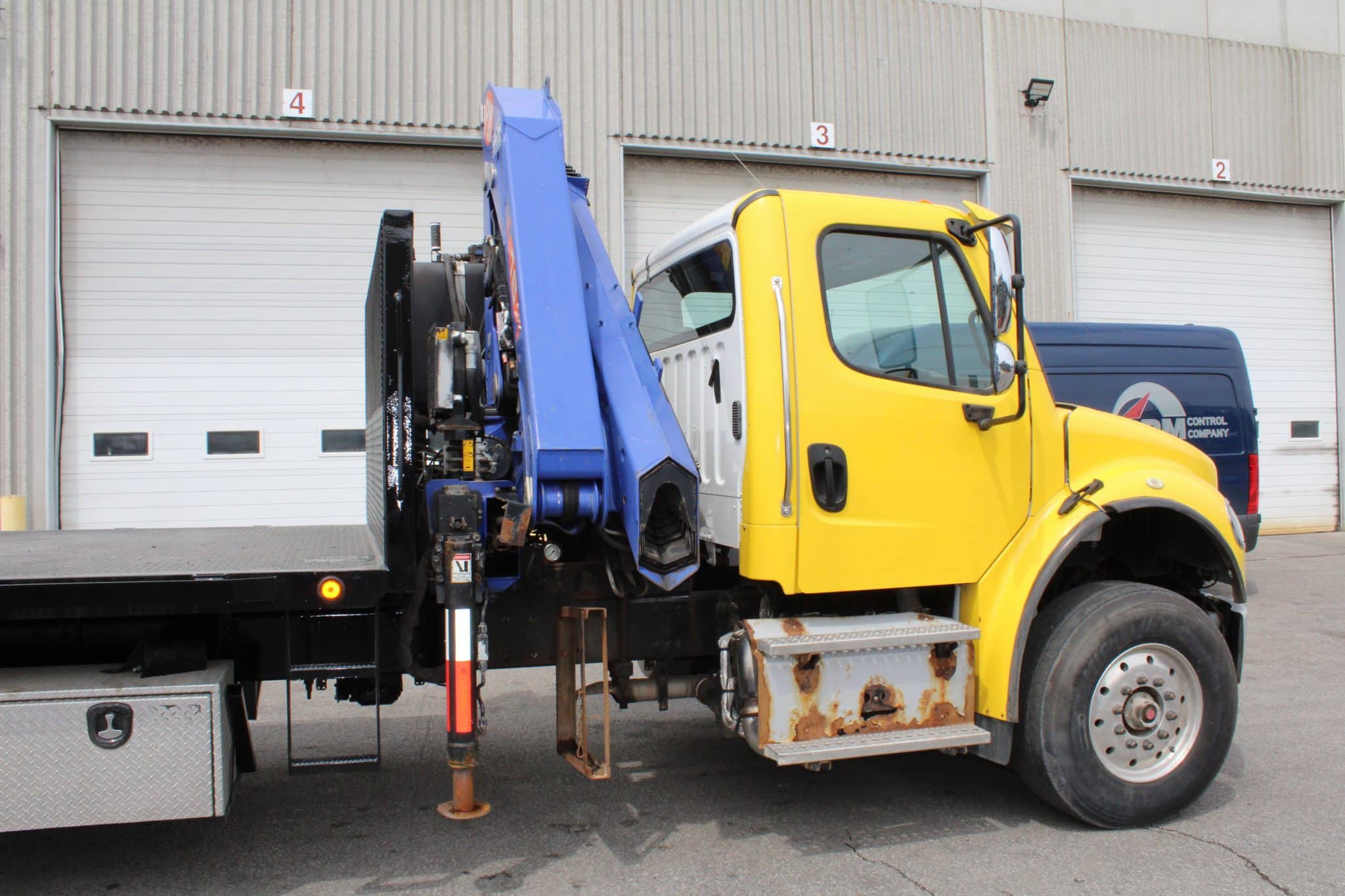

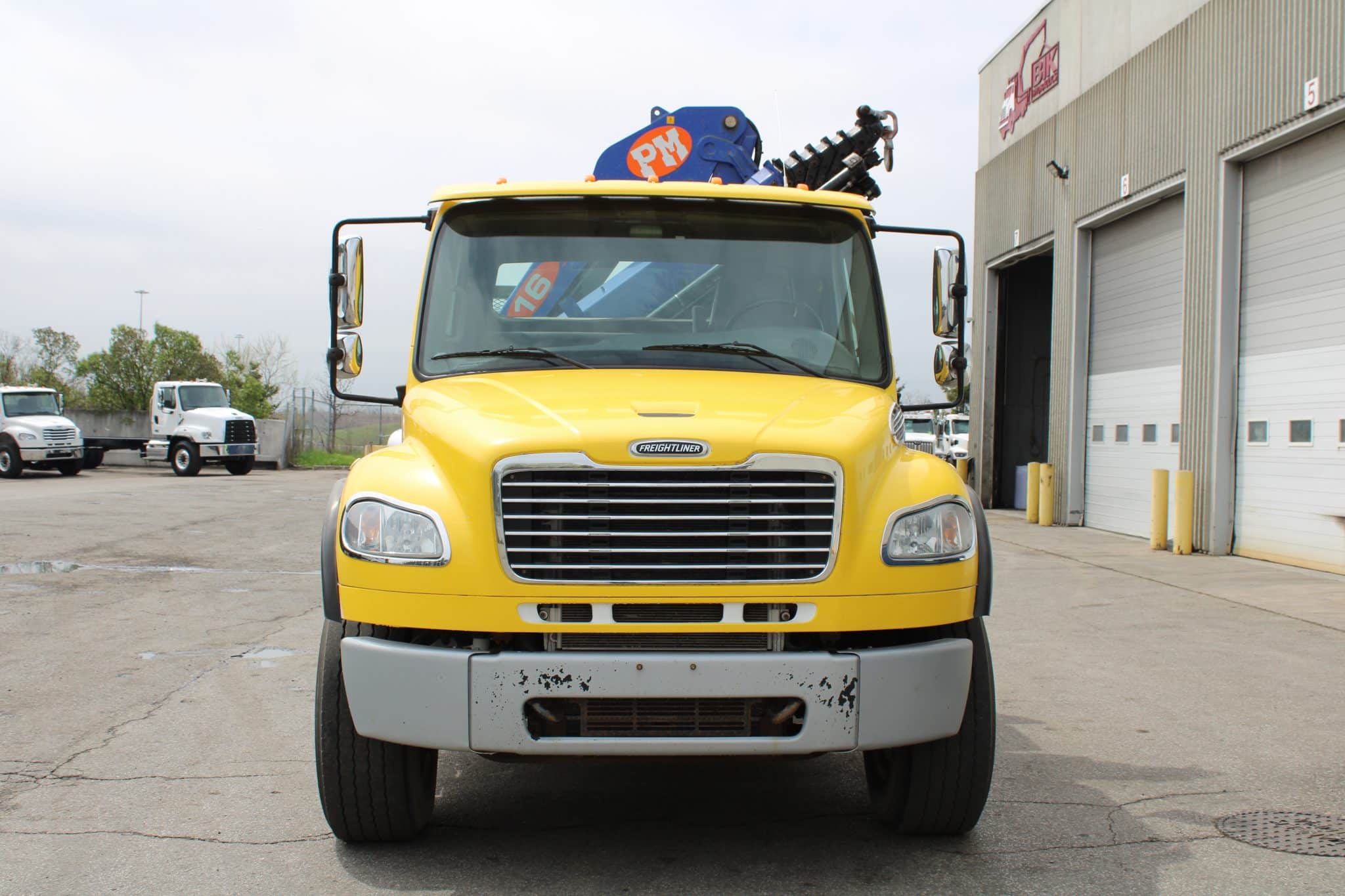

Used 2017 Freightliner M2-106 with PM 16527

Boom Details

PM 16527 Knuckle Boom:     7 hyd extensions to 62’ horizontal  (74’ vertical) reach.

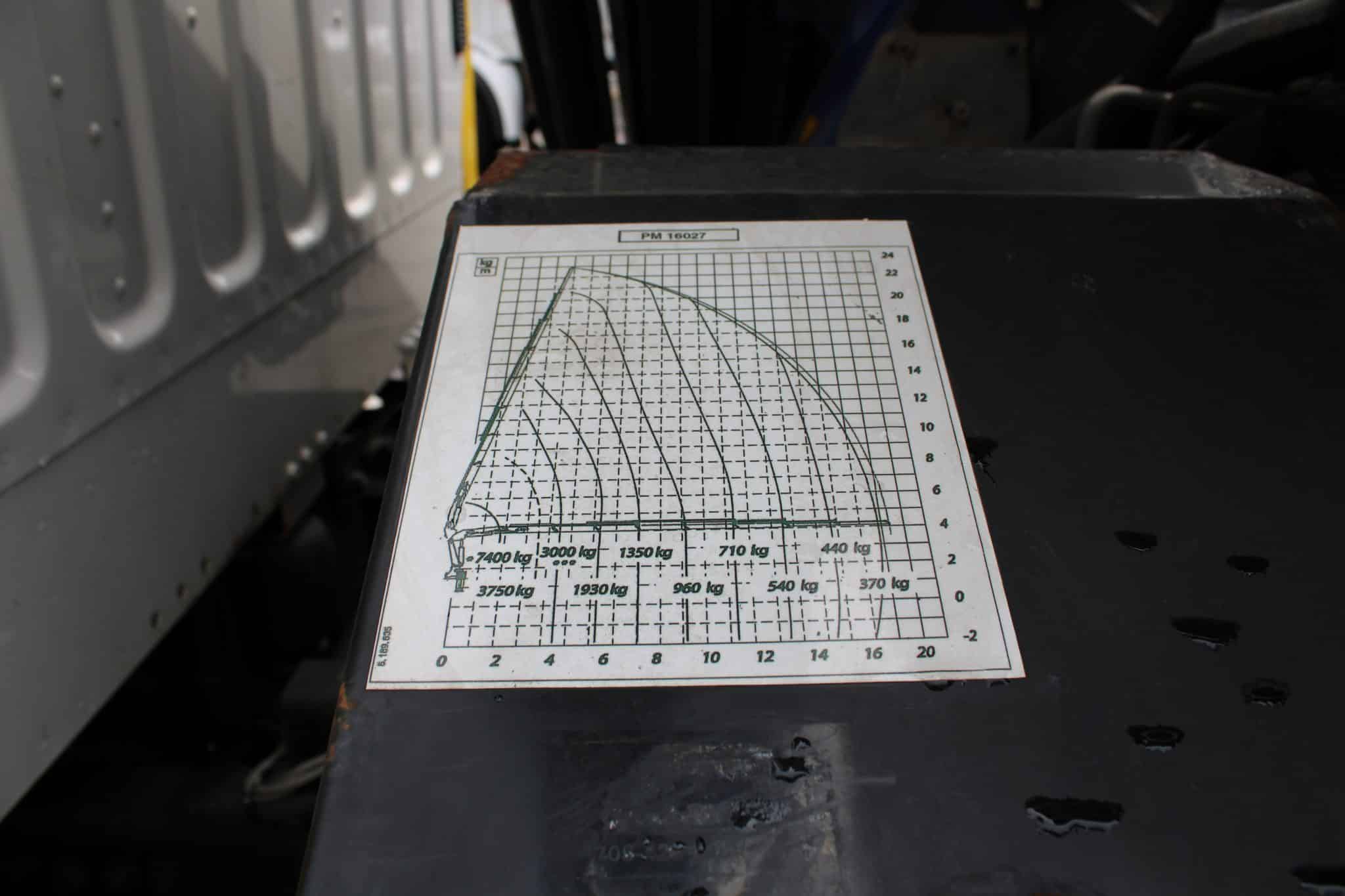

HORIZONTAL Capacities:

• 6,800 lb  @ 14’
• 4,170 lb  @ 21’
• 2,090 lb  @  34’
• 1,400 lb  @ 48’
• 1,210 lb  @ 53’
• 905 lb at 62’
• 408 Degrees Rotation on Main Hydraulic Slewing , Crane Painted PM Blue
• Double pilot operated on slewing and pilot operated check valves on all cylinders
• Hydraulic Extra Wide Main outriggers at pedestal – 21’ 9” span – Mounted back of cab on truck
• Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
• DANFOSS Proportional Valve Controls – single sided operator control station
• SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
• Radio Remote includes: 5-micro speed reducing settings from handheld, emergency stop, 2-batteries in-cab charger, 50’ back-up cord
• Hydraulic OUT and Hydraulic DOWN 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
• Hydraulic Overload Protection – simplified system that prevents boom from overload
• Load Holding Valves on each cylinder for Safety and Security of Operator and Load

Options Included Are:

• 2 x 3’ Aluminum storage box installed – INCLUDED N/C
• Pair of PVC stabilizer pads with holders – INCLUDED N/C
• Engine function controls from Radio remote to:  stop/start engine and truck horn alert – INCLUDED N/C

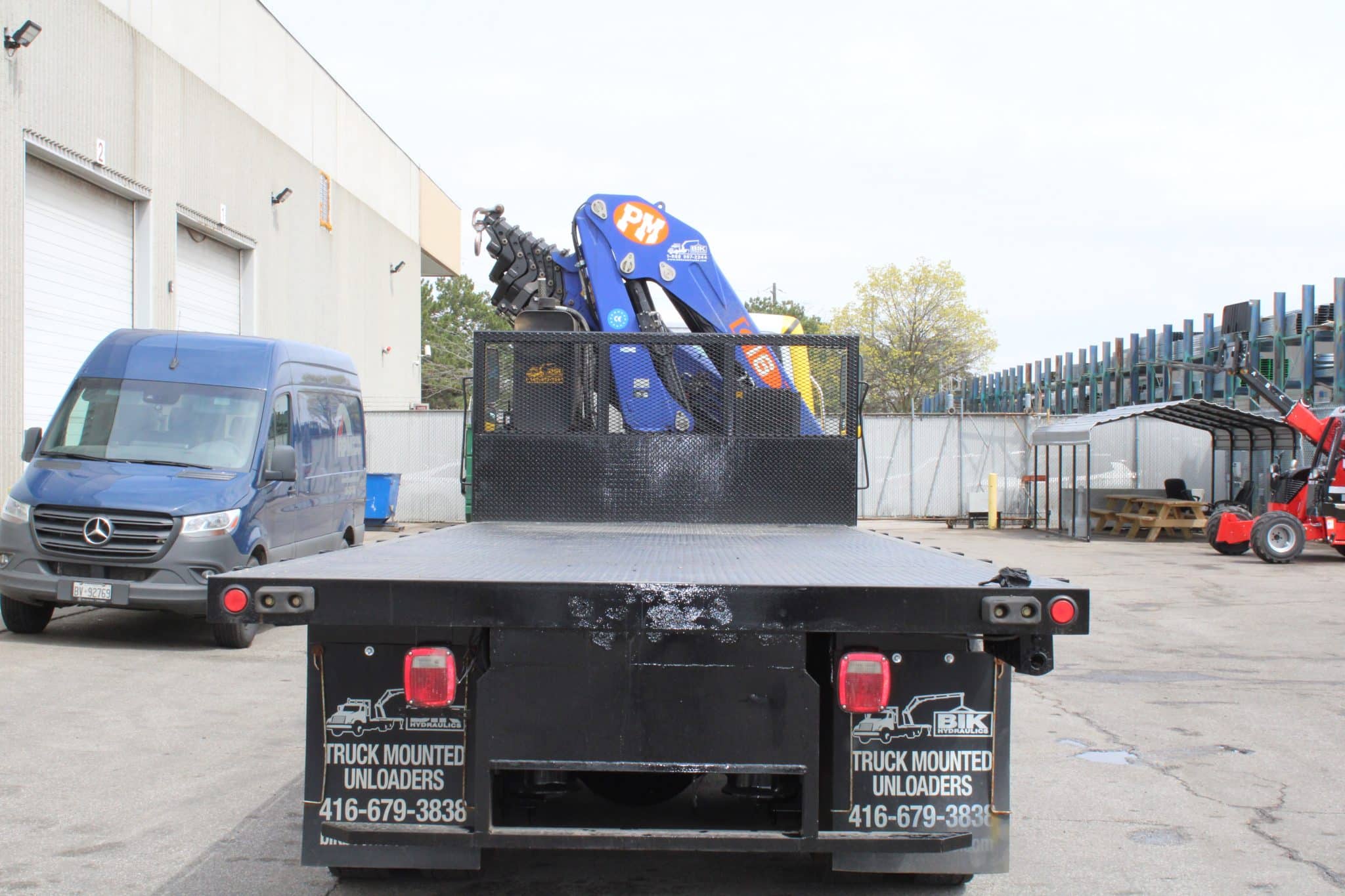

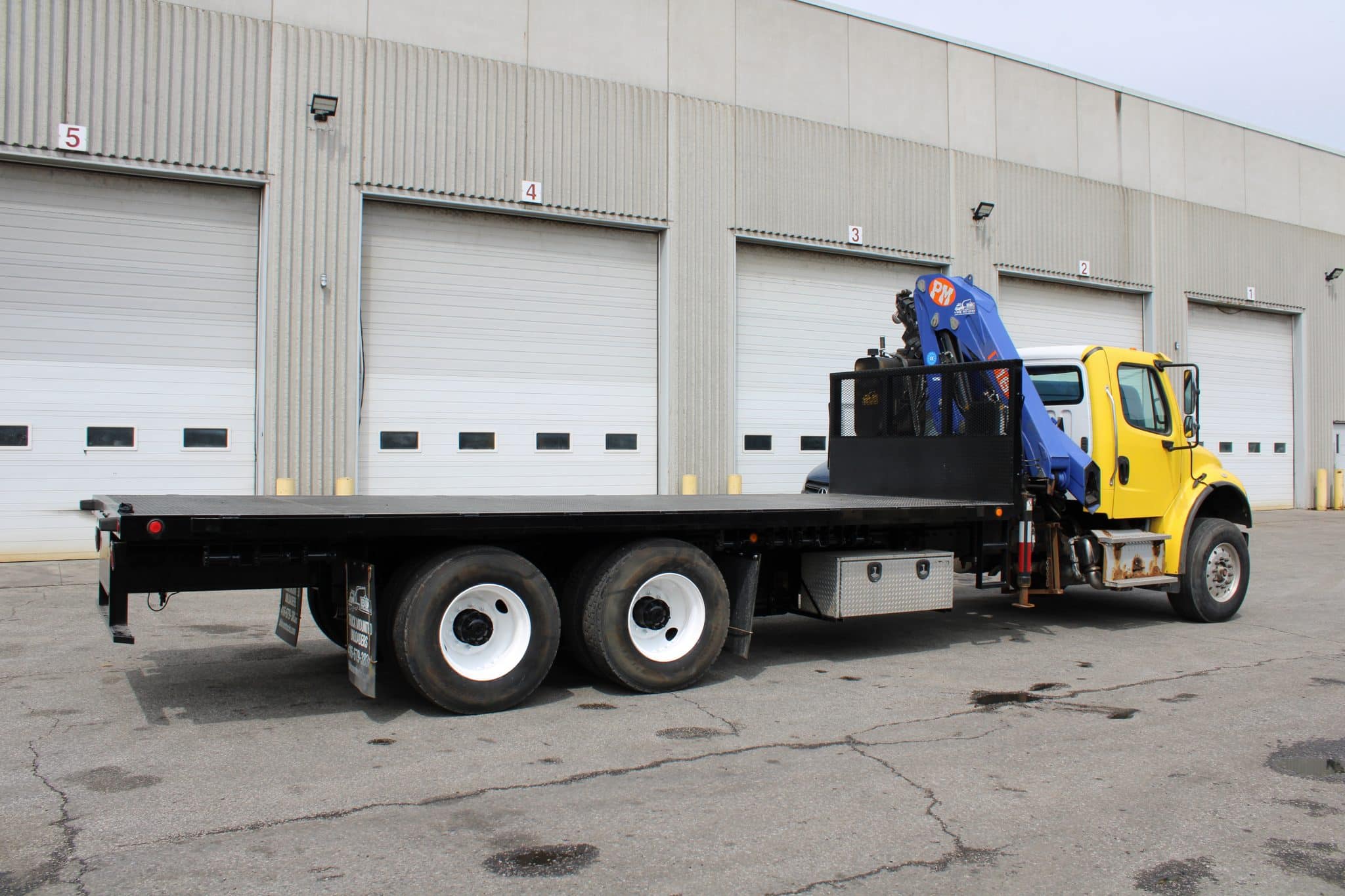

Deck Details

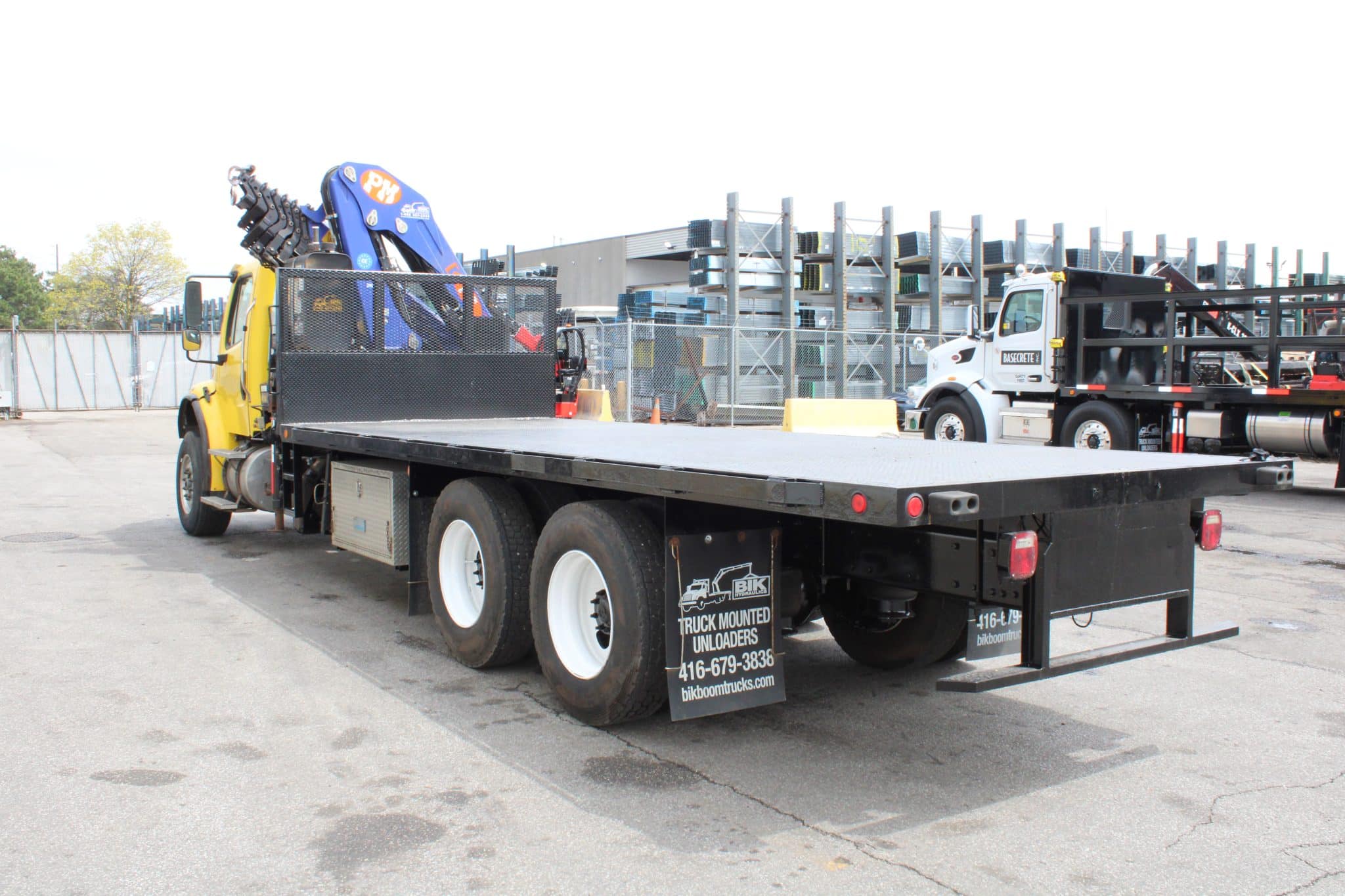

22’  Steel Flat deck

• 8’ wide with rub rail
• 48” Headboard, sliding track on passenger side w/ 8-winches and  new winch straps (30’)
• DOT tape and Reflectors
• Dual front access ladders
• re-painted black with proper new DOT stickers & new mud flaps
