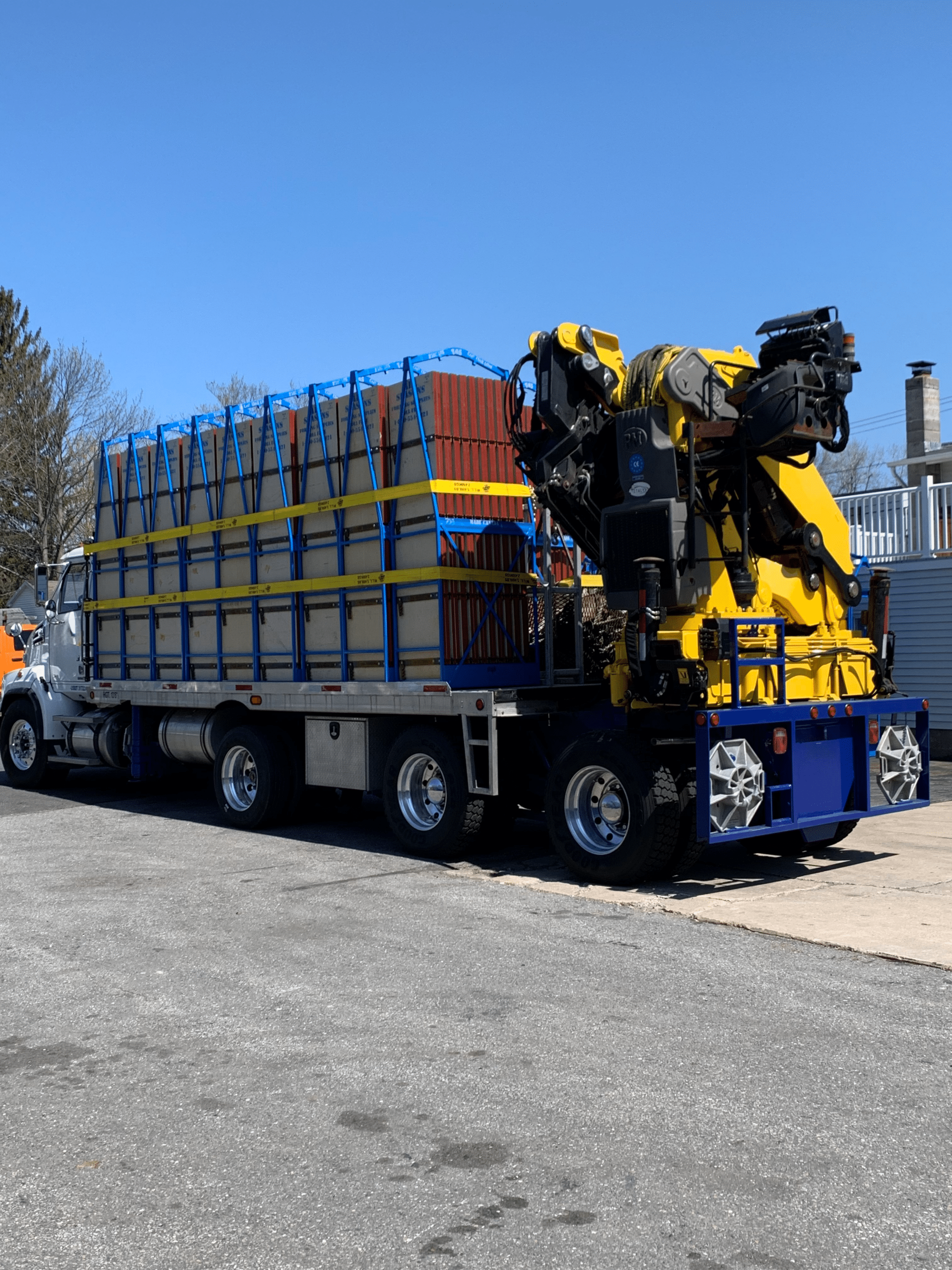

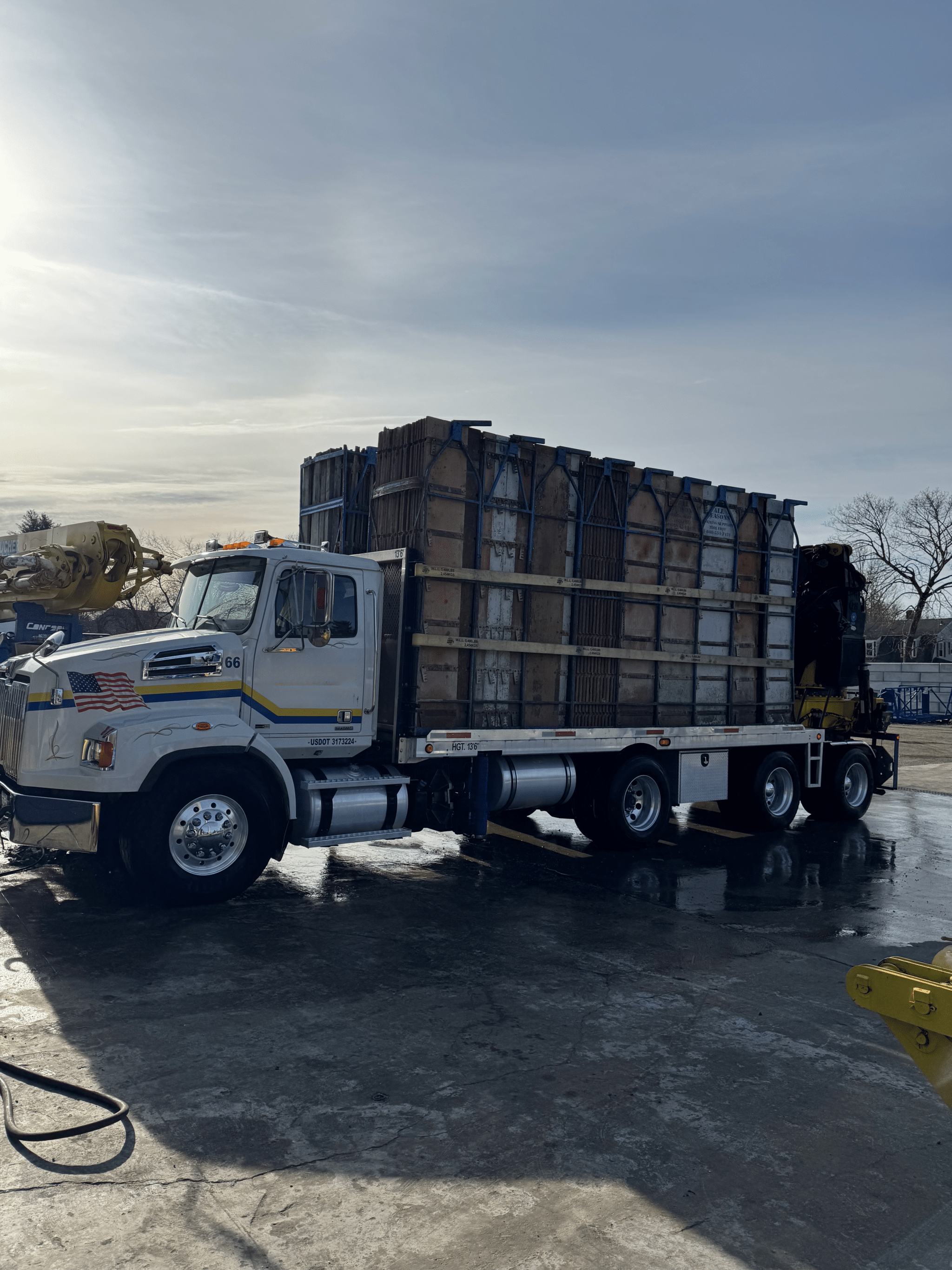

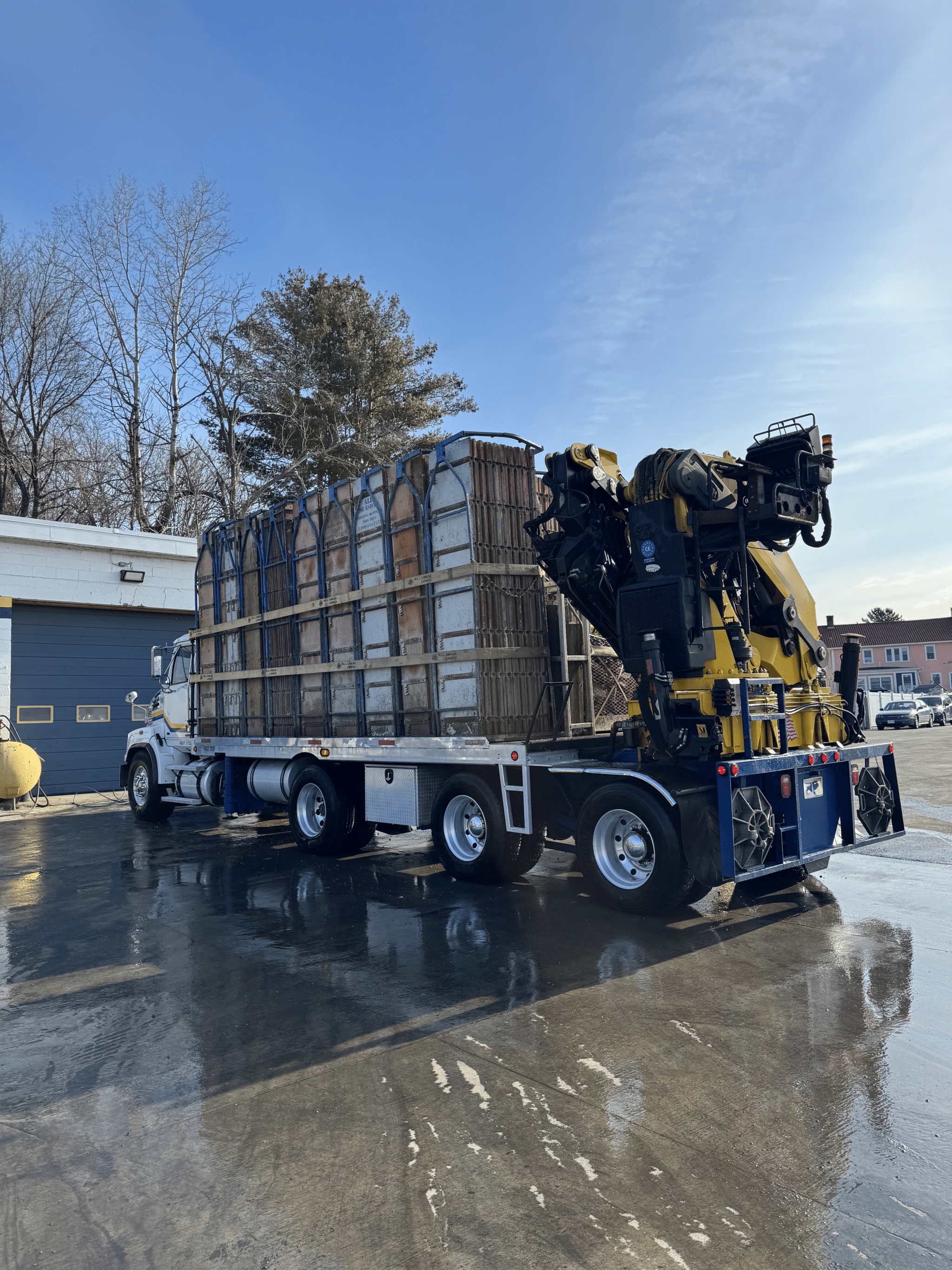

USED 2015 WESTERN STAR 4700 WITH PM 65026SP+J1416 KNUCKLE BOOM
 |
USED 2015 WESTERN STAR WITH PM 65026-SP+J1416 KNUCKLE BOOM
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 3000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom:
PM 65026 + J1416 Knuckle Boom (new in 2015)
- Folding Hyd 6 ext Knuckle Boom with Detachable 6 ext jib
- 92′ Horizontal Reach
- Main Boom Horizontal Capacity:
- 48,500 lb @ 8’2″
- 28,260 lb @ 14′ 5″
- 15,340 lb @ 25′ 3″
- 10,000 lb @ 37′,
- 7,210 lb@ 50′ 2″
- Jib Horizontal Capacity:
- 3,850 lb @ 59′ 1″
- 3,000 lb @ 74′ 6″
- 2,340 lb @ 81′ 1″
- 2,100 lb @ 86′ 8″
- 1,800 lb @ 92′
- Maximum Lifting Moment 59 mt (429,640 ft-lbs)
- PM Power-Link connections at Main, Knuckle & Jib Cylinders
- Dual Planetary Gear Motors & Continuous Boom Rotation Double pilot operated on slewing and pilot operated check valves on all cylinders
- 180 degree flip up Hydraulic Extra Wide Main outriggers at pedestal – 28′ – 7″ span
- 360 degree full load chart stability Hydraulic Oil Cooler
- High pressure return filter and min. 100-gallon hyd aluminum oil tank with gate valves mounted at front under deck DANFOSS Proportional Control Valve at Top Seat with Ladder Access- & SCANRECO Proportional Radio Remote Control
- PM- Power Tronic load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
- Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
Deck:
21′ x 102″ Aluminum Flat Deck
- Checker plate steel deck surface
- With 1″ lip for form cages
- Winch bar holder and winch bar
- Ladder
- 6 sliding winches with 3″ straps
- Reflectors and 5-side lights
- Complete with removable centre divider
Truck:

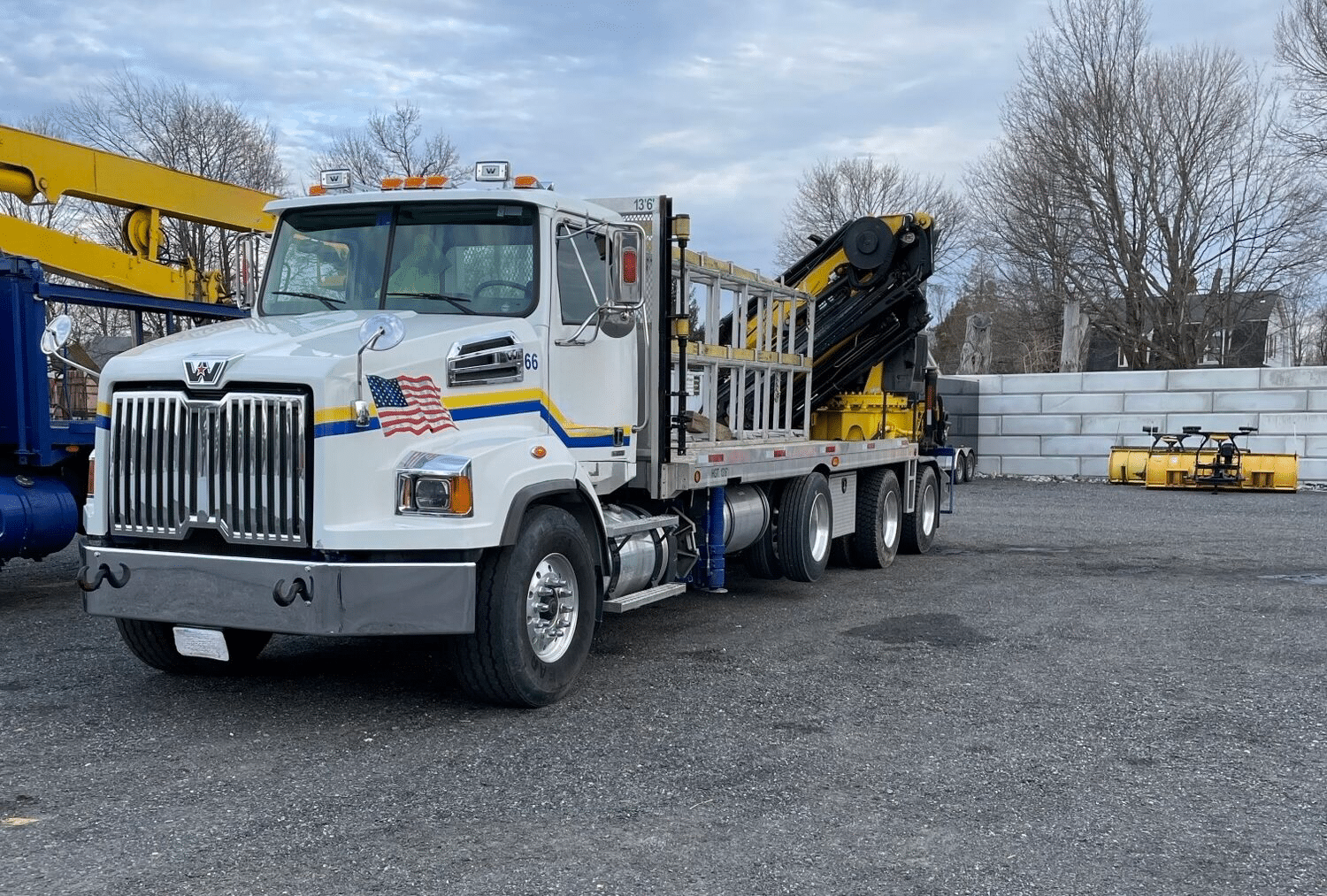

Used – 2015 Western Star 4700 Tri-Axle Diesel Truck: 86,000 lb GVWR
- Truck Cab White
- DDC-13 470 hp – 1,650 ft/lbs torque
- Automated Eaton 18 spd Trans.
- 20,000 lb fronts 425/65R22.5 Floatation tires on Aluminum rims
- 22,000 lb self-steer lift axle
- 101″ ahead of 1st drive wheel w/ 4 tires for max payload
- 46,000 LB Rears on Chalmers Suspension with 11 R22.5 tires on steel white rims
- 326″ wheel base
- Full double frame chassis
- Truck Features Include: Air Cond., AM/FM stereo, tilt/telescopic steering, power windows & locks, 2-man pass seat, chrome bumper & grill, painted ext sun visor, diff locks with rear wheel lock ups, dual hood mounted mirrors, air ride cab, single 80 gal alum fuel tank, trailer air tow package, full 4-wheel lock ups, etc …
