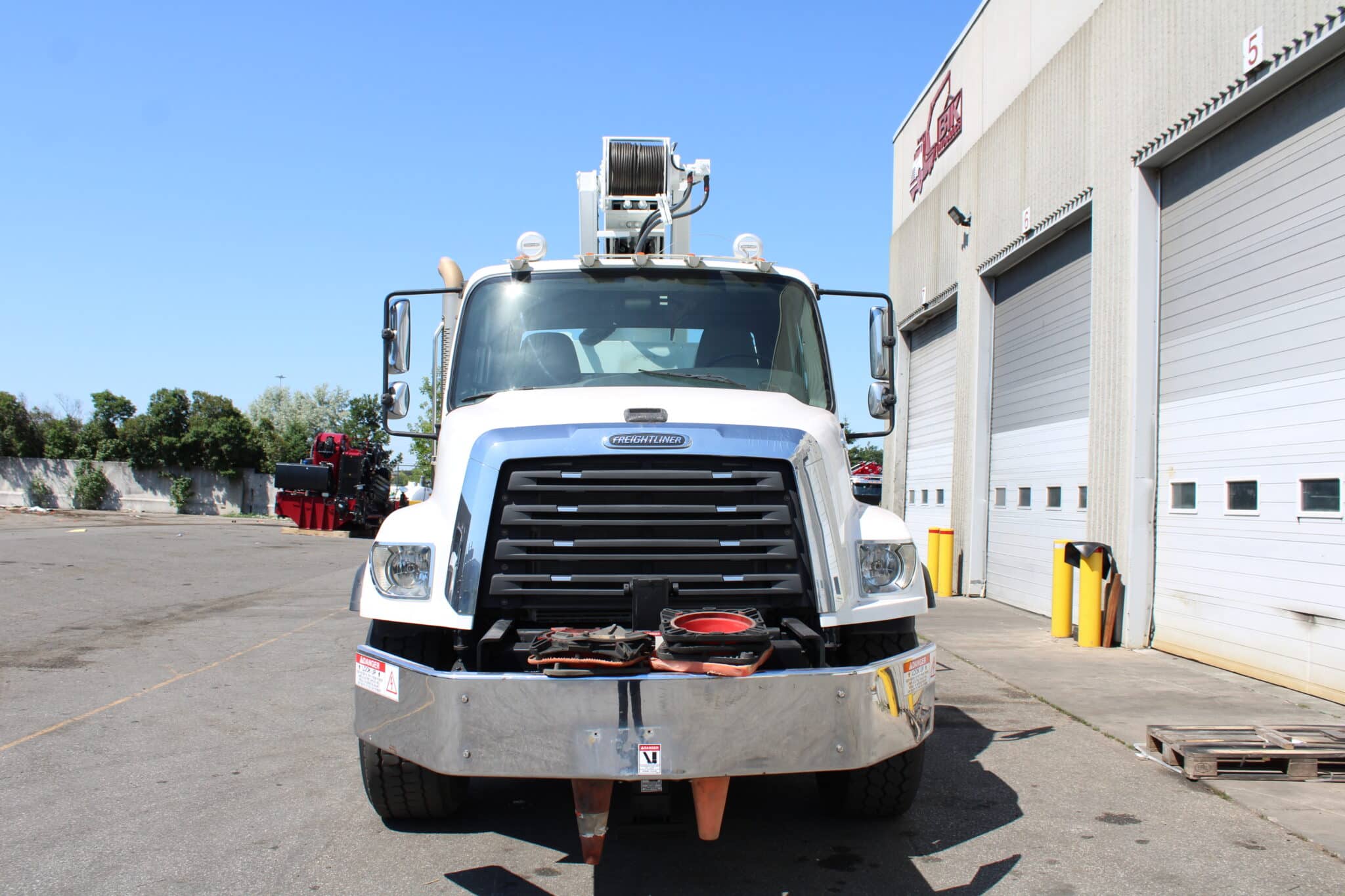

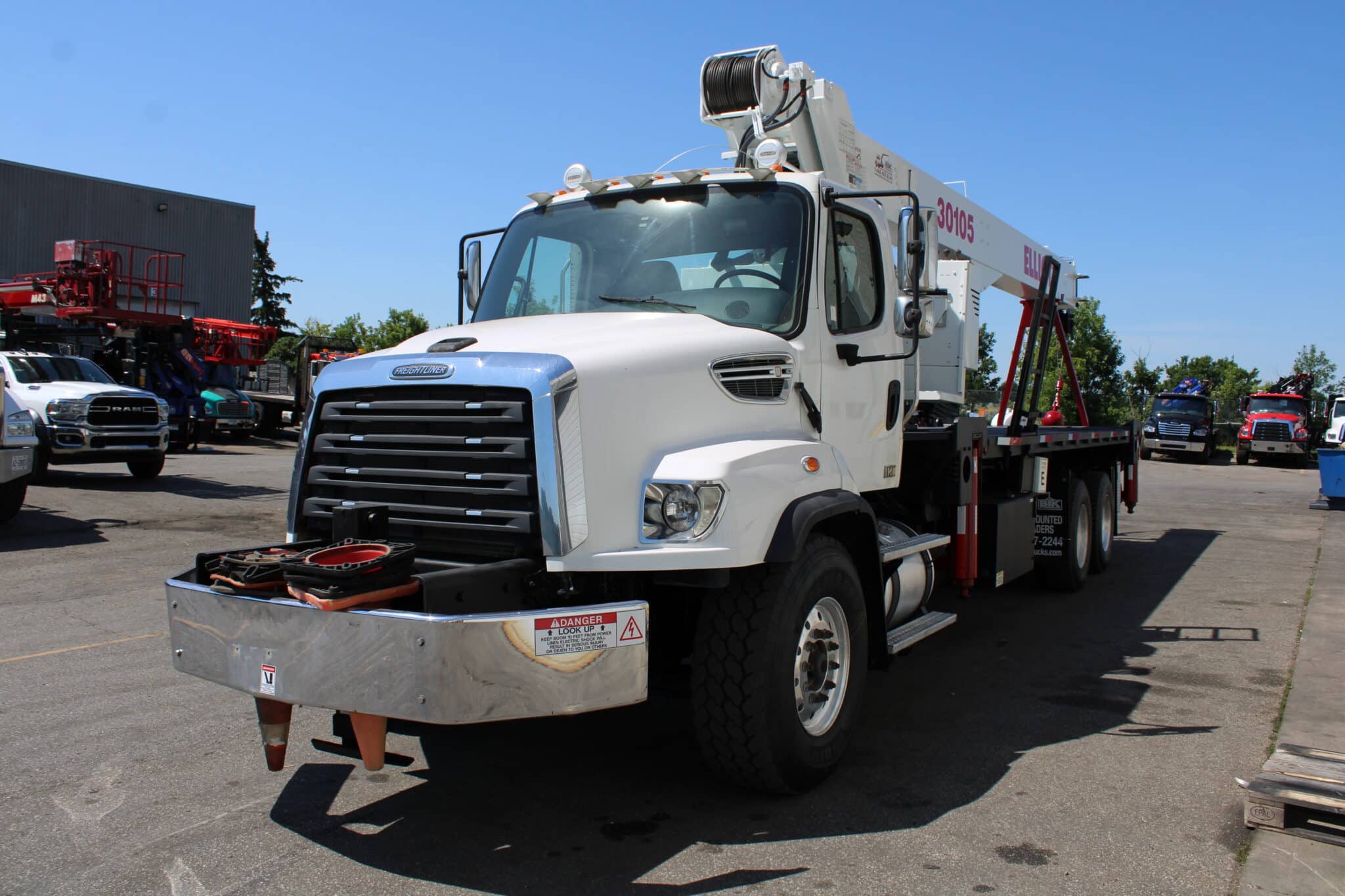

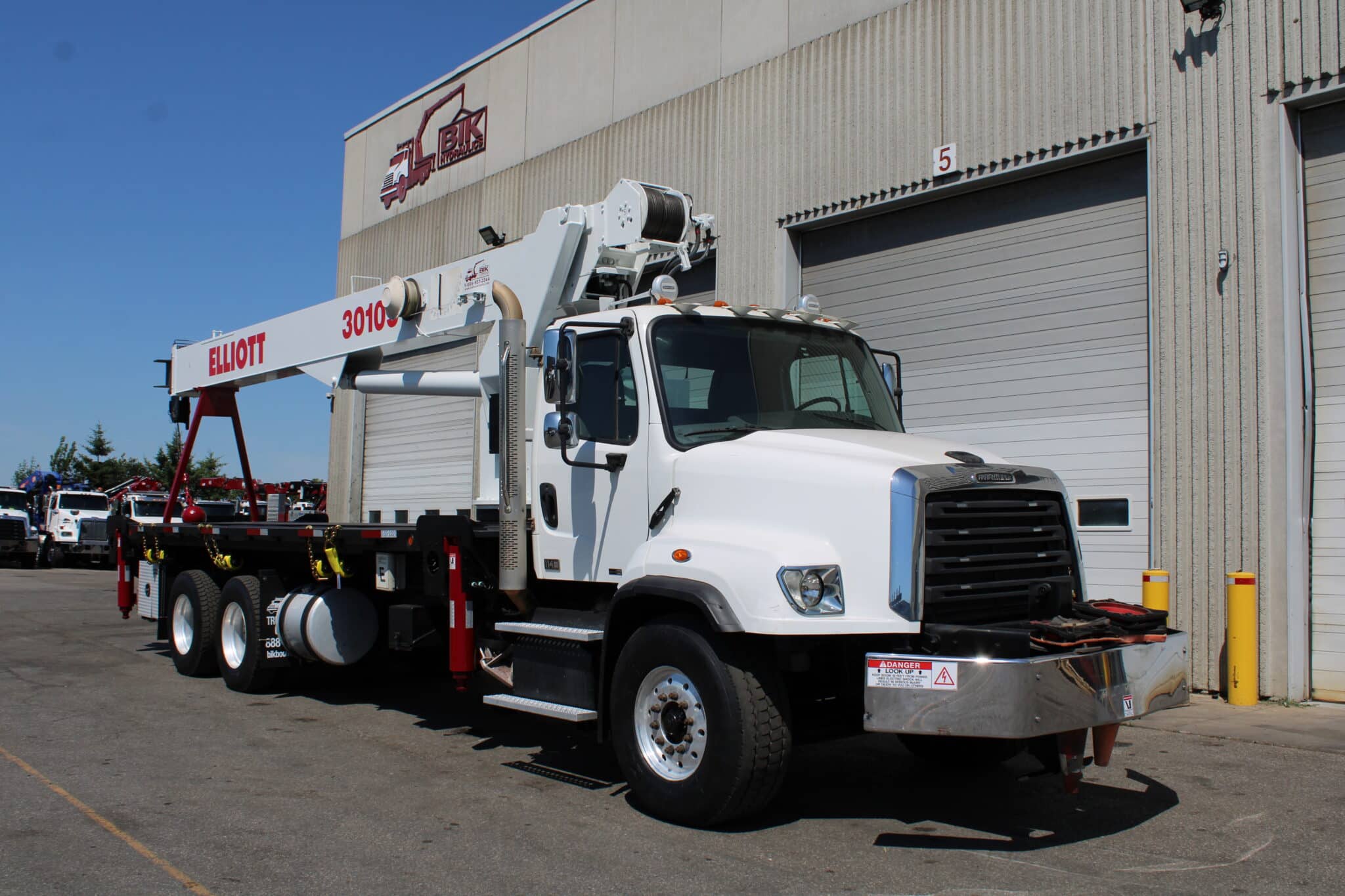

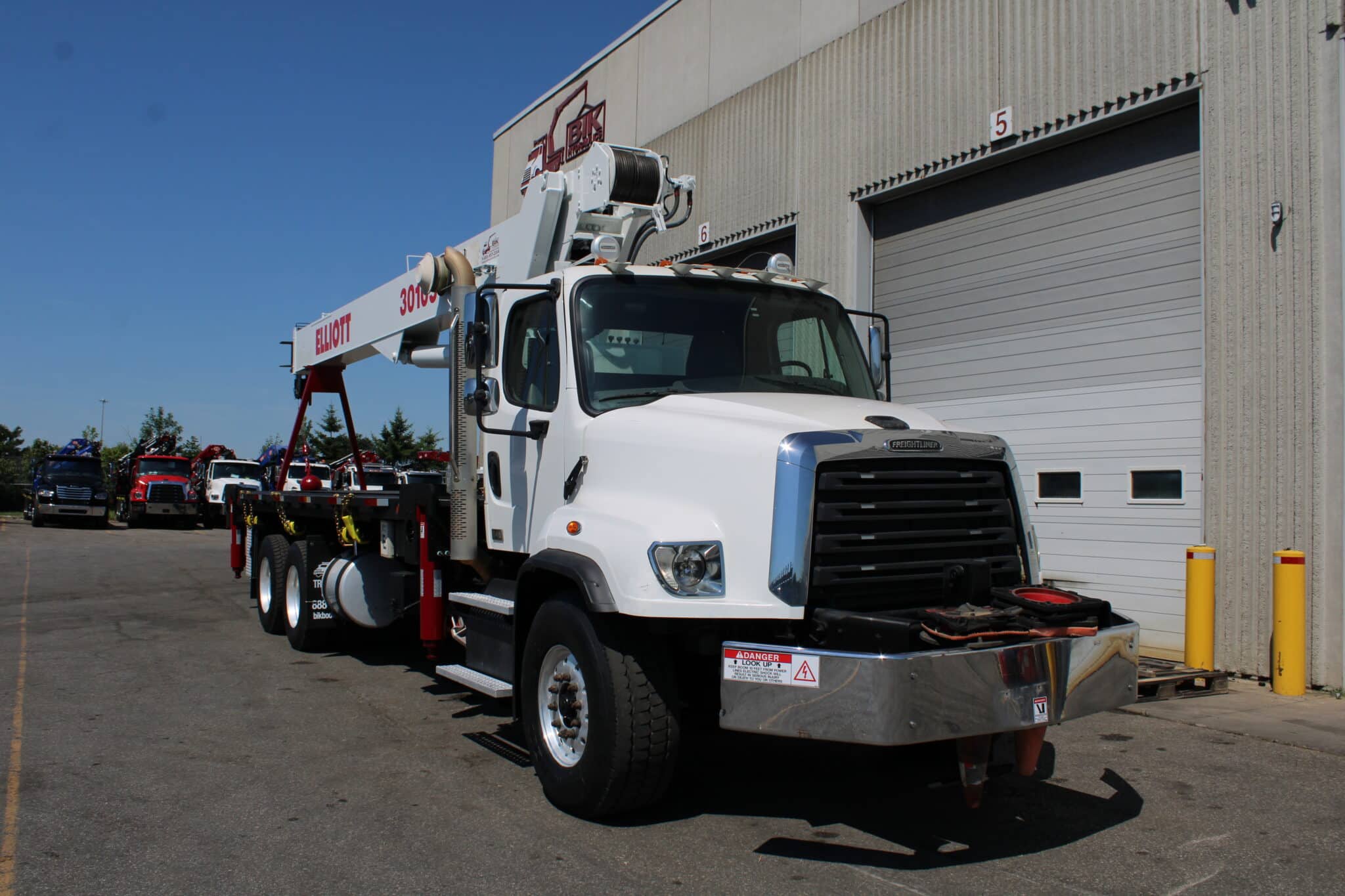

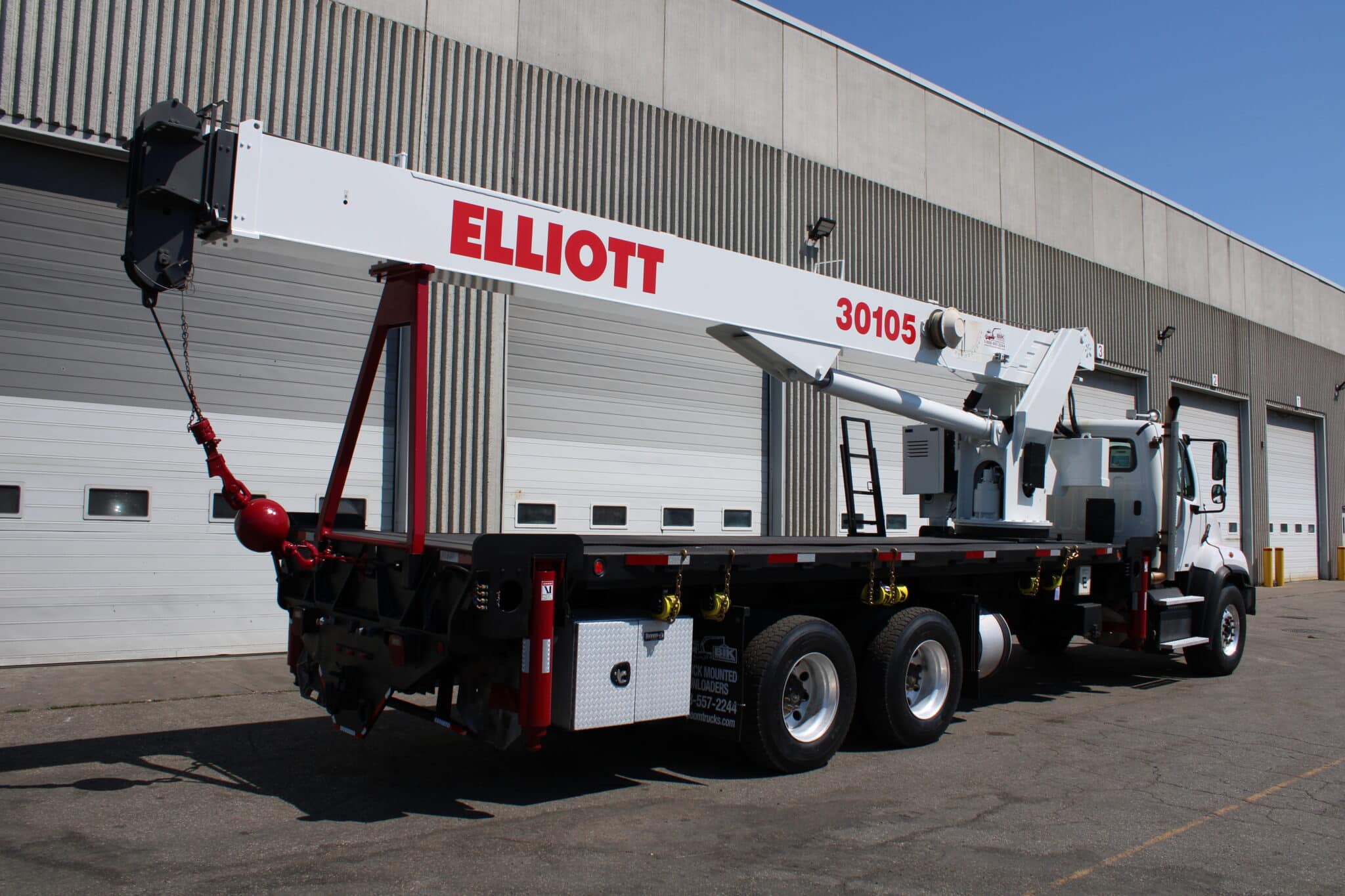

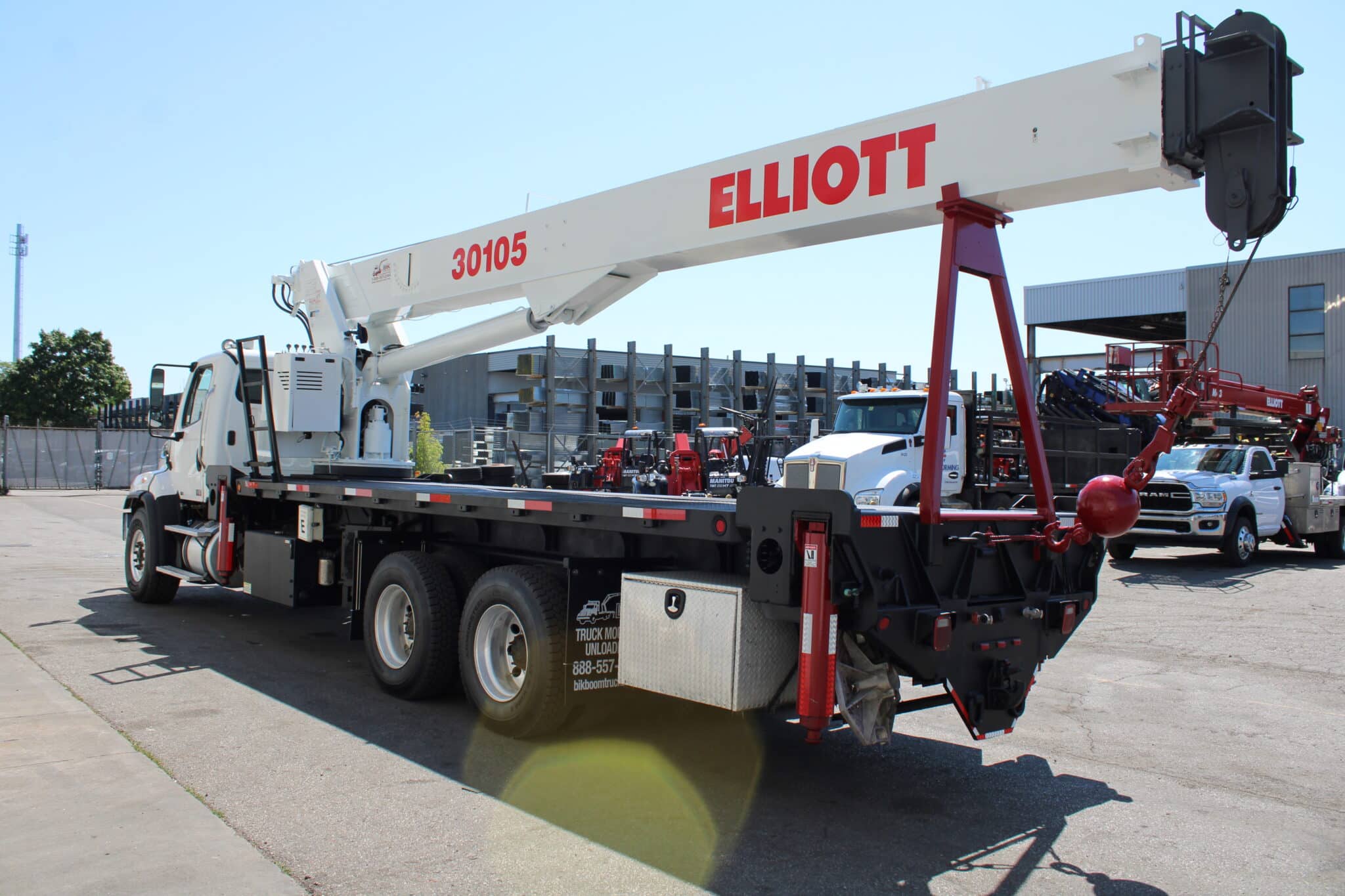

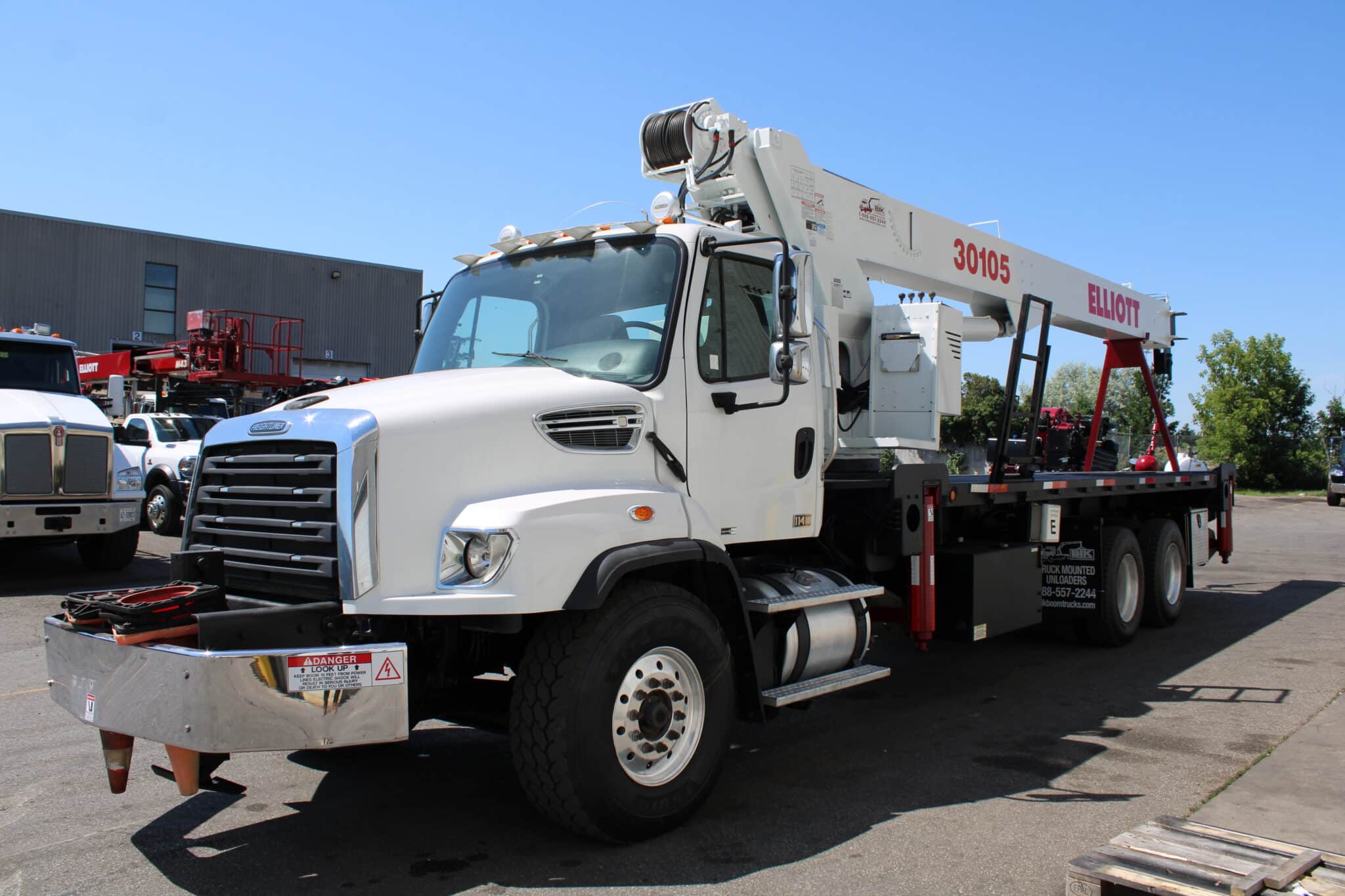

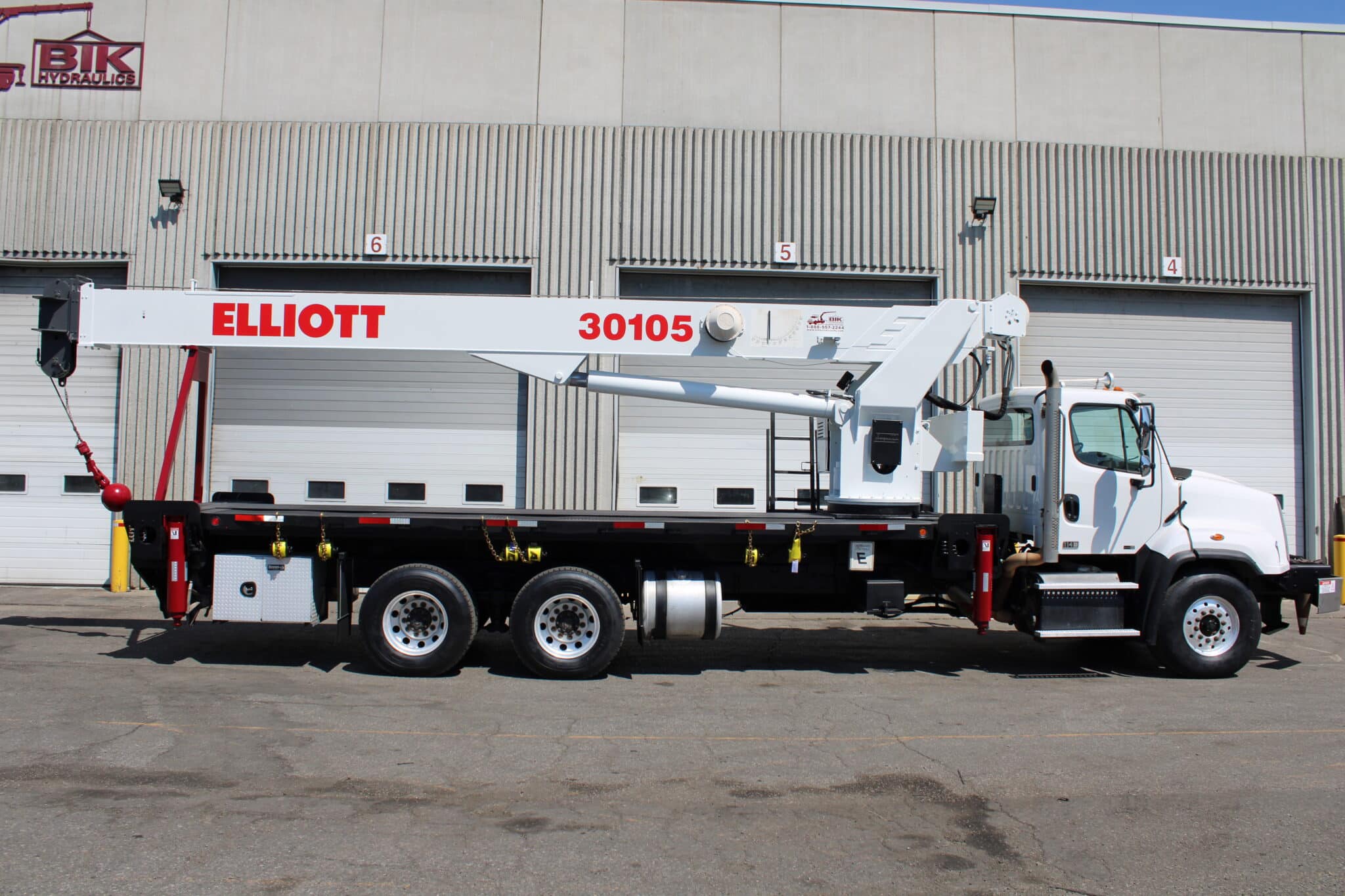

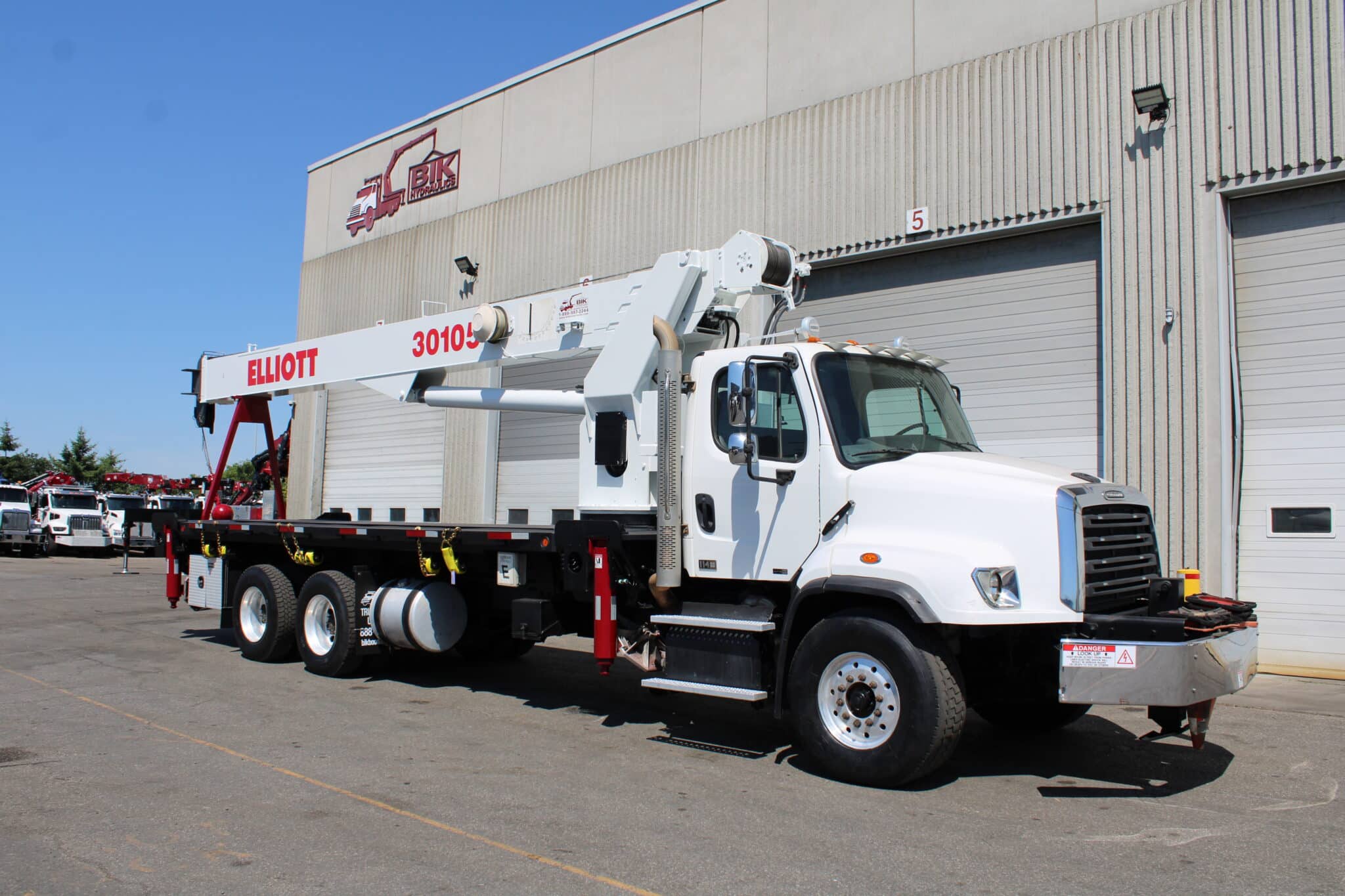

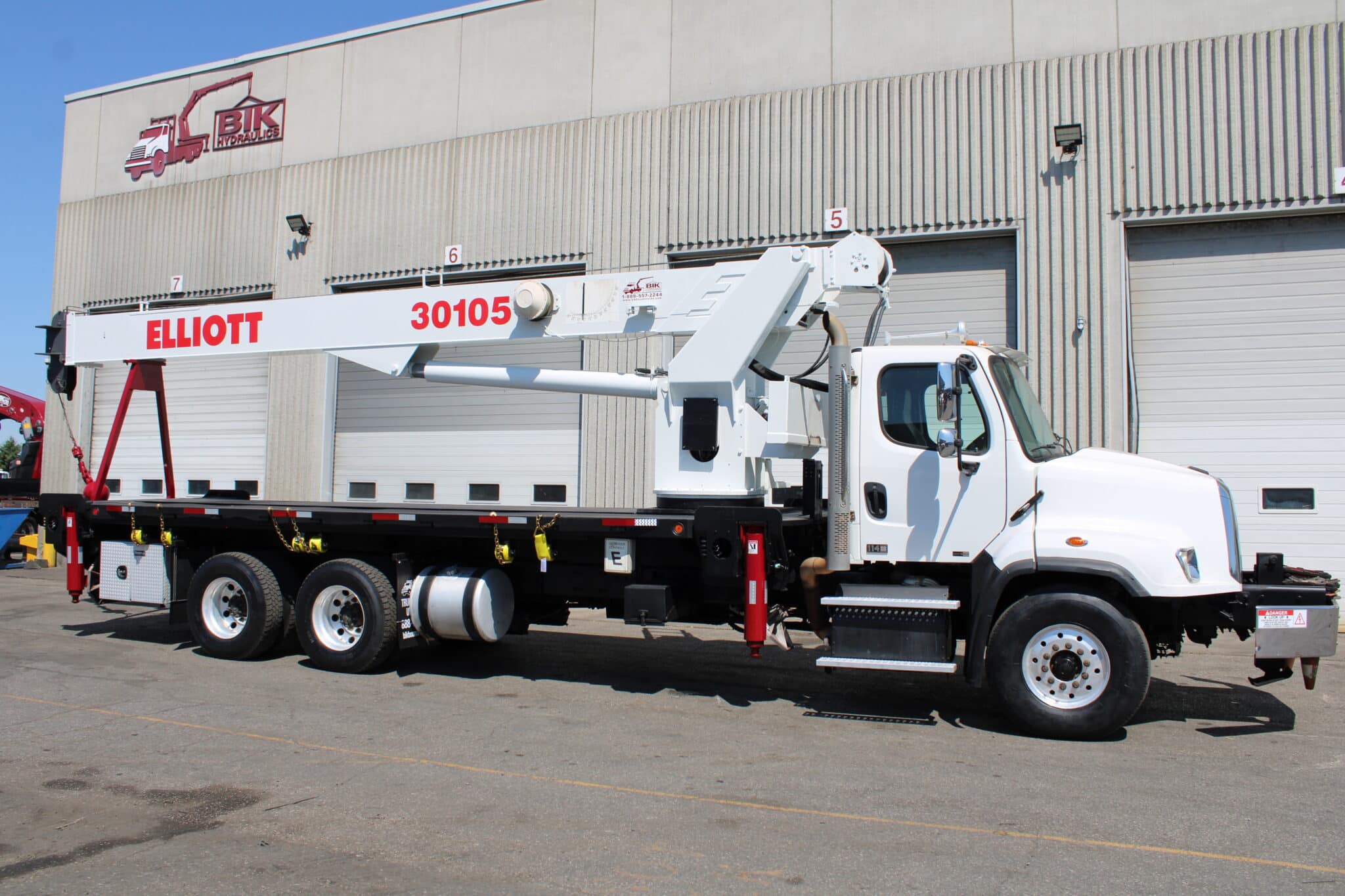

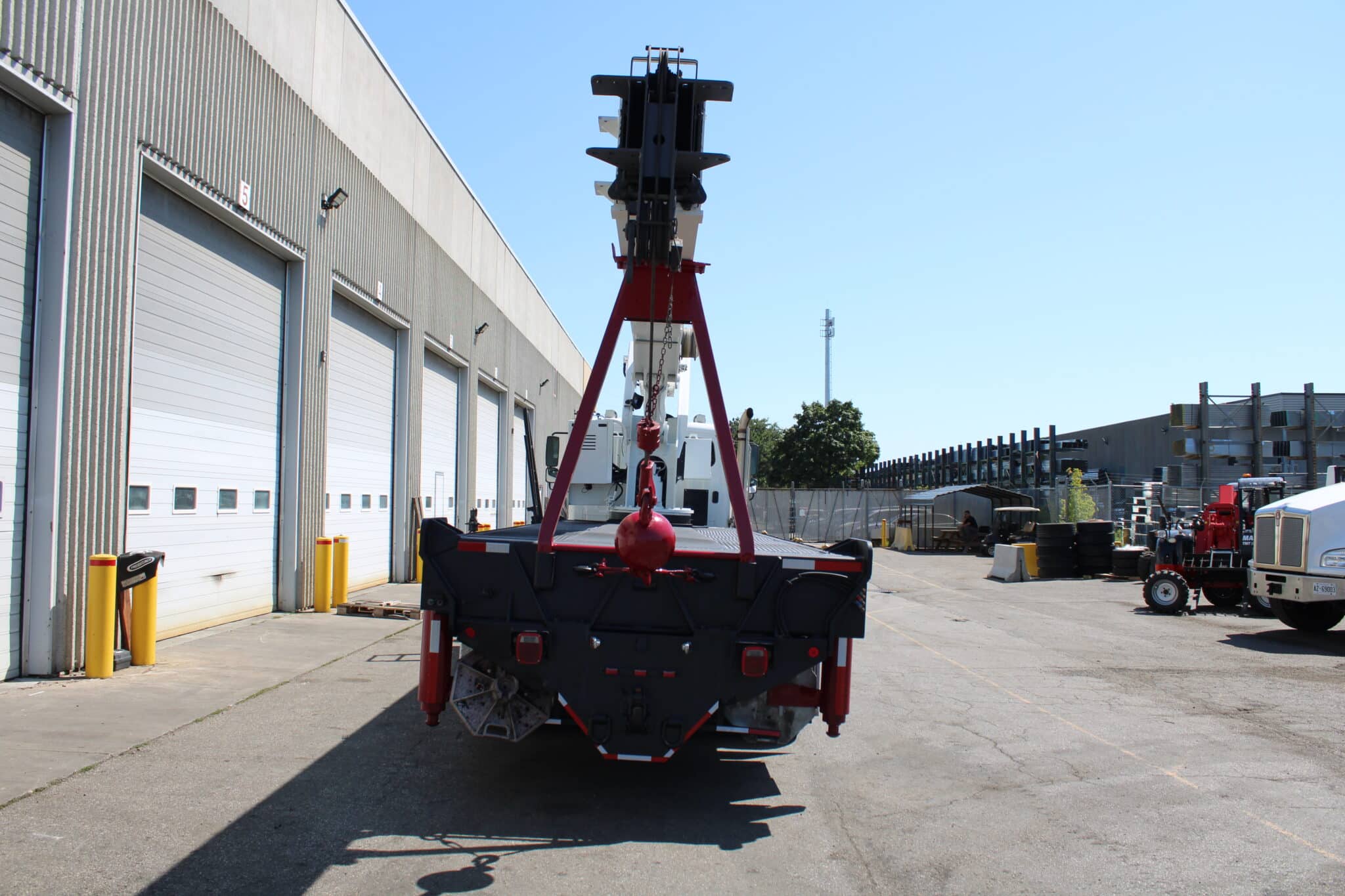

USED 2015 FREIGHTLINER 114SD 3-AXLE WITH ELLIOTT 30105 CRANE

Crane:

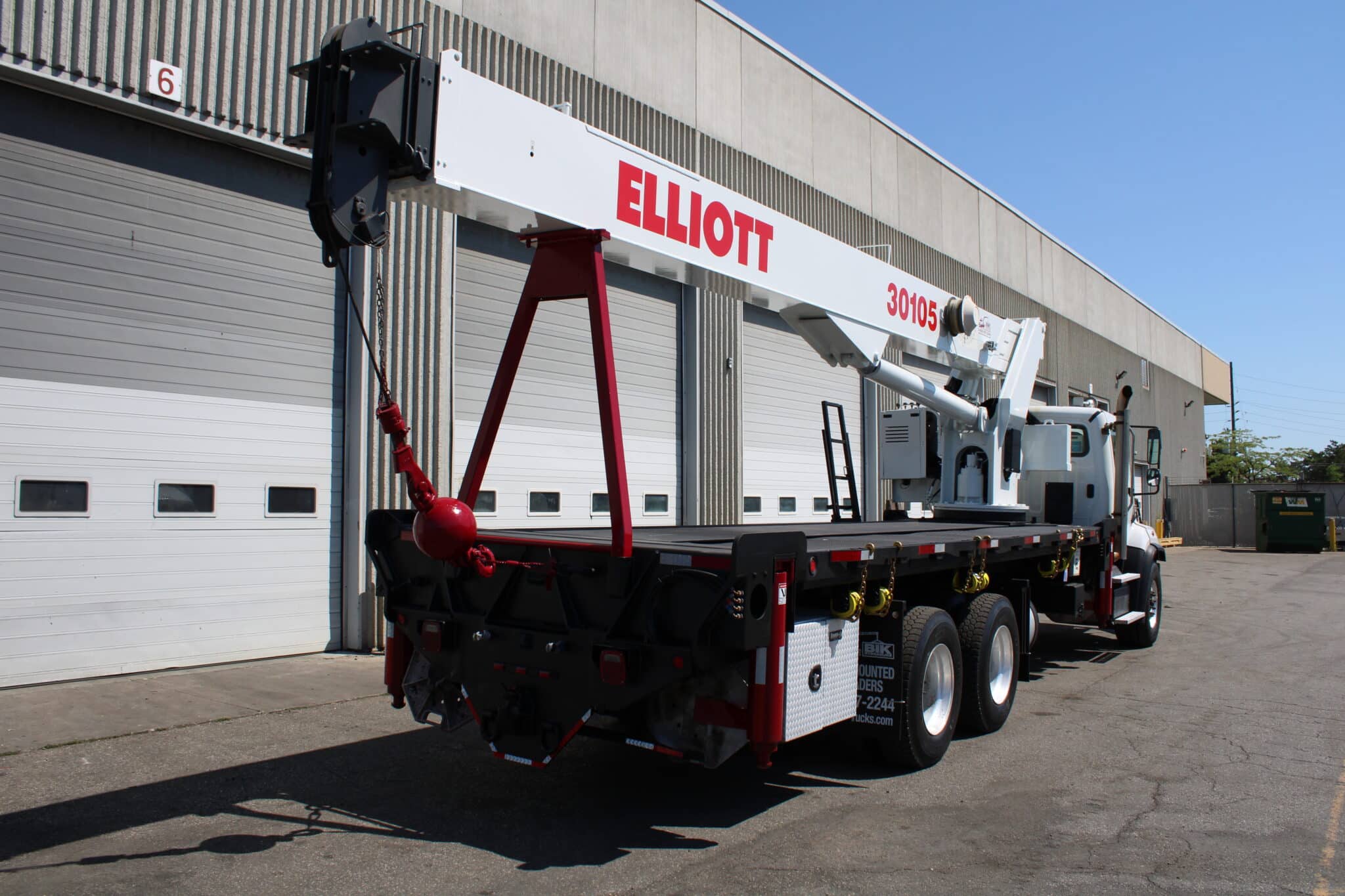

ELLIOTT Model 30105 front  mount – 30 -Ton CRANE: 30-Ton Capacity at 5 ft. load radius

• 31’ – 105’ ft. high strength 4-Section Boom – proportionally extended, 117 ft. sheave height fully extended – 3-Sheave Head
• front mount sub-frame & 22 ft. – 3-piece steel bed integral with sub-frame
• 2-Sets Hydraulic Out & Down Outriggers – 20 ft. span each c/w removable ball socket aluminum pads
• Independent individual outrigger controls – Mid and Full Span Outrigger load charts to be provided

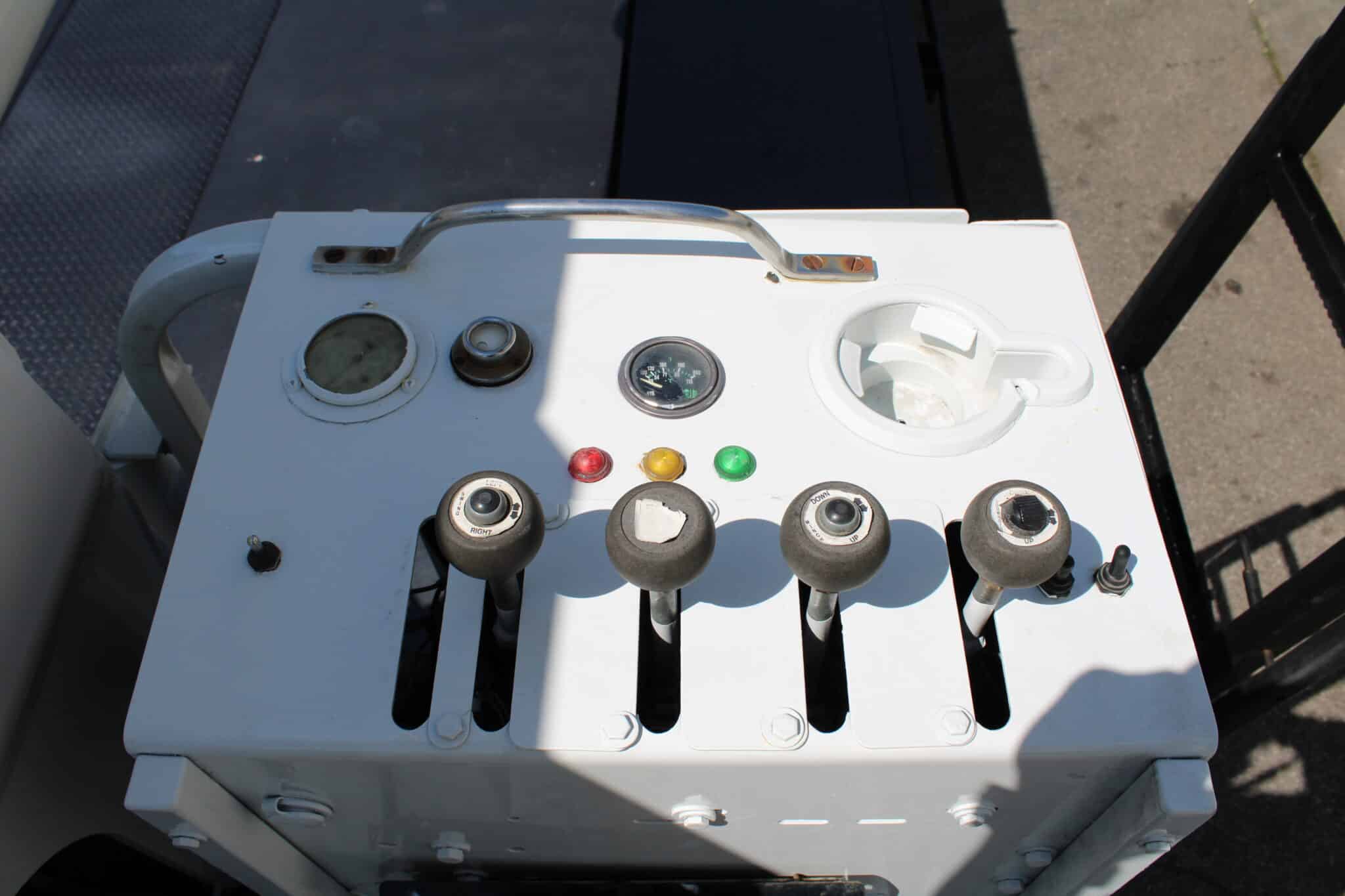

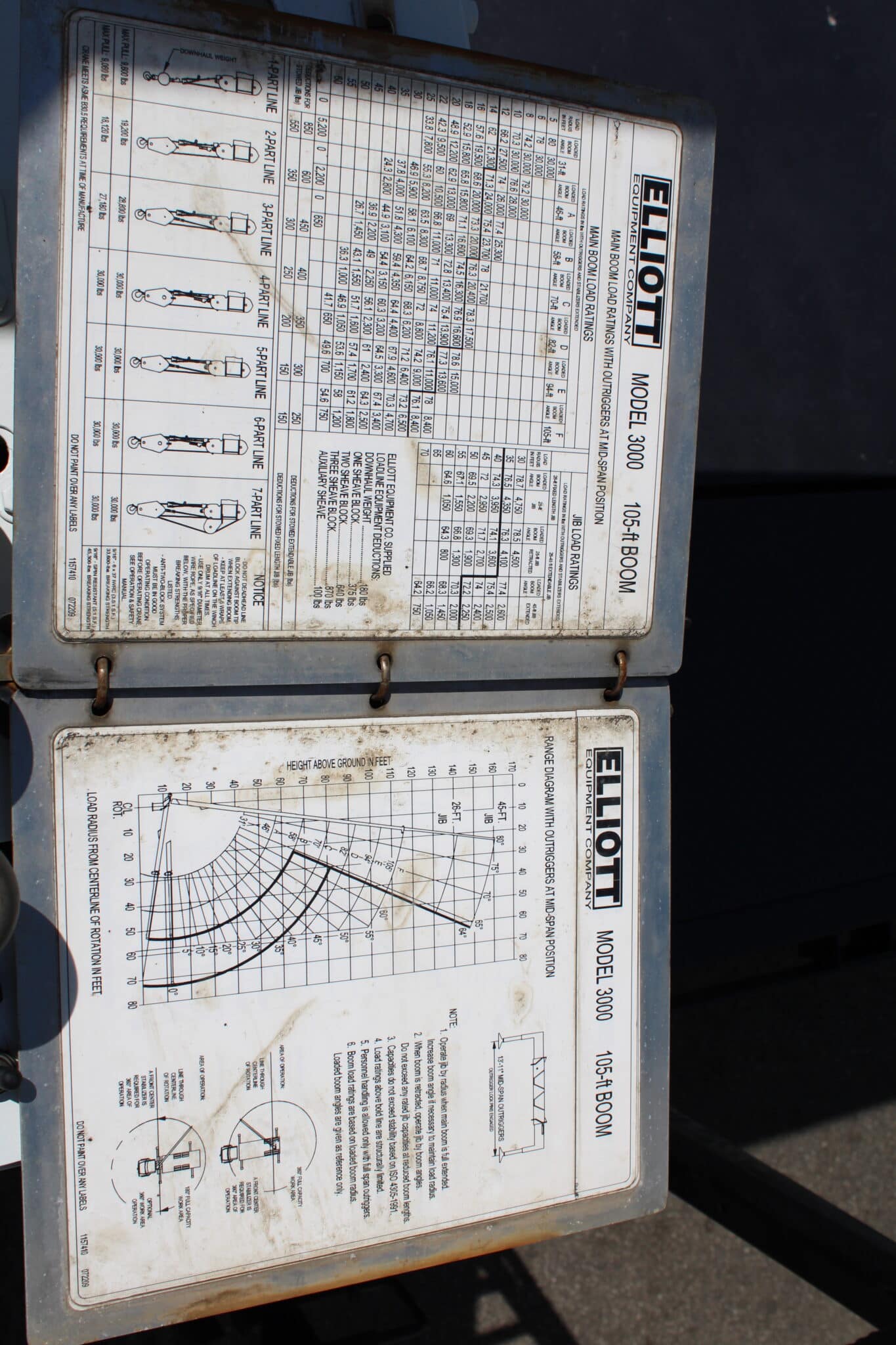

• Stand-up Operator Console & Platform – rotates with turret: includes: engine start/stop, lifting capacity charts, load range charts, bubble level gauge, signal horn, variable speed foot throttle, and system pressure gauge
• 9/16” diameter rotation resistant wire rope – 425 ft. w/ 4-sheave boom head, downhaul ball w/ swivel hook
• 12,700 lb planetary burst of speed bare drum pull winch w/ 9,060 lb single line pull
• Anti-two block device and Load Moment Indicator w/ hydraulic overload lockout
• Painted ELLIOTT Imron White, Red, and Black w/ red decals – 22’ Steel Deck with boom rest

Truck:

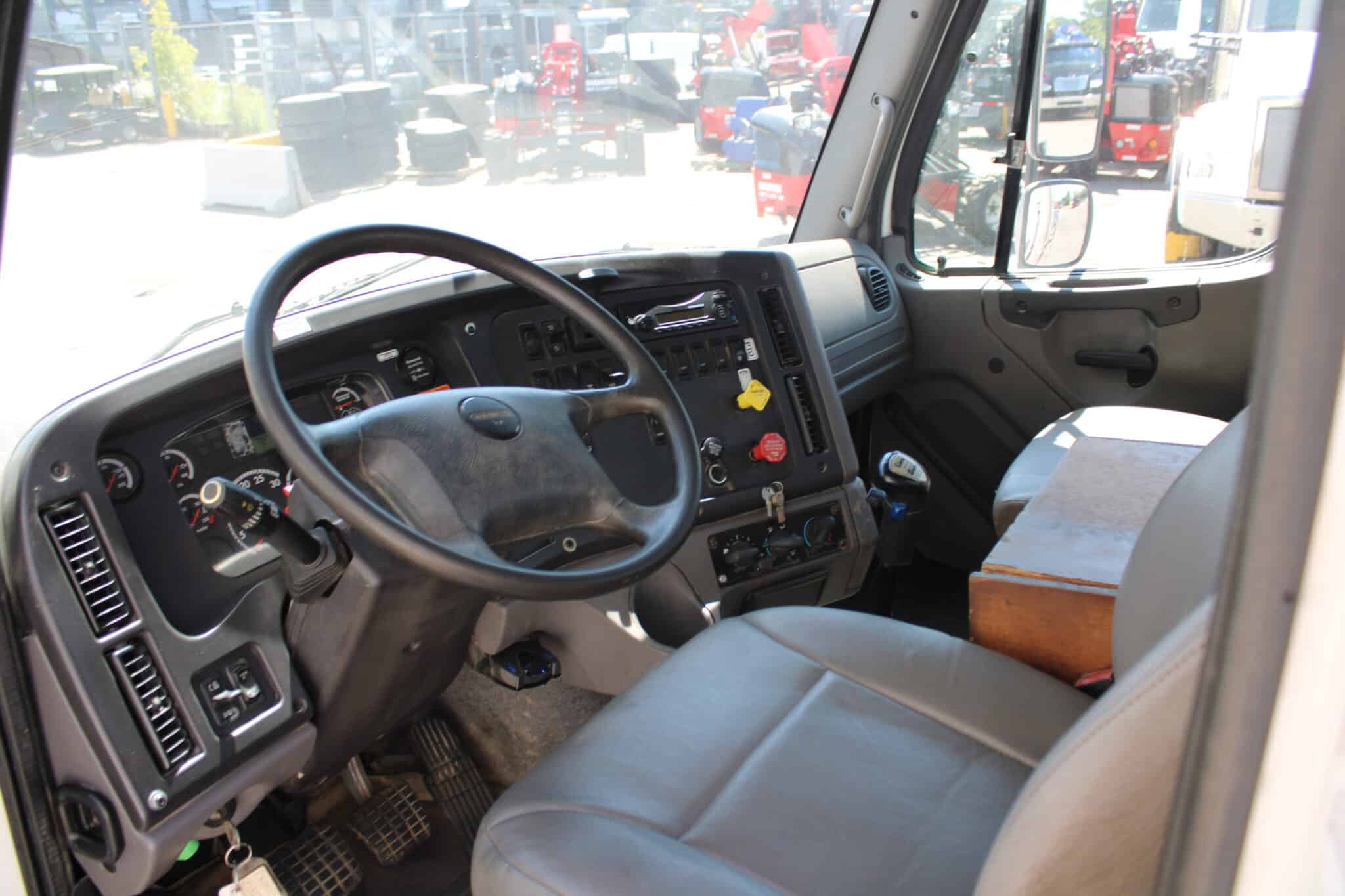

USED 2015 Freightliner 114SD  Tandem Axle Diesel  Truck:

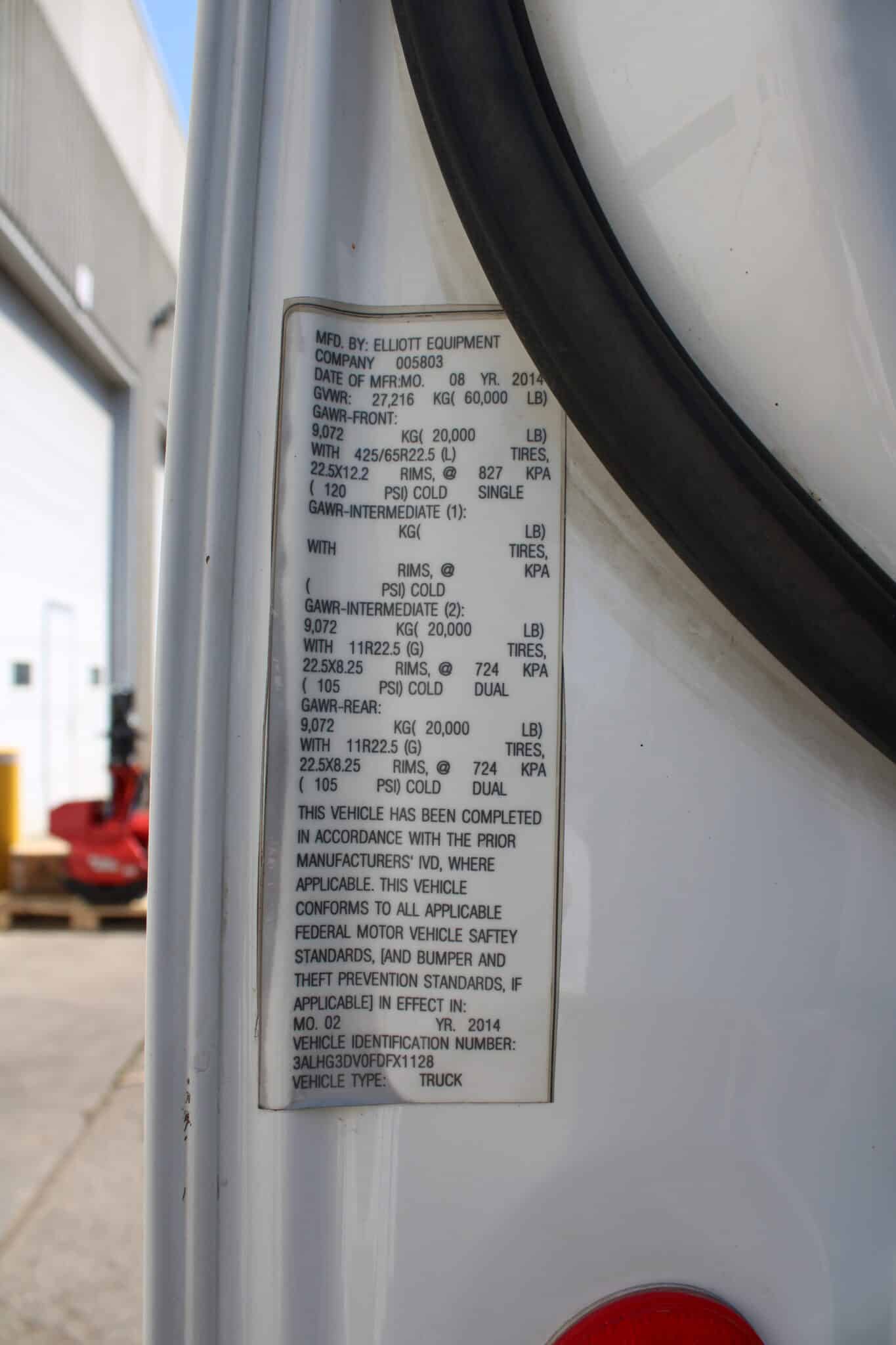

• 60,000 lb GVWR
• Detroit Diesel DDC 13
• 470 hp
• 1,650 ft/lb torque
• Fuller  8LL  trans.
• 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Aluminum rims
• 40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on steel alum rims
• 270” wheel base
• Full double frame chassis
• 54” spread at tandems
• Truck  Features Include: Two Stage Engine Brake, Air Cond.,  AM/FM  stereo,  cruise, chrome bumper and grill, power windows & locks, dual chrome hood mounted mirrors,  eng block heater, painted ext sun visor, trailer air tow package, diff locks with rear wheel lock ups,   80 gal alum fuel tank,  etc…
