Boom Details

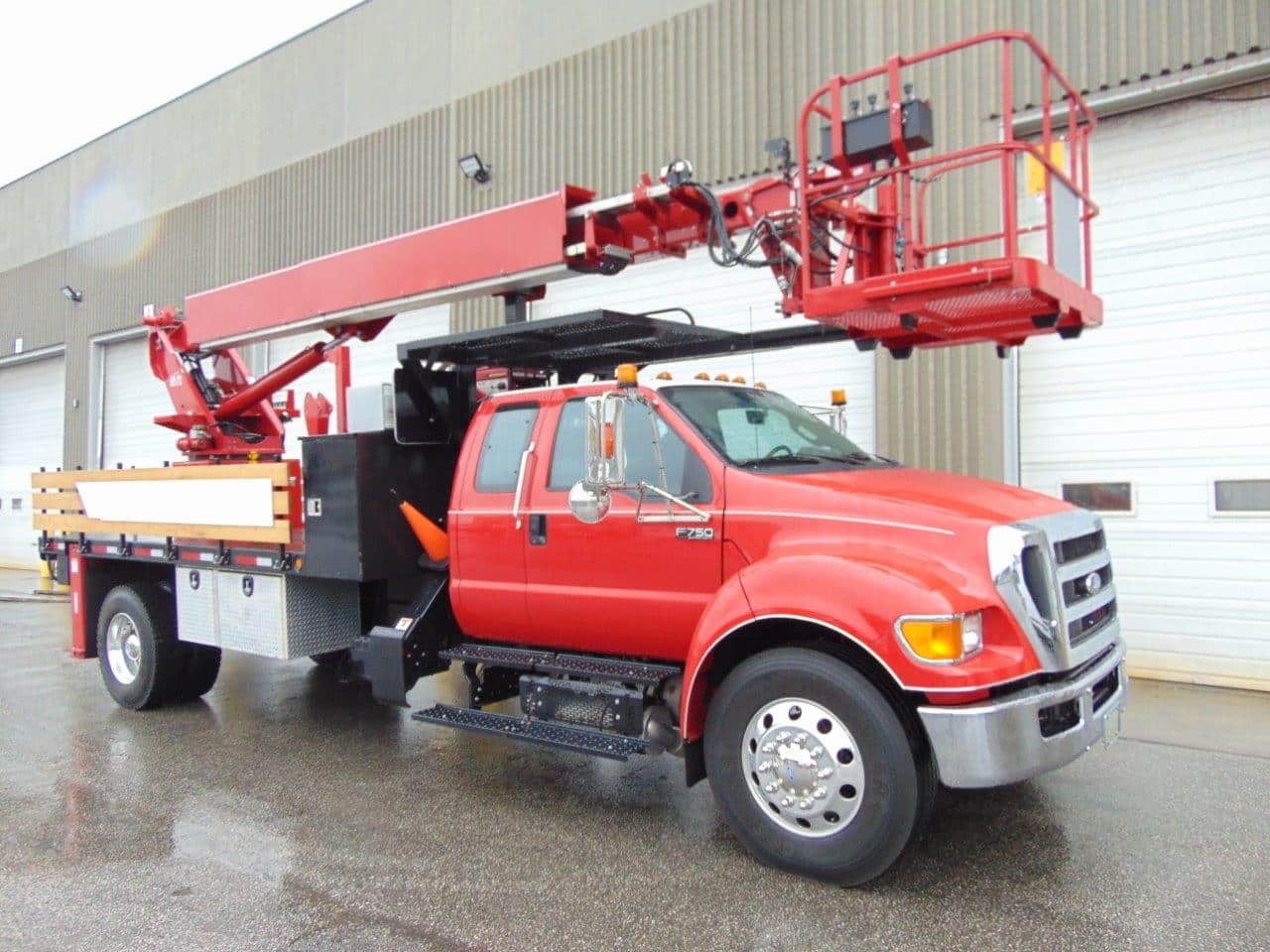

Elliott L60 R HiReach: Hydraulic reach to 62’ vertical working height and 56’ horizontal – Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted. New Air Operated PTO (Chelsea), Hydraulic Pump, Supply   and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested.  Painted White at Factory.

Standard Features include:

• Three individual proportional electronic controllers.  Boom ground controls located on roadside of turret, remote controls for boom operations                                           from platform operate from a removable control box (HI, Low and start stop toggles are also located in the platform).
• Work platform is 40”x 60” with 40” high rails, with safety attachment loops.
• One double acting 6” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
• Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
• Hydraulic OUT and DOWN driver side controls with a 18’ spread.Load Holding Valves on each cylinder for Safety and Security of Operator and Load.

Inlcuded Options Are:

• • 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
  • Platform mounted jib with hydraulic winch drum mounted on horizontal arm
  • 110 V power supply to work platform,   Sign forks on platform  (2 pcs)
  • 14’ x 96” steel bed,    Truck cab windshield guard,  steel carrier cover
  • 8’ cross box, 24” x 36” tall with doors on each side mounted at front of deck
  • Honda gas powered generator
  • Under deck storage boxes
  • Back up camera

Truck Details

• Used – 2015 Ford F-750 XLT Trim Extended Cab Single axle Truck: – 33,000 lb GVWR – Hyd Brakes – 280 hp Cummins Diesel Engine, Allison Automatic Trans., Only 12,000 miles – 6 person seating with extended cab, 12,000 lb fronts and 21,000 lb rears, 11R22.5 front and rear tires, hydraulic brakes, chrome bumper & grill,  Features Include:

  Steel rims, Top level Interior, Air. Cond., cruise, power windows/locks, tilt/tele steering,  am/fm CD stereo, cruise control, 50 gal fuel tank, etc…
