**SOLD** USED 2016 WESTERN STAR 4800 W/REMOVABLE 17′ DECK

SOLD USED 2016 WESTERN STAR 4800 W/REMOVABLE 17′ DECK – PM 100+JIB

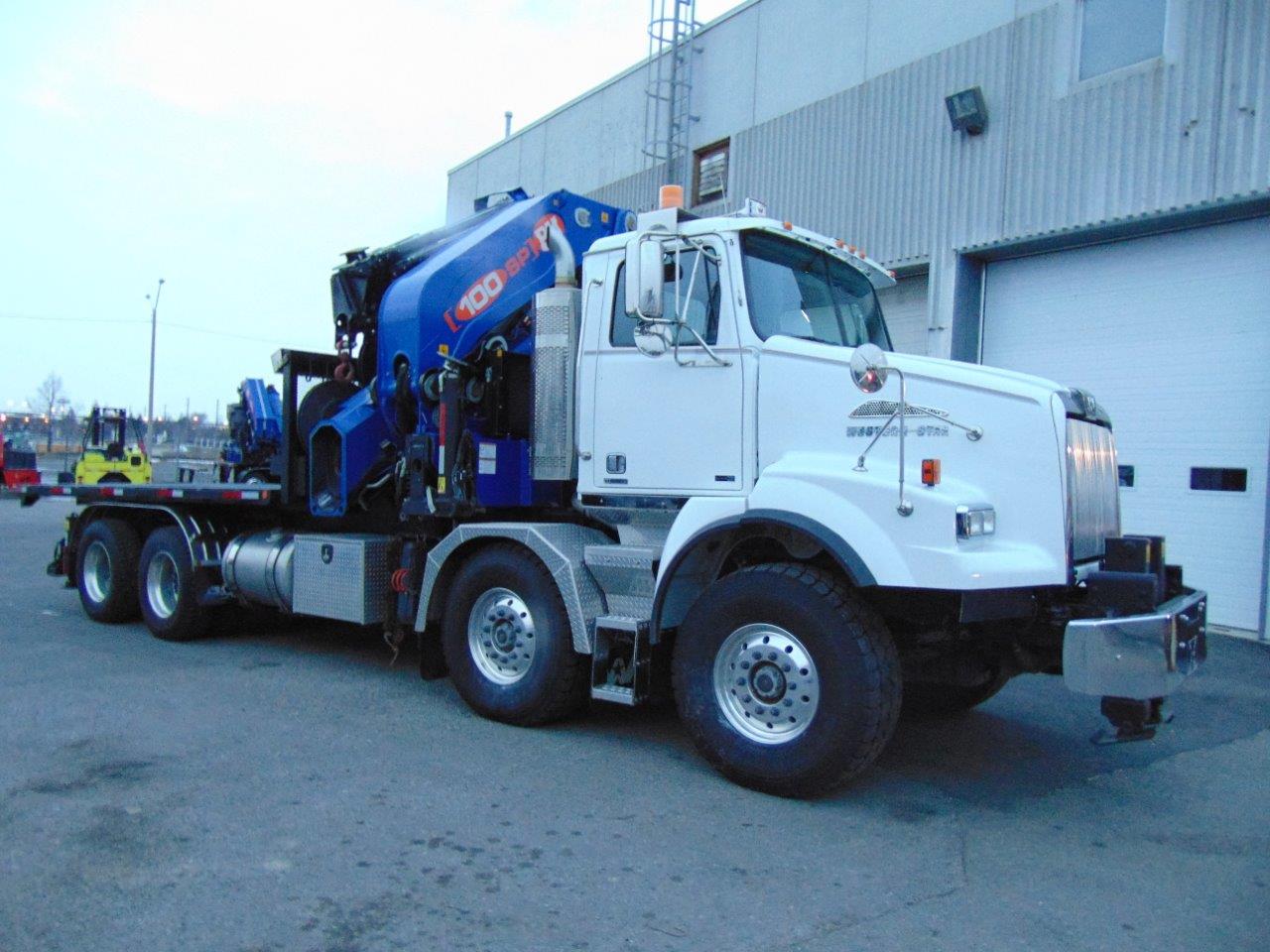

SOLD USED 2016 WESTERN STAR 4800 TA-TA TRACTOR W/REMOVABLE 17′ DECK – PM 100+JIB-124′ – 470 HP – AUTO 18-SPD

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Truck Details

USED 2016 WESTERN STAR 4800 SLOPED SHORT NOSE T/A STEER – T/A REAR TRACTOR – 4 AXLE
DDC-13 Diesel – 470 hp with Jake, Only 18,000 Miles
Auto 18-Speed Trans.
(2) X 20,000 lb Fronts with 425/65R22.5 Tires
46,000 lb Rears on Air Ride Susp., Double-Frame
Polished ALCOA Aluminum Wheels – Front and Outer Rear
Dual Chrome Single Polished Exhaust
Chrome Grill & Bumper
Dual 80-Gallon Aluminum Fuel Tank

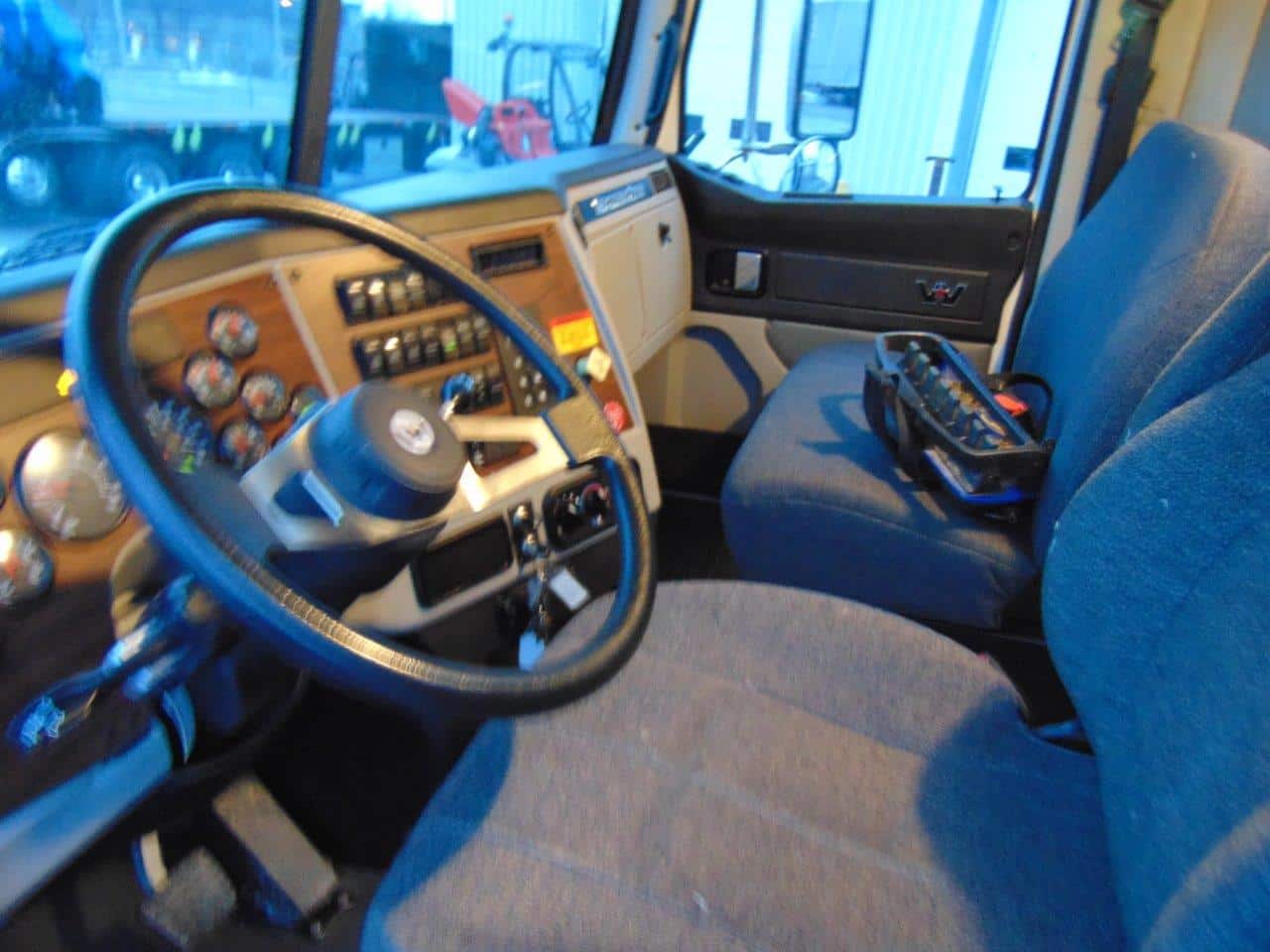

Loaded with Options Including: A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, 4 Wheel Lock-ups, Power Window both sides, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, Dual Chrome Air Breathers, 5th Wheel on at Tandems, etc…

Deck Details

17′ X 102″ REMOVABLE STEEL CHECKER PLATE FLAT DECK
Checker Plate Steel Deck Surface
Winch Bar Holder and Winch Bar
Ladder, Reflectors and 5-Side Lights
48″ Headboard Mounted on Sub-Base with 5th Wheel Hook-ups

Boom Details

PM 100028SP+J1616 KNUCKLE BOOM
Folding Hydraulic Knuckle Boom with Jib
8 Hyd. Extensions in Main Boom to 66′ 7″ Horiz (80′ Vert), 6 Hyd. Extensions in Jib to 110′ Horiz (122′ Vert)
PM Connecting Rods at First Boom and Knuckle, 15-Degree Negative Angle at 1st Knuckle, 25-Degree Negative Angle at Jib
Continuous Rotation and Dual Planetary Gear Rotation
Double Pilot Operated on Slewing and Pilot Operated Check Valves on all Cylinders
Special Extra High Tensile Steel Structure (Unit Weighs only a Few Hundred Pounds More Than PM 85 Version)
Hydraulic Extra-Wide Main Outriggers at Pedestal – 29′ 6″ Span – Hydraulic Tilting when Retracted. Radio Controlled
Hydraulic Oil Cooler, High Pressure Return Filter and Min. 92-Gallon Oil Tank for Boom
DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
PM Power Tronic Electronic System Allowing Constant Crane Monitoring & Visual Display
SCANRECO Radio Remote Control Inlcudes: 2 Batteries, In-Cab Charger, Back-up Cord
Crane Painted PM Blue
Load Chart in FT. & LBS.
Also Included:
5th Wheel Installed Over Tandem with Bracket Receiver Hook for Removable Deck
Program Remote Control to Include Engine Start/Stop and Variable Engine RPM
Auxiliary Extra-Wide Out and Down Stabilizers Mounted Behind T/A Under Frame – 26′ Spread
(2) 36″ Aluminum Tool Boxes Under Deck
(6) PVC Stabilizer Pads with Holders
Dual Front Bumper Stabilizer
