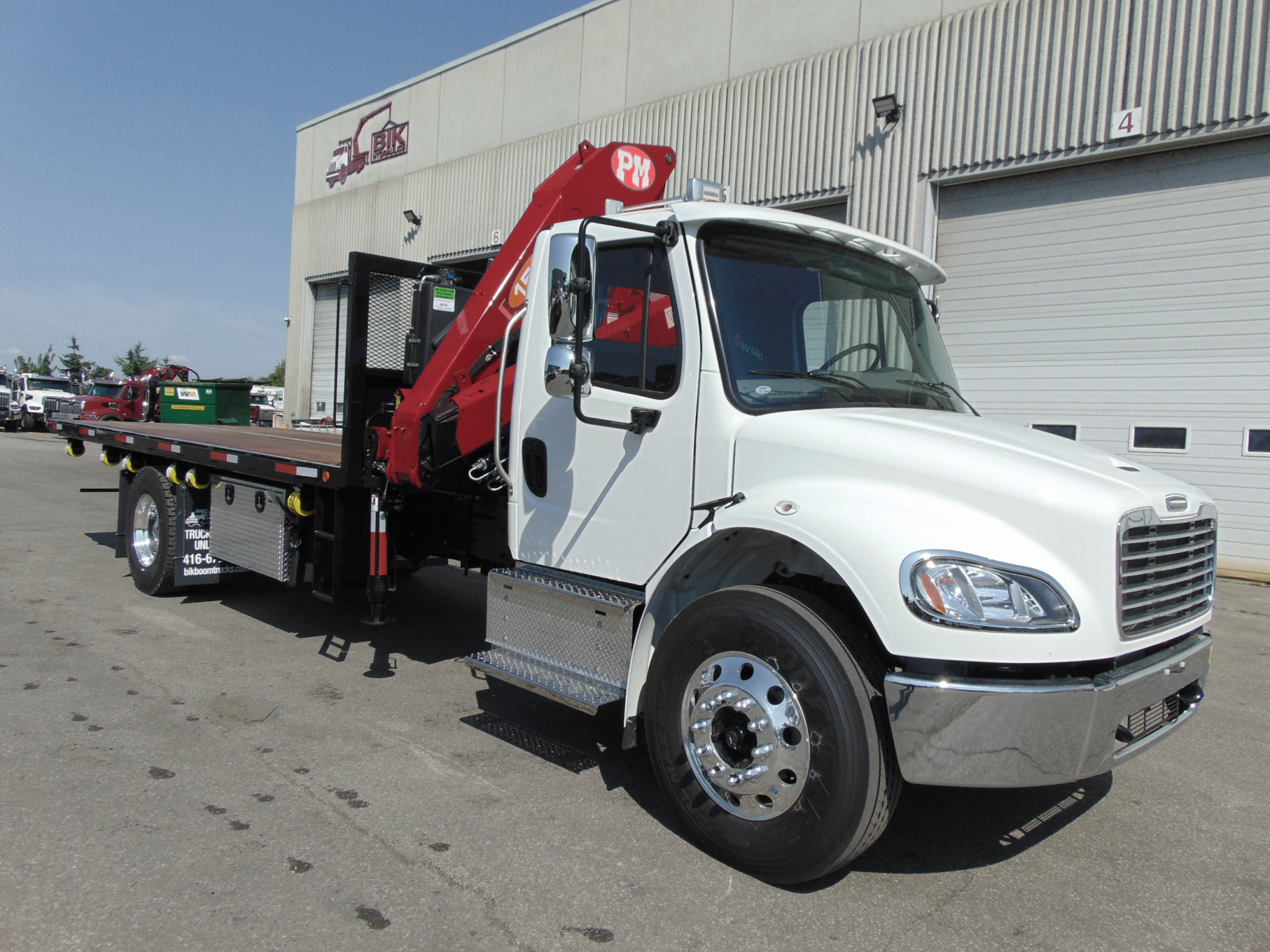

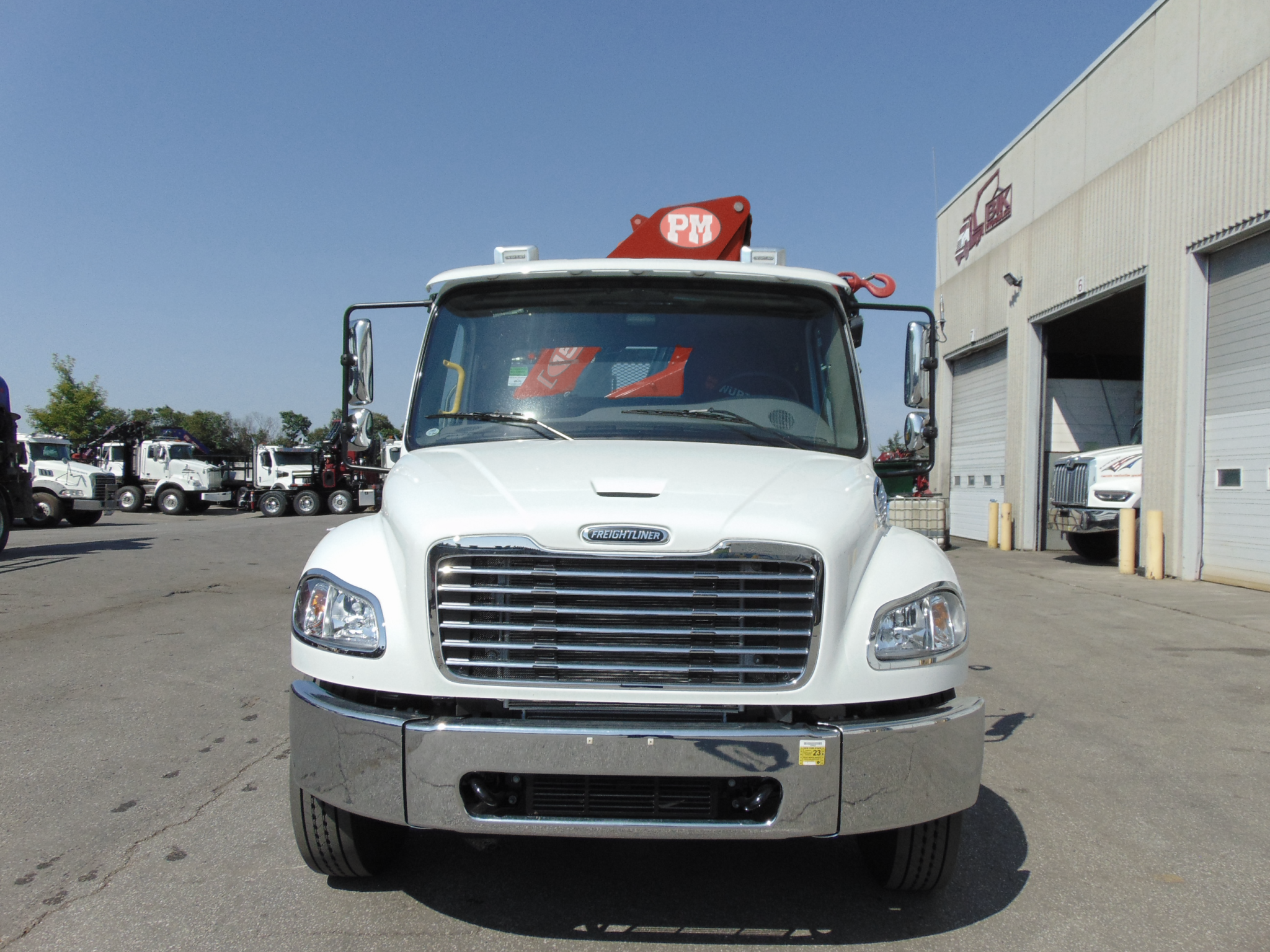

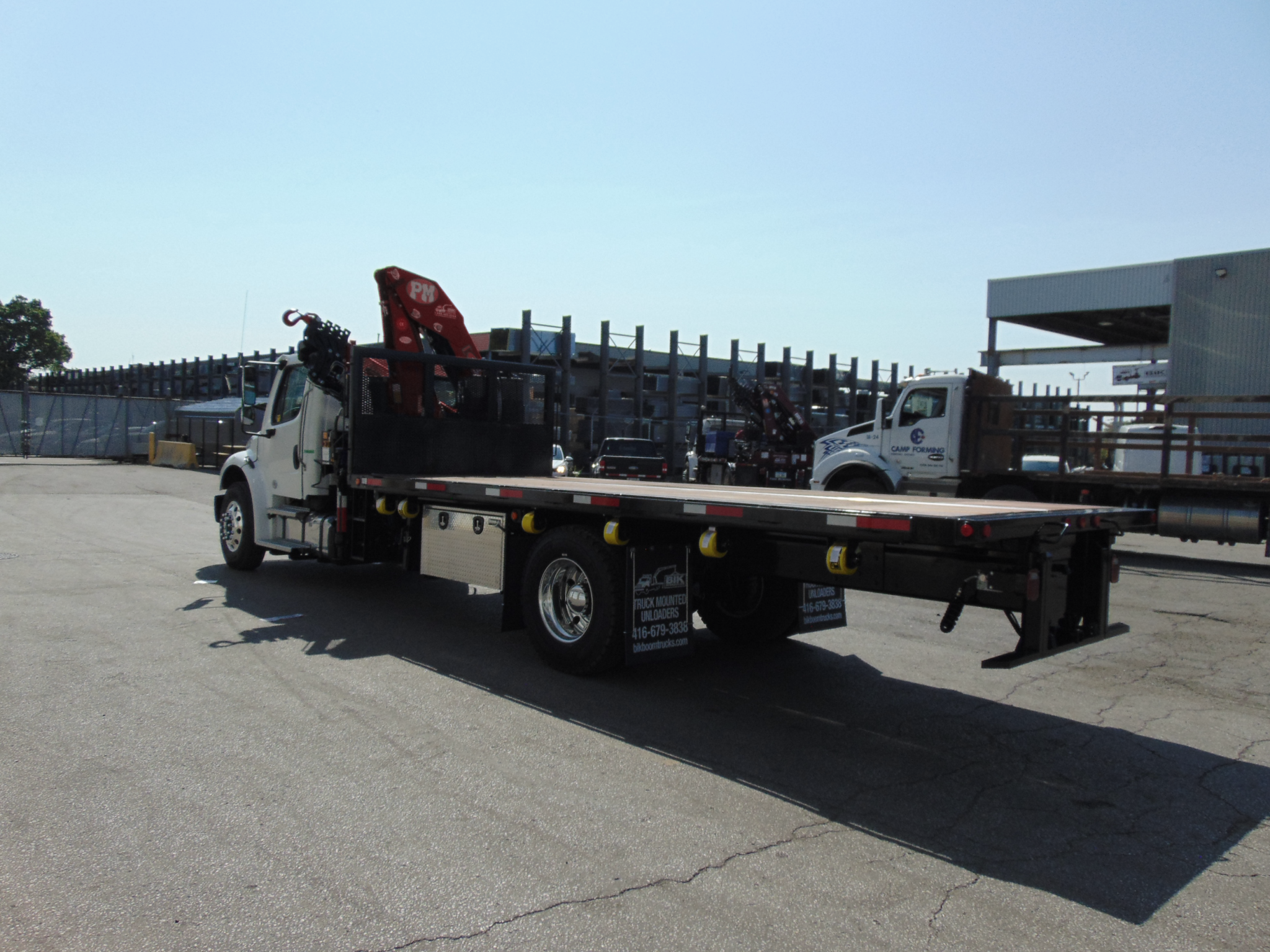

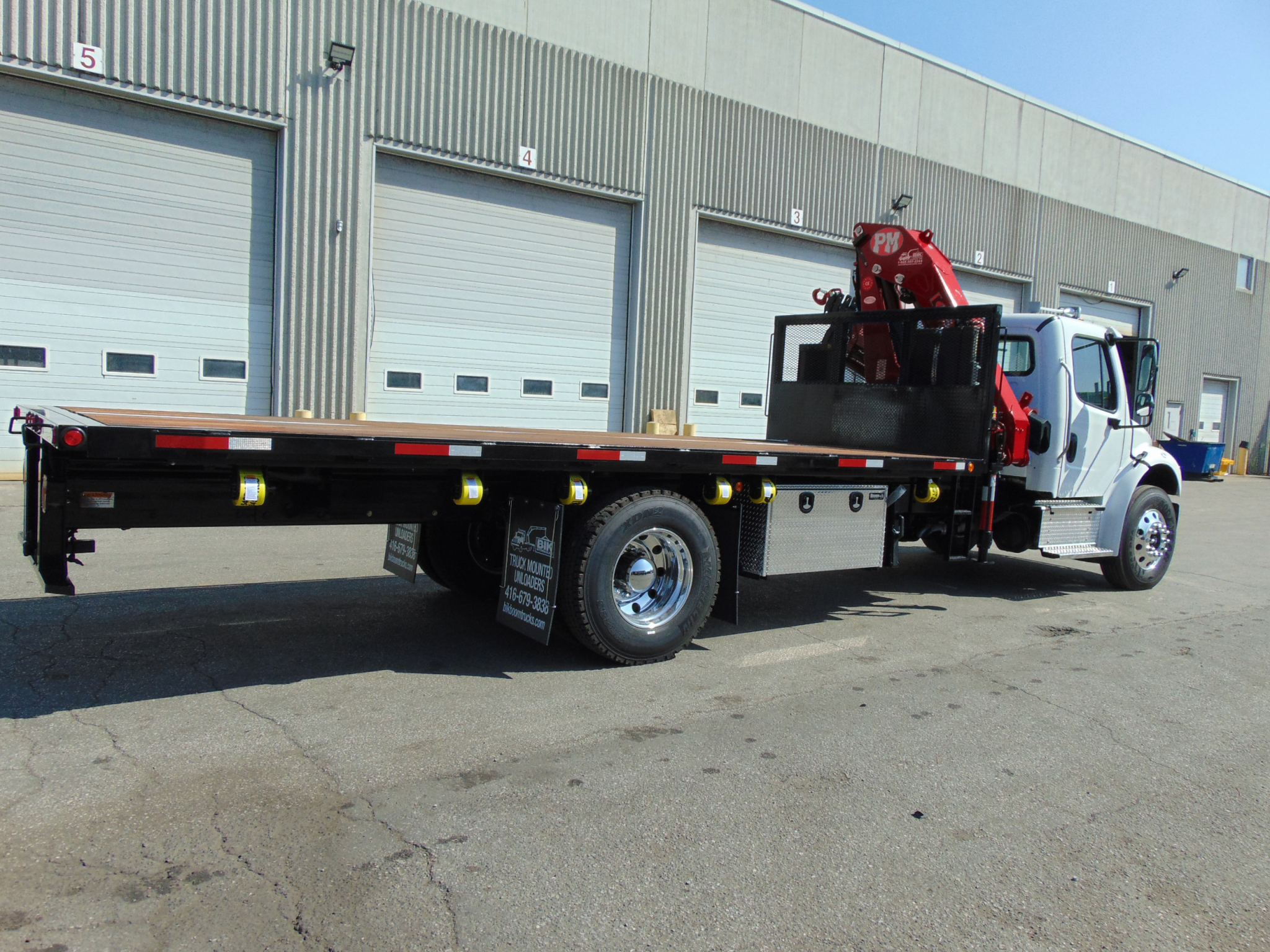

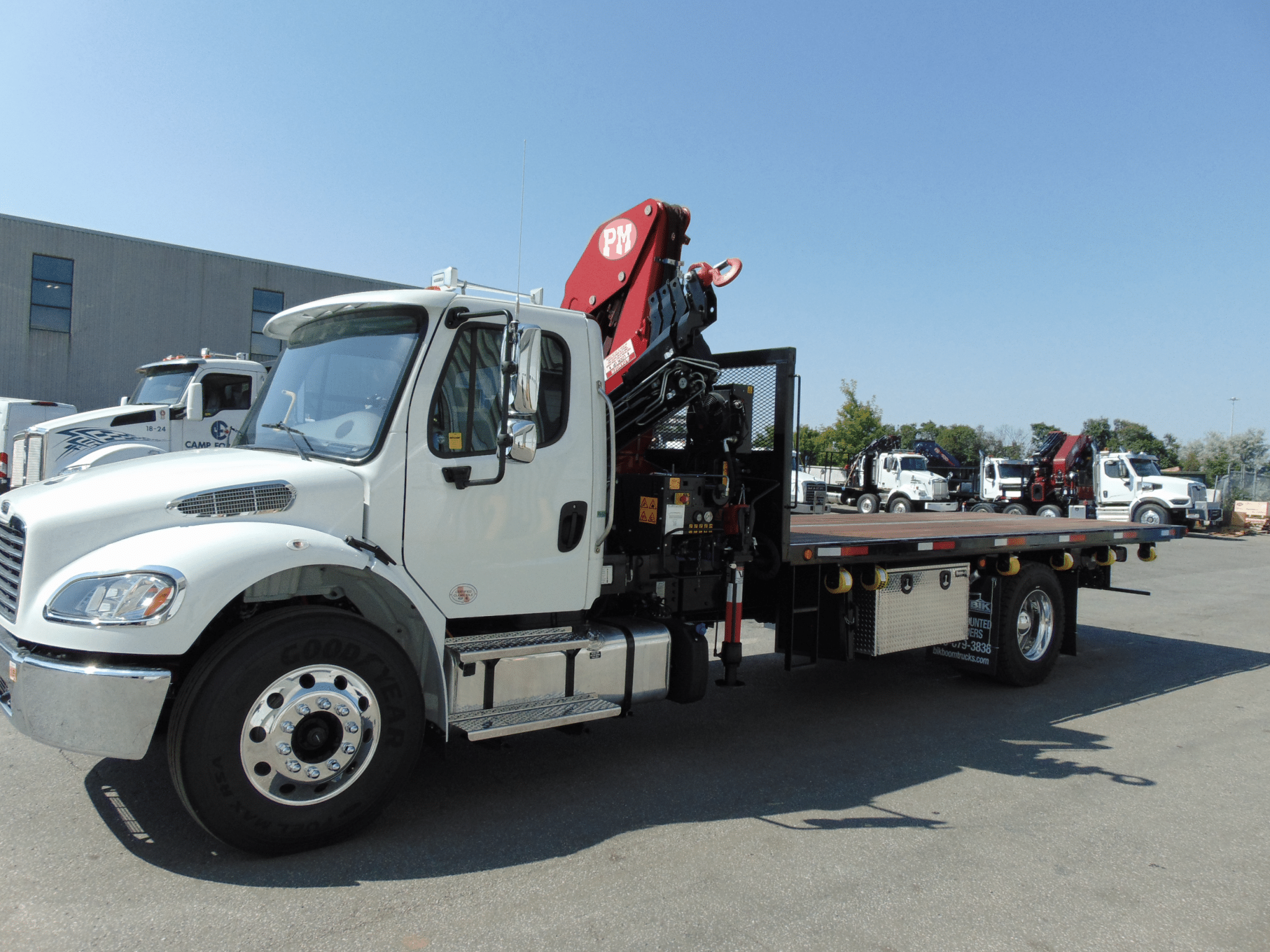

PM 15525 KNUCKLE BOOM ON FREIGHTLINER M2-106 AXLE TRUCK
NEW PM 15525 KNUCKLE BOOM ON FREIGHTLINER M2-106 AXLE TRUCK
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high-quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – PM 15525 KNUCKLE BOOM
- Hydraulic out & down stabilizers, 3-hydraulic extensions to 46′ Horizontal reach (58′ vertical)
- Horizontal Capacity:
-
- 6,000 lb @ 15’7″
- 4,150 lb @ 21’6″
- 3,100 lb @ 27’9″
- 2,290 lb @ 34′
- 1,810 lb @ 40′
- 1,480 lb @ 46’3″
-
- 408 Degrees Rotation on Main Hydraulic Slewing , Crane Painted PM Blue, Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Extra Wide Main outriggers at pedestal – 21′ 9″ span
- Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single sided operator control station
- SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control Radio
- Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50′ back-up cord
- Hydraulic OUT and Hydraulic DOWN 2-sided stabilizers w/round foot pads welded to bottom of cylinder.
- Hydraulic Overload Protection – simplified system that prevents boom from overload
- 15 degree negative angle at main/2nd arm, – Load Holding Valves on each cylinder for Safety and Security of Operator and Load
- Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision
- Load Tested & Engineer Certified – Installed either back of cab or rear, with Integral sub-frame to meet or exceed all CMVSS Standards.
Deck Details
NEW – 20′ WOOD DESK
- 8′ wide plus pockets with rub rails
- Checker plate steel deck surface

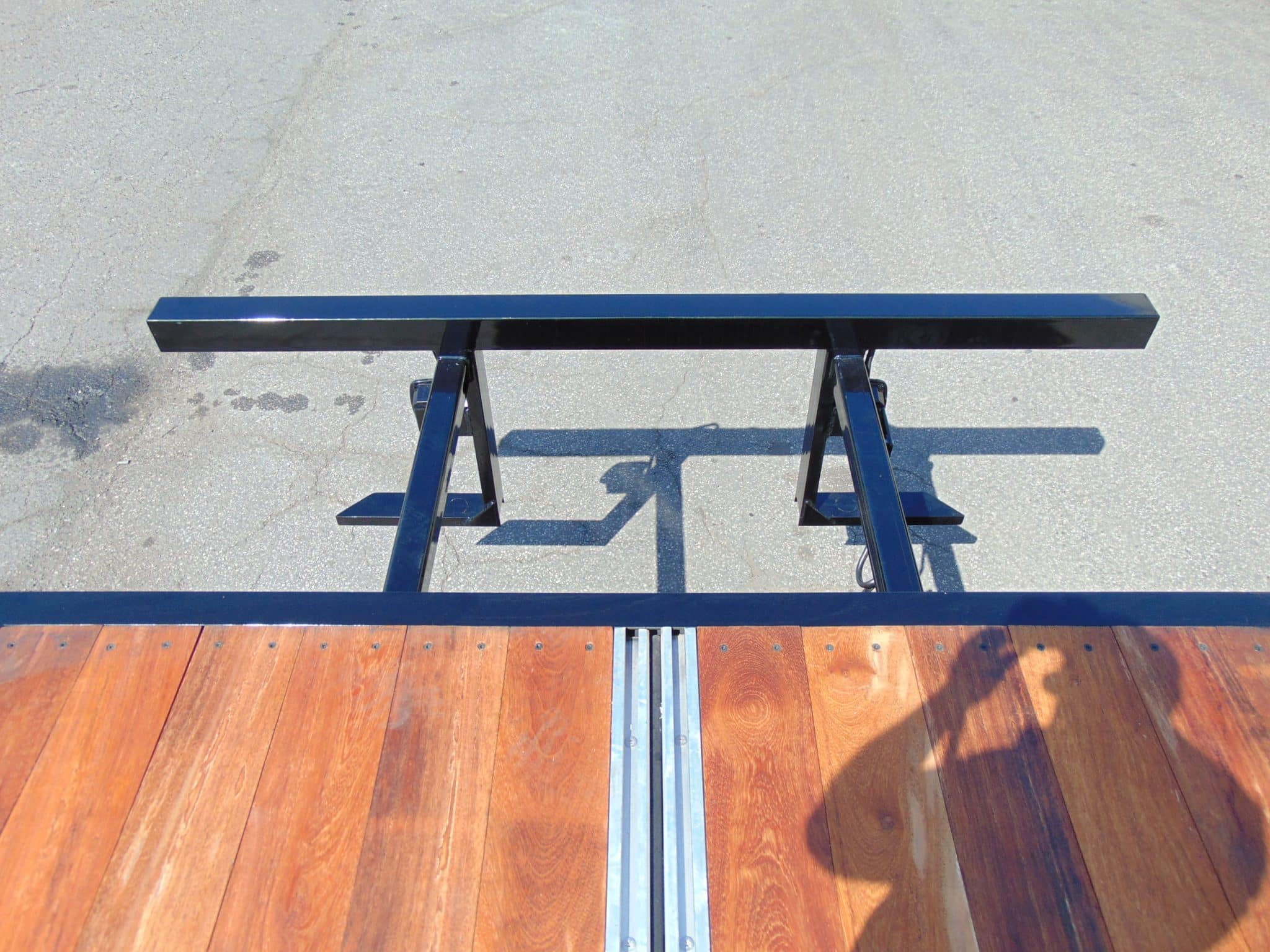

- 48″ Headboard with grab handles and ladders both sides, gloss black along with the rest of the deck
- 8-winches and straps (30′)
- DOT tape and Reflectors, Winch bar & holder
- Mud flap anti sail bracket to be integral/enforced. Platform to be painted
Truck Details
NEW – FREIGHTLINER M2-106 2-AXLE TRUCK:
- Airbrakes, 300 HP Cummins Diesel, Allison Auto Trans
- 12,000 lb fronts w/11R22.5 tires
- 21,000 lb rears, aluminum rims
- Air Cond, 2-man pass seat, cruise, power windows/locks
- tilt/tele steering, stereo, 2-man pass seat, Alum fuel tank, exterior sun visor, chrome bumper and grille, white color cab, etc.
Extra Options :
- Pair of PVC stabilizer pads with holders

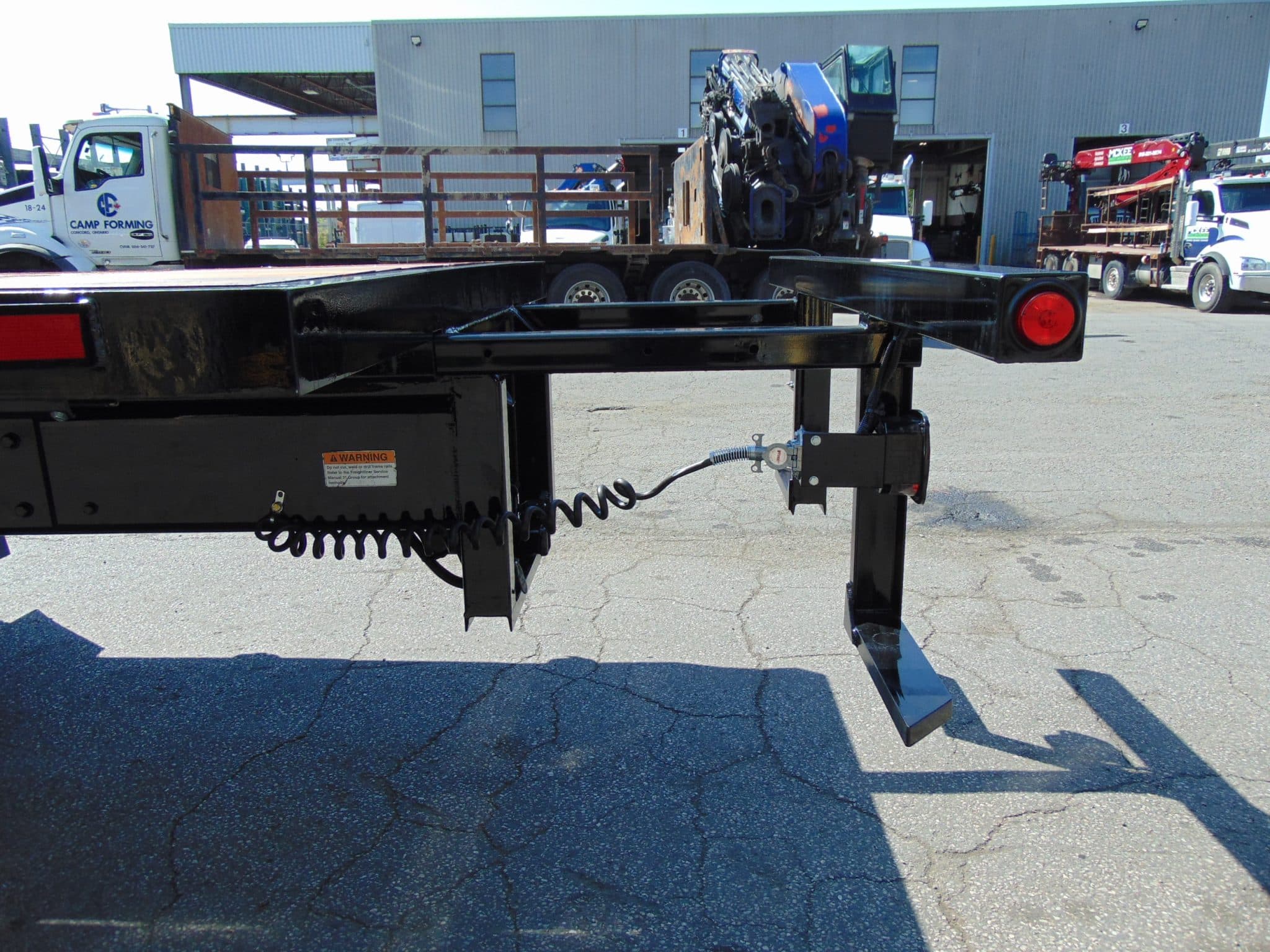

- Drawplate installed at rear of truck with pintle hitch & Electric brake actuator.
