*SOLD* USED 2021 PM 15525 KNUCKLE BOOM 58’ VERT REACH ON USED 2021 FLINER M2-106
PM 15525 KNUCKLE BOOM 58’ VERT REACH ON USED 2021 FLINER M2-106 T/A & NEW 24’ STEEL DECK – 350 HP CUMMINS – ALLISON AUTO
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
PM 15525 KNUCKLE BOOM: Folding Hydraulic Knuckle Boom 5 Hyd Extensions to 46’ 3” Horizontal Reach (58’ Vertical)
- Horizontal Capacity:
- 6,000 lb @ 15’ 7”
- 4,150 lb @ 21’ 6”
- 3,100 lb @ 27’ 9”
- 2,290 lb @ 34’
- 1,480 lb @ 4’ 3”
- 408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted PM Blue, Double Pilot Operated on Slewing and Pilot Operated Check Valves on all Cylinders, Hydraulic Extra-Wide Main Outriggers at Pedestal – 21’ 9” Span
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 40-Galllon Oil Tank for Boom
- Danfoss Proportional Valve Controls – Single-Sided Operator Control Station
- Scanreco Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
- Radio Remote Control Includes: 5 Micro Speed-Reducing Settings at Handheld, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord
- Hydraulic Out & Down 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder
- Hydraulic Overload Protection – Simplified System that Prevents Boom from Overload, 15-Degree Negative Angle
- Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
- Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision
- Load Tested & Engineer Certified – Installed Behind Cab, with Integral Sub-Frame to Meet or Exceed al CMVSS Standards
Deck Details
24’ STEEL FLAT DECK
- 8’ Wide Plus Pockets with Rub Rails
- Checker Plate Steel Deck Surface
- 66” Headboard with Grab Handles and Ladders both Sides
- Gloss Black along with the Rest of the Deck
- 8 Winches and Straps (30’)
- DOT Tape and Reflectors
- Winch Bar & Holder
- Mud Flap Anti-Sail Bracket to be Integral/Enforced

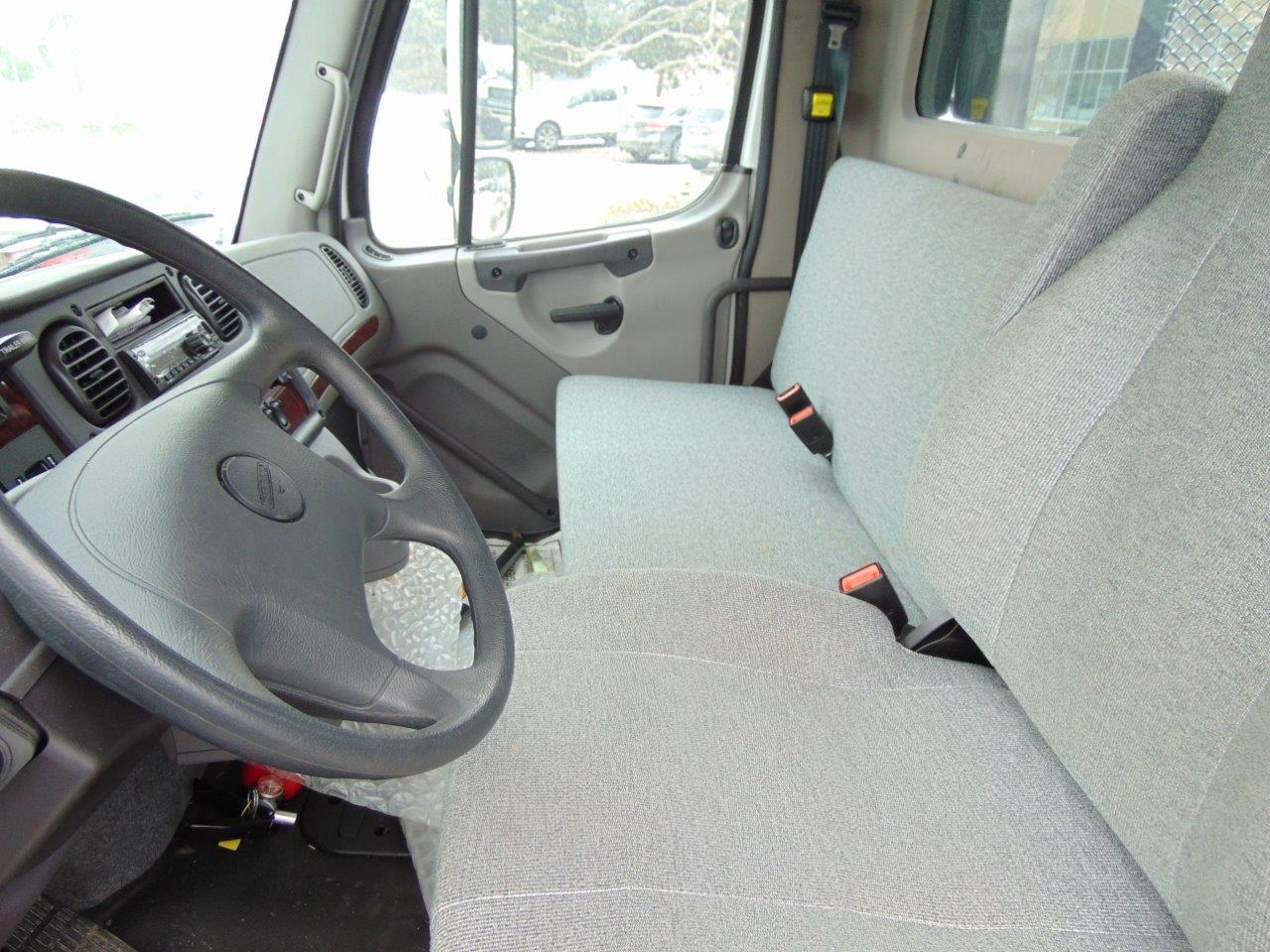

Truck Details
USED 2021 FREIGHTLINER M2-106 TANDEM DIESEL TRUCK: 60,000 lb GVWR, Truck Cab White
- Cummins 350 hp, Allison Automatic Transmission
- 20,000 lb 385/65R22.5 Front Tires on Steel White Rims
- 40,000 lb Rears on Air Ride Suspension with 11R22.5 Tires on Steel White Rims – Steel Inner
- 278” Wheel Base, Full Double Frame Chassis, 54” Spread at TA
- Truck Features Include: Air Cond., AM/FM Stereo, Power Windows/Locks, Tilt Steering, Cruise, Air Ride Cab, Painted Bumper, Heated Mirrors, Engine Block Heater, Inter-Axle Lock ups, Single 70-Gal Aluminum Fuel Tank, etc…
Additional Options Available:
- Arctic Fox Hydraulic Reservoir Heater
- Under Deck Mounted Aluminum Storage Boxes with Barn Door or Fold Down Door
- Self-Leveling Pallet Forks
- Additional Hydraulic and/or Manual Pull-Out Extension for Longer Reach
