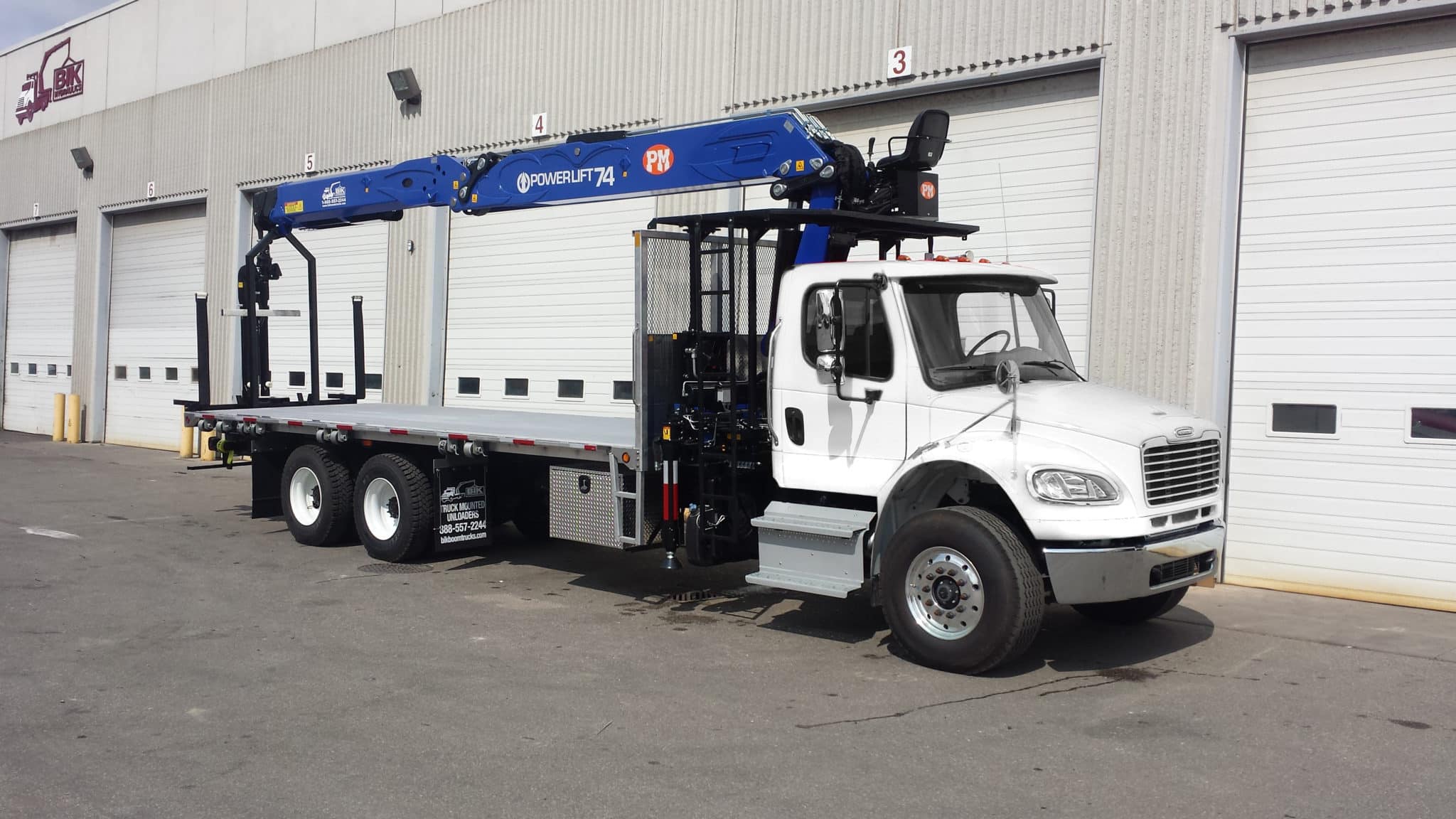

NEW POWERLIFT 74 WALLBOARD BOOM – 74’ VERTICAL REACH ON NEW FREIGHTLINER
NEW POWERLIFT 74 WALLBOARD BOOM – 74’ VERTICAL REACH ON NEW FREIGHTLINER M2-106 T/A & 24’ 4” ALUMINUM DECK – 350 HP – ALLISON AUTO
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – PM POWERLIFT-74 WALLBOARD SERIES BOOM 8th FLOOR LIFT
- 35 Ton/M Size Strength
- 4 Hydraulic Extensions to 62’ Horizontal Reach (74’ Vertical)
- Horizontal Capacities are:
- 7,360 lb @ 27’
- 5,180 lb @ 36’
- 3,930 lb @ 44’
- 3,050 lb @ 53’
- 2,605 lb @ 61’ 3”
- Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard. (2nd Off-Center Boom Rest Position at Rear TBD)
- Rack & Pinion Type 390 Degree Non-Continuous Rotation, Mechanical Stop Between Main Boom and Boom Unit
- Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
- Extra-Wide Stabilizers – 24’3” Span, Hydraulic Out and Down Type
- Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
- Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom
- DANFOSS Valve – At Ground Level Controls & SCANRECO Proportional Radio Remote Control
- Radio Remote Control Includes: 2 Batteries, In-Cab Charger, and Back-up Cord
- Continuous Rotation Drywall Forks
- Crane Painted PM Blue, Load Chart on Boom in FT. & LBS.
- Load Tested & Installed Back of Cab, with Integral Sub-Frame and Specialized Torsion Bracing to Meet or Exceed All CMVSS Standards
Deck Details
NEW – 24’4” X 102” ALUMINUM FLAT DECK
- Installed on 6” x 3” x 3/8” Sub Frame / Torque Box
- Aluminum Extruded Deck Surface – Strong & Durable
- Removable 66” Aluminum Headboard
- 8 Sliding Tie-Down Winch Straps on Passenger Side
- Winch Bar Holder and Winch Bar, Ladder, Reflectors and 5-Side Lights, as Required
Truck Details
NEW – FREIGHTLINER M2-106 T/A DIESEL TRUCK: 60,000 lb GVWR
- Cummins Diesel – 350 hp, 1,000 ft/lb Torque
- Allison Automatic Transmission
- 20,000 lb Fronts with 385/65R22.5 Front Flotation Tires on Aluminum Rims
- 40,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on Steel White Rims
- 278” Wheel Base, Double Frame Chassis
- Truck Features Include: A/C, AM/FM Stereo, Cruise, Tilt/Telescopic Steering Column, Power Windows & Door locks, Chrome Bumper and Grill, Heated Mirrors, Chrome Hood-Mounted Mirror, Engine Block Heater, Trailer Air Tow Package, Rear Wheel Lock-ups, 80-Gallon Aluminum Fuel Tank, etc…
