***SOLD*** NEW POWERLIFT 74 WALLBOARD BOOM – 74’ VERTICAL REACH-2019 WESTERN STAR 4700

SOLD NEW POWERLIFT 74 WALLBOARD BOOM – 74’ VERTICAL REACH-2019 WESTERN STAR 4700

SOLD – NEW POWERLIFT 74 WALLBOARD BOOM – 74’ VERTICAL REACH ON NEW 2019 WESTERN STAR 4700 T/A & 24’ 6” STEEL DECK – 470 HP – 18 SPD

The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

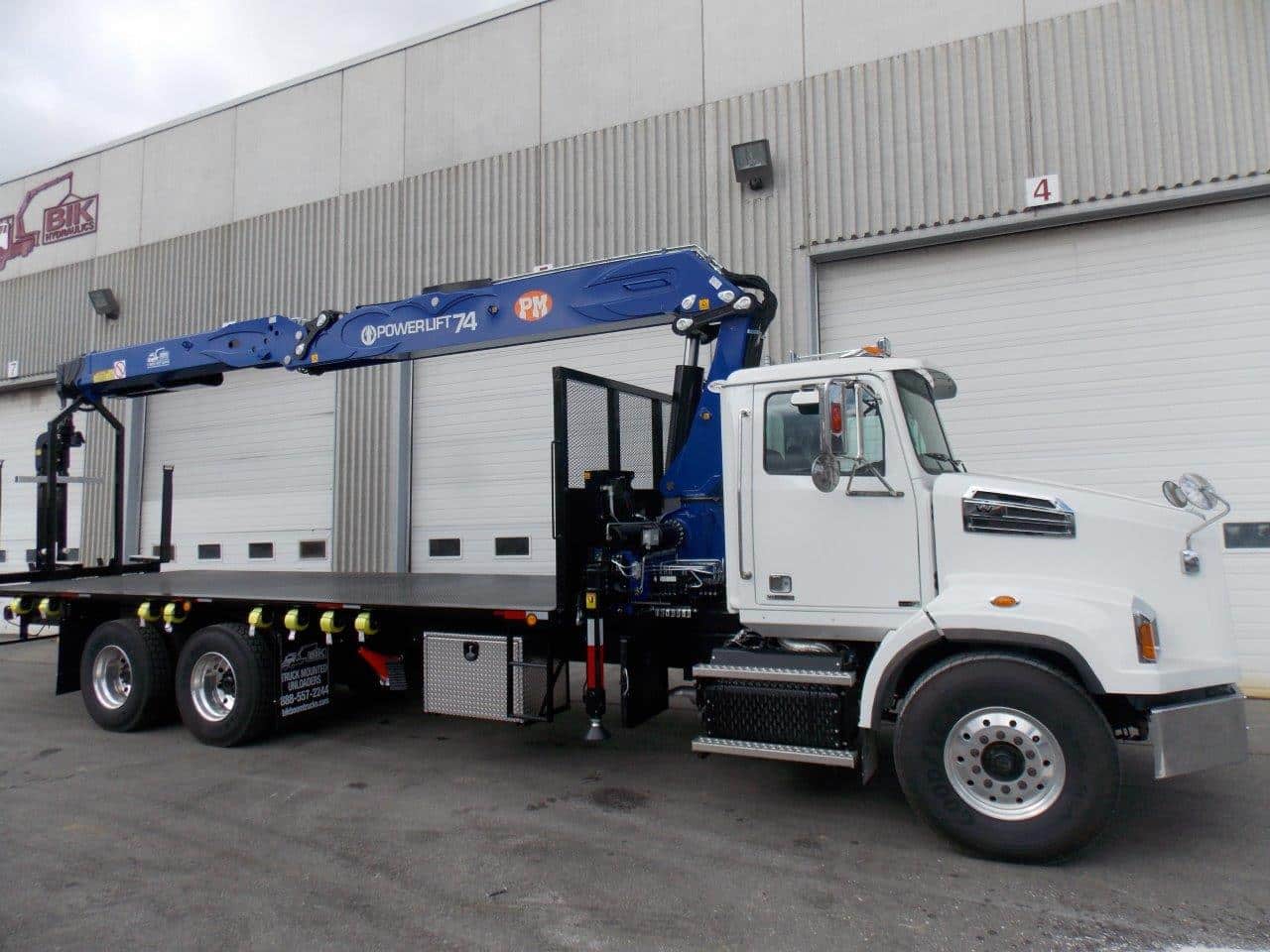

NEW – PM POWERLIFT 74 WALLBOARD SERIES BOOM – 8th Floor Lift Installed Back of Cab – Best Capacity in its Class!
Horizontal Capacities Are: 7,360 lb @ 27′, 5,180 lb @ 36′, 3,930 lb @ 44′, 3,050 lb @ 53′, 2,605 lb @ 61′ 3″
4 Hydraulic Extensions to 62′ Horizontal Reach (74′ Vertical)
Internal Cylinders on all Boom Extensions, Outer Boom Cylinder Guard
Rack & Pinion Type 390-Degree Non-Continuous Rotation, Mechanical Stop Between Main Boom and Boom Unit
Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout

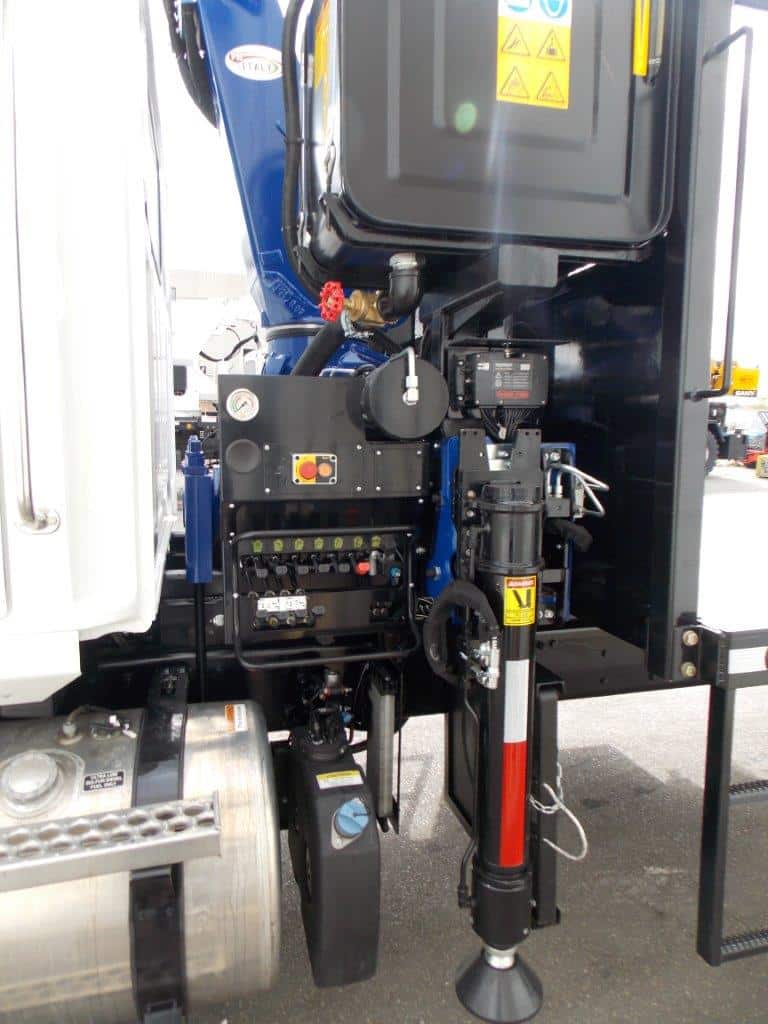

Extra-Wide Stabilizers – 24′3″ Span, Hydraulic Out and Down Type
Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom
SCANRECO Proportional Radio Remote Control with DANFOSS Valve Bank
Radio Remote Control Includes: 2 Batteries, In-Cab Charger, and Back-up Cord
Continuous Rotation Drywall Forks
Crane Painted PM Blue, Load Chart on Boom in FT. & LBS.
Load Tested & Installed Back of Cab, with Integral Sub-Frame and Specialized Torsion Bracing to Meet or Exceed All CMVSS Standards

Deck Details

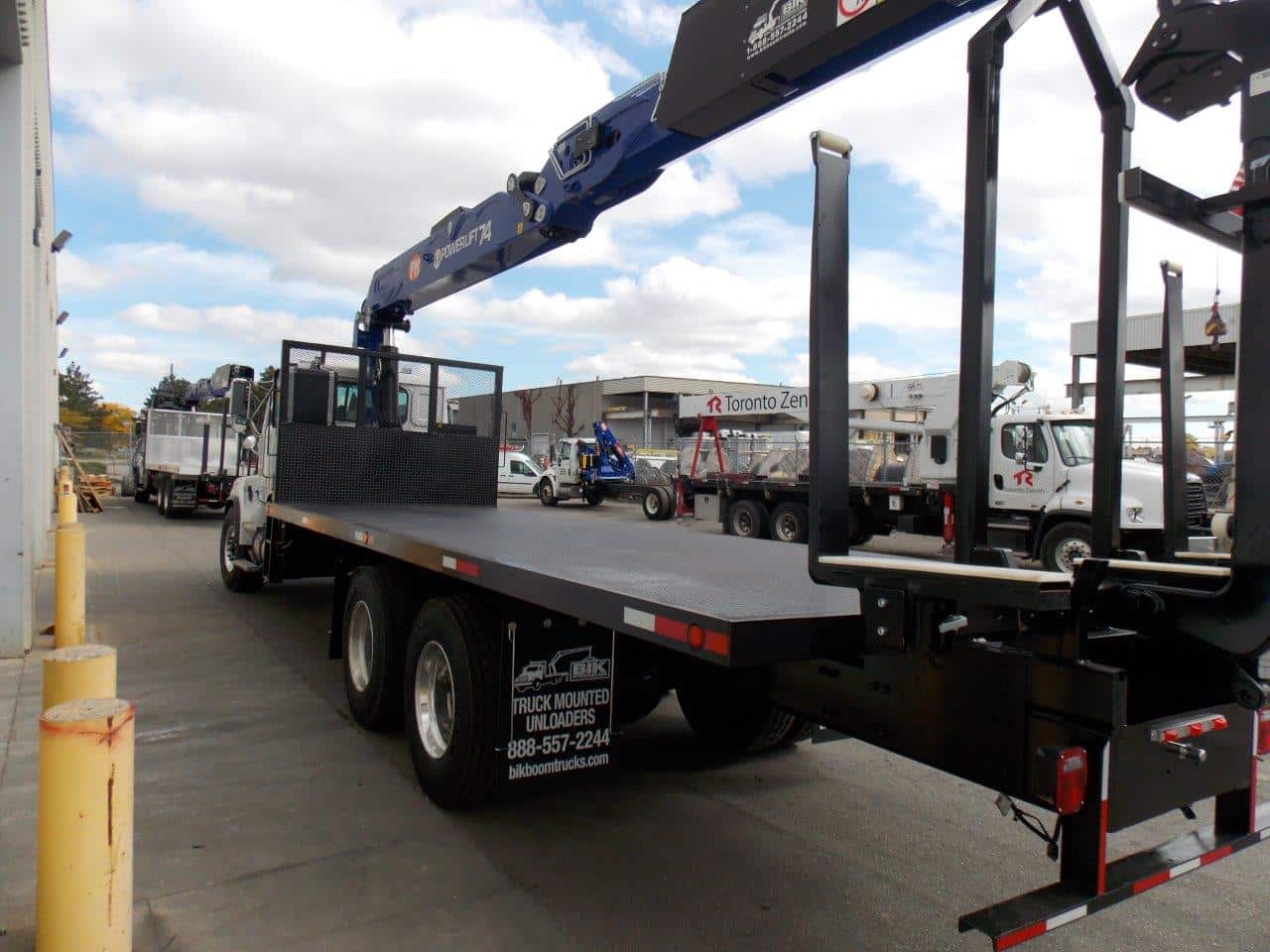

NEW – 24′ 6″ X 102″ STEEL FLAT DECK
Installed on Top of Steel Main Sill
4″ Aluminum Extrusion Deck Surface
Removable 66″ Front Headboard
8 Sliding Tie-Down Winch Straps on Passenger Side
Winch Bar Holder and Winch Bar
Access Ladders on Both Sides at Front
Under Deck Stabilizer Pad/Cone/Chuck Holders
Reflectors and 5-Side Lights as Required

Truck Details

NEW – 2019 WESTERN STAR 4700 TANDEM AXLE DIESEL TRUCK: 66,000 GVWR
Detroit Diesel DDC 13 – 470 hp, 1,650 ft/lb Torque, 18 Spd. Transmission
20,000 lb Fronts with 425/65R22.5 Front Flotation Tires on Alum. Rims
46,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on Alum. Rims
278″ Wheel Base, Double Frame Chassis, 54″ Spread at Tandems

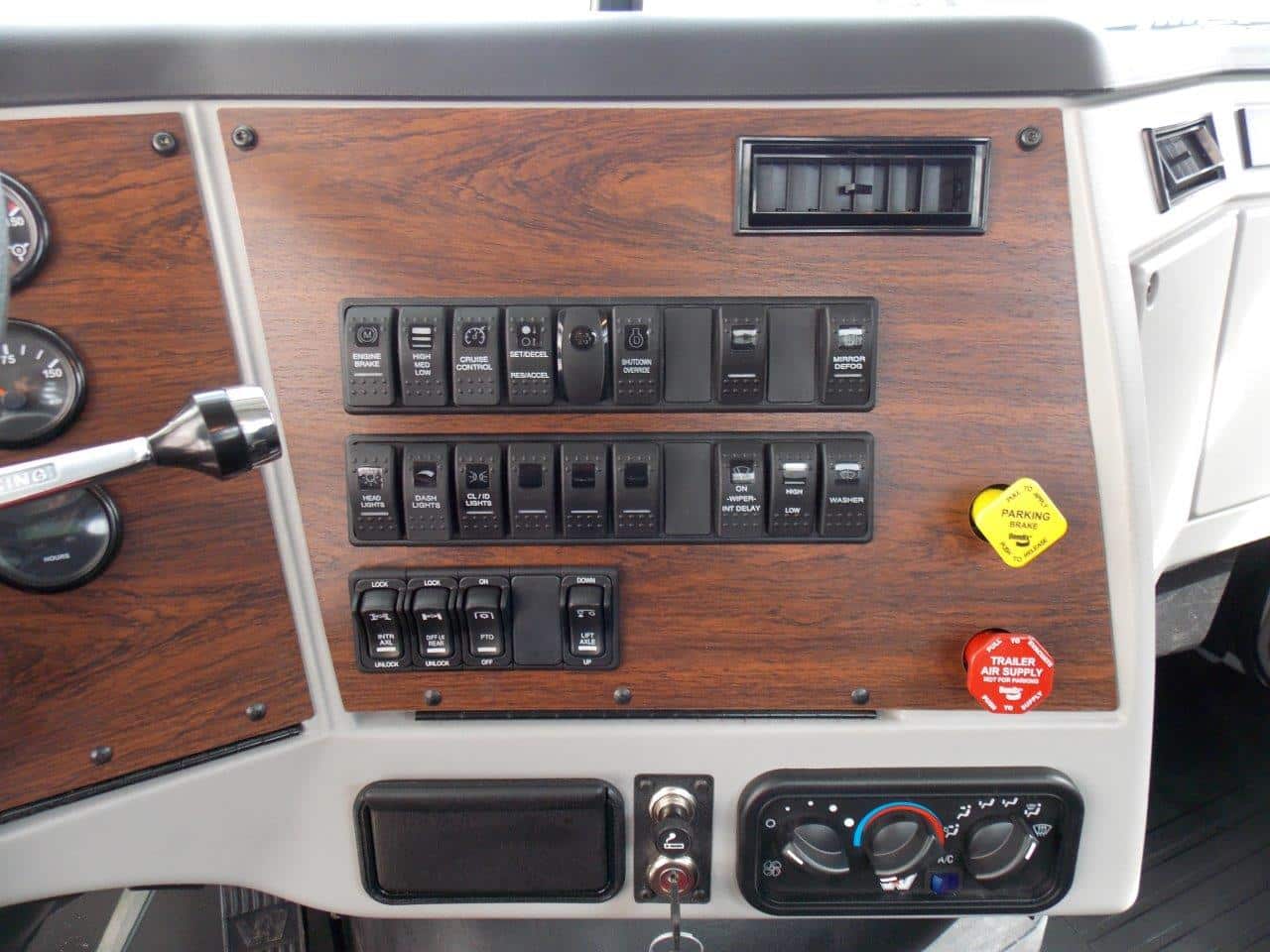

Truck Features Include: Two Stage Engine Brake, A/C, AM/FM Stereo, Cruise, Tilt/Tele Steer Column, Power Windows/Locks, Chrome Bumper and Grill, Power and Heated Mirrors, Dual Chrome Hood-Mounted Mirrors, Engine Block Heater, Painted Ext. Visor, Trailer Air Tow Package, Rear Wheel Lock-ups, 80-Gallon Alum Fuel Tank, etc…
Also Included: Activate Extra Remote Features to Operate: Engine Start/Stop, Variable RPM & Truck Horn Alert; Safety Cones (2 pcs) with Holders and Wheel Chucks; Pair of PVC Stabilizer Pads with Holders on Each Side at Front of Deck.
Other Options Available: Eaton Ultrashift Plus 18 Speed Automated Trans (instead of Manual Shift type), 36″ Aluminum Storage Box Installed Under Deck, 24′ 6″ Aluminum Flat Deck with Alum. Head Board (instead of Steel)
