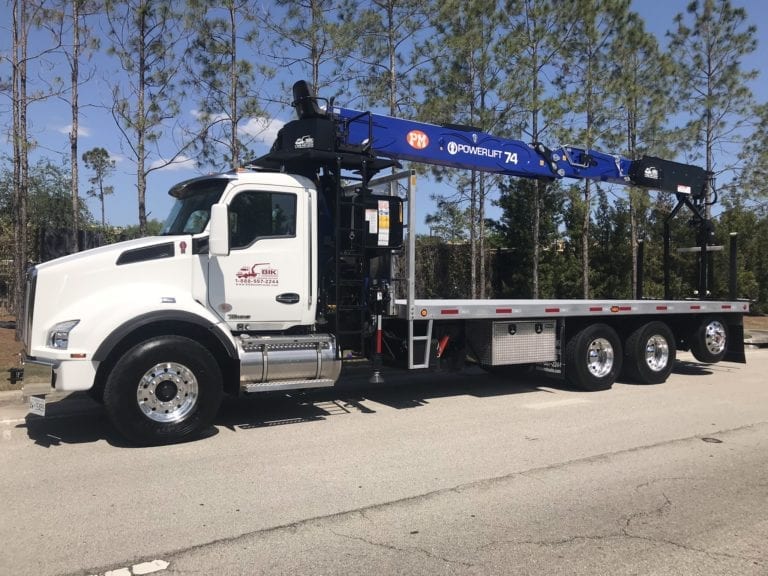

NEW PM POWERLIFT 74 WALLBOARD BOOM 74′ VERTICAL REACH- KENWORTH T880
NEW PM POWERLIFT 74 WALLBOARD BOOM 74′ VERTICAL REACH ON NEW KENWORTH T880-SH 4-AXLE & 24′ 24″ ALUM DECK – 485 HP – AUTO 18 SPD
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – PM POWERLIFT-74 WALLBOARD SERIES BOOM – 8th Floor Lift – Installed Back of Cab – Best Capacity in Its Class!
- 4 Hydraulic Extensions to 62′ Horizontal Reach (74′ Vertical)

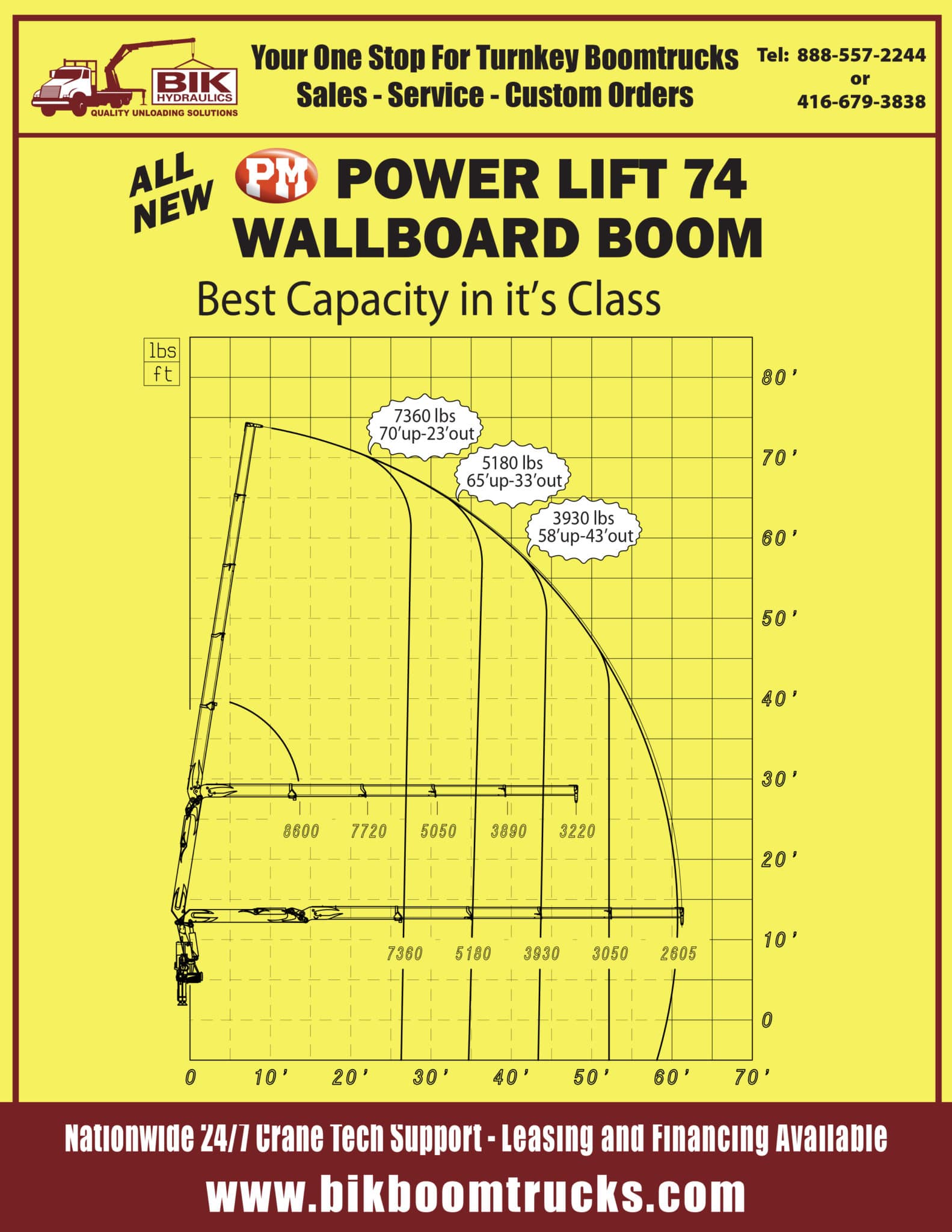

- Horizontal Capacities Are:
- 7,360 lb @ 27′
- 5,180 lb @ 36′
- 3,930 lb @ 44′
- 3,050 lb @ 53′
- 2,605 lb @ 61′ 3″
- Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard.
- Rack & Pinion Type 390 Degree Non-Continuous Rotation, Mechanical Stop Between Main Boom and Boom Unit
- Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
- Extra-Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
- Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
- Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom
- DANFOSS Valve – At Top Seat Joystick & Foot Pedal Controls & SCANRECO Proportional Radio Remote Control
- Radio Remote Control Includes: 2 Batteries, In-Cab Charger, and Back-up Cord
- Continuous Rotation Drywall Forks
- Crane Painted PM Blue, Load Chart on Boom in FT. & LBS.
- Load Tested & Installed Back of Cab, with Integral Sub-Frame and Specialized Torsion Bracing to Meet or Exceed All CMVSS Standards
Deck Details
NEW – 24’4” X 102” ALUMINUM FLAT DECK
- Installed on Top of Steel Main Sill, 4″ Aluminum Excrusion Deck Surface
- Removable 66″ Front Headboard
- 8 Sliding Tie-Down Winch Straps on Passenger Side, Winch Bar Holder and Winch Bar
- Access Ladders on Both Sides at Front, Under Deck Stabilizer Pad/Cone/Chuck Holders
- Reflectors and 5-Side Lights as Required
Truck Details
NEW – KENWORTH T880 4-AXLE DIESEL TRUCK: 79,000 lb GVWR
- PACCAR 13L Diesel 485 hp, 1,650 ft/lb Torque
- Eaton Ultrashift-Plus Automated 18-Speed Transmission
- 20,000 lb Fronts with 425/65R22.5 Front Flotation Tires on Aluminum Rims
- 46,000 lb Rears on Hendrickson Primax Air-Ride Suspension with 11R22.5 Tires on Aluminum Rims
- 13,000 lb Self-Steer Tag Axle Behind T/A with Low Profile 22.5″ Tires & Alum. Rims
- 274″ Wheel Base, Double Frame Chassis, 54″ Spread at Tandems
- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM Stereo, Cruise, Tilt/Telescopic Steer Column, Power Windows/Locks, Chrome Bumper & Grill, Power and Heated Mirrors, Dual Chrome Hood-Mounted Mirrors, Engine Block Heater, Painted Ext. Visor, Trailer Air Tow Package, Rear Wheel Lock-ups, 80-Gal. Alum. Fuel Tank, etc…
Also Included:
- Activate Extra Remote Features to Operate: Engine Start/Stop, Variable RPM & Truck Horn Alert
- (1) 36″ Aluminum Storage Box
- Safety Cones (2 pcs.) with Holders and Wheel Chucks
- Pair of Aluminum Stabilizer Pads with Holders on Each Side at Front of Deck
- 1″ Drawplate Installed with Pintle Hook
