***SOLD*** NEW PM 65026+J1316 KNUCKLE BOOM ON 2017 WESTERN STAR 4700 & 21’ ALUM DECK

SOLD NEW PM 65026+J1316 KNUCKLE BOOM ON 2017 WESTERN STAR 4700 & 21’ ALUM DECK

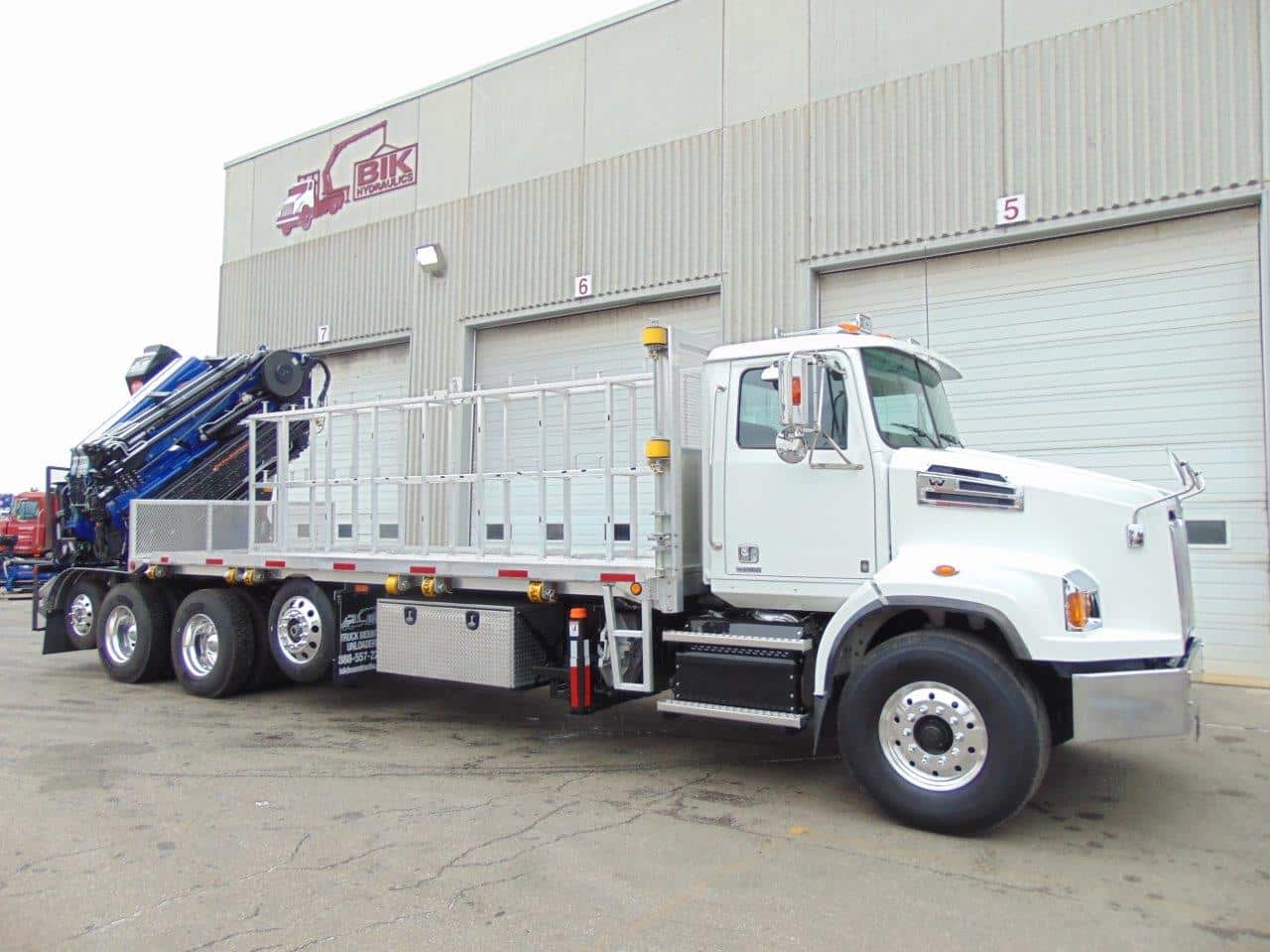

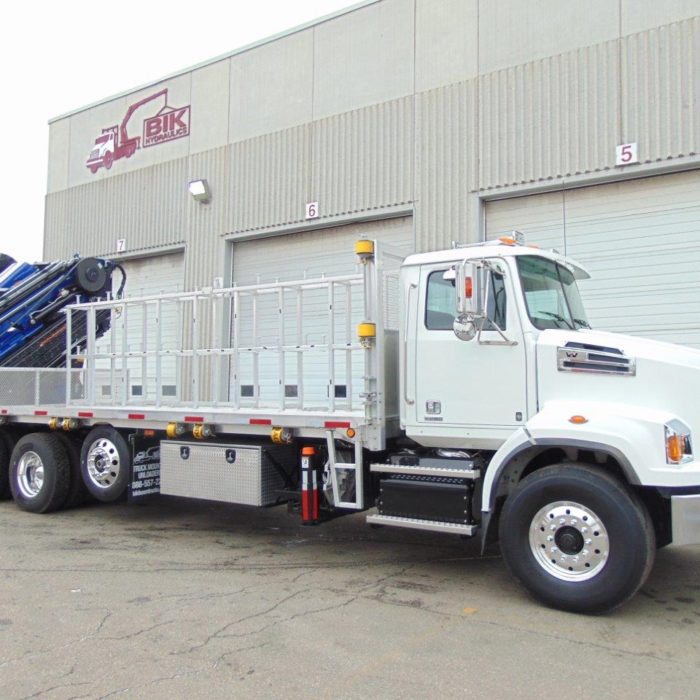

SOLD NEW PM 65026 + J1316 KNUCKLE BOOM – 92’ SIDE REACH ON 2017 WESTERN STAR 4700 5-AXLE & 21’ ALUMINUM DECK – 470 HP – AUTO 18 SPD

The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

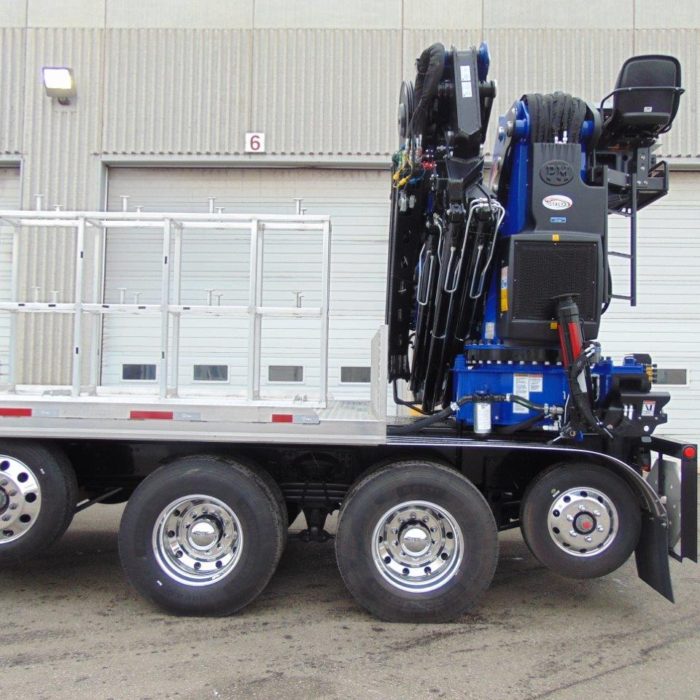

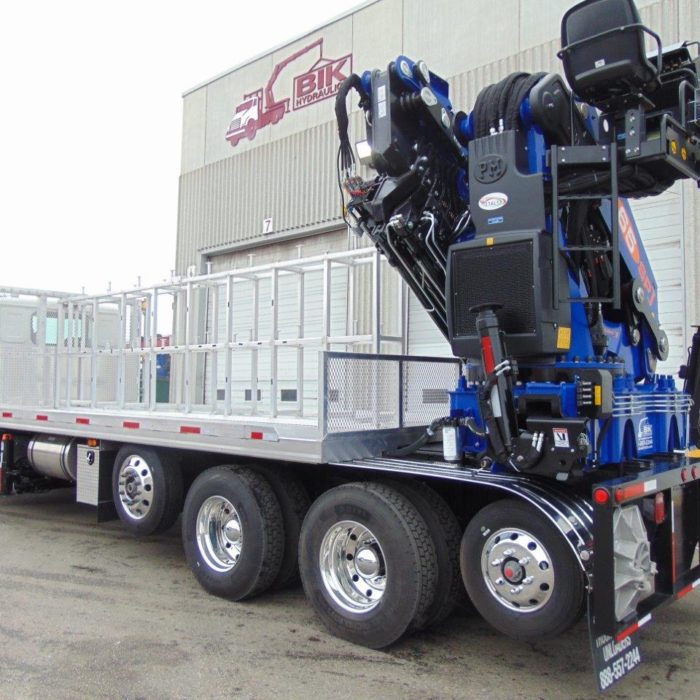

NEW PM 65026S KNUCKLE BOOM
Main Boom Horizontal Capacity:48,500 lb @ 8’ 2”, 28,260 lb @ 14’ 5”, 15,340 lb @ 25’ 3”, 10,000 lb @ 37’, 7,210 lb @ 50’ 2”
Jib Horizontal Capacity: 3,850 lb @ 59’ 1”, 3,000 lb @ 74’ 6”, 2,340 lb @ 81’ 1”, 2,100 lb @ 86’ 8”, 1,800 lb @ 92’
Standard Features Include:
PM Power-Link Connections at Main and Knuckle
Dual Planetary Gear Motors & Continuous Boom Rotation
SCANRECO 6-Function WIRELESS REMOTE CONTROL with 2-Way Load Sensing Communication, Includes Digital Load Capacity Read-Out
7-Section DANFOSS Valve Bank for Precise Movement and Accuracy
180 Degree Flip-Up Hydraulic Extra Wide Main Outriggers at Pedestal – 28′ 7″ Span
Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
Continuous Rotation & Non-Computerized Safety Valves
Extra Function Plumbed to Boom Top w/Hydraulic Rotator & T-Hook
Functional Features on Wireless Remote Include: High/Low Engine Idle, 6 Multiple “Turtle Mode” Settings to Reduce Overall Boom Speed for Precision Function Control, Emergency Stop
WARRANTY: 1-Year Parts & Labor on Entire Boom, 3-Year Structural on PM Components

Deck Details

NEW 21’ x 102” ALUMINUM FLAT DECK
LOW PROFILE: To Accommodate up to 9’ 2” Tall Form Cages
Installed on Pre-Engineered 6” Main Sill Sub-Frame & Extension with X-Braces for Torsional Support Tied to Truck Frame by Sheer-Plating at Front
Center and Rear Aluminum Deck Surface
60” + Headboard, 6 – Under Deck Sliding Tie-Down Winch Straps on Passenger Side
Winch Bar Holder and Winch Bar, Dual Ladder Access, Reflectors and Side Lights, as Required by DOT Standards

Truck Details

NEW 2017 WESTERN STAR 4700 FIVE-AXLE DIESEL TRUCK: 88,000 lb GVWR
DDC-13 470 HP – 1,650 ft / lbs Torque
Eaton Ultrashift Plus 18-Speed Automated Transmission
20,000 lb Fronts 425/65R22.5 Flotation Tires on Aluminum Rims
13,000 lb Self-Steer Lift Axle ahead of T/A and 9,000 lb Self-Steer Tag Axle behind T/A
46,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on Steel White Rims, Full Double-Frame Chassis
Loaded with Options Including: A/C, AM/FM Stereo, Tilt/Telescopic Steering, Power Windows & Door locks, 2-Man Passenger Seat, Chrome Bumper & Grill, Painted Ext Sun Visor, Differential Locks with Rear Wheel Lock-ups, Dual Hood-Mounted Mirrors, Air Ride Cab, Single 80-Gallon Aluminum Fuel Tank, Trailer Air Tow Package, Full 4-Wheel Lock-ups, etc…
