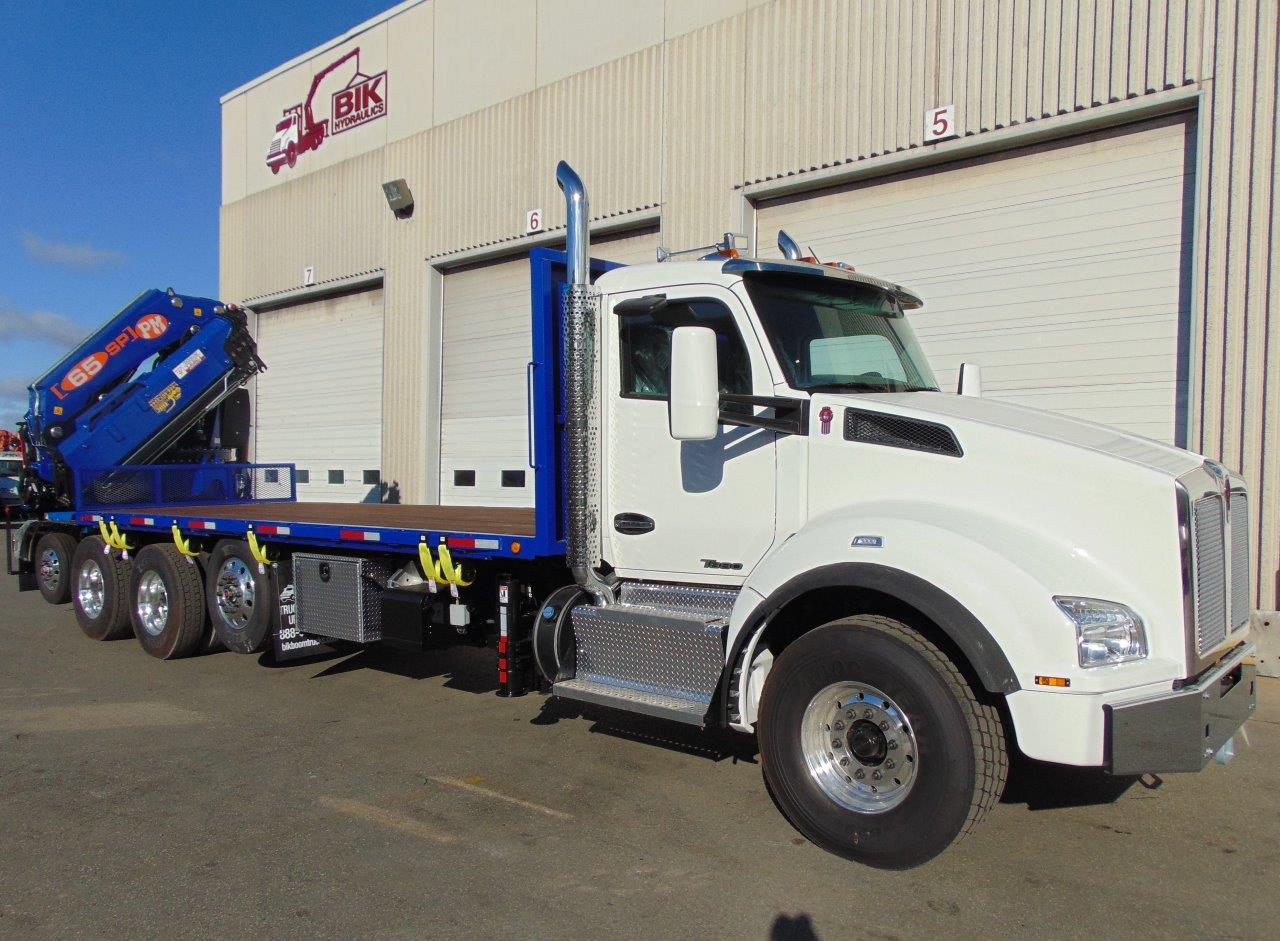

NEW PM 65024S KNUCKLE BOOM WITH 22′ 6″ DECK ON NEW KENWORTH T880
NEW PM 65024S KNUCKLE BOOM WITH 22′ 6″ DECK ON NEW KENWORTH T880 5-AXLE – 485 HP – 18 SPD STAND – IDEAL HEAVY LIFT PRECAST UNIT
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – PM 65024S KNUCKLE BOOM
- 4 HYDRAULIC EXTENSIONS to 37’ HORIZONTAL REACH
- Main Boom Horizontal Capacity:
- 48,000 lb @ 9’
- 30,400 lb @ 14’
- 22,300 lb @ 19’
- 17,000 lb @ 24’ 6”
- 13,200 lb @ 31’
- 11,000 lb @ 37’
- PM Power-Link Connections at Main, Knuckle & Jib Cylinders
- Dual Planetary Gear Motors & Continuous Boom Rotation
- Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
- 180 Degree Flip-up Hydraulic Extra Wide Main Outriggers at Pedestal – 28’ 7” Span – 360 Degree Full Load Chart Stability
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100–Gallon Hydraulic Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control
- Radio Remote Includes: 2 Batteries, In-Cab Charger, and Back-up Cord – 5 Level Turtle (micro) Slow Down Mode
- Simplified Hydraulic Overload System Allowing Maximized Up-Time and Ease of Maintenance
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
- Installed END OF FRAME, with Integral Sub-Frame, 3/8” Front and Center – ½” Sheer Plating at Crane for Maximized Torsion Strength
- Warranty: 1-Year Parts & Labor on Entire Boom; 3-Year on Structural Components by PM
- 24/7 Crane-Tech Support by BIK
Truck Details

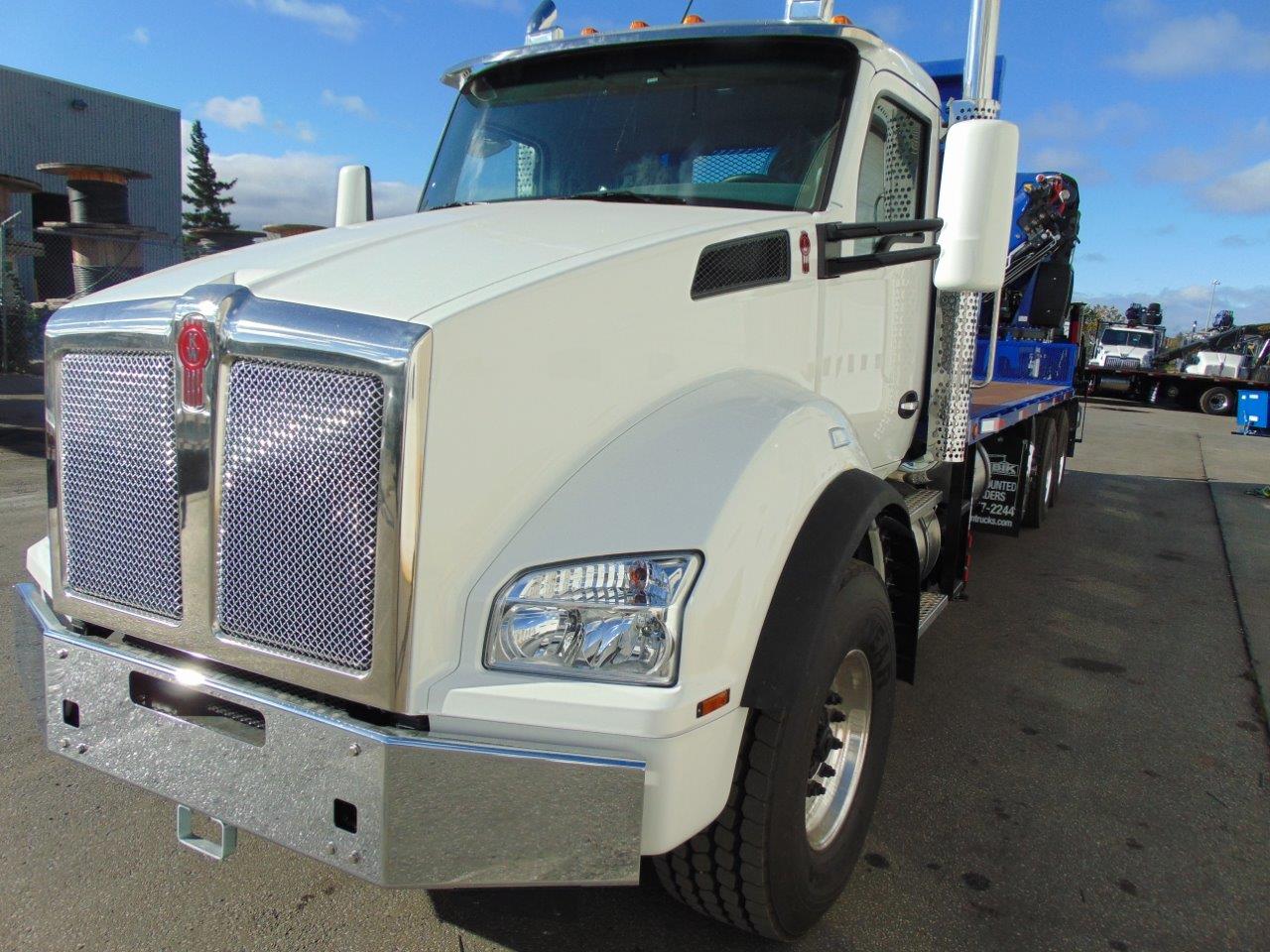

NEW – KENWORTH T880 5-AXLE TRUCK: 90,000 lb GVWR
- PACCAR 485 hp with Jake Brake, 18 Speed Manual Trans.
- 20,000 lb Fronts with 425/65R22.5 Tires
- (1)13,000 lb Self-Steer Lift Axle Ahead of the Drive Wheels
- 46,000 lb Rears on Air Ride Suspension
- 9,000 lb Tag Axle Behind Tandem
- Double Frame, Polished ALCOA Aluminum Wheels Front and Outer Rear
- Dual Chrome Single Polished Exhaust, Chrome Grill & Bumper
- 100-Gallon Alum Fuel Tank
- Loaded with Options Including: Air Cond., Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Pass. Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, 4 Wheel Lock-ups, Power Windows/Locks/Mirrors, Air Ride Cab, Full 4-Wheel Locks, Trailer Air Tow Package, Truck Cab White Color, etc…
Deck Details
NEW – 22’ 6” x 102” FLAT DECK: HARDWOOD DECK SURFACE
- 66” Steel Headboard with 18” Rear Removable Tail Board, Winch Bar and Holder
- Integral 6” Sub-Frame and Extension at Rear with Custom Engineered X-Bracing/Sheer Plating as Torque Box for Maximized Side Stability
- Deck Primed and Painted Black
- 2 Deck Access Ladders at Front, Reflectors, Conspicuity Tape, and Mud Flaps
- 8 Winches on Sliding Track Under Deck
