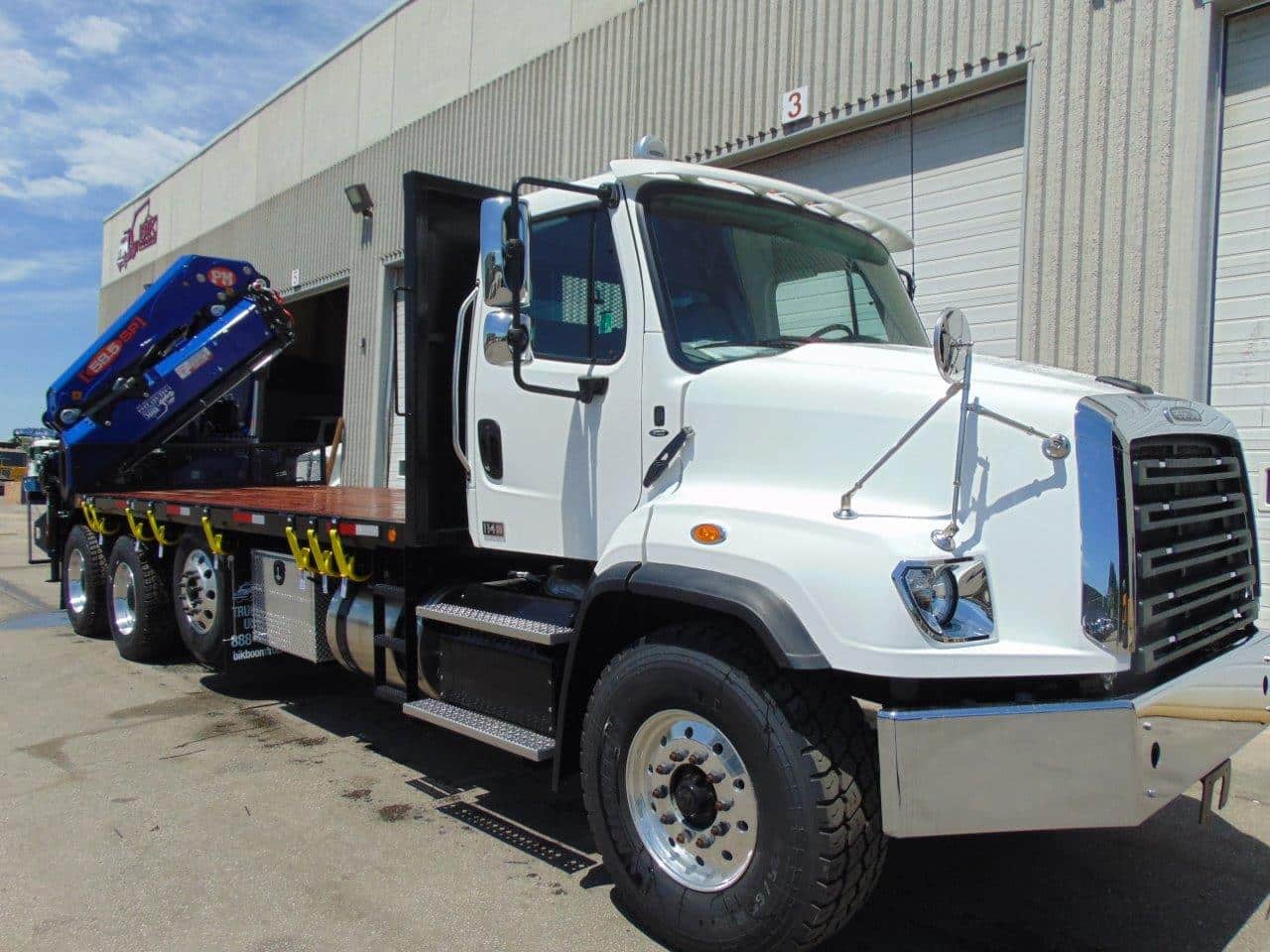

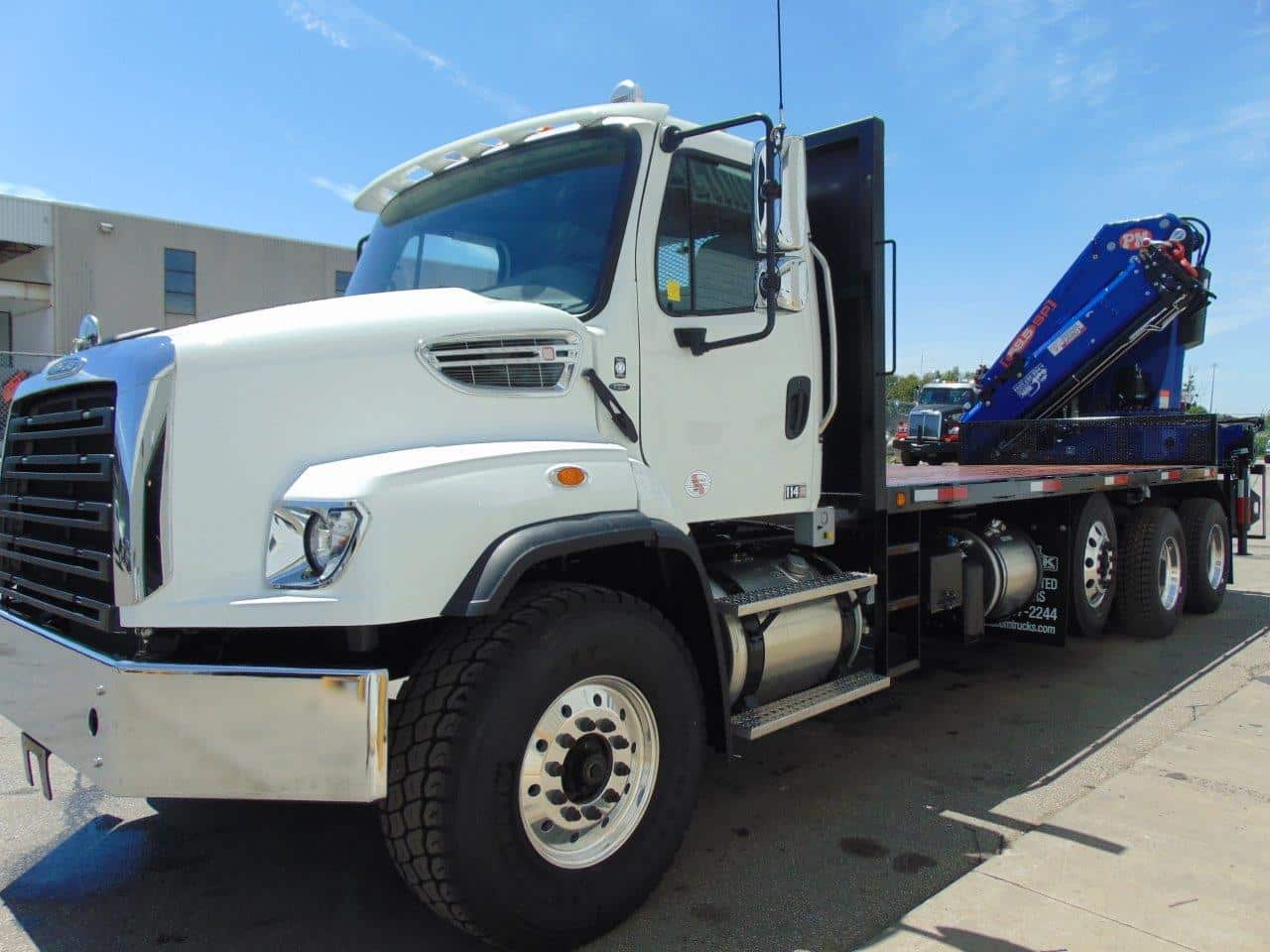

NEW PM 58523 KNUCKLE BOOM ON NEW FREIGHTLINER 114SD T/A
NEW PM 58523 KNUCKLE BOOM ON NEW FREIGHTLINER 114SD 4-AXLE T/A 22′ DECK – 470 HP – FULLER 8LL IDEAL HEAVY LIFT PRECAST UNIT
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

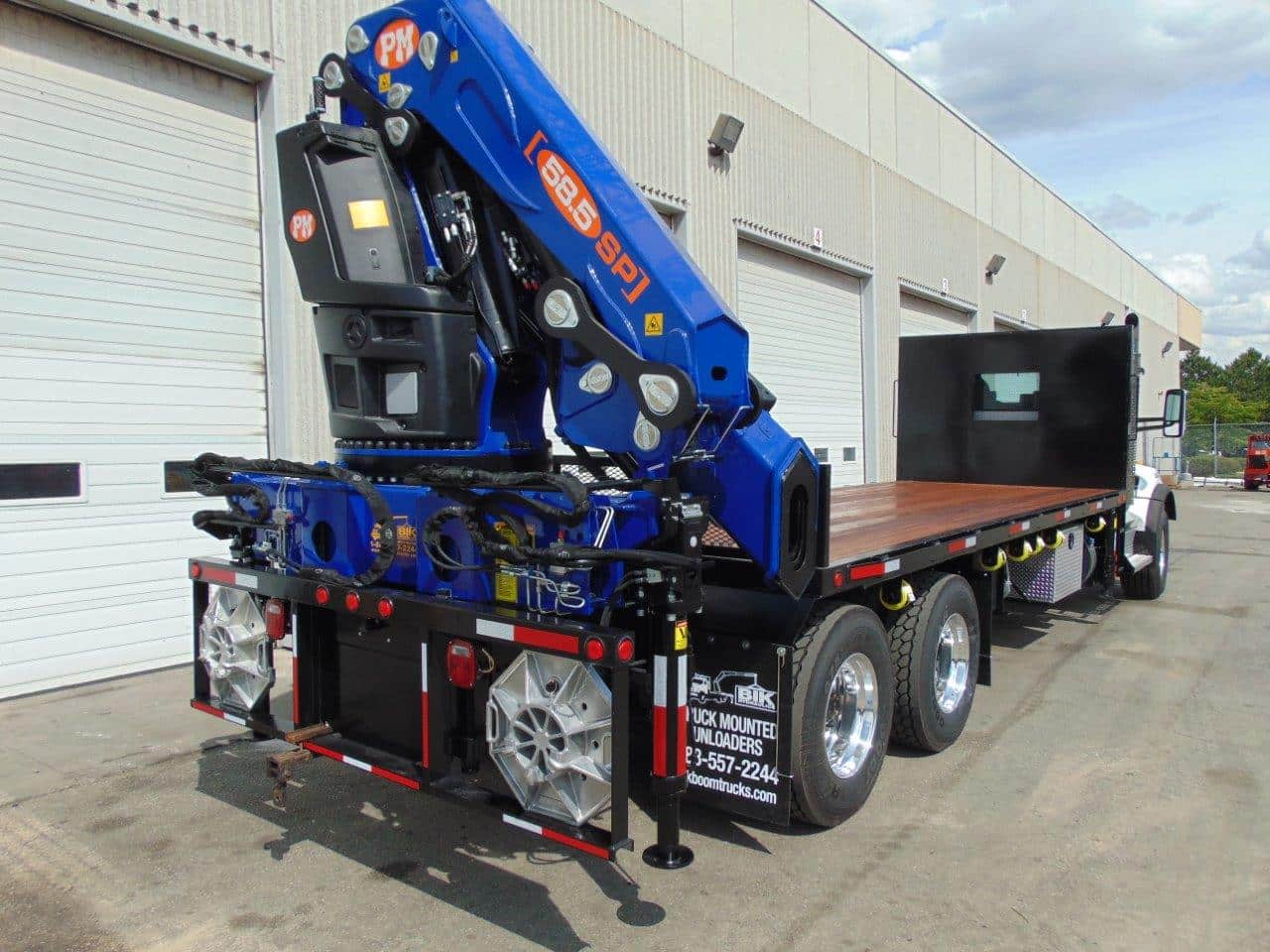

NEW – PM 58523S KNUCKLE BOOM:
- 3 – Hydraulic Extensions to 32’ Horizontal Reach (43’ Vertical)
- Horizontal Capacity:
- 28,000 lb @ 14’
- 20,000 lb @ 19’
- 15,110 lb @ 25’
- 12,110 lb @ 32’
- PM Power-Link Connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- 180 Degree Flip-up Hydraulic Extra Wide Main Outriggers at Pedestal – 27’ Span – 360 Degree Full Load Chart Stability
- Extra Wide Front Auxiliary Stabilizers
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100–Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with Back-up Cord
- Radio Remote Includes: 2 Batteries, In-Cab Charger, and Back-up Cord – 5 Level Turtle (micro) Slow Down Mode
- Indicator at Top Seat & Remote, Electric/Hyd Overload Protection
- Radio Remote Control Includes: 2 Batteries, In-Cab Charger and Back-up Cord – 5-Level Turtle (Micro) Slow Down Mode
- Simplified Hydraulic Overload System Allowing Maximized Up Time and Ease of Maintenance
- LED Spot Lights on Jib and Main Boom, Spot Lights Also on Head Board and Rear of Truck
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
Deck Details
NEW – 22’ X 102” DECK
- Installed on Truck, with 54” of Main Sill Overhang for Sub-Frame of Knuckle Boom
- Hardwood Deck Surface, 66” Headboard
- 6 Sliding Winch Straps, Proper Clearance Lights, Tape and Reflectors
- Primed and Painted Gloss Black
Truck Details
NEW – FREIGHTLINER 114SD 4-AXLE DIESEL TRUCK: 79,000 lb GVWR
- Detroit Diesel DDC-13 470 hp, 1,650 ft/lb Torque, Fuller 8LL Stand Trans
- 20,000 lb Fronts with 425/65R22.5 Front Flotation Tires on Alum Rims
- 46,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on Alum Outer Rims
- 278” Wheel Base, Double Frame Chassis, 54” Spread at Tandems
- 13,000 lb Self-Steer Tag Axle Behind T/A with Low Profile 17″ Tires & Alum Rims
- Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM Stereo, Cruise, Tilt/Tele Steer Column, Power Windows/Locks, Chrome Bumper/Grill, Power and Heated Mirrors, Dual Chrome Hood Mtd Mirrors, Eng Block Heater, Painted Ext Visor, Trailer Tow Package, Rear Wheel Lock Ups, 80-Gal Alum Fuel Tank, Trailer Air Tow Package, etc…
Options Including:
- Wire & Program Remote Control to Include: Engine Start/Stop
- 1” Draw Plate at Rear for Possible Pintle Hook
Other Options Available:
- Additional Hydraulic Extensions (up to 5 more can be added) to Extend up to 72’ on Main Boom
- 36” Aluminum Storage Box Installed
- Heavy Duty Pintle Hook Installed with Back-up D-Rings, Trailer Tow Connections
- Pair of Aluminum Stabilizer Pads (2 Pcs) with Holders at Rear Bumper
- Front Extra-Wide Type Auxiliary Stabilizers
