“SOLD” NEW PM 48526+J1213 – 98’ VERT REACHK ON NEW 2019 FREIGHTLINER 108SD 4-AXLE W/ NEW 17’ DECK & GRAPPLE SAW

BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

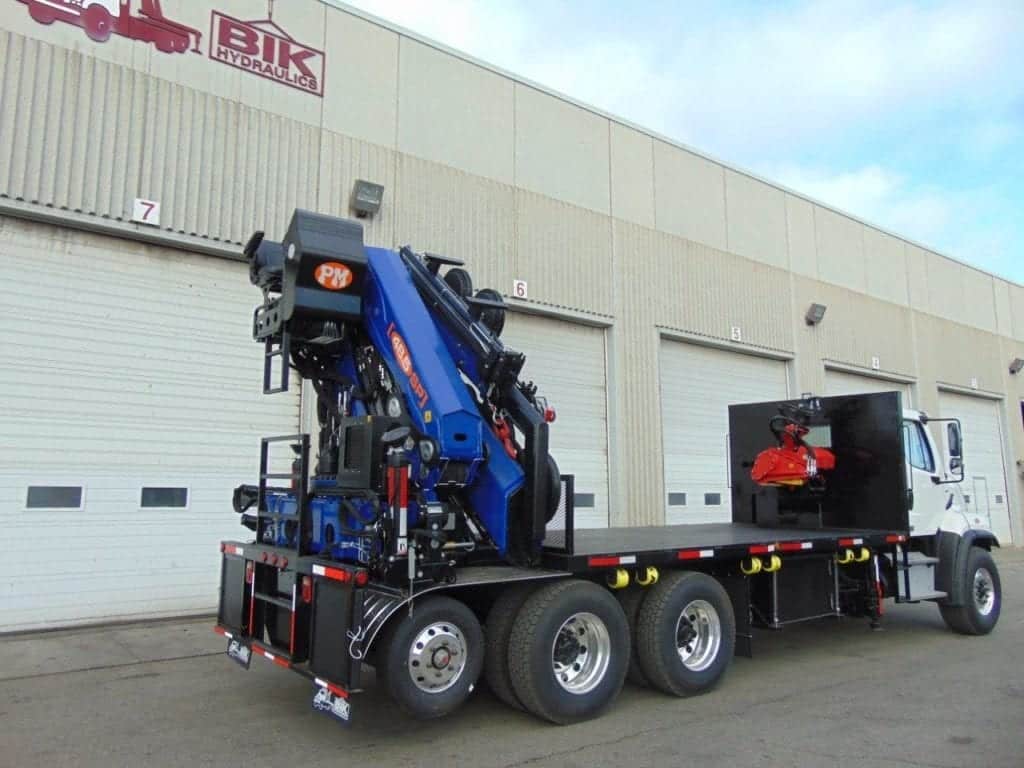

New – PM 48526 S + J1213 Knuckle Boom To Be rear Mounted w/ 98’ Vertical Reach with Grapple Extension (86’ horizontal) Jib Capacities (Horizontal-Prelim): 2,100 lbs @ 63’, 1,850 lbs @ 75’ 4”, 1,700 lbs @ 82’ , Grapple man extn to 86’ – Main Boom Cap (Horizontal): 21,000 lbs @ 14’, 10,900 lbs @ 25’ 8”, 6,800 lbs @ 38’ 8”, 4,830 lbs @ 53’ 6″ PM “Power-Link” connecting rods at First Boom and Knuckle, Double pilot operated on slewing and pilot check valves on all cylinders. Planetary Gear Rotation Motor & Continuous Boom Rotation – for maximized slewing torque and reliability
15 Degree negative angle on main knuckle, 20 degree negative angle on jib
Hyd Extra Wide Main outriggers at base – 25’ 7” total span

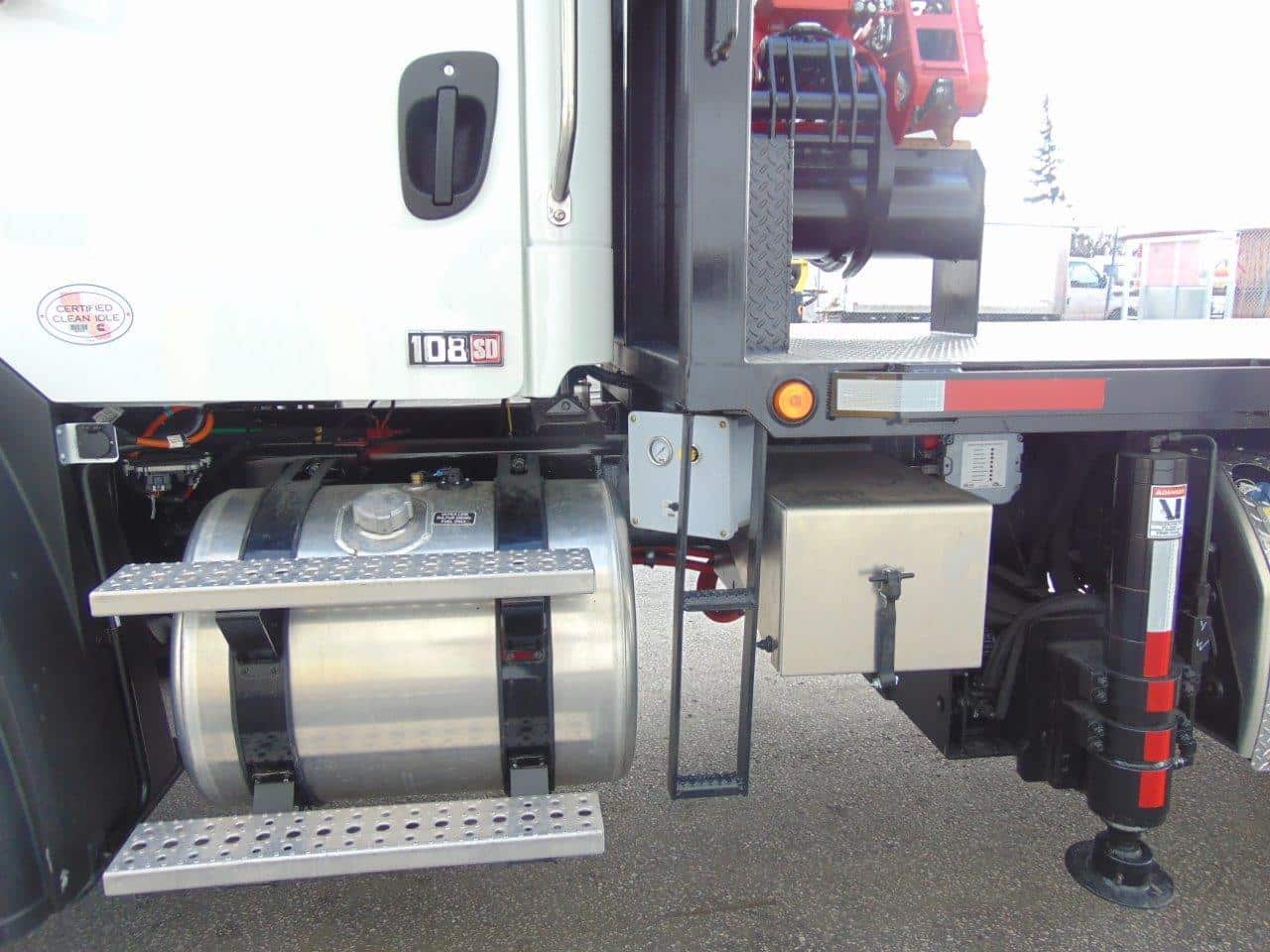

Auxilary Stabilizers – Extra wide type – 21’ span, hyd out & down type, installed at front under truck frame
Two Hydraulic Oil Coolers, high pressure return filter and hydraulic oil tank on boom
Tandem pump / split valve pressure system for optimum speed for simultaneous multi function use

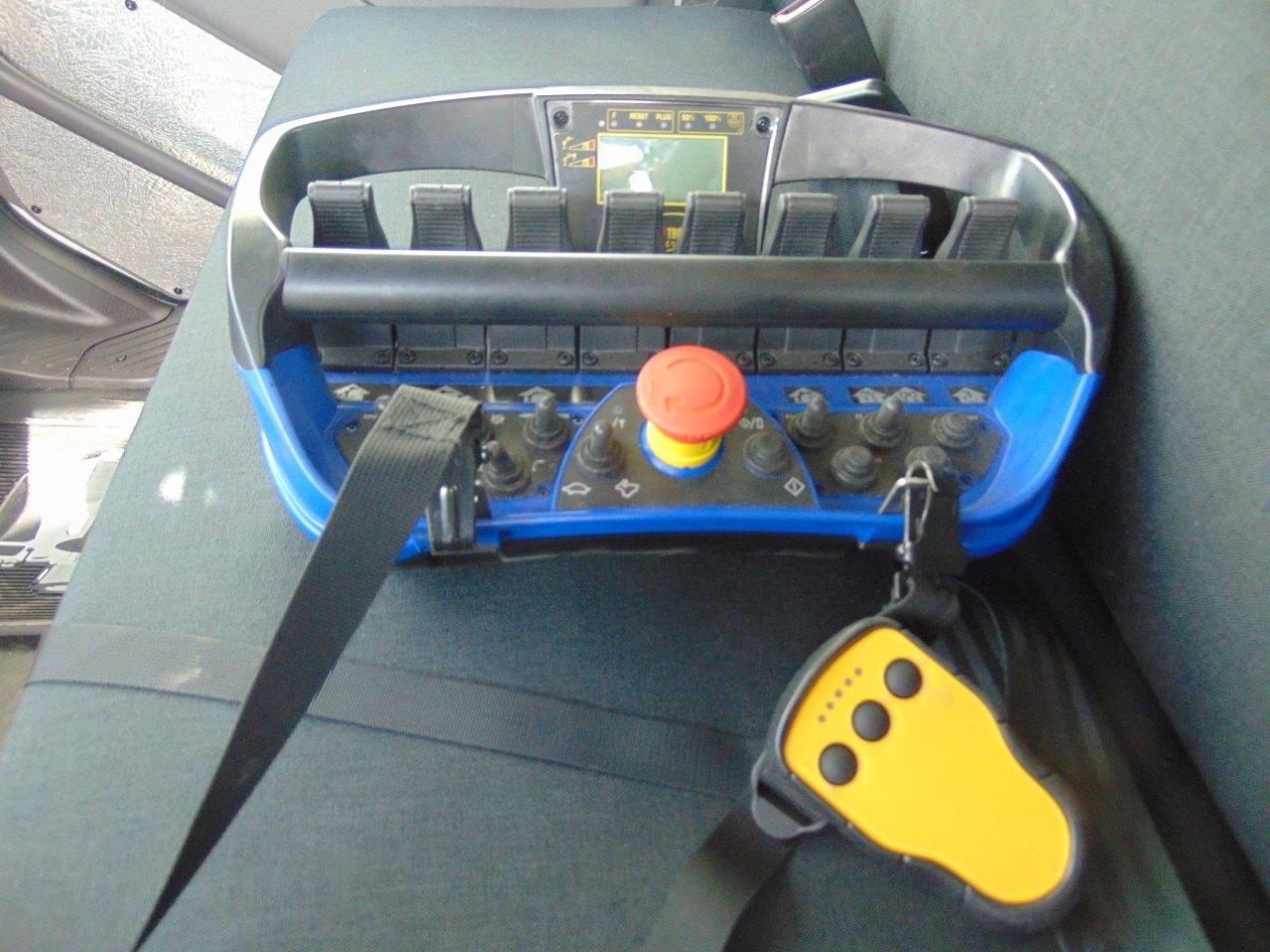

DANFOSS Proportional Control Valve at Top Seat & SCANRECO Proportional Radio Remote Control w/2 batteries, charger & back up cord
Two Extra Hyd Functions pkumbed to end of jib for possible hyd grapple or saw attachment
Crane Painted PM blue at factory – Certified Painting Quality System – load chart on boom in FT. & LBS.
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components – Engineer Stability load tested and certified
BIK tech to familiarize boom and grapple saw operation at your location and (or) on site for up to 2 days.

Deck Details

New – 17’ x 102” Steel Flat Deck: steel headboard w/ Side Wrap Winches, Steel Checker plate Floor, winch bar and holder, Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting, X-braces & support, Deck painted Black, 2-Deck access Ladders at Headboard, 2-Ladders at rear, reflectors and Mud-flaps, 6 – Sliding Winches and track under deck.

Truck Details

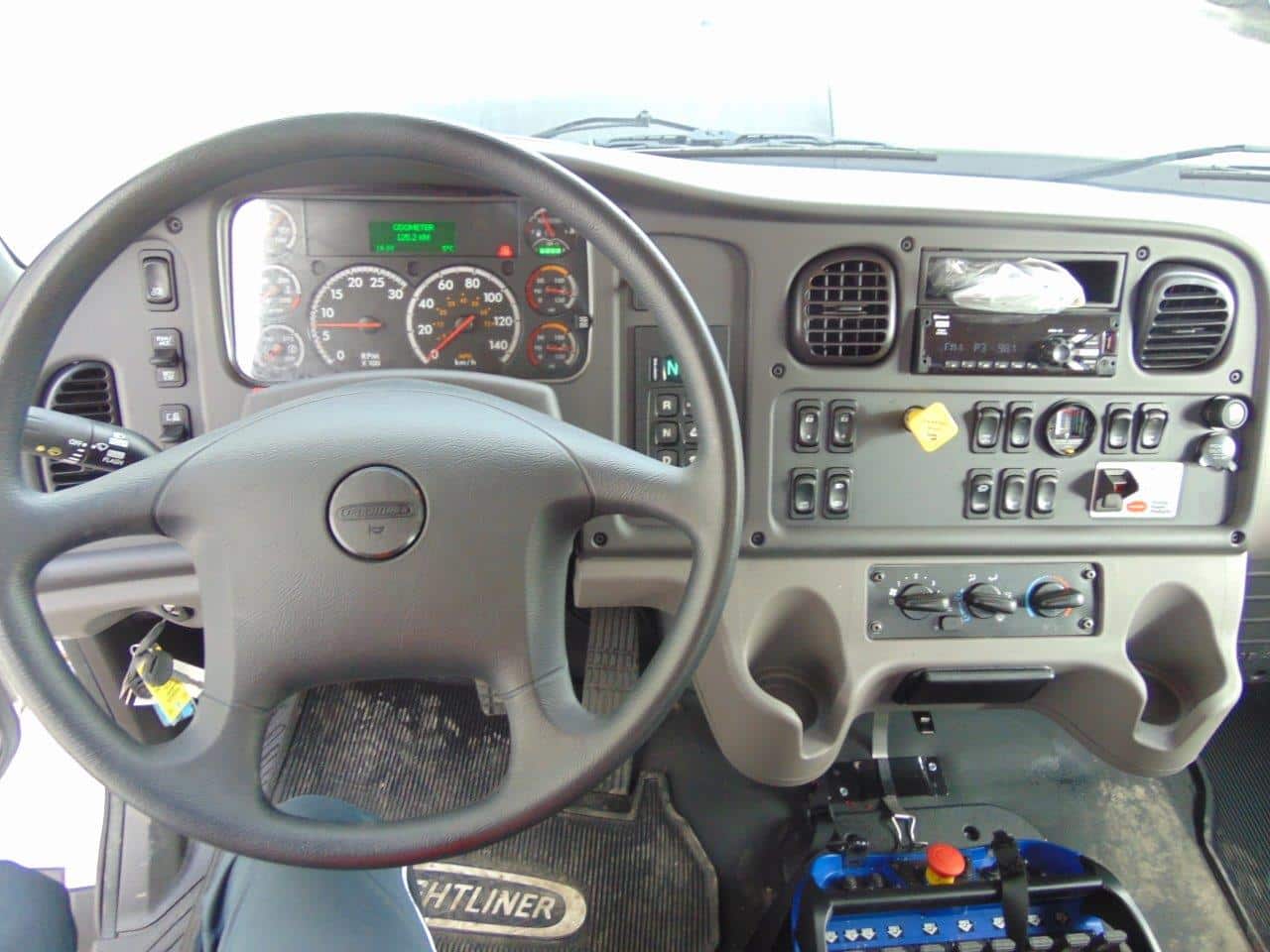

New – 2019 Freightliner 108SD 4-axle Diesel Truck: 71,000 lb GVWR, Cummins Diesel – 380 hp , 1,250 ft/lb torque, Allison Automatic Trans., 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims, 40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on alum outer rims, 11,000 lb self steer lift axle under boom with low profile 17” rims/tires, double frame chassis, 54” spread at tandems, Truck Features Include: Exhaust Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows, power & htd mirrors, chrome bumper and grill, heated mirrors, eng block heater, painted ext visor, rear wheel lock ups, 80 gal alum fuel tank, etc…

Also Included Are: – 36’ Aluminum storage box, – Custom manual extn for Grapple Saw, – 4 pcs PVC stab pads w/holders
Choose Your Mecanil Saw: SG-160, SG-220 or SG-280
Available Options: -(1) Aluminum single man self-levelling basket -3/4” draw plate installed at rear of truck frame with pintle hook, D-rings -8 pcs removable side posts to fit in rub rail pocekts with securing pin and
