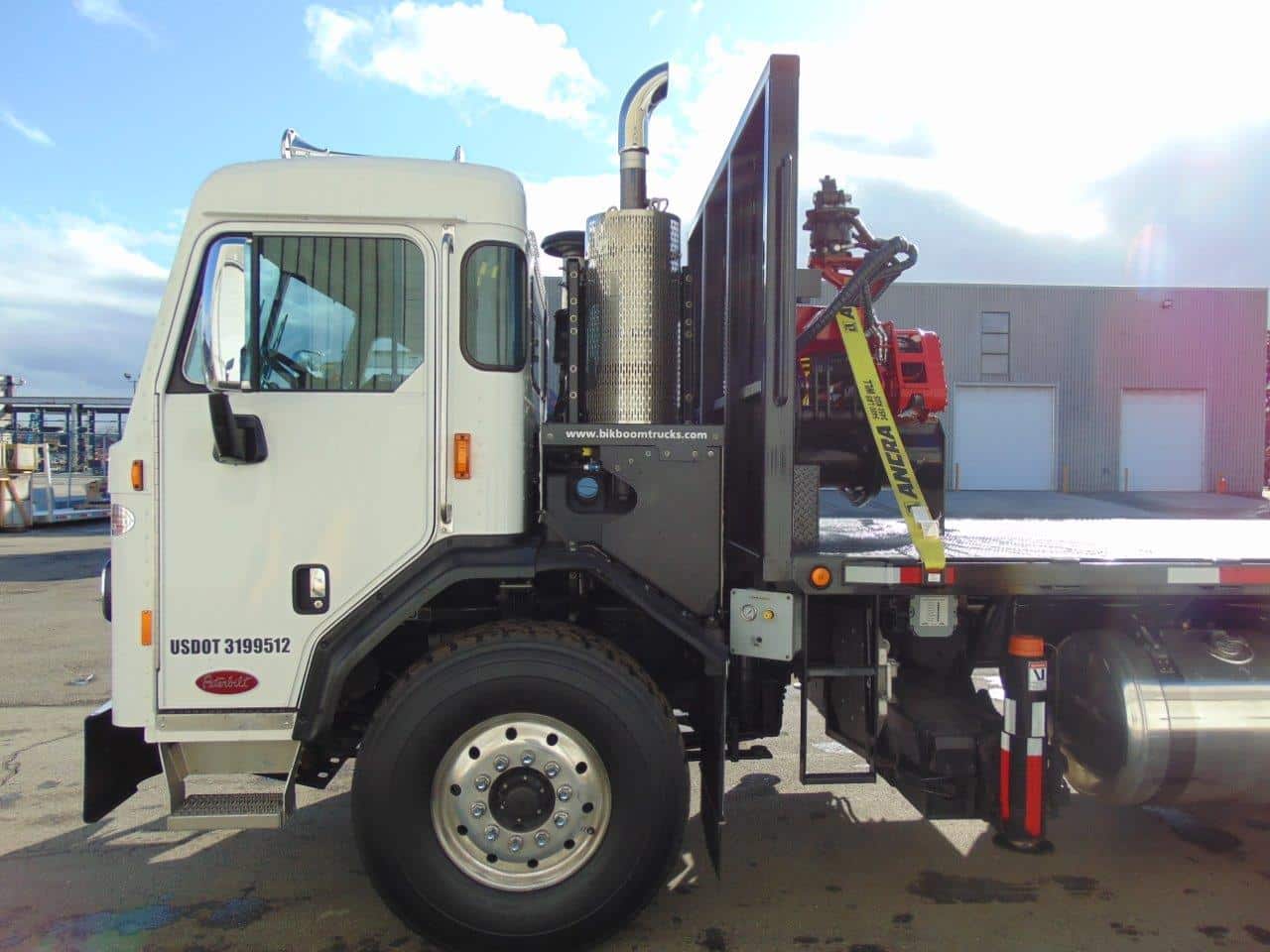

*SOLD* NEW BIK TREE-CARE SERIES TC-106 – NEW 2019 PETE 520 COE 4-AXLE – 430 HP – NEW 18′ 8″ DECK & SG-280 SAW
*SOLD* NEW BIK TREE-CARE SERIES TC-106 – NEW 2019 PETE 520 COE 4-AXLE – 430 HP – NEW 18′ 8″ DECK & SG-280 SAW
BIK Boom Trucks has grown to service a wide range of customer base, whose industries include the Tree Service Industry, Block/Brick, Pre-Cast, Poured Wall, Building Erection, Crane Service, Oil Field Transportation, Drywall, and many more. After 2000 plus units successfully installed, BIK Boom Trucks has become synonymous with your “One stop shop for all your Boom Truck needs.”
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – BIK TREE-CARE SERIES TC-106 – Folding Hydraulic 6-Ext Knuckle Boom with Detachable 5 Ext. Jib – 106′ Vertical Reach Including One (1) Extra Grapple-Saw Extension in Jib to – MAIN BOOM HORIZONTAL CAPACITY: 48,500 lb @ 8′ 2″, 28,260 lb @ 14′ 5″, 15,340 lb @ 25′ 3″, 10,000 lb @ 37′, 7,210 lb @ 50′ 2″ JIB HORIZONTAL CAPACITY: 3,850 lb @ 59′ 1″, 3,000 lb @ 74′ 6″, 2,340 lb @ 81′ 1″, 2,100 lb @ 88′ – 94′ with Manual for Grapple (106’ Vertical)
Maximum Lifting Moment 59 mt (429,640 ft-lbs)
PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
Double pilot operated on slewing and pilot operated check valves on all cylinders, Regular swivel lift hook at end of jib & large hook for end of main
180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – Front Extra Wide Aux stabilizers – 21’ span
Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon hyd aluminum oil tank with gate valves mounted at front under deck
DANFOSS Proportional Control Valve at
Top-Seat with Ladder Access – & SCANRECO Proportional Radio Remote Control
PM – Power Tronic load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
Warranty: 1-Yr. part & labor on entire boom, 3-Yr. on Structural Components by PM – 24/7 Crane-Tech Support by BIK
BIK tech to familiarize boom and grapple saw operation at your location and (or) on site for approx. 2 to 3 days
Double pilot operated on slewing and pilot operated check valves on all cylinders
Winch on boom plumbed to end of jib with removable pulley brackets, anti two block built into winch
Hydraulic Extra Wide Main outriggers at pedestal – 32’ span – hydraulic tilting when retracted
Auxilary 23’ spread stabilizers installed at rear behind drives – Dual front bumper stabilizers – 6 stabilizer’s total
Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
DANFOSS Control Valve located at top seat, Proportional Control Valve & Proportional Radio Remote Control
Manual boom controls located at Top Seat, stabilizer controls at ground level
