NEW PM 47529 (NON-JIB) 74’ SIDE REACH – NEW KENWORTH T880 5-AXLE
NEW PM 47529 (NON-JIB) KNUCKLE BOOM 74’ SIDE REACH – NEW KENWORTH T880 5-AXLE & 24’ LO-PRO DECK – 485 HP – AUTO 18-SPD – IDEAL FORM CAGE HANDLER
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

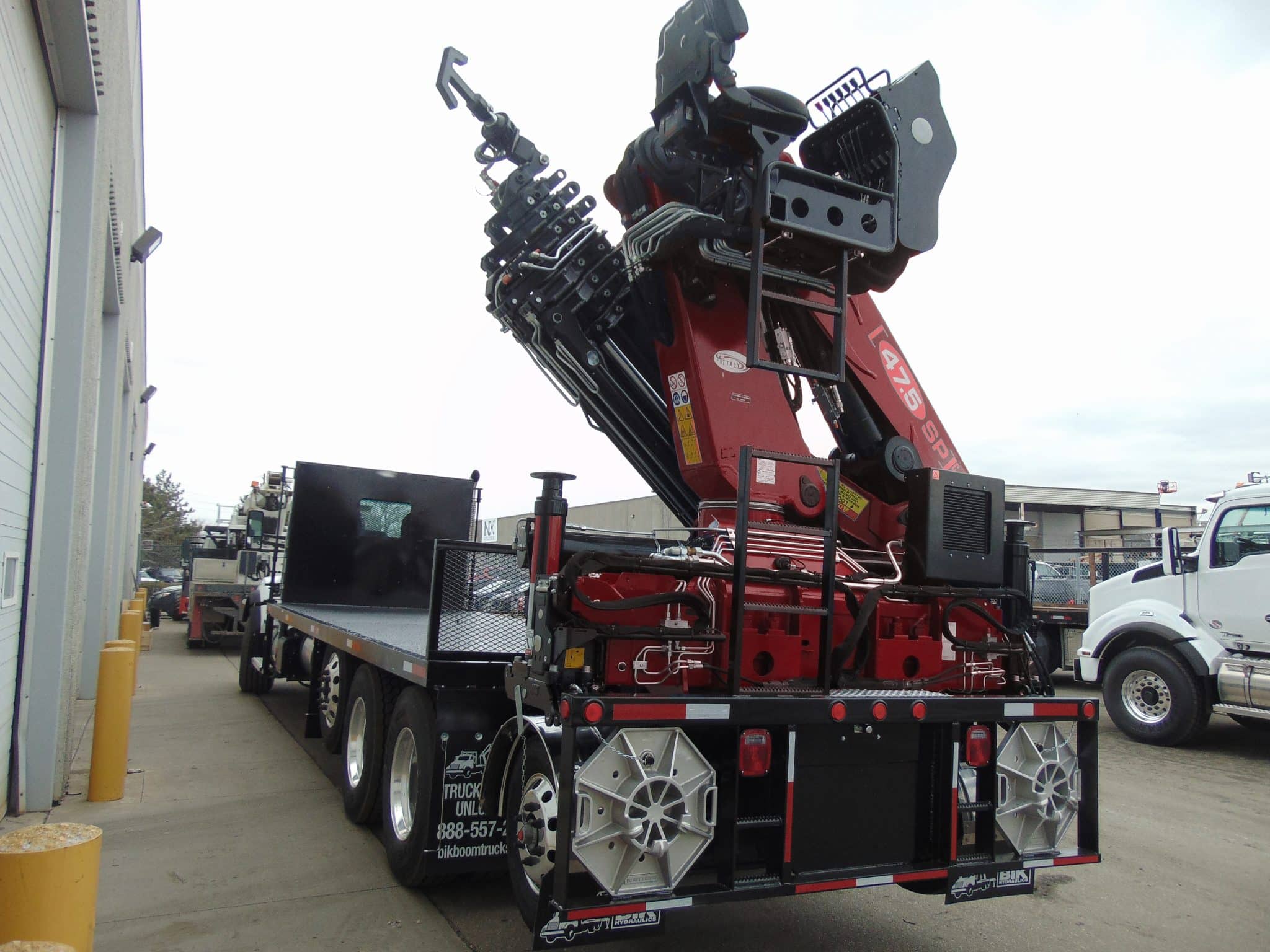

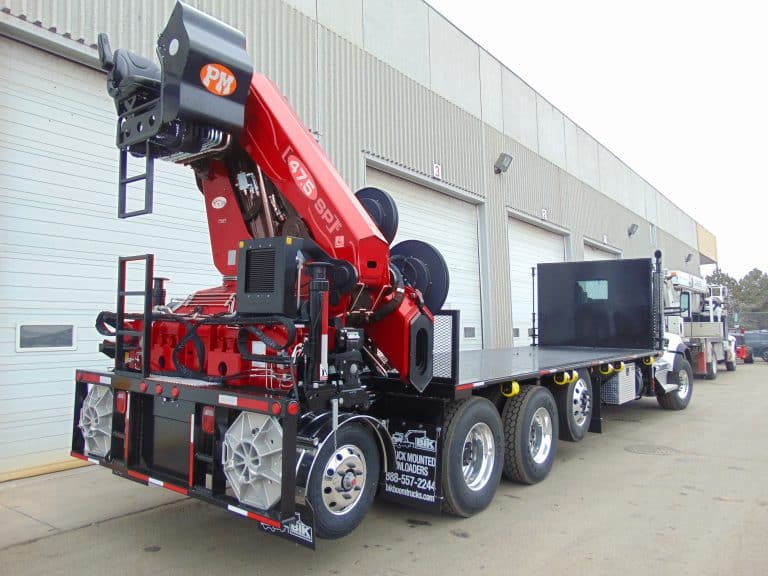

NEW PM 47529S-LC-PX KNUCKLE BOOM:
- Folding Hydraulic 8 Ext. Knuckle Boom – 74’ Horizontal Reach (86’ Vertical)
- Horizontal Capacity:
- 21,000 lb @ 13’
- 10,200 lb @ 24’
- 5,800 lb @ 37’
- 3,950 lb @ 51’
- 2,900 lb @ 66’
- 2,600 lb @ 74’
- PM Power-Link Connections at Main, Knuckle and Jib Cylinders, High Torque Rack and Gear 410-Degree Non-Continuous Rotation
- Double Pilot Operated on Slewing and Pilot Operating Check Valves on all Cylinders
- Extra-Wide Main Outriggers at Pedestal, Double Beam – Hyd Out & Down 26’ 3” Span – Front Aux Stabilizers – Hyd Out & Down 16’ Span
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100-Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck
- Lift a 10’ Cage up Close at 2’ in Front of Boom with Special LC Type Extra Retraction Feature of the Extensions
- Simplified Hydraulics – Hydraulic Overload LLD Protection and Load Holding Valve – Offers Simplicity, Reliability & Low Maintenance
- Danfoss Proportional Control Valve at Ground and Top Seat with Ladder Access
- Scanreco Proportional Radio Remote Control, Includes: 2 Batteries, In-Cab Charger & Back-up Cord – 5 Level Turtle (Micro) Slow Down Mode
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
- Warranty: 1 Year Parts & Labor on Entire Boom; 3 Year on Structural Components by PM – 24/7 Crane-Tech Support by BIK
Deck Details
NEW – 21’ X 102” LOW PROFILE STEEL FLAT DECK: To Fit 9’ Tall Cages
- Steel Headboard w/Side Wrap Winches
- Steel Checker Plate Floor
- Winch Bar and Holder
- Integral 6” Sub-Frame and Extension at Rear as Torque Box for Boom with all Proper Engineered Sheer Plating, X-Braces & Support
- 2 Deck Access Ladders at Headboard, 2 Ladders at Rear
- Reflectors and Mud Flaps
- 6 Sliding Winch and Track Under DecK
- Deck Painted Gray
Truck Details

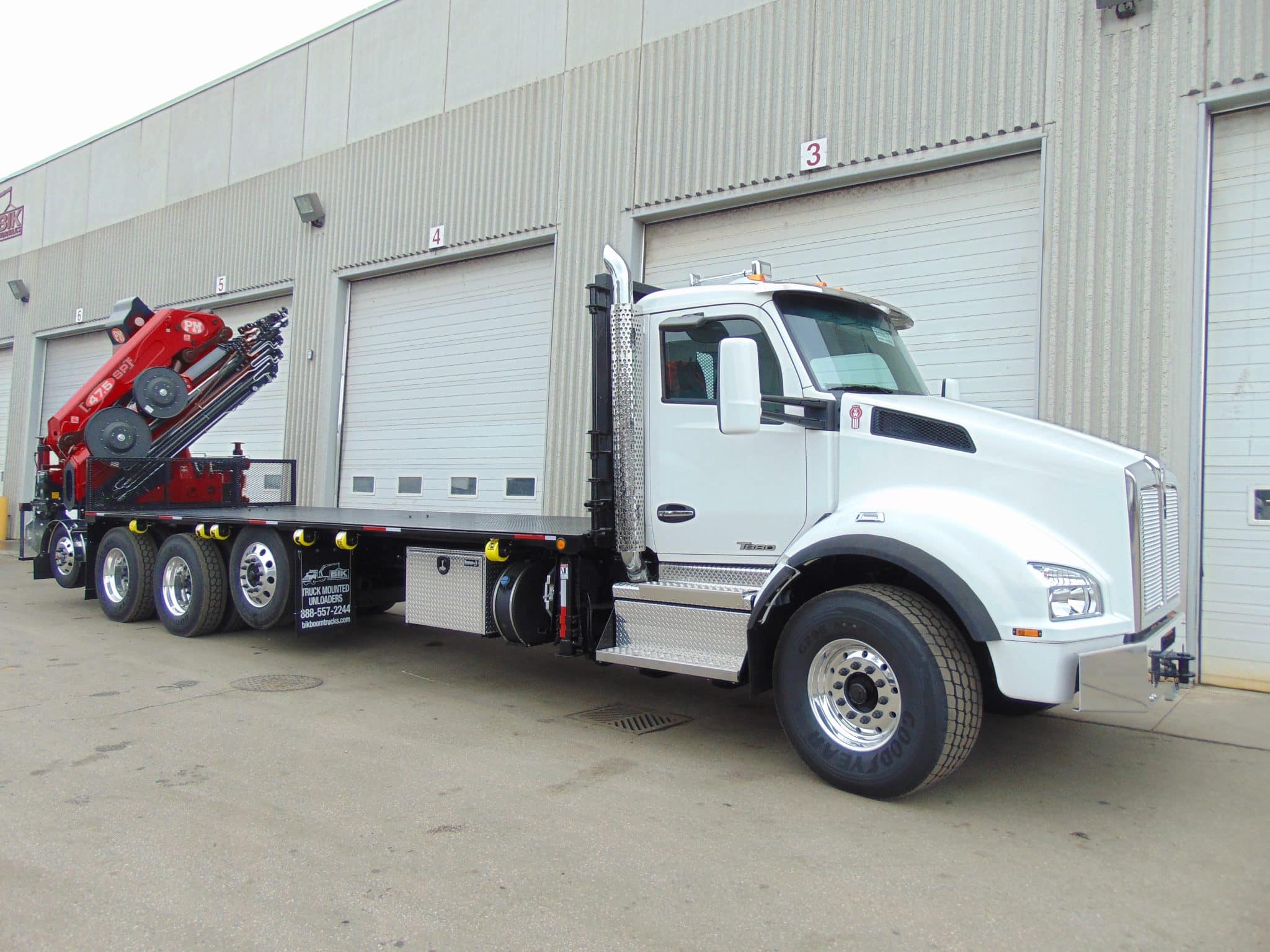

NEW – KENWORTH T880 5-AXLE TRUCK: 88,000 lbs GVWR – Cab White
- Paccar 485 hp – 1,650 ft/lb Torque, Jake Brake
- 20,000 lb Front Steer Axle with 4425/65T22.5 Tires on Aluminum Rims
- 13,000 lb Self-Steer Lift Axle Ahead of Tandem
- 46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
- 9,000 lb Tag Axle Under Boom
- Longer WB (316”) to Accommodate 24’ Deck
- 54” Spread at TA, Double Frame

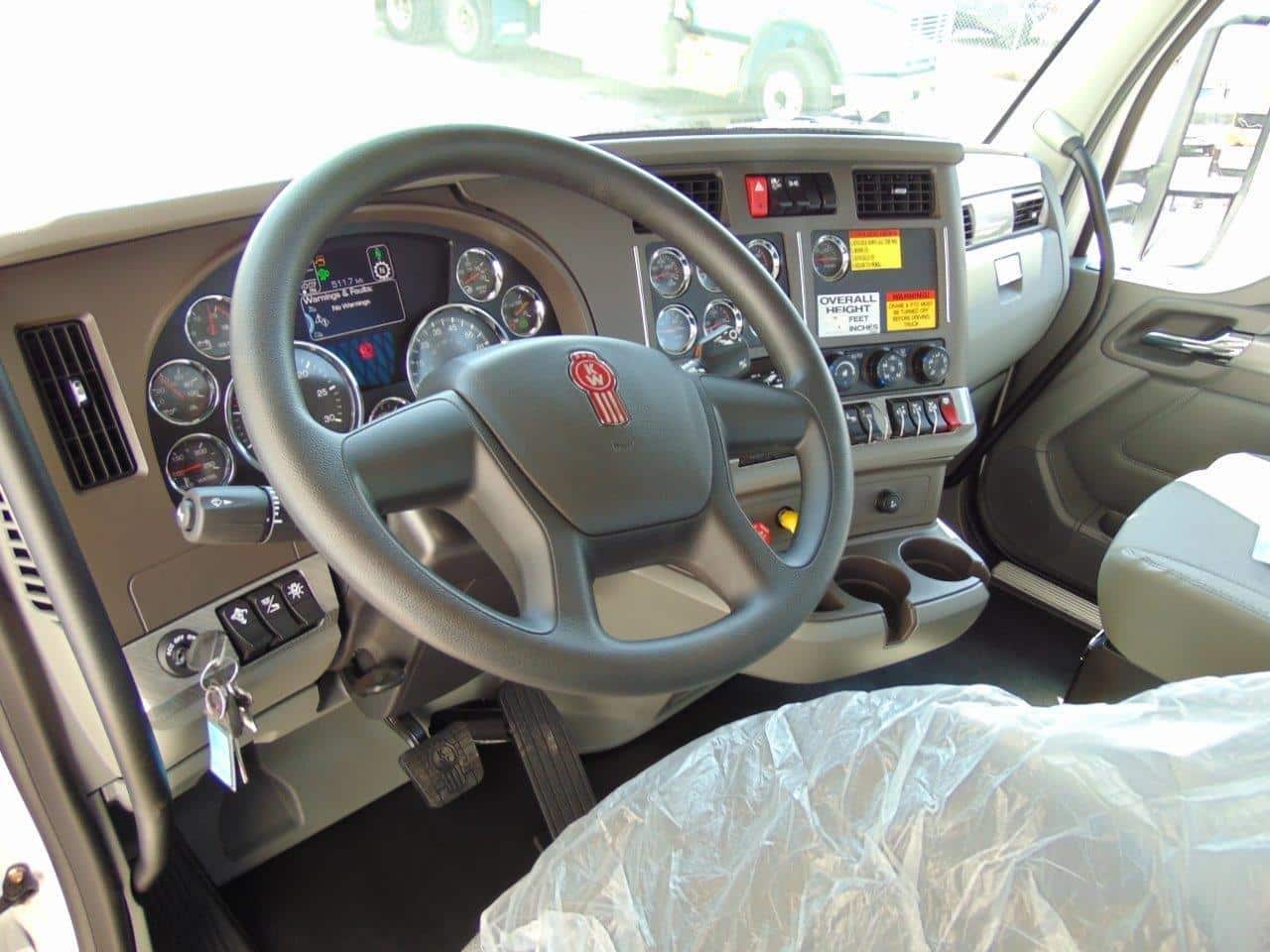

- Loaded with Options Including: A/C, Tilt/Telescopic Steering, Power Window & Locks, AM/FM/MP-3 w/Bluetooth, Air Driver Seat and Standard Passenger Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock ups, Trailer Air Tow Package, Chromed Front & Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc
Additional Options Available:
- 19’ Long Removable Center Divider for Steel Flat Deck Proposed Above
- 24’ Aluminum Flat Deck with Alum Headboard and Removable Center Divider (Instead of Steel)
- 1” Drawplate Installed at Rear of Truck (for Possible Pintle Hook)
- Pair of Aluminum Stabilizers (2 Pcs) with Holders
- Standard 18-Spd Transmission (Instead of Automated 18-Spd)
