***SOLD*** NEW PM 47529 LC KNUCKLE BOOM 77’ REACH - NEW 2020 KW T880

SOLD NEW PM 47529 LC KNUCKLE BOOM 77’ REACH – NEW 2020 KW T880

SOLD ALL NEW – PM 47529 LC KNUCKLE BOOM 77’ HOR REACH WITH NEW 2020 KW T880 4-AXLE & 22’ DECK – 485 HP – IDEAL FOR FORMING OR ROOF SHINGLES

The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

NEW PM 47529S-C-PX KNUCKLE BOOM
9 Hydraulic Extensions to 77’ Horizontal Reach (89’ Vertical)
Horizontal Capacity: 19,000 lb @ 15’, 10,000 lb @ 26’, 5,800 lb @ 40’, 3,800 lb @ 54’, 2,800 lb @ 69’, 2,600 lb @ 77’
PM Power-Link Connections at Main, Knuckle & Jib Cylinders, High Torque Rack and Gear 410 Degree Non-Continuous Rotation
Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
Extra Wide Main Outriggers at Pedestal, Double Beam – Hyd Out & Down 26’ 3” Span, 2nd Set of Stabilizers – Hyd Out & Down 16’ Span
Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100–Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck
Lift a 9’ Cage Up Close at 2’ in Front of Boom with Special LC Type Extra Retraction Feature of the Extensions
Simplified Hydraulics – Hydraulic Overload LLD Protection and Load Holding Valve – Offers Simplicity, Reliability & Low Maintenance
Extra Fast Boom Extension Speed – Two Extensions Extend at the Same Time and also Retract to Unload or Re-Load in Half the Time

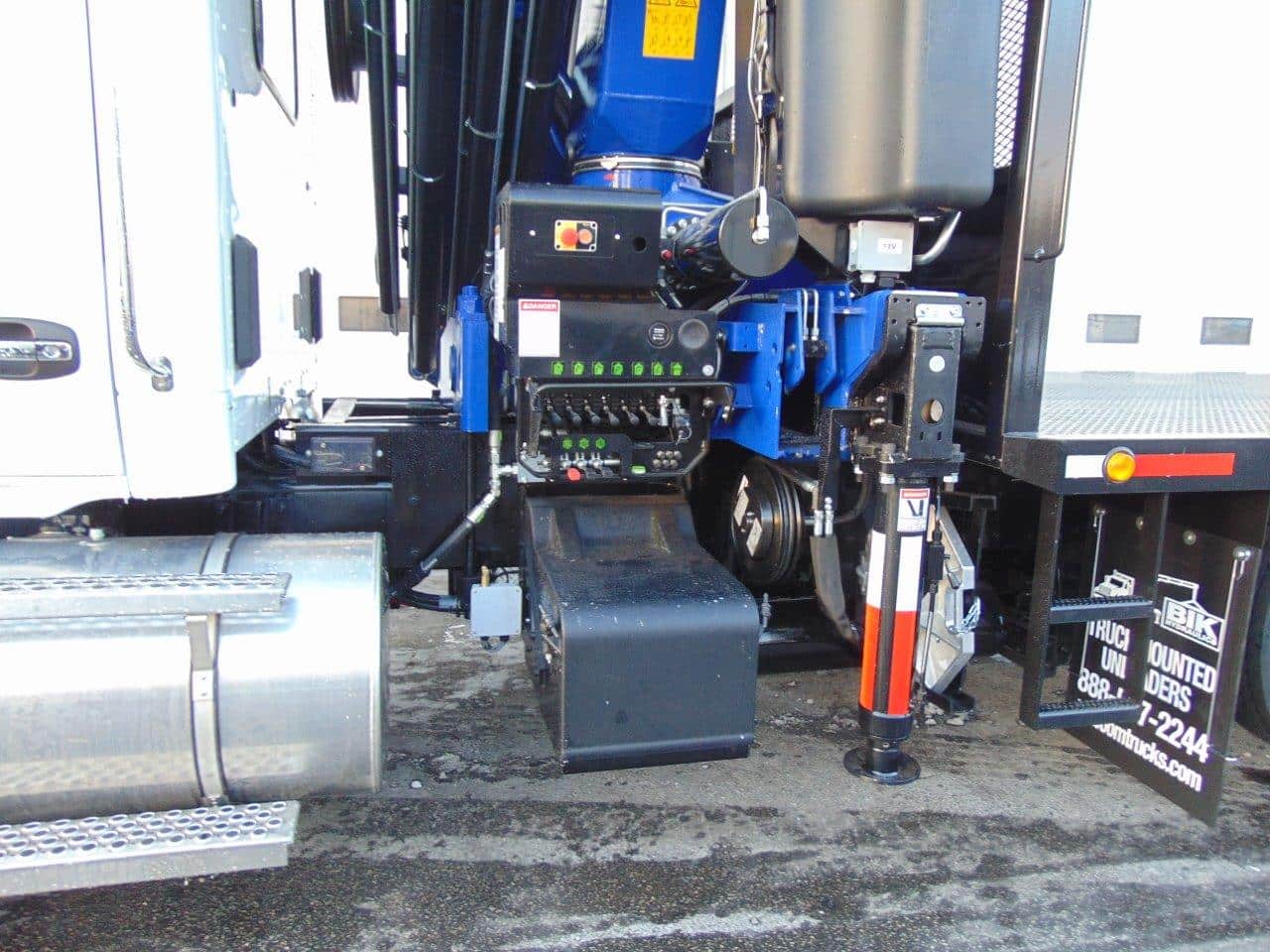

DANFOSS Proportional Control Valve at Ground & Top-Seat with Ladder Access & SCANRECO Proportional Radio Remote Control
Radio Remote Control Includes: 2 Batteries, In-Cab Charger, and Back-up Cord – 5 Level Turtle (Micro) Slow Down Mode
Installed Behind Cab of Truck (Front Mount) on Truck Proposed with Integral Sub-Frame
Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified
Warranty: 1-Yr. Part & Labor on Entire Boom, 3-Yr. on Structural Components by PM – 24/7 Crane-Tech Support by BIK

Deck Details

NEW 22’ X 102” STEEL DECK
Steel Headboard w/Side Wrap Winches, Steel Checker Plate Floor, Winch Bar and Holder
Integral 6” Sub-Frame and Extension at Rear as Torque Box for Boom with All Proper Engineered Sheer Plating, X-Braces & Support
2 Deck Access Ladders at Headboard, Reflectors and Mud Flaps
6 Sliding Winches and Track Under Deck, Primed & Painted Black

Truck Details

NEW – 2020 KENWORTH T880 4-AXLE TRUCK: 79,000 lbs GVWR – Cab White
Paccar 485 hp – 1,650 ft/lb Torque, Jake Brake
Eaton Ultrashift-Plus Automated 18 Spd Trans
20,000 lb Front Steer Axle with 425/65R22.5 Tires on Aluminum Rims
13,000 lb Self-Steer Lift Axle
46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
54” Spread at TA, Double Frame
Loaded with Options Including: A/C, Tilt/Telescopic Steering, Power Windows & Locks, AM/FM/MP3 w/Bluetooth, Air Driver’s Seat and Standard Pass Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock-ups, Trailer Air Tow Package, Chromed Front and Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc..
Also Included Are:
(1) – 36” Aluminum Storage Box
1” Drawplate Installed for Possible Pintle Hook
(4) Pcs Alum Stabilizer Pads with Holders

SOLD NEW PM 47529 LC KNUCKLE BOOM 77’ REACH – NEW 2020 KW T880
