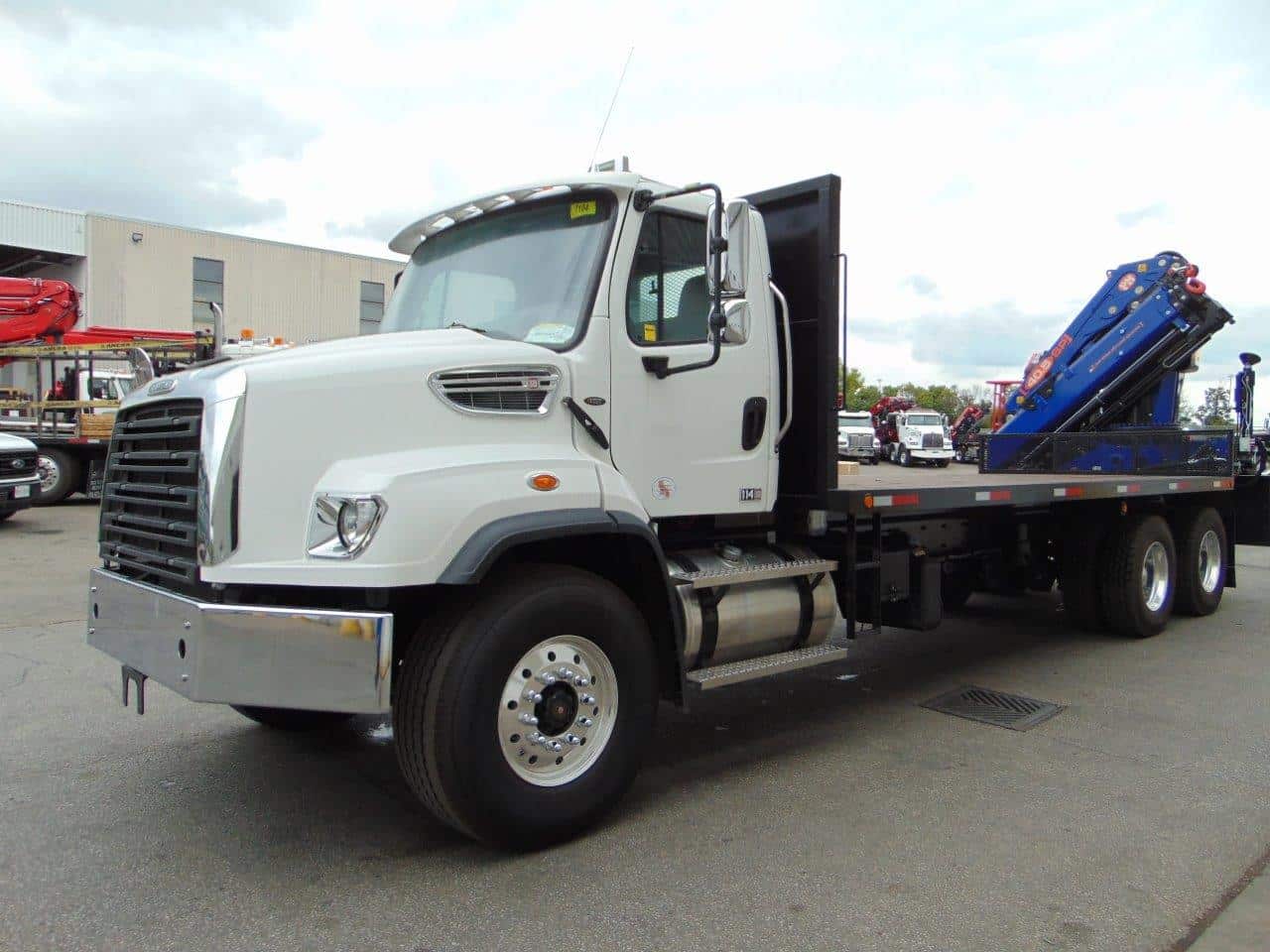

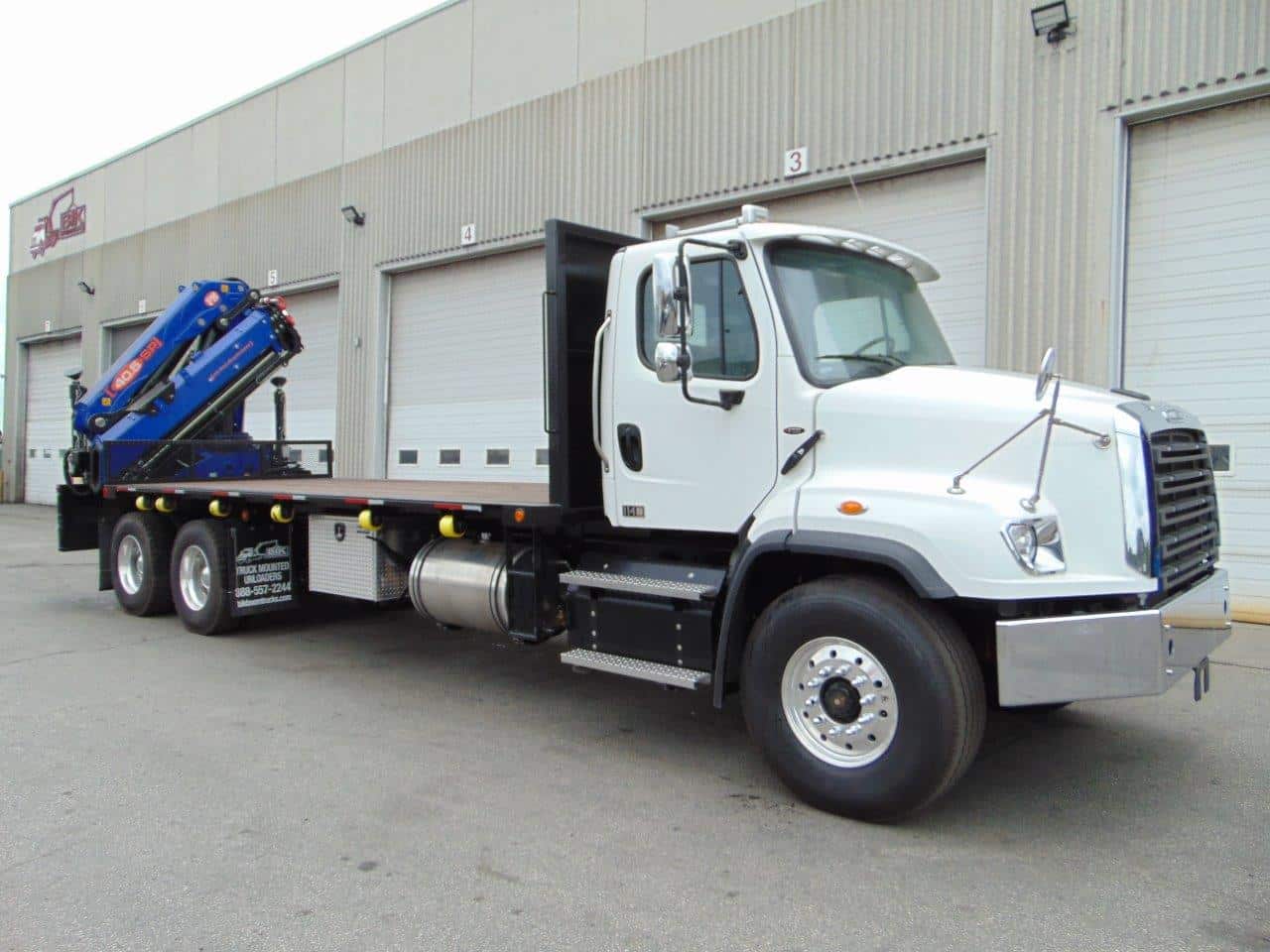

NEW PM 40523 ON NEW FREIGHTLINER 114 SD

Boom Details

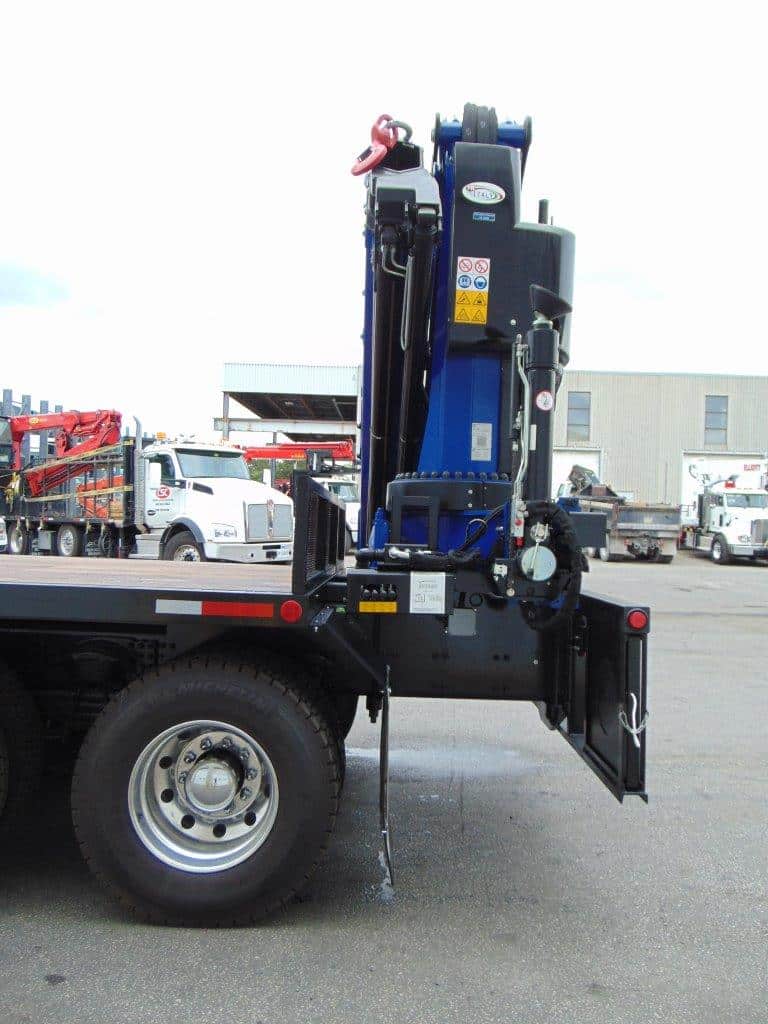

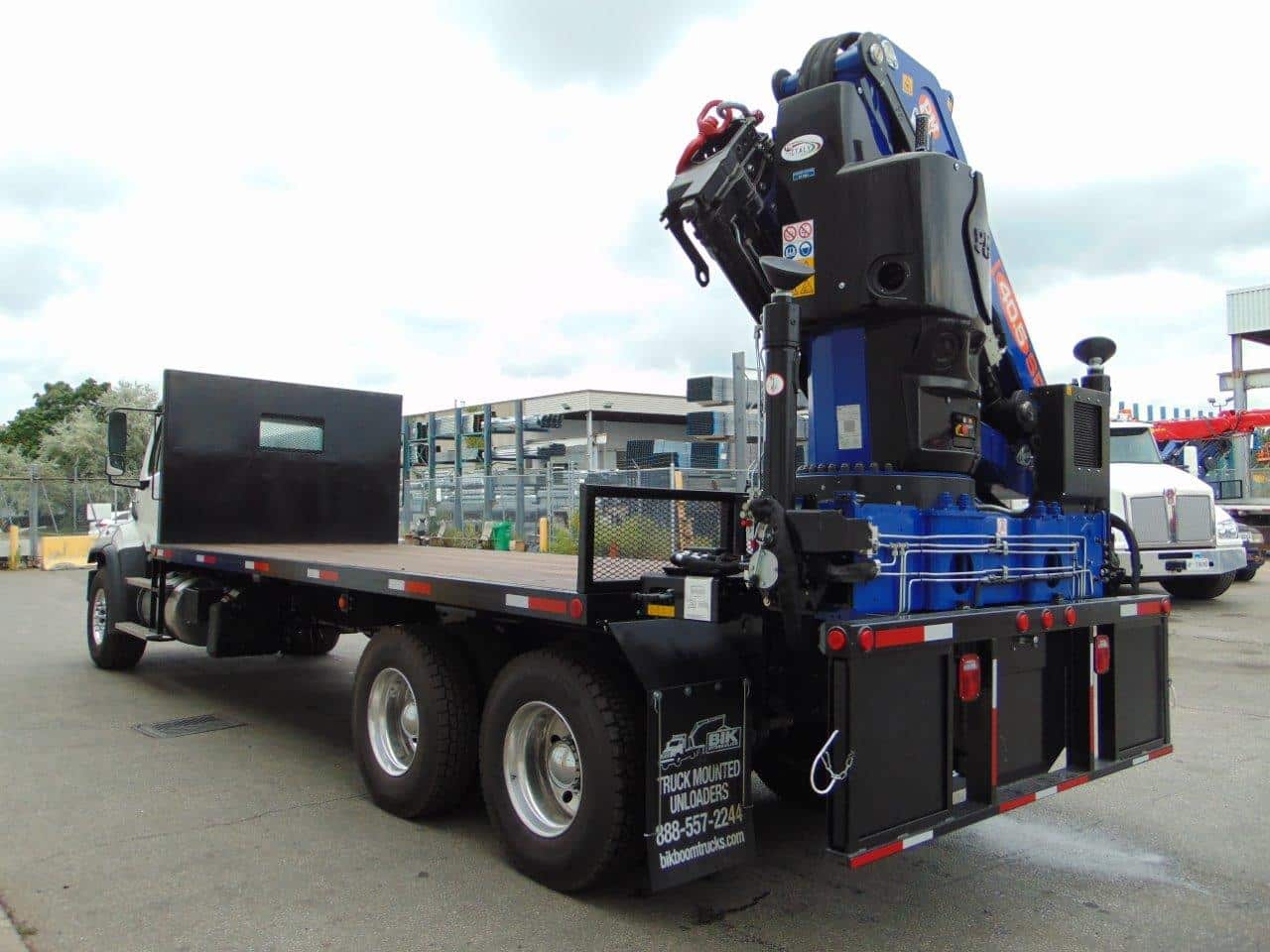

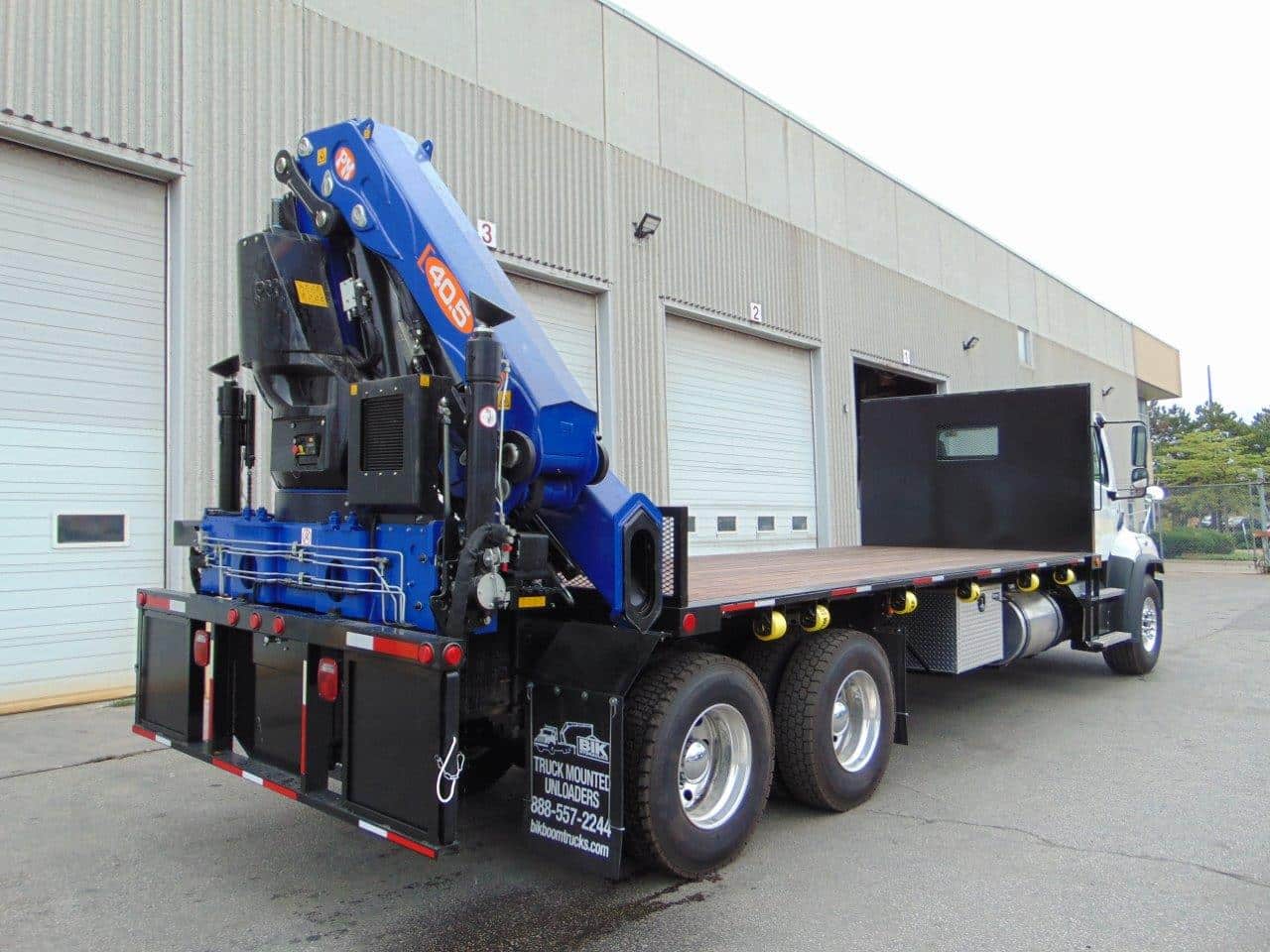

New – PM 40523  Knuckle Boom

• 40 ton/m – Knuckle Boom, 3 – Independent hyd extensions to 34’ horizontal reach (45’ vertical)
• Horizontal Capacities are:
  • 17,800 lbs @ 14.5′
  • 2,200 lbs @ 20’
  • 9,100 lbs @ 28’
  • 7,150 lbs @ 34’,
• PLANETARY Gear CONTINUOUS Rotation – Superior Control & Turning Torque to 10 deg angle – low maintenance
• Hydraulic Extra Wide Main outriggers at pedestal – 25’ 7” span
• Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
• DANFOSS Proportional Valve Controls – single sided operator control station

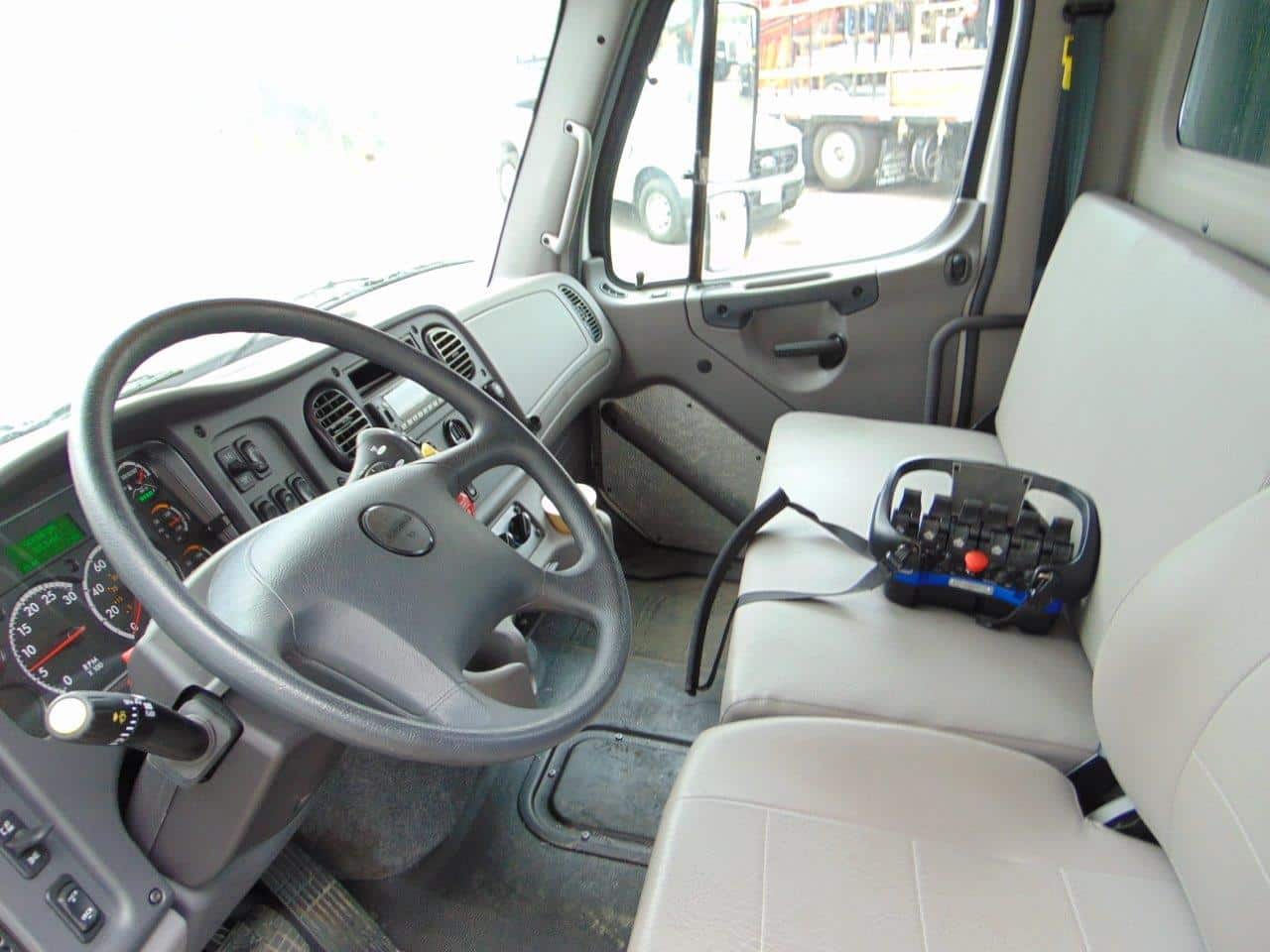

• SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
• Radio Remote includes: 5-micro speed reducing settings from handheld unit, emerg stop, 2-batteries with charger, 50’ back-up cord
• Hydraulic OUT and Hydraulic DOWN 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
• Simplified Hydraulics – Hyd overload LLD protection  – Offers Simplicity, Reliability & low maintenance
• Load Holding Valves on each cylinder for Safety and Security of Operator and Load
• Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision
• Load Tested & Installed at rear, with integral sub-frame to meet or exceed all CMVSS Standards

Truck Details

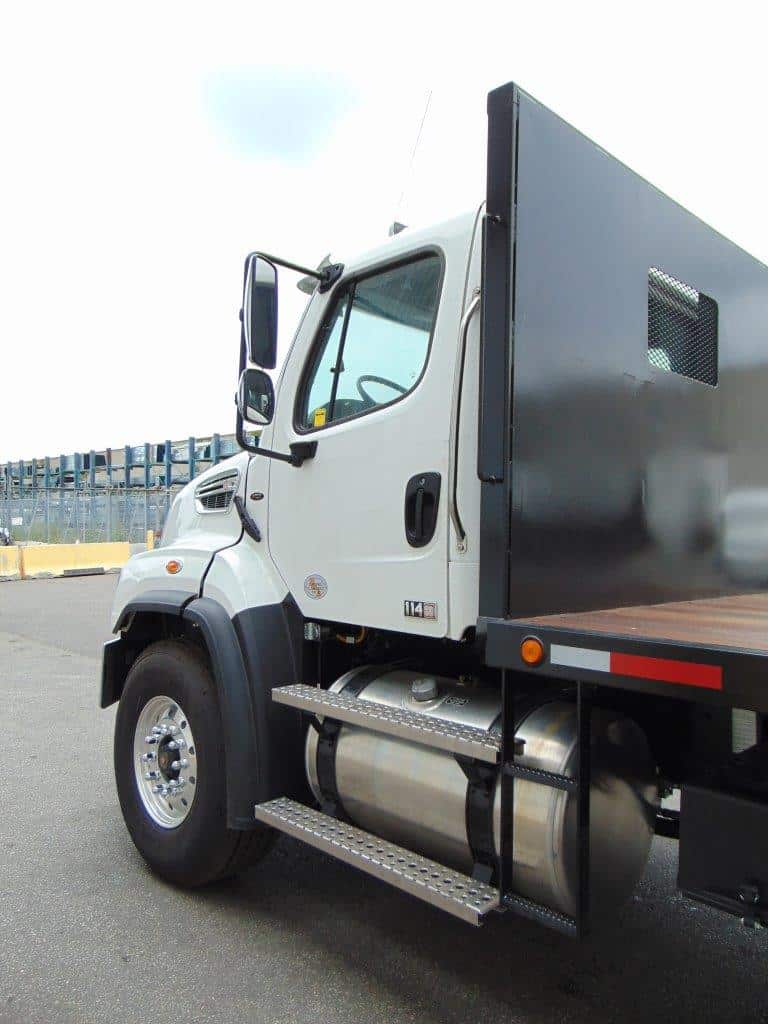

New – Freightliner 114SD  3-Axle  Diesel  Truck: 66,000 lb GVWR

• Truck cab white
• 12L Cummins Diesel, 460 hp
• Eaton Ultrashift Plus 18spd Automated Trans.
• 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
• 46,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims
• Double frame chassis

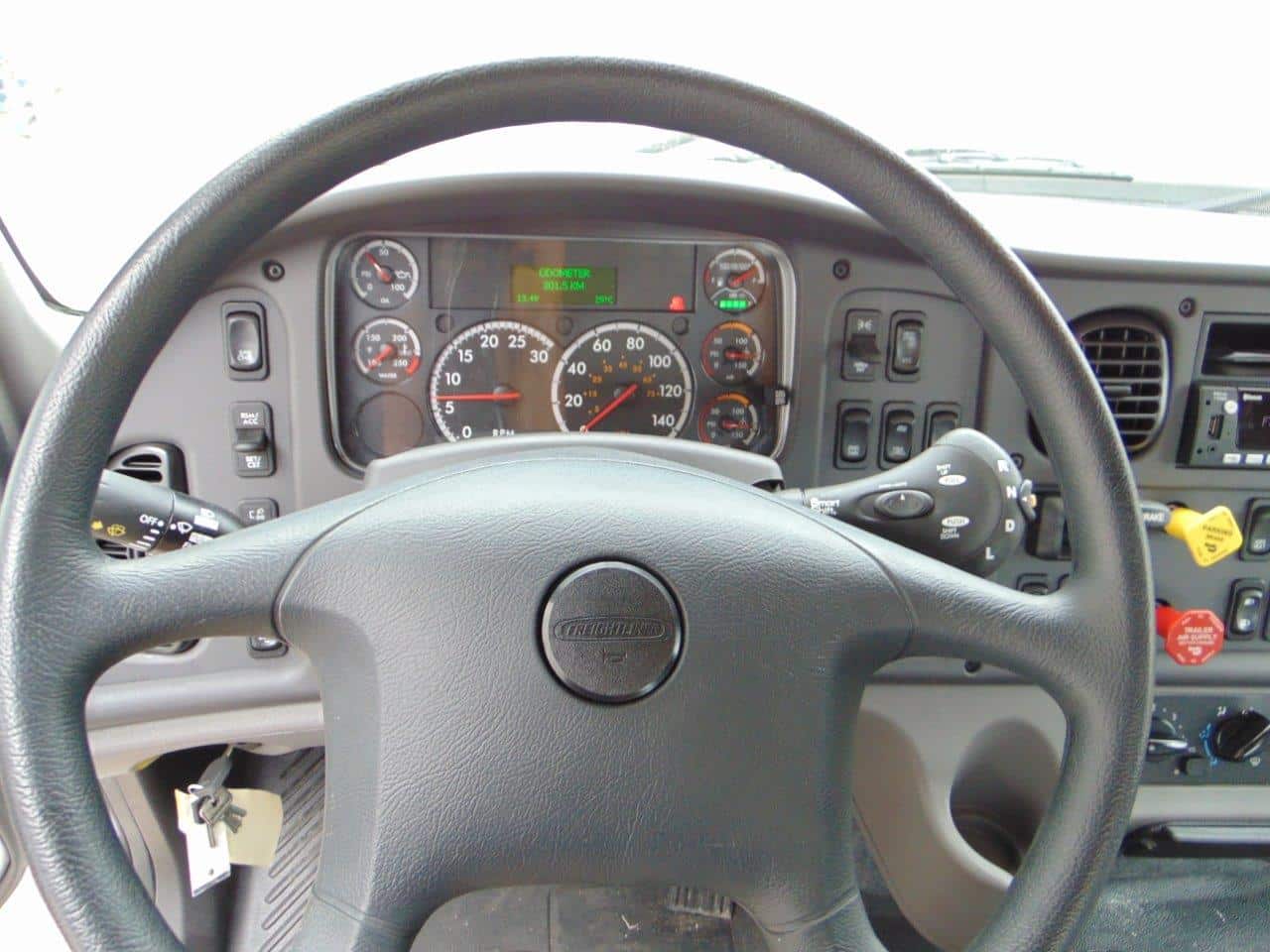

• Truck Features Include: Two Stage Engine Brake, Air Cond.,  AM/FM  stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill,  power and heated mirrors, block heater,  painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, etc…

Also Included Are:

• (2) pcs – PVC stabilizer pads with holders at rear
• (1) pc – 36” aluminum Storage Boxes installed
• 1” drawplate installed at rear (for possible optional pintle hook)
• Optional lift axle available

Deck Details

New  – 21’ long x 102” Hardwood Deck

• installed on Truck with 54” of main sill overhang for Sub-Frame of Knuckle Boom
• Hardwood Deck surface
• 66” Headboard
• Reverse Rail sliding track on passenger side
• 8 winches and straps (30’) with required Conspicuity and Reflectors
• All steel painted Gloss Black
