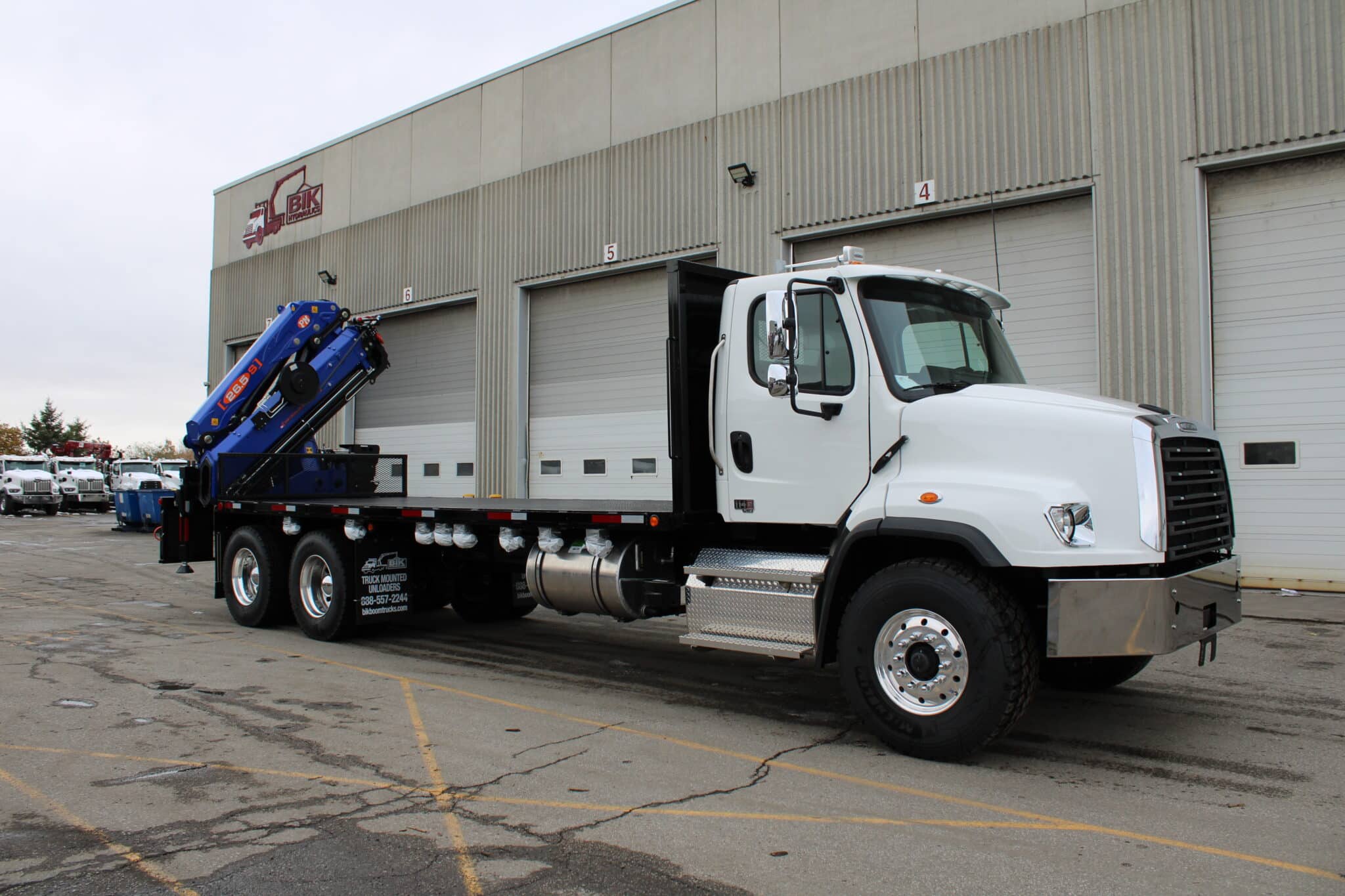

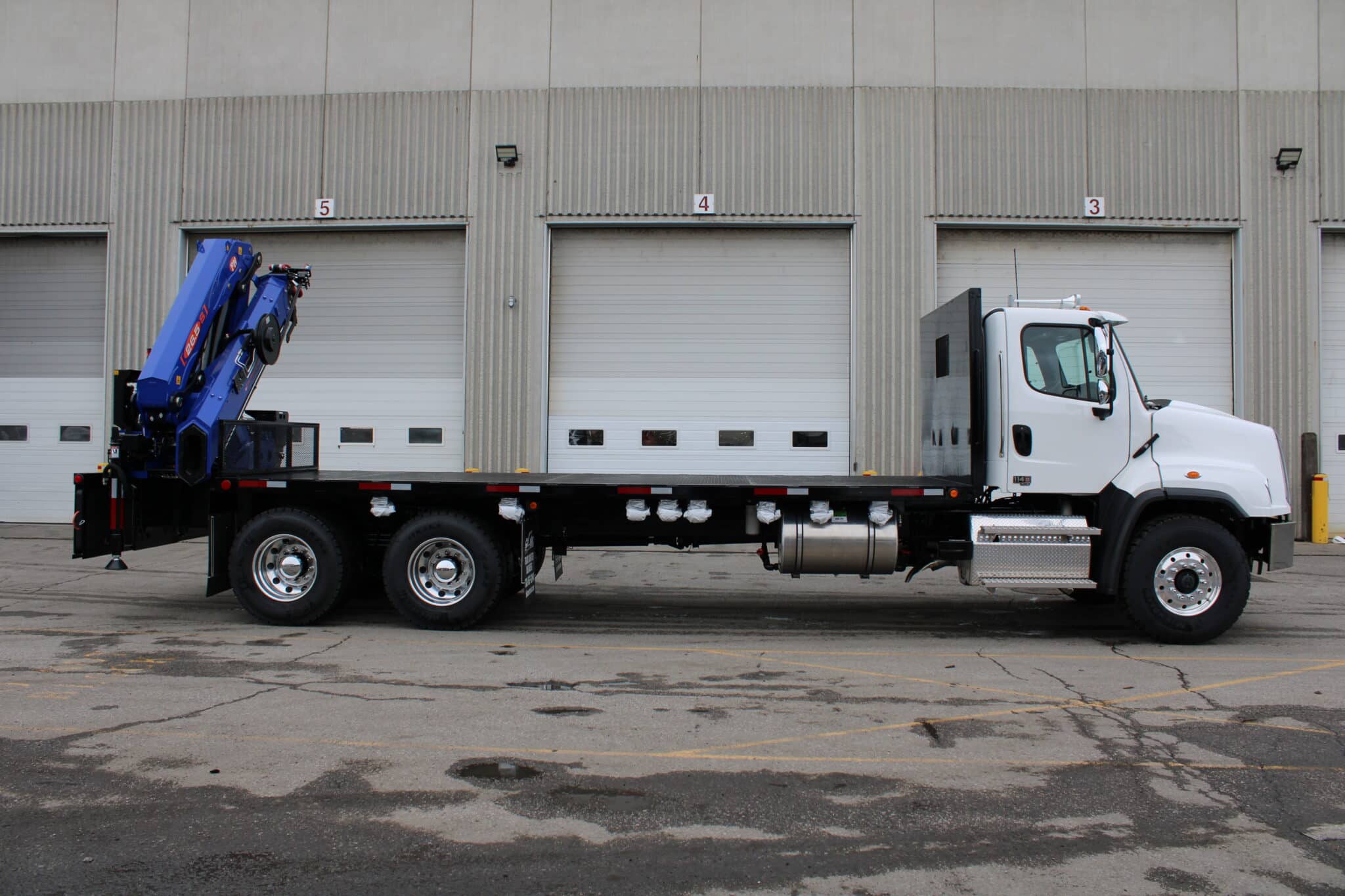

NEW PM 26523 KNUCKLEBOOM ON NEW FREIGHTLINER 114SD
NEW PM 26523 KNUCKLEBOOM ON NEW FREIGHTLINER 114SD
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

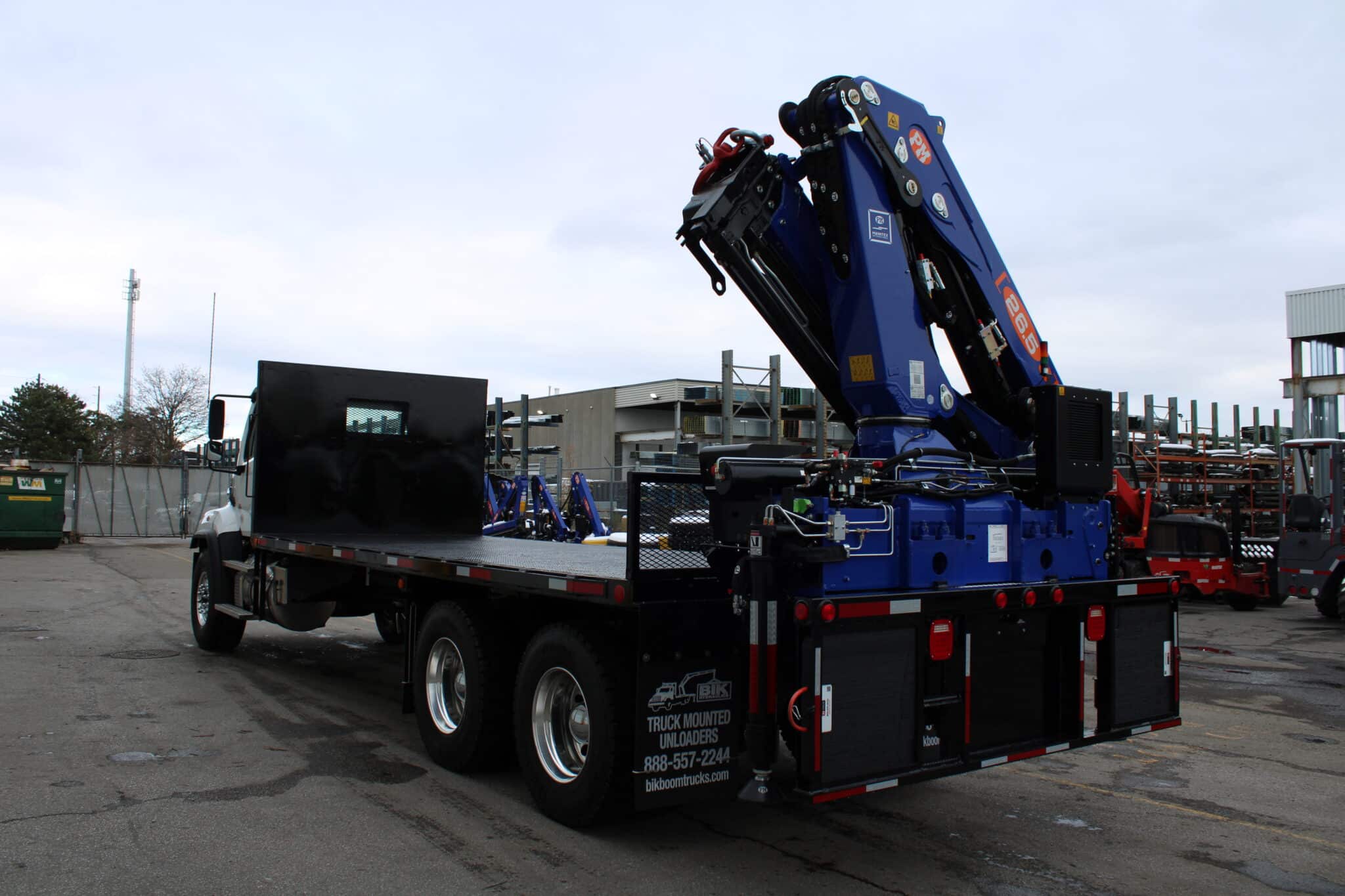

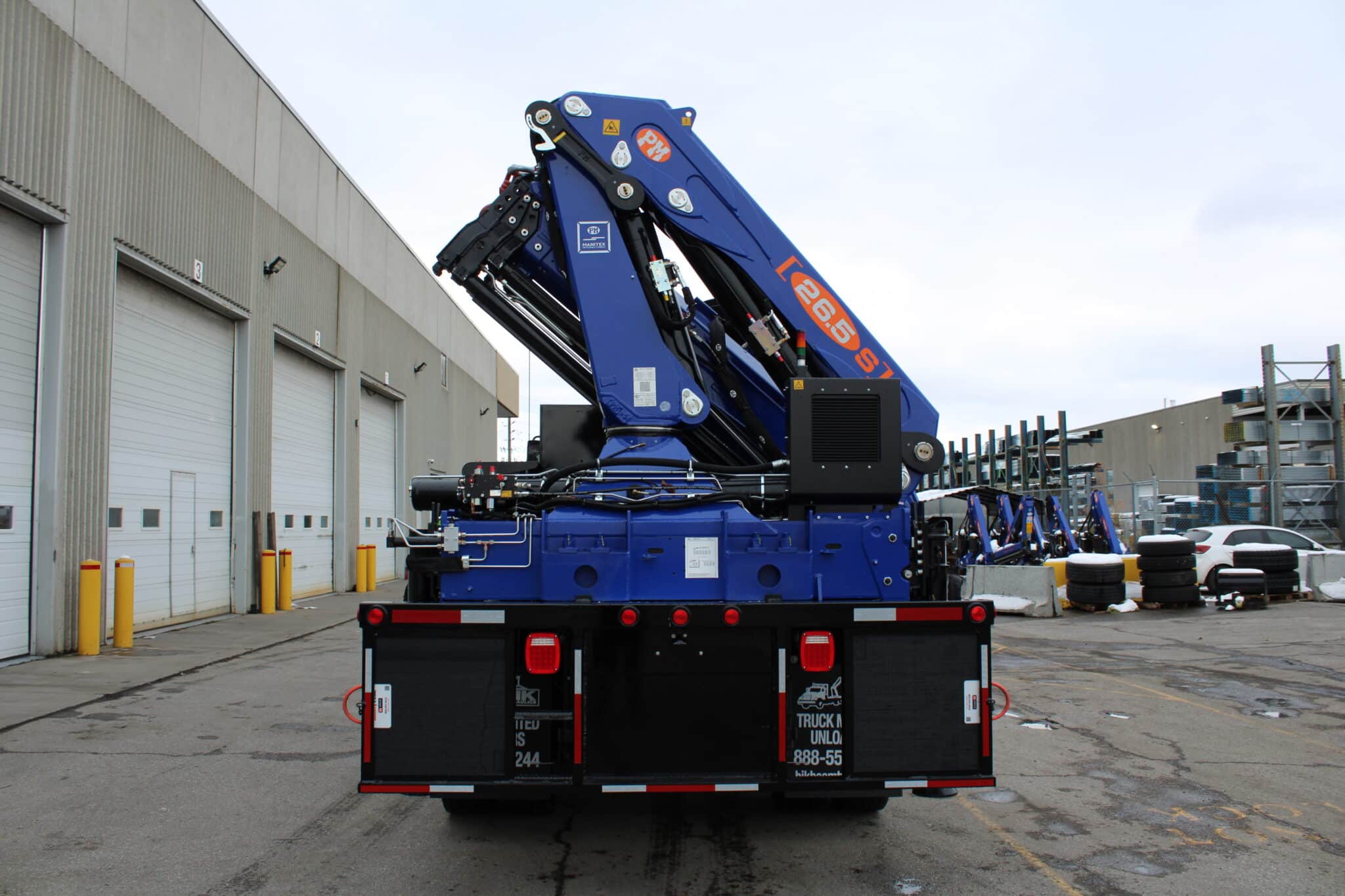

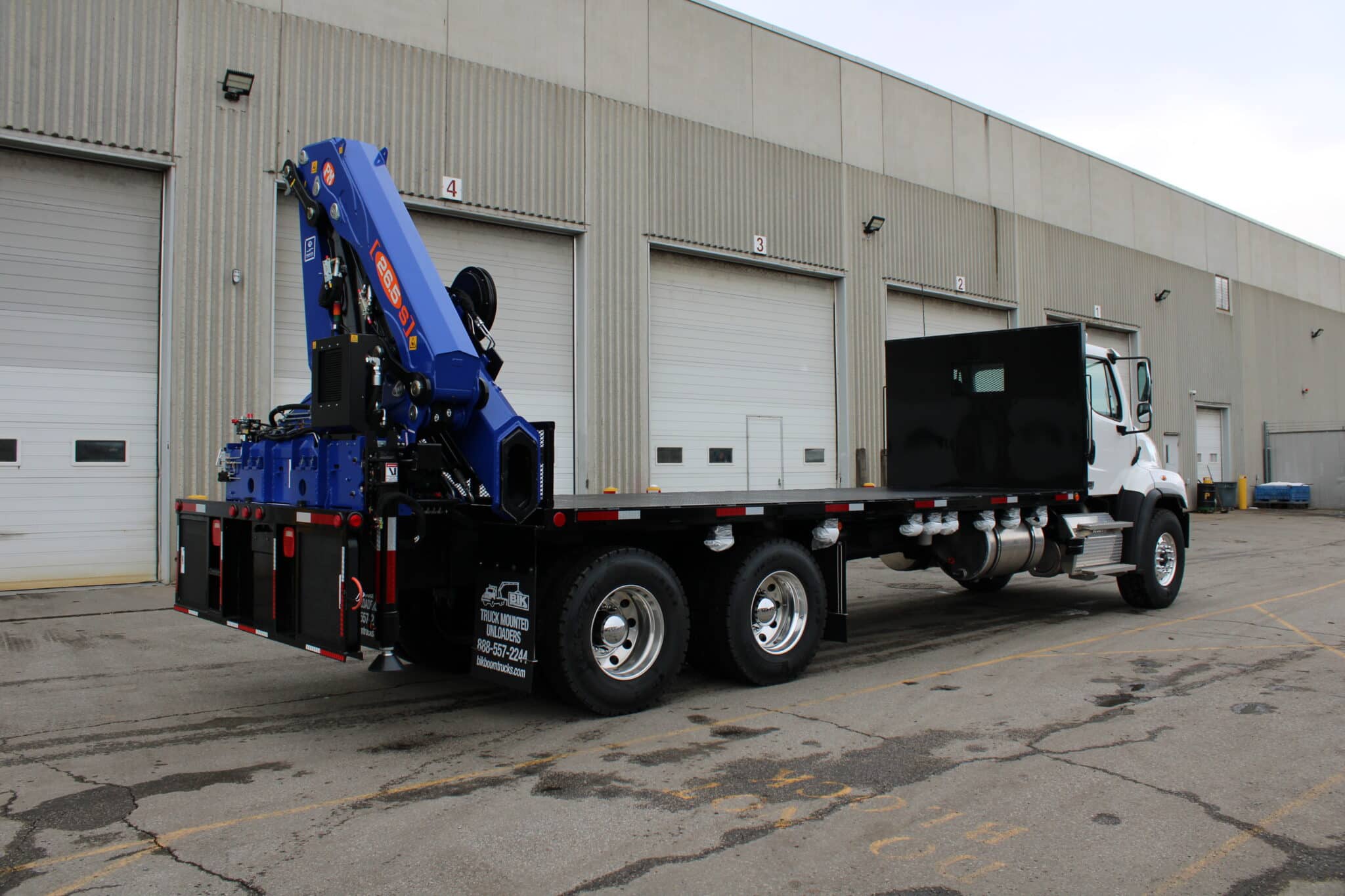

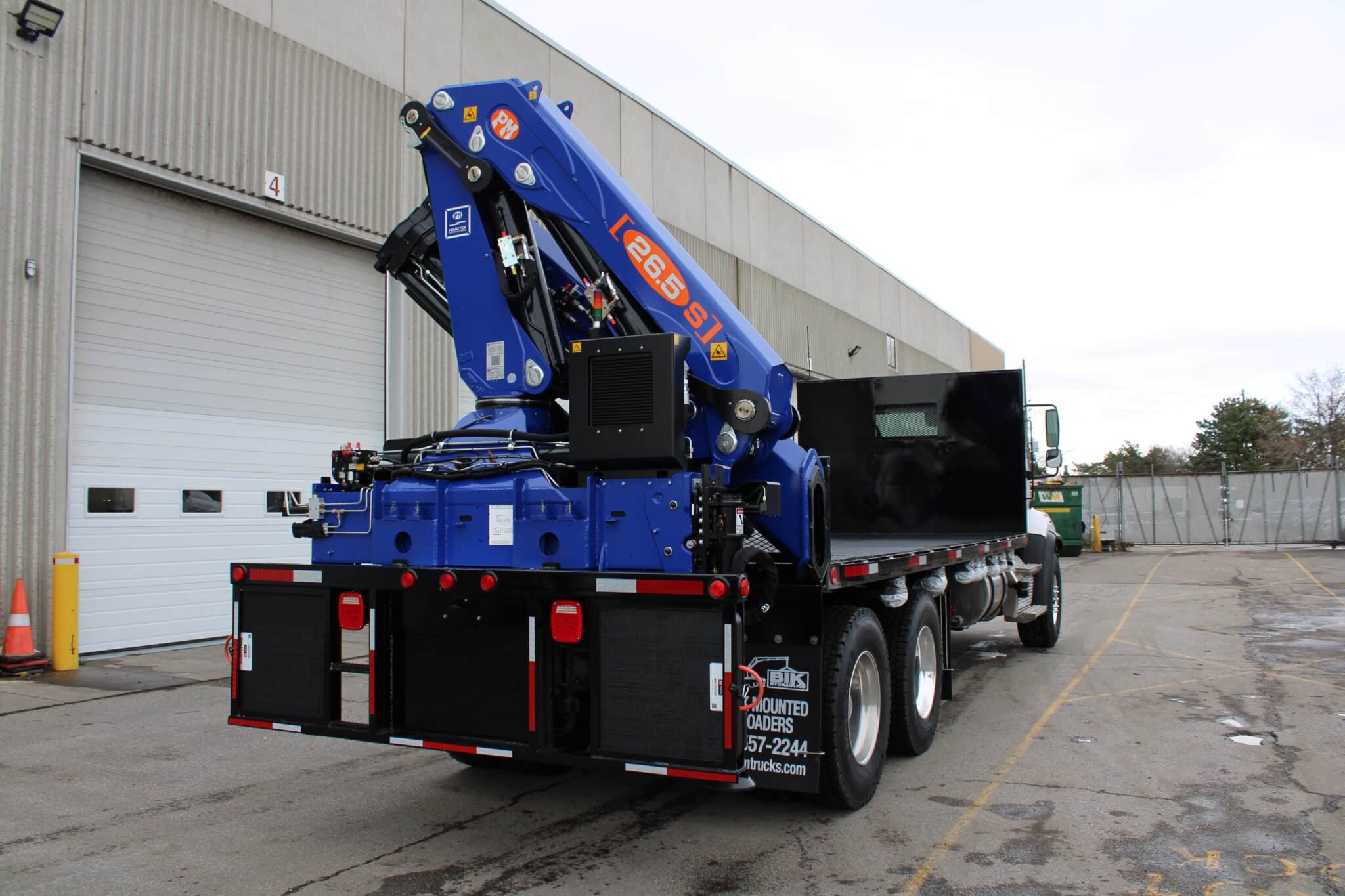

New – PM 26523 Knuckle Boom: with hydraulic out & down stabilizers, 7-hydraulic extensions to 33’ Horizontal reach (44’ vertical)

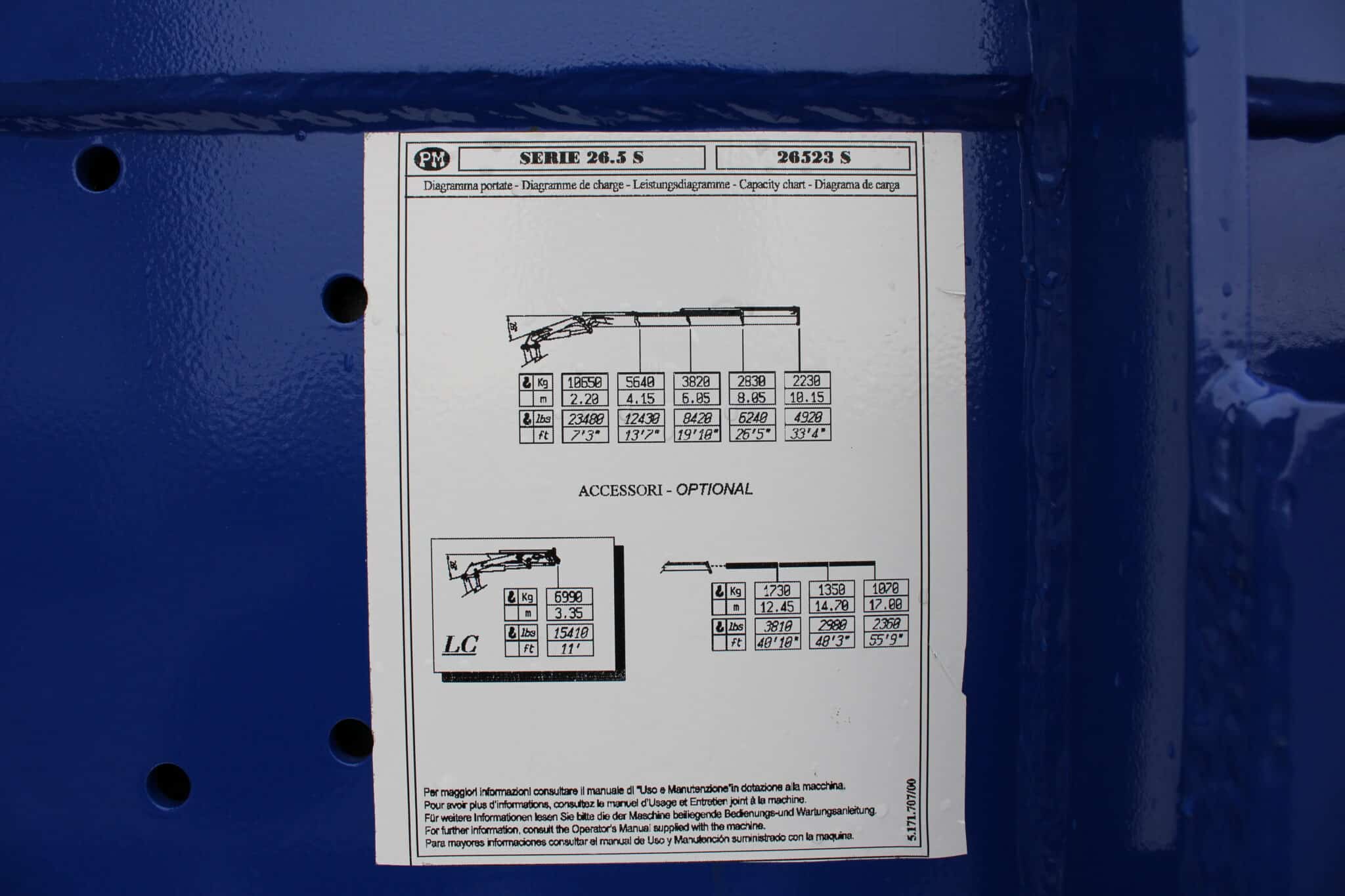

- HORIZONTAL Capacities:
- 12,430 lb at 14’
- 8,400 lb at 20’
- 6,240 lb at 26’
- 4,920 lb at 33’
- 408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted PM Blue,
- Double-pilot operated on slewing and pilot-operated check valves on all cylinders
- Hydraulic Oil Cooler, high-pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single-sided operator control station
- SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
- Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2 batteries with in-cab charger, 50’ back-up cord
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span, 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
- 15 degree negative angle on the folding arm
- Hydraulic Overload Protection – a simplified system that prevents the boom from being overloaded
- Load Holding Valves on each cylinder for the Safety and Security of the Operator and the Load
- Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision
- INSTALLED end of frame
Deck Details

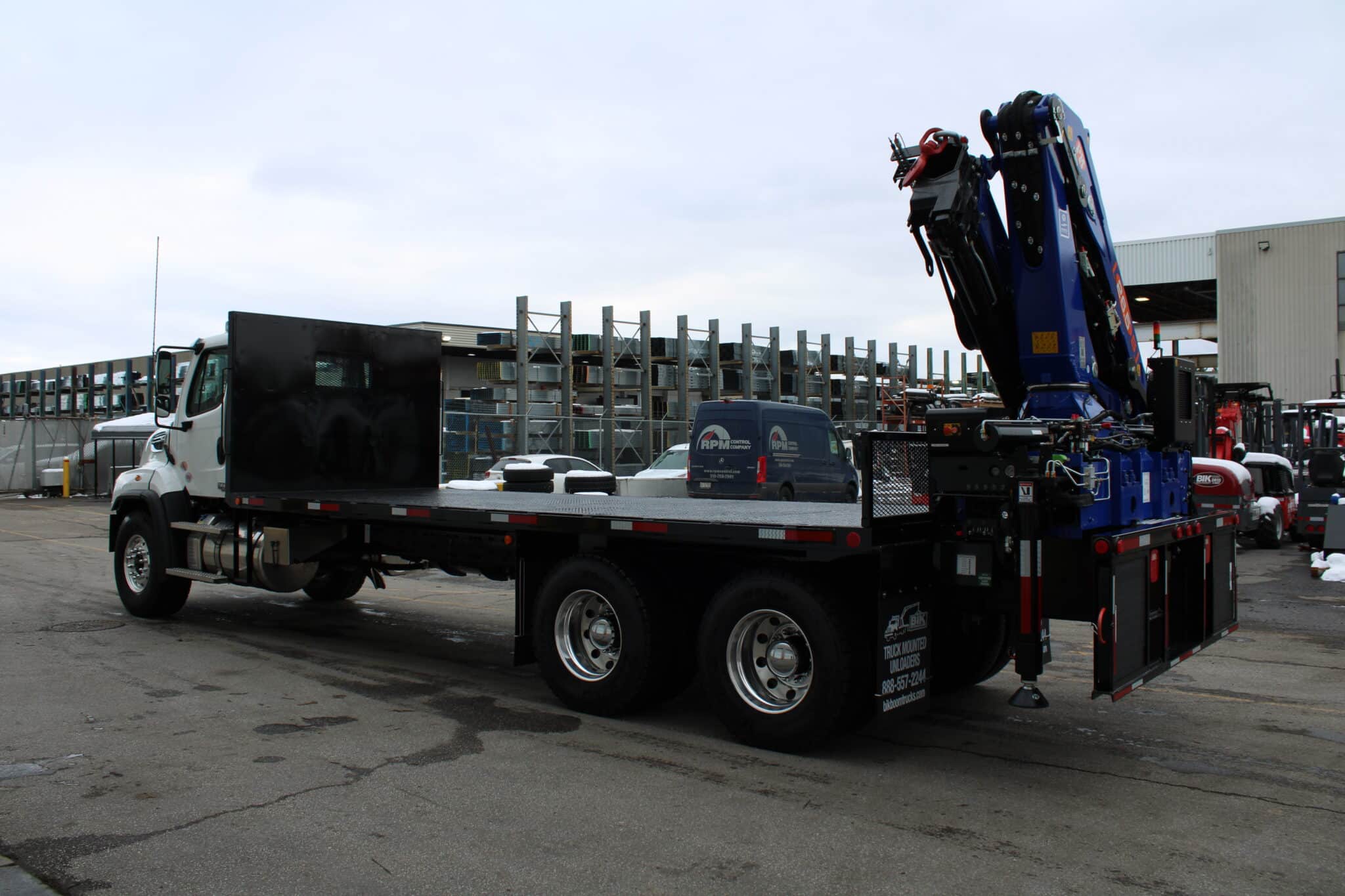

New – 22’ x 102” Flat Deck installed
- Steel deck surface
- 60” + headboard with centre winch bar holder and winch bar
- ladders
- 8 sliding tie-down winch straps
- reflectors and 5-side lights
- primed and painted black
Truck Details

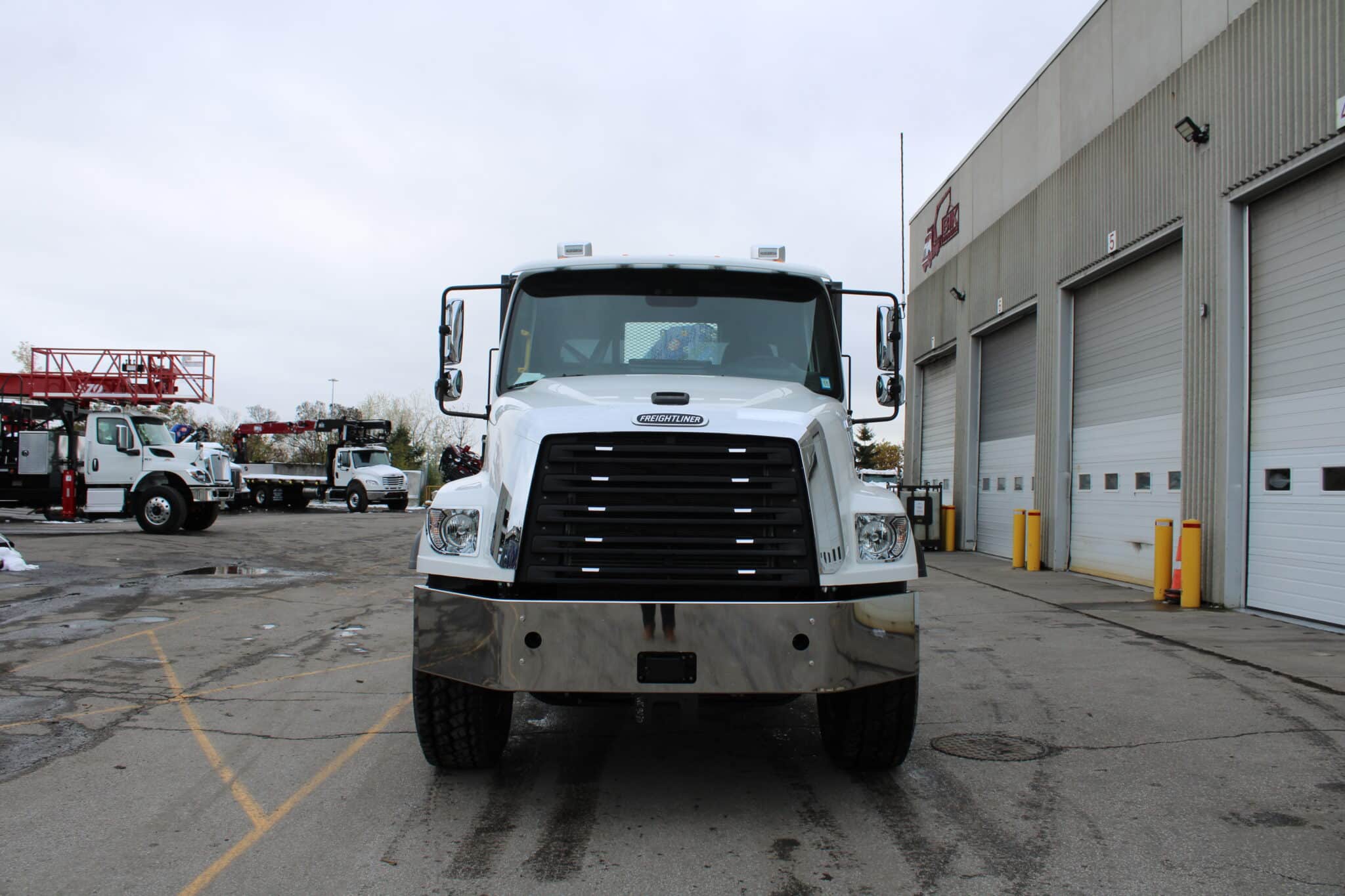

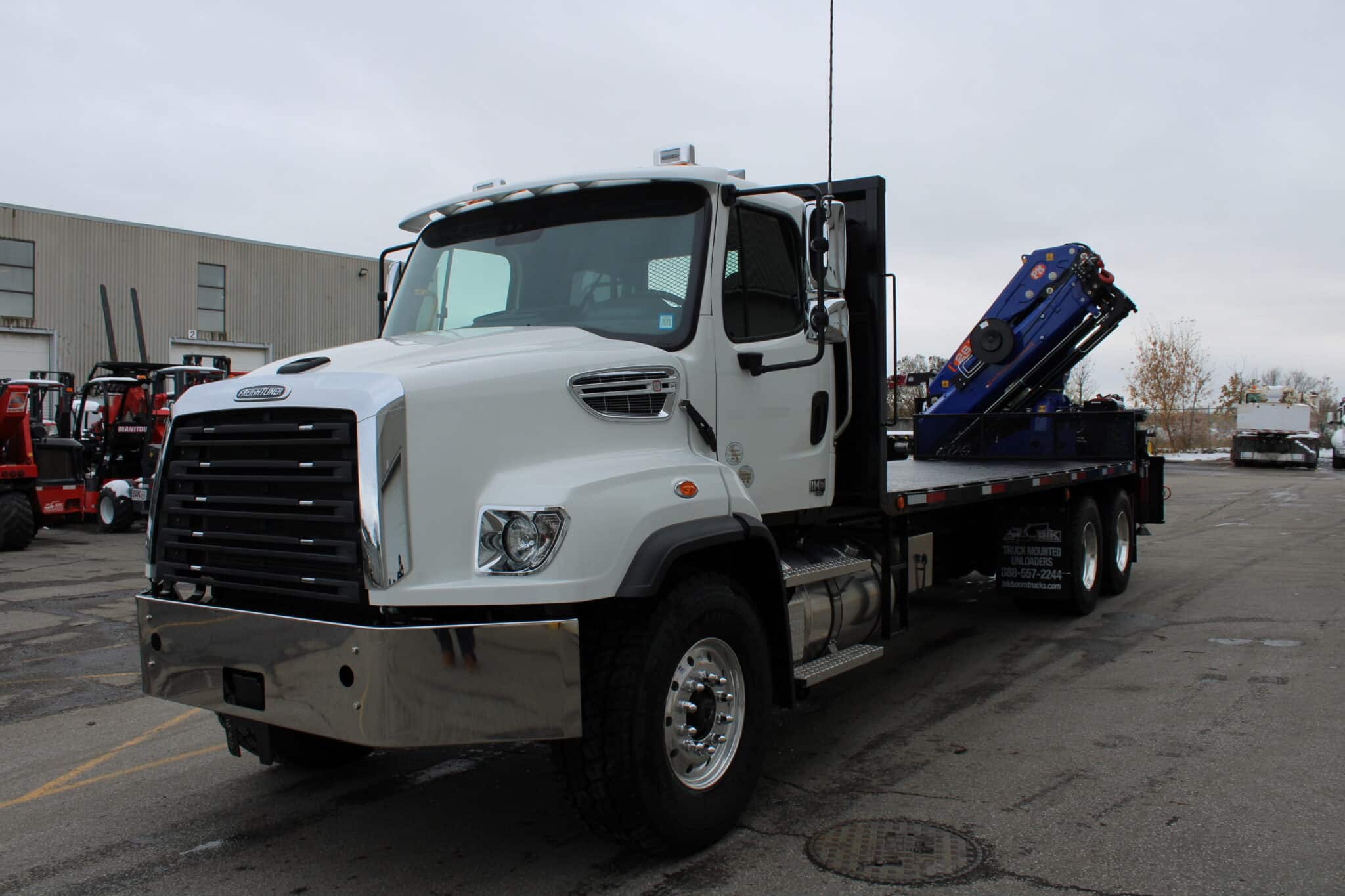

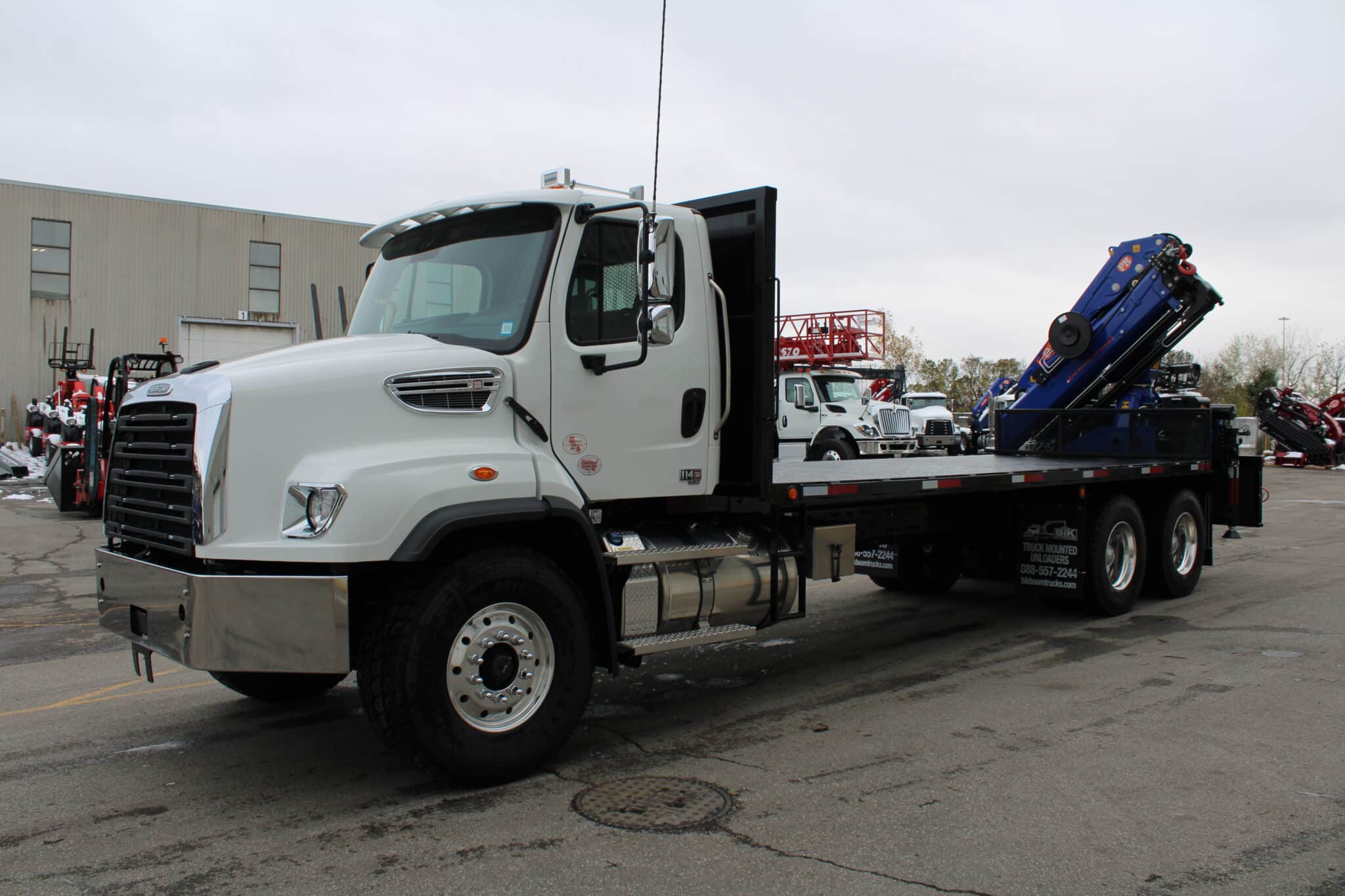

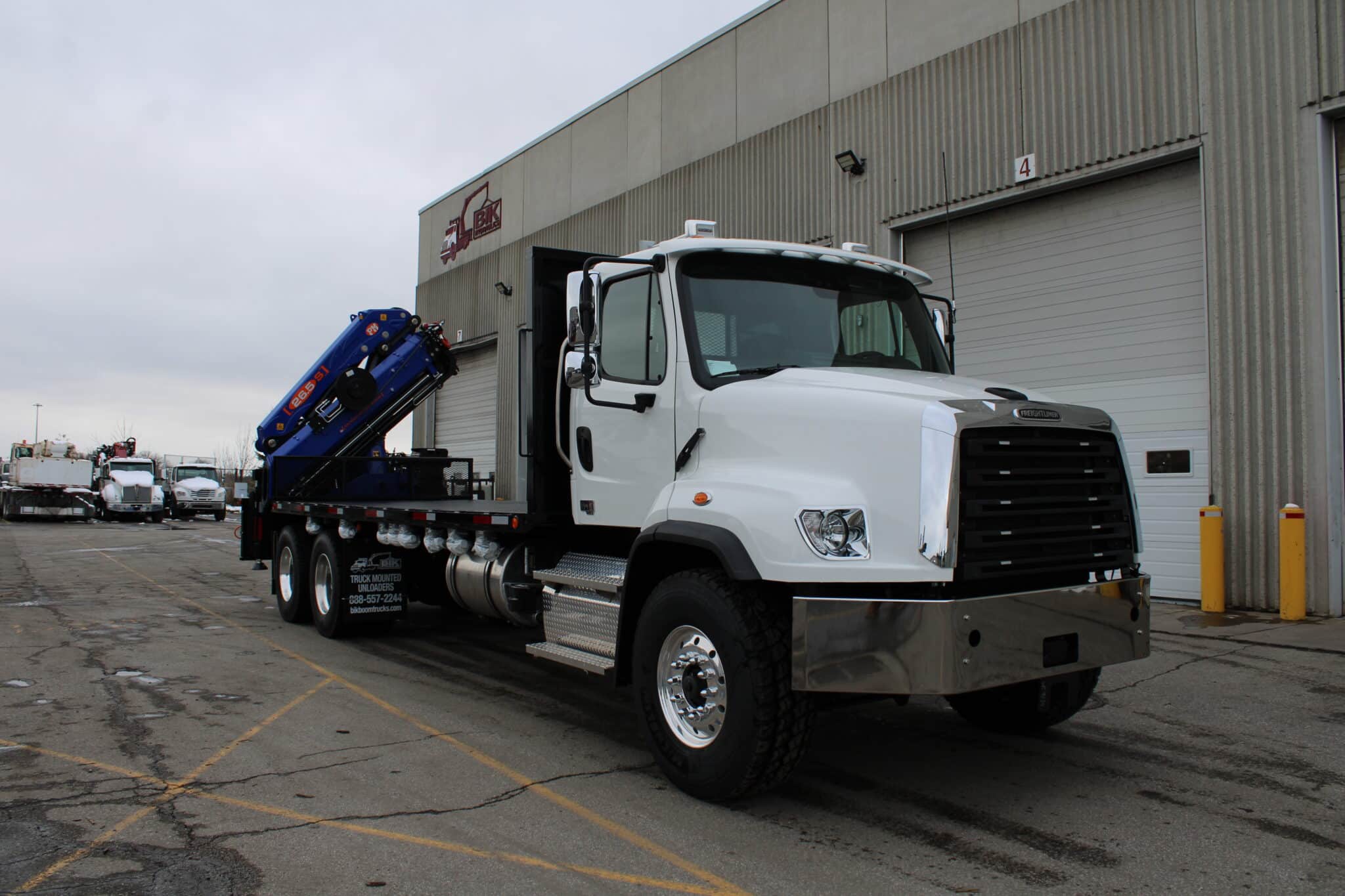

New – Freightliner 114SD 3-Axle Diesel Truck:
- 66,000 lb GVWR
- Cummins 12L Diesel
- Allison Automatic trans.
- 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
- 46,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims
- double frame chassis

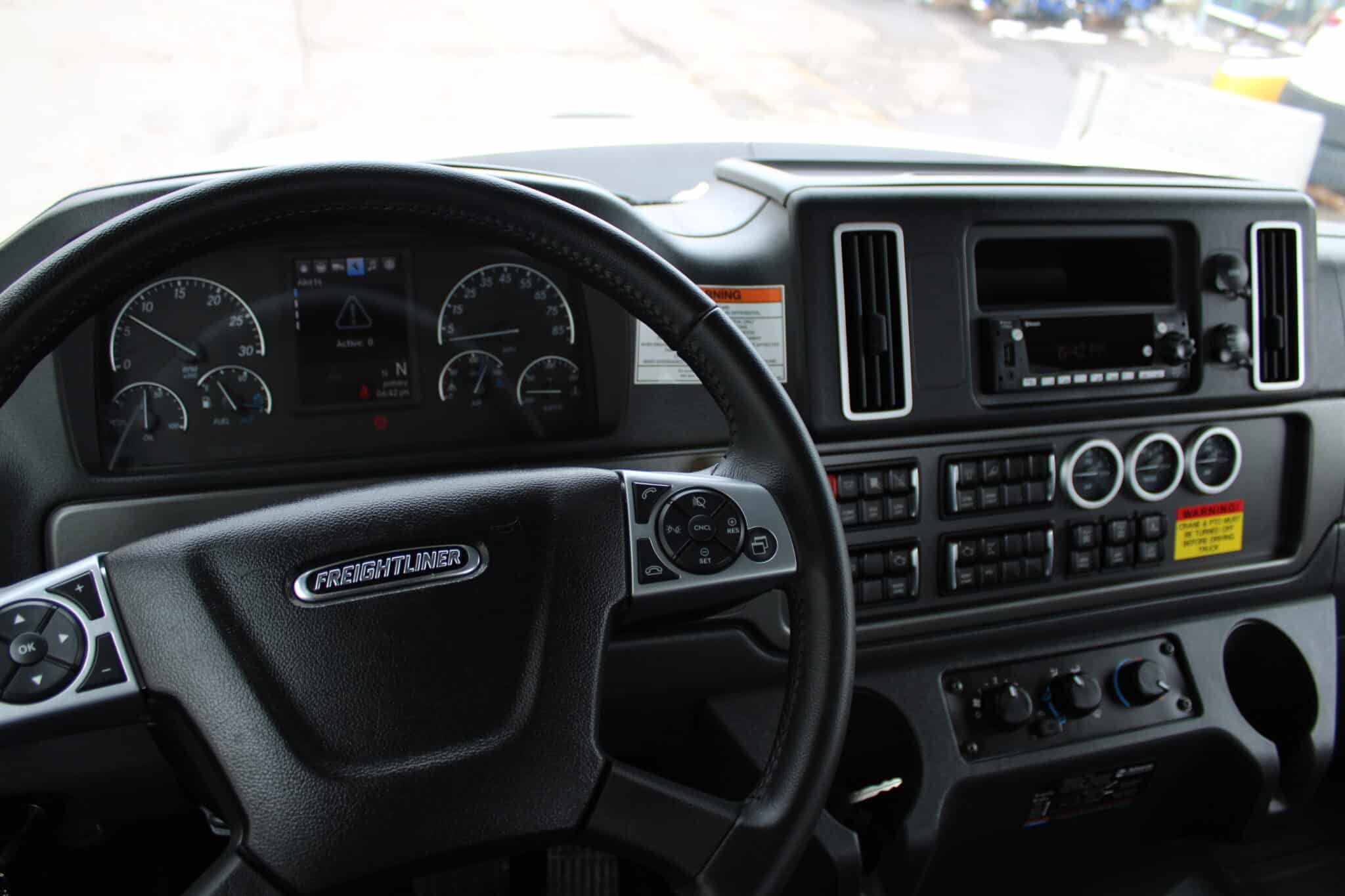

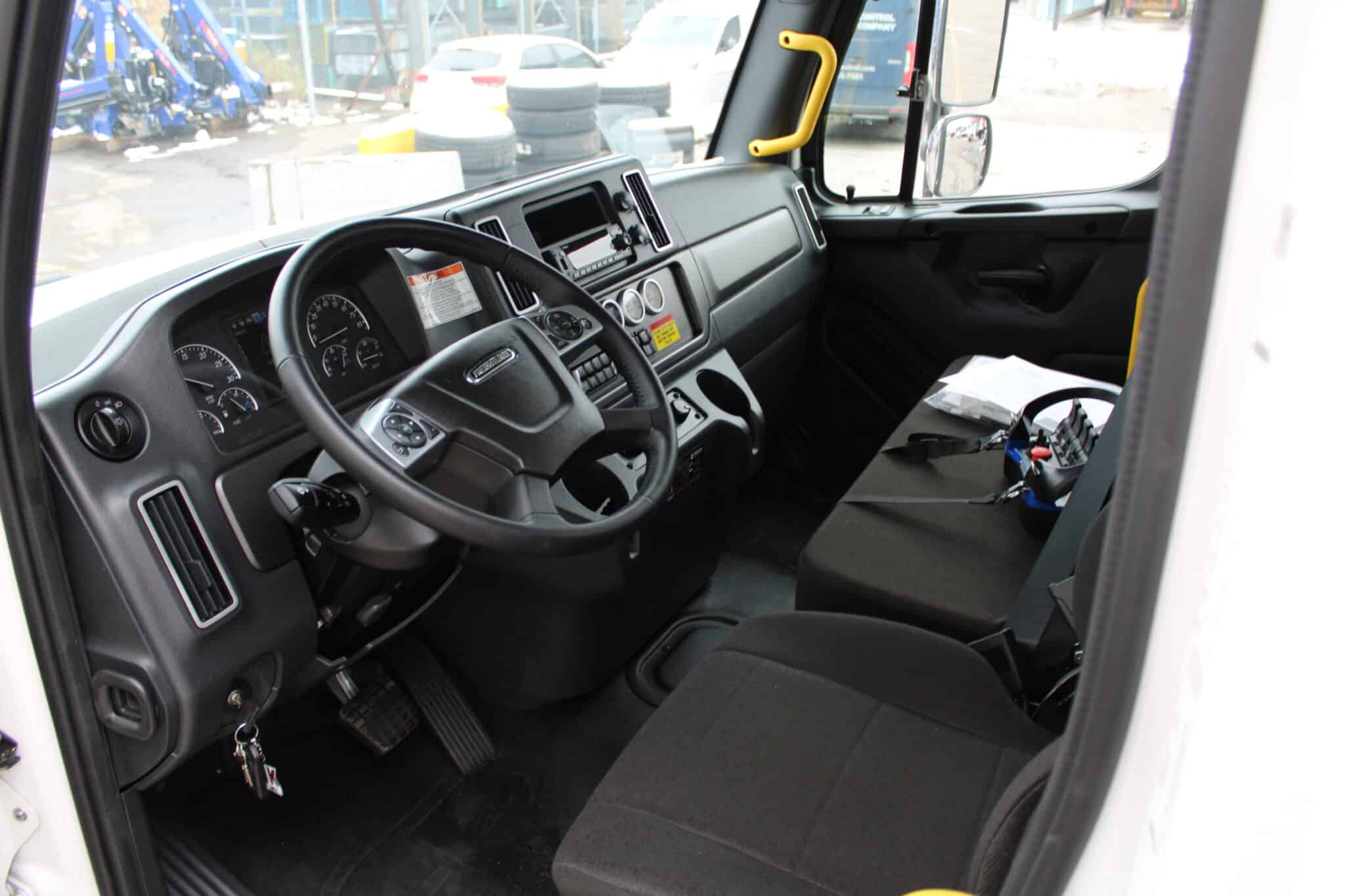

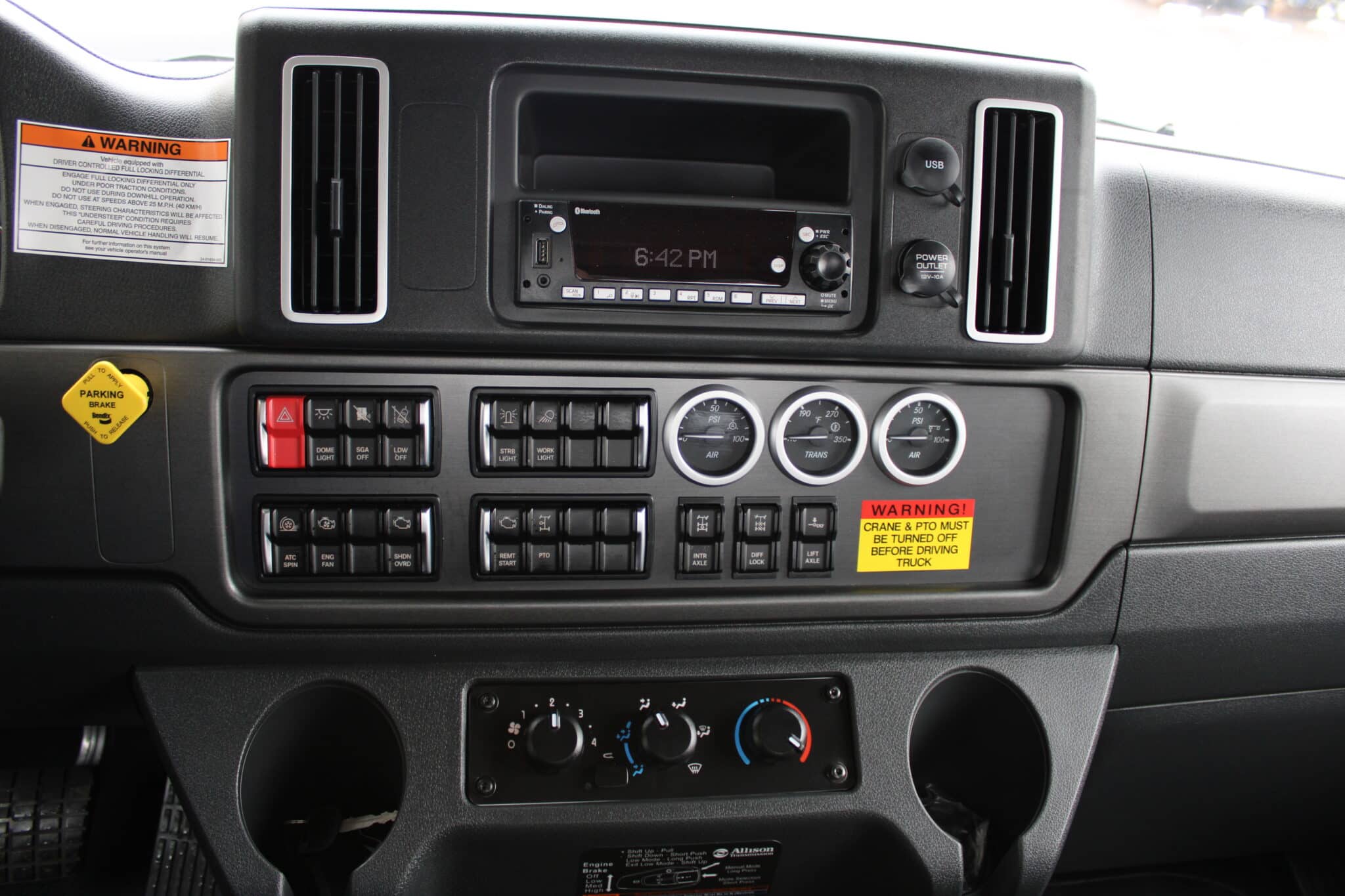

- Truck Features Include: Two-Stage Engine Brake, Air Cond. AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, dual chrome hood mtd mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…
Also Included Are:
- 36” aluminum storage box installed
- Pair of PVC stabilizer pads with pad holders at the rear bumper
- Activate extra features on the Remote Control to include: engine start/stop
- Variable RPM & horn
- 1” draw plate at the rear of the frame
Options:
- An additional 36” aluminum storage box
- Heavy-duty pintle hook installed on existing 1” draw plate with backup D-rings & connections
- Self-levelling Pallet Forks – 4,500 lb cap
