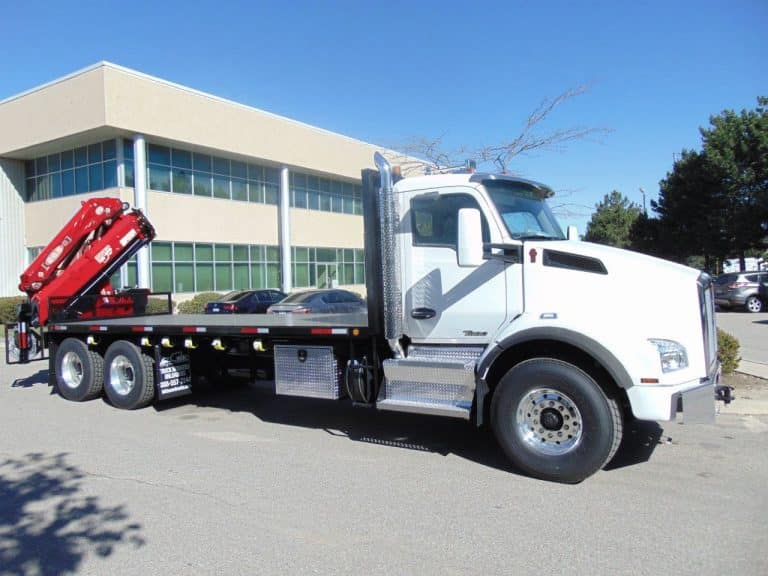

NEW PM 26523 KNUCKLE BOOM ON KENWORTH T880
NEW PM 26523 KNUCKLE BOOM ON KENWORTH T880 T/A WITH 21′ 6″ STEEL DECK – 485 HP – AUTO 18-SPD
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high-quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

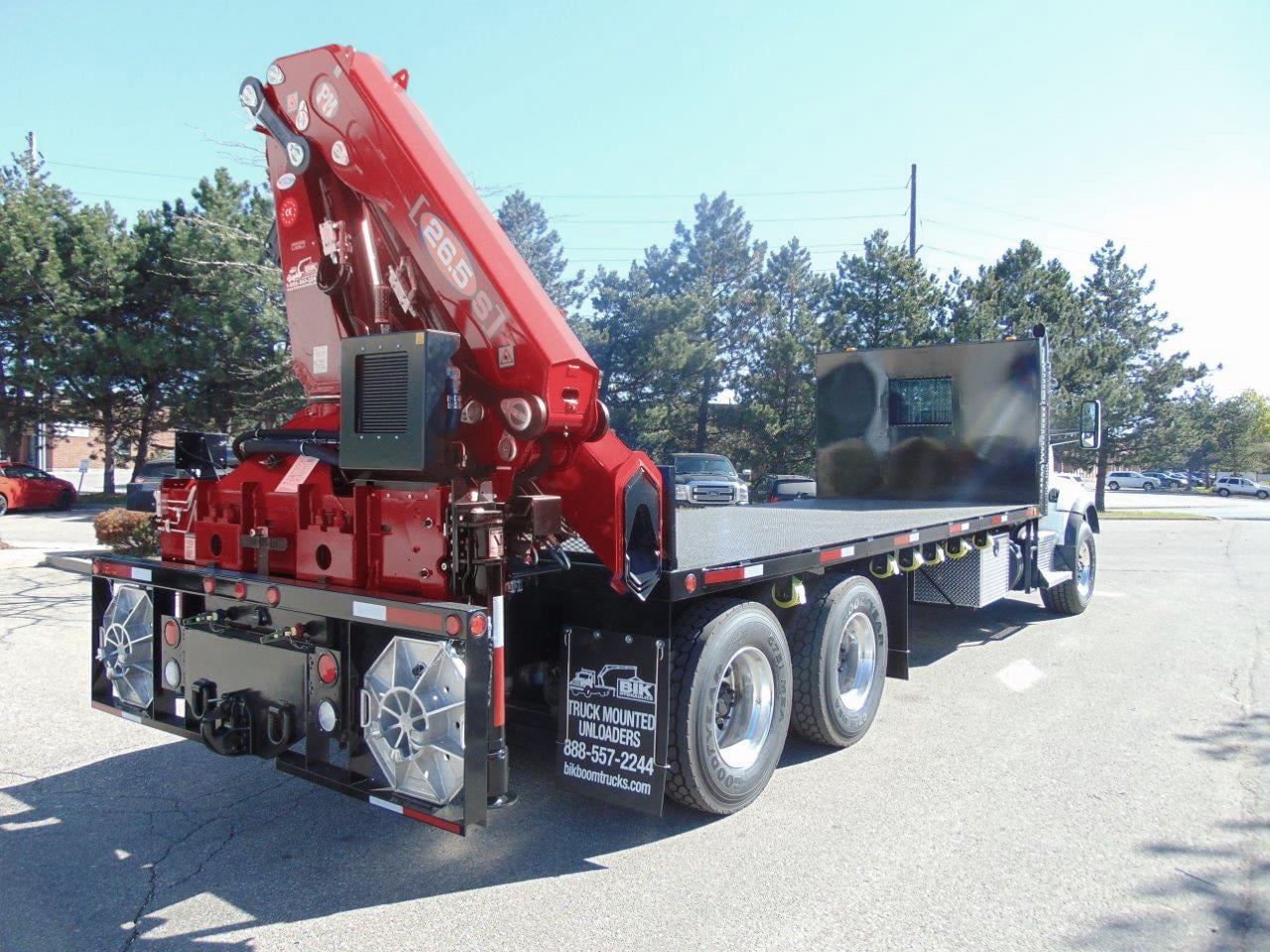

NEW – PM 26523 KNUCKLE BOOM
- Folding Knuckle Boom
- 3 Hyd Extensions to 33’ 4” Horizontal Reach (45’ Vertical)
- Horizontal Capacity:
- 12,000 lb @ 14’
- 8,400 lb @ 20’
- 6,300 lb @ 26’
- 5,000 lb @ 33’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Crane Painted PM Blue
- Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
- Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom
- DANFOSS Proportional Valve Controls – Single-Sided Operator Control Station
- SCANRECO Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
- Radio Remote Includes: 5 Micro Speed-Reducing Settings from Handheld Unit, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord
- Hydraulic OUT and Hydraulic DOWN 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder
- 15 Degree Negative Angle on Folding Arm – Hydraulic Overload Protection – Simplified System that Prevents Boom from Overload
- Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
- Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision
- Installed End of Frame, with Integral Sub-Frame to Meet or Exceed all CMVSS Standards, Stability Tested & Certified by Engineer
Truck Details
NEW – KENWORTH T880-SH T/A TRUCK: 66,000 lb GVWR
- Paccar MX – 485 hp with Engine Brake – Eaton Ultrashift Plus – Automated 18 Spd Trans.
- 4.10 Rear Axle Ratio, Truck Cab White
- 20,000 lb Fronts with 425 / 65R22.5 Tires
- 46,000 lb Rears on Hendrickson Pri-Max Air Ride Susp., Double Frame, Polished ALCOA Aluminum Wheels Front and Rear
- Chrome Grill & Bumper, Single 120-Gallon Alum Fuel Tank
- Options Include: A/C, Tilt/Telescopic Steering, AM/FM with Bluetooth Weather-Band, Air Ride Driver’s and Fixed Pass. Seat, Cruise, Heated Mirrors, Painted Ext. Sun Visor, 4 Wheel Lock-ups, Pass. Side Power Windows/Locks, Air Ride Cab, Trailer Tow Package, etc…
Other Options Available:
- 36” up to 60” Aluminum Storage Box
- Dealer Installed Dual Roof-Mounted Strobe Lights
- Pair of Aluminum Stabilizer Pads with Holders at Rear Bumper
- 1” Drawplate Installed at Rear of Truck with Heavy Duty Pintle Hook
Deck Details
NEW 21’ 6” X 102” DECK
- Installed on Truck, with 54” of Main Sill Overhang for Sub-Frame of Knuckle Boom
- Steel Checker Plate (or) Hardwood Deck Surface
- 66” Headboard, Sliding Track on Pass. Side w/ 6 Winches and Straps
- Painted Gloss Black
