***SOLD*** NEW PM 16027 KNUCKLE BOOM – 72′ REACH – 2017 FREIGHTLINER

SOLD NEW PM 16027 KNUCKLE BOOM – 72′ REACH – 2017 FREIGHTLINER

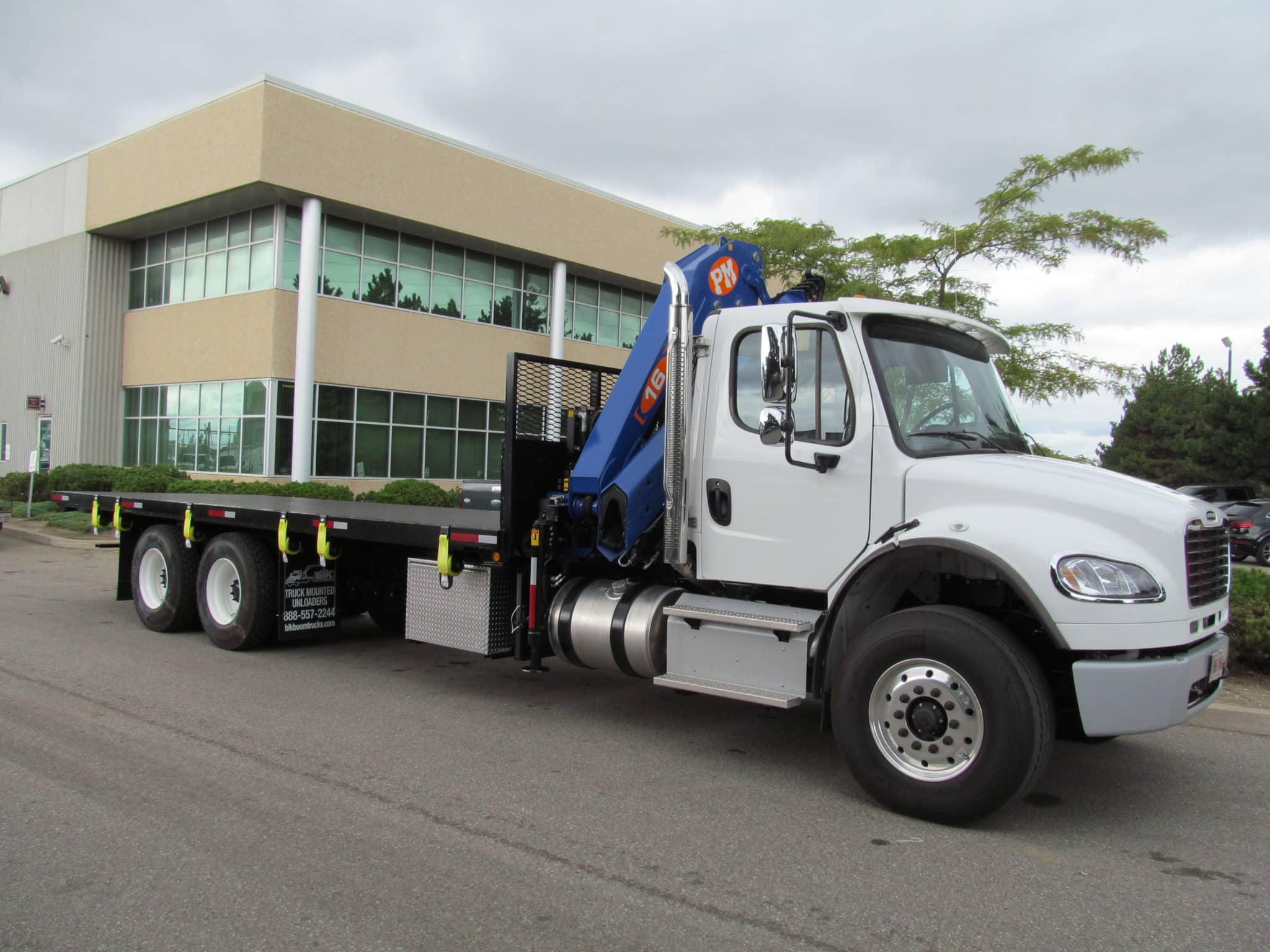

SOLD – NEW PM 16027 KNUCKLE BOOM – 72′ VERT. REACH – 24′ DECK ON 2017 FREIGHTLINER M2-106 – 350 HP – ALLISON AUTO

The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

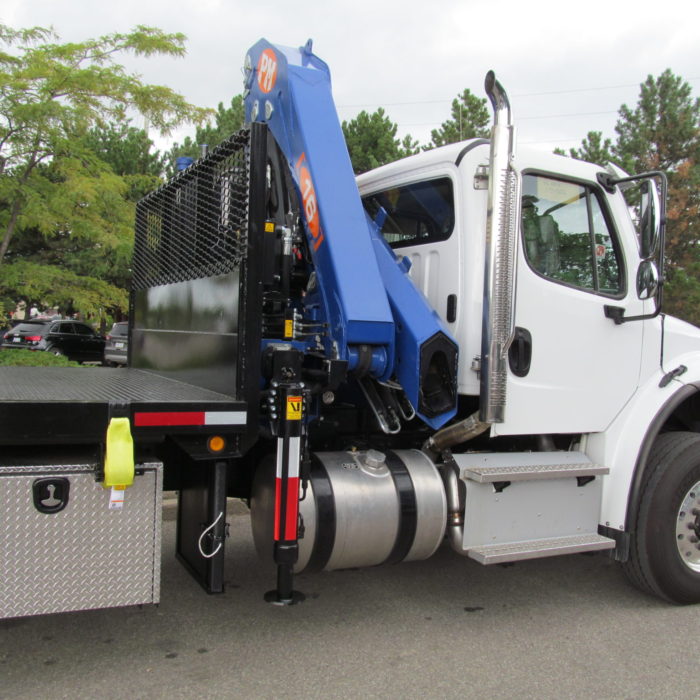

NEW – PM 16027 KNUCKLE BOOM – with Hydraulic Out & Down Stabilizers, 7 Hydraulic Extensions to 62′ Horizontal (74′ Vertical) Reach
Horizontal Capacities: 6,800 lb @ 14’, 4,170 lb @ 21’, 2,090 lb @ 34’, 1,260 lb @ 48’, 905 lb @ 62’
408 Degrees Rotation on Main Hydraulic Slewing
Crane Painted PM Blue
Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
Hydraulic Extra Wide Main Outriggers at Pedestal – 21’ 9” Span
Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom
DANFOSS Proportional Valve Controls – Single-Sided Operator Control Station
SCANRECO Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
Radio Remote Includes: 5 Micro Speed-Reducing Settings from Handheld Unit, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord
Hydraulic OUT and Hydraulic DOWN 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder
Hydraulic Overload Protection – Simplified System that Prevents Boom from Overload
Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision
Boom Mounted Behind the Cab

Deck Details

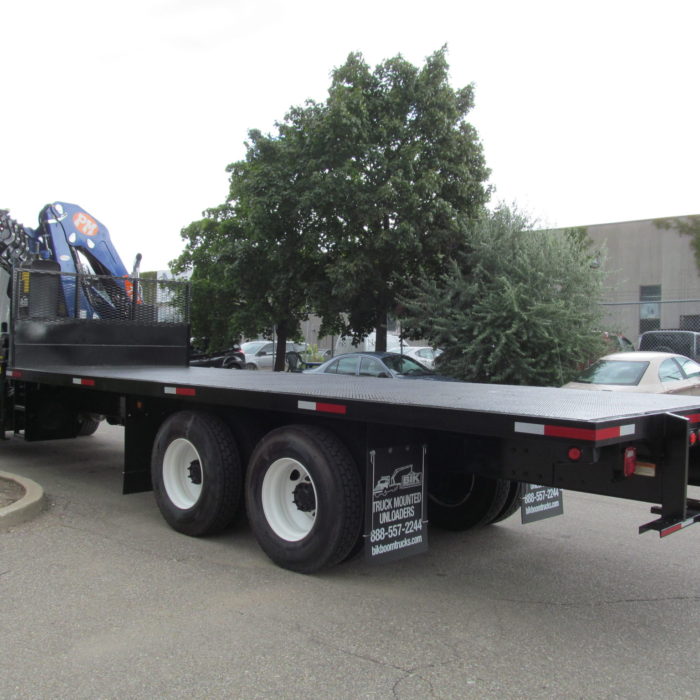

NEW – 24’ STEEL FLAT DECK
8’ Wide Plus Pockets with Rub Rails
Checker Plate Steel Deck Surface
48” Headboard, Sliding Track on Passenger Side
6 Winches and Straps (30’)
DOT Tape and Reflectors, Dual Front Access Ladders

Truck Details

NEW – 2017 FREIGHTLINER M2-106 TANDEM AXLE DIESEL TRUCK
60,000 lb GVWR
Cummins 350 hp
Allison Automatic Transmission
20,000 lb Fronts with 385/85R22.5 Flotation Tires on Steel White Rims
40,000 lb Rears on Air-Ride Suspension with 11R22.5 Tires on Steel White Rims
278” Wheel Base, Full Double-Frame Chassis
54” Spread at Tandems
A/C, AM/FM Stereo, 2-Man Passenger Seat
Painted Bumper and Grill
Power Windows & Door Locks, Tilt Steering
Differential Locks with Rear Wheel Lock-ups
Heated Mirrors, Block Heater, Single 80-Gallon Aluminum Fuel Tank, etc…

SOLD NEW PM 16027 KNUCKLE BOOM – 72′ REACH – 2017 FREIGHTLINER
