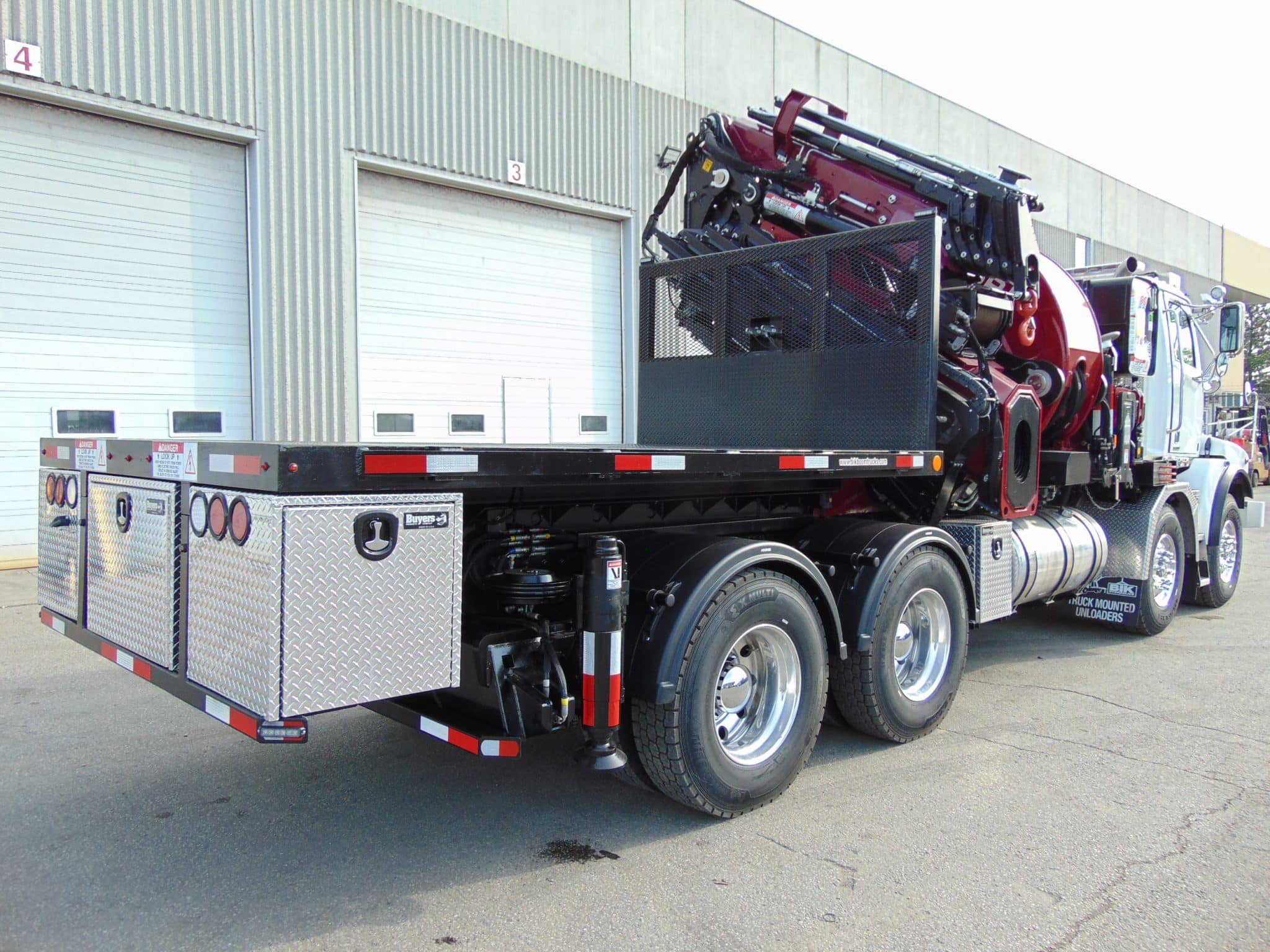

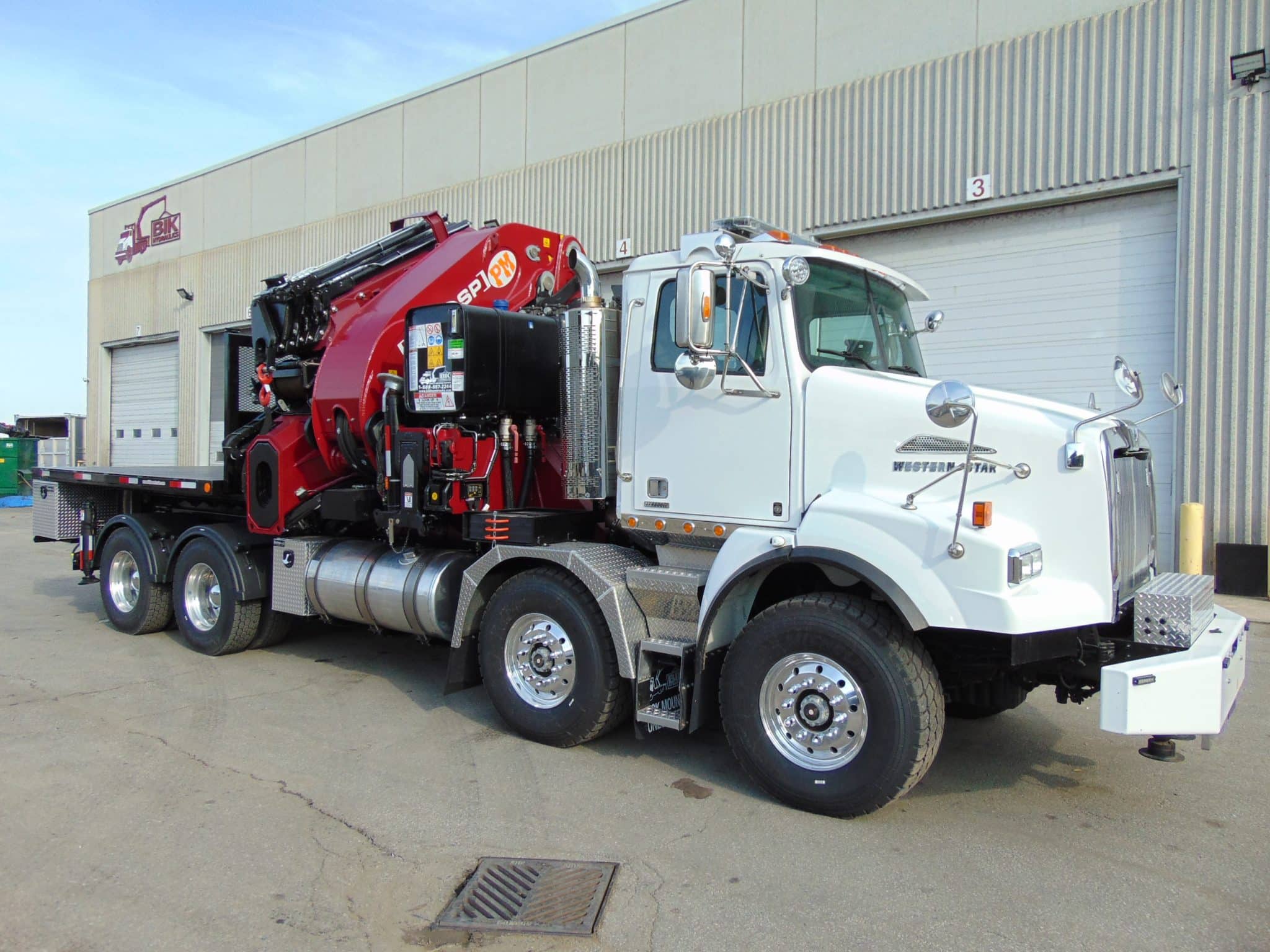

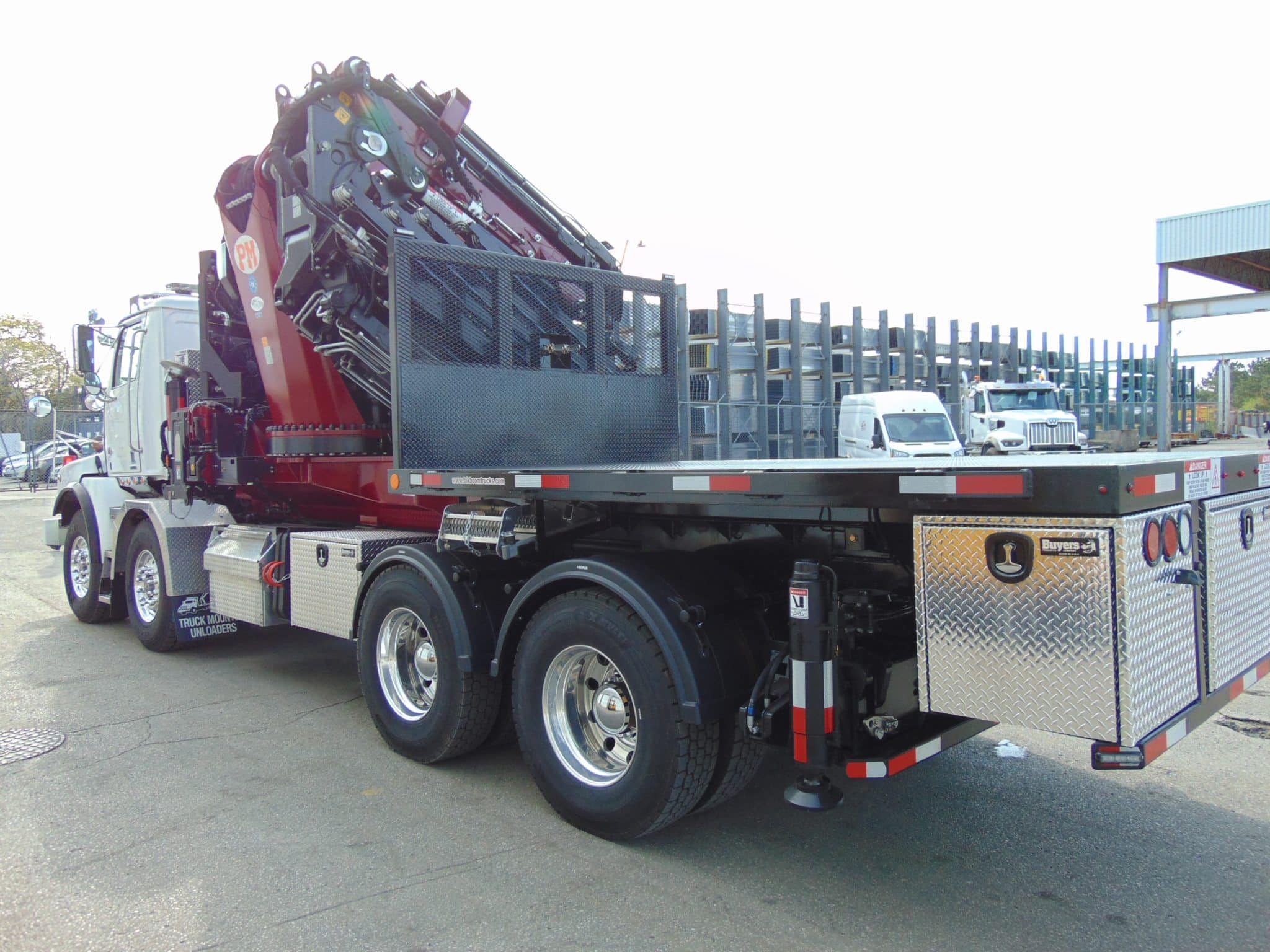

NEW PM 150 + JIB ON NEW WESTERN STAR 4800 & 15′ REMOVABLE DECK
NEW PM 150 + JIB (150 TON/M) – 130′ VERT. REACH ON NEW WESTERN STAR 4800 TRACTOR & 15′ REMOVABLE DECK – 500 HP – AUTO 18 SPD
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – PM 150028SP+J2416 KNUCKLE BOOM

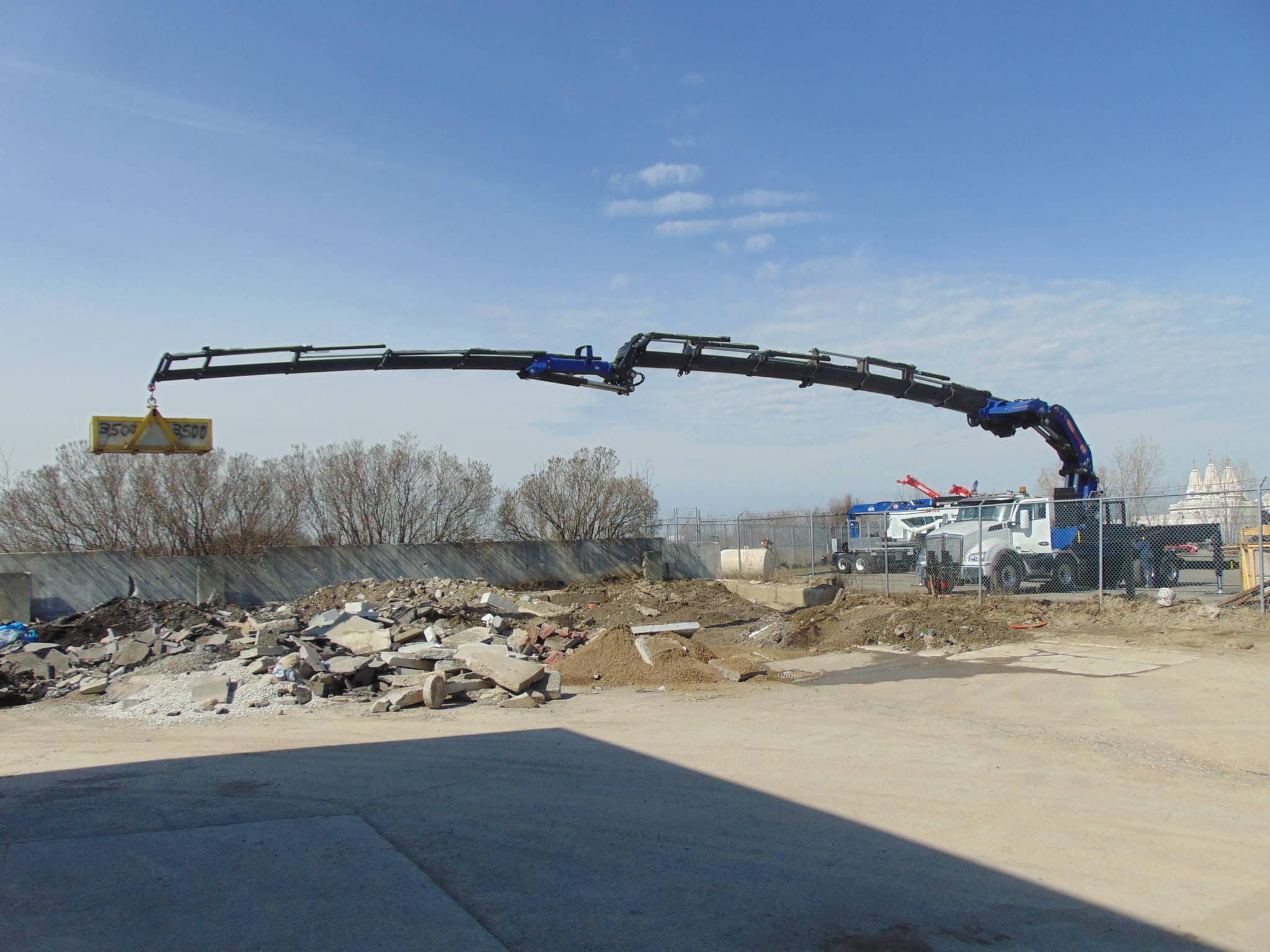

- Handles 3,200 lbs @ 106′ Horizontal – 130′ Total Vertical Reach w/Two Extra Pull-Out Extensions
- (120′ Horizontal Reach) – Best Capacity in its Class!!
- PM Connecting Rods at First Boom and Knuckle
- 15 Degree Negative Angle at 1st Knuckle, 25 Degree Negative Angle at Jib
- Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure (Unit Weighs Only a Few Hundred Pounds More Than PM 85 Version)
- Hydraulic Extra-Wide Main Outriggers at Pedestal – 33′ 6″ Span – Hydraulic Tilting when Retracted
- Auxiliary 26′ Spread Stabilizers Installed at Rear Behind Drives, Unfinished at Rear
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 92-Gallon Oil Tank for Boom
- Danfoss Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System Allowing Constant Crane Monitoring & Visual Display with 5-Level Stability Control System
- SCANRECO Radio Remote Control Includes: 2 Batteries, In-cab Charger, Back-up Cord, Crane Painted PM Blue, Load Chart in ft & lbs
- Load Tested & Installed at End of Frame, with Integral Sub-Frame to Meet or Exceed all CMVSS Standards
Deck Details

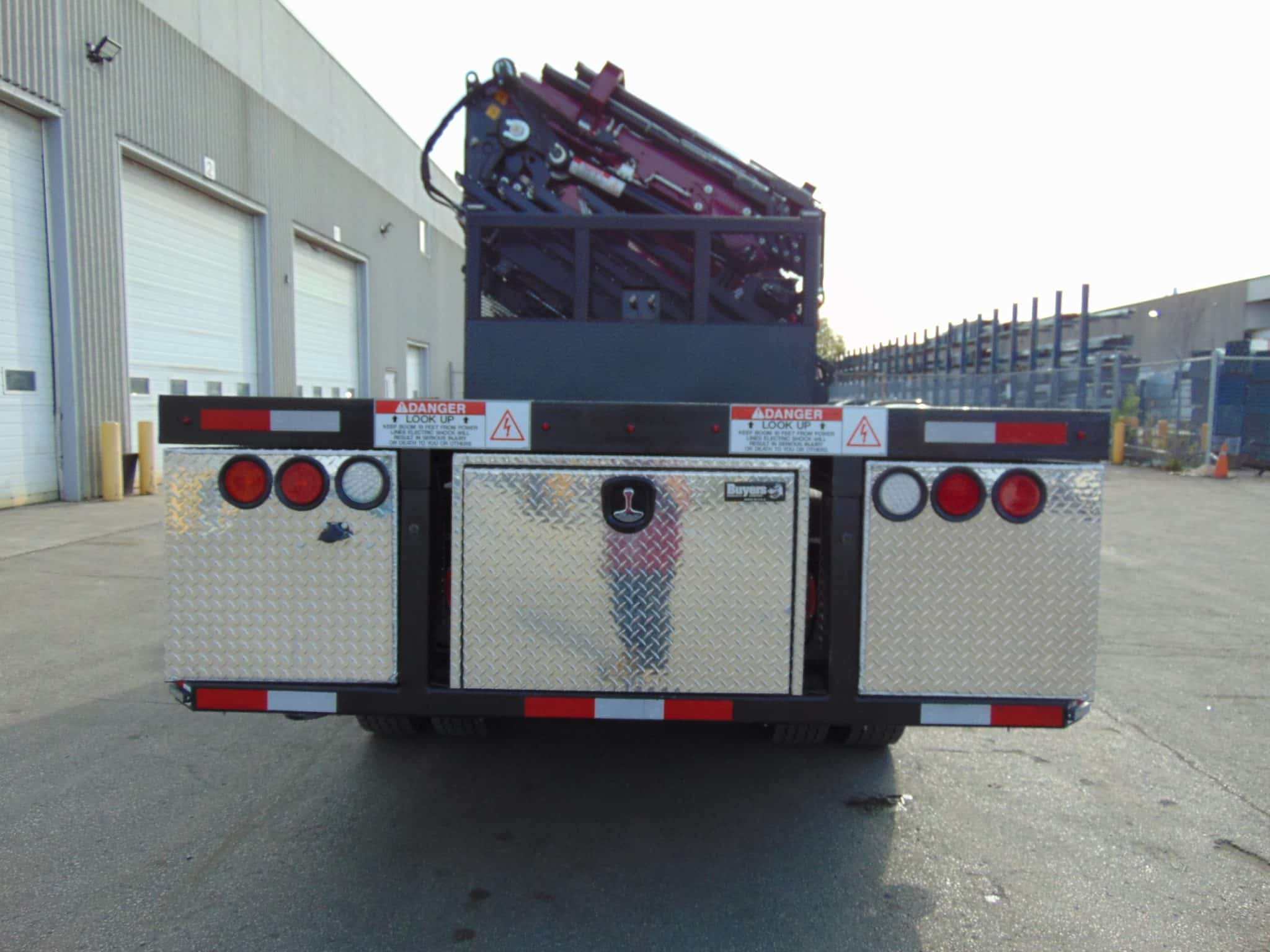

NEW – 15′ X 102″ REMOVABLE STEEL CHECKER PLATE FLAT DECK
- Also Included Are: 5th Wheel Installed Over Tandem with Bracket Receiver Hook for Removable Deck, Program Remote Control to Include Engine Start/Stop and Variable Engine RPM, Auxiliary Extra-Wide Out and Down Stabilizers Mounted at Rear Under Frame, 24″ Aluminum Tool Box Under Deck, Dual Front Bumper Stabilizer on Integral 24″ Front Frame Extension, 6 PVC Stabilizers Pads with Holders
Optional Features Available:
- Add Winch on Main Boom with Ability to Lift from Jib and Main Boom
- Removable 4-Ton Rated Hydraulic Hook Rotator Installed at End of Boom
- Aluminum Man Basket
Truck Details

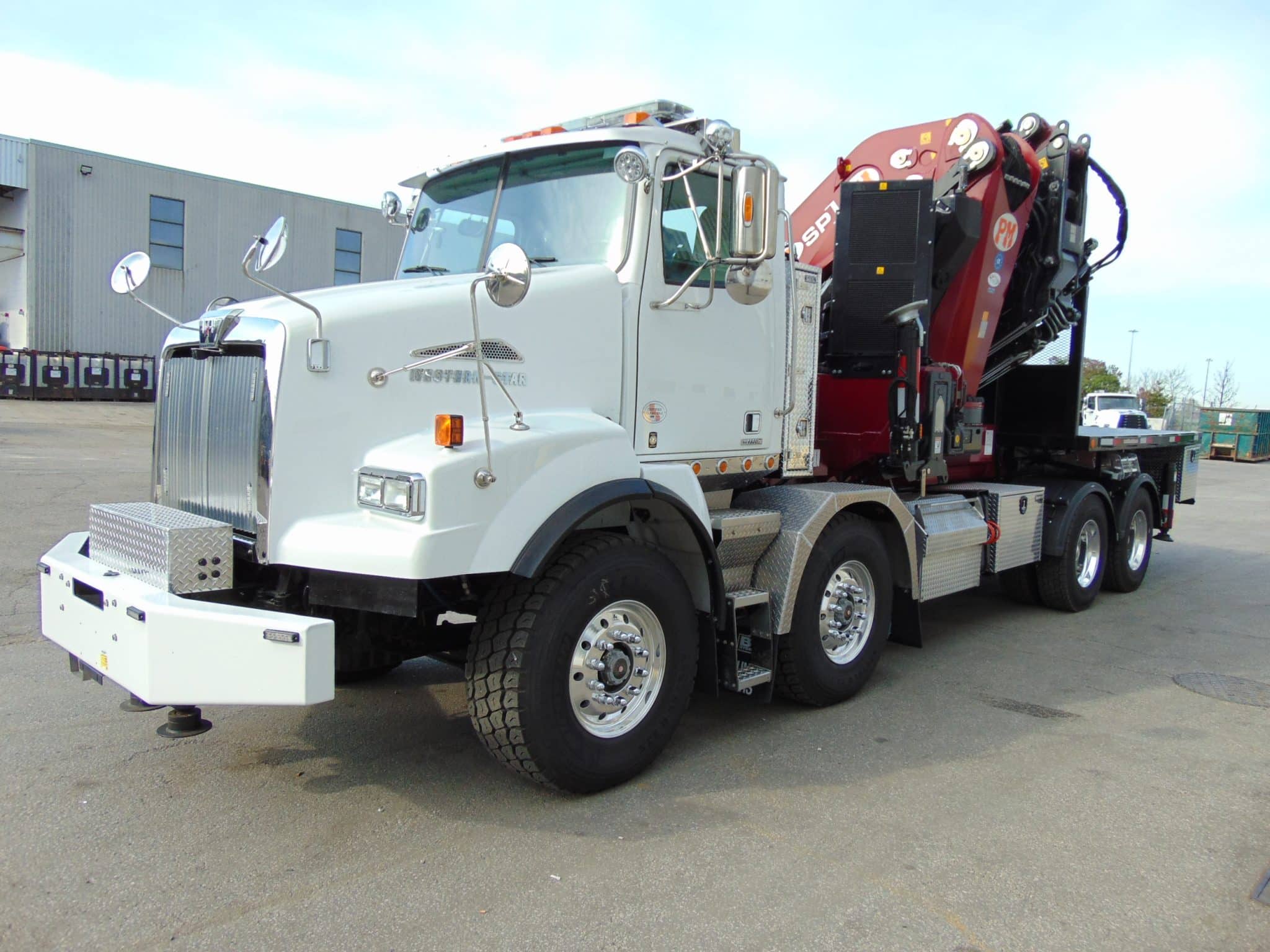

NEW – WESTERN STAR 4800 SLOPED NOSE T/A STEER – T/A REAR TRACTOR – 4 AXLE
- DDC-13 Diesel – 500 hp with Jake
- Eaton Ultrashift Automated 18 Speed Transmission
- 20,000 lb Fronts with 425/65R22.5 Tires
- 20,000 lb Self-Steer Lift Axle Ahead of T/A Under Boom
- 50,000 lb Rears on Air Ride Suspension
- Double Frame, 270″ wb
- Polished ALCOA Aluminum Wheels – Front and Outer Rear
- Chrome Grill & Bumper
- Single 80-Gallon Aluminum Fuel Tank

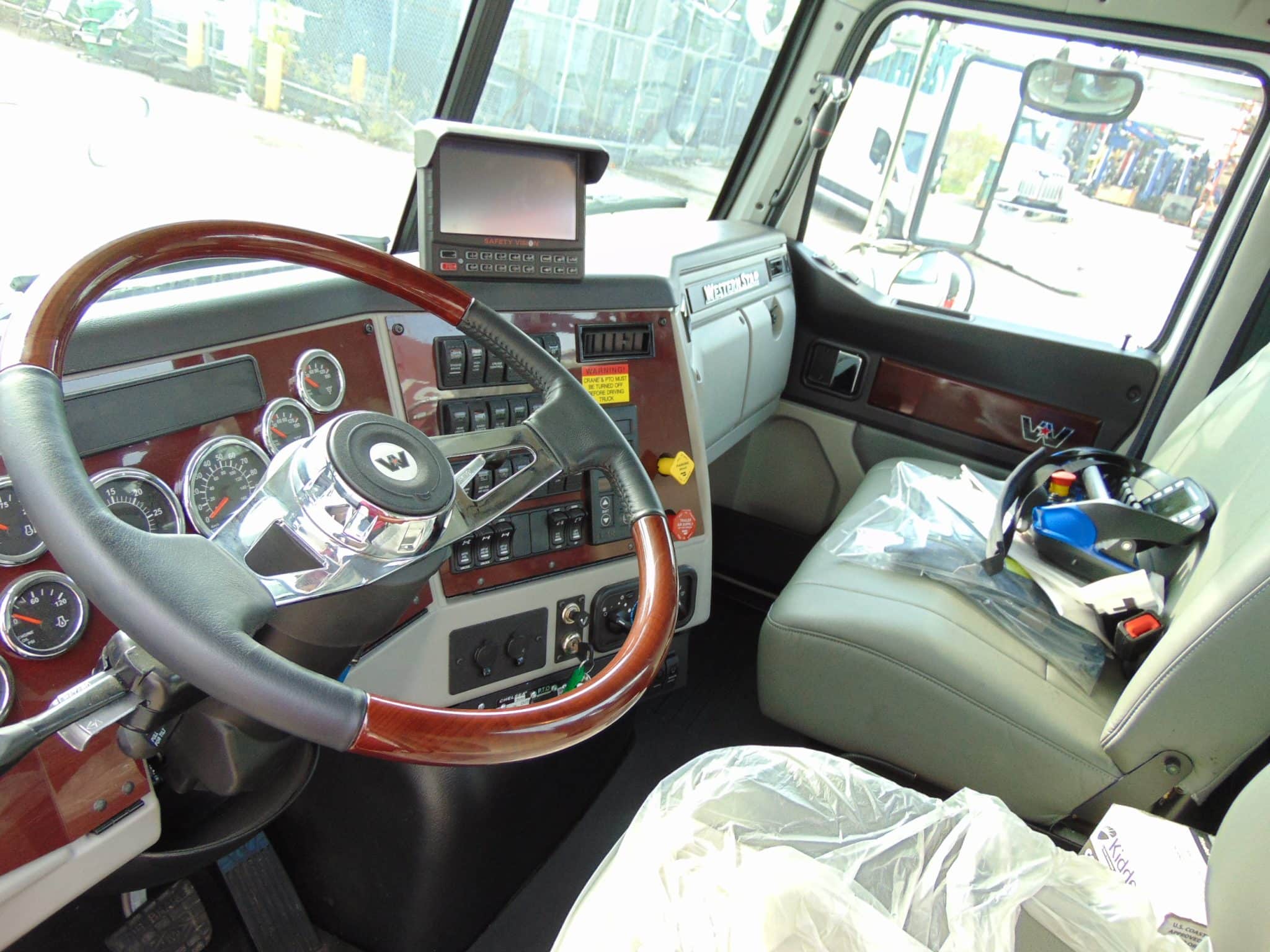

- Loaded with Options Including: A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior SS Sun Visor, 4 Wheel Lock-ups, Power Window, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, 5th Wheel on at T/A w/Ramps, etc…
