NEW PM 11523 KNUCKLE BOOM REAR MTD – FORD F550

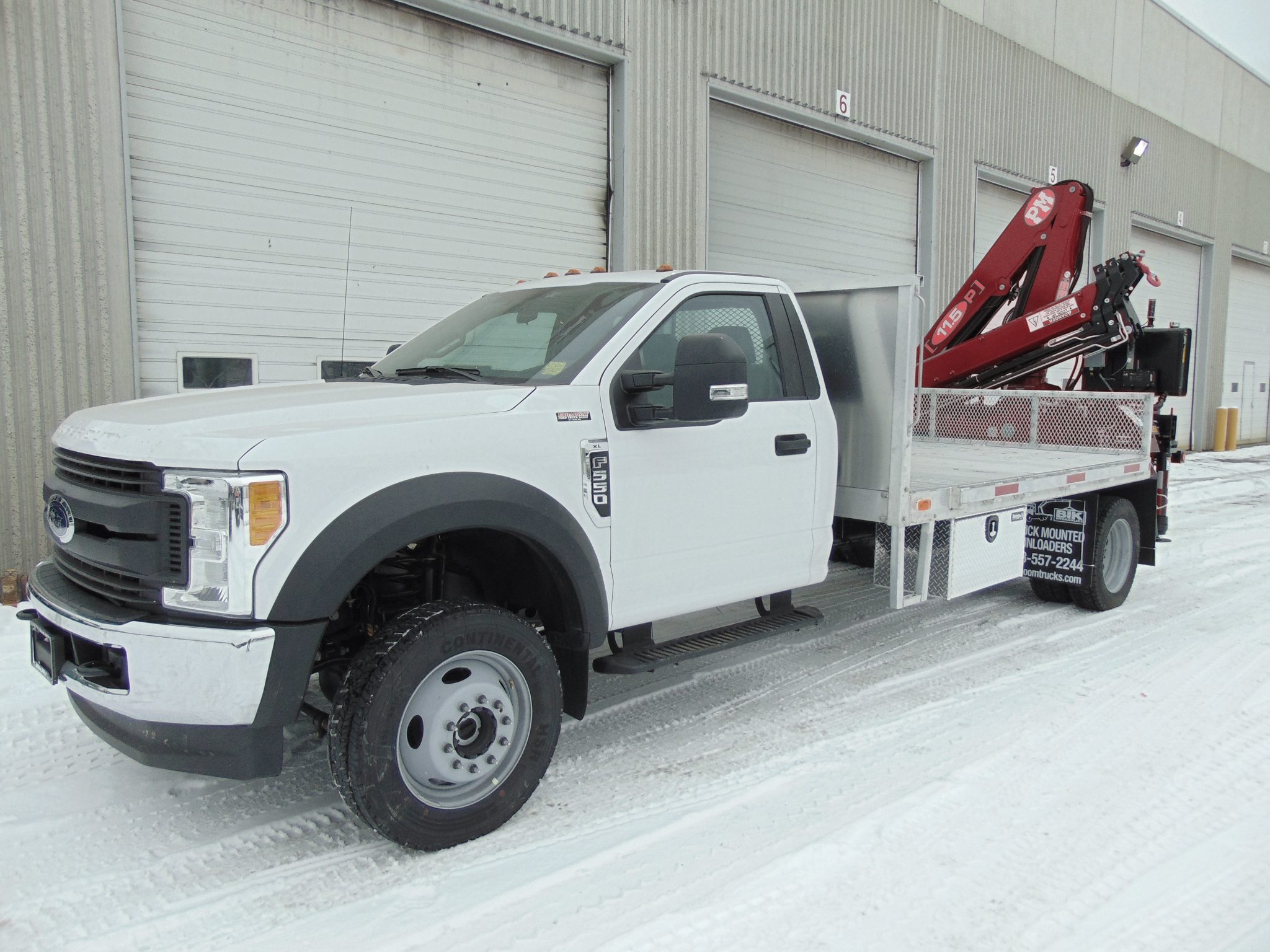

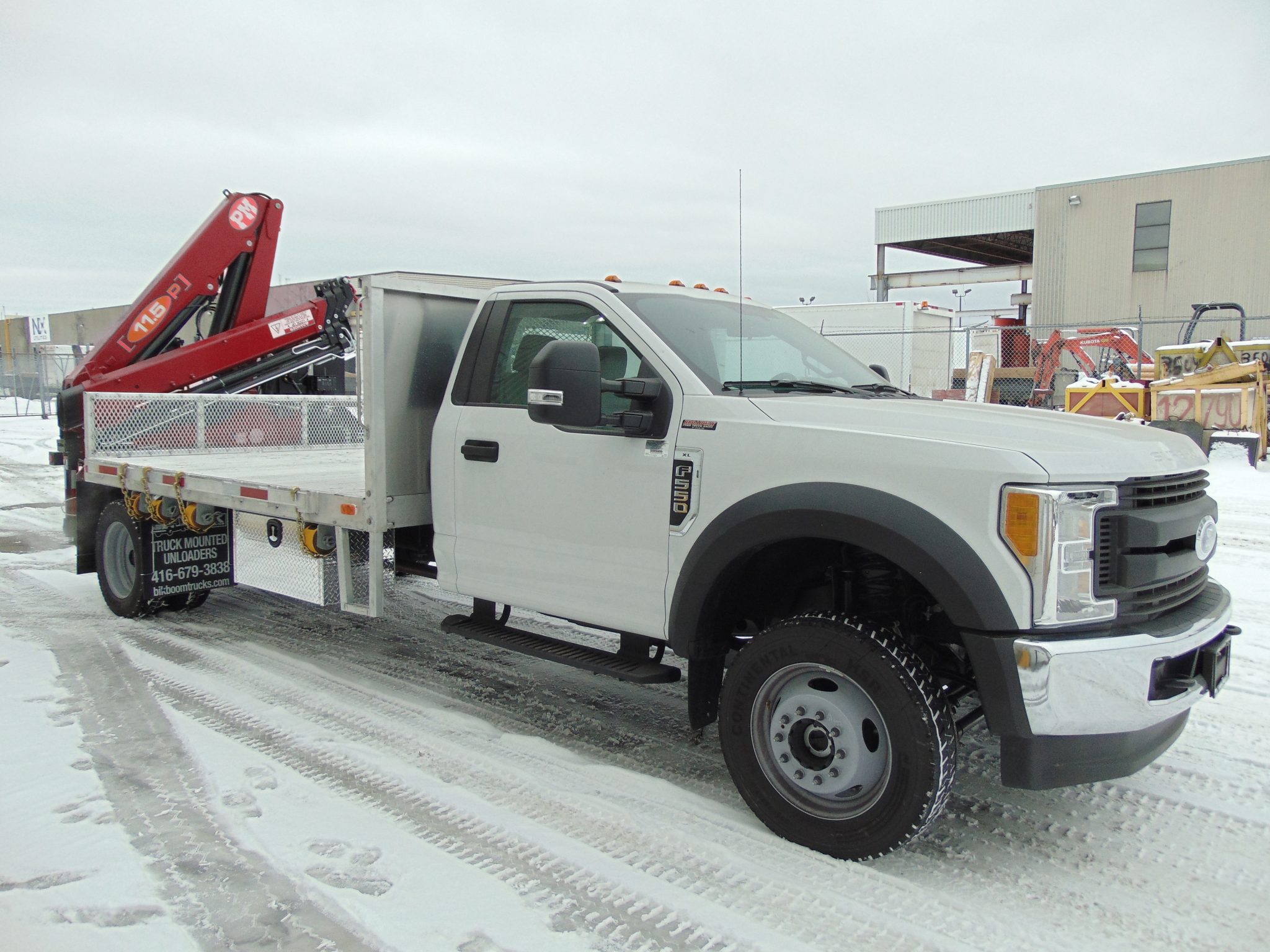

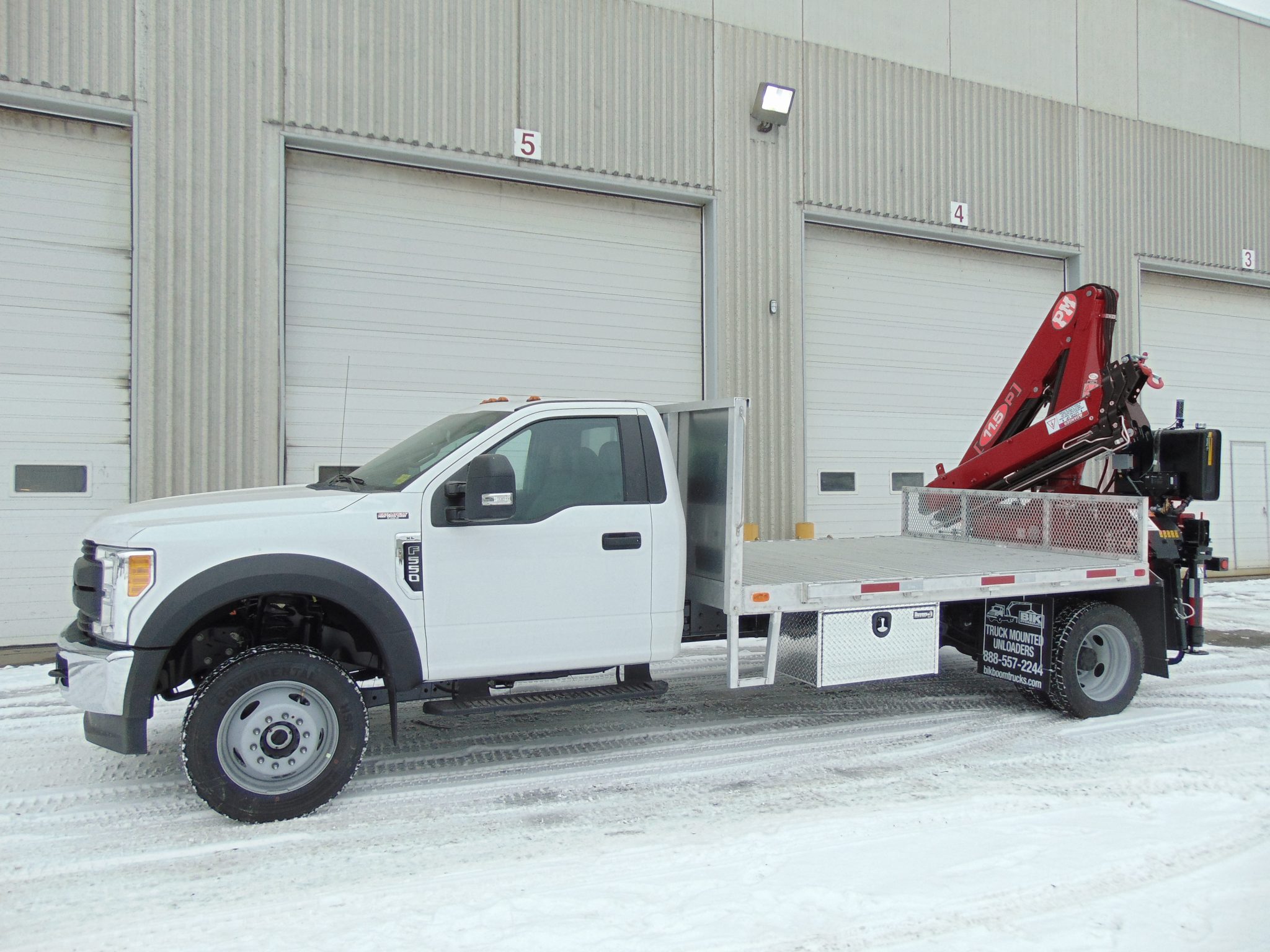

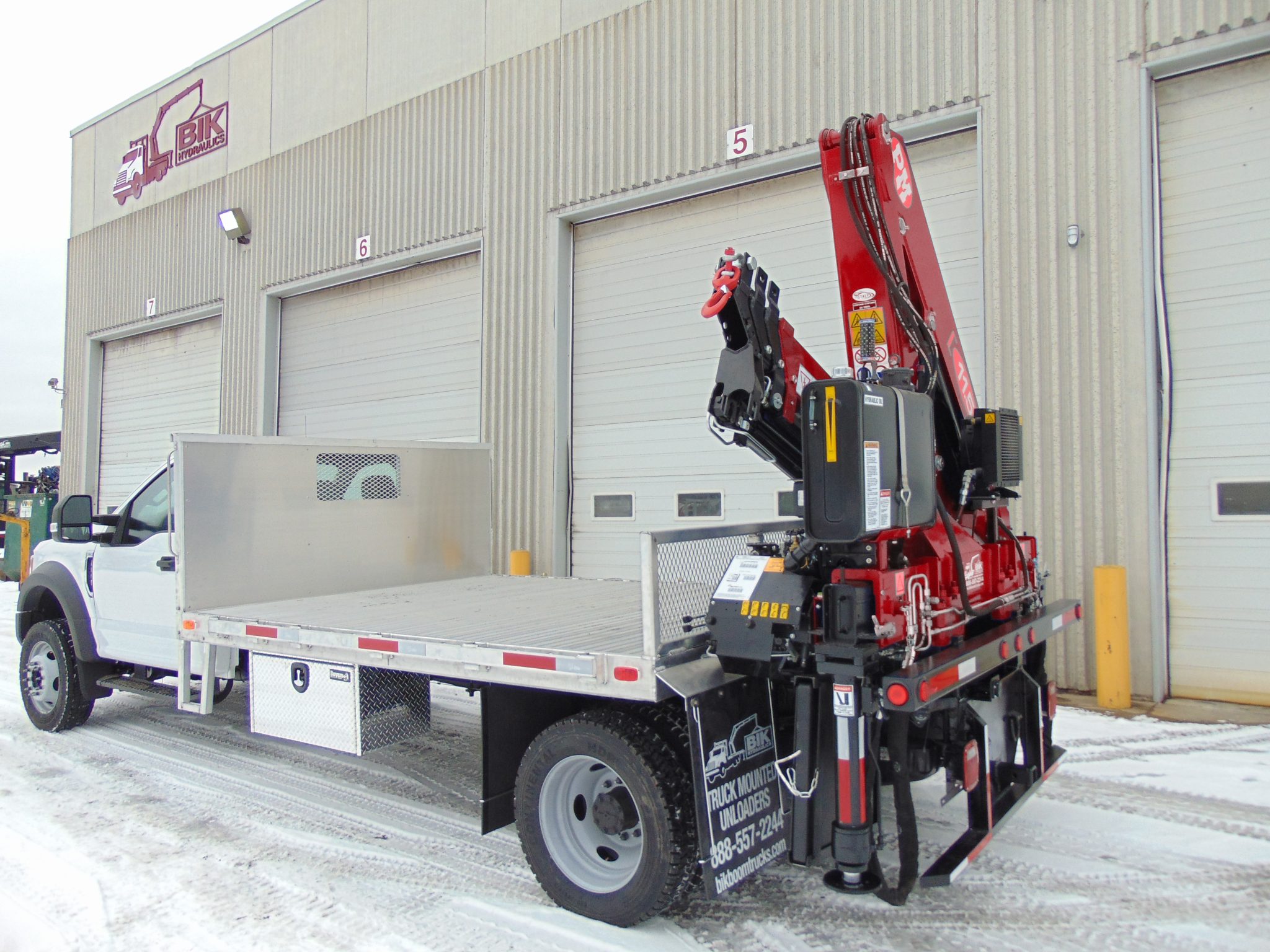

NEW PM 11523 KNUCKLE BOOM REAR MTD ON NEW FORD F550 WITH 10′ 6″ ALUM DECK & RADIO REMOTE

The range of PM cranes covers all load handling needs, whatever the tonnage. Offering  a vast assortment of applications, PM cranes can be used in a variety of sectors.  All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations.  We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

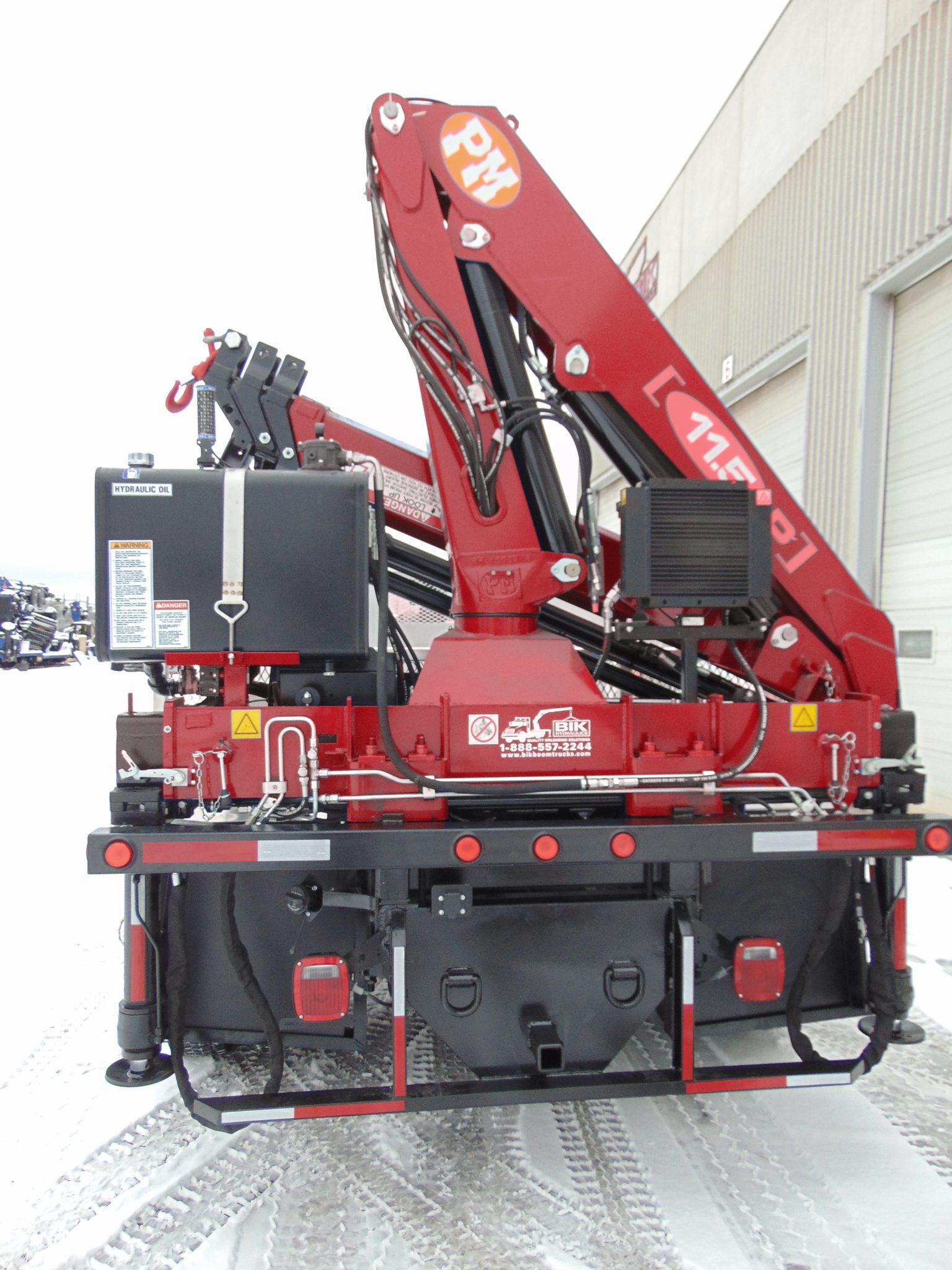

NEW – PM 11523 KNUCKLE BOOM

  • Folding Hydraulic Knuckle Boom 3 -Hyd Extensions to 32’ 6”’ Horizontal Reach, (45’ Vertical)
  • Horizontal Capacity:
    • 9,420 lb @ 8’ 0”
    • 6,940 lb @ 12’ 1”
    • 3,640 lb @ 18’ 0”
    • 2,600 lb @ 25’ 3”
    • 2,000 lb @ 32’ 6”
  • 408 Degrees Rotation on Main Hydraulic Slewing, Crane Painted PM Blue
  • Double Pilot Operated on Slewing and Pilot Operated Check Valves on all Cylinders
  • Hydraulic Extra Wide Main Outriggers at Pedestal – 14’ 10” Span
  • Hydraulic Oil Cooler, High Pressure Return Filter and Min. 40-Gallon Oil Tank for Boom
  • SCANRECO Wireless Radio Remote with Back-up Corded Remote with Hauve Proportional Control Valve / Manual Ground Level Controls

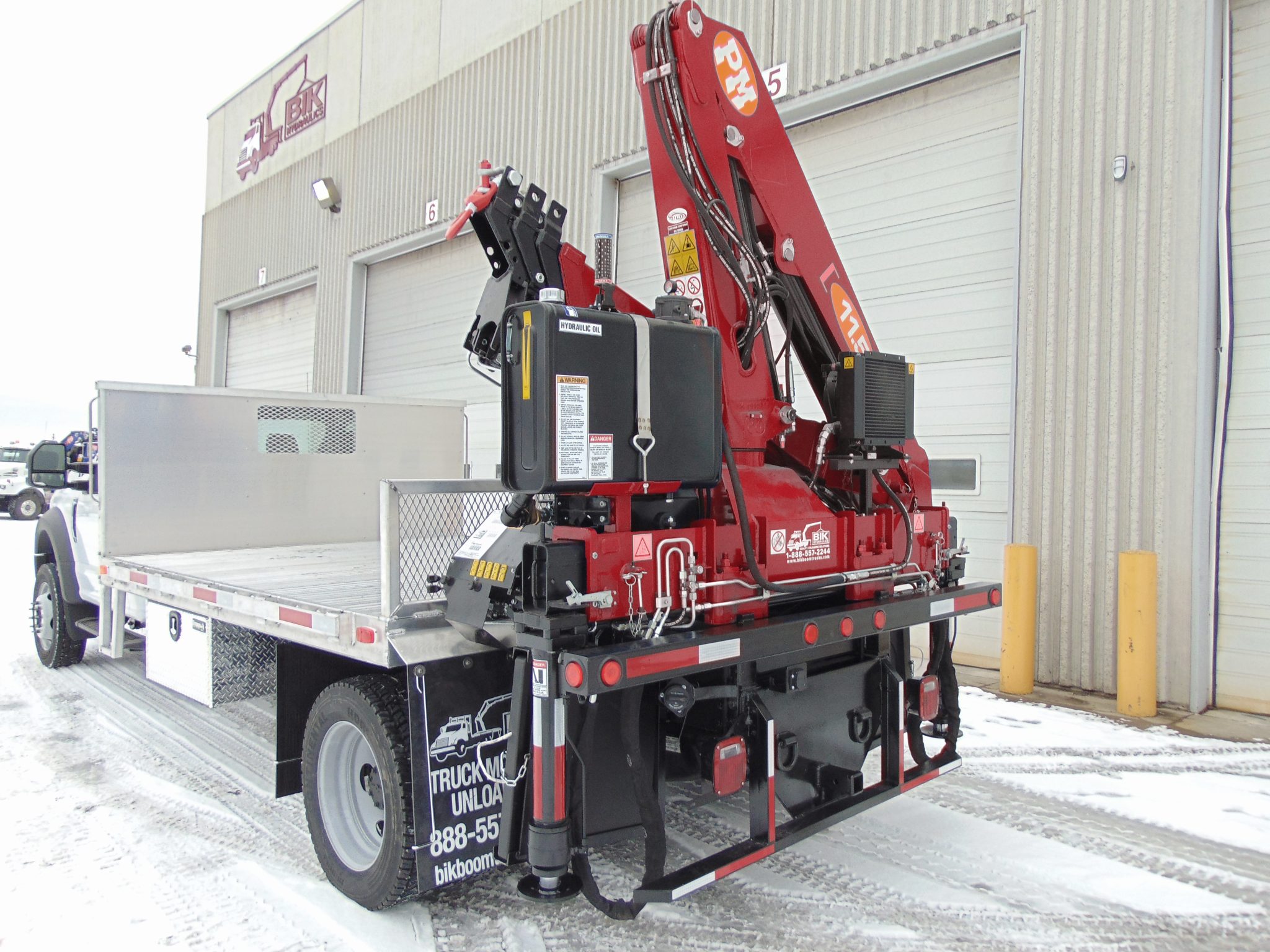

  • Hydraulic OUT and Hydraulic DOWN 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder
  • Hydraulic Overload Protection – Simplified System That Prevents Boom from Overload
  • Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
  • Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision

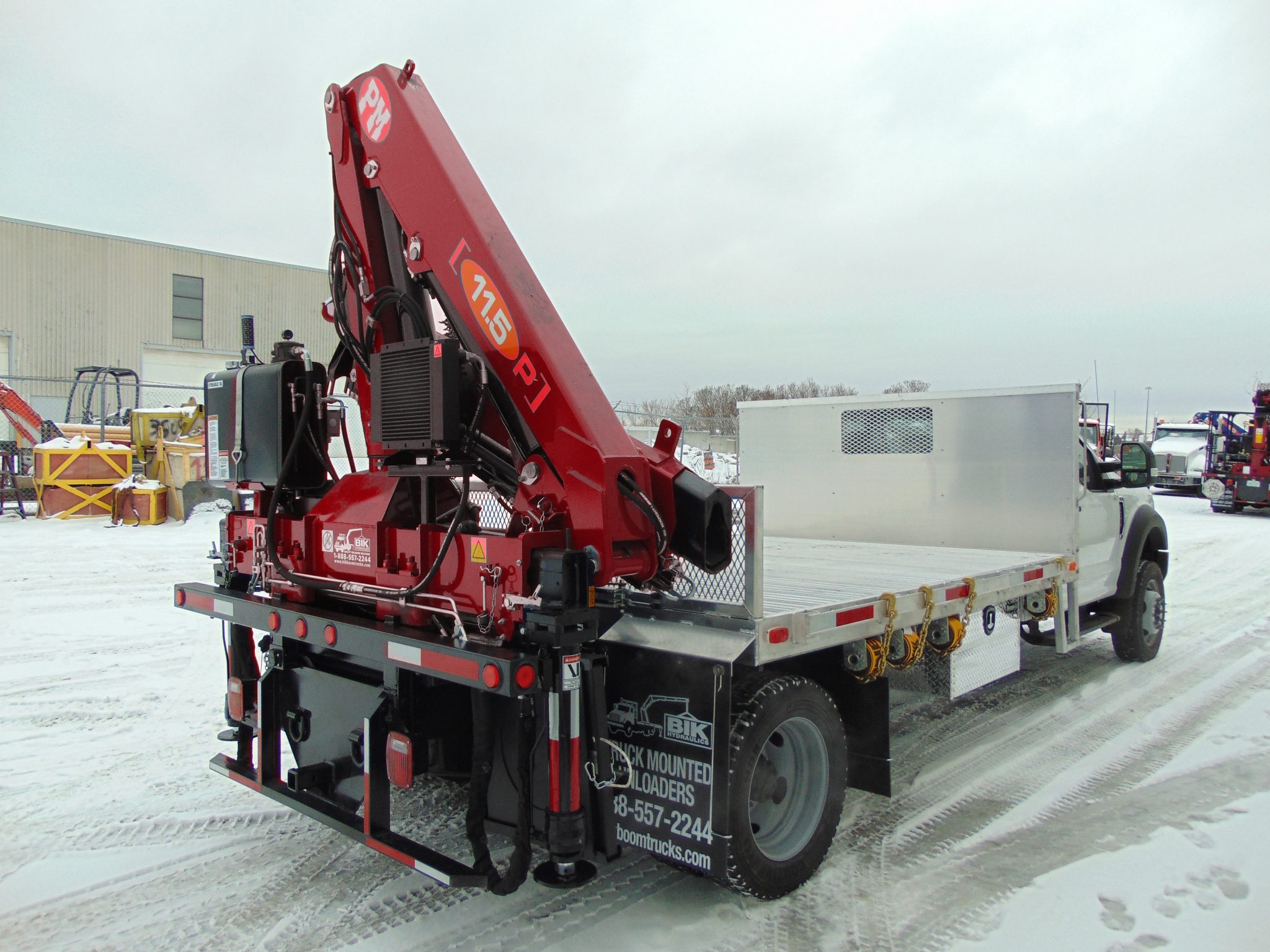

  • Boom Mounted at Rear of Truck on Engineered Sub Frame. Engineer Certified Stability Testing

Deck Details

NEW –  10’ 6” ALUMINUM FLAT DECK

  • Sub Base / Torque Box Steel Tube with Cross Members, 8’ Wide Plus Rub Rail (102” Total Width)
  • 4 Under-Deck Sliding Tie-Down Winch Straps, Aluminum Extruded Deck Surface
  • 40” Aluminum Headboard Height with Smooth Alum Surface with Window Cut Out w/Mesh
  • DOT Tape and Reflectors, Dual Front Access Ladders, Primed and Painted Gloss Black, LED Side Clearance Lights
  • (Removable Sides are Available)

Truck Details

NEW – FORD F-550 2×4 or 4×4 SINGLE-AXLE GAS FUEL TYPE TRUCK – 19,500 lbs GVWR Package

  • 6.8L – V10 Gas (or) Diesel Available, 6 Spd Automatic Trans, 4.88 Limited Slip Rear Axle Ratio, Payload-Plus Package Upgrade
  • 7,000 lb Front Axle with Steel Rims on 225/70R 19.5 Tires
  • 12,700 lb Rear Multi-leaf Suspension with 225/70R 19 Tires, Steel Rims
  • Hydraulic Brakes, Transmission Cooler, A/C, Cruise Control, Power Windows & Locks, Driver Convenient Package, AM/FM Stereo, Bluetooth, Platform Running Boards, Chrome Bumper, etc…

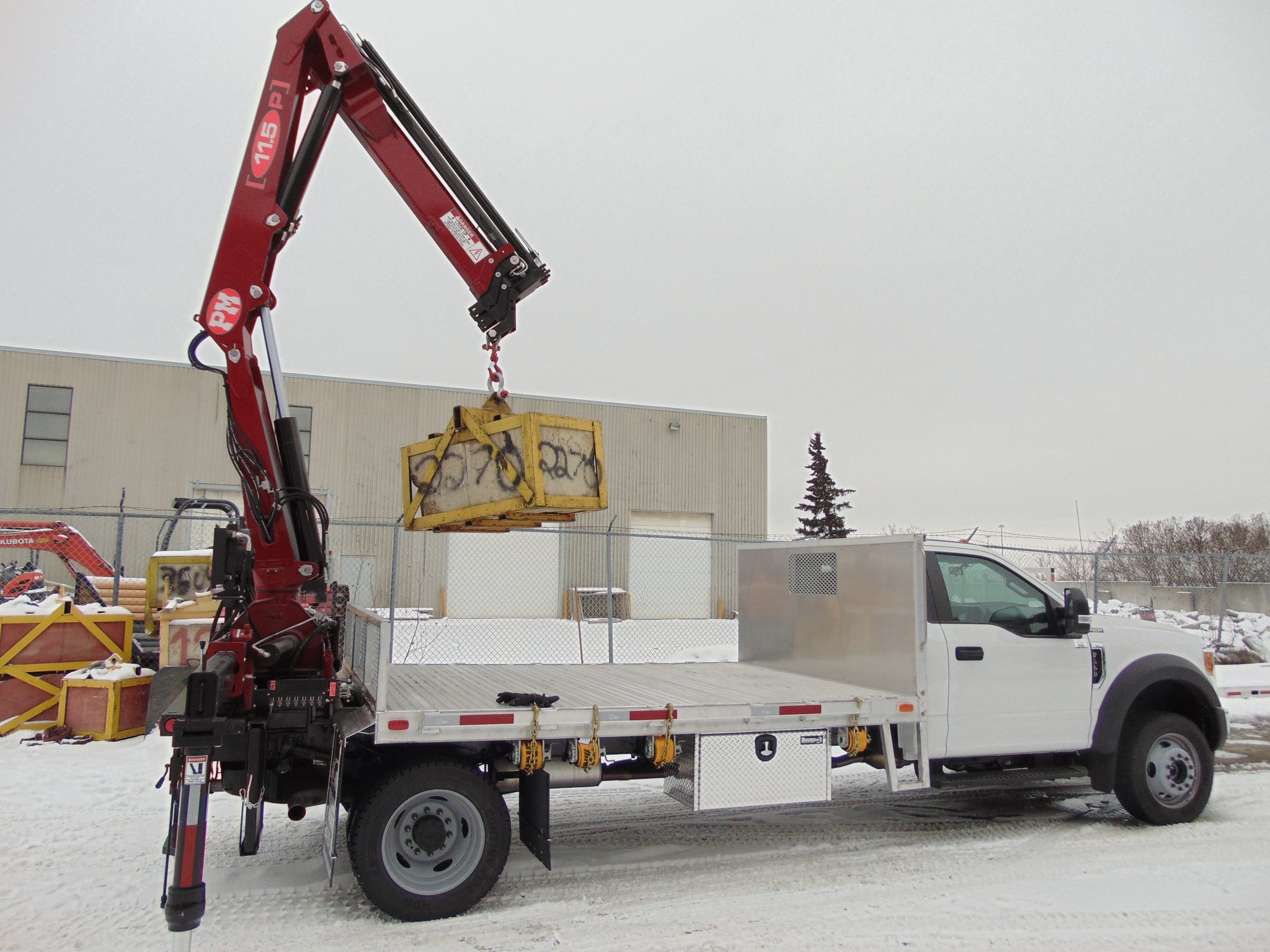

2,000 lb CAPACITY AT 32’6″ HORIZONTAL REACH

Many Other Configurations Available

Call for Details at: 1-888-557-2244  or  416-679-3838
