NEW PM 11023 KNUCKLE BOOM 30’ SIDE REACH – NEW F-LINER M2-106 S/A

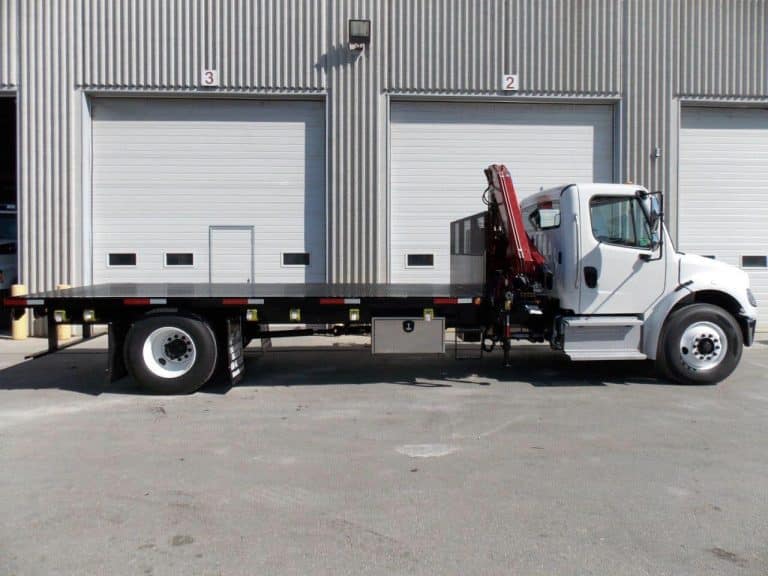

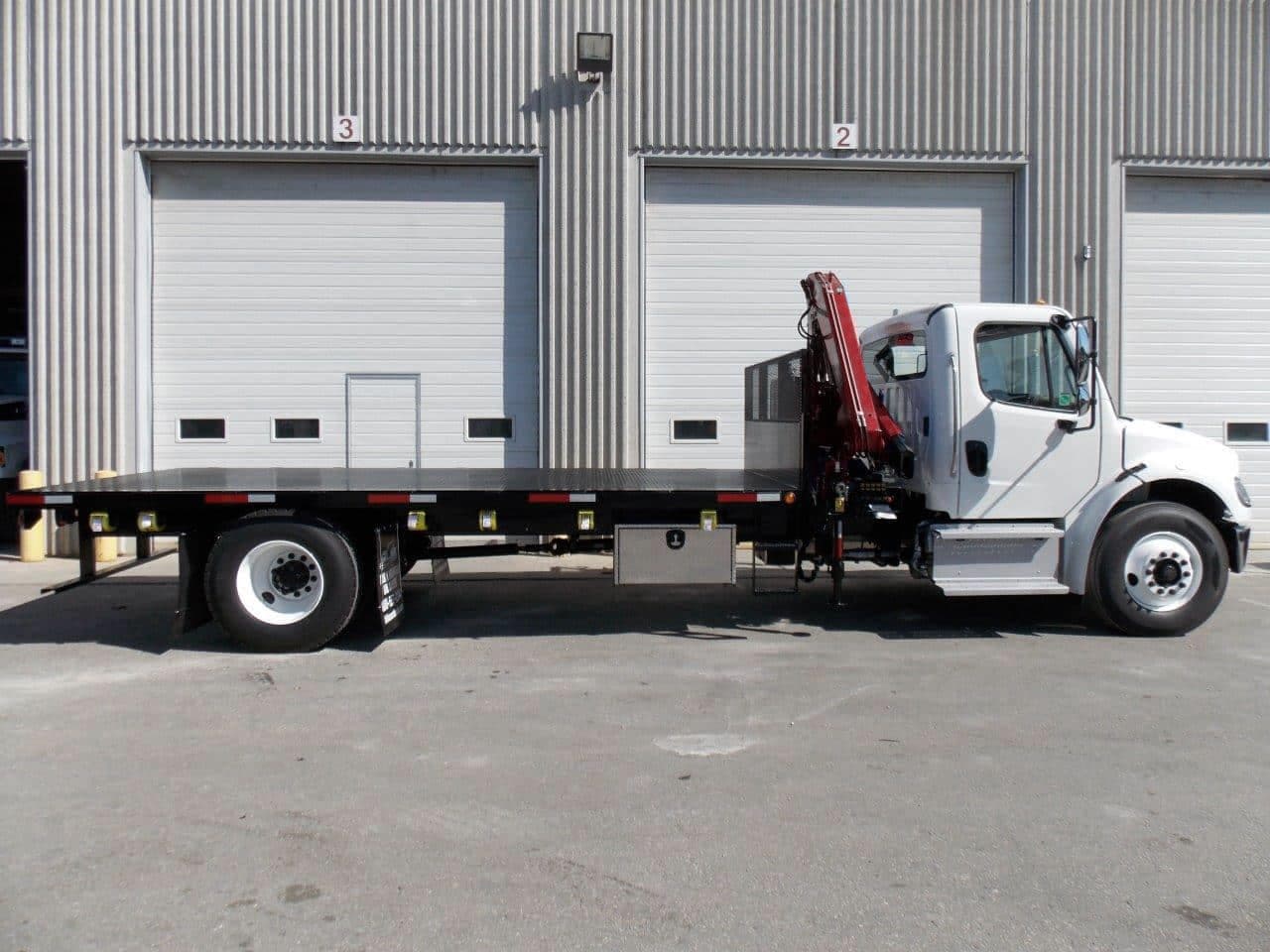

NEW PM 11023 KNUCKLE BOOM 30’ SIDE REACH – NEW F-LINER M2-106 S/A & 20’ STEEL DECK NON-CDL – AUTO TRANS
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – PM 11023 KNUCKLE BOOM: Manual Out & Down Stabilizers, 3 Hyd Extensions to 30’ Horizontal Reach (42’ Vertical)
- Horizontal Capacities:
- 11,680 lb @ 6’ 5”
- 5,490 lb @ 13’ 7”
- 3,541 lb @ 19’
- 2,480 lb @ 25’
- 2,050 lb @ 30’

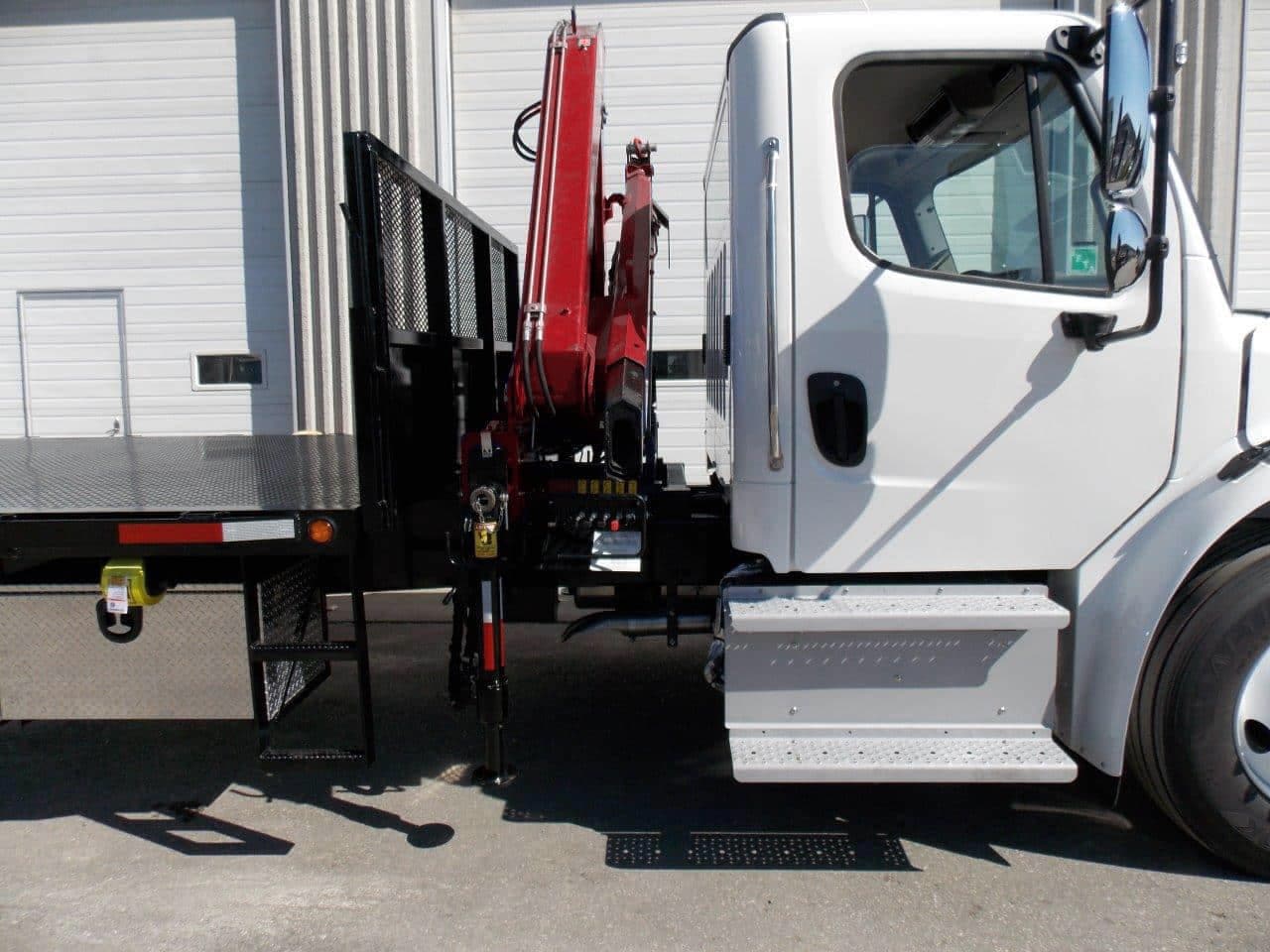

- Installed Behind the Cab on Custom, Sub-Frame by BIK, Prepped, Primed and Painted
- New Air Operated PTO, Hydraulic Pump
- Supply and Return Lines, Hydraulic Tank Mounted on Pedestal w/Shut-off Valve
- Load Testing and Operator Orientation
- Standard Features Include:
- Manual Out and Hydraulic Down Outriggers w/Round Foot Pads Welded to Bottom of Stabilizers
- Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
- Sequential Boom Extensions
- Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear and Improved Precision – 390-Degrees Rotation

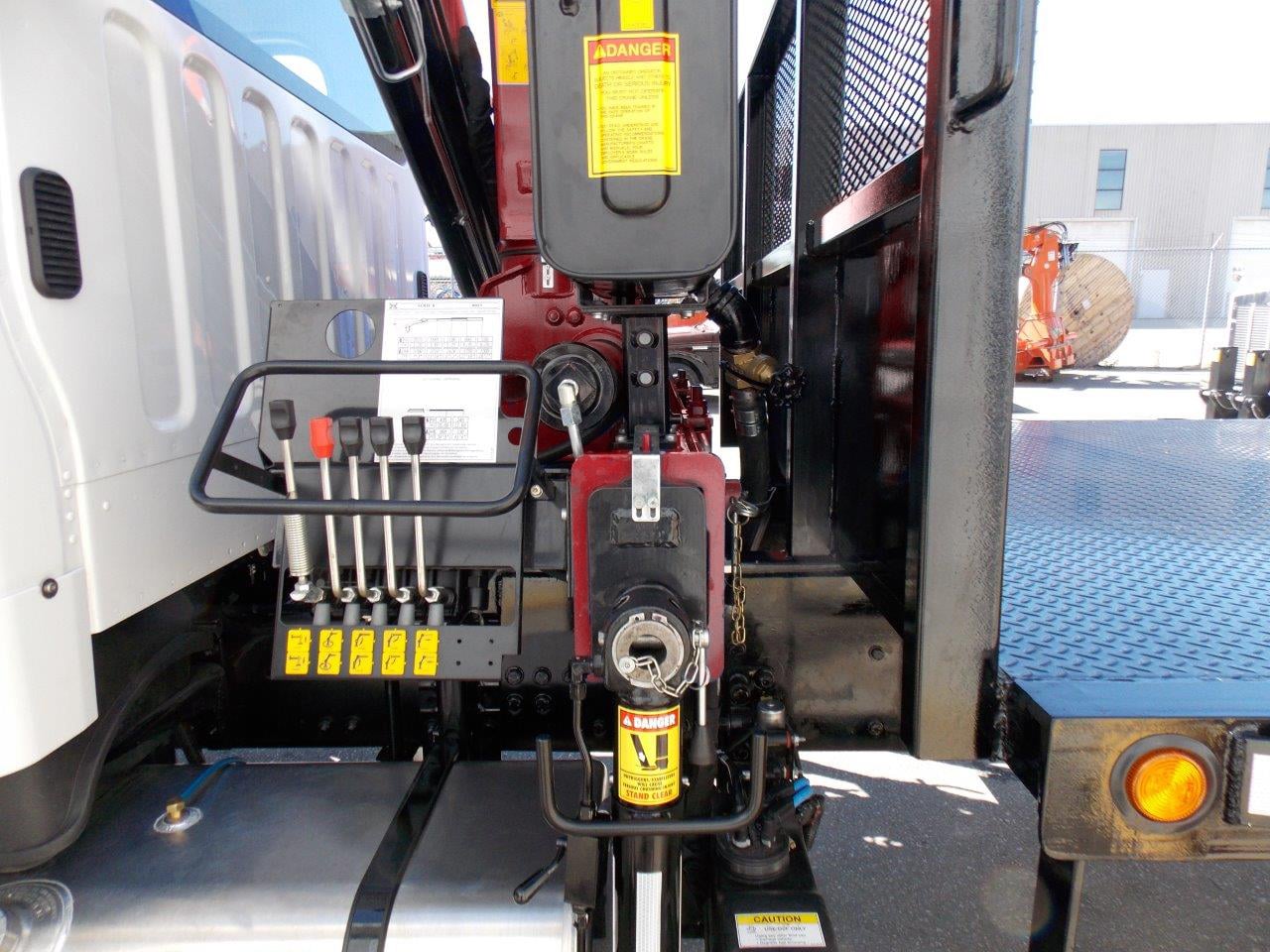

- Dual Sided Ground Controls
- Installed Back of Cab with Integral Sub-Frame to Meet or Exceed all CMVSS Standards
- Load Tested, Stability Certification by Engineer
Deck Details

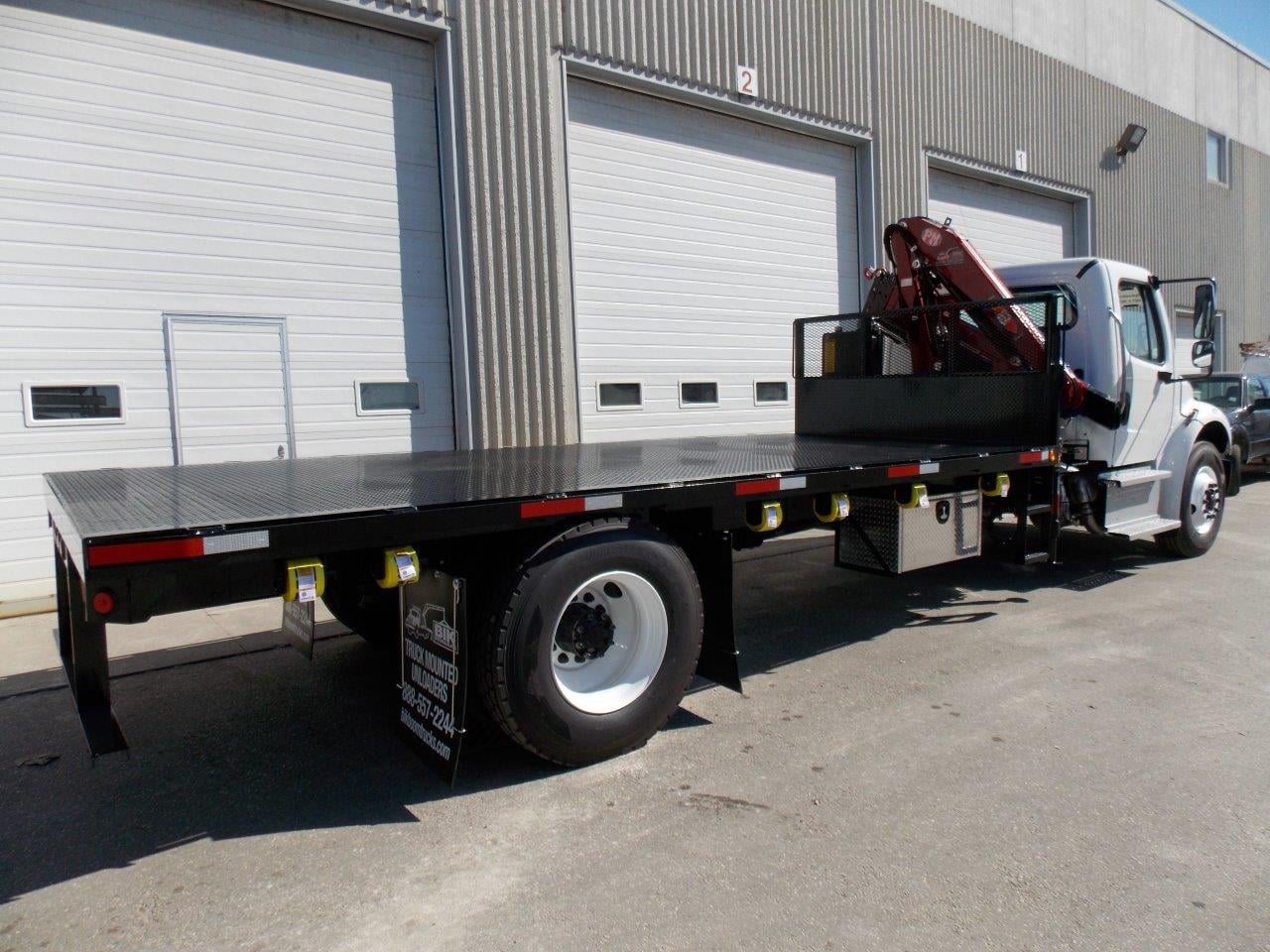

NEW – 20’ X 102” STEEL FLAT DECK
- Installed on Truck
- 48” Headboard
- Steel Checker Plate Deck Surface
- Conspicuity Tape and Reflectors
- 6 Sliding Winch Straps, Winch Bar & Holder
- Dual Front Access Ladders
- Headboard and all other Steel Painted Gloss Black
Truck Details

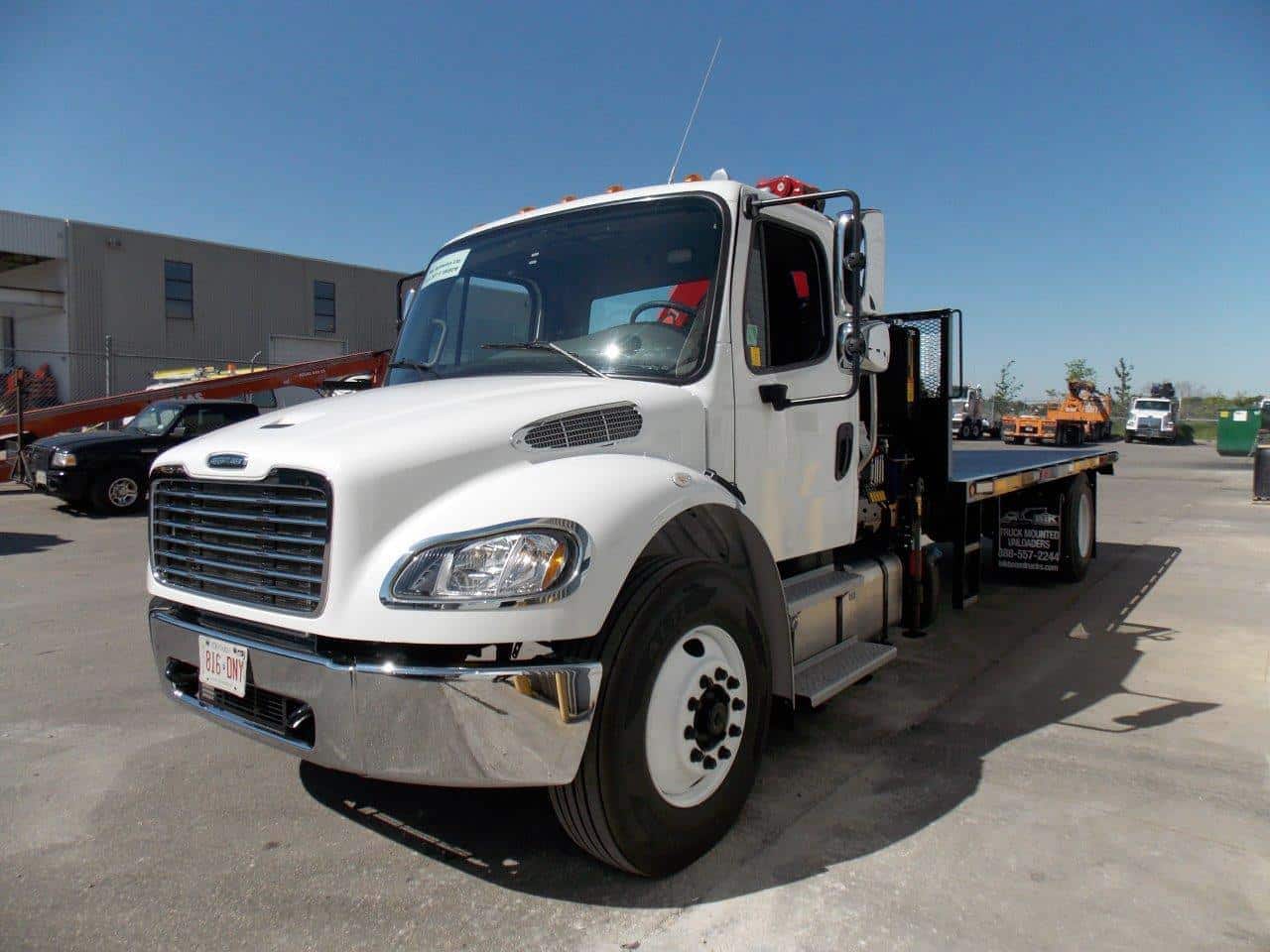

NEW – FREIGHTLINER M2-106 SINGLE AXLE DIESEL TRUCK: Hydraulic Brakes – Non-CDL – 33,000 lb GVWR
- Cummins Diesel – 260 hp – Allison Auto Trans
- 254” Wheel Base, Truck Cab White
- 12,000 lb Fronts, 21,000 lb Rears on Spring Suspension (33,000 lb GVWR) with 11R22.5 Tires on Steel White Rims
- Hydraulic Brakes, 50-Gallon Fuel Tank, A/C, Cruise & Stereo
- Painted Steel Bumper, Steel White Rim
Additional Options:
- Under Body Aluminum Storage Boxes with Fold Down or Barn Doors
- Self-Leveling Pallet Forks
- PM 11523 with Radio Remote Control and Hydraulic Out & Down Outriggers
- PVC Stabilizer Pad with Holders
