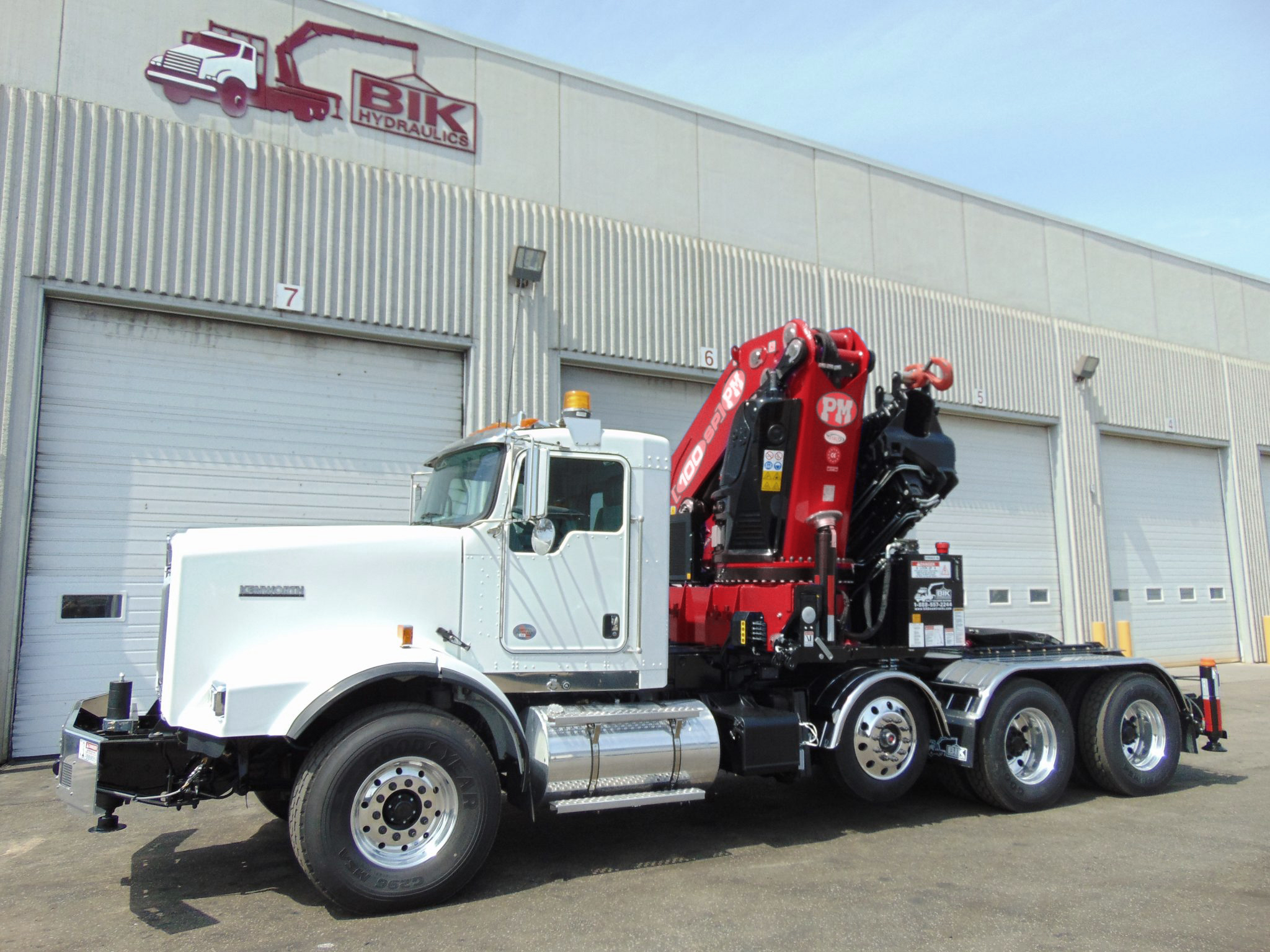

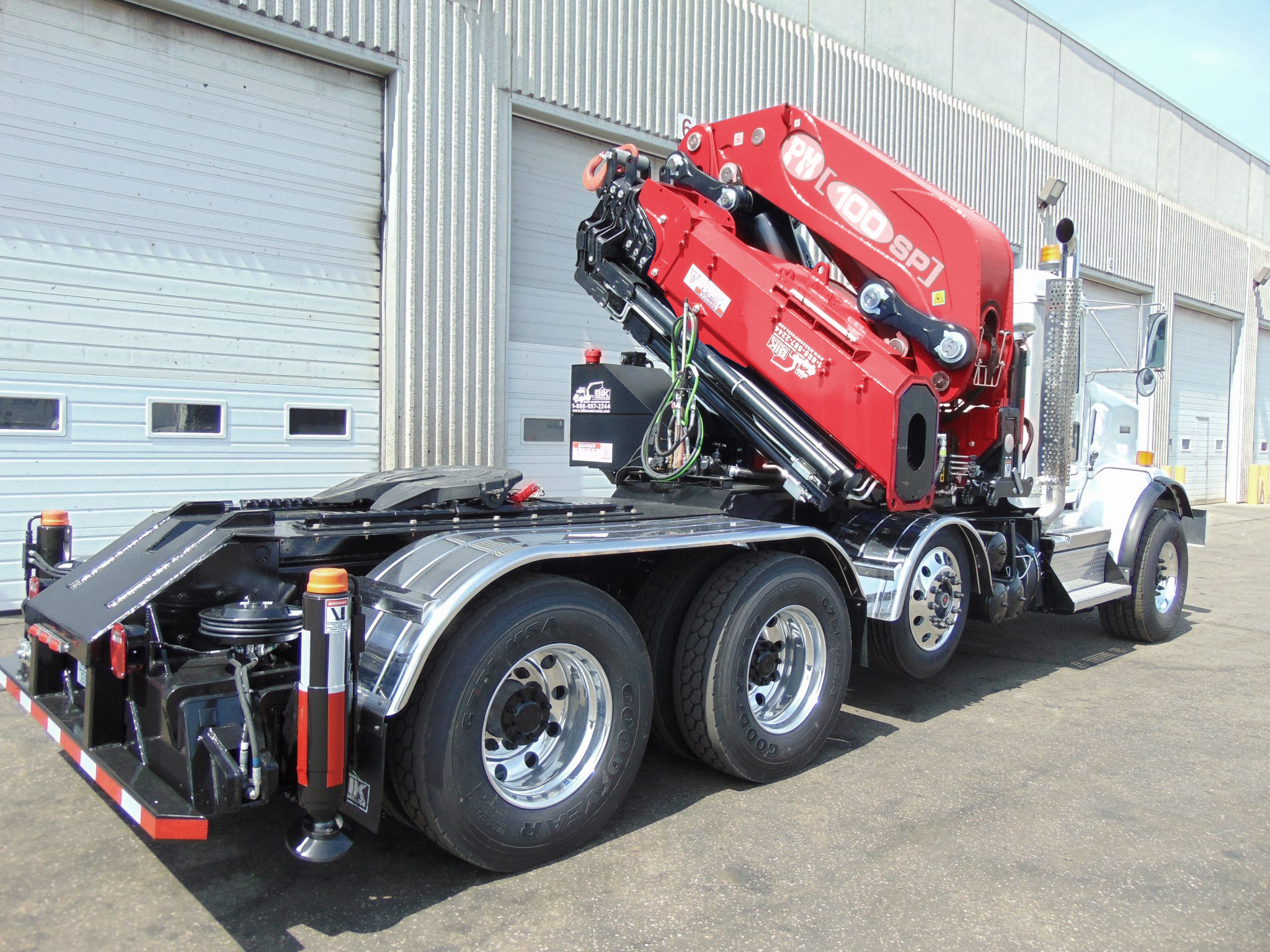

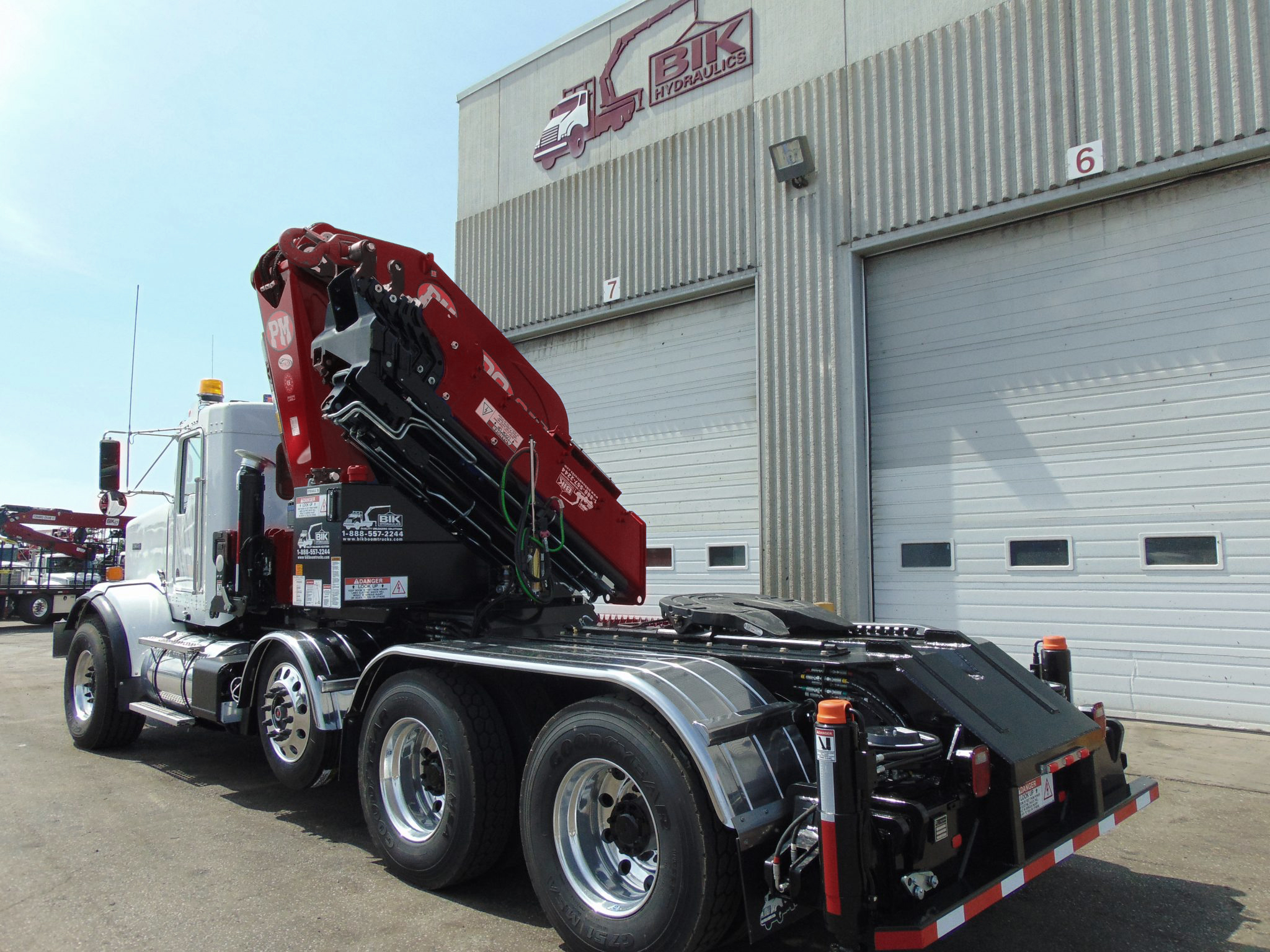

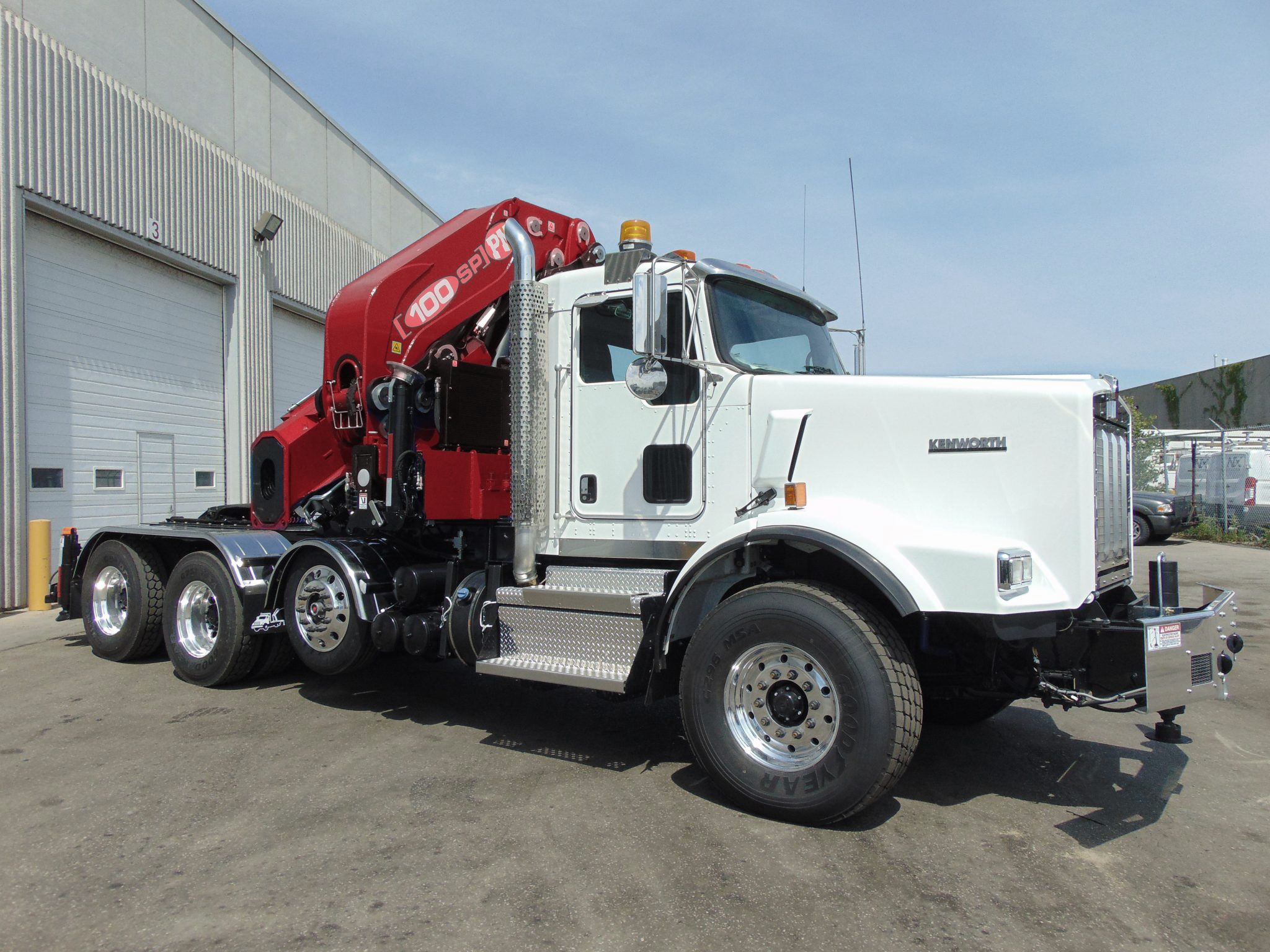

NEW PM 100026 KNUCKLE BOOM ON NEW KENWORTH T880
NEW PM 100026 KNUCKLE BOOM ON NEW KENWORTH T880
The range of PM cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, PM cranes can be used in a variety of sectors. All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
New – PM 100026SP Knuckle Boom

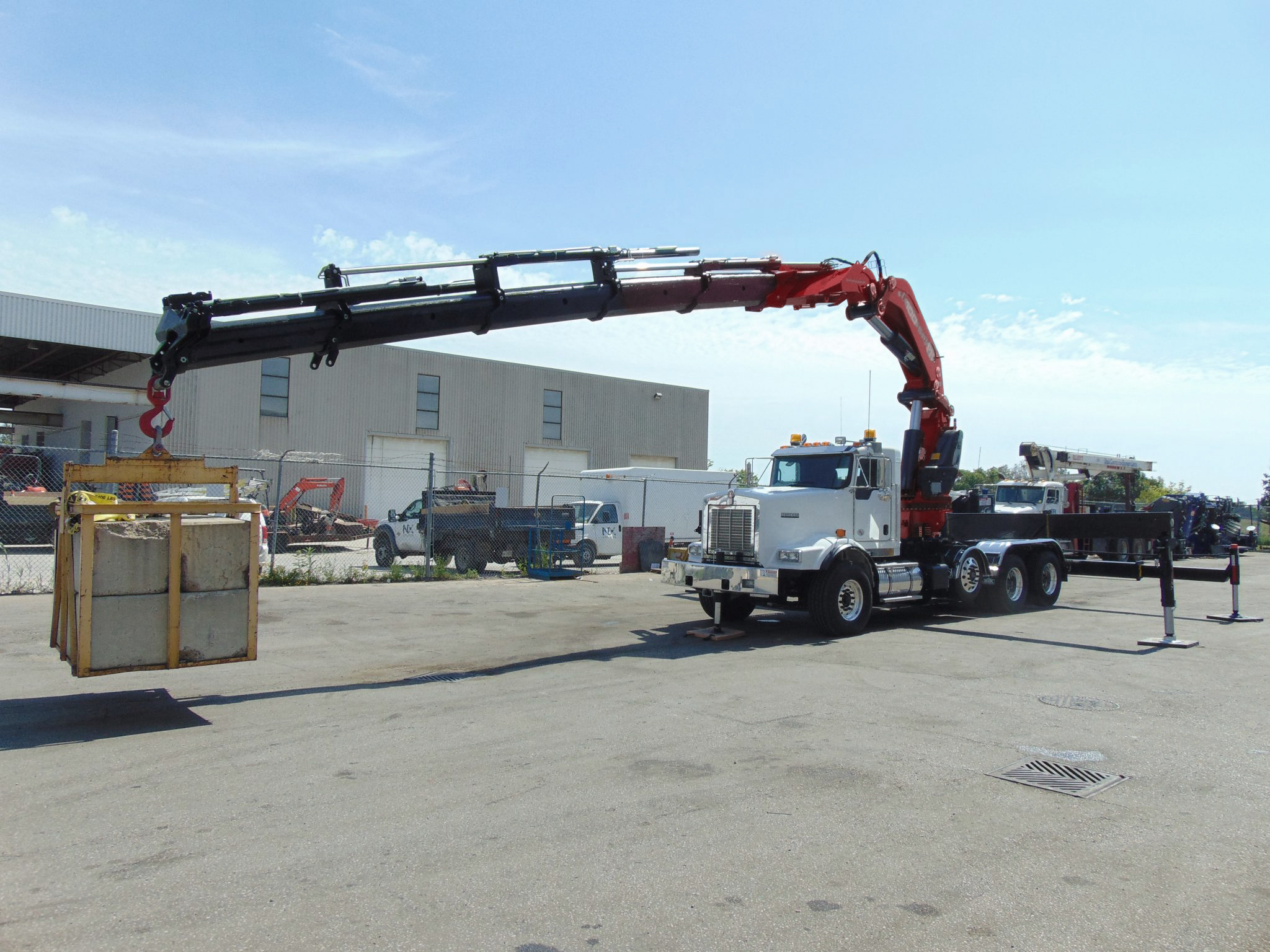

- Folding Hydraulic Knuckle Boom – 6 hyd extensions to 51 ½’ Horizontal reach
- Horizontal Lifting Capacity:
- 37,000 lbs @ 16’
- 20,200 lbs @ 27’
- 16,000 lbs @ 33’
- 10,700 lbs @ 46’
- 9,300 @ 52 ½’
- PM “Power Link” connecting rods at First Boom and Knuckle,
- Continuous Rotation and Dual Planetary Gear Rotation for ultimate poser and top level slewing torque
- 8-sided Boom section PM exclusive in the 100 ton/m range , all other manufacturers with 6-sided boom
- Double pilot operated on slewing and pilot operated check valves on all cylinders
- 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – 360 degree full load chart stability
- Hydraulic Oil Cooler, high pressure return filter and min. Customer supplied oil reservoir
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with back up cord
- Radio Remote includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
- Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance
Truck Details
New – Kenworth T880 4-axle Day Cab Tractor: 79,000 lb GVWR
- PACCAR MX-13L Diesel – 505 HP – 1,850 ft/lb torque
- Jake Brake
- Eaton Ultrashift Plus Automated 18 spd trans.
- 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
- 13,000 lb self steer lift axle ahead of t/a, 46,000 LB Rears on Hendrickson Primax Air-Ride with 11R22.5 tires on Aluminum rims
- Double Frame with integral front bumper frame extention (for front stabilizer)
- Chrome single polished Exhaust pipe side of cab
- Chromed Grille & Bumper
- Single 120 gallon alum fuel tank

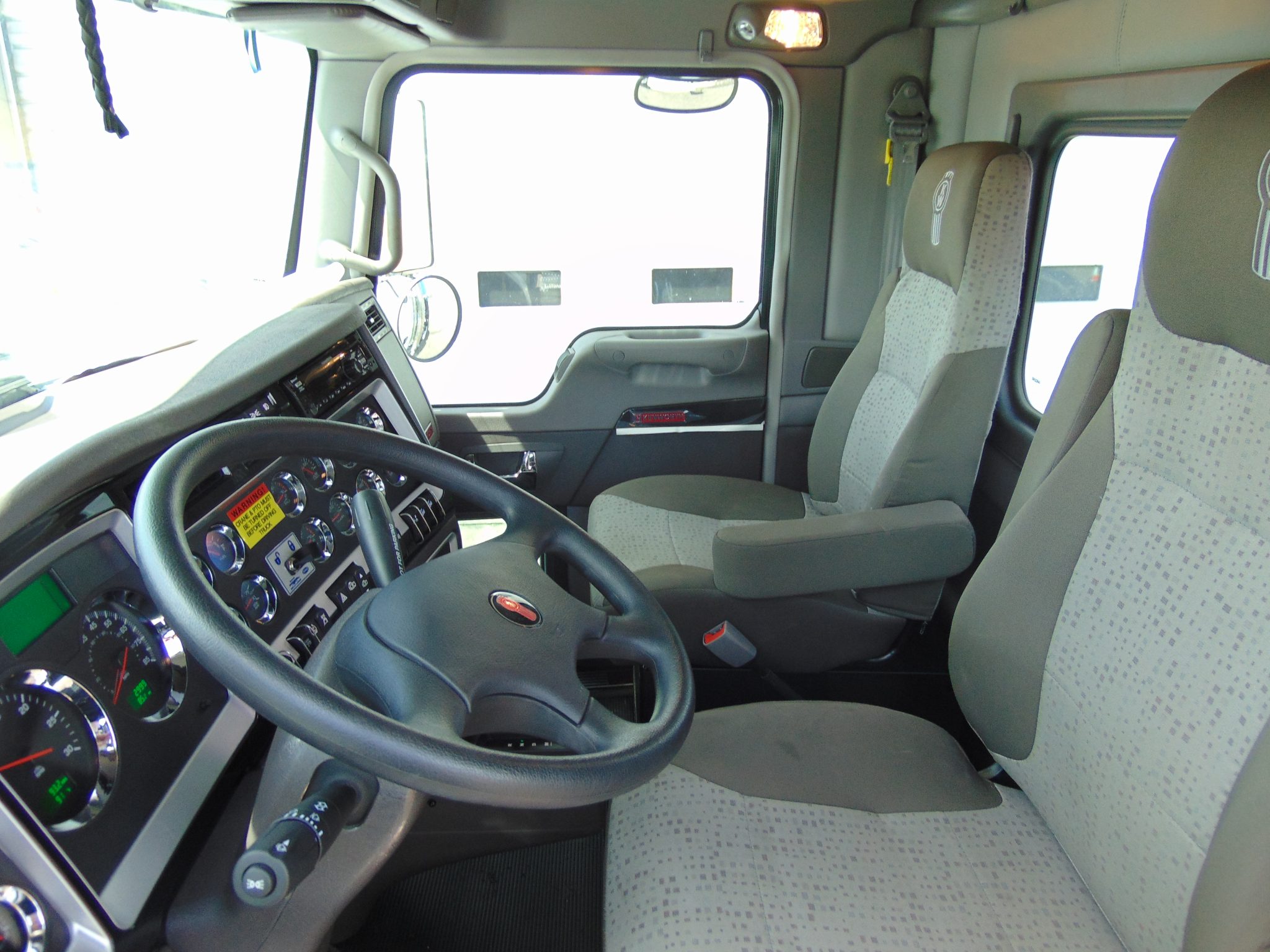

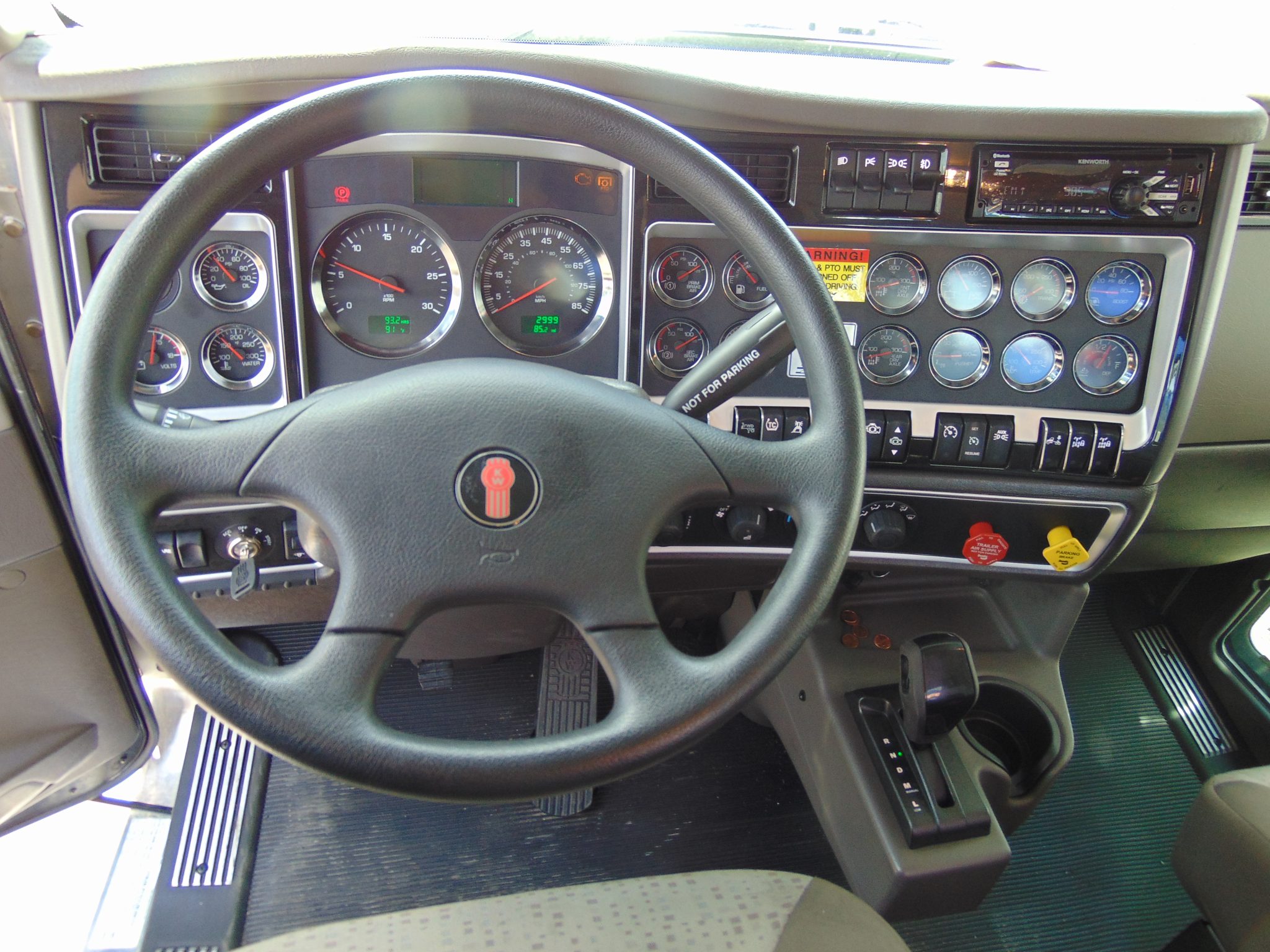

- Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio with Bluetooth, power windows & locks, air high back driver’s seat w/arm rest, cruise, heated mirrors, All-way inter-axle and diff lock-ups, Cab White, Air ride cab, full differential locks, sliding Holland 5th wheel, exterior sun visor, etc…
Also Included Are:

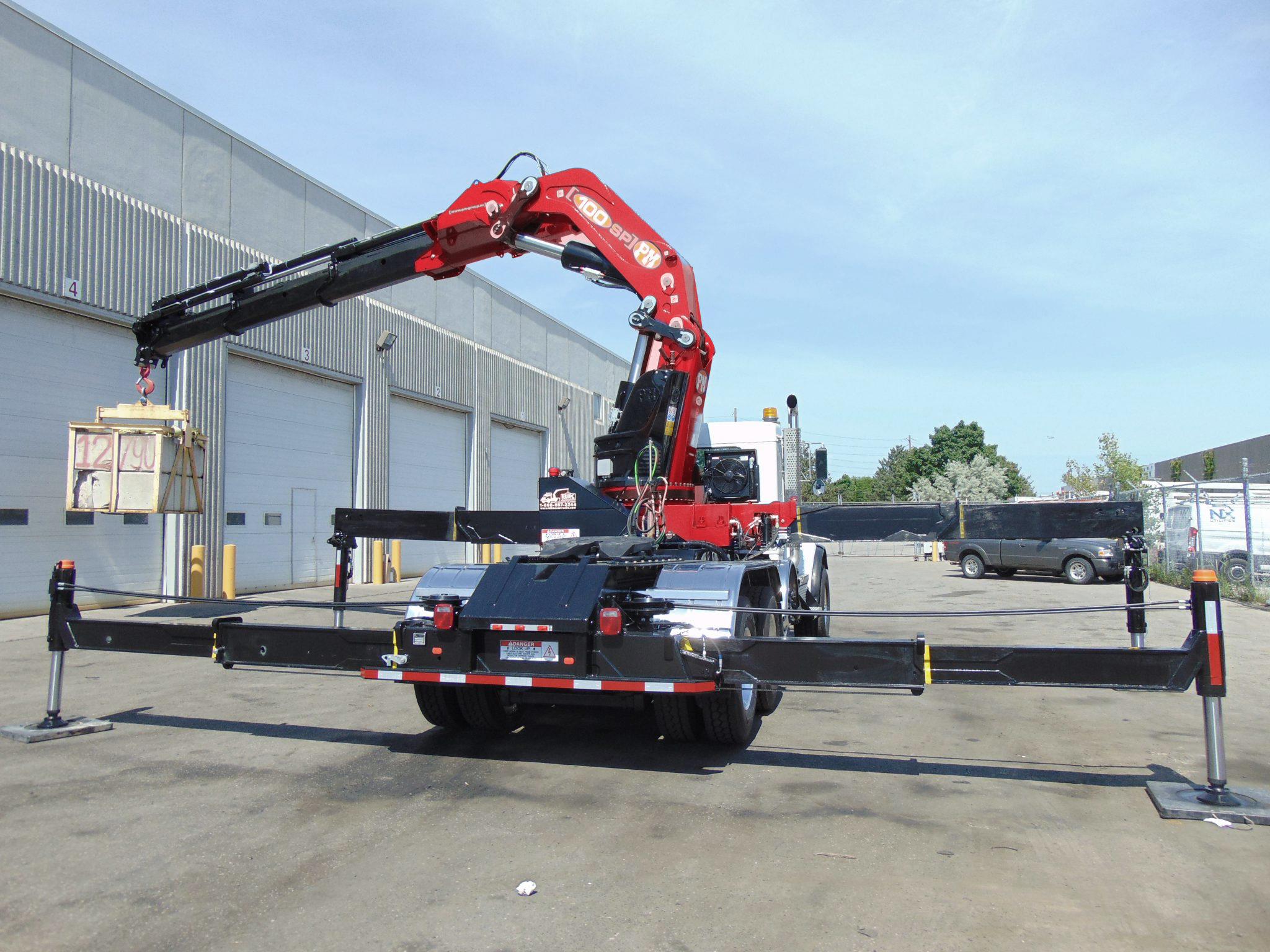

- 25’ X-tra wide auxiliary outriggers installed behind tandem drives
- 2 – pairs of PVC Stabilizer Pads & hangers
- Wire / Program remote control to include additional engine functions
- Front bumper stabilizer for 360 degree stability
Additional Options Available:
- 12’ Removable flat deck with stationary head board behind boom
- (3) – Additional Hydraulic Extention Installed (9 extn’s total) to handle 6,100 lbs @ 74’ horizontal
