NEW PM 100024SP KNUCKLE BOOM ON 2018 WESTERN STAR 4700

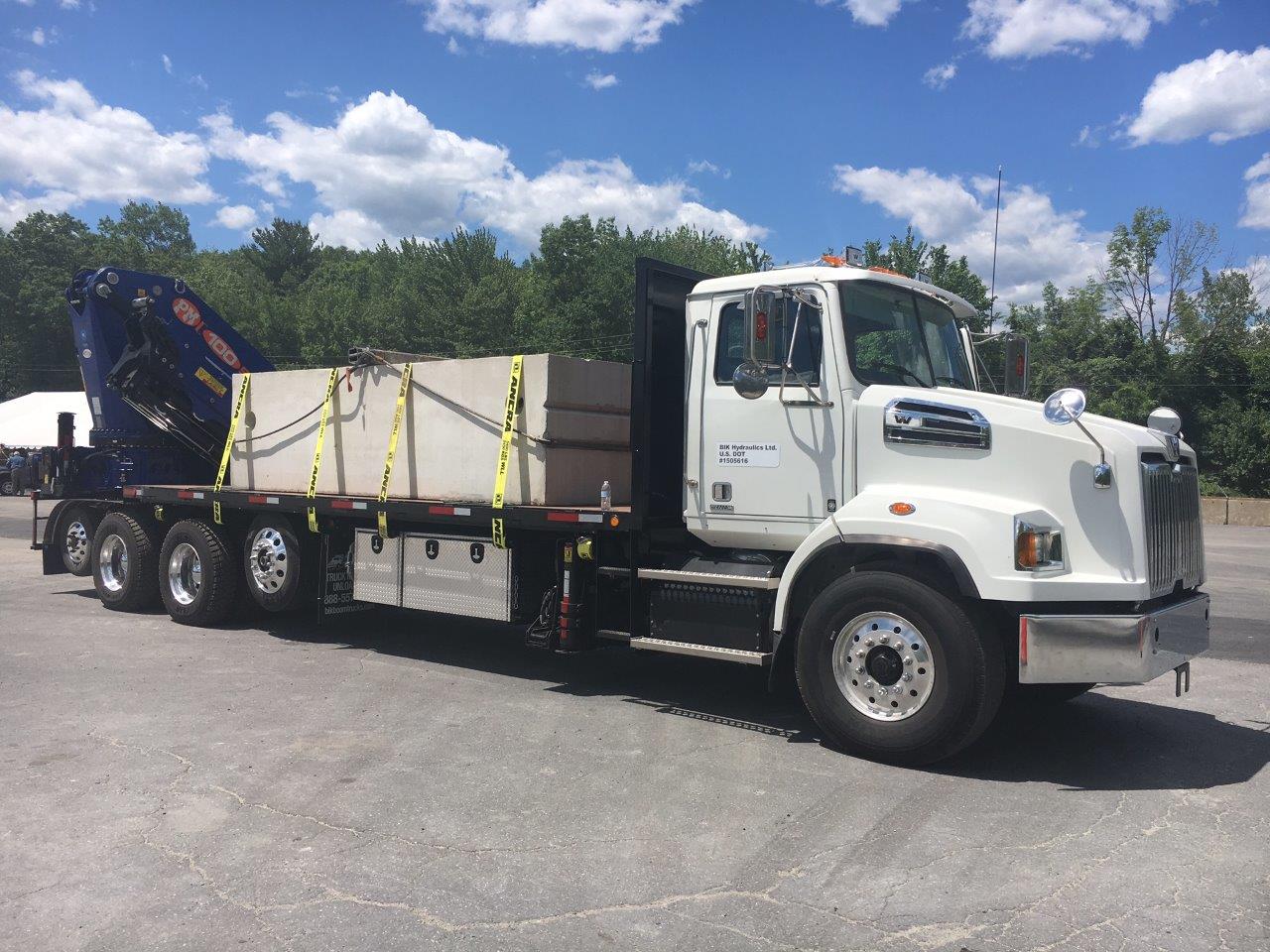

PM 100024 ON 2018 WS - 01

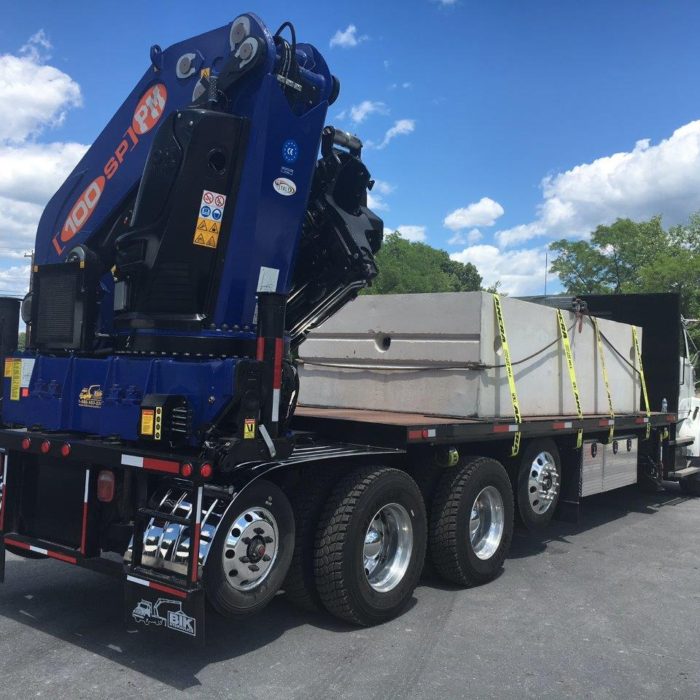

PM 100024 ON 2018 WS - 02
PM 100024 ON 2018 WS - 03
PM 100024 ON 2018 WS - 04

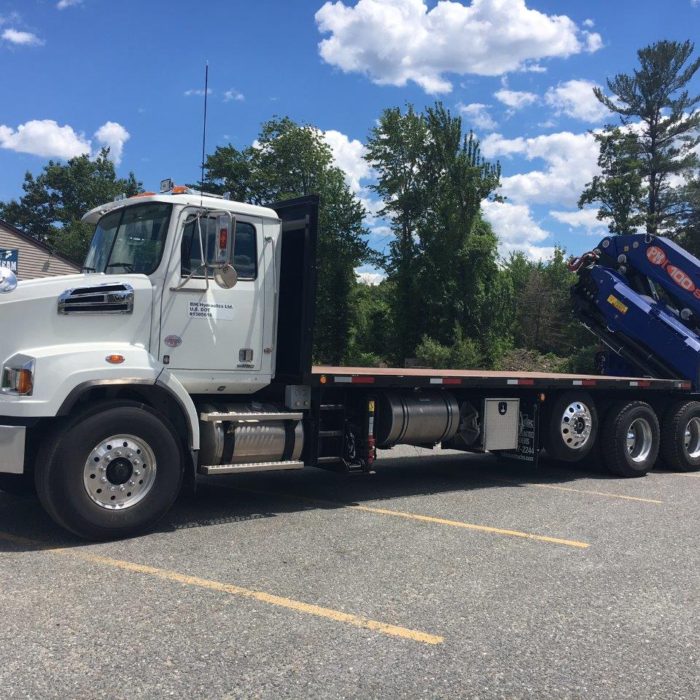

PM 100024 ON 2018 WS - 05
PM 100024 ON 2018 WS - 06
PM 100024 ON 2018 WS - 07
PM 100024 ON 2018 WS - 08
PM 100024 ON 2018 WS - 09
PM 100024 ON 2018 WS - 10

NEW PM 100024SP KNUCKLE BOOM ON 2018 WESTERN STAR 4700 5-AXLE TRUCK – IDEAL HEAVY PRECAST HANDLER

The range of PM cranes covers all load handling needs, whatever the tonnage. Offering  a vast assortment of applications, PM cranes can be used in a variety of sectors.  All PM cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations.  We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

  • NEW PM 100024SP KNUCKLE BOOM – 4 HYDRAULIC EXTENSIONS to 37’ 5” HORIZONTAL REACH
  • Lifting Capacity: 42,000 lb @ 14’ – 30,670 lb @ 20′ – 23,810 lb @ 25’ – 20,000 lb @ 30’ – 16,600 lb @ 37’
  • Standard Features Include:
  • PM Power-Link Connections at Main & Knuckle Cylinders
  • Dual Planetary Gear Motors & Continuous Boom Rotation
  • SCANRECO, 6-Function Wireless Remote Control & In-Cab Charger
  • 7-Section DANFOSS Valve Bank for Precise Movement
  • Hydraulic Extra-Wide Main Outriggers at Pedestal – 28′ 7″ Span
  • Hydraulic Oil Heater Included (for Those Cold Days)
  • Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
  • 1-Year Parts & Labor Warranty on Entire Boom, 3-Year Structural on PM Components
  • 24/7 Crane Tech Support by BIK Hydraulics

Deck Details

  • NEW 22′ LO-PRO FLAT DECK
  • 66″ Steel Headboard w/Side Wrap Winches
  • Hardwood Floor Surface
  • Winch Bar & Holder
  • 6″ Sub Frame w/ X-Braces & Support
  • 2 Deck Access Ladders at Headboard
  • 2 Deck Access Ladders at Rear of Deck
  • 6 Winches on a Sliding Track

Truck Details

  • NEW 2018 WESTERN STAR 4700 TRUCK
  • Detroit Diesel DD13 470 HP Engine – 1,650 ft/lbs Torque
  • Eaton Ultrashift Automated 18 Speed Transmission
  • 40,000 lbs Tandem Steer Front Axle on 425/65/R22.5 Tires
  • 46,000 lbs Rear Axle on 11R22.5 Tires
  • Tuftrac Suspension
  • 302″ Wheel Base
  • Included Options:
  • AM/FM/CD Stereo
  • A/C
  • Dual 80-Gallon Fuel Tanks
  • Power Windows
  • Power Locks
  • Aluminum Front & Rear Rims
Read More
