NEW HEILA HLR 45000 KNUCKLE BOOM ON NEW KENWORTH T880
NEW HEILA HLR 45000-3s KNUCKLE BOOM ON NEW KENWORTH T880 4-AXLE & 21′ FLAT DECK – 485 HP – IDEAL PRECAST HANDLER
Heila Cranes stands for high quality and reliability in marine cranes and lifting equipment. Our cranes meet the specific needs of our customers. Heila Cranes produces a wide range of stiff boom cranes, telescopic boom cranes, knuckle boom cranes, fully foldable telescopic cranes and heavy-duty cranes. Our cranes are used for numerous applications, often in harsh conditions.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

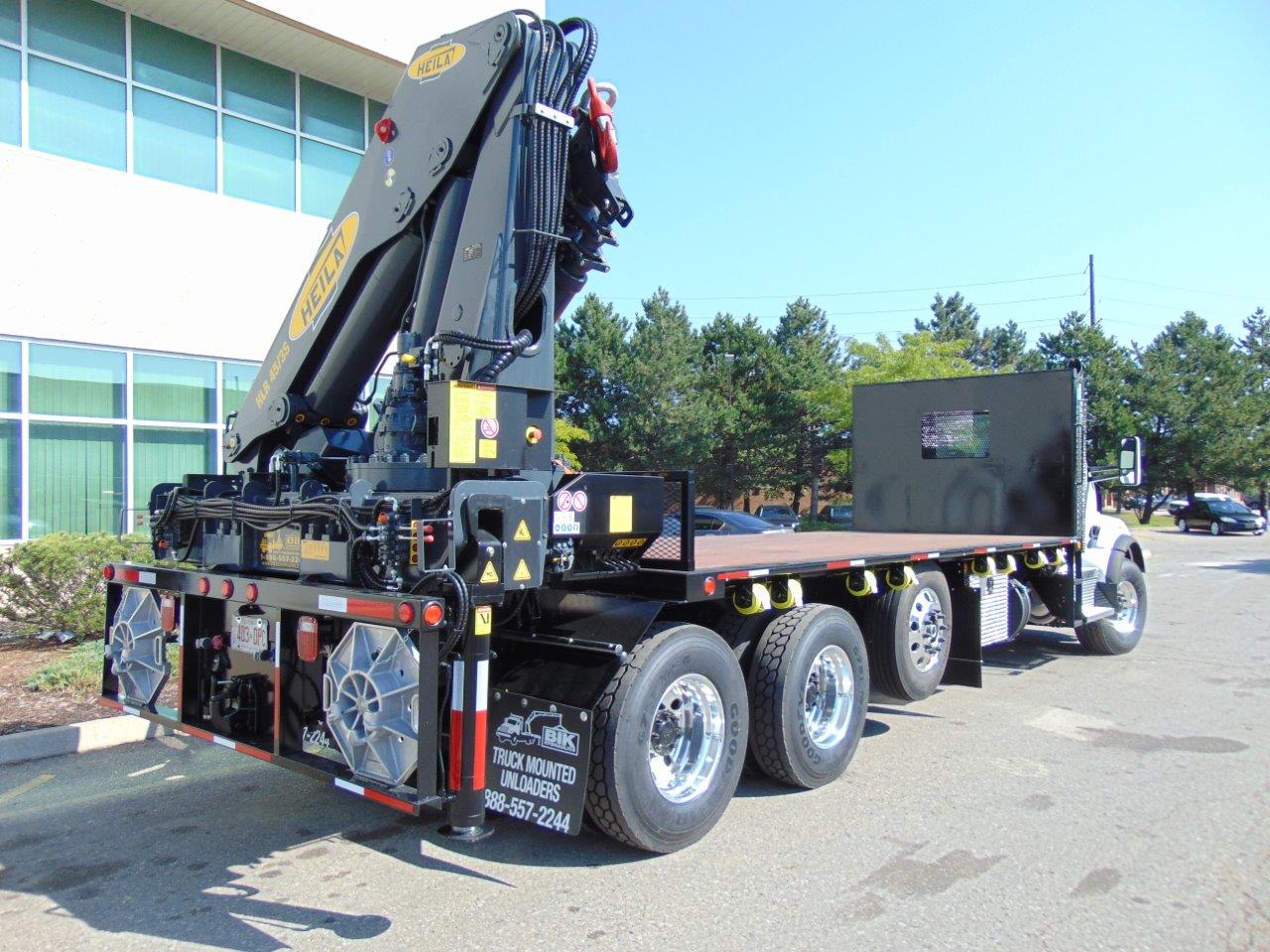

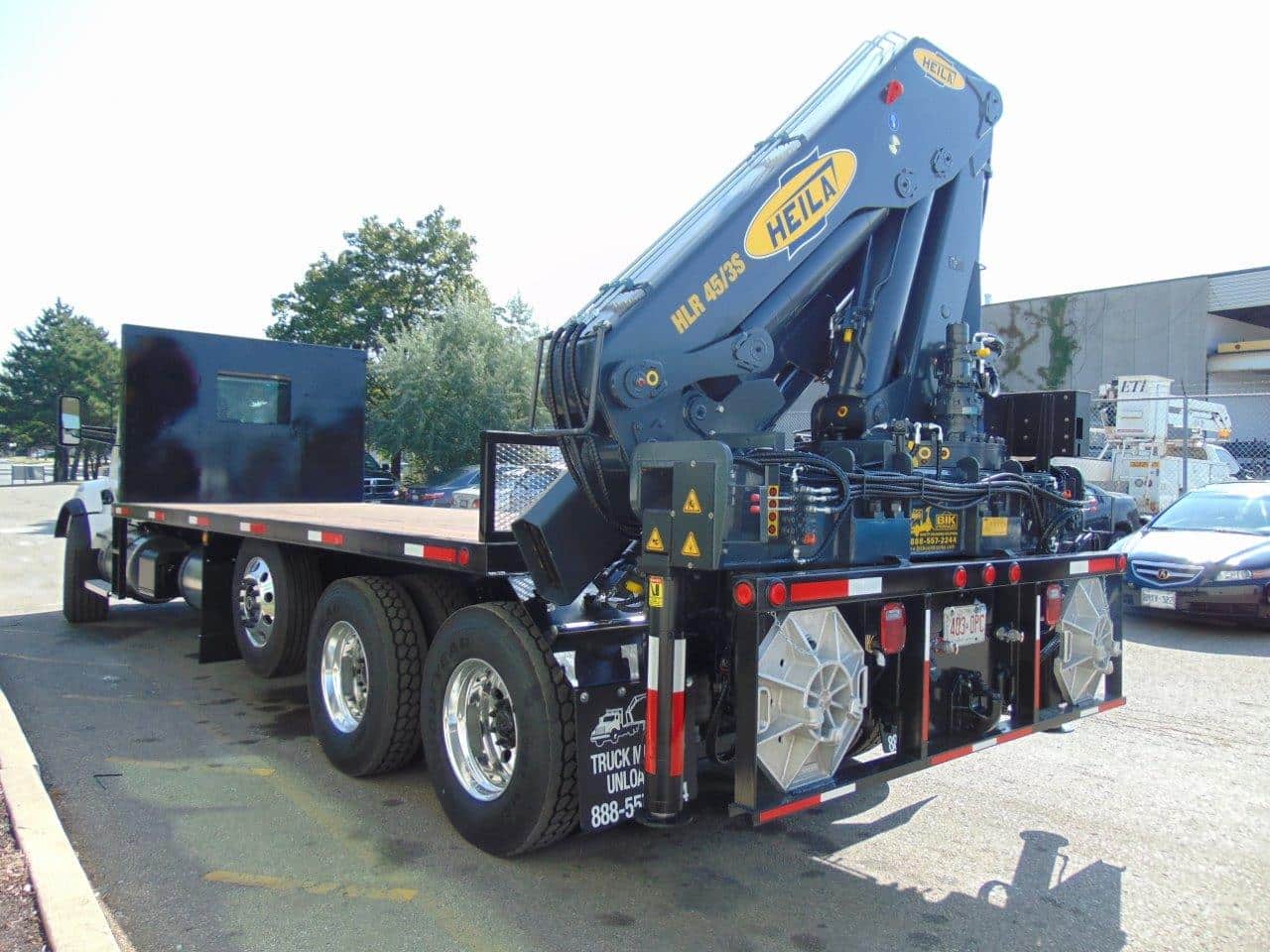

NEW – HEILA HLR 45.000-3S KNUCKLE BOOM
- With Hydraulic Out & Down Stabilizers, 3 Hydraulic Extensions to 36’ of Side Reach
- Boom Capacities:
- 34,000 lb @ 10’
- 18,500 lb @ 17’
- 12,450 lb @ 23’
- 10,000 lb @ 30’
- 8,000 lb @ 36’
- Installed End-Of-Frame on Shear-Plated Sub Frame, Prepped, Primed and Painted
- New Air Operated PTO, Hydraulic Pump, Supply and Return Lines
- Hydraulic Tank Mounted Under Deck w/Shut-off Valve
- 12V Connections to Radio Remote Control
- DANFOSS Proportional Valve Controls – Single Sided Operator Control Station w/Fully Proportional Operator Control
- SCANRECO Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control
- Radio Remote Includes: 5 Micro-Mode Speed Reducing Settings, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord
- Hydraulic Overload Load Limiting Device – Greatly Increases Life Span of Crane and Provides Added Safety
- Planetary Pedestal Rotation – Superior Control & Turning Torque to 10 Deg. Angle – Best in Its Class, Reduced Maintenance
- 450 Degrees Rotation, Hydraulic Out and Down, 2-Sided, Independently Controlled Stabilizers Beneath Pedestal
- Ground Level Main Danfoss Valve Bank, Easy Access for Manual Controls at Ground Level
Deck Details
NEW – 21’ X 102” HARDWOOD DECK
- Installed on Truck, with 54” of Main Sill Overhang for Sub-Frame of Knuckle Boom
- Hardwood Deck Surface, 66” Headboard, Reverse Rail Sliding Track on Passenger Side
- 8 Winches and Straps (30’) with Required Conspicuity and Reflectors
- All Steel Painted Gloss Black
Truck Details

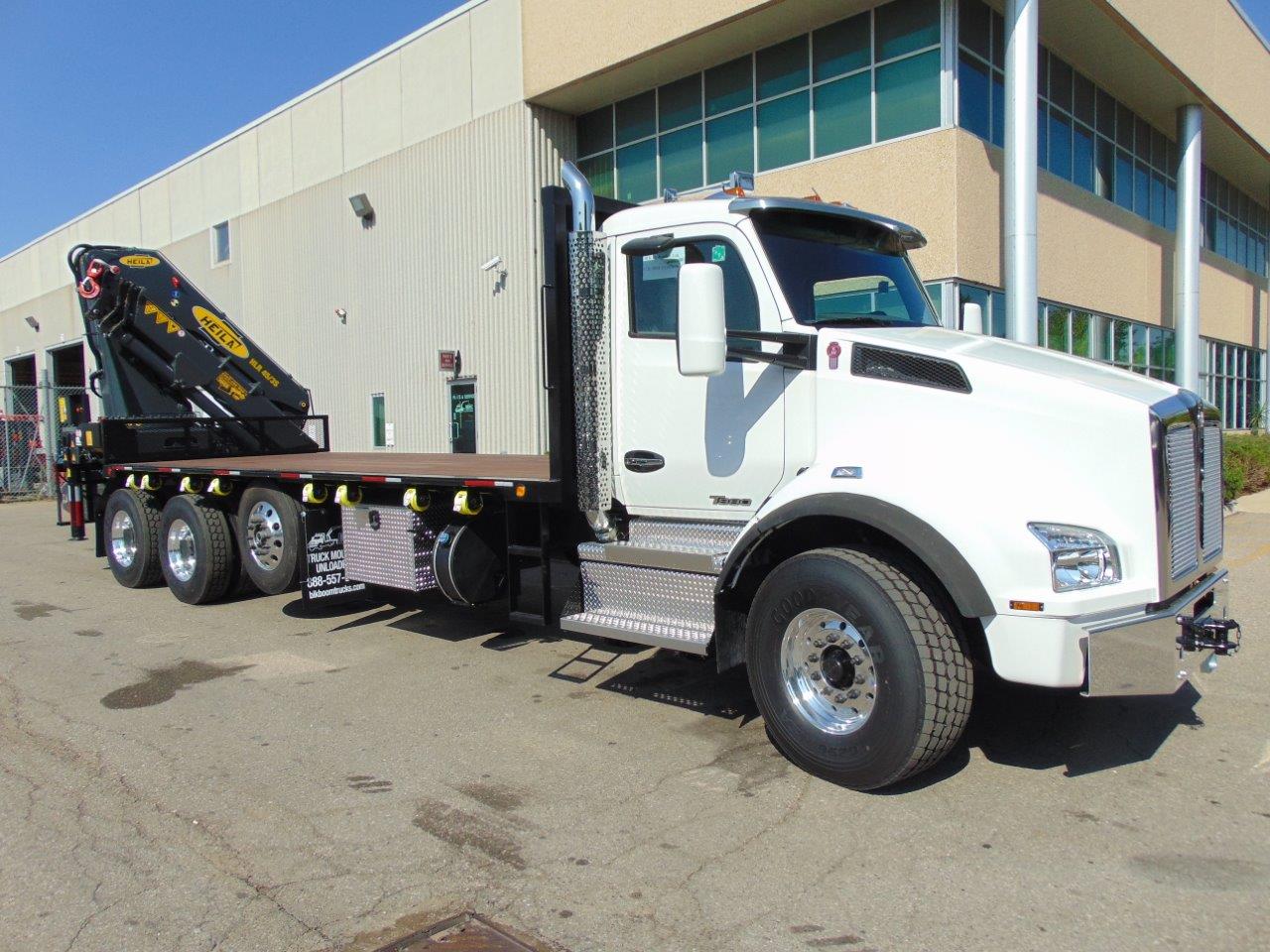

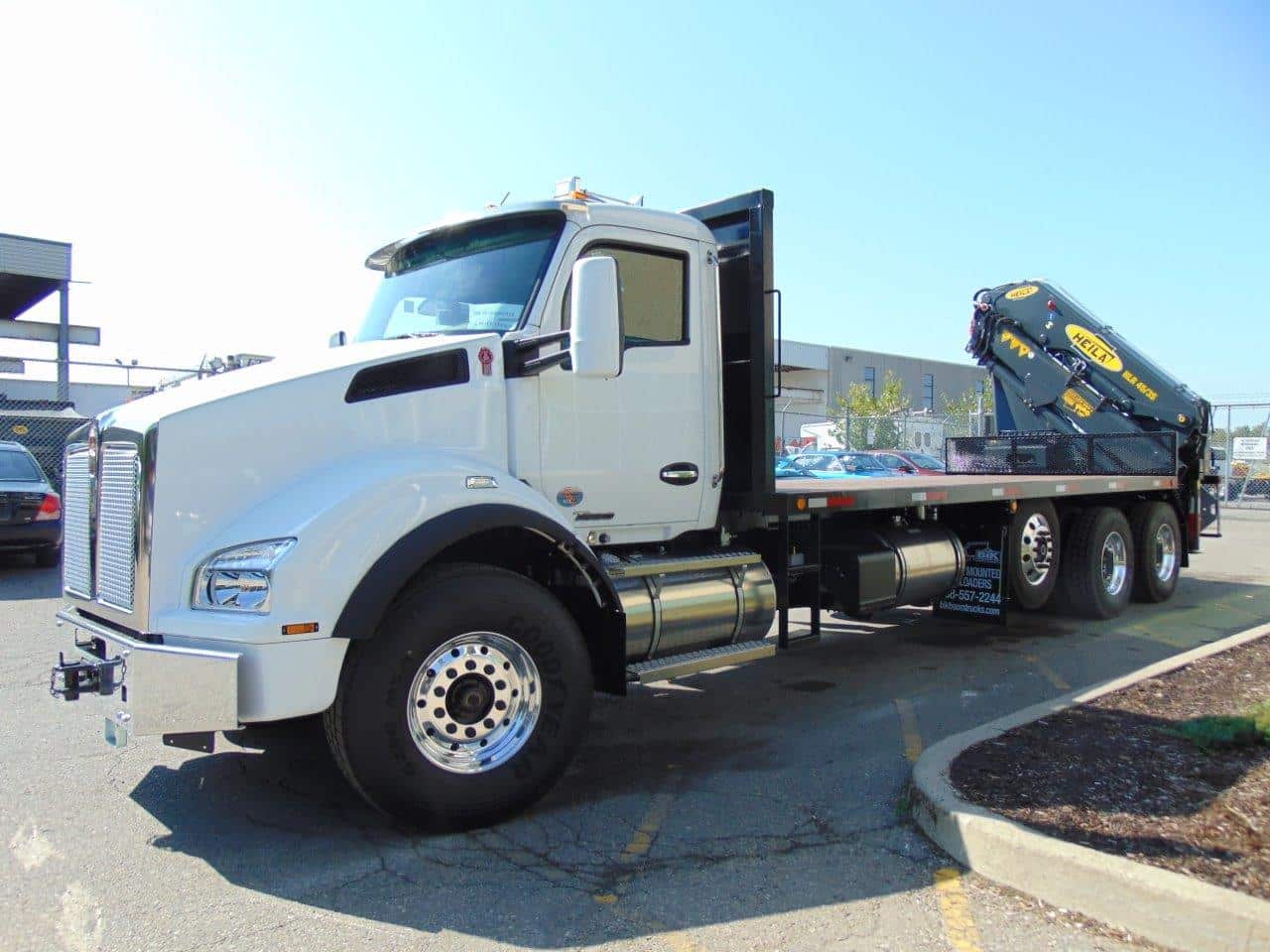

NEW – KENWORTH T880 4-AXLE TRUCK: 79,000 lbs GVWR – Cab White
- Paccar 485 hp – 1,650 ft/lb Torque, Jake Brake, 18 Speed Fuller Manual Transmission
- 20,000 lb Front Steer Axle with 425 / 65R22.5 Tires on Aluminum Rims
- 13,000 lb Self-Steer Lift Axle Ahead of T/A with Low Profile 22” Tires/Rims
- 46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims
- 54” Spread at TA, Double Frame

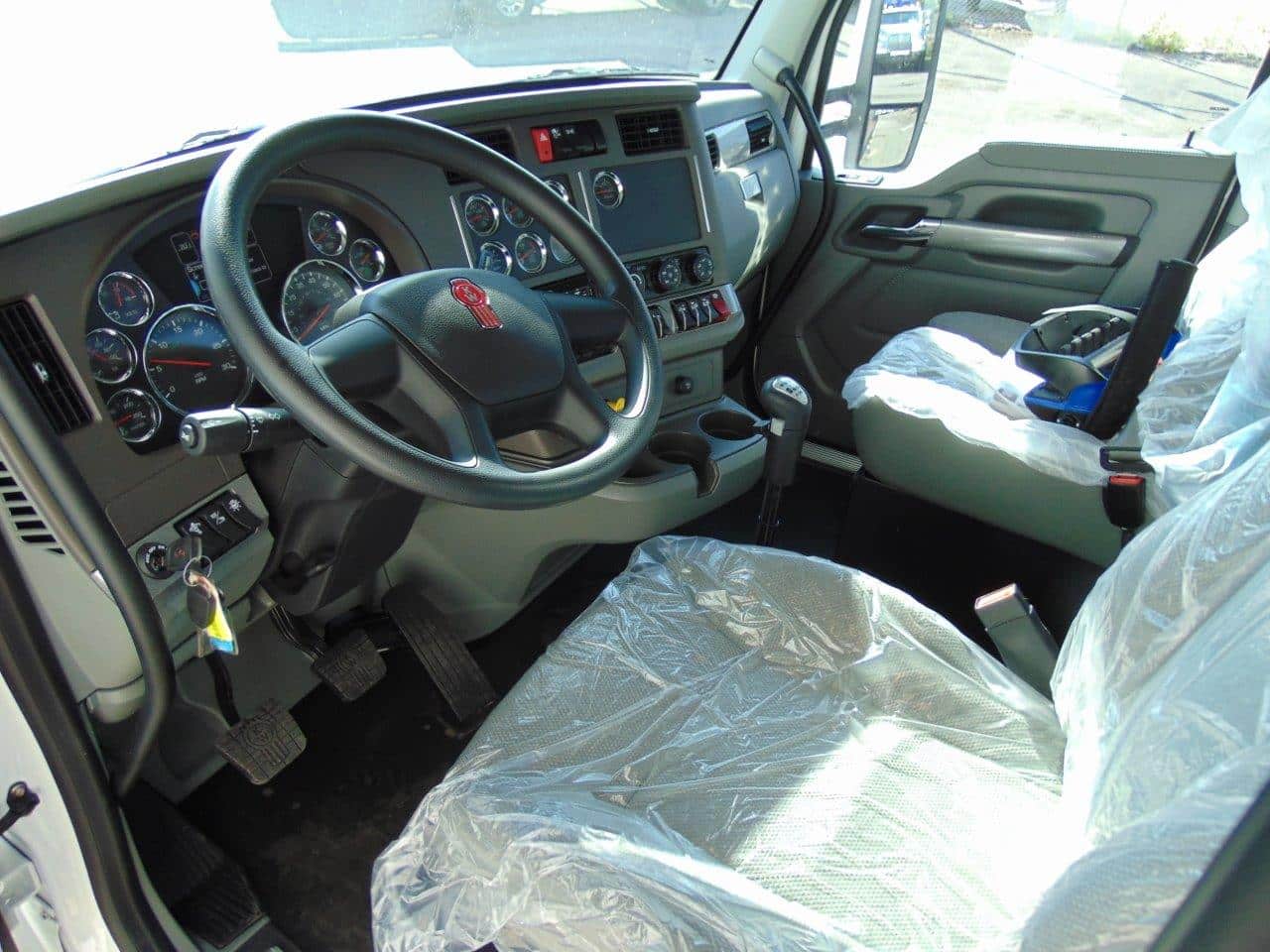

- Options Including: A/C, Tilt/Telescopic Steering, Power Windows & Locks, AM/FM/MP-3 w/Bluetooth, Air Driver’s Seat and Standard Pass. Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock Ups, Trailer Air Tow Package, Chromed Front and Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc…
Also Included:
- (2) Pcs – Aluminum Stabilizer Pads with Holders at Rear
- Program Radio Remote Control for Engine Stop/Start and Truck Shut Off
- (1) Pc – 36” Aluminum Storage Box Installed
- 1” Drawplate Installed at Rear of Frame for Possible Pintle Hook
