Boom Details

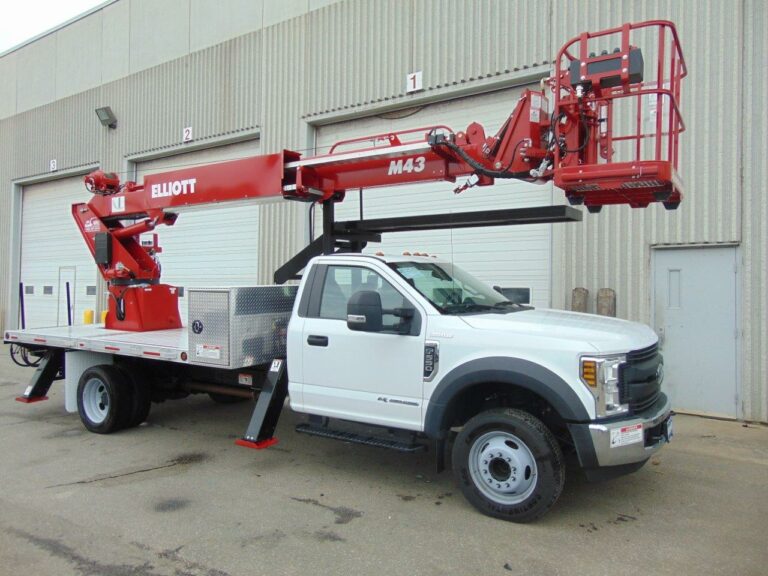

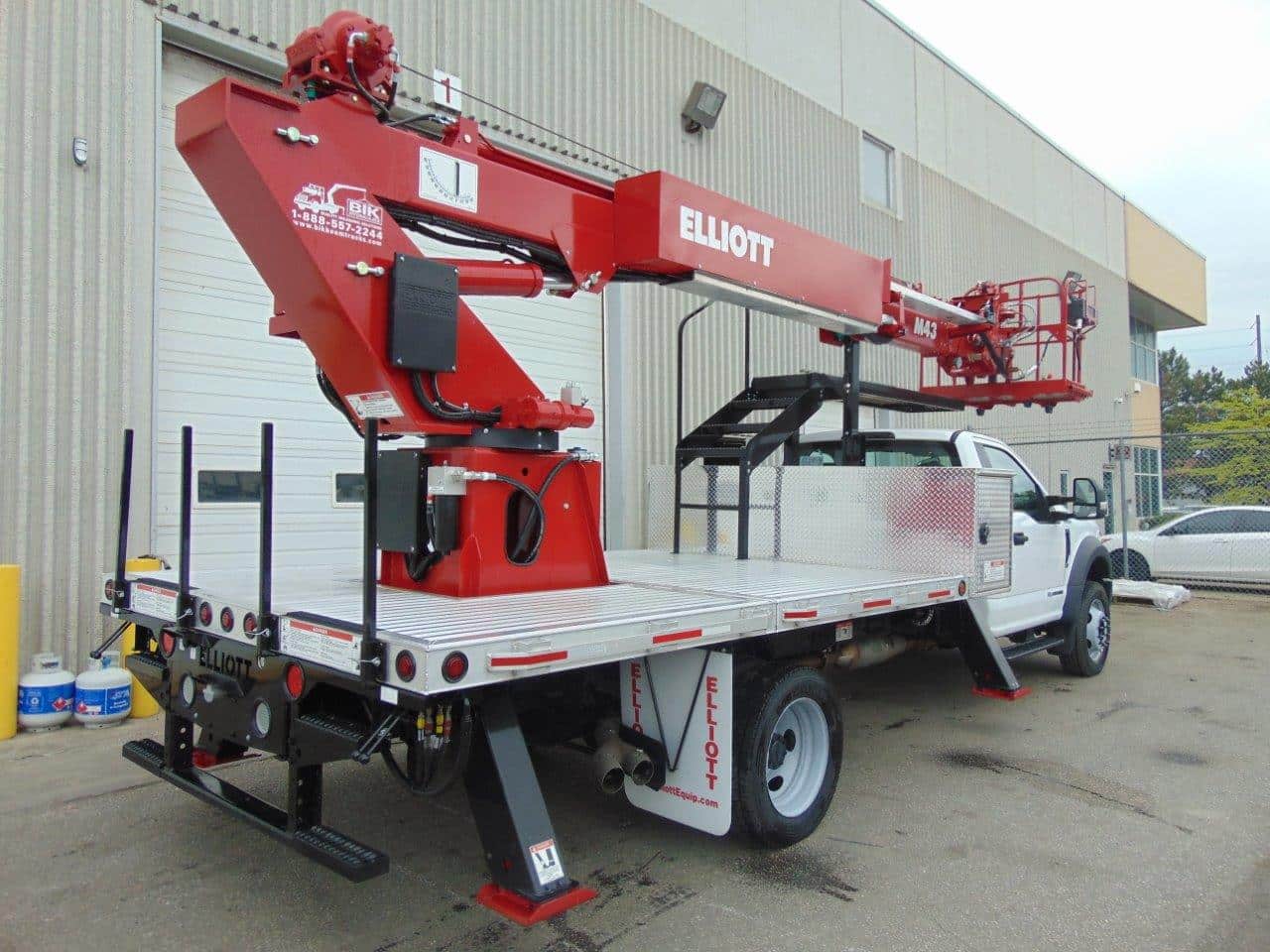

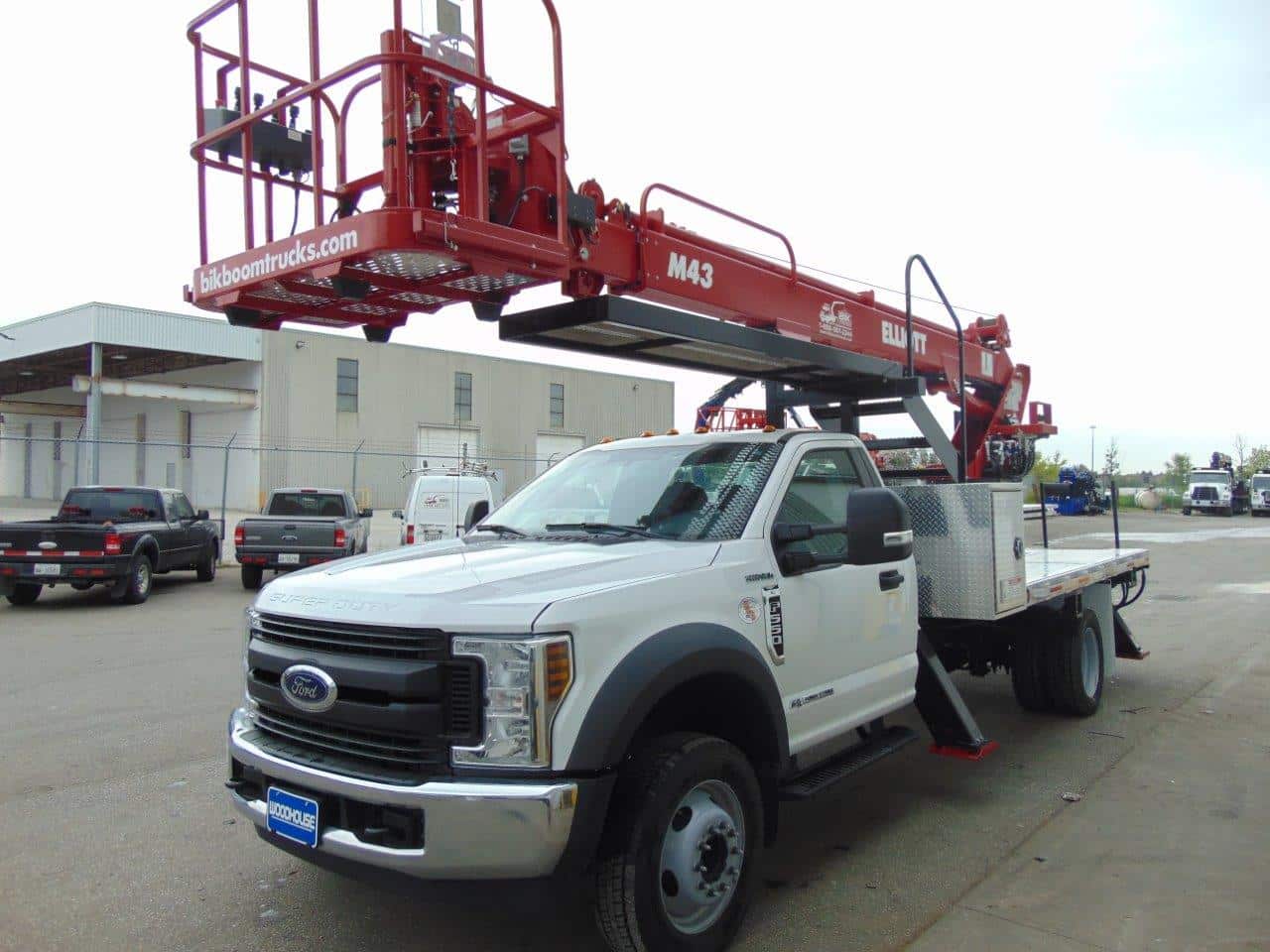

New – Elliott M43 HiReach: Hydraulic reach to 48’ working height and 36’ working side reach– Platform Capacity 500 lbs – Installed  by Elliott factory technicians, prepped, primed and painted. New Air Operated PTO (Chelsea), Hydraulic Pump, Supply   and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested.

Standard Features include:

• Three individual proportional electronic controllers.  Boom ground controls located on roadside of turret, remote controls for boom operations from platform operate from a removable control box (HI, Low and start stop toggles are also located in the platform).
• Work platform is a EZR  hydraulically self-levelling and rotating, 30” x 54” with 40” high rails work platform, with safety attachment loops.
• Remote start & stop at upper and lower controls
• Front outriggers straight down rear A-Frame type hydraulic stabilizers at rear
• Hydraulicly powered continuous rotation rotation with no stops with ball bearing slewing bearing and self locking gear box.
• Load Holding Valves on each cylinder for Safety and Security of Operator and Load.

Inlcuded Options Are:

• 500 lb cap jib winch in basket
• 13’ low profile Aluminum Deck – 8’ wide Aluminum cross box
• 2,000 lb Planetary Main Boom Winch with Anti Two Block Switch, Horn, Cable & Retainer Ring

Truck Details

New – 2019 Ford  F550 XL Single axle  Chassis: 19,500 lb GVWR – Hydraulic Brakes – 325 hp Turbo Diesel Engine, 6 speed automatic transmission, white cab – 7,000 lb front axle,  13,500 lb rear axle with 225/17R19.5 all season tires on Steel white rims, Hydraulic Brakes

• Features Include: Air. Cond., am/fm stereo, cruise control, engine block heater, 40/20/40 3 person front seating, etc…
