NEW ELLIOTT HiREACH L65 ON NEW FREIGHTLINER M2-106
NEW ELLIOTT HiREACH L65 ON NEW FREIGHTLINER M2-106
While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

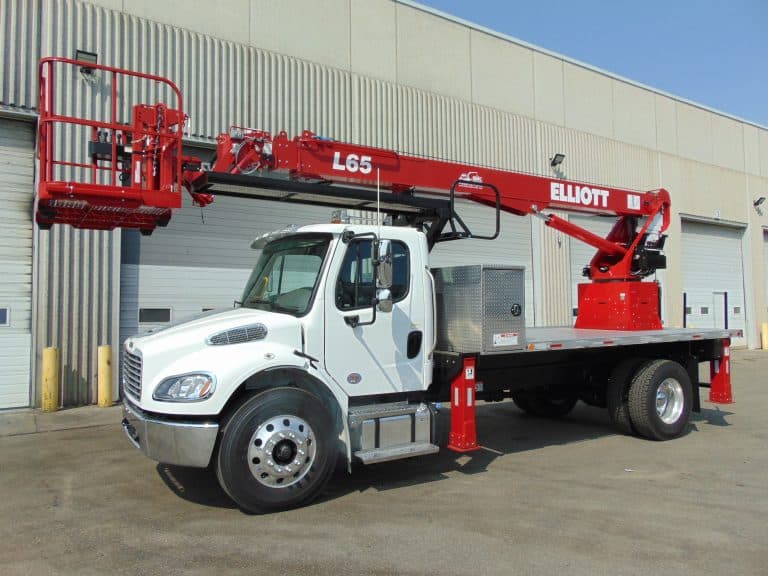

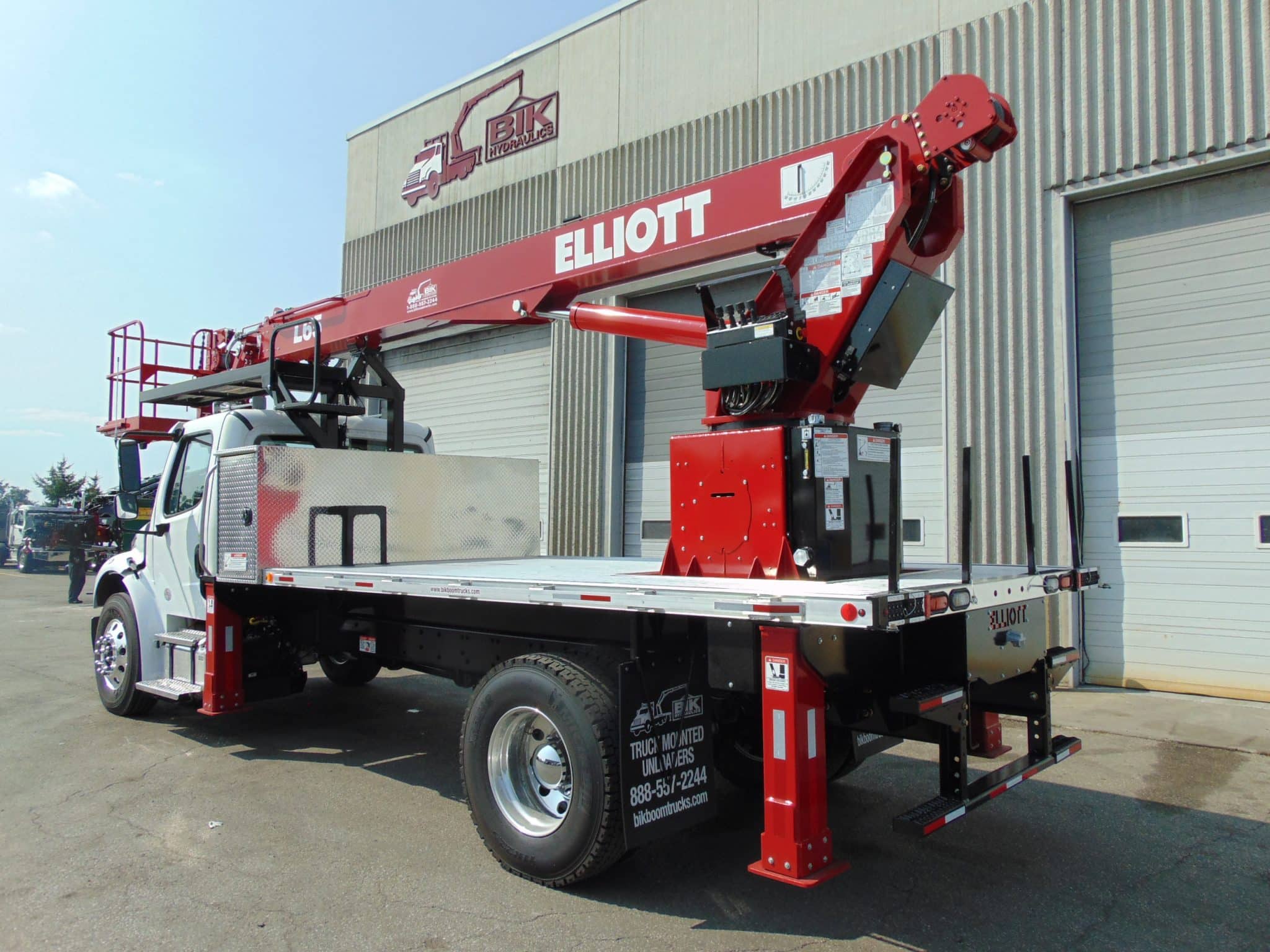

New – Elliott L65 R HiReach: Hydraulic reach to 65’ vertical working height and 59’ horizontal side reach
- Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
- New PTO (Chelsea), Hydraulic Pump
- Supply and Return Lines
- Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested. Painted Red at Factory.
Standard Features include:

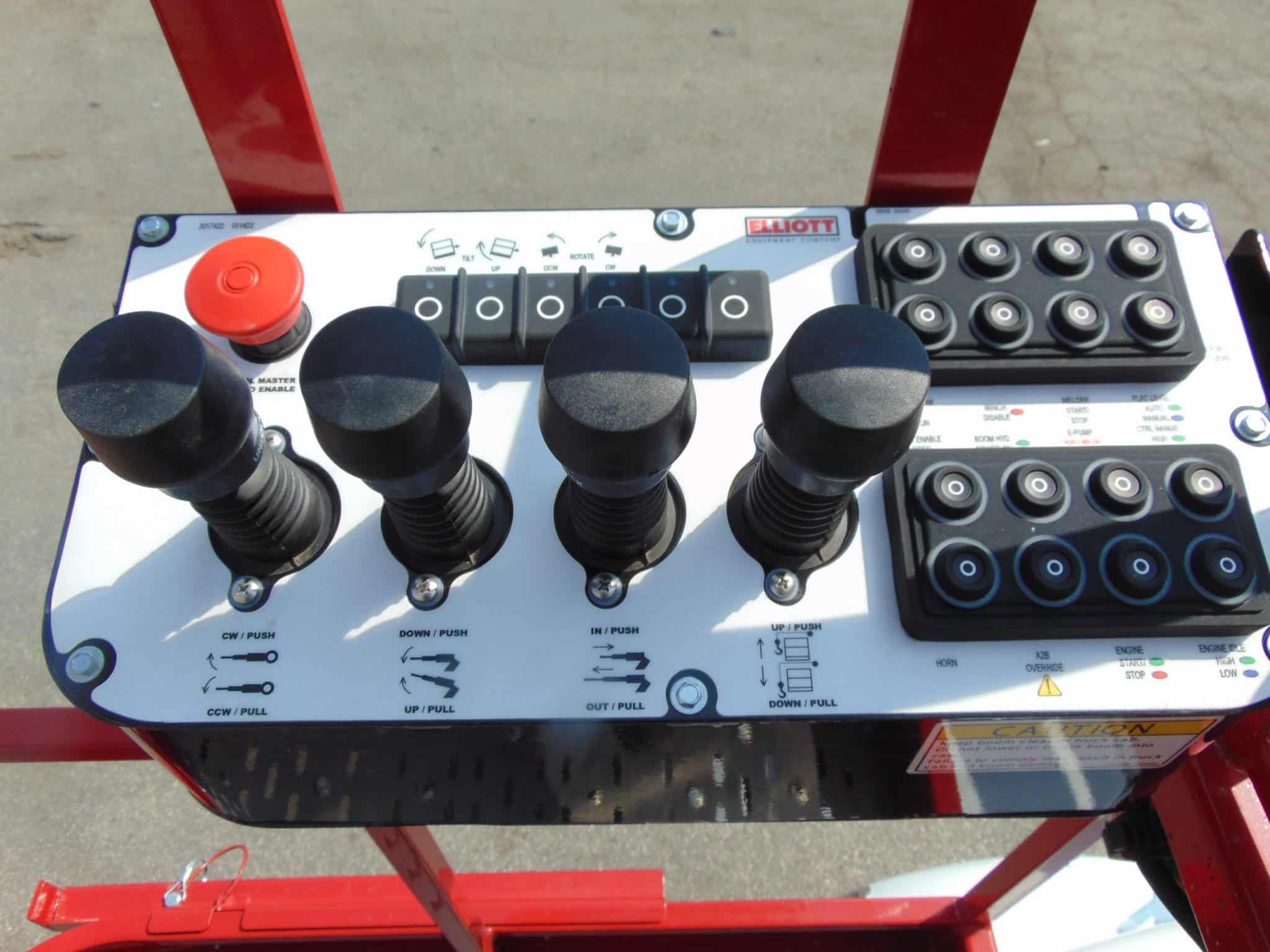

- Controls in basket and at turret

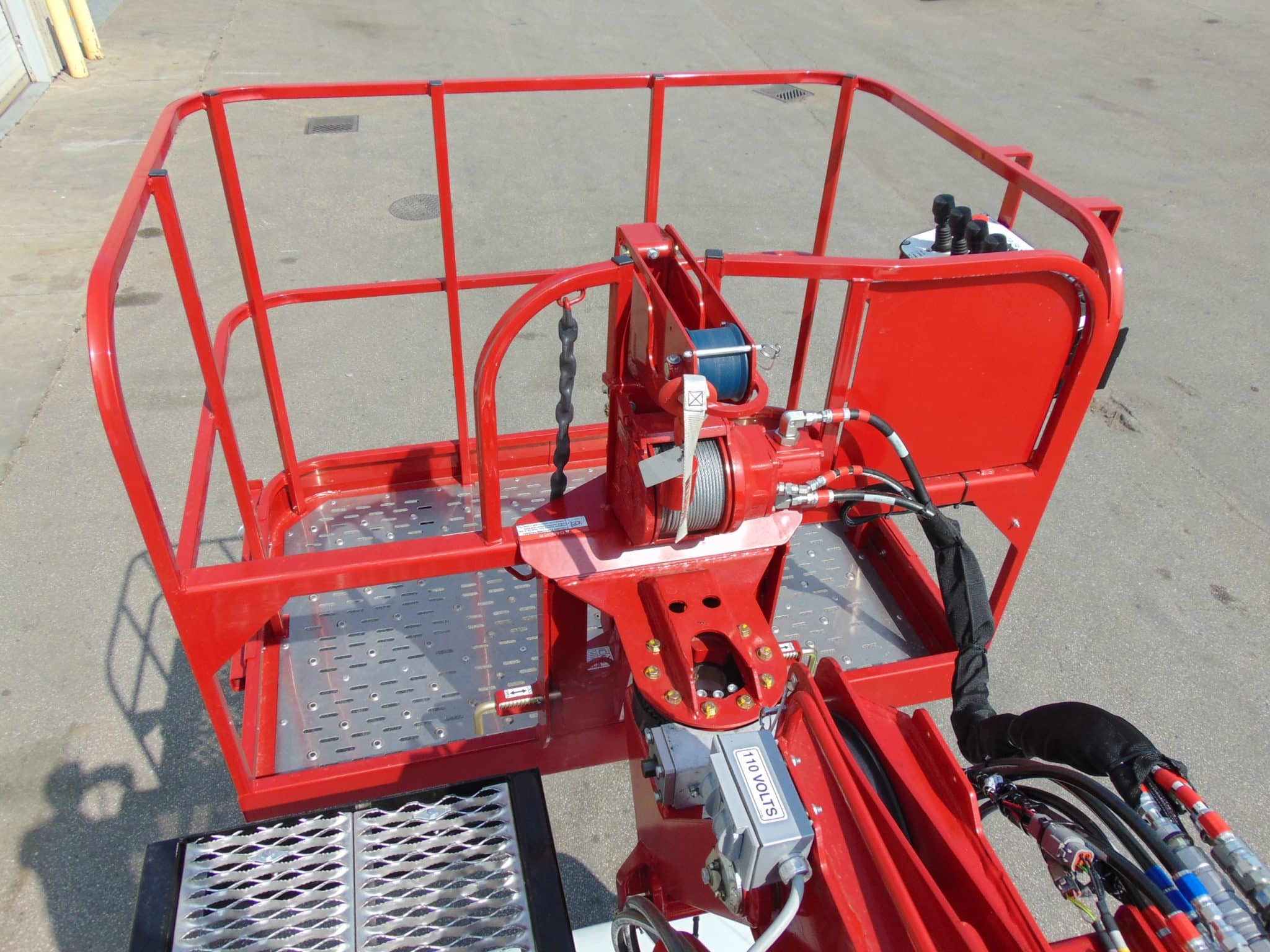

- Work platform is 40”x 60” with 40” high rails, with safety attachment loops.
- One double acting 6” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.

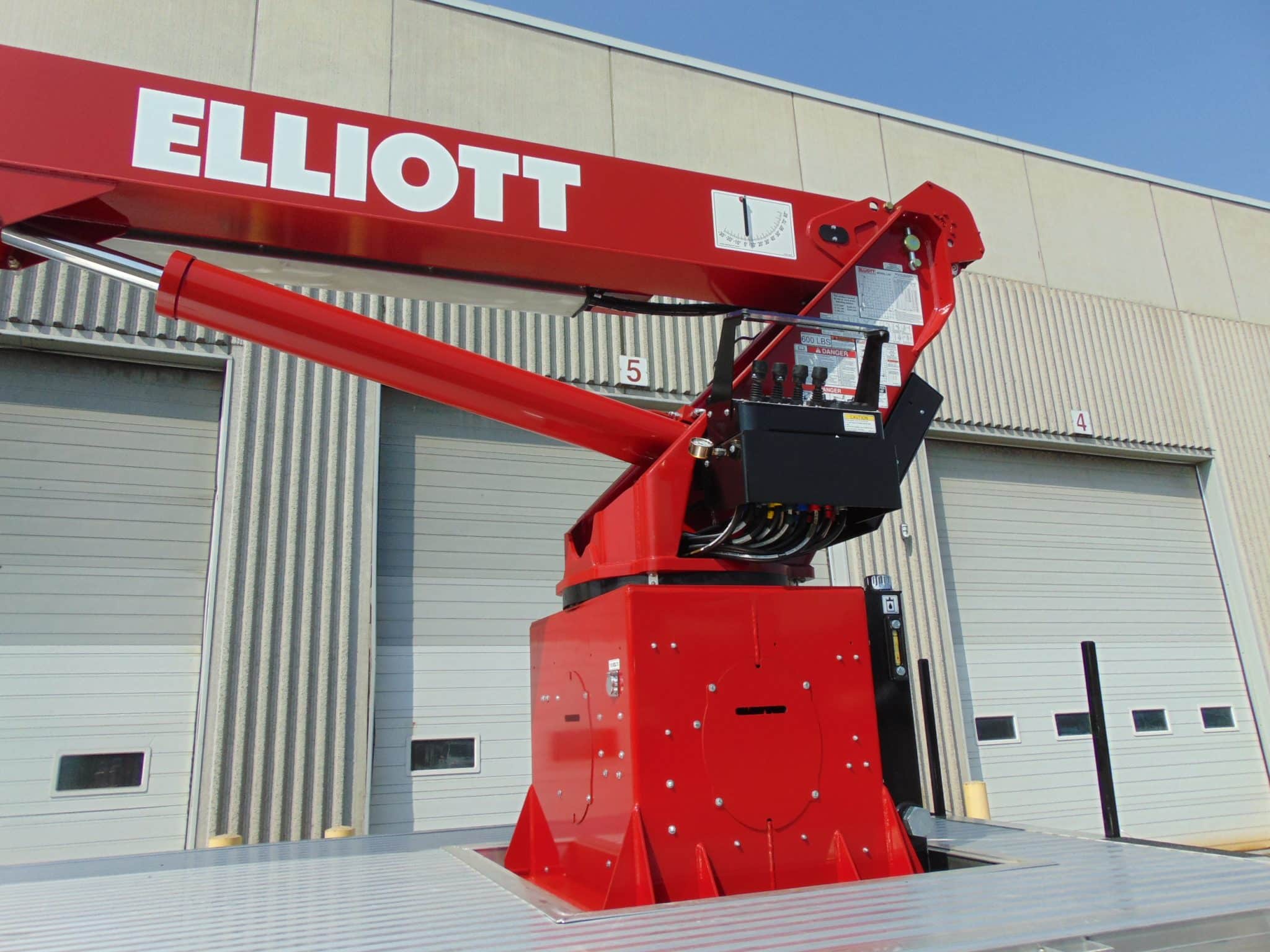

- Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
- Hydraulic OUT and DOWN driver side controls with a 18’ spread. Load Holding Valves on each cylinder for Safety and Security of Operator and Load.
Included Options Are:
- 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
- Platform mounted stow & Go jib with hydraulic winch drum mounted on horizontal arm
- 110 V power supply to work platform, Sign forks on platform (2 pcs)
- 14’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
- 8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
Truck Details
New – Freightliner M2-106 Single axle Truck: 33,000 lb GVWR (available derate to 25,990 lb non CDL)
- Cummins Diesel 280 hp Diesel Engine
- Allison 2500-RDS Automatic Trans.
- Truck cab white
- 12,000 lb front axle
- 21,000 lb rear axle on Spring Susp. with 11R22.5 tires on Polished Aluminum outer rims
- Hydraulic brakes
- Options Include: Exterior sun visor, chrome bumper & grille, Aluminum battery box, Air. Cond., am/fm stereo & Bluetooth, tilt steering, cruise control, power windows / locks, black/grey color interior, Air Ride Drivers Seat, 2-man passenger bench seat, 60 gal aluminum fuel tank etc.
Optional Equipment:
- Aluminum Under Deck Storage Boxes
- Hydraulic oil tank heater
- Drawplate with pintle hook
