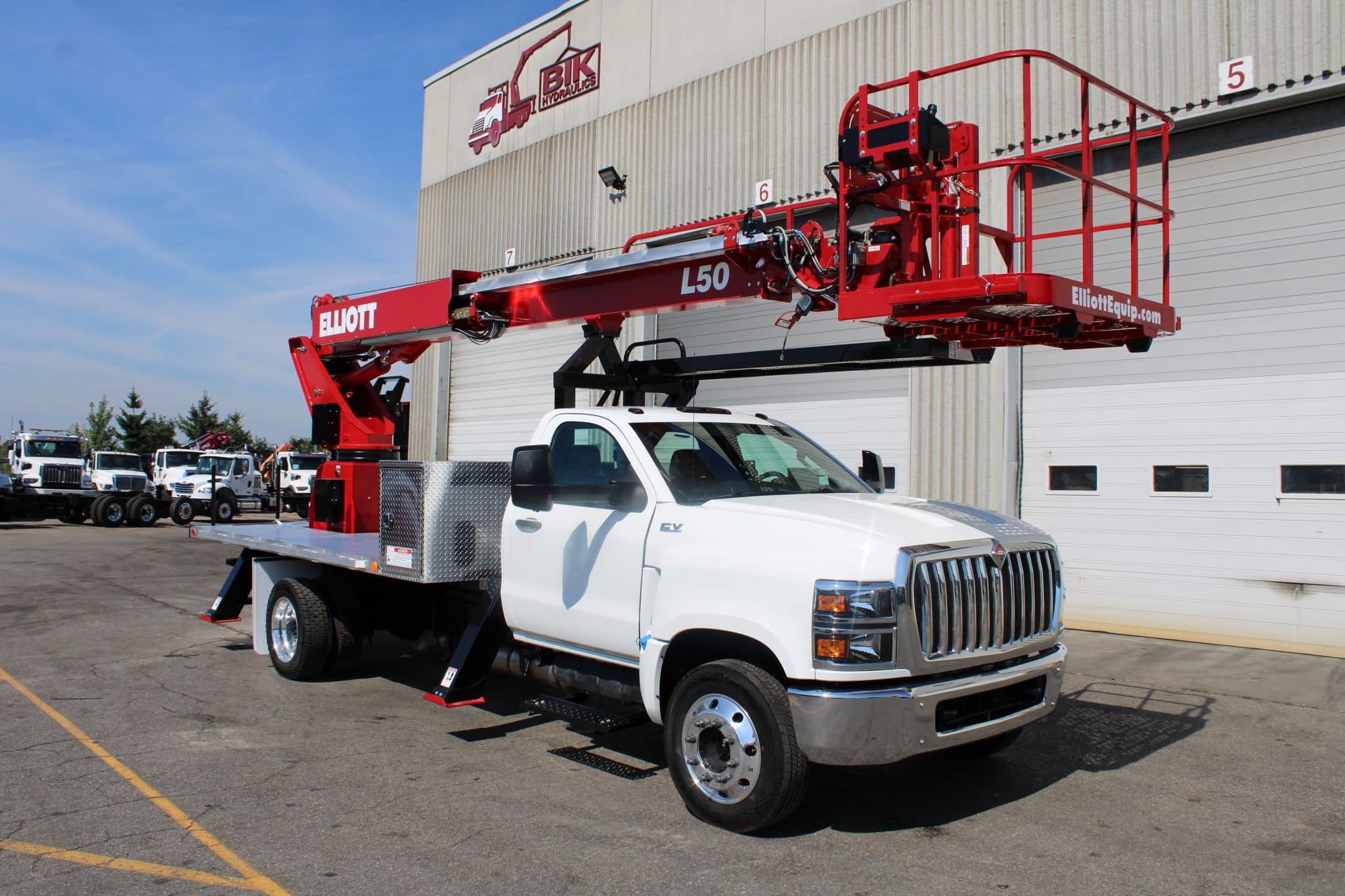

NEW ELLIOTT HiREACH L50 ON NEW International with 13’ ALUM BED
NEW – NEW ELLIOTT HiREACH L50 ON NEW International with 13’ ALUM BED
While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

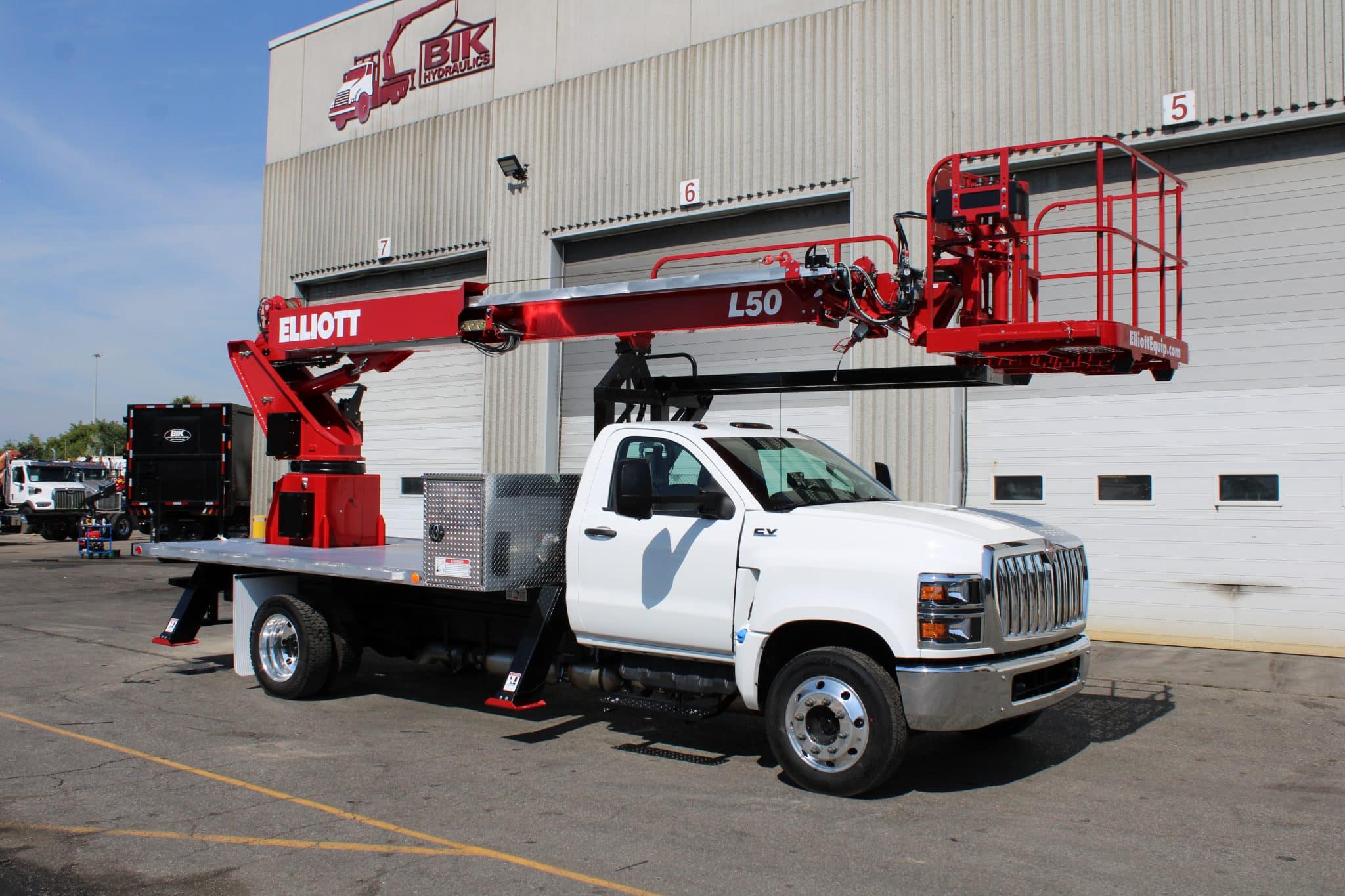

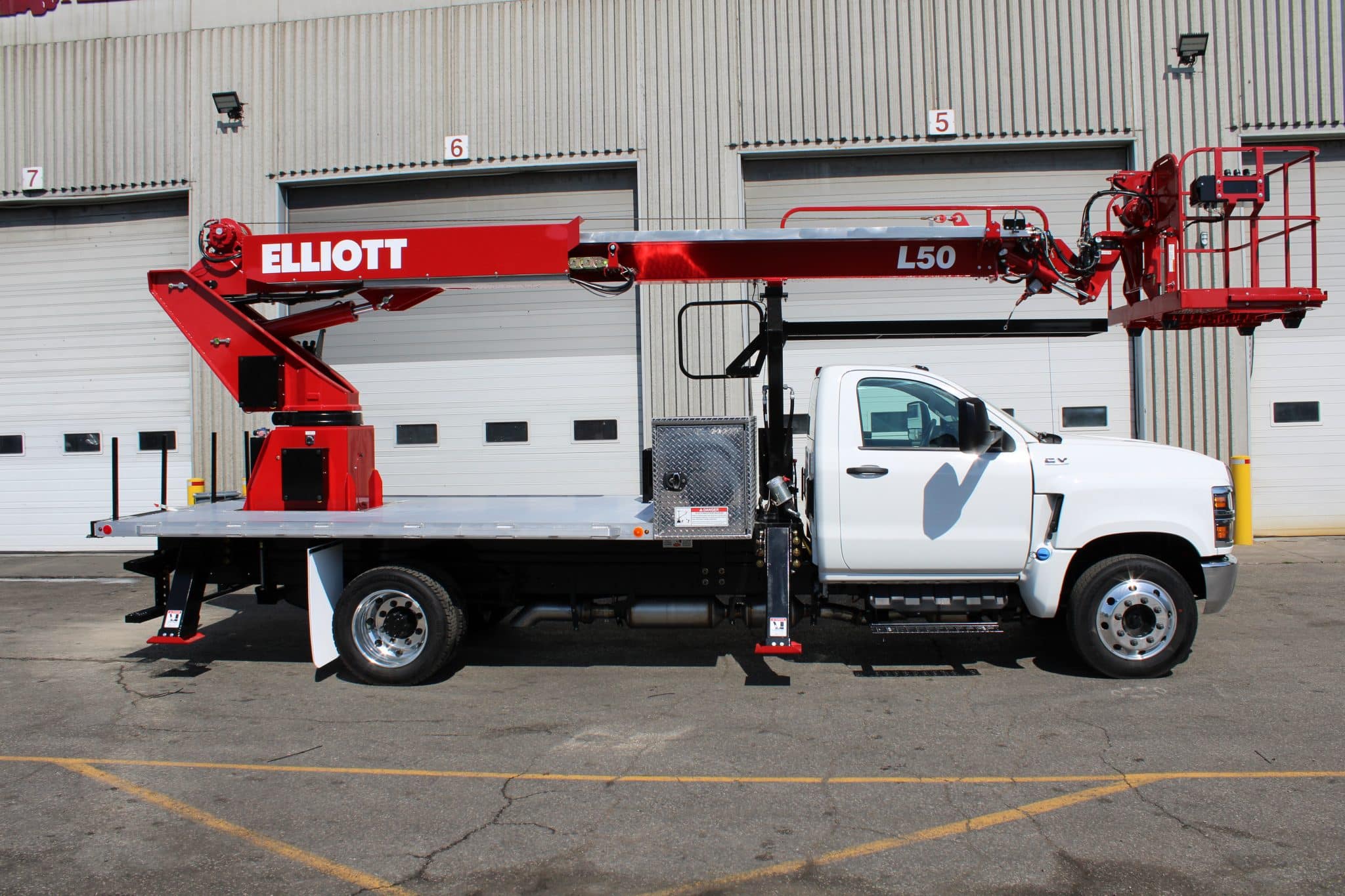

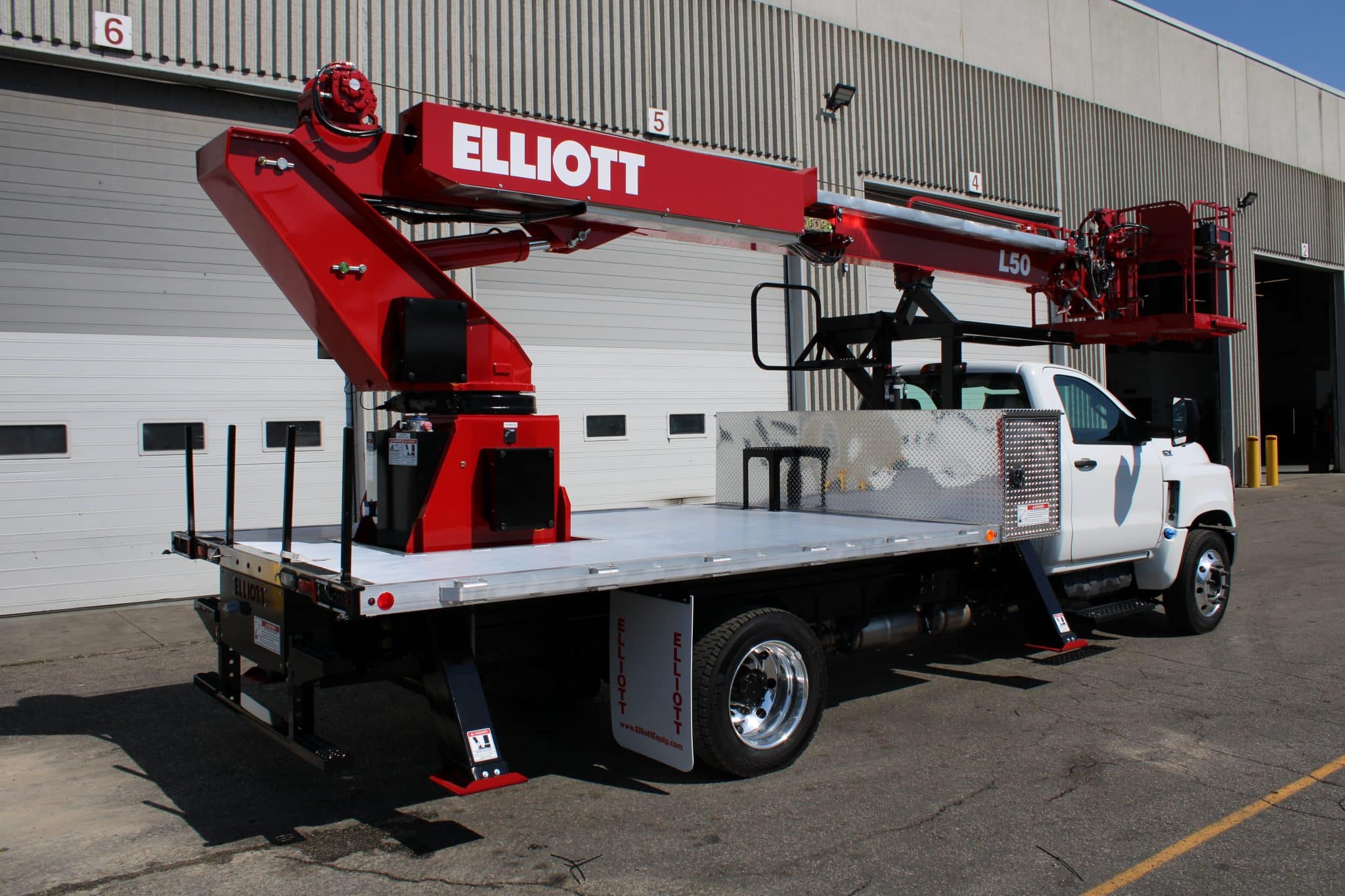

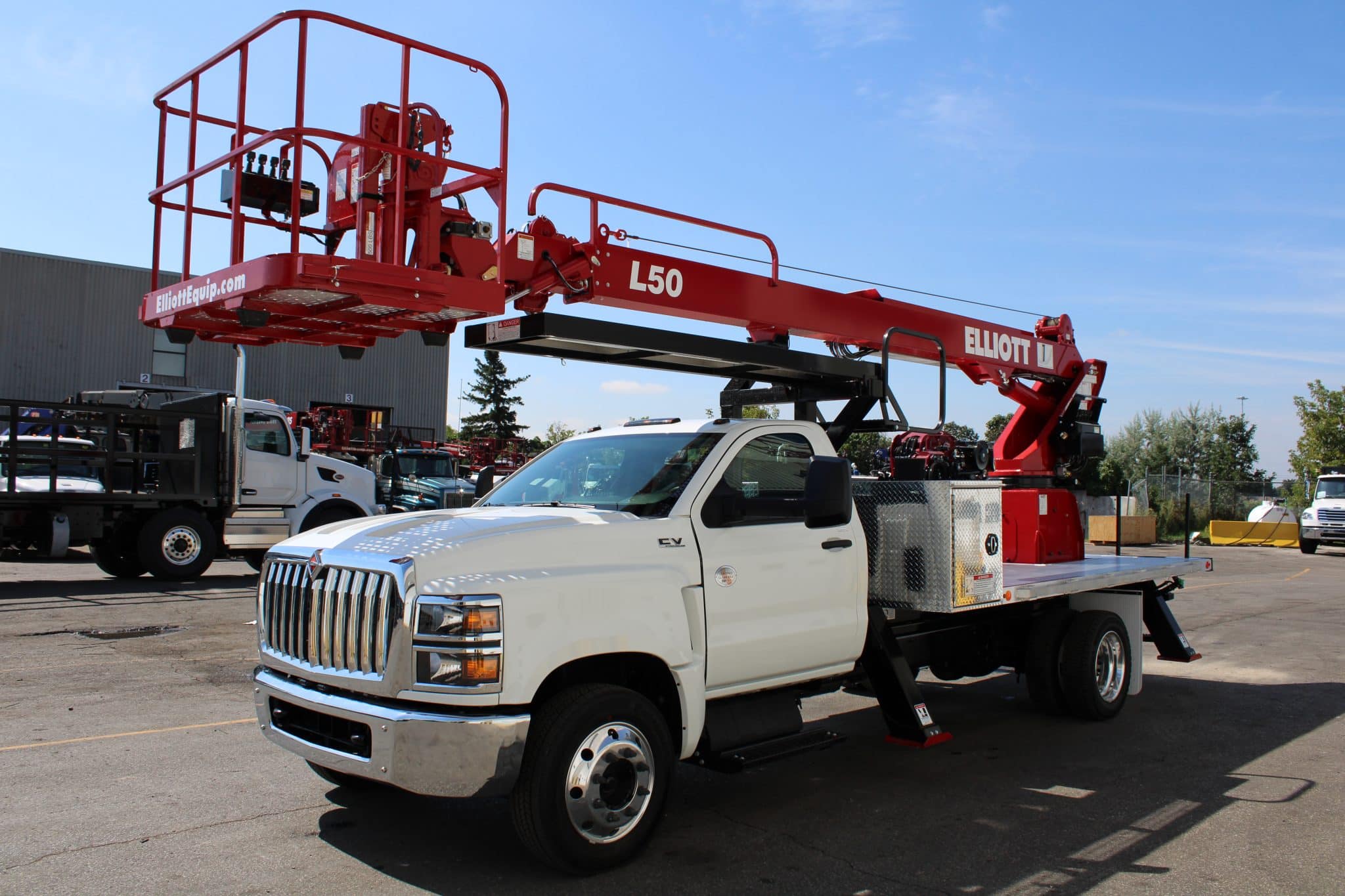

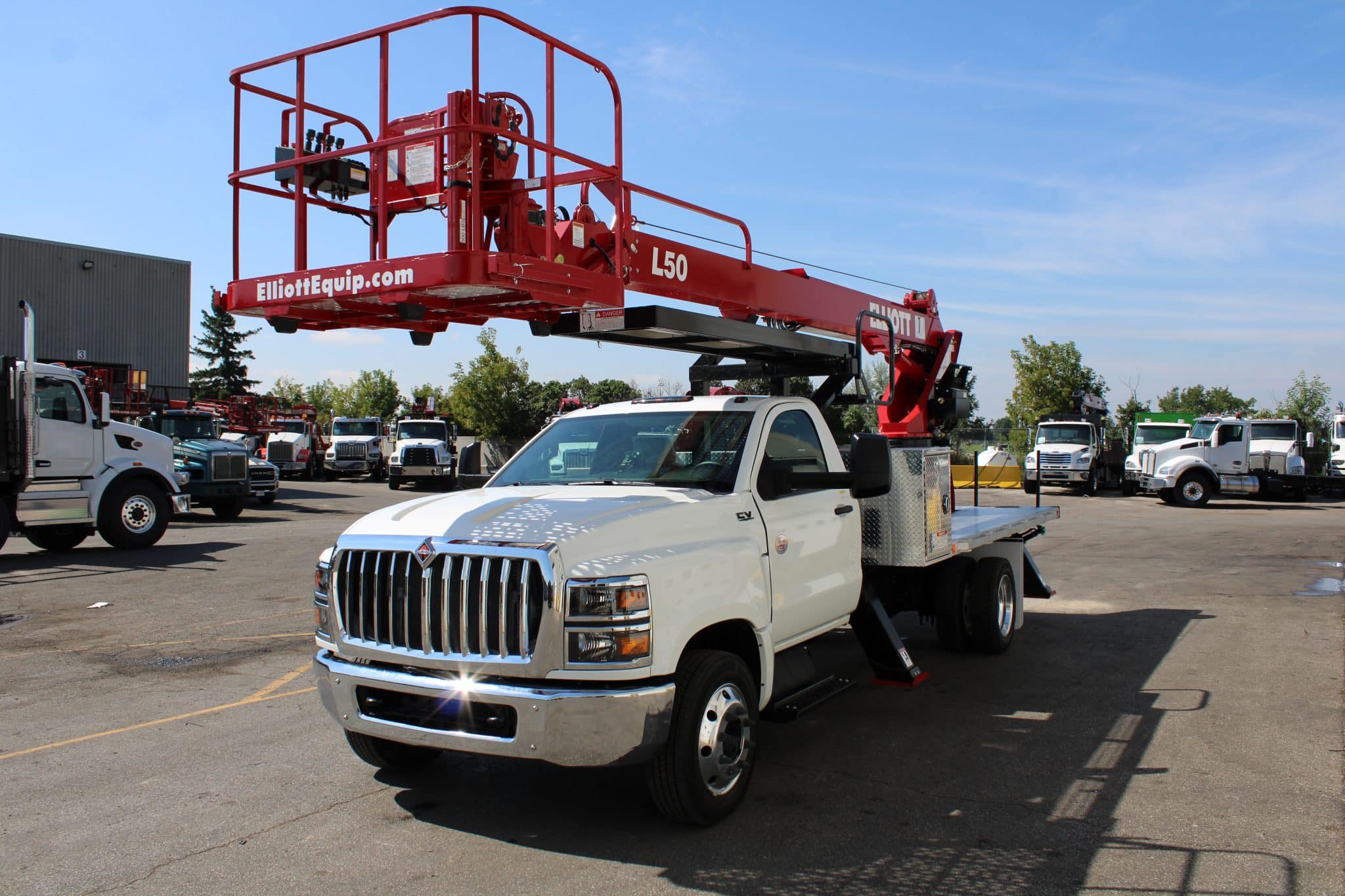

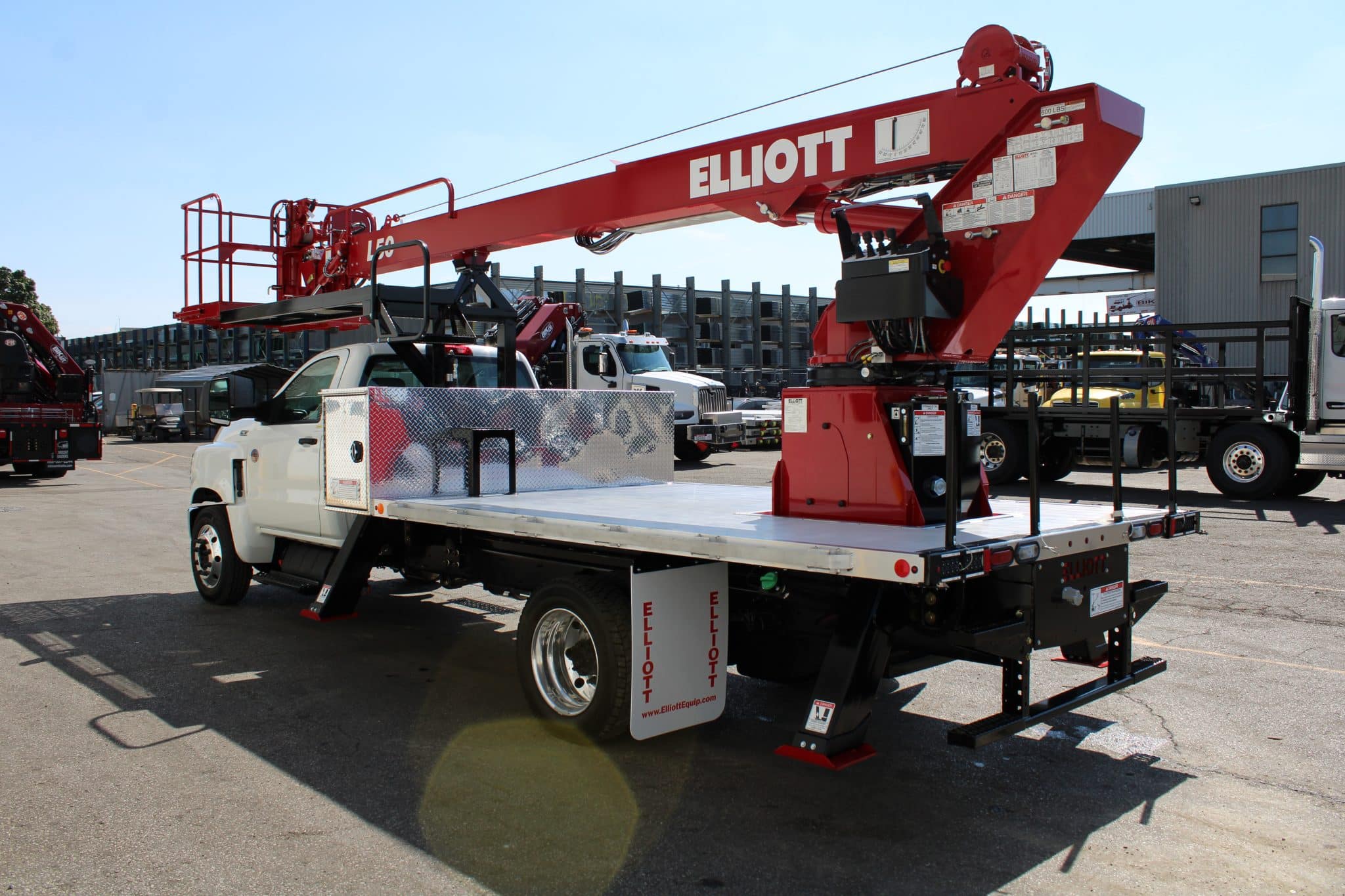

New – Elliott L50 HiReach
Hydraulic reach to 50’ working height and 40’ working side reach– Platform Capacity 500lbs
- Installed by Elliott factory technicians, prepped, primed, and painted. New Air Operated PTO (Chelsea), Hydraulic Pump, Supply and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve. Load Tested.
Standard Features include:

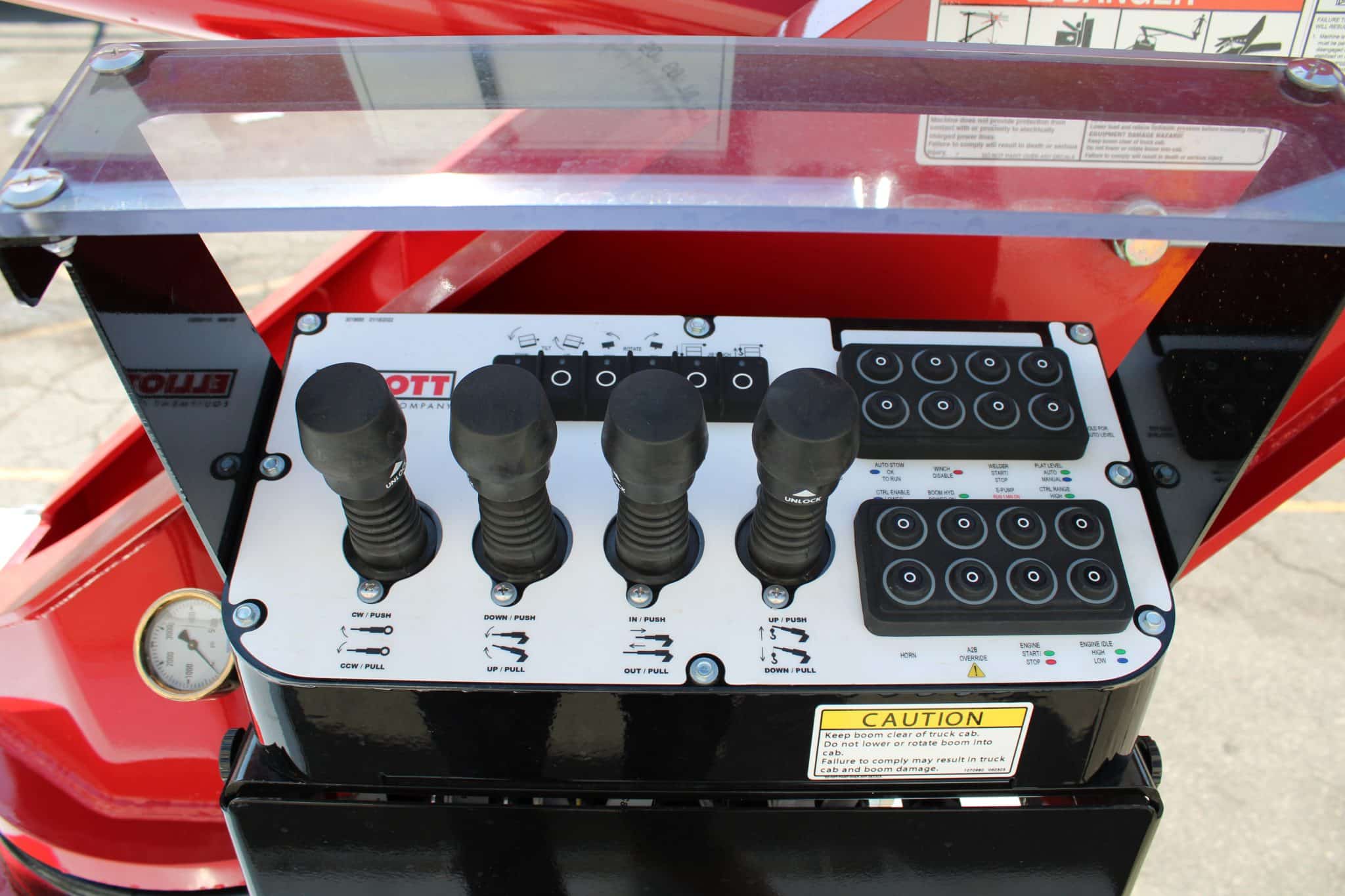

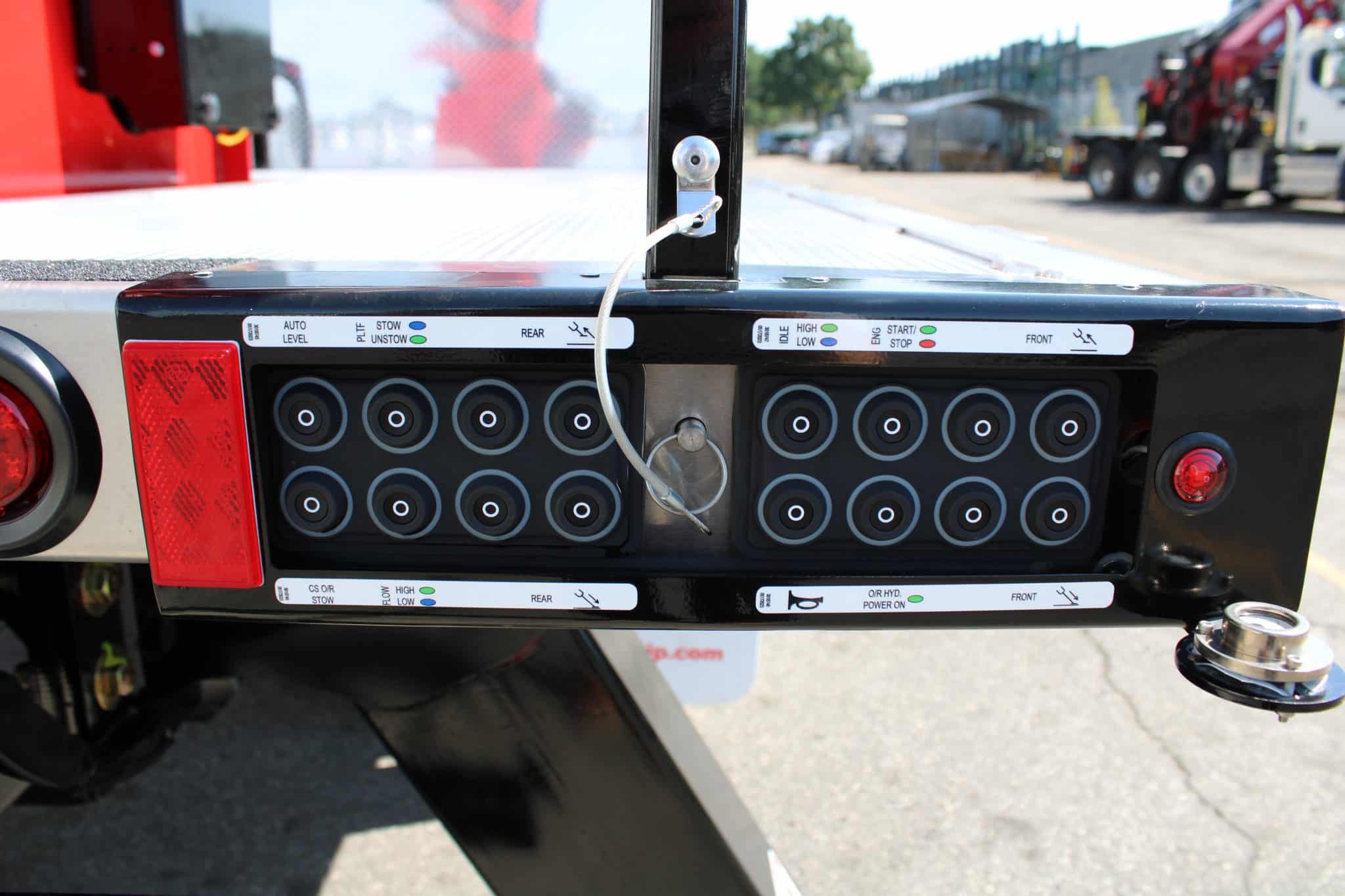

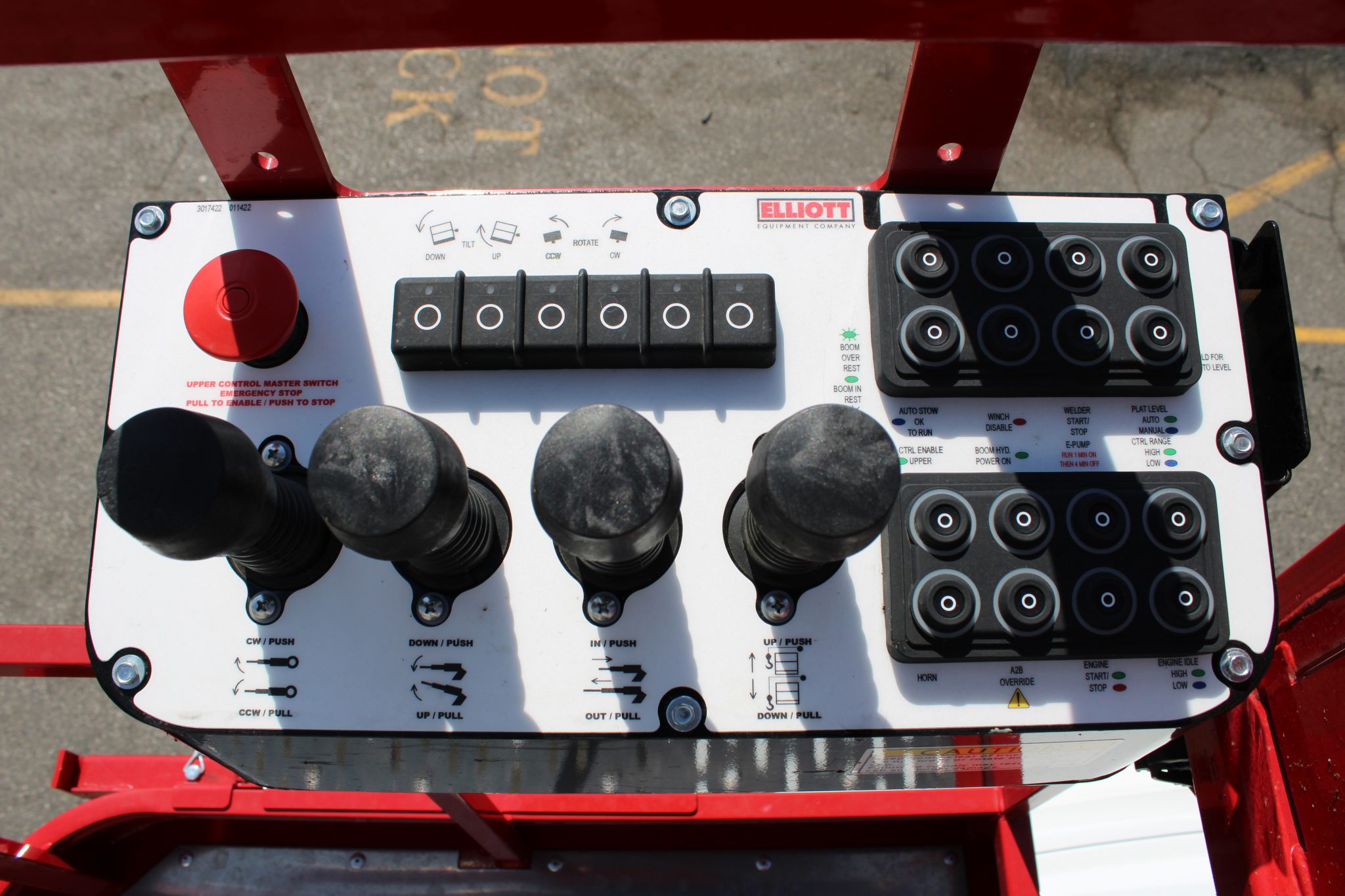

- Three individual proportional electronic controllers. Boom ground controls located on roadside of turret, remote controls for boom operations from platform operate from a removable control box (HI, Low and start stop toggles are also located in the platform).

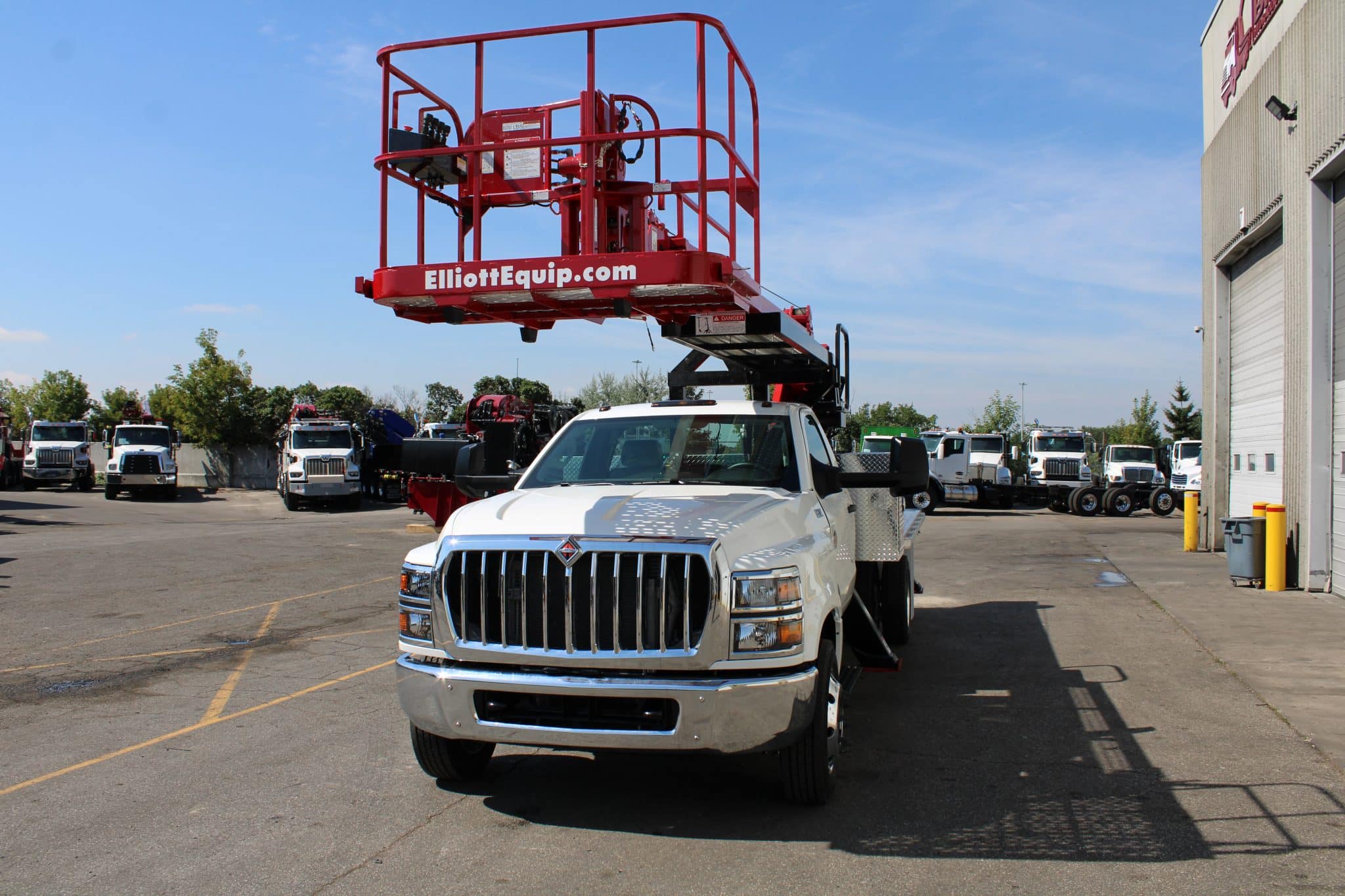

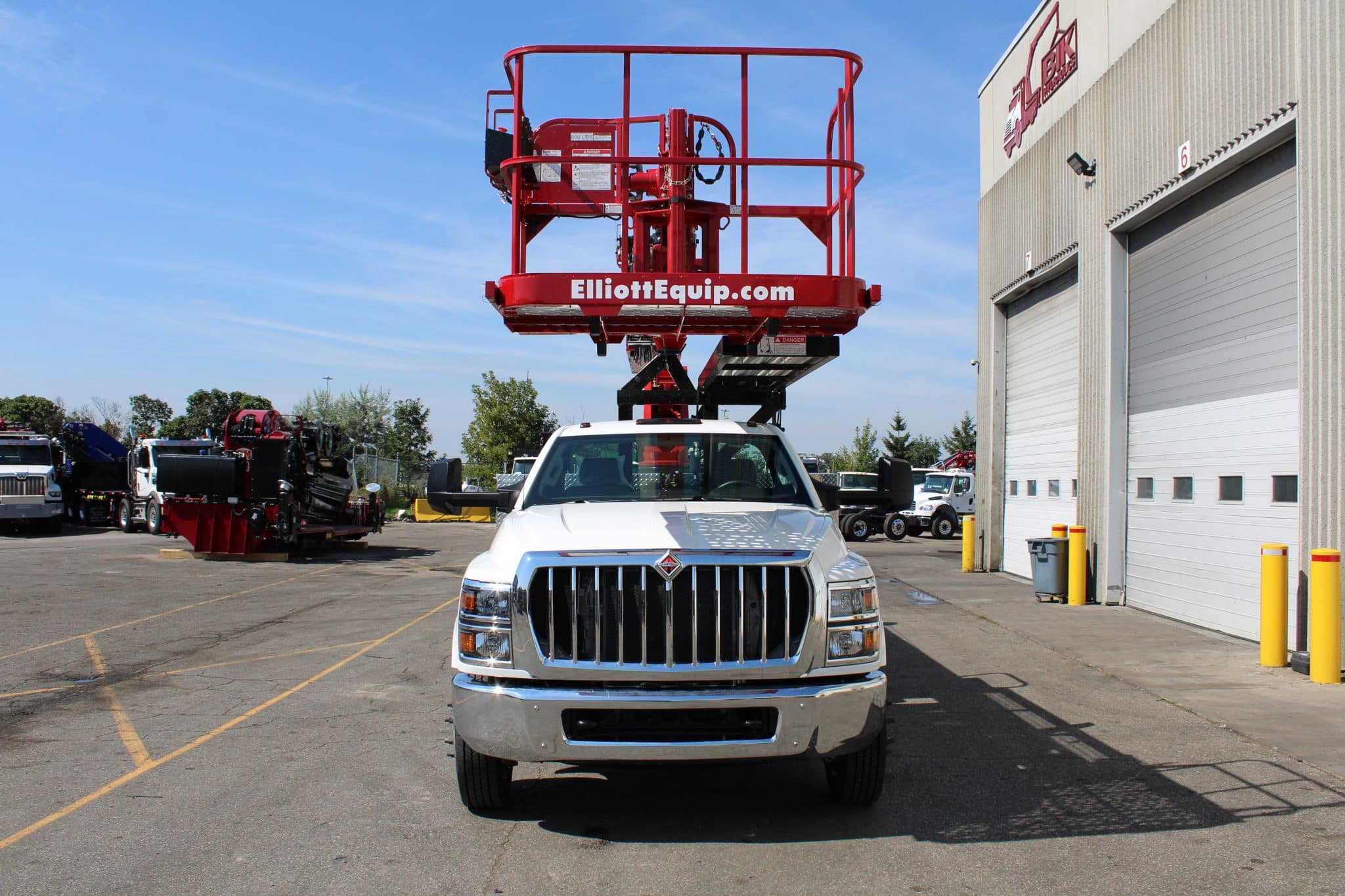

- Work platform is a EZR hydraulically self-levelling and rotating, 30” x 54” with 40” high rails work platform, with safety attachment loops.
- Remote start & stop at upper and lower controls.

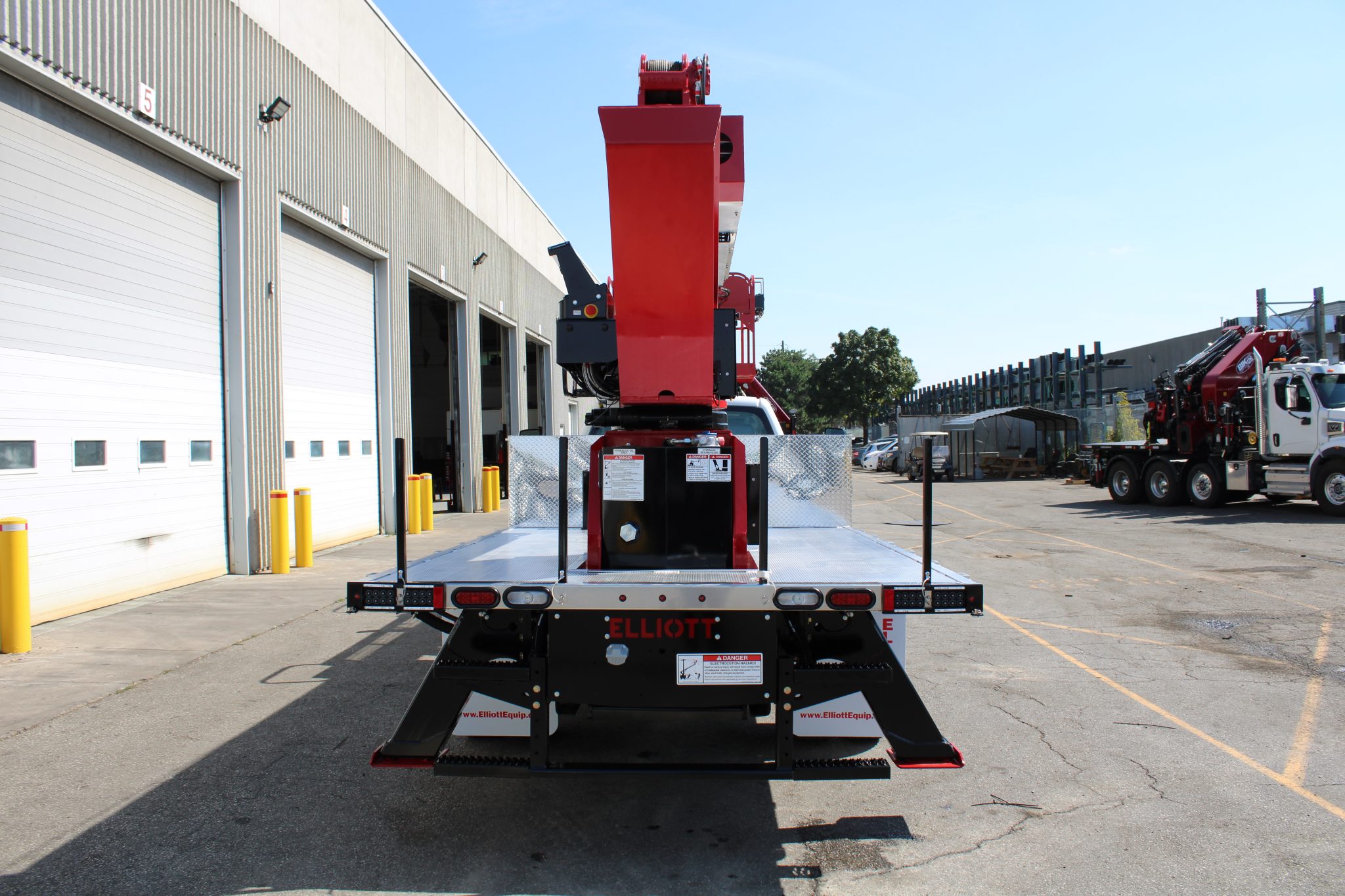

- Front outriggers straight down rear A-Frame type hydraulic stabilizers at rear
- Hydraulic powered continuous rotation with no stops with ball bearing slewing bearing and self-locking gear box.
- Load Holding Valves on each cylinder for Safety and Security of Operator and Load.
Included Options Are:

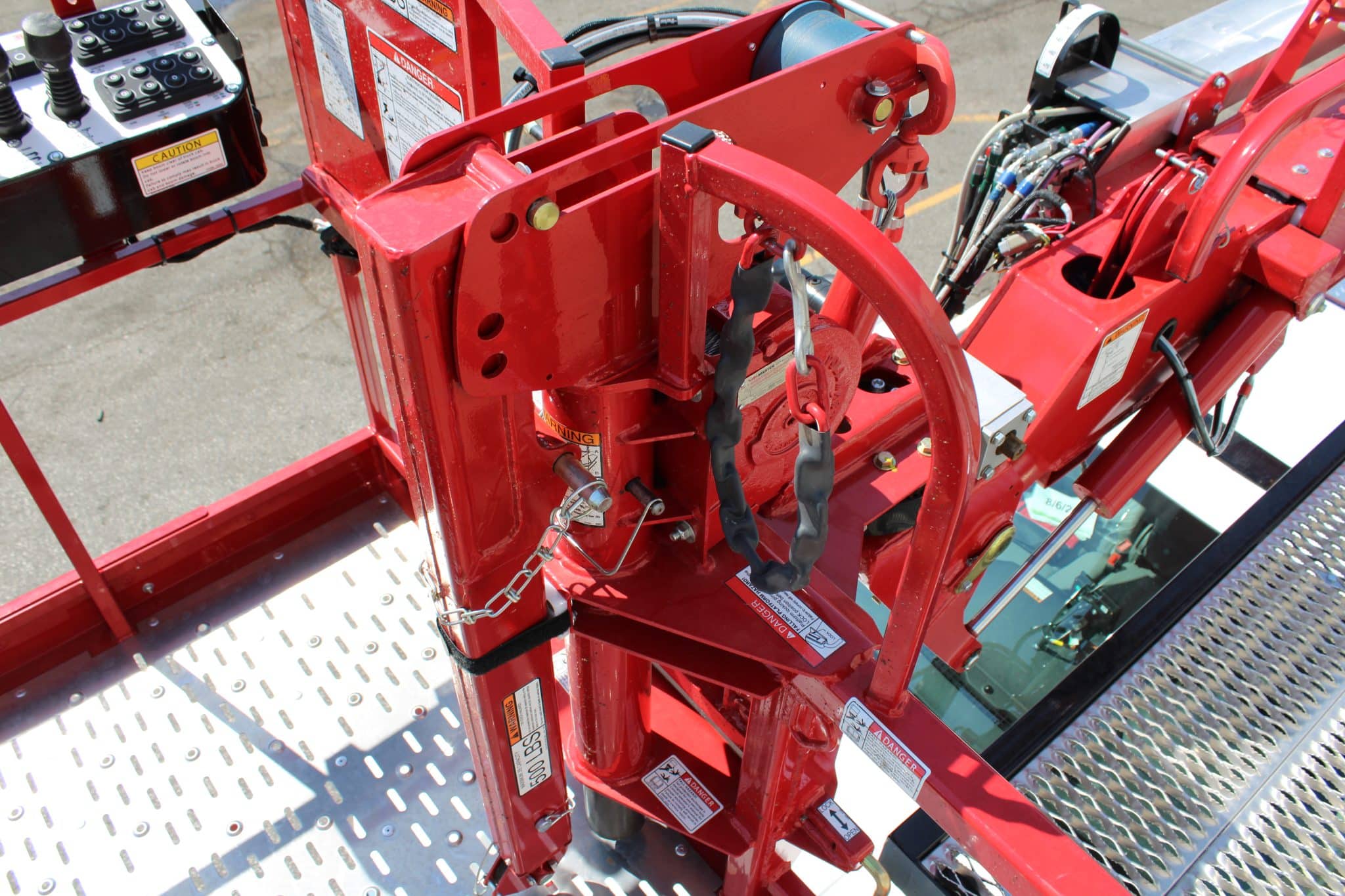

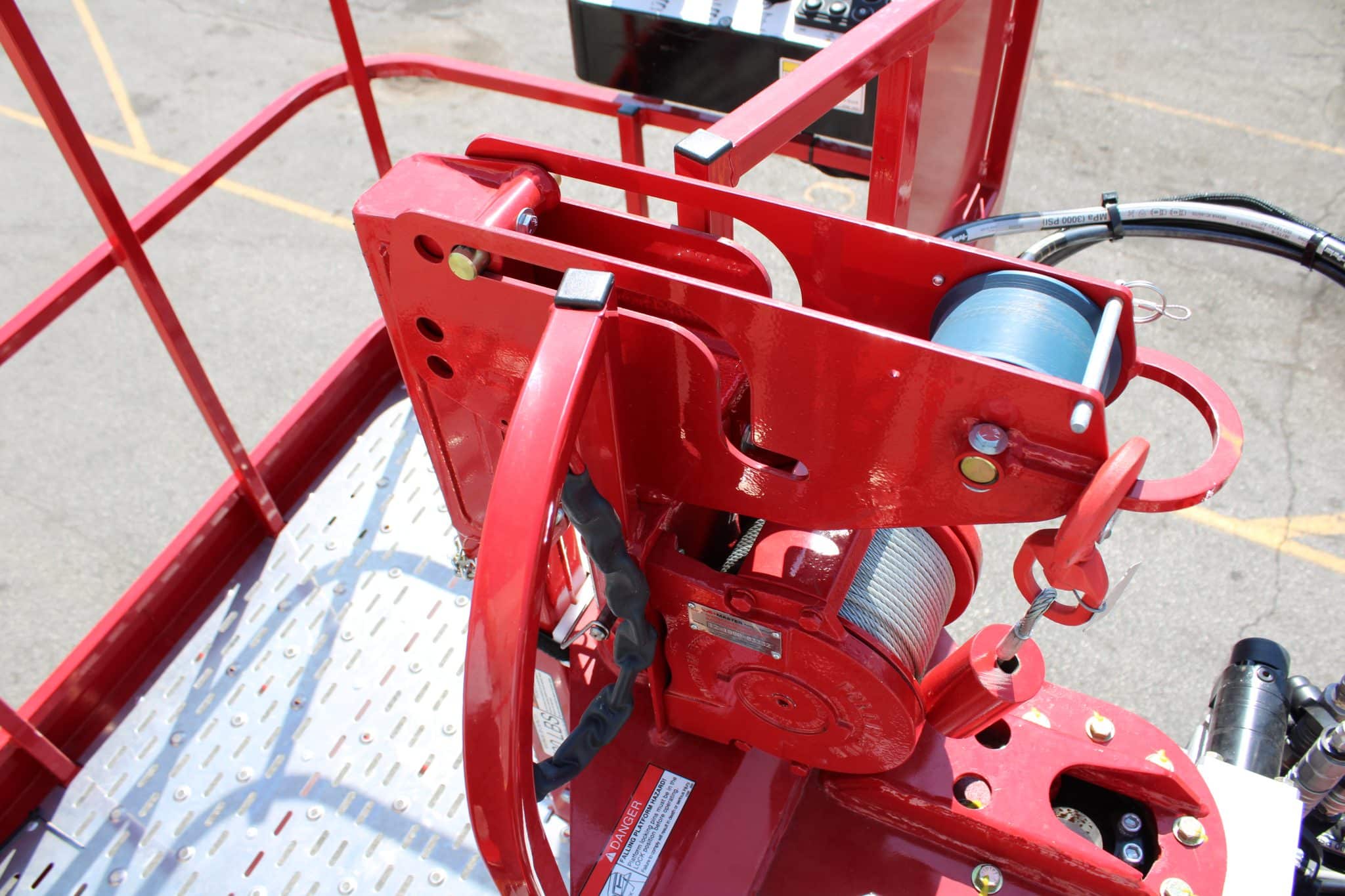

- 500lb cap jib winch in basket – Deck mounted cross box 9’ wide at front

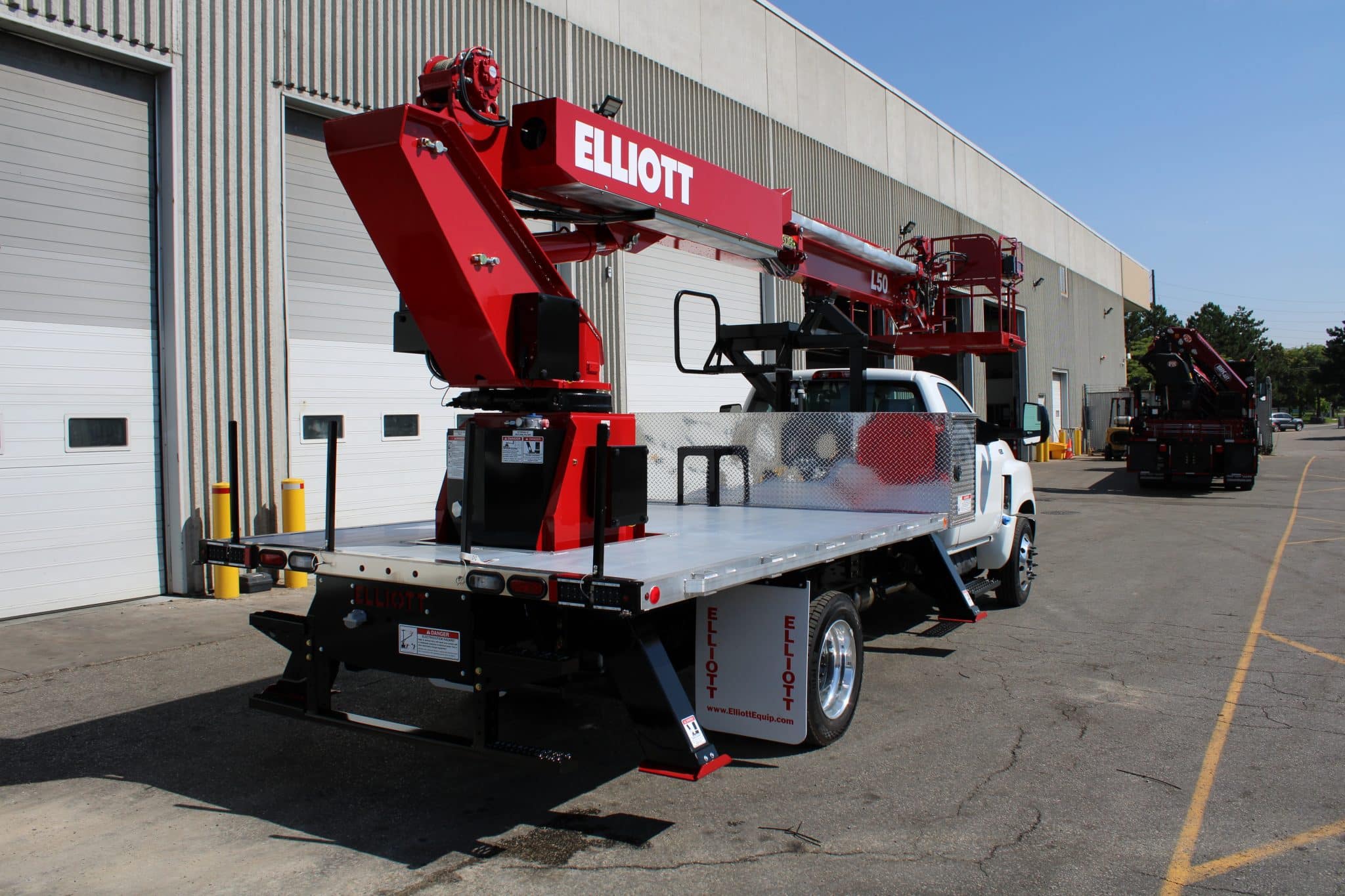

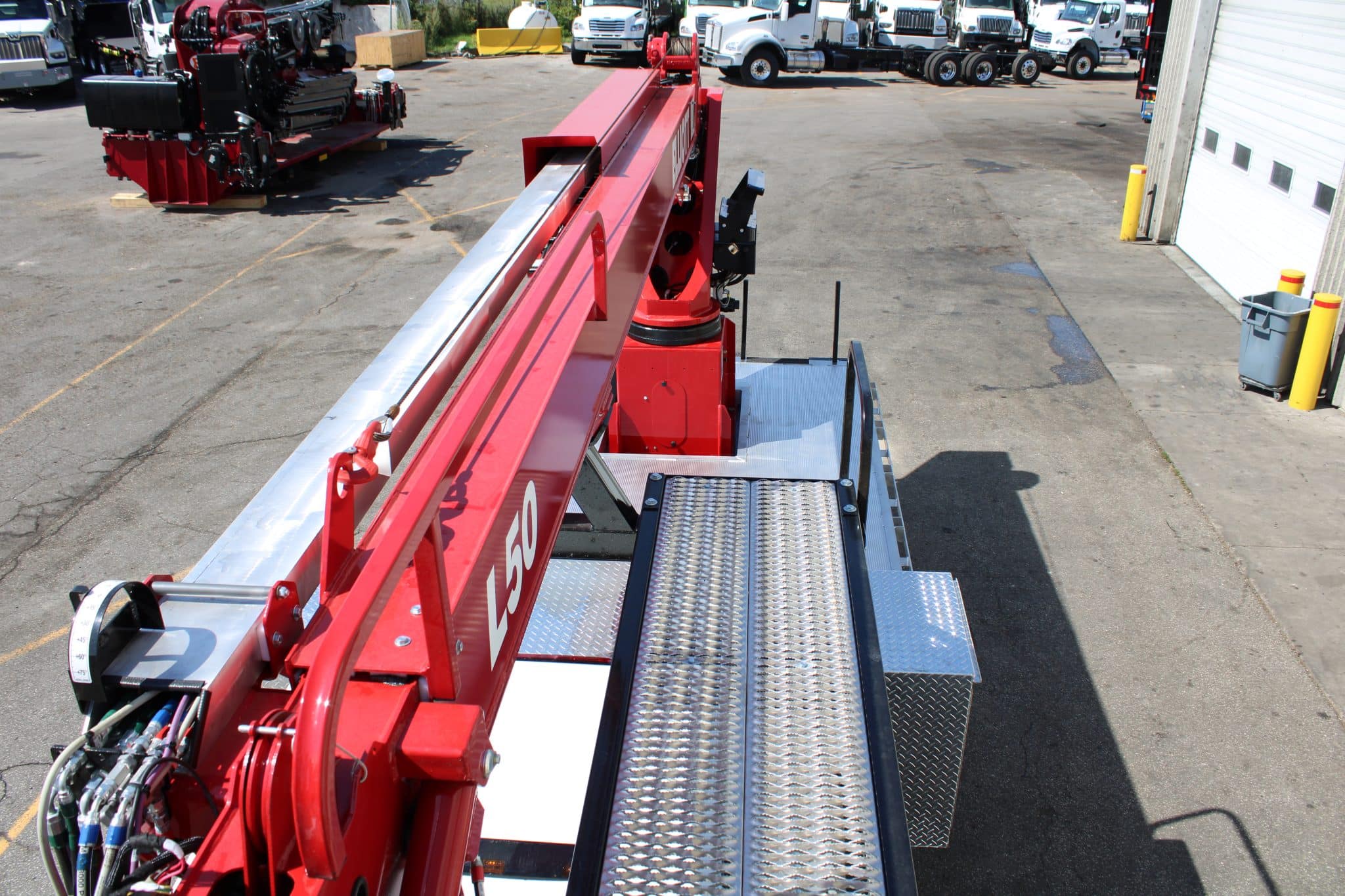

- 13’ low profile deck Aluminium deck – 2,000lb main boom winch
- New Auto stow – New Self Leveling Stabilizing System
Truck Details
New – 2024 International 515 4×2 (made by Chevrolet):
- 350 HP 6.6L Duramax Diesel Engine (700 ft/lb)
- 189″ WB, 108″ CA, 75″ AF
- Allison A2700EVS 6-speed automatic transmission
- 23,500lb GVWR, 8,000lb front axle, 15,500lb rear axle
- P225/70R19.5G A/S front & rear tires, 4.30 axle ratio
- PTO prep, 40 gal rear fuel tank, engine block heater, cruise control, air conditioning, backup camera, keyless entry, 7″ touch screen, AM/FM with Bluetooth, 40/20/40 vinyl split bench seat, power windows & locks.
