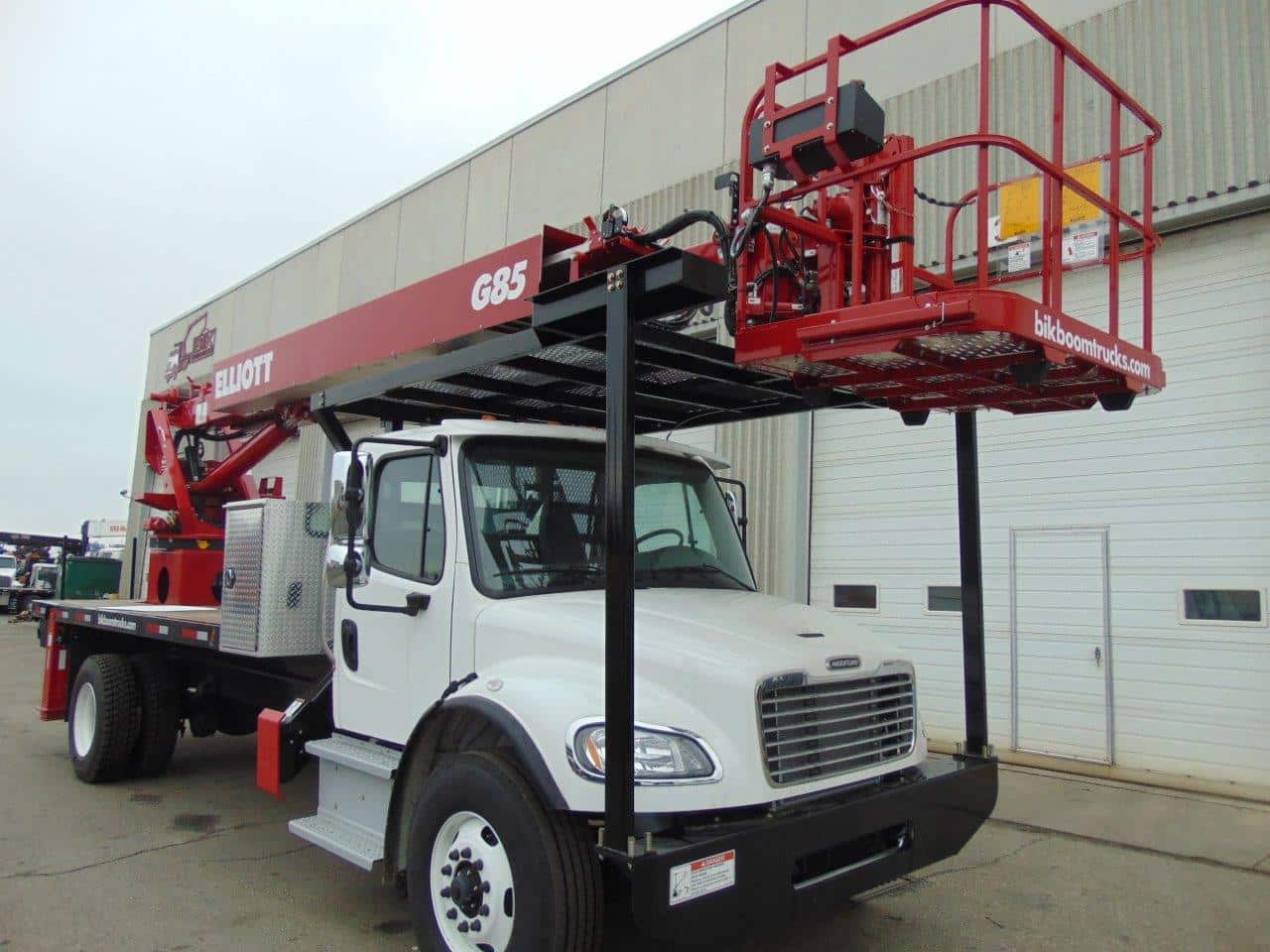

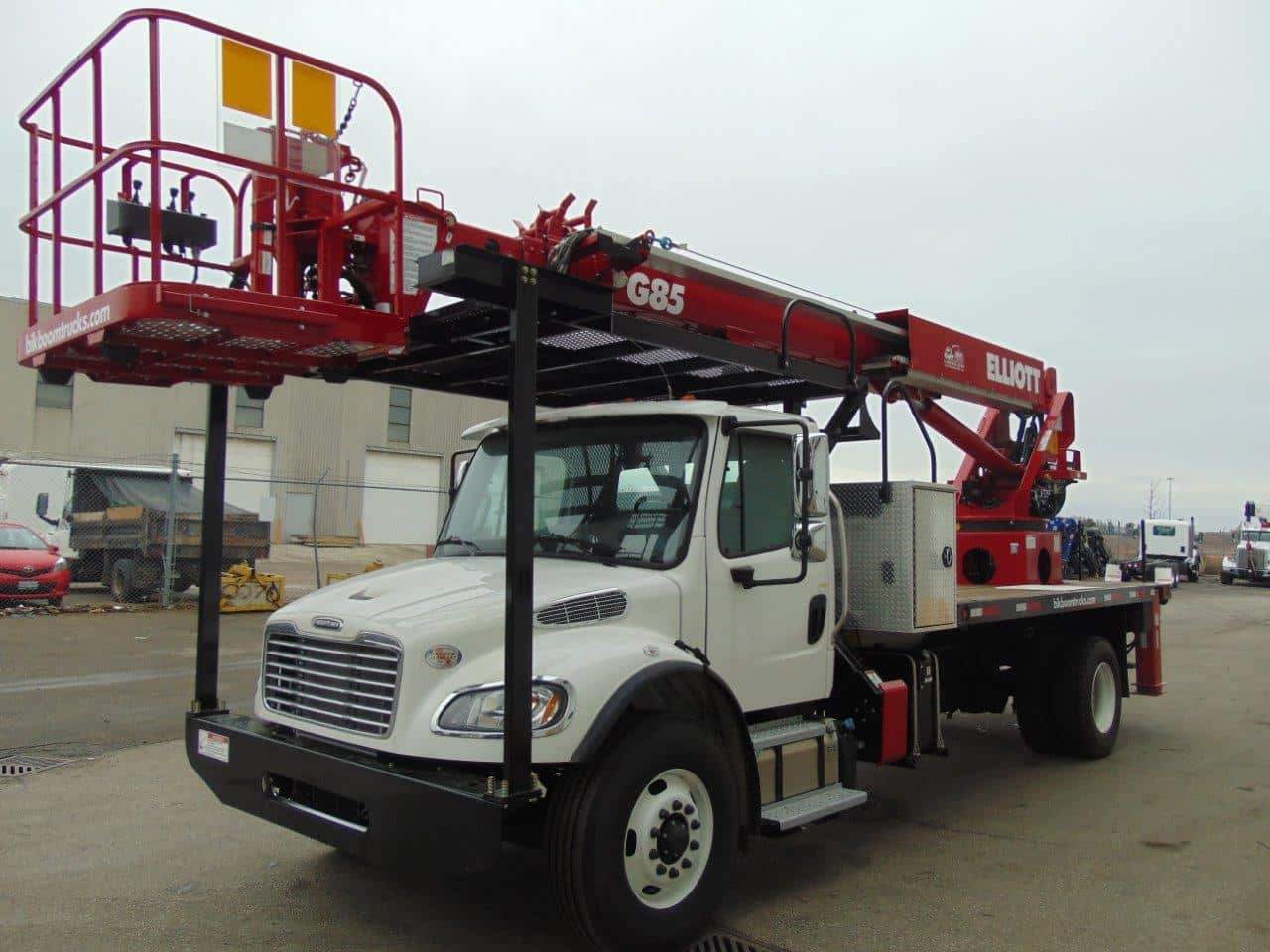

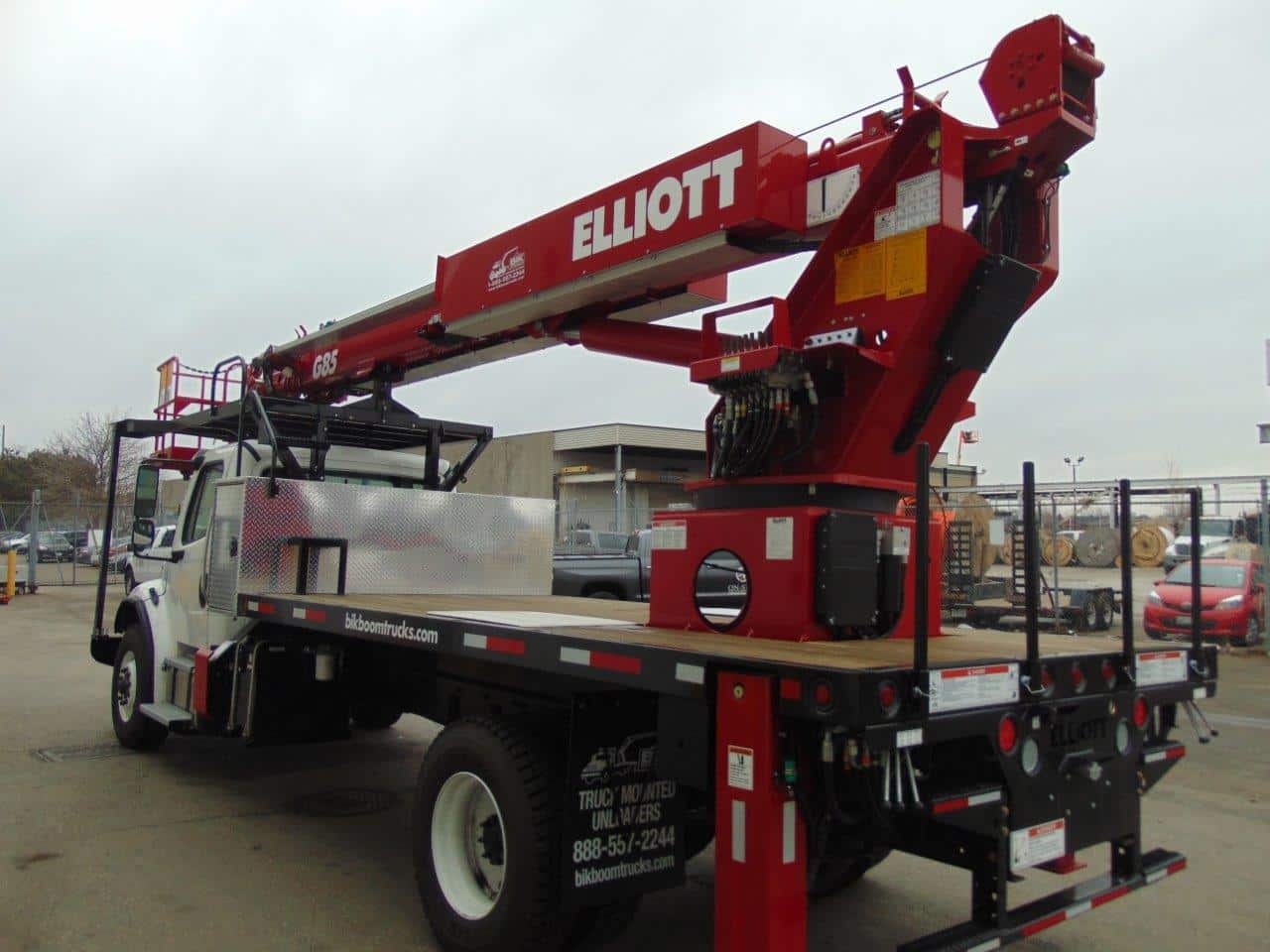

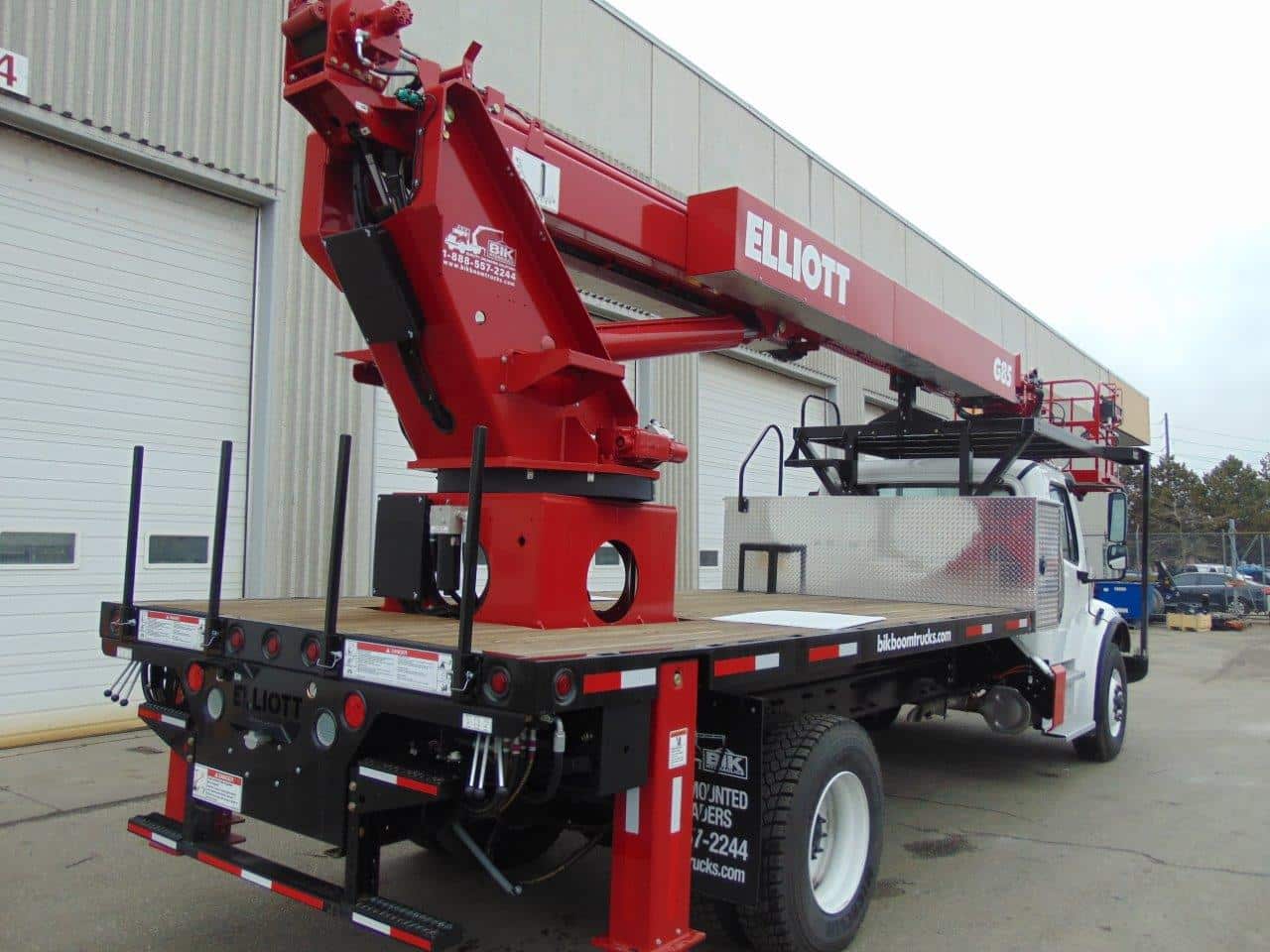

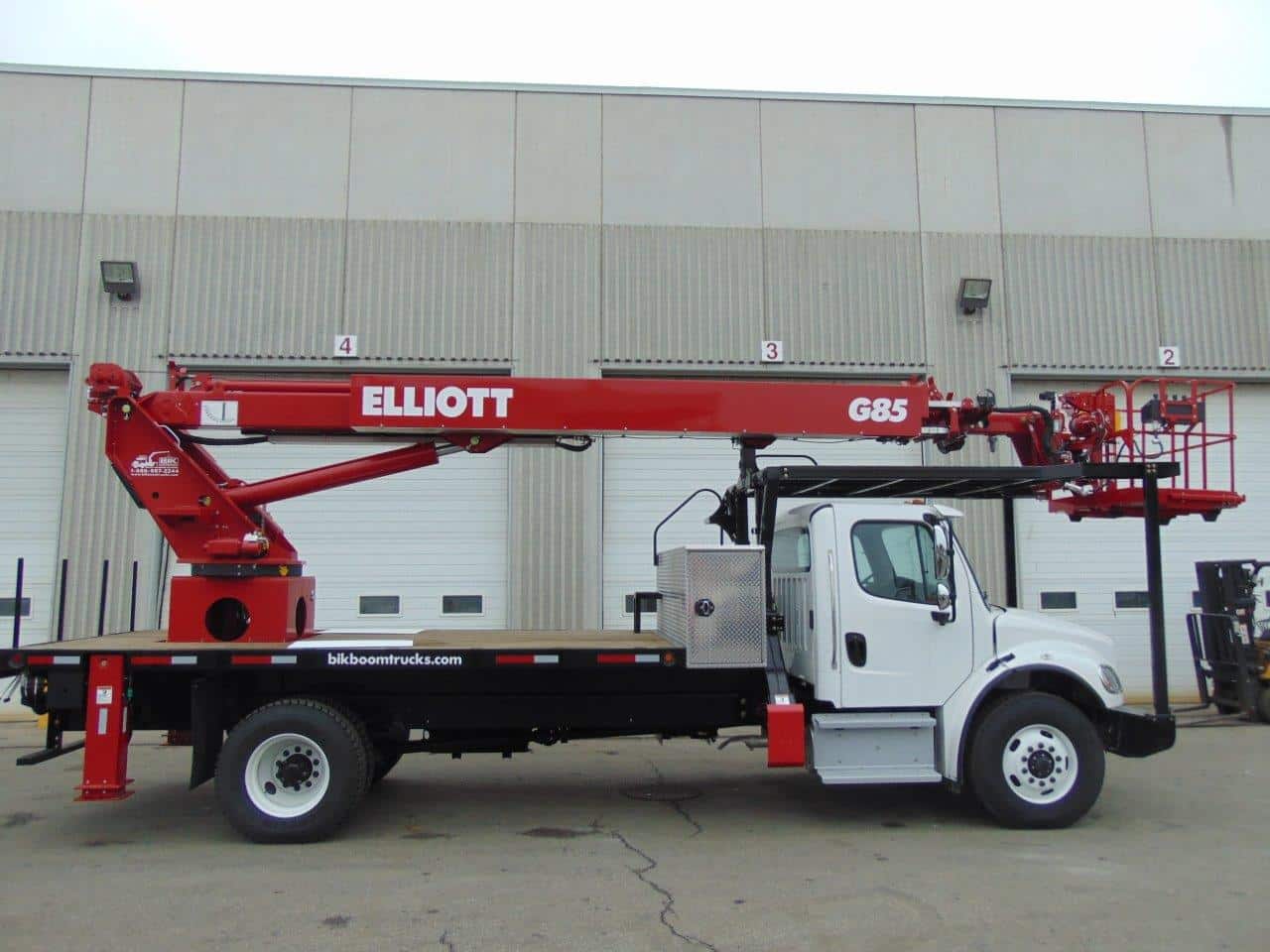

NEW ELLIOTT HiREACH G85 ON NEW FREIGHTLINER M2-106 S/A – 37K GVWR
NEW ELLIOTT HiREACH G85 ON NEW FREIGHTLINER M2-106 S/A – 37K GVWR
While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW Elliott G85 R HiReach: 4-section Hydraulic reach to 85’ vertical reach with 85’ working height, 74’ horizontal reach
- Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
- New Air Operated PTO (Chelsea)
- Hour meter, Hydraulic Pump
- Supply and Return Lines
- Hydraulic tank mounted on truck frame w/ shut-off valve
- Load Tested
Standard Features include:

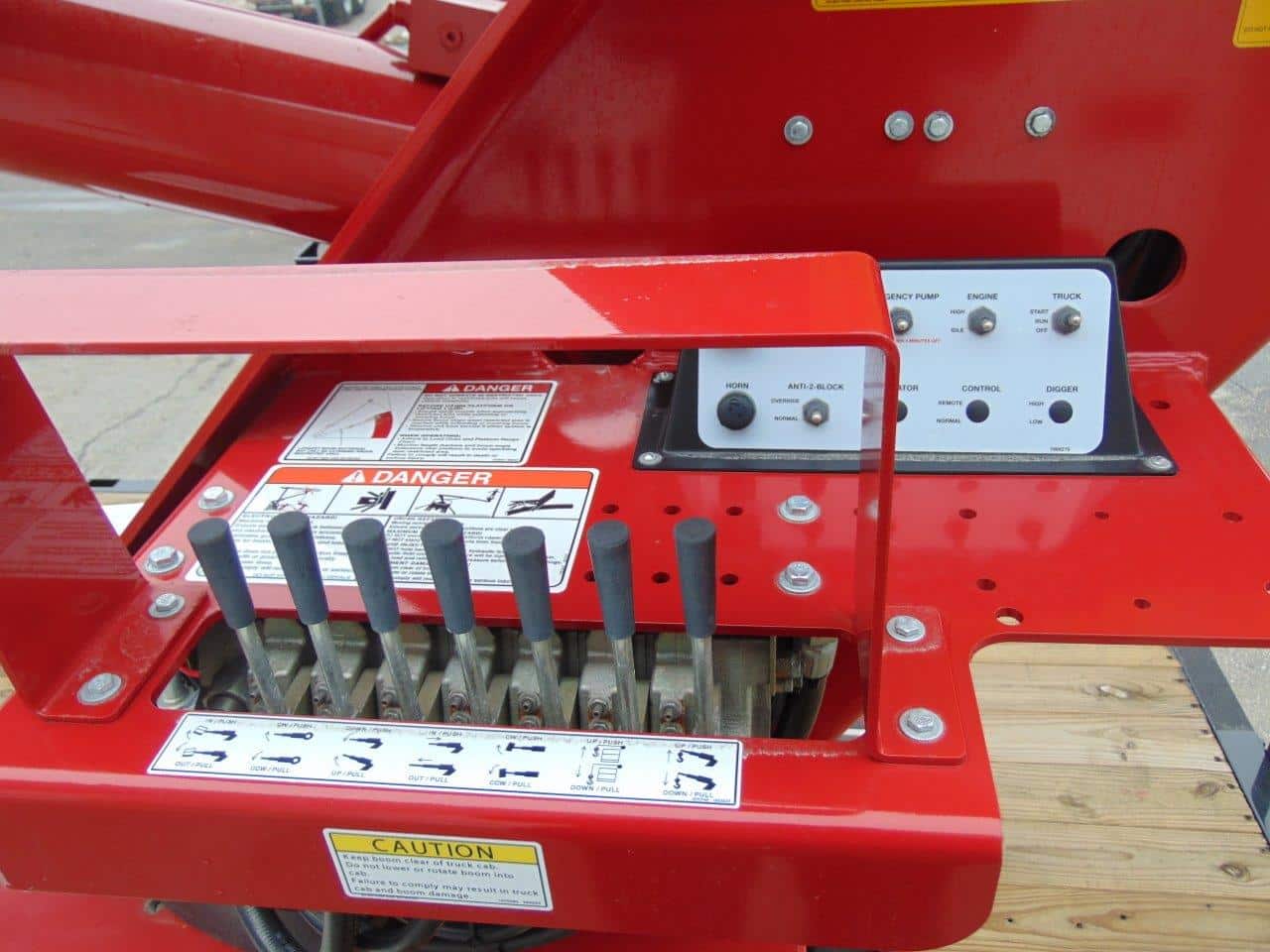

- Electronic Proportional three stick controls on platform. Manual ground controls located on side of turret.
- Remote star/stop from upper and lower controls. Two exposed cable carriers to boom tip.

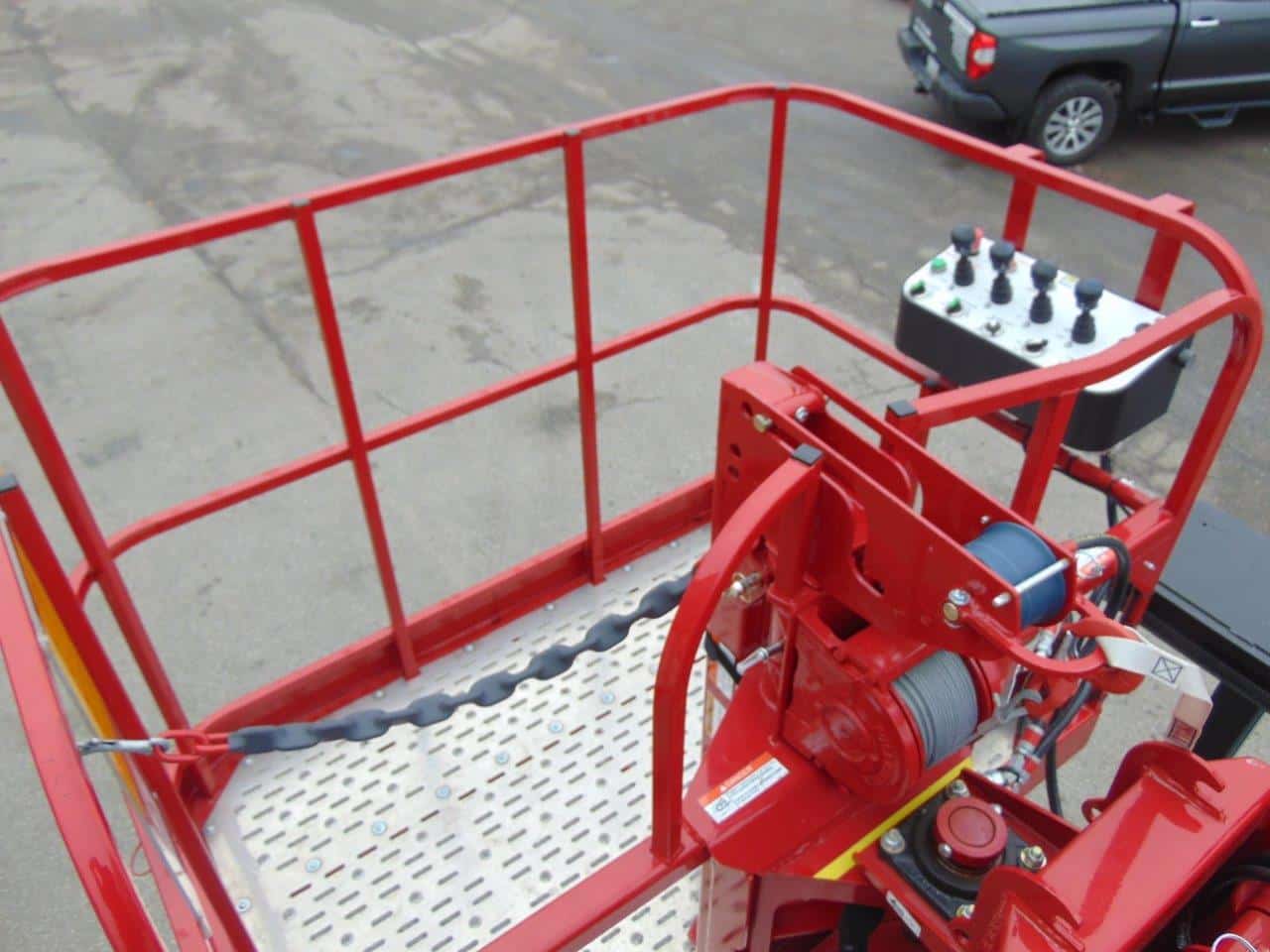

- Hydraulic self levelling and rotating 40” x 60” EZR work platform with remote levelling from platform, platform capacity 500 lbs
- One double acting 7” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
- Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
- Hydraulic OUT and DOWN “MH” stabilizers at base with a 18’ spread, “A” frame secondary stabilizers at front.
Included Options Are:
- 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
- Platform mounted jib with hydraulic winch drum mounted on horizontal arm
- 110 V power supply to work platform, Sign forks on platform (2 pcs)
- 16’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
- 8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck

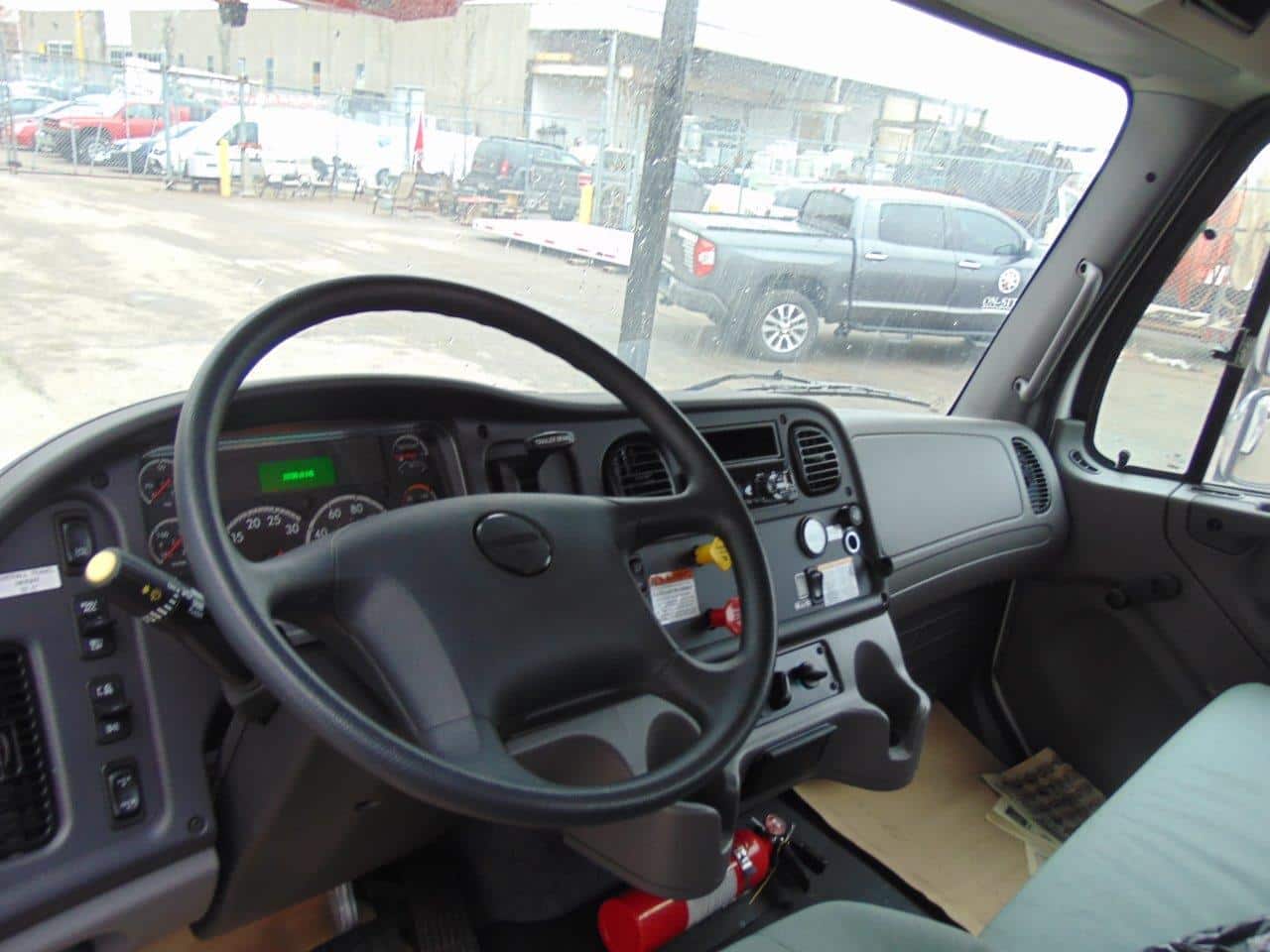

Truck Details
New – Freightliner M2-106 single axle Truck: 37,000 lb GVWR – Air Brakes
- 300 Hp Cummins Diesel Engine
- Allison Automatic Trans.
- Truck cab white in colour
- 14,000 lb front axle
- 23,000 lb rear axle on Spring Susp. with 11R22.5 tires on Polished Alum rims
- Air brakes
- Chrome bumper & grille
- Also Includes: Air. Cond., am/fm/CD stereo & Bluetooth, tilt steering, cruise control, power windows & door locks, Air Ride Drivers Seat, 2-man passenger bench seat, etc..
Optional Equipment:
- Aluminum Under Deck Storage Boxes
- Hydraulic oil tank heater
- Drawplate with pintle hook
