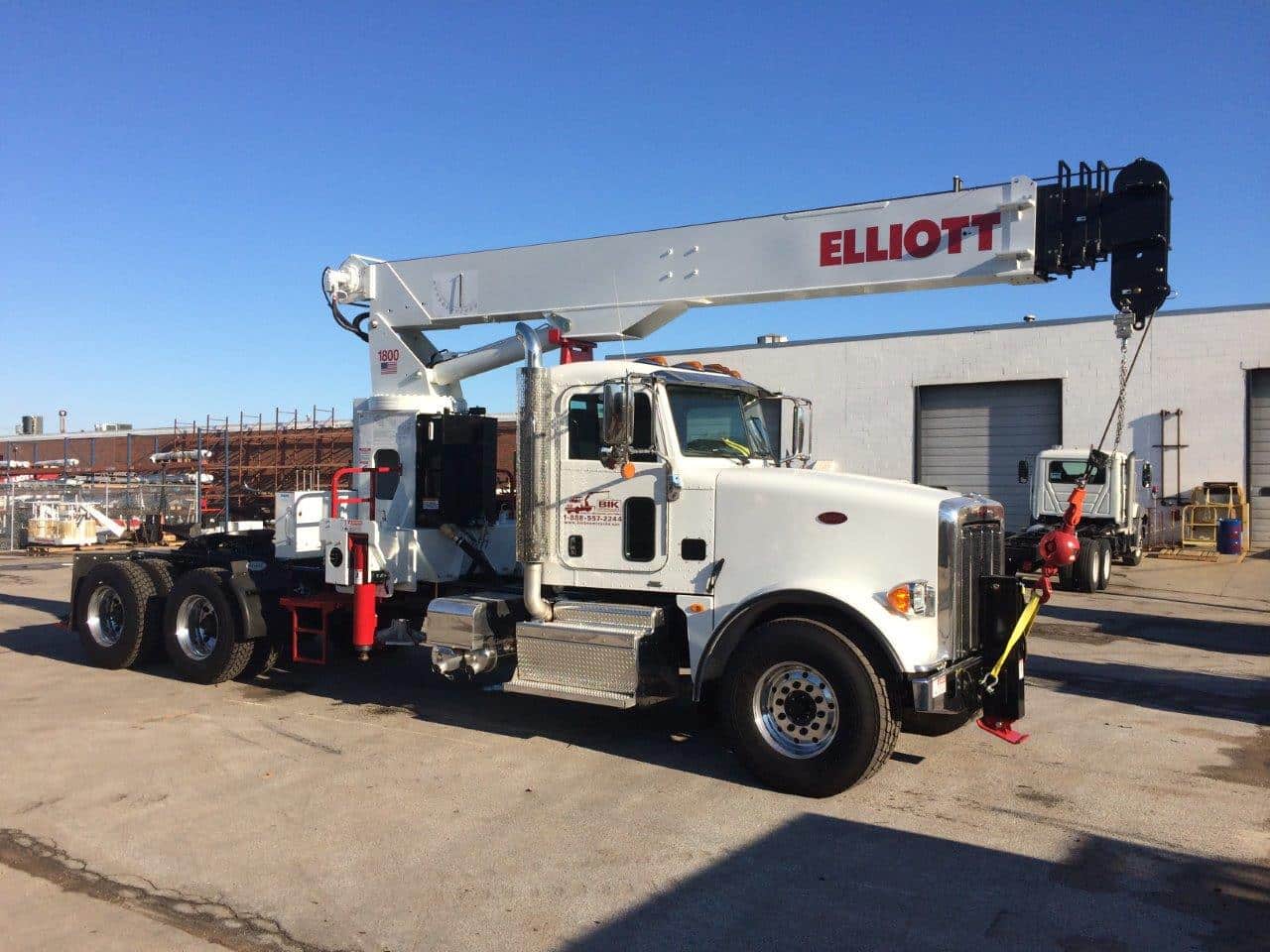

***SOLD*** NEW ELLIOTT 1881-TM ON NEW 2017 PETERBILT 367 TRACTOR

Boom Details

• NEW – REDESIGNED ELLIOTT MODEL 1881 TM – 18-TON TRACTOR MOUNT CRANE
• 21 – 81 ft. 5-Section Proportional Boom – 91 ft. Sheave Height
• Boom Stows Forward of Truck Chassis – Mounted Forward of the Rear Tandems
• ALL NEW – Hydraulic Out & Down Stabilizers at Boom Base, 10′ A-Frame Auxiliary Stabilizers Behind Rear Axle
• Dual Operator Console Stations:  w/Engine Start/Stop, Load, Range, Hoist and Jib Charts, Electronic Foot Throttle
• 1 Set Operator’s and Service Manuals
• 275′ – 9/16″  6 X 37 EIPS Wire Rope with 3-Sheave Boom Head, Headache Ball w/Swivel Hook
• 9,600 lb. Single Line Pull with 12,700 lb. Bare Drum Pull
• 3-Section Gear Pump, 70-Gallon Tank w/Sight and Temp Gauge, 10 Micron Return Line Filter
• Anti-Two Block Device with Load Moment Limiter
• Painted Elliott Imron White, Red, and Black w/Red Decals
• Including:  372 Degrees Non-Continuous Rotation – 180 Degrees Area of Operation, Bubble Level Indicators, Boom Length and Angle Indicators, 2-Speed Hoist, Outrigger and Stabilizer Audio Motion Alarm, Flared Outrigger and Stabilizer Pads, Audible Awareness Warning Horn, Single Gate Valves on Suction Line and Tanks, 3-Section Gear Pump, Air Shift P.T.O. Crane Frame with Sub-Spacer Mounted Forward of Rear Tandem.
