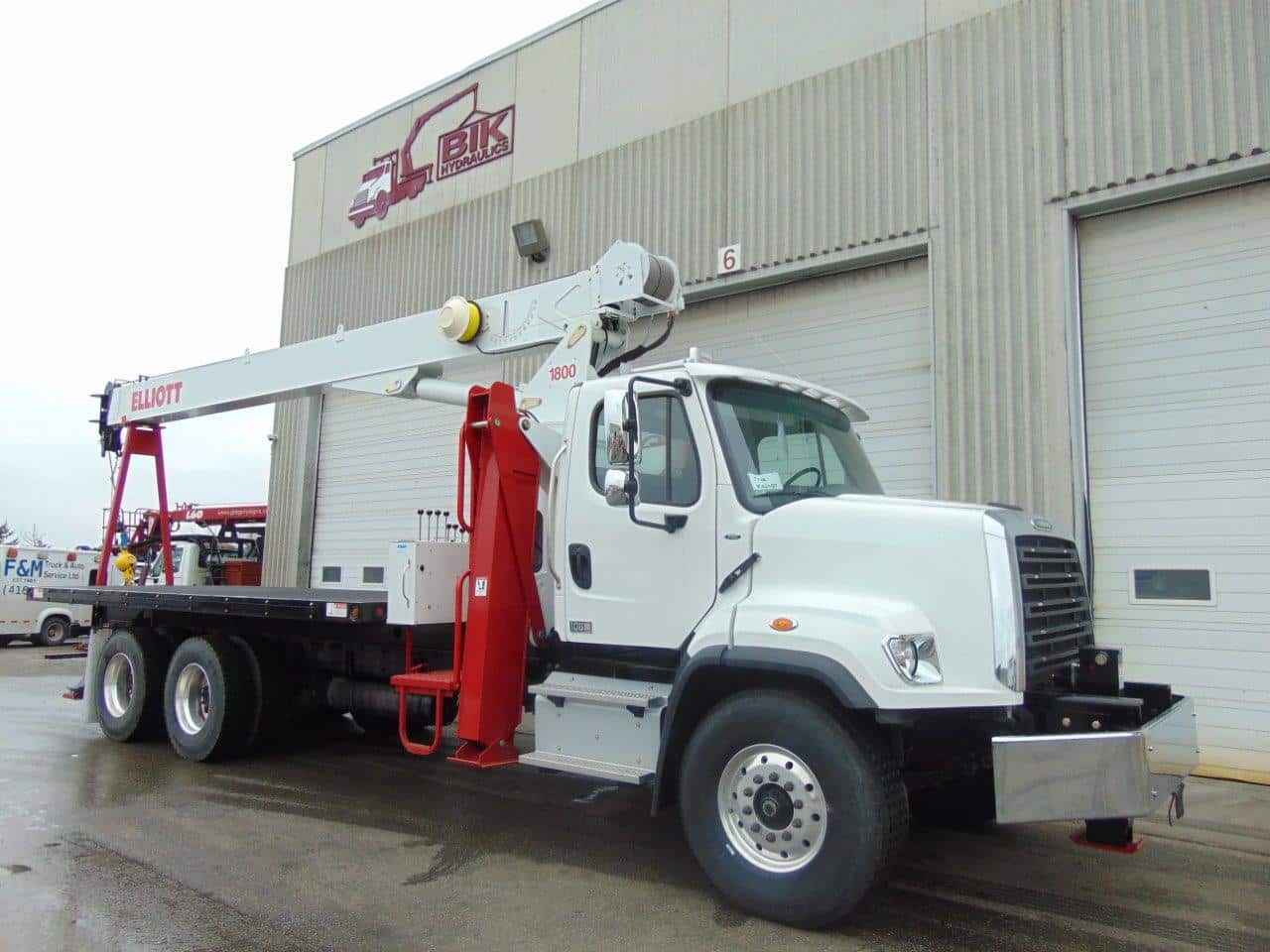

NEW ELLIOTT 1870F ON NEW FREIGHTLINER 108SD & 20’ DECK
NEW ELLIOTT 1870F ON NEW FREIGHTLINER 108SD & 20’ DECK – 380 HP – ALLISON AUTO
While remaining versatile, Elliott BoomTrucks are qualified for even the most specific applications, from setting trusses, lifting coil tubing, working dockside or raising materials to height. High-capacity, single-line pull winches let you lift more weight on fewer lines of rope and a two-speed winch improves lift control and reduces cycle time. This is engineering and design at its finest.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details
NEW – ELLIOTT MODEL 1870F: 18-Ton Front Mount Crane
- 27 – 70 Ft. 3-Section High Strength Proportional Boom
- PTO, Electronic Throttle Interface, 3-Section Gear Pump, 70-Gallon Hydraulic Fluid Reservoir
- 20’ 10” A-Frame Main Outriggers – 10’ 4” A-Frame Auxiliary Stabilizers
- Dual Operator Console Stations: w/ Engine Start/Stop, Load, Range, Electronic Foot Throttle
- 12,700 lb Bare Drum Pull Winch w/ 275’ 9/16” 6 X 37 IWRC EIPS Wire Rope – 9,600 lb Allowable Line Pull Rated
- 2-Sheave Boom Head, Std. Swivel Hook & Downhaul Ball
- Anti-Two Block, Load Moment Limiter w/Display and Hydraulic Function Lockout for Main Boom & Jib – Hard-Wired Internally
- 372 Degree Non-Continuous Rotation with Safety Stops, 180 Degree Area of Operation, Bubble Level Indicators, Boom Length and Angle Indicators
- 2-Speed Hoist, Outrigger and Stabilizer Audio Motion Alarm, Flared Outrigger and Stabilizer Pads, Audible Awareness Warning Horn, Sight Level and Temperature Gauge, Single Gate Valves on Suction
Deck Details
NEW – 20′ FLAT DECK
- 20′ in Deck Length
- Hardwood Deck Surface
- (6) – Sliding Tie-Down Winch Straps
- Winch Bar & Holder
- DOT Stickers
- Side Reflector Lights Per CMVSS Standards
- (1) – 36″ Aluminum Storage Box
- Removable Front Headboard on Deck
- Rub Rails on Side of Deck
Truck Details
NEW – FREIGHTLINER 108SD T/A TRUCK
- Cummins 380 HP Engine
- Allison Automatic Transmission
- 20,000 lbs Front Axle
- 40,000 lbs Rear Axle
- 60,000 lbs GVWR
- Steel White Rims (Front & Back)
- Tuftrac Suspension
- 250″ WB
- 60″ Spread at Tandems
- Included Truck Options:
- Power Windows & Locks, AM/FM Stereo, Black Bumper, Black Front Grill, 2 Front Bumper Tow Hooks, Block Heater, Rear Differential Locks, Single 80-Gallon Fuel Tank
