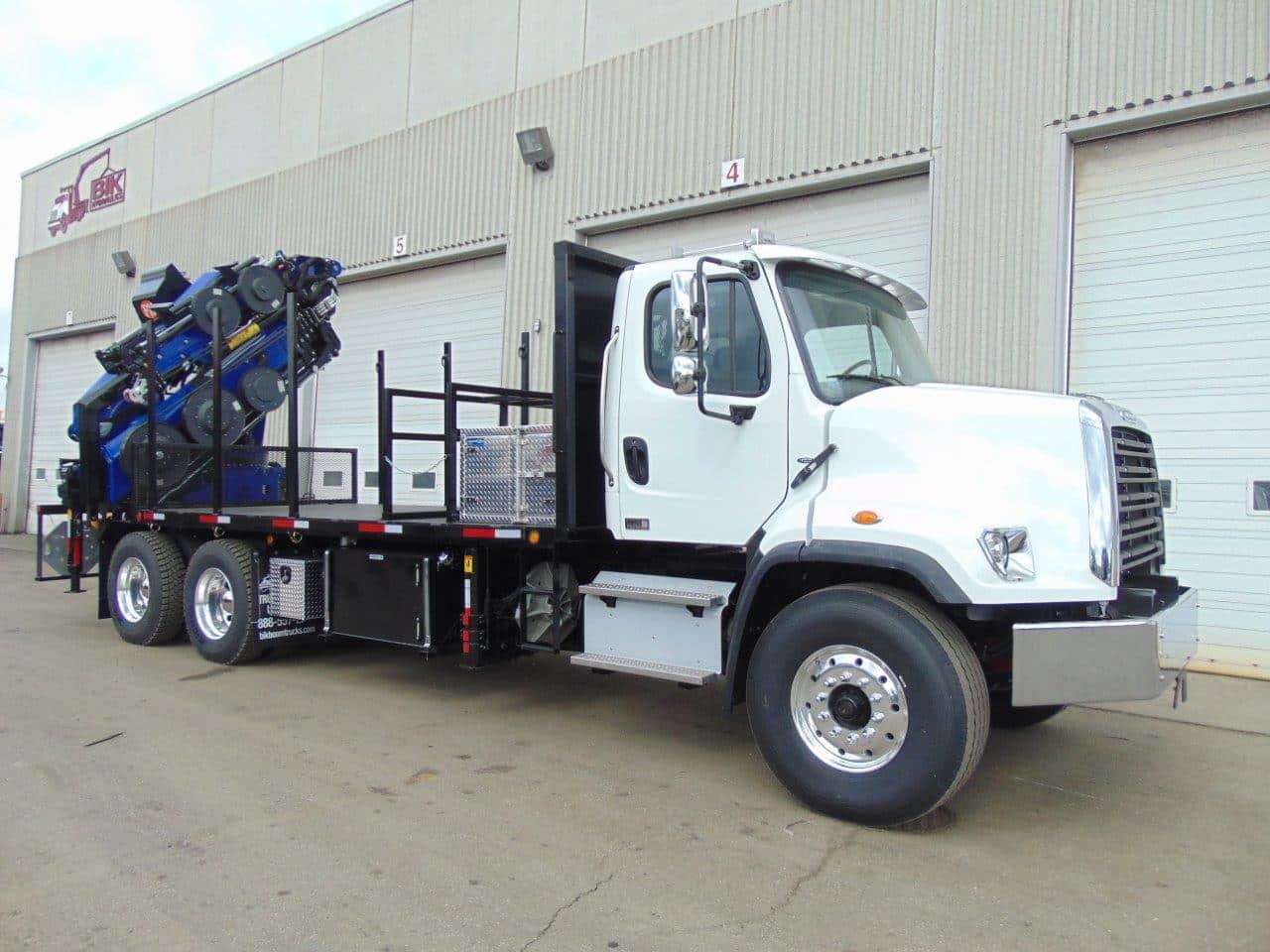

*SOLD* NEW BIK TREE-CARE SERIES TC-98 - NEW 2020 PETE 52- COE – 380 hp - AUTO - NEW 17′ DECK & SG-220 SAW

SOLD NEW BIK TREE-CARE SERIES TC-98 – NEW 2020 PETE 52- COE – 380 hp – AUTO – NEW 17′ DECK & SG-220 SAW

The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

NEW BIK TREE-CARE SERIES TC-98 BOOM – Folding Hydraulic Knuckle Boom w/ 98’ Vertical Reach (86’ Horizontal Reach) Jib Capacities (Horizontal): 1,900 lbs @ 63’, 1,520 lbs @ 75’ 4”, 1,300 lbs @ 86’ Main Boom Cap (Horizontal): 21,000 lbs @ 14’, 10,900 lbs @ 25’ 8”, 6,800 lbs @ 38’ 8”, 4,830 lbs @ 53’ 6”
PM “Power-Link” Connecting Rods at First Boom and Knuckle, 400 Degrees Pedestal Rotation – Hydraulic Oil Cooler at Boom Base
15 Degree Negative Angle on Main Knuckle, 20 Degree Negative Angle on Jib
Simplified Hydraulics – PM PowerTronics Overload Protection and Monitoring System – Offers Simplicity, Reliability & Low Maintenance
Hydraulic Extra Wide Main Outriggers at Pedestal – 25’ 7” Span, – Front Auxiliary Stabilizers – 21’ Span, Hyd Out & Down Type, Installed
Tandem Pump / Split Valve Pressure System for Optimum Speed for Simultaneous Multi Function Use

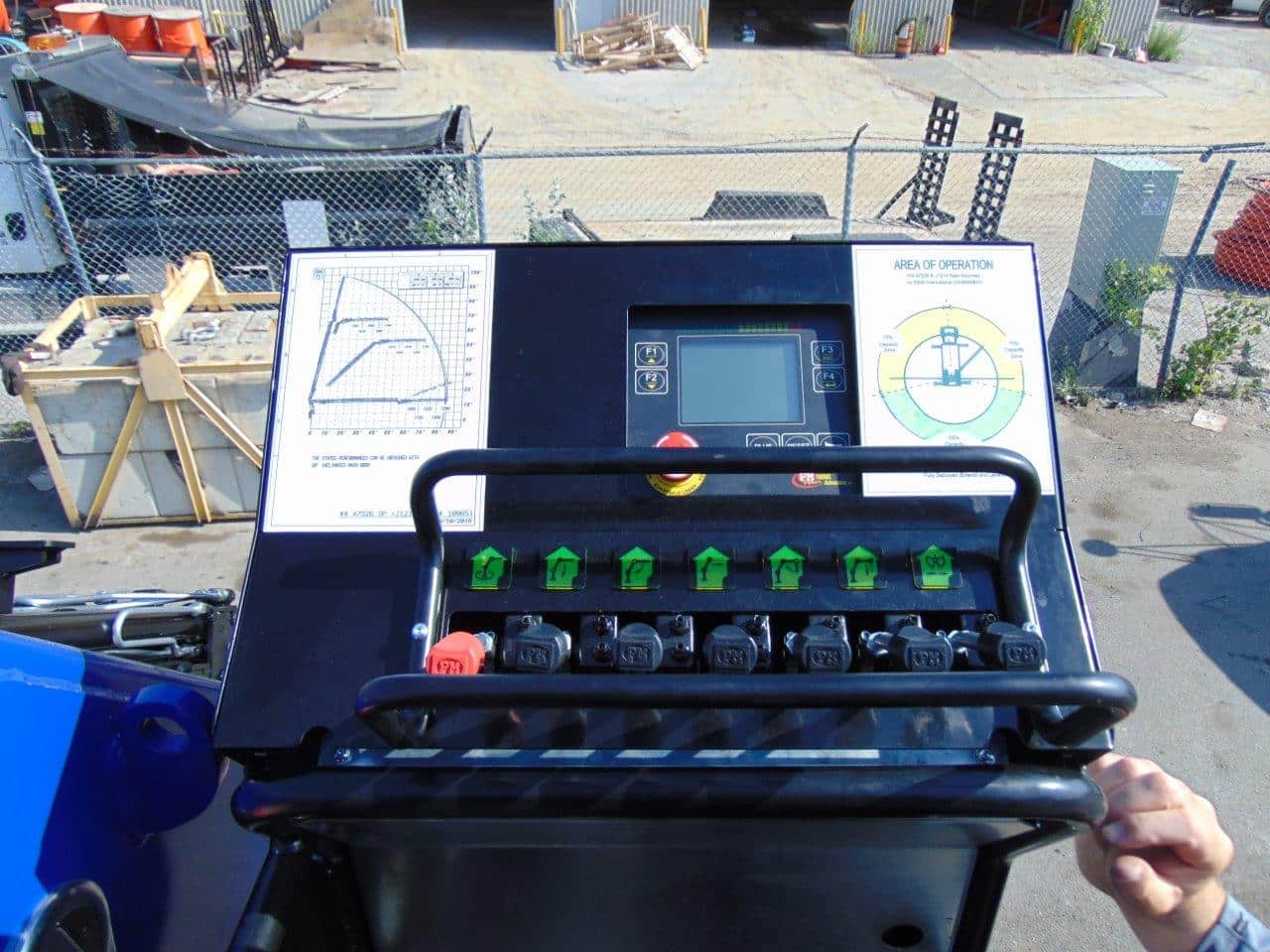

DANFOSS Proportional Control Valve at Top Seat & SCANRECO Proportional Radio Remote Control with Back up Cord
Two Extra Hyd Functions Plumbed to End of Jib for Possible Hyd Grapple or Saw Attachment
Crane Painted Blue at Factory – Certified Painting Quality System – Load Chart on Boom in FT. & LBS.
Warranty: 1-Yr. Parts & Labor on Entire Boom, 3-Yr. on Structural Components
Engineer Stability Load Tested and Certified
Load Tested & Installed at End of Frame, with Integral Sub-Frame to Meet or Exceed All CMVSS Standards

Deck Details

NEW – 17’ x 102” STEEL FLAT DECK
Steel Headboard w/ Side Wrap Winches, Steel Checker Plate Floor, Winch Bar and Holder
Integral 6” Sub-Frame and Extension at Rear as Torque Box for Boom with All Proper Engineered Sheer Plating, X-Braces & Support
Deck Painted Black, 2-Deck Access Ladders at Headboard, 2-Ladders at Rear, Reflectors and Mud Flaps
6 – Sliding Winches and Track Under Deck
Also Included:
(4) pcs – 2” PVC Stabilizer Pads – With Holders
(1) x 36” Alum Storage Box Installed

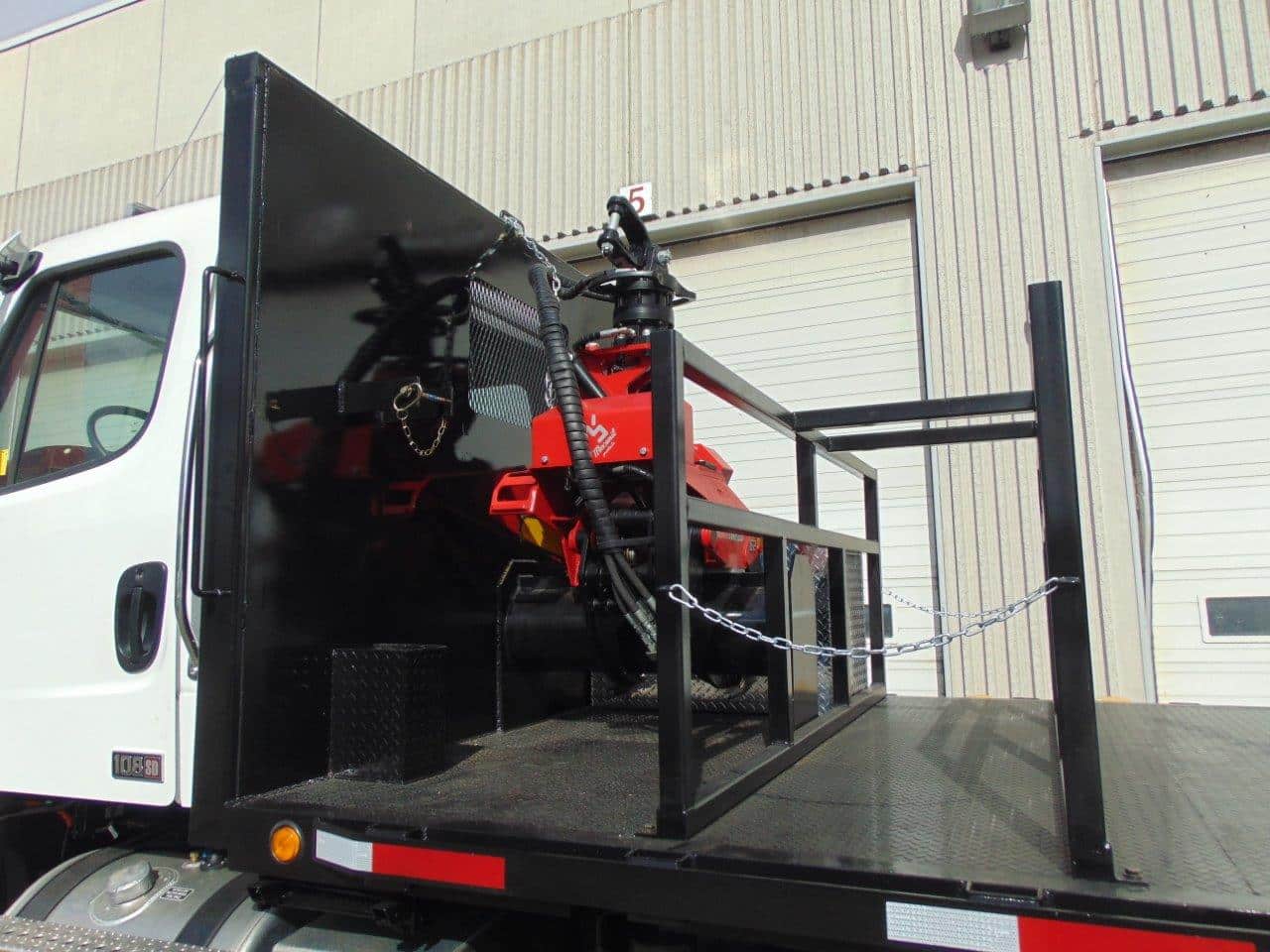

Mecanil SG-220 Grapple Saw with Custom Re-Enforced Manual Pull Out Extension at End of Jib

Truck Details

NEW – 2020 FREIGHTLINER 108SD 3-AXLE DIESEL TRUCK: 60,000 lb GVWR
Cummins 380 hp – 1,250 ft/lb Torque, Allison RDS-3000 Automatic Trans
20,000 lb Fronts with 425/65R22.5 Flotation Tires on Aluminum Rims
40,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on Aluminum Outer Rims
Full Double Frame Chassis, 54” Spread at Tandems
13,000 lb Tag Axle Mounted Behind Rears

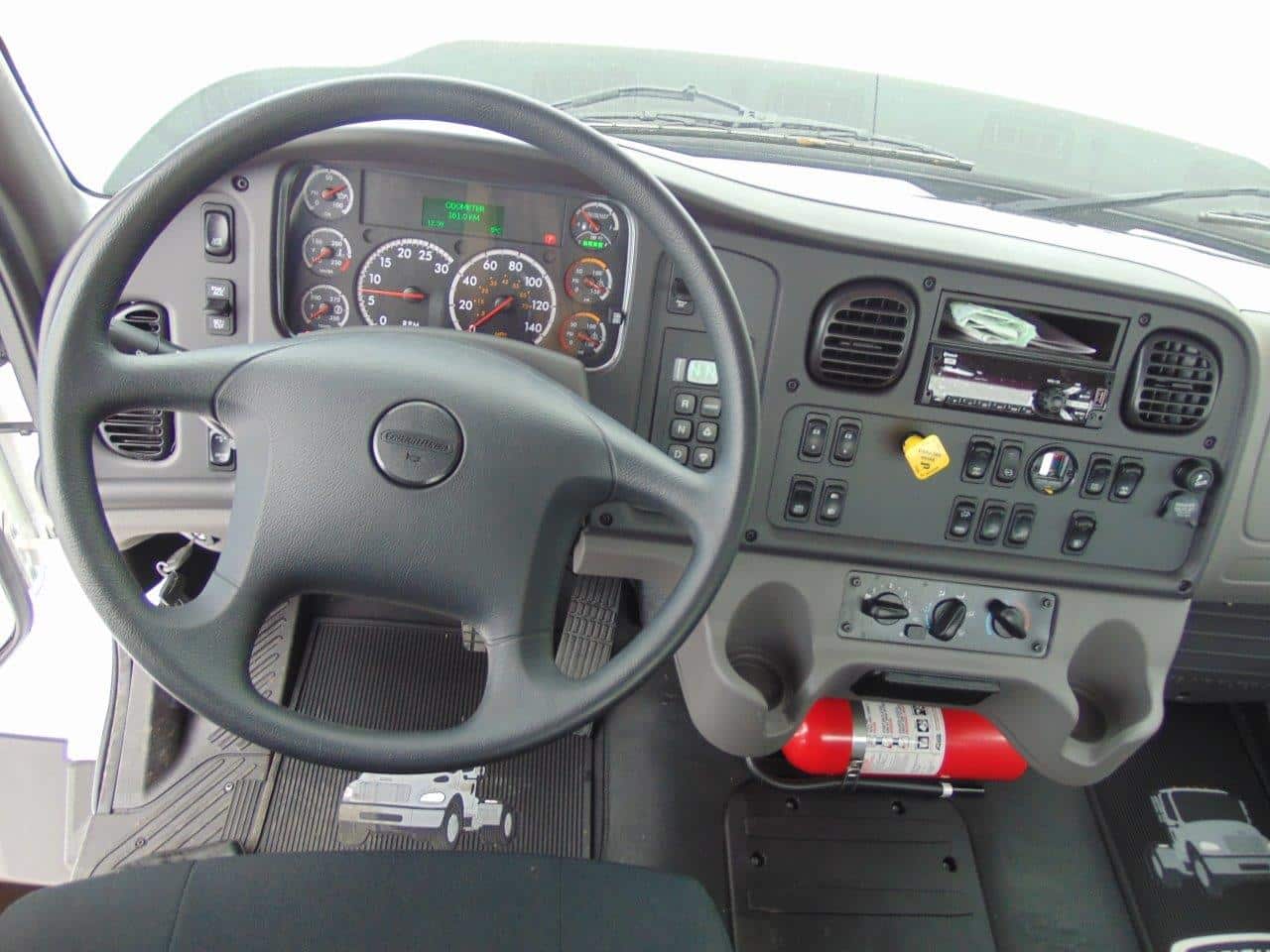

Truck Loaded with Options Including: Air Cond., AM/FM Stereo, 2-Man Pass Seat, Tilt/Telescopic Steering Column, Power Windows/Locks, Chrome Bumper/Grill, Painted Ext Sun Visor, Diff Locks with Rear Wheel Lock-ups, 70 Gal Aluminum Fuel Tank, Trailer Air Tow Package Plumbed to Rear, etc…
Other Options Available:
Mecanil SG-280 Larger Mode Grapple Saw (Instead of SG-220)
(1) Aluminum Single Man Self-Leveling Basket
PM 48.5 Model (Instead of the 47.5) – with Planetary Gear – Continuous 360 Degree Boom Rotation
Front Mount Boom (Instead of Rear) with Front Bumper Stab for 360 Degree Stability
