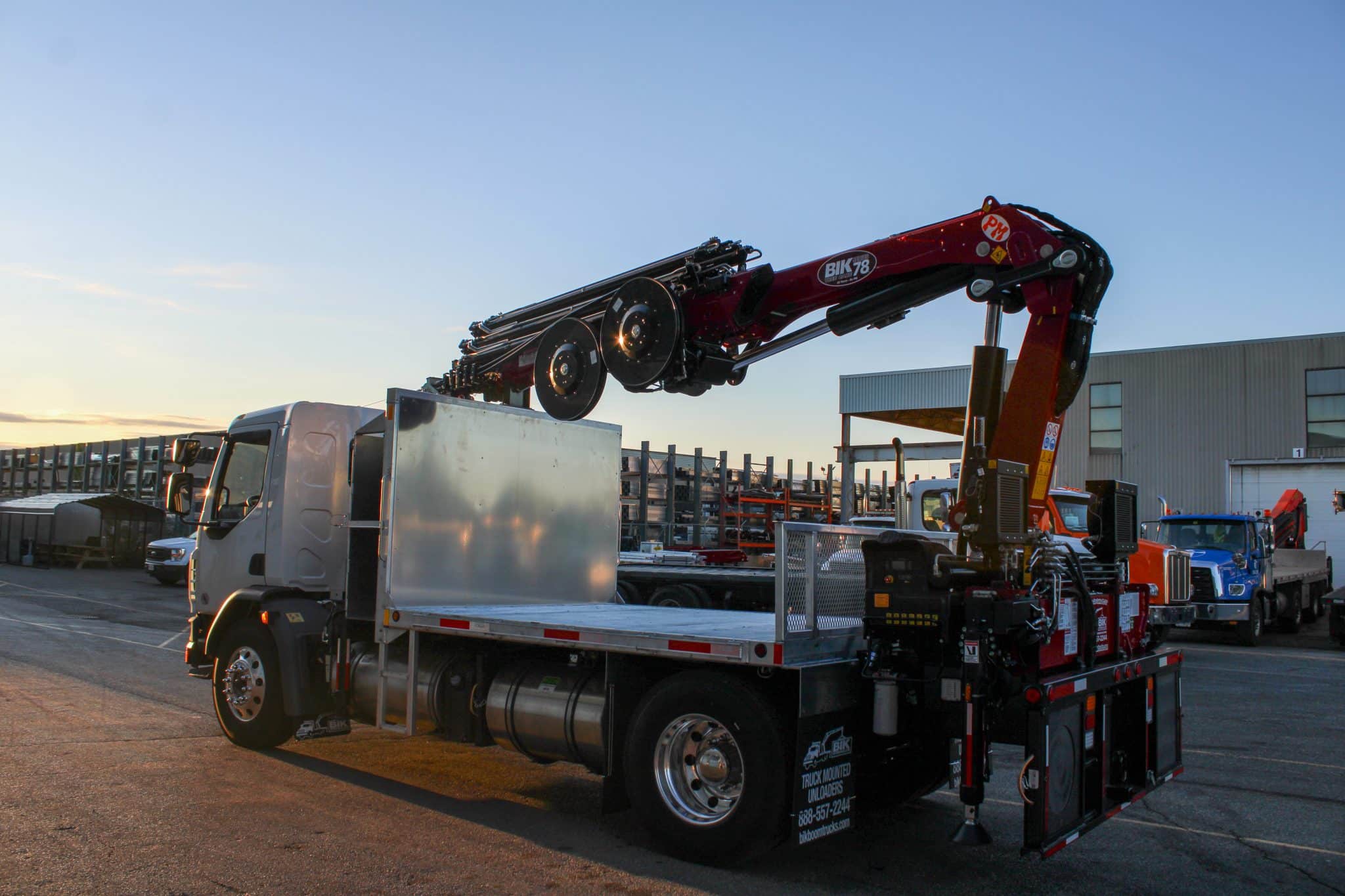

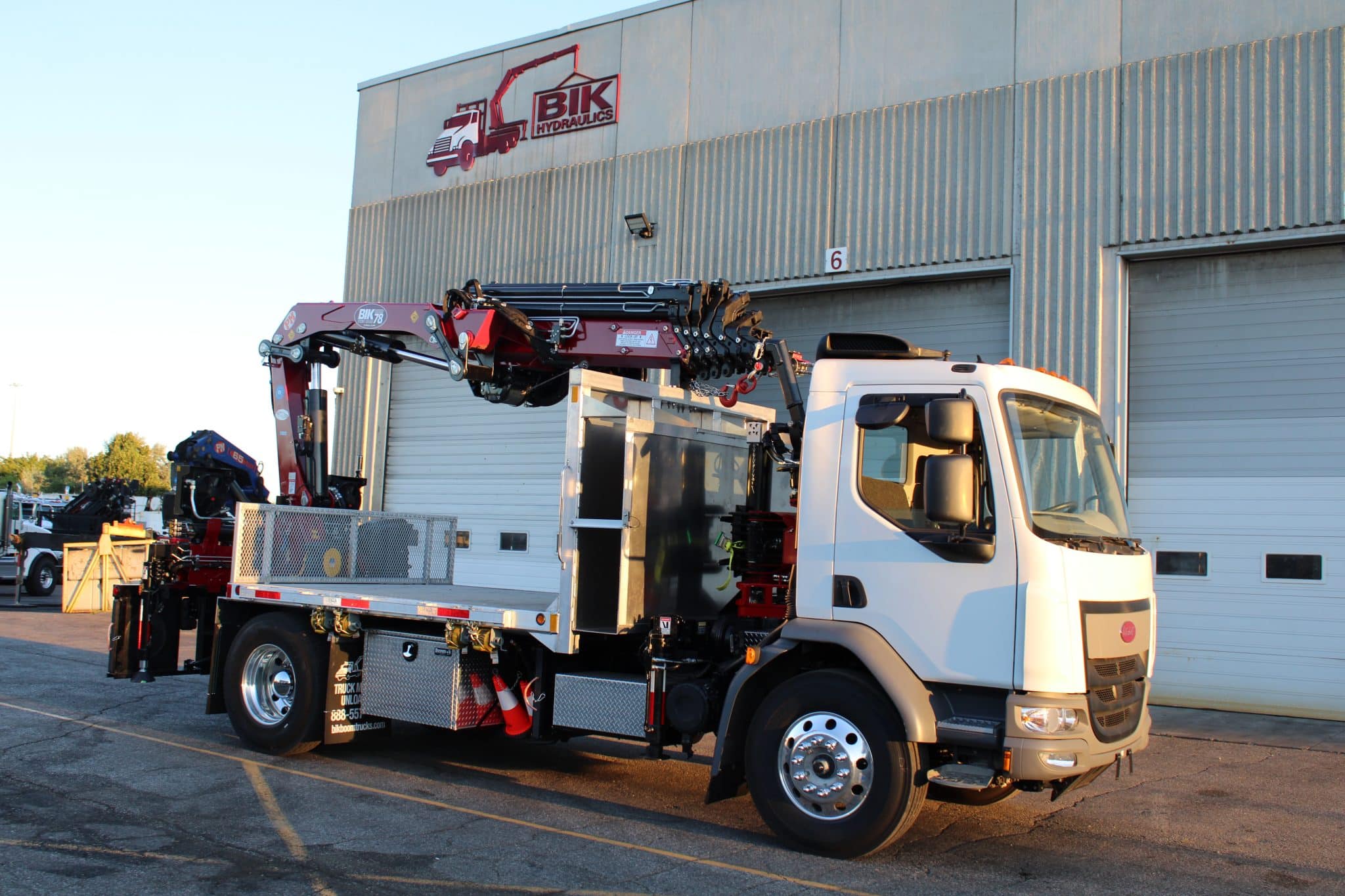

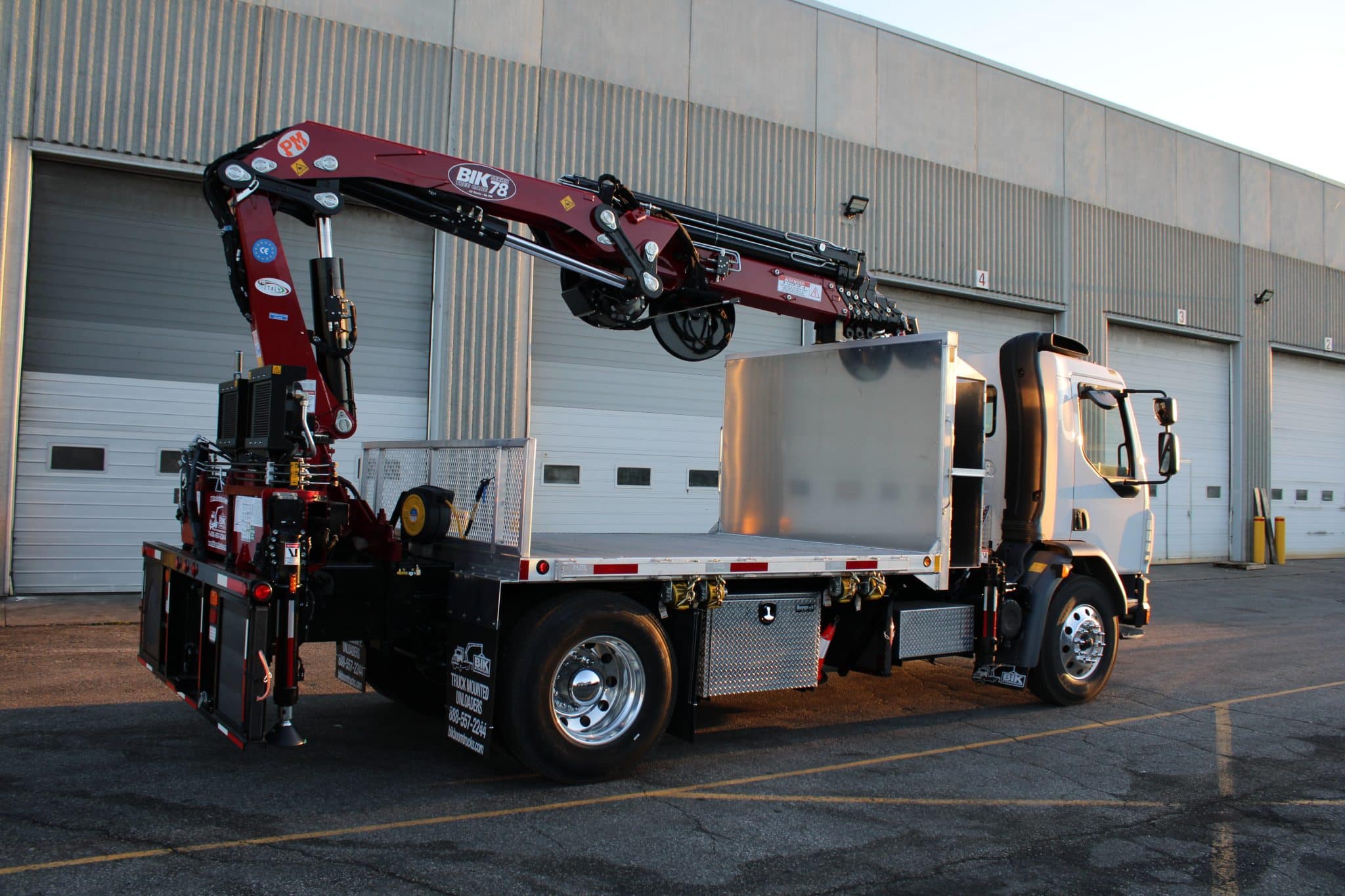

NEW BIK TREE-CARE SERIES TC-70 ON NEW PETERBILT 220

NEW BIK TREE-CARE SERIES TC-70 ON NEW PETERBILT 220

The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering  a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations, we offer the market models that will maintain their value over time.

Call Now!
416-679-3838

41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.

See Location Details

Boom Details

New – BIK Tree-Care Series TC-70  (PM 23.5 ton/m):

  • 6-hydraulic extensions & one manual grapple extension
  • Vertical Reach of 70’
    • Handles 3,800 lbs @ 70’ Vertical
  • HORIZONTAL Capacities:
    • 9,800 lb @ 14’
    • 5,900 lb @ 20’
    • 4,330 lb @ 26’
    • 2,560 lb @ 40’
    • 1,750 lb @ 55’
  • 408 Degrees Rotation on Main Hydraulic Slewing
  • Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom

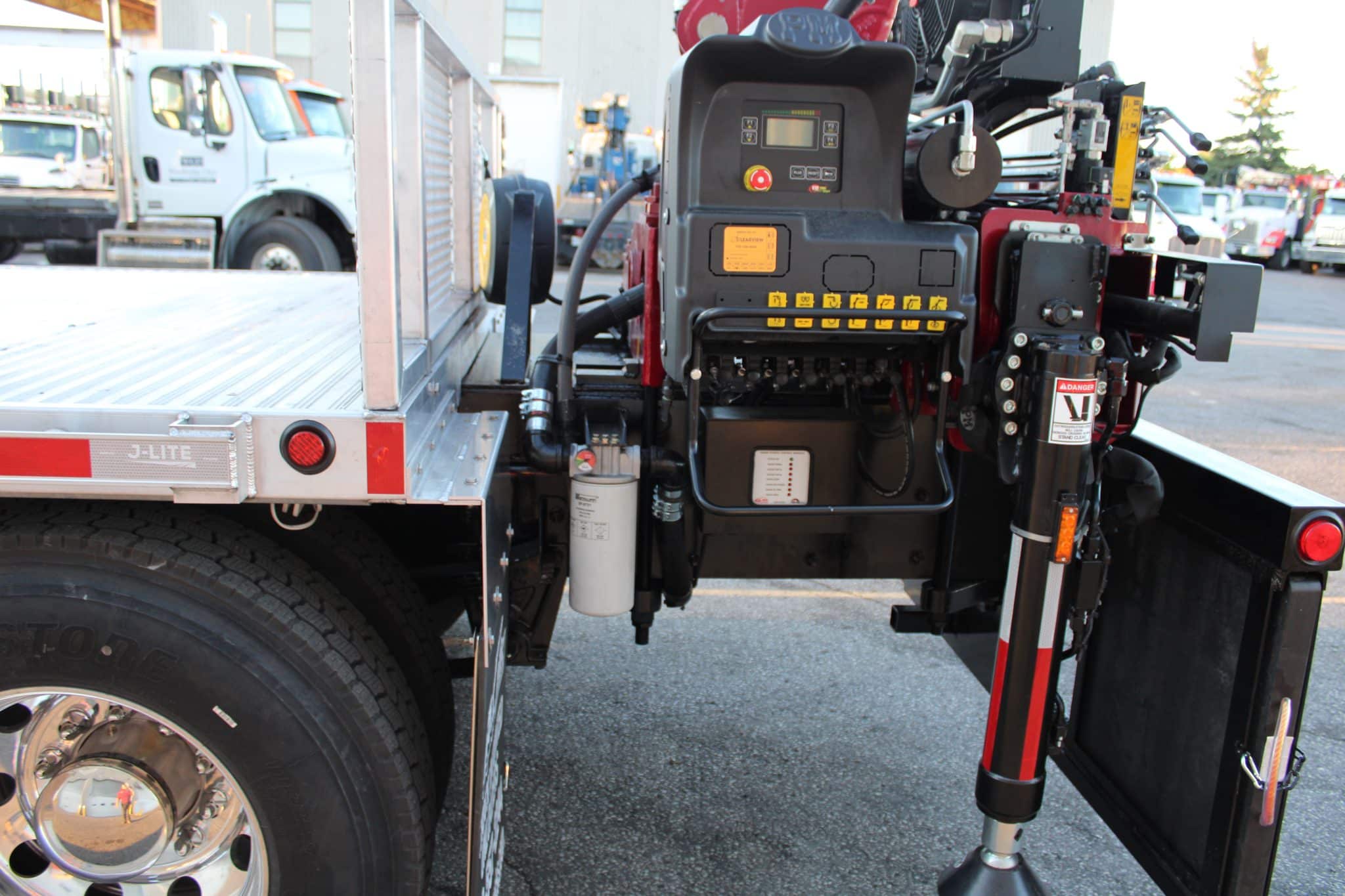

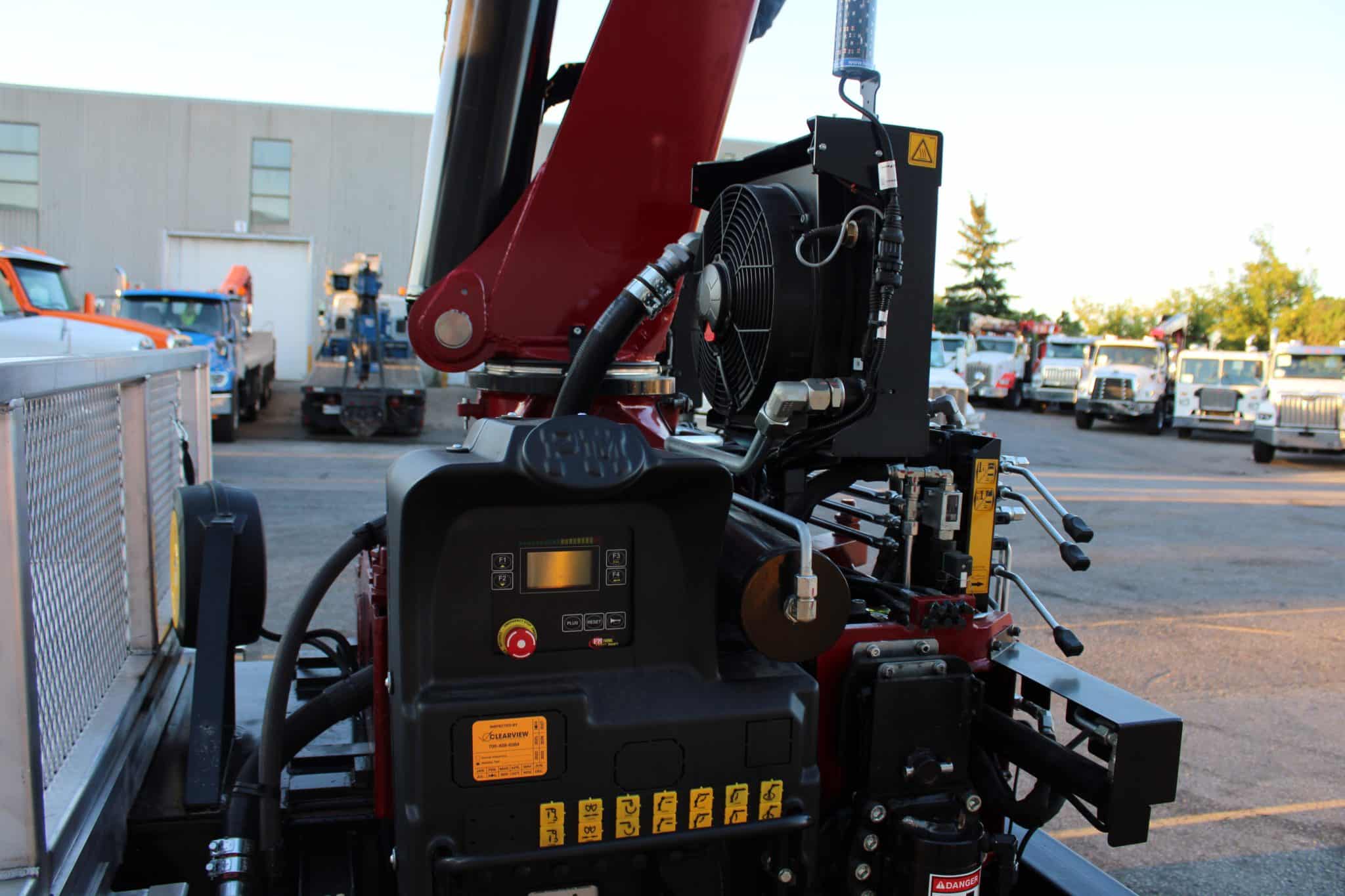

  • DANFOSS Proportional Valve Controls – single sided operator control station,  Load Holding Valves on all cylinders
  • PM PowerTronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
  • SCANRECO Radio Remote Control

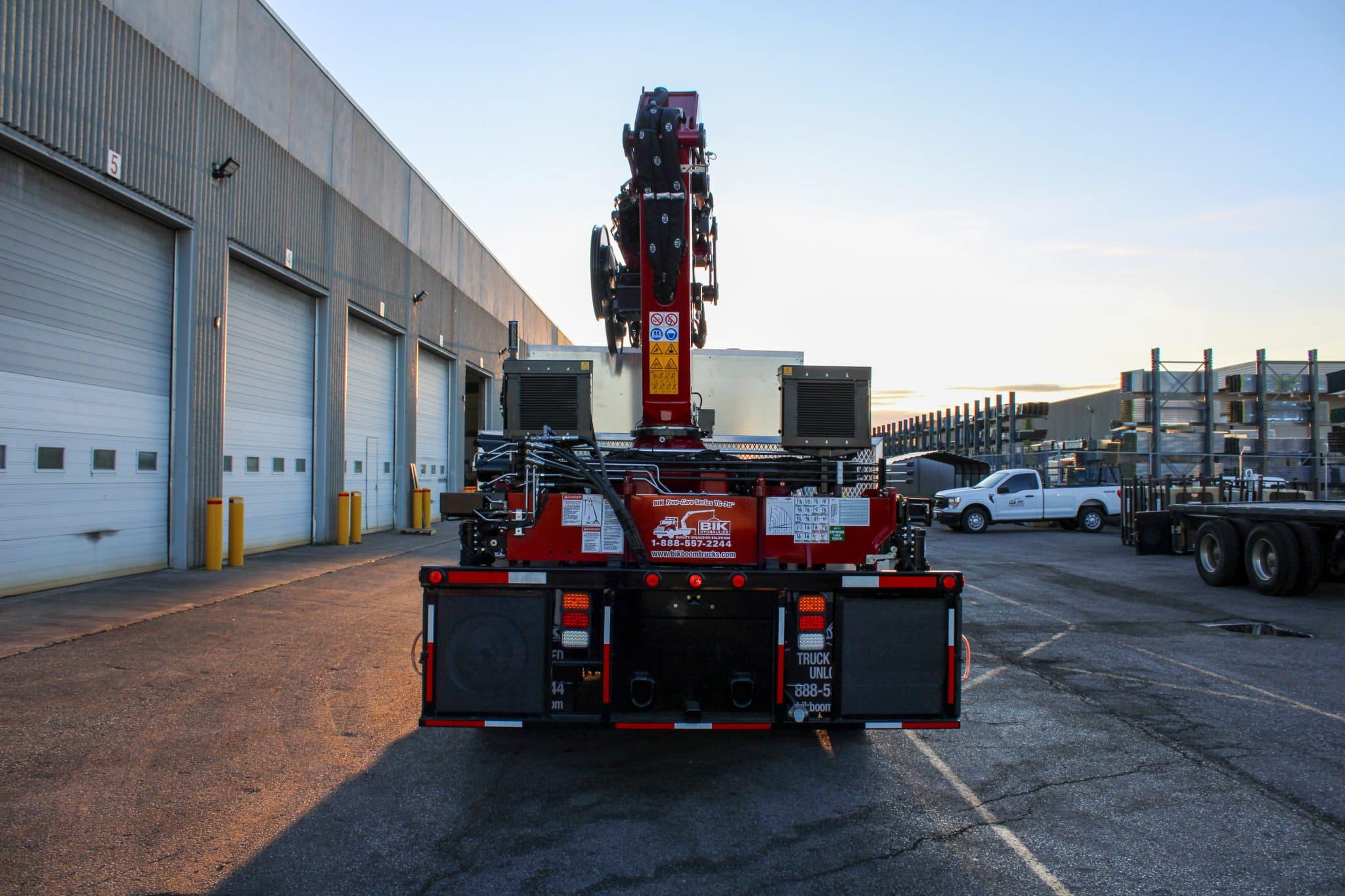

  • Hydraulic OUT and Hydraulic DOWN Extra Wide 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
  • 15 degree negative angle on folding arm     Hydraulic Overload Protection – simplified sysTem that prevents boom from overload

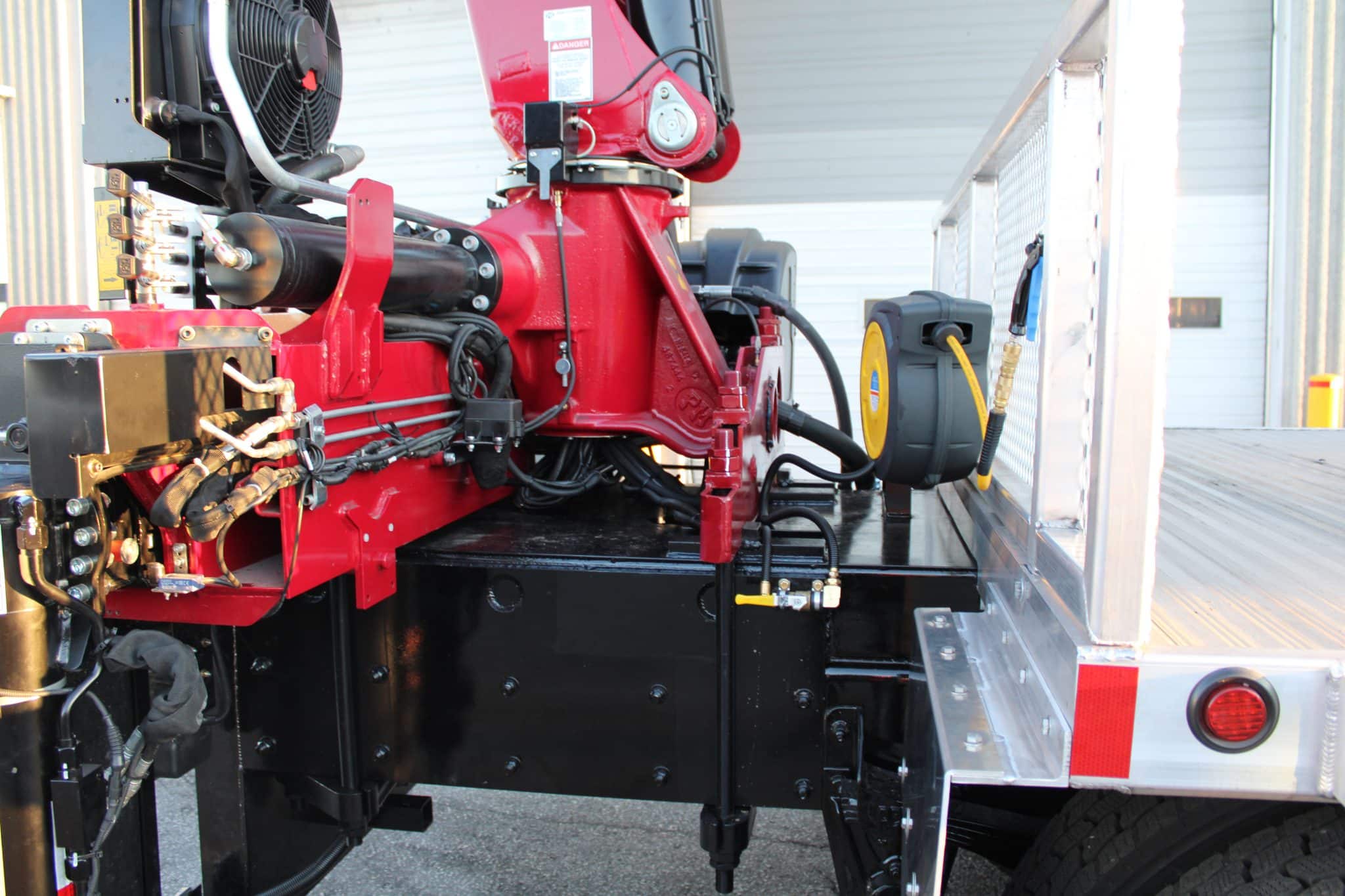

  • Two functions plumbed  to end of 6th extn,  Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear

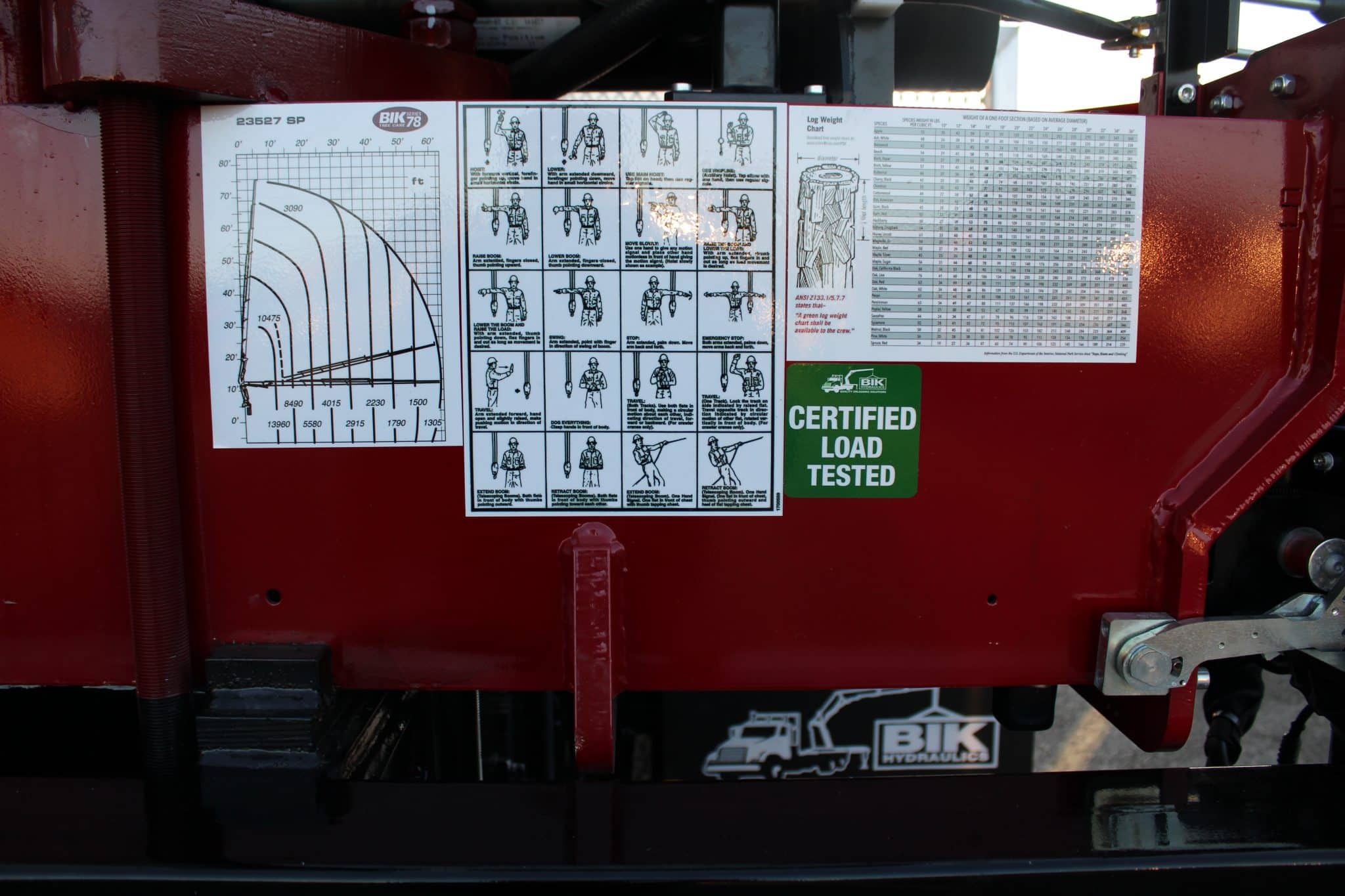

  • Installed at rear on  integral sub base / torque box, Engineer certified stability inspection & certificate,

Warranty: 1-Yr. parts & labour on entire boom, 3-Yr. on Structural Components

Deck Details

New  – 10’ x 102” Steel Deck  Body

  • 60” steel head board
  • Steel checker plate deck surface
  • Main sil X-braces & support
  • 2-Deck access Ladders at Headboard
  • 2-Ladders at rear
  • Reflectors and Mud-flaps
  • 6 – Sliding Winches and track under deck
  • Painted black.

Mat Rack and Grapple Saw Rest

  • Integrated back of cab (ahead of head board) – To carry boom stowed over deck on Head Board with Grapple Attached.

Truck Details

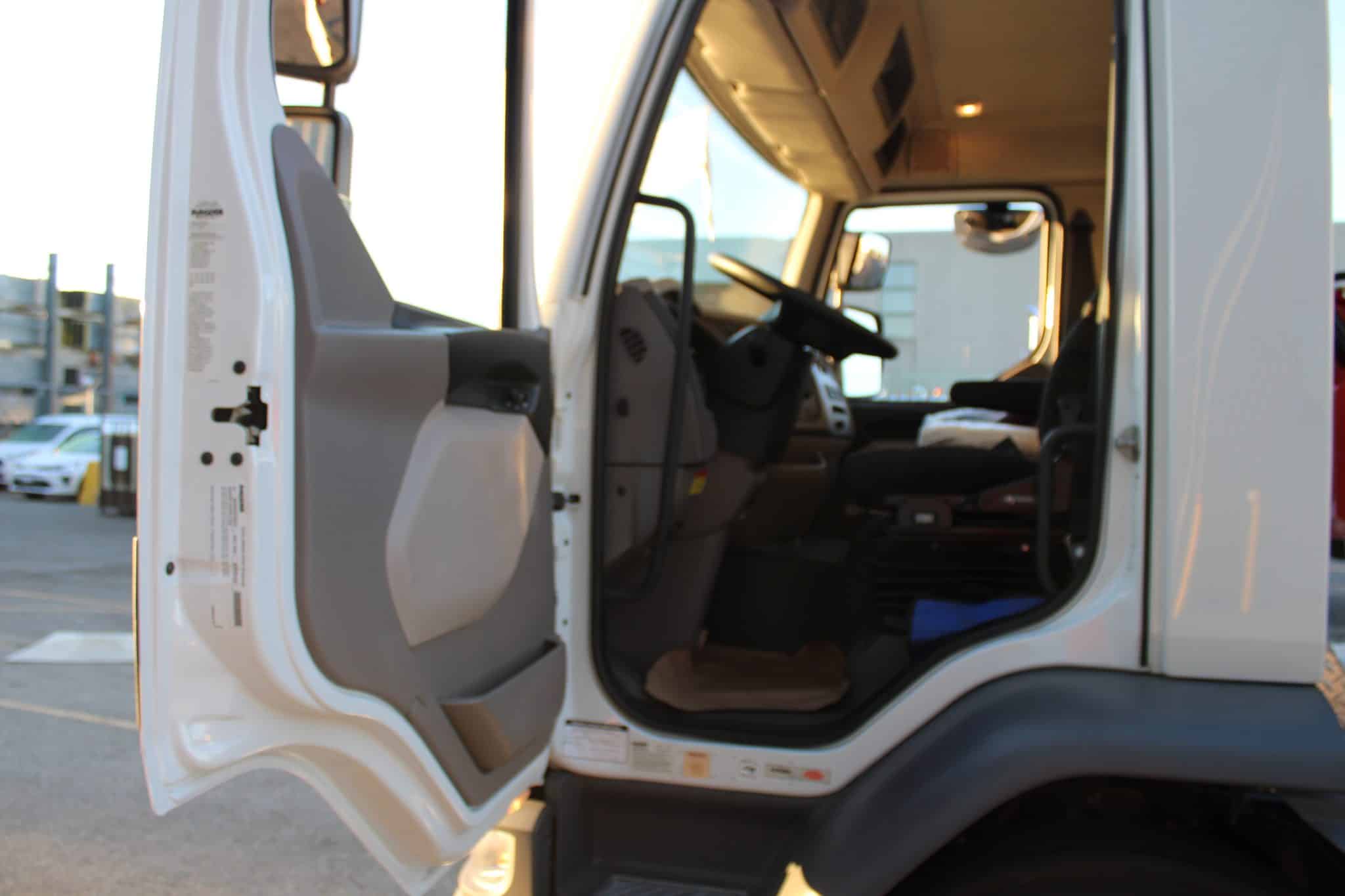

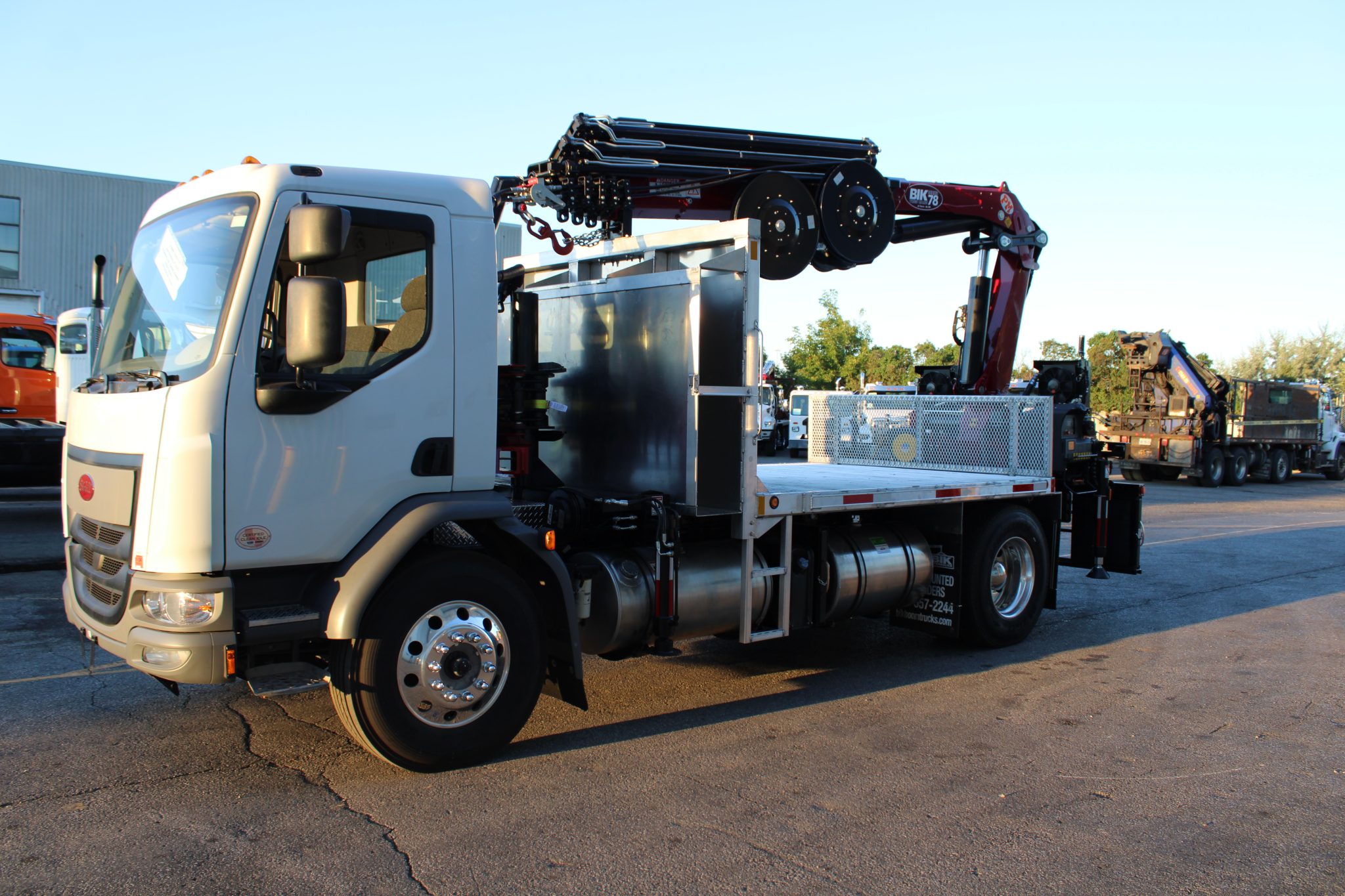

New – 2023 Peterbilt 220 Cab-Over Single axle Diesel Truck:

  • 26,000 lb end rating – Cummins 260 hp Diesel
  • Allison 6spd Automatic transmission.
  • 12,000 lb rated front axle with 11R22.5 Front tires on polished Aluminum rims
  • 21,000 LB rated Rears on Spring Suspension with 11R22.5 tires on Polished Aluminum outer rims – steel inner
  • Air brakes
  • 180” Wheel Base

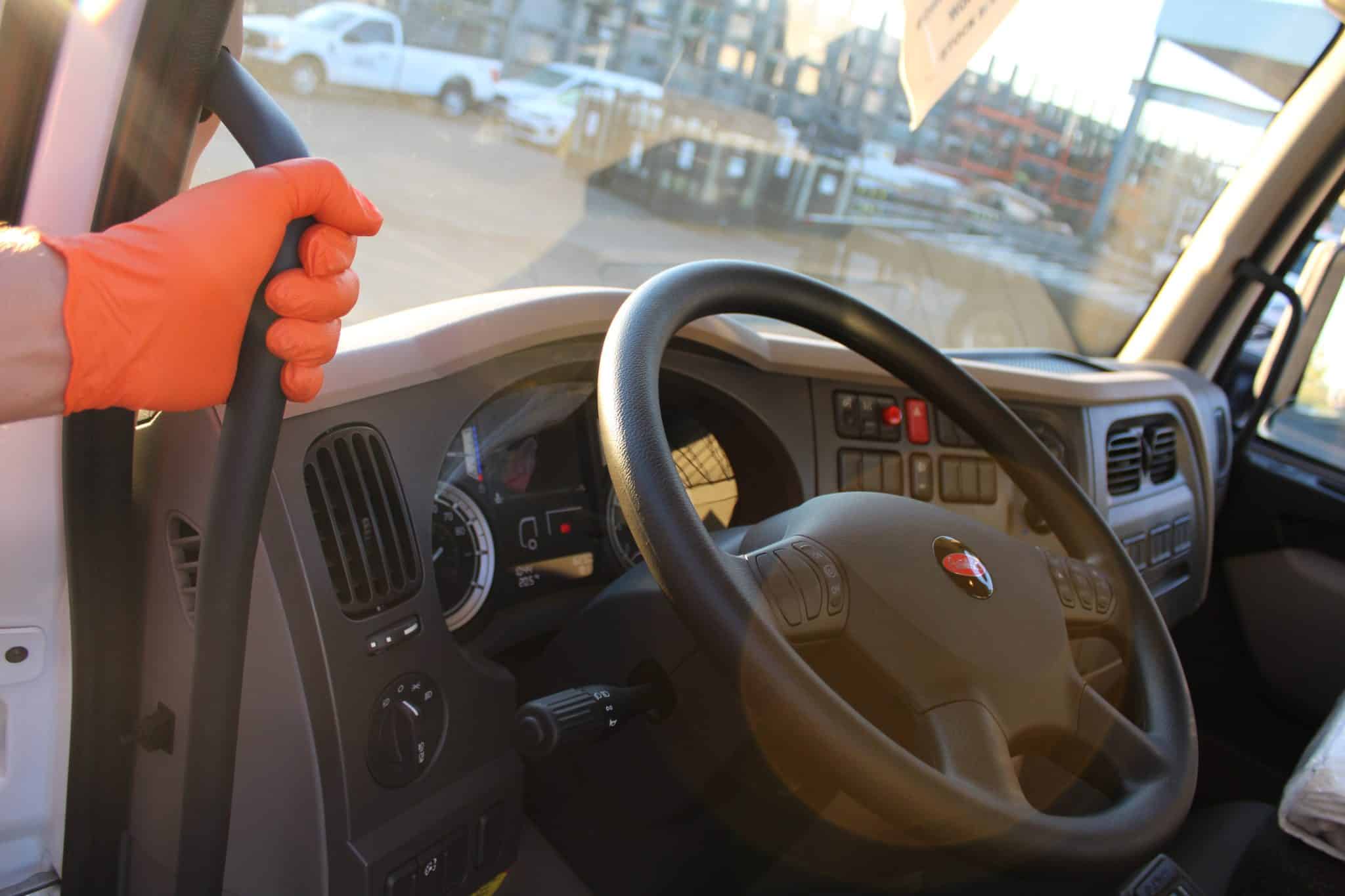

  • Truck Features Include: Air cond., AM/FM  stereo,  Bluetooth, USB port, power windows, tilt steering,  power & heated mirrors, cruise, painted bumper, fog lights, aluminum battery box cover, 75 gal Aluminum fuel tank, engine block heater, etc…

Also Included:

  • (2) pcs – 2” PVC stabilizer pads – with holders
  • 36” Alum storage boxes installed
  • Mecanil SG-160 Grapple saw with spare parts kit
  • Grapple saw holder/stowe bracket on side of frame near boom
  • BIK tech to familiarize boom operation at your facility for 2-3 days,

Other Additional Available Options:

  • (1) Aluminum self evelling man basket
  • Drawplate with reese type pintle hook receiver with electric trailer brake actuator installed
  • Additional 3’ Aluminum storage box installed under deck
  • TC-78 version – with 8’ extra reach , Handling 2,800 lbs @ 78’ Vertical Reach
  • 3 sets – removable log bunks installed on each side of platform

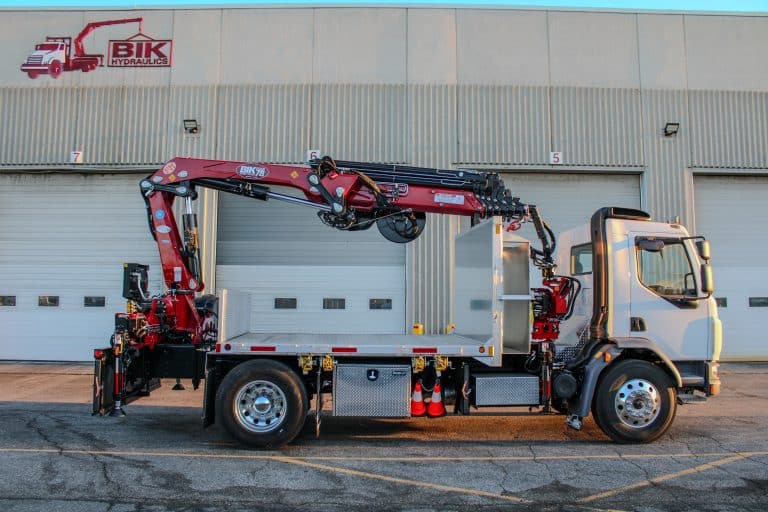

70′ VERTICAL REACH WITH 3,800LBS CAPACITY

Short and Compact Unit – 12’ 6” tall and only 25’ long

CALL FOR DETAILS AT: 1-888-557-2244  OR  416-679-3838
