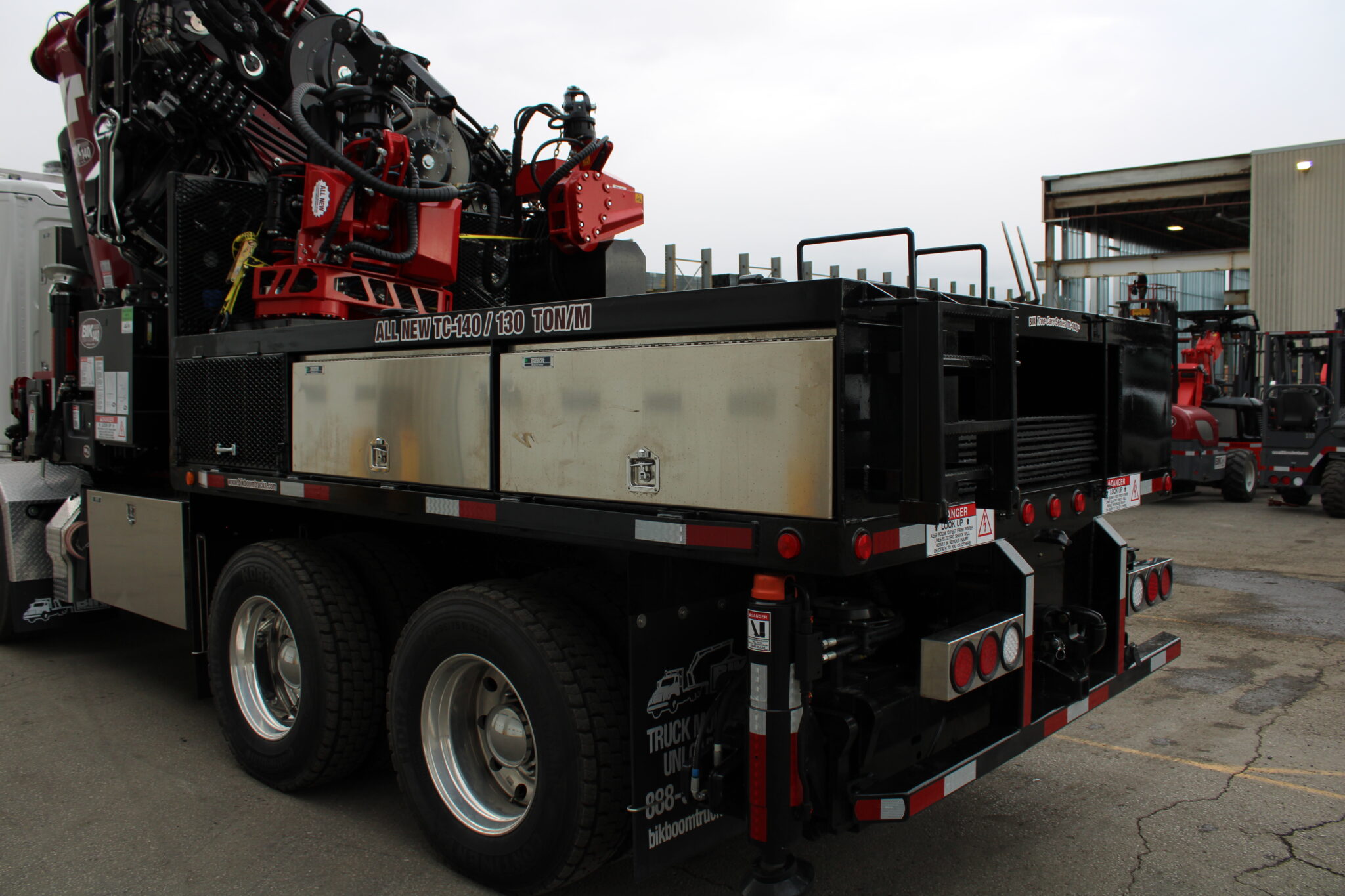

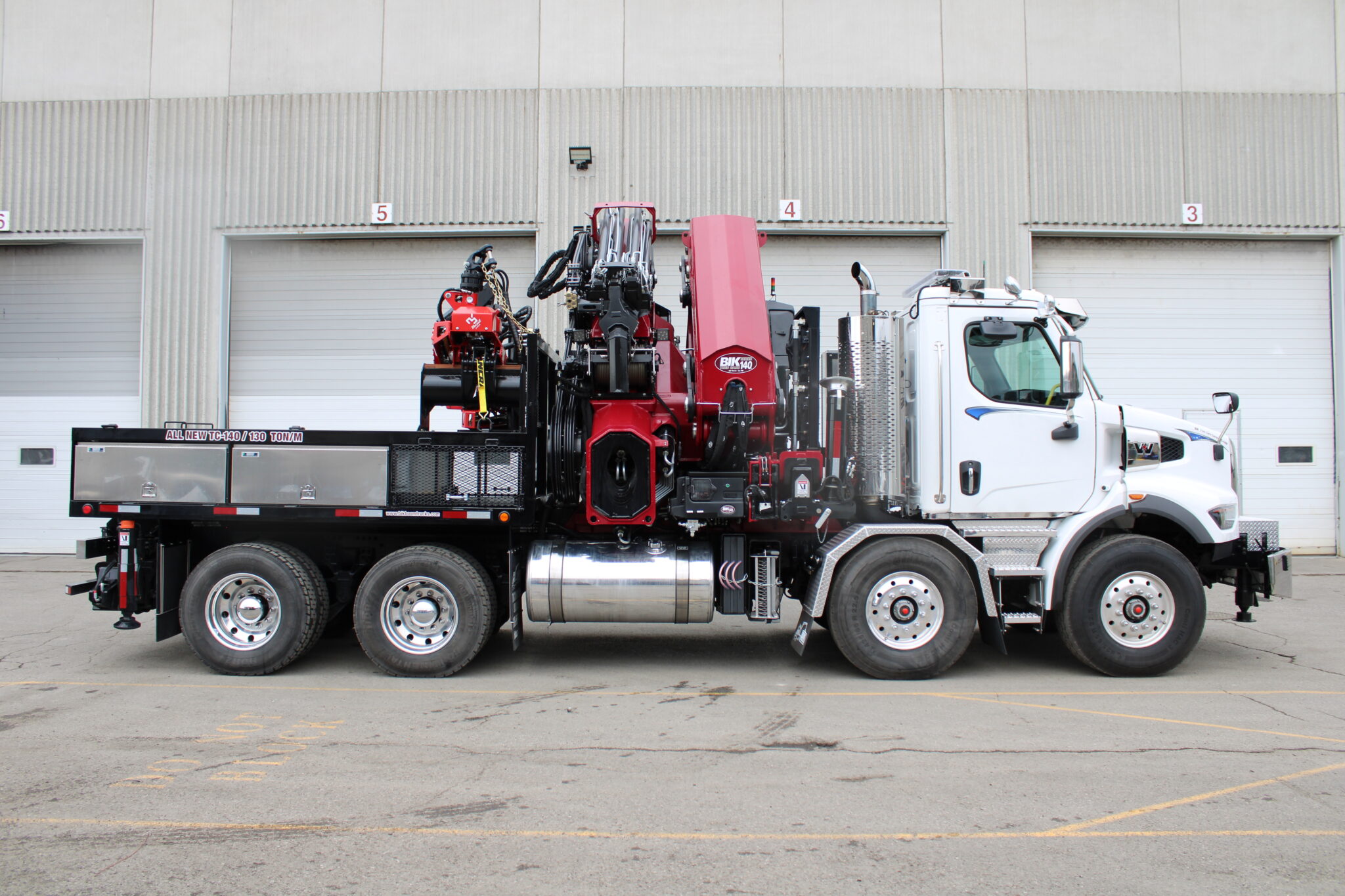

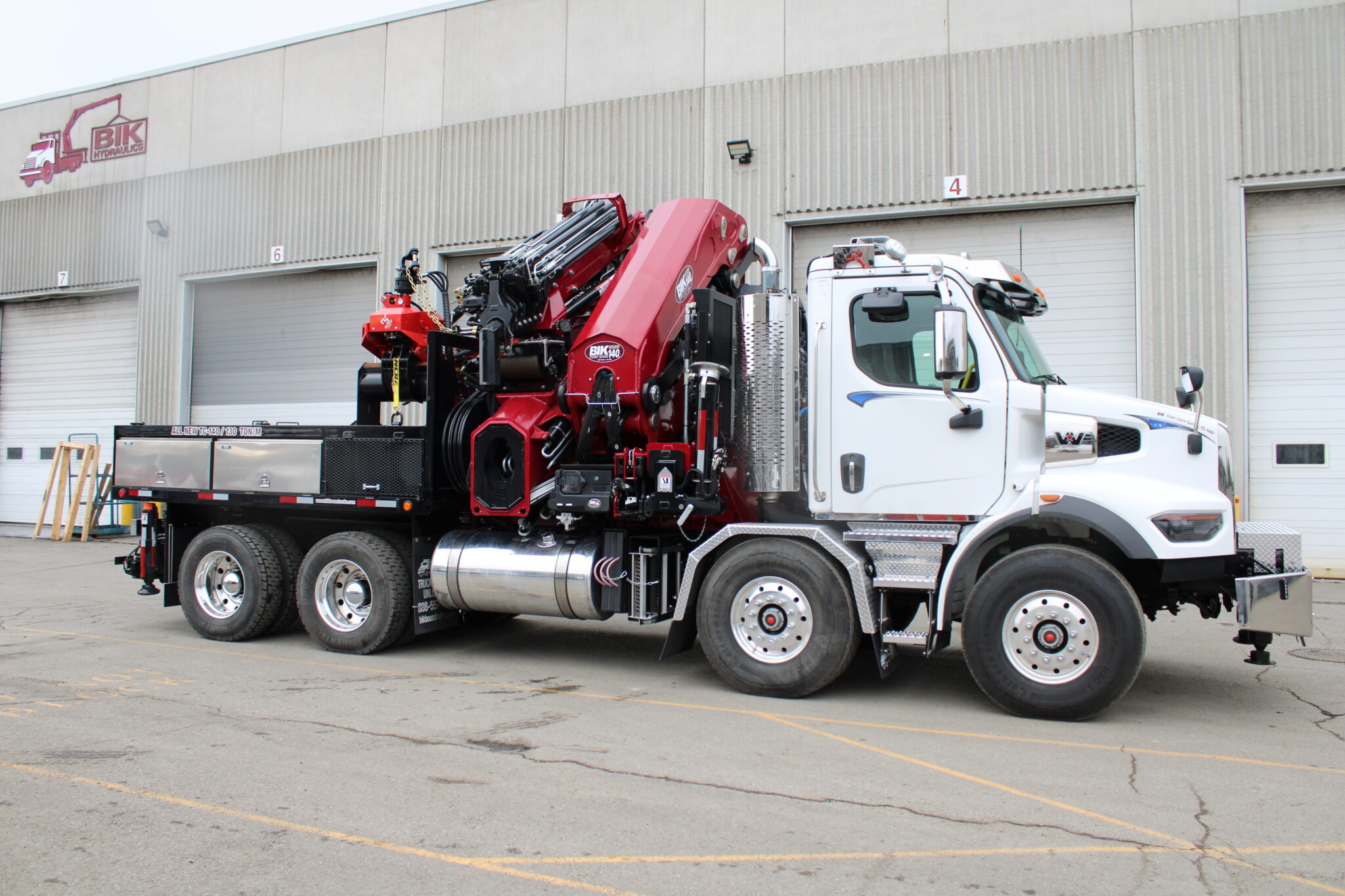

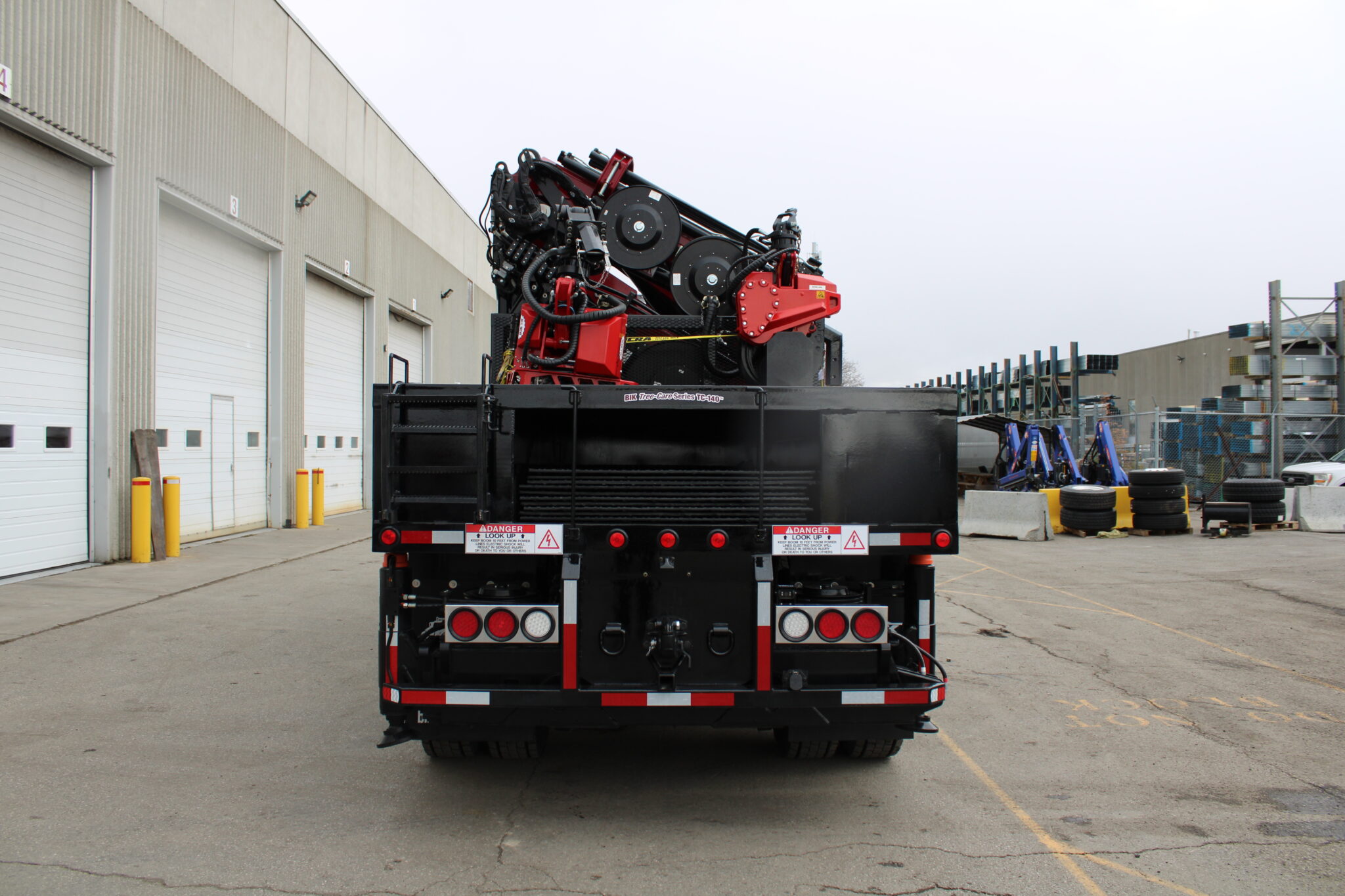

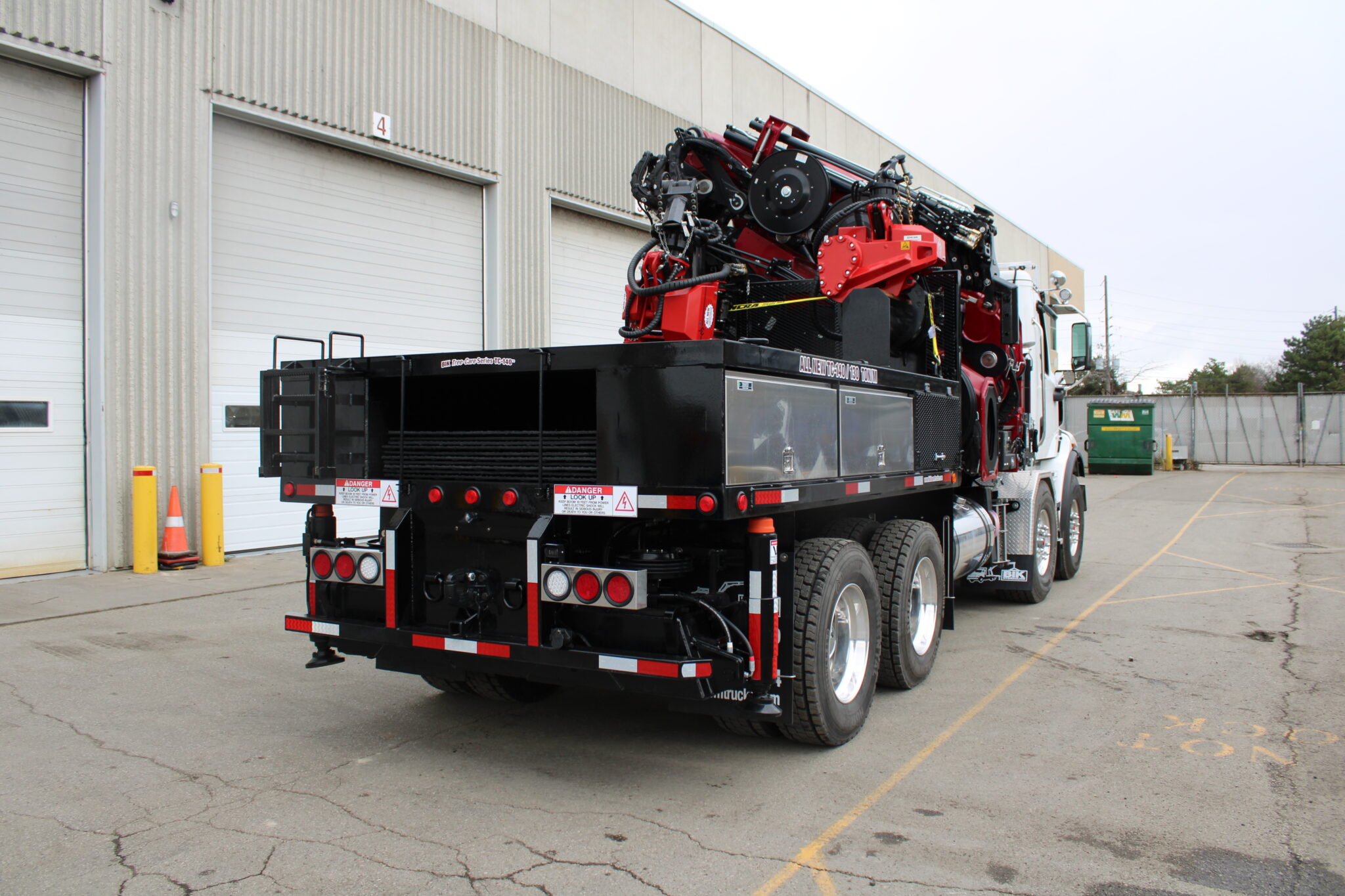

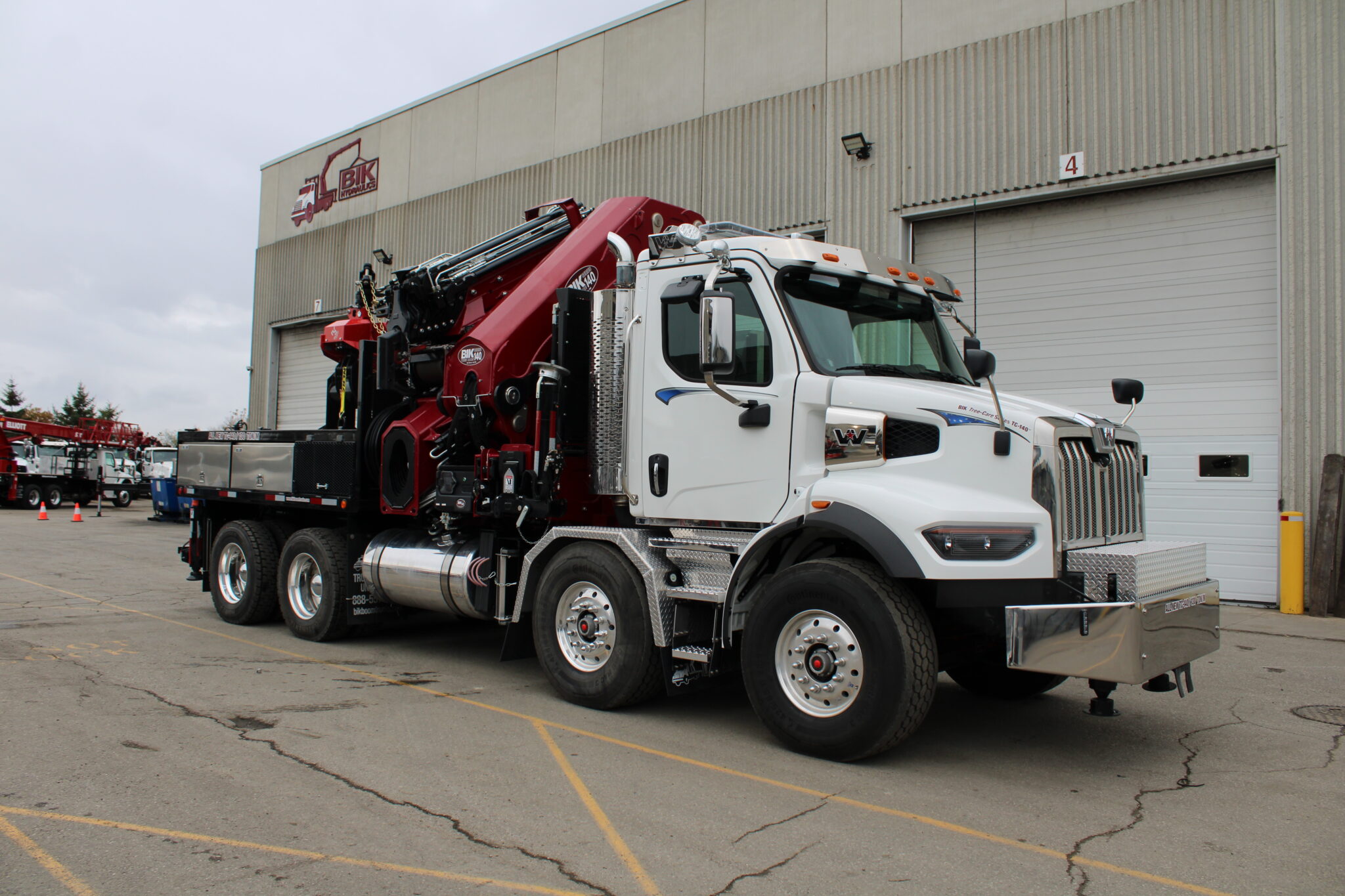

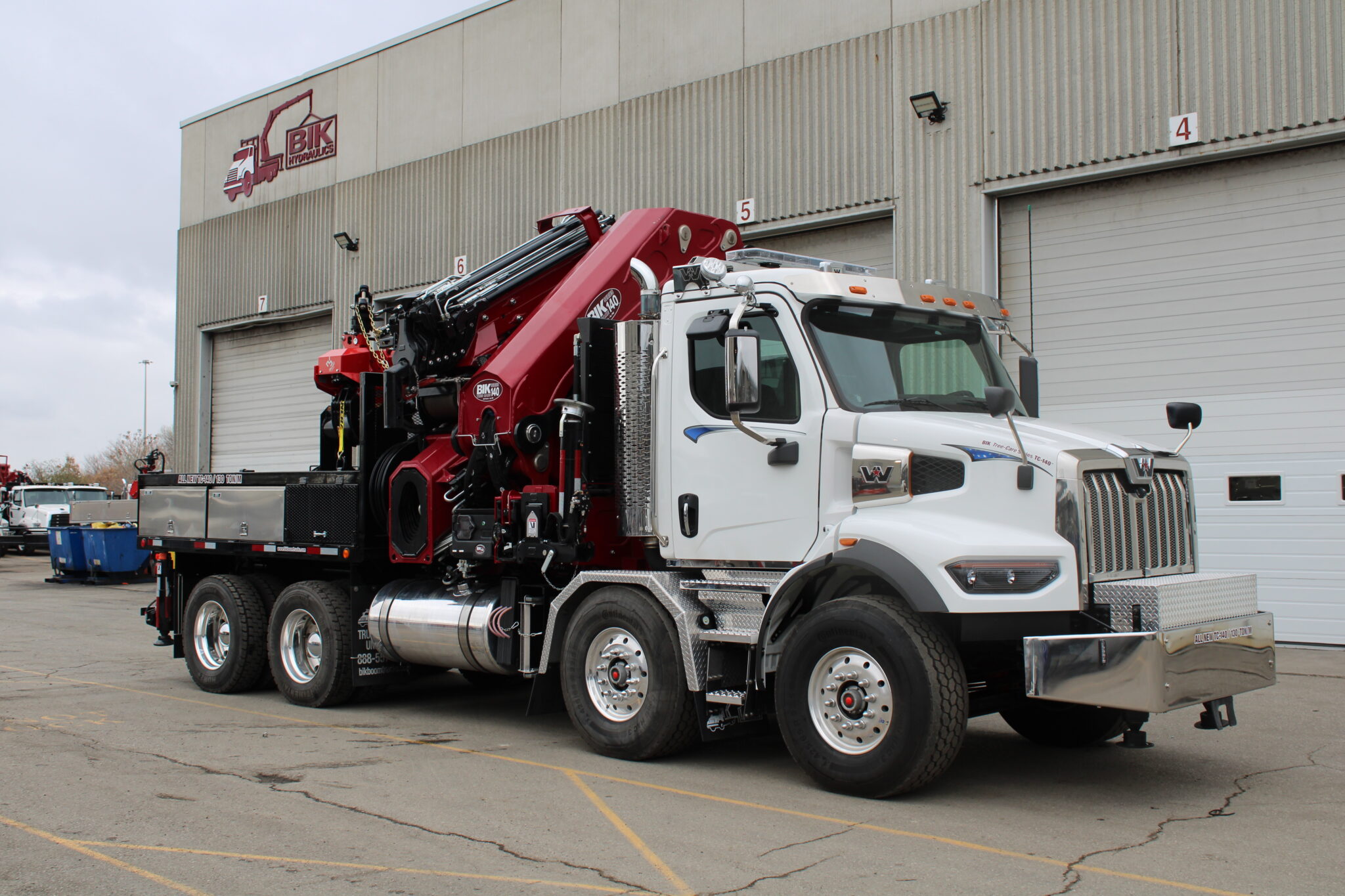

NEW BIK TREE-CARE SERIES TC-140 ON NEW WESTERN STAR 47X
NEW BIK TREE-CARE SERIES TC-140 ON NEW WESTERN STAR 47X
The range of BIK Series cranes covers all load handling needs, whatever the tonnage. Offering a vast assortment of applications, BIK Series cranes can be used in a variety of sectors. All BIK Series cranes are built to high quality standards, in accordance with safety standards and the latest technological innovations. We offer the market models that will maintain their value over time.
Call Now!
416-679-3838
41 Claireville Drive, Toronto, Ontario M9W 5Z7
Located just 5 minutes north of Toronto International Airport of HWY 427 and Finch Ave. Free airport pick-up for all our guests.
Boom Details

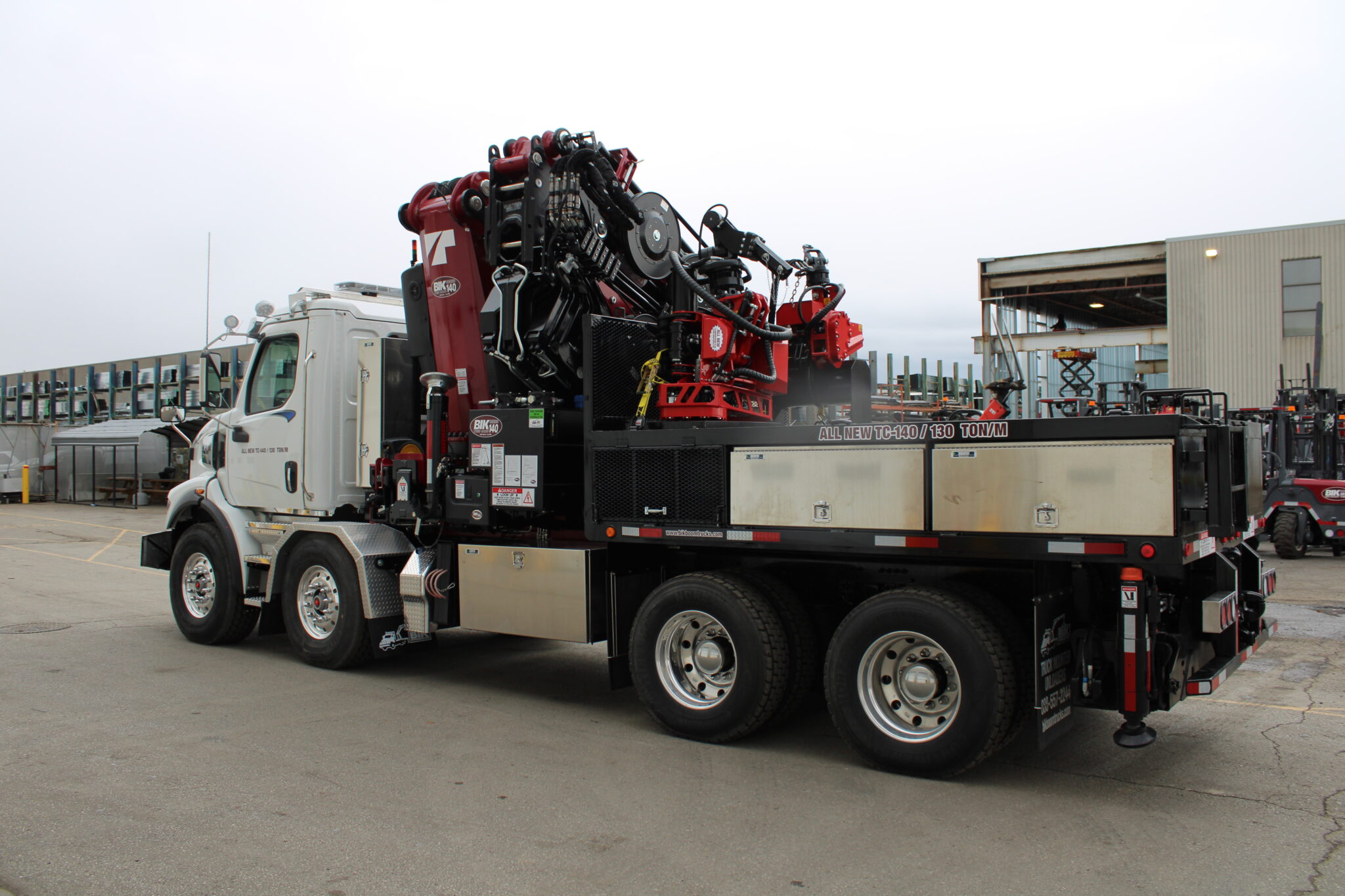

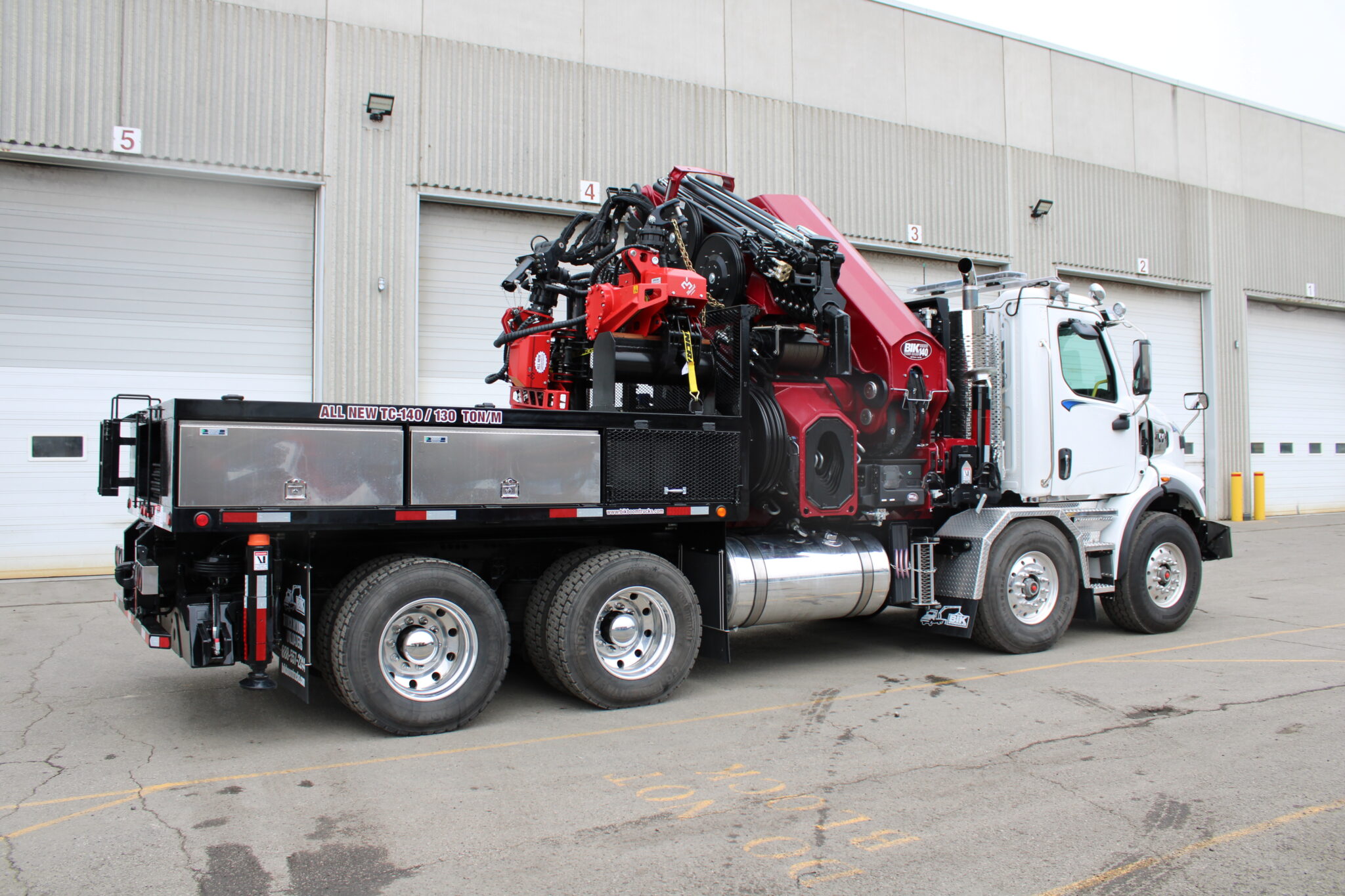

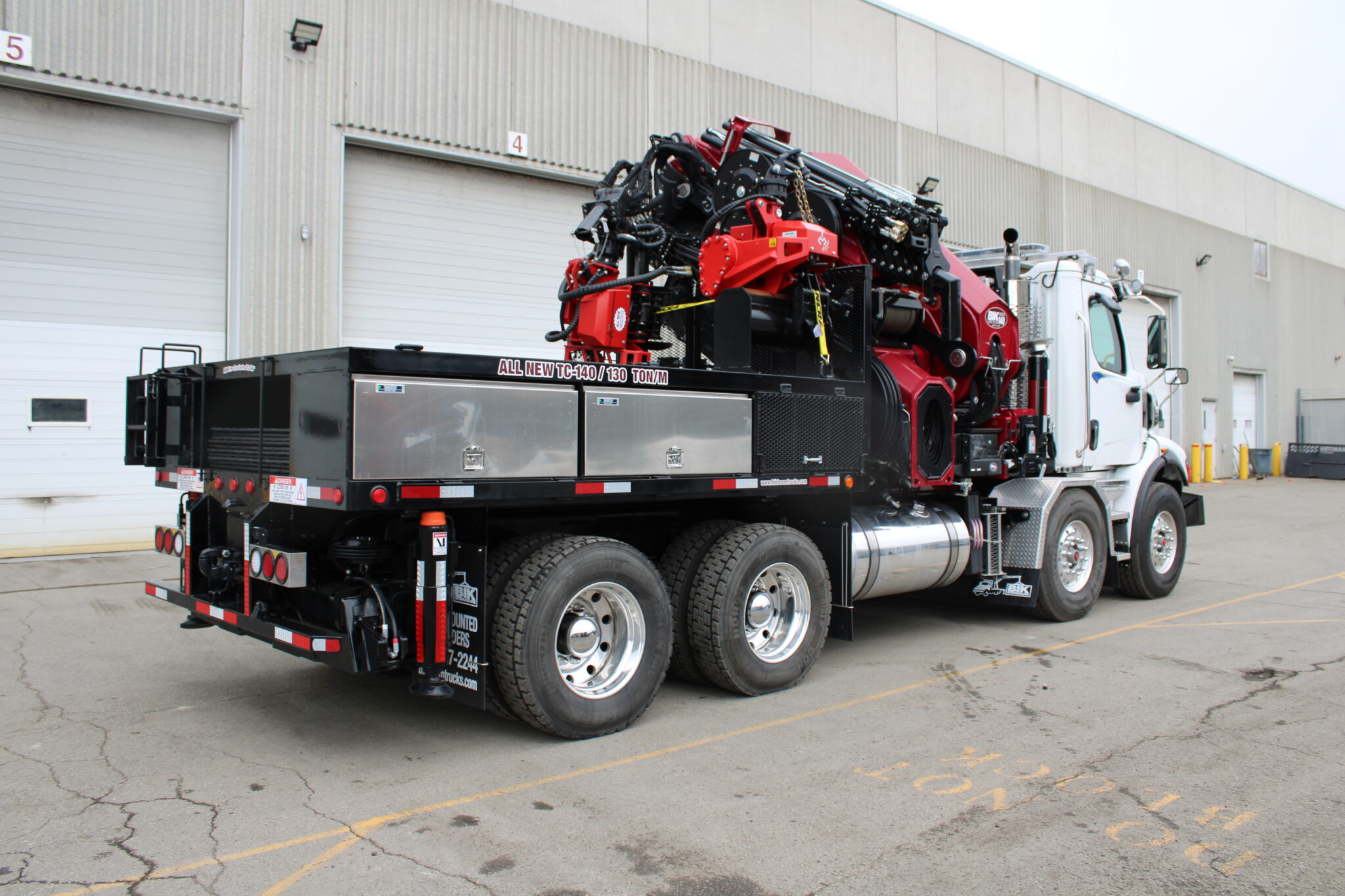

New – BIK Tree-Care Series TC-140 – 130 ton/m Knuckle Boom
- 9 ext Knuckle Boom w/Detachable 7 ext jib + 1-grapple extn
- Including (1) Grapple extention in jib, Boom Capacity of 2,260 lbs @ 140’ Vertical Reach
- PM connecting rods at First Boom and Knuckle, 15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
- Continuous Rotation and Dual Planetary Gear Rotation
- Special Extra High Tensile Steel Structure
- Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 6” span
- Hydraulic tilting when retracted. Radio controlled
- Hydraulic Oil Cooler, high-pressure return filter and min. 92-gallon oil tank for boom
- Lifting winch on boom plumbed to jib
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- PM Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stability control system
- Scanreco Radio Remote Control includes: 2 batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
- Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
- Load Tested & Installed back of cab, with integral sub-frame to meet or exceed all CMVSS Standards
Truck Details

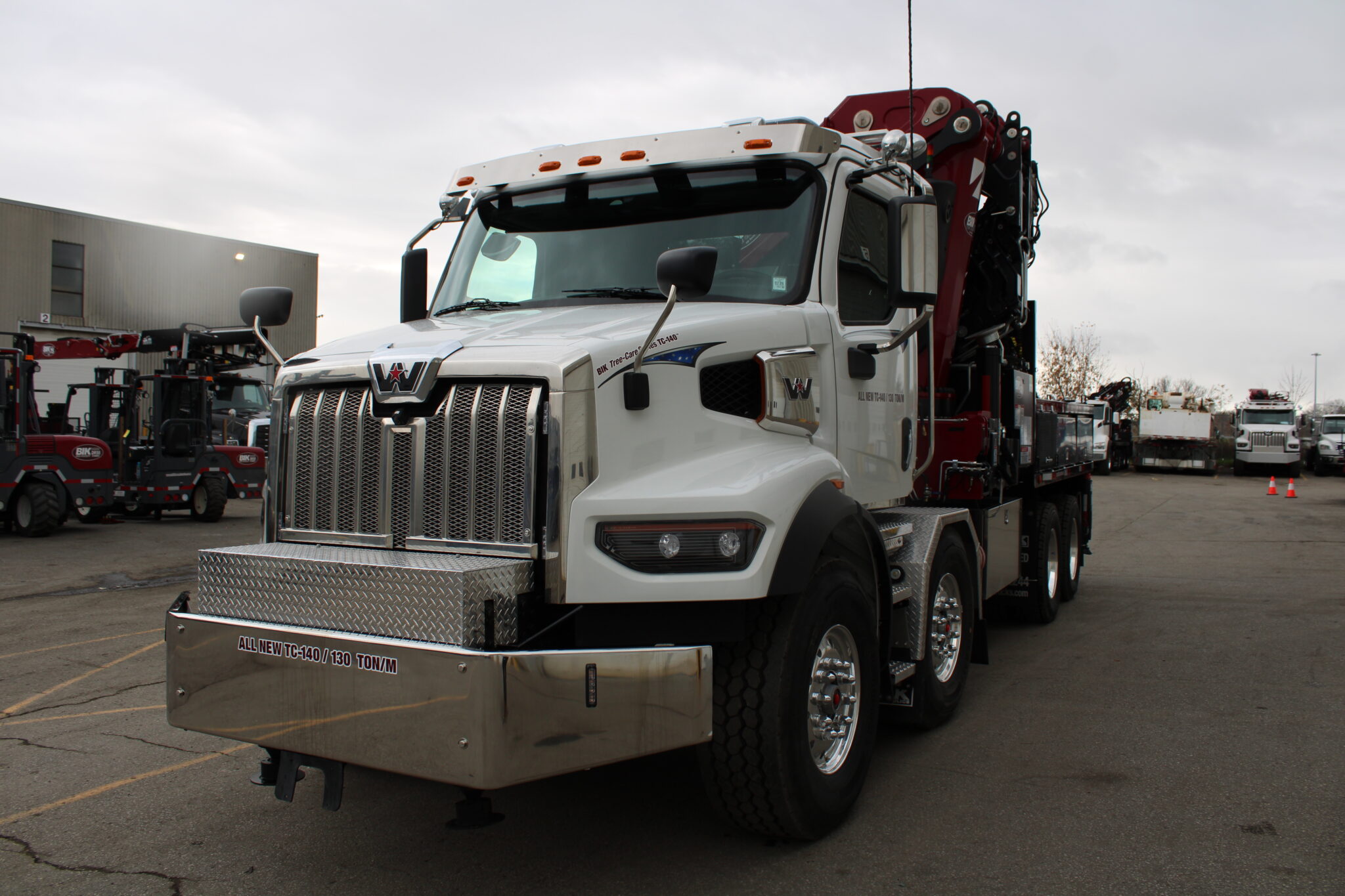

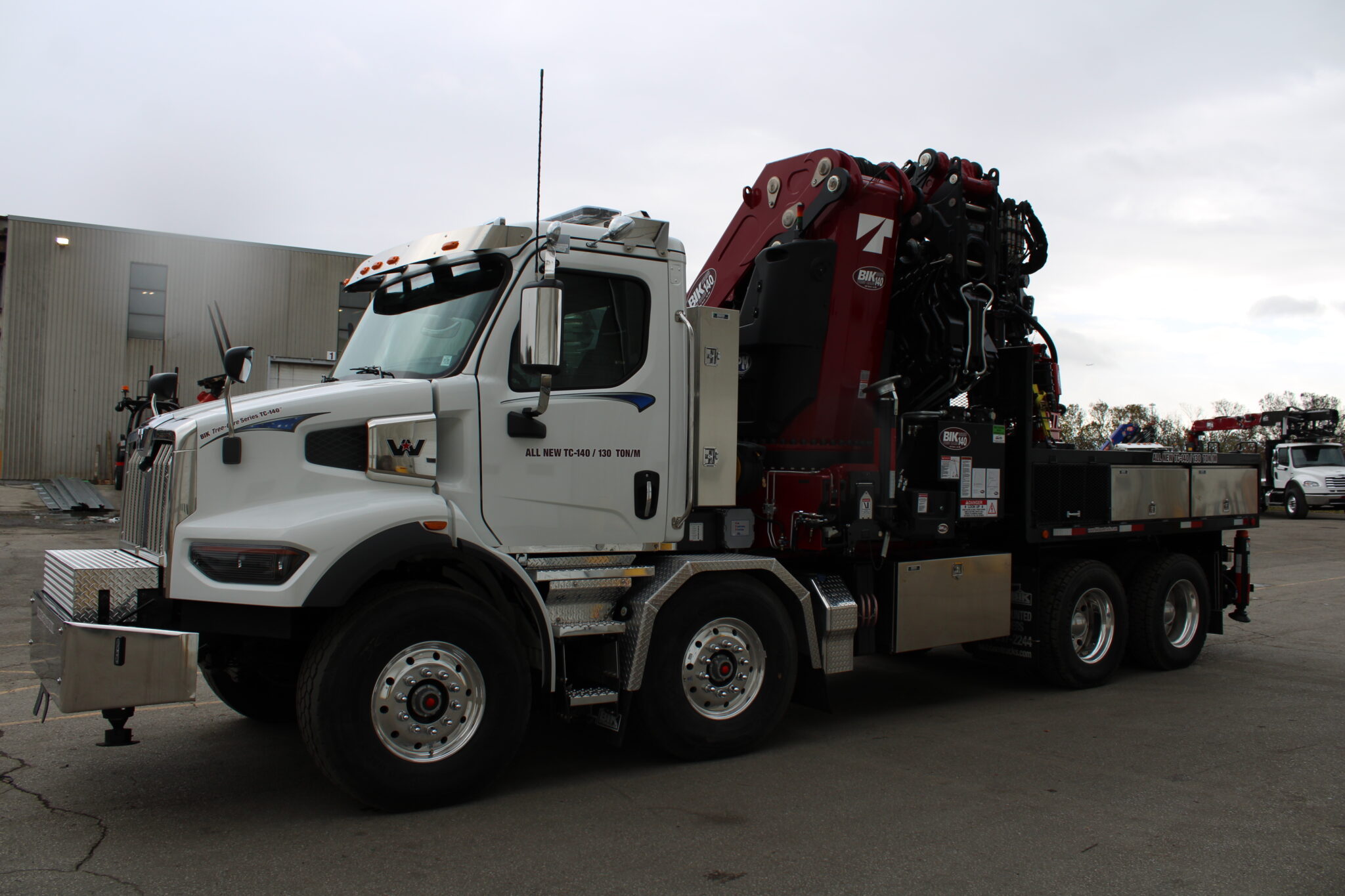

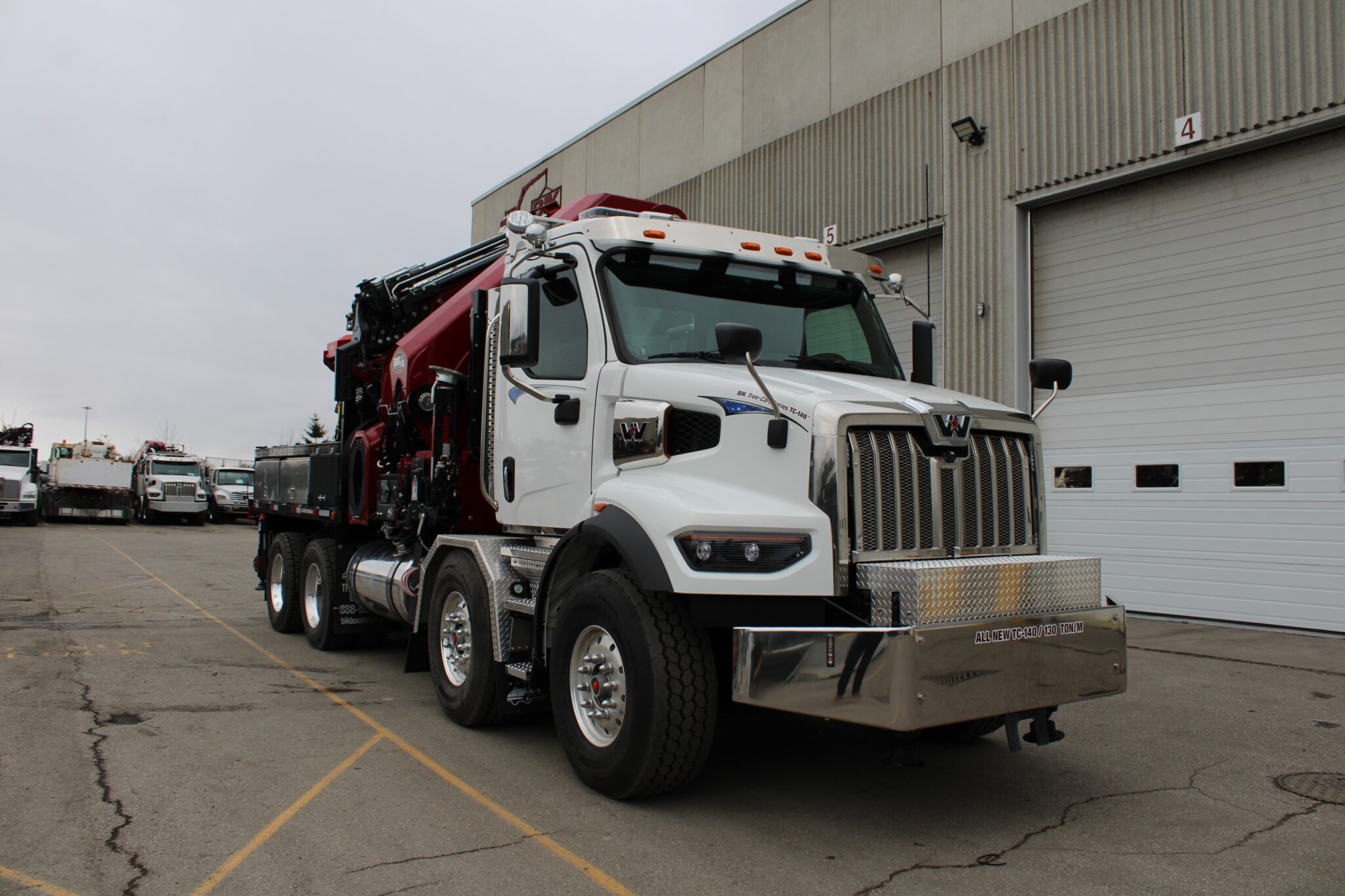

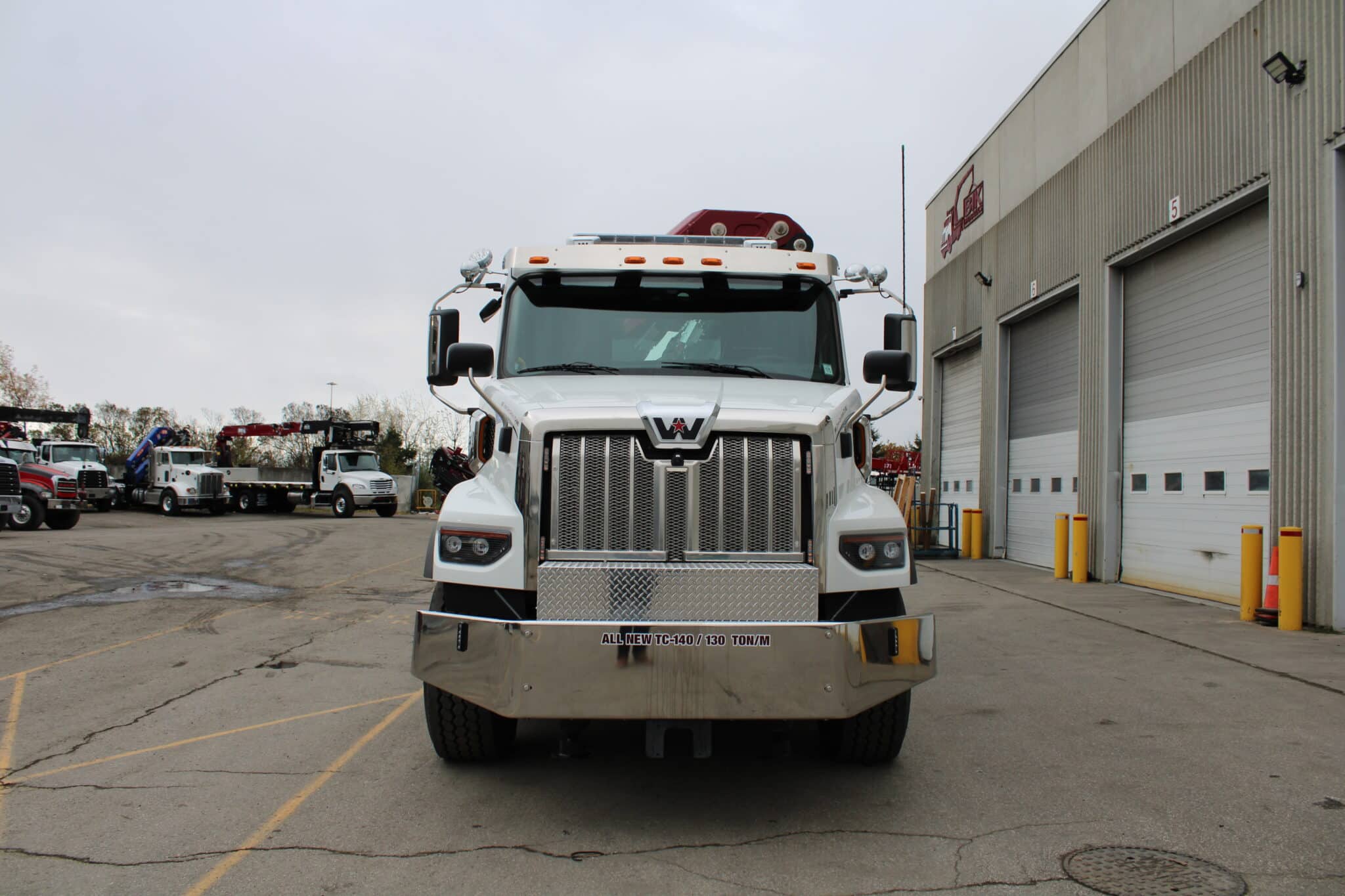

New – 2026 Western Star 47X Sloped Short Nose T/A Steer-T/A Rear – 4 Axle: 92,000 lb GVWR
- 500 hp Diesel with Jake Brake, Automated Trans.,
- (2) x 20,000 LB fronts with 425 / 65R22.5 tires
- 52,000 LB Rears on Hendrickson Primax Air-Ride Susp., Double Frame, Polished ALCOA Aluminum Wheels front and outer rear, Dual Chrome single polished Exhaust, Chrome Grille & Bumper, 100 gallon aluminum fuel tank…

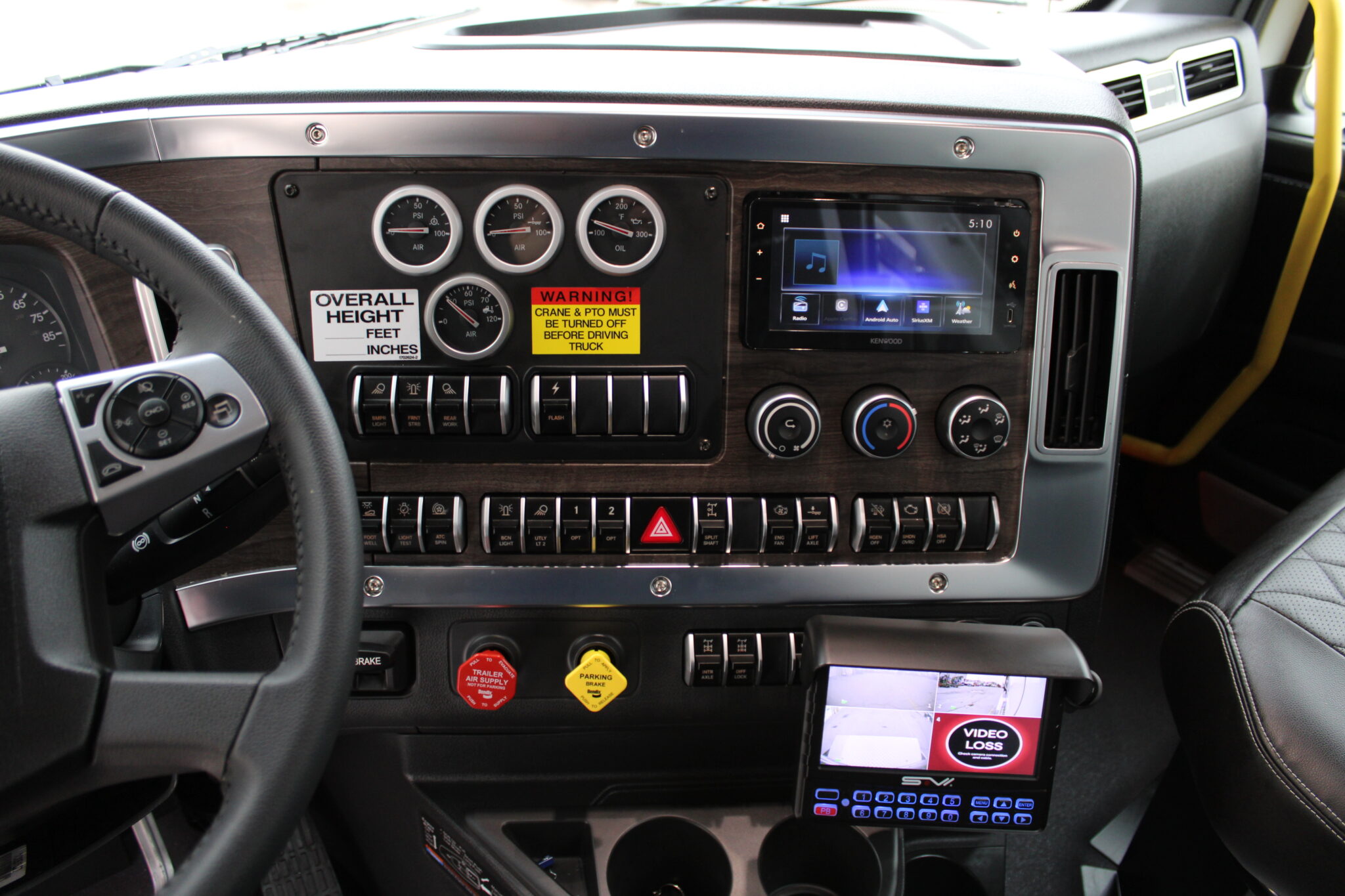

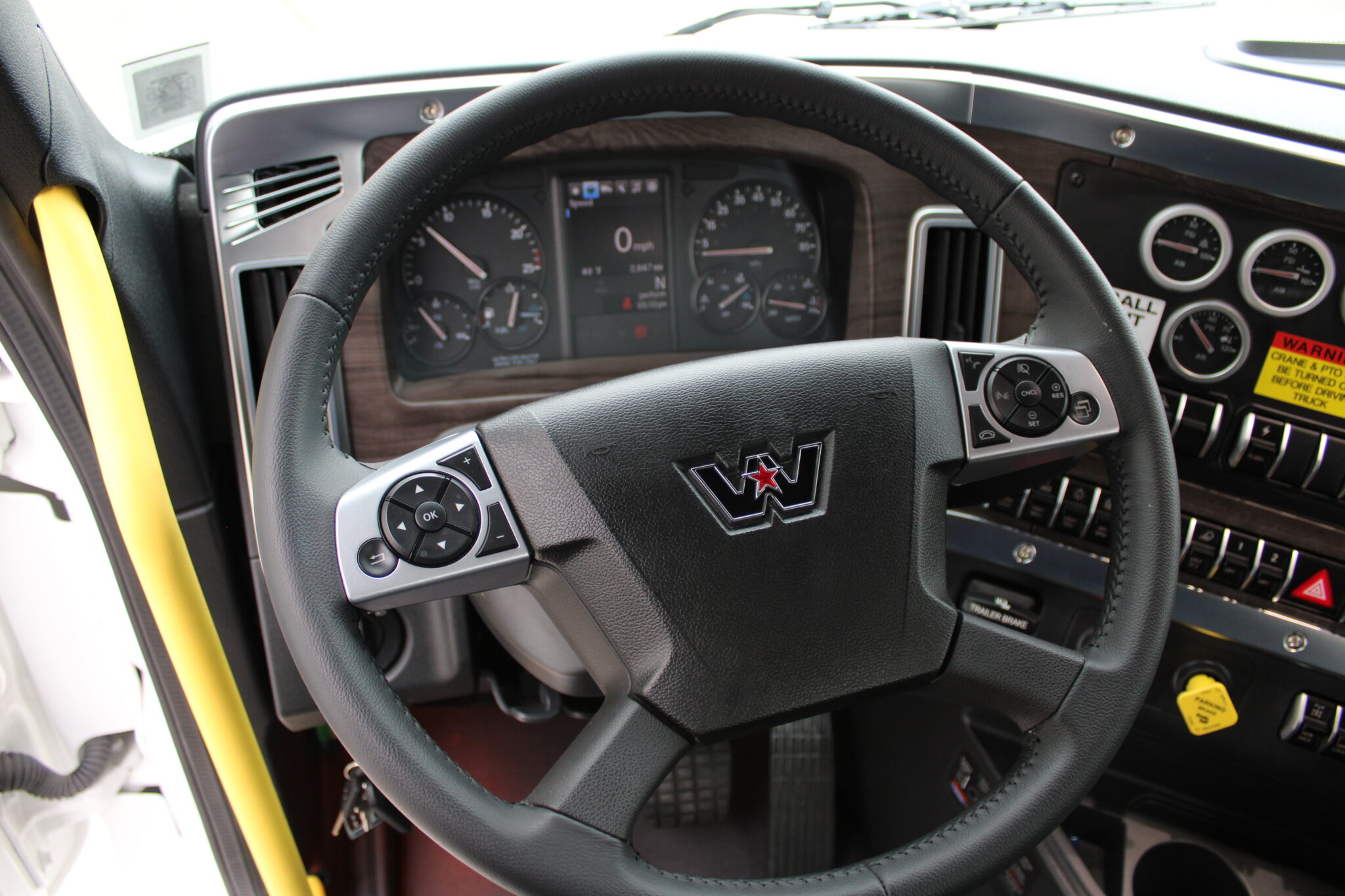

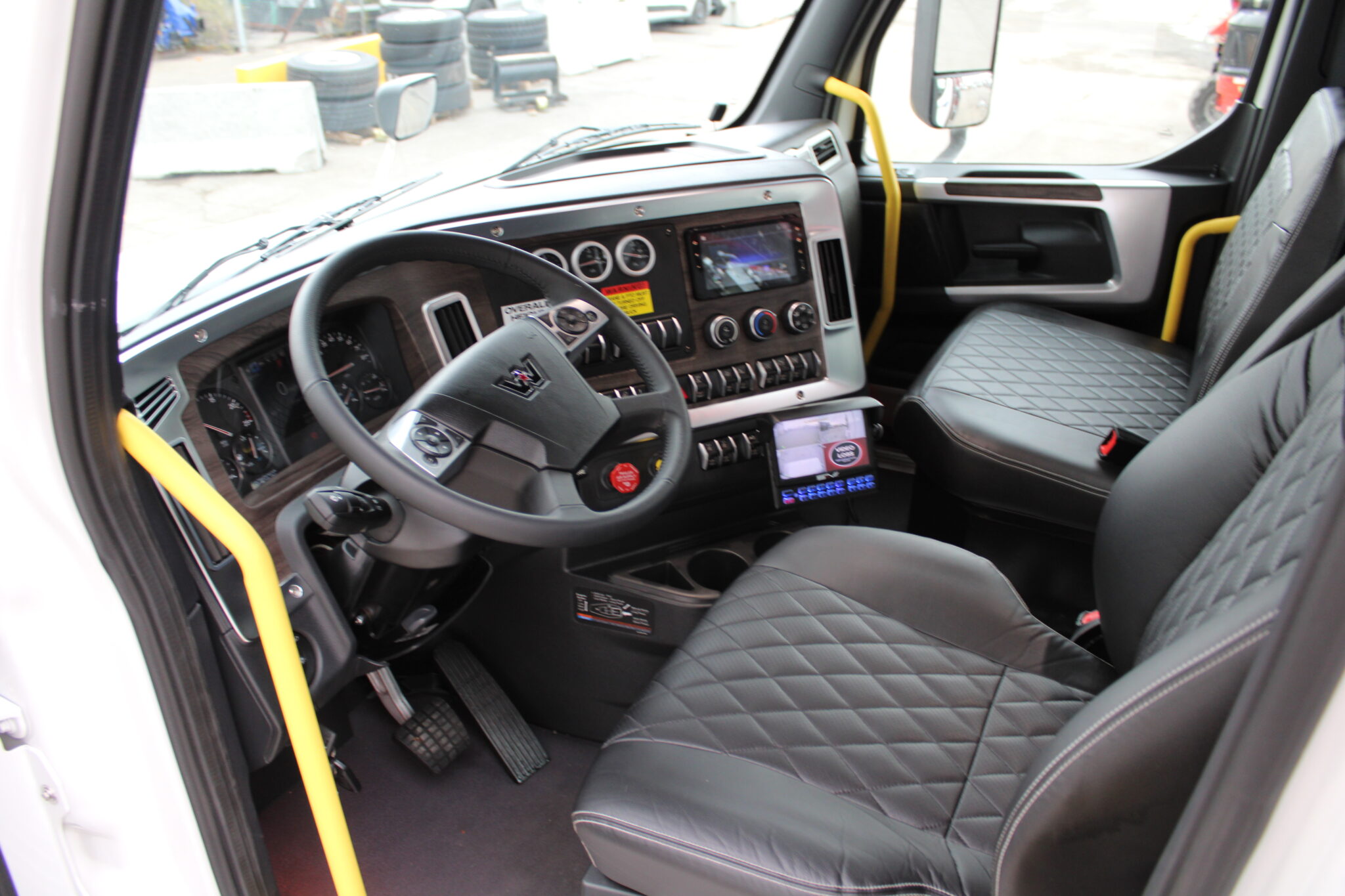

- Loaded with Options including: A/C, Tilt/Telescopic steering, top level Interior, AM/FM/Bluetooth, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 4 wheel lock-ups, power window both sides, power mirrors & door locks, Air ride cab, truck cab white
- 13’ long Platform to be customized to hold 2nd jib, saws and mats, etc…
Options Included:
- 6) pcs – 2” PVC stab pads w/holders

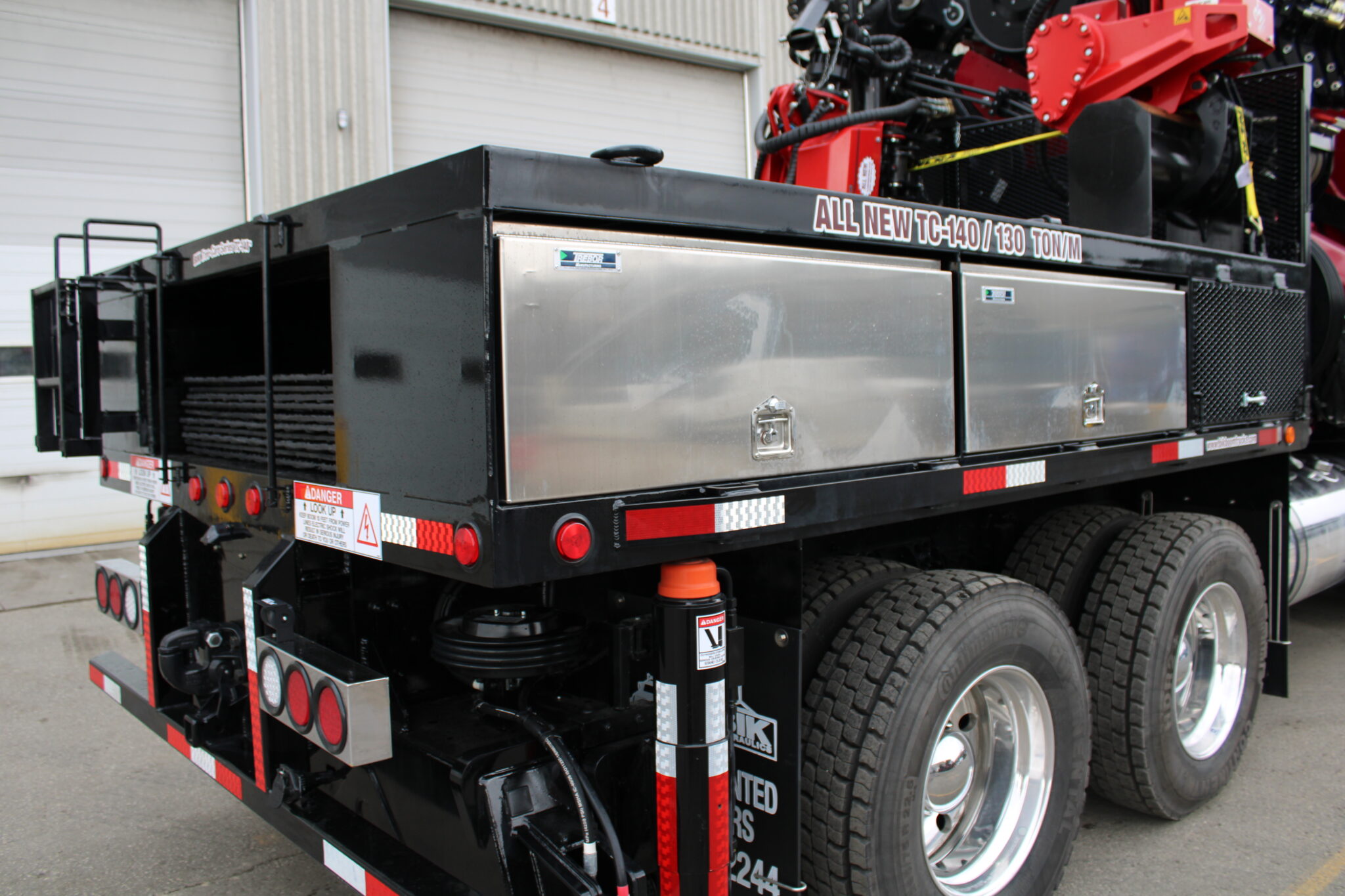

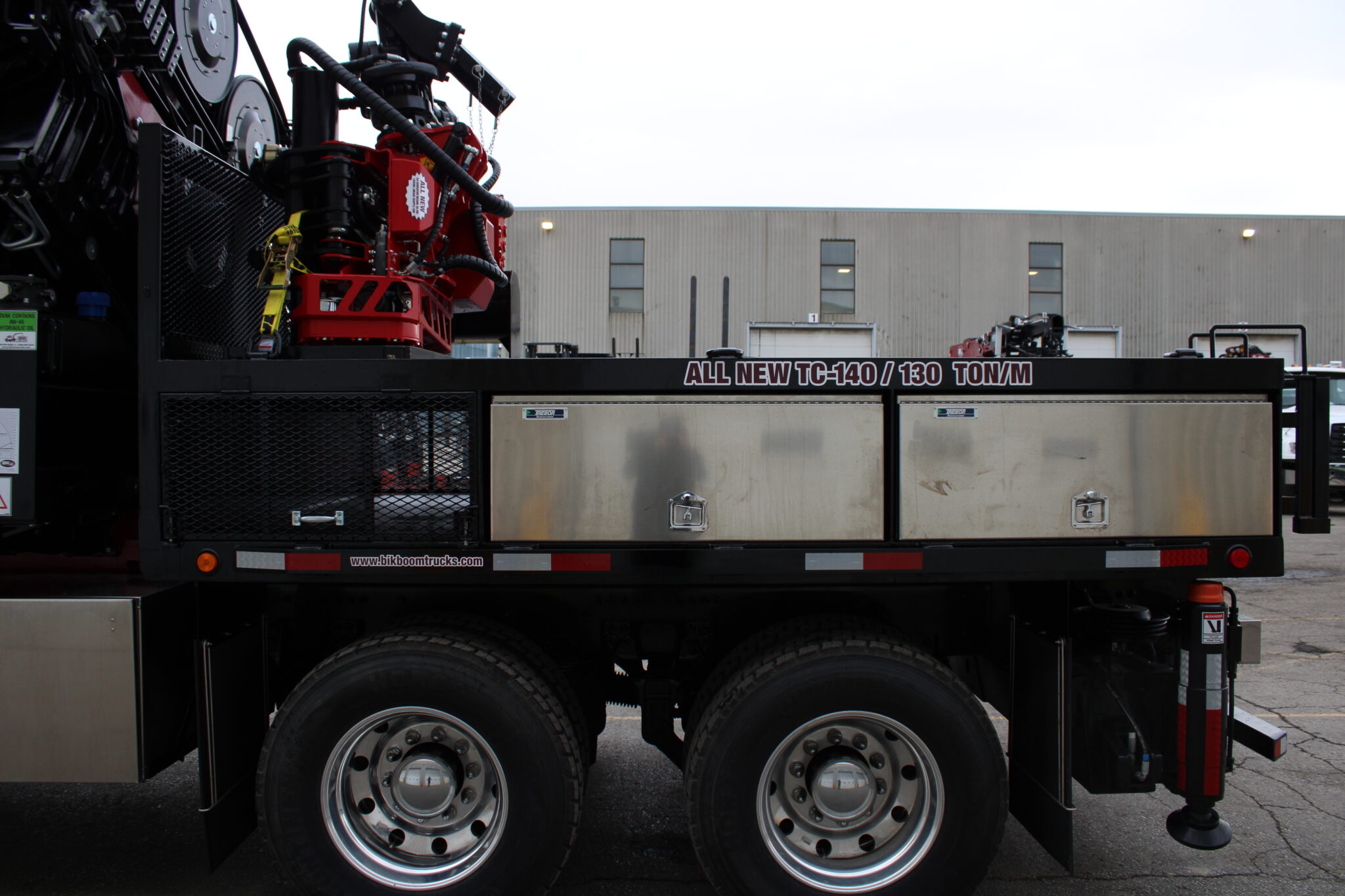

- (2) pcs Alum storage boxes installed
- Custom reinforced manual extension for grapple
- Mecanil SG-280 Grapple Saw with spare parts kit
- Spot lights on main boom and on jib
- 2 to 3 day Boom feature/operation familiarization at your location,
